SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: Geekworm

Choice: yes

Compatible With: Raspberry Pi 5 and X1300 HDMI to CSI

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

[Note]:

• the raspberry pi 5 & M.2 nvme ssd & cooler are NOT in the packing list !

[Overview]

• The X1012 NVMe+POE shield is specifically designed to offer a reliable power source and enhance storage capabilities for the Raspberry Pi 5.

• POE (Power Over Ethernet) refers to the ability to provide DC power for IP-based network devices while transmitting data signals at the same time without affecting the standard Ethernet cabling infrastructure.

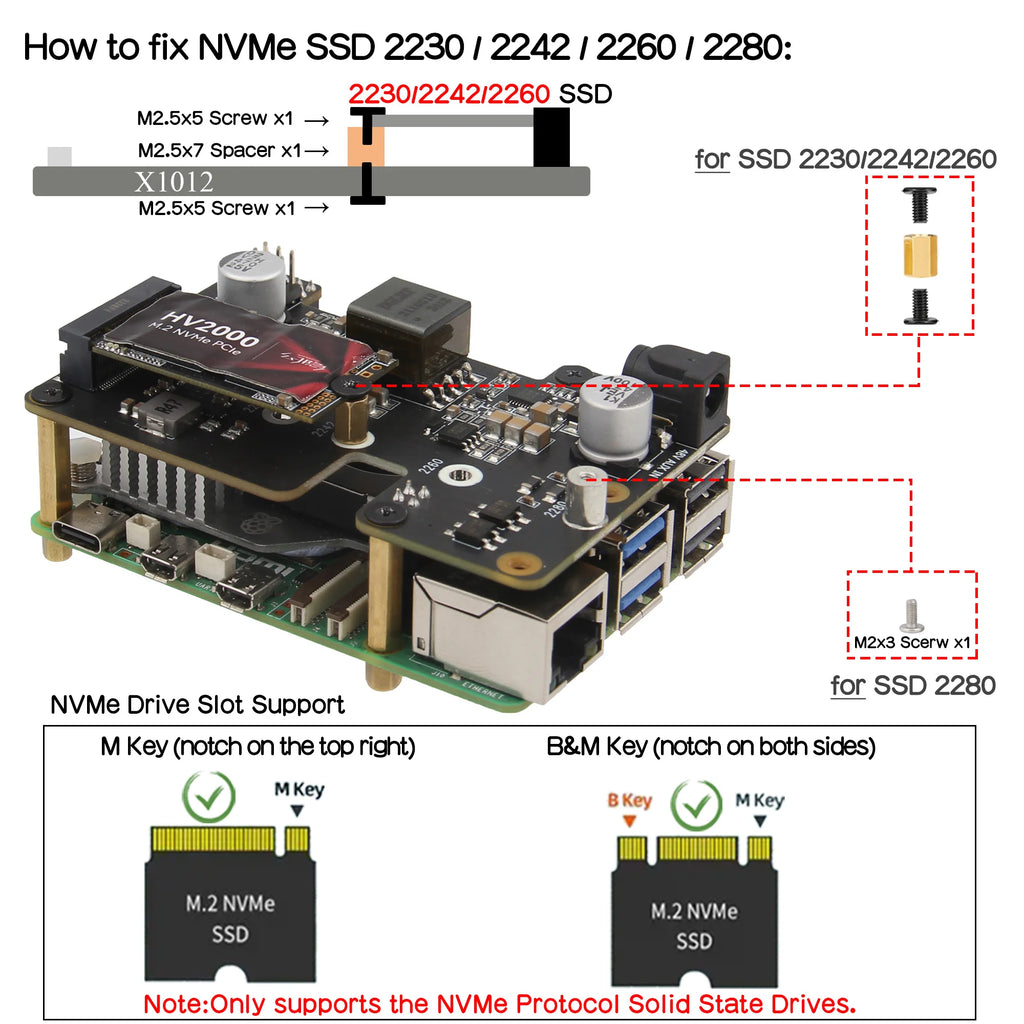

• With its sleek and compact design, this shield allows for easy attachment of various M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5. It supports booting the operating system from your SSD, leading to quicker application launches, web serving, and file copying.


[User Manual]

https://wiki.geekworm.com/X1012

[Features]

POE

• PoE Supported – Power over Ethernet for simplified installation

• Fully isolated switched-mode power supply

• Compatible with 802.3af/at Specifications

• Supports 48V Auxiliary Adapter Supply

• Input voltage: 37–57V DC, Class 4 device

• Output power: 5VDC / 5A

NVMe

• Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230

• Supports operating system booting from your SSD

• Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps

• Does not compromise cooling performance and is fully compatible with the official active cooler

• Features a blue LED indicator that displays power and drive status

• Equipped with an integrated high-efficiency DC/DC step-down converter, providing up to 5A of power for your SSD


[Technical Specification]

Power supply:

• 35-57VDC powering over Ethernet or 40-57Vdc via Auxiliary power jack

Ports & Connectors:

• PCIe connector - 16-pin pitch0.5mm

• SSD connector - M.2 KEY-M 67P

• AUX power jack - 5.5x2.1mm, Center positive(+)

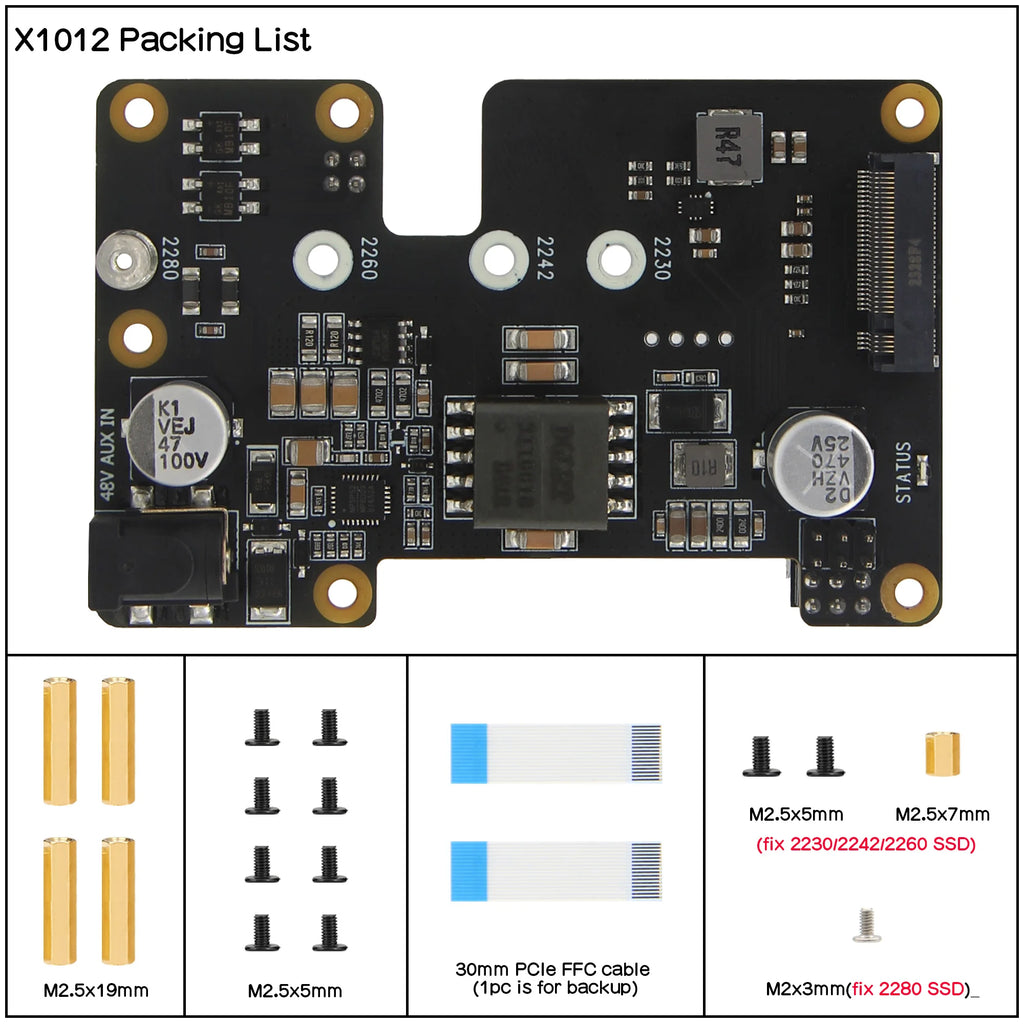

[Packing List]

• 1 x X1012 NVMe + POE shield

• 2 x PCIe FFC (30mm length, Provides a backup)

• 10 x M2.5*5mm screws

• 4 x M2.5*19mm F/F Spacer

• 1 x M2.5* 7mm F/F Spacer (with M2.5*5 screw to mounting 2230/2242/2260 SSD)

• 1 x CM2x3mm screw (sliver color, to fix 2280 SSD only)
