GEYA 2 Pcs 100 MHz Oscilloscope Probe 1X/10X Adjustable Attenuation Switch BNC Clip Test Lead Input Voltage10:1 Scope Probe Kit

GEYA 2 Pcs 100 MHz Oscilloscope Probe 1X/10X Adjustable Attenuation Switch BNC Clip Test Lead Input Voltage10:1 Scope Probe Kit

$62.92

$62.92 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: P6100

Origin: Mainland China

Semi-finishedproduct: No

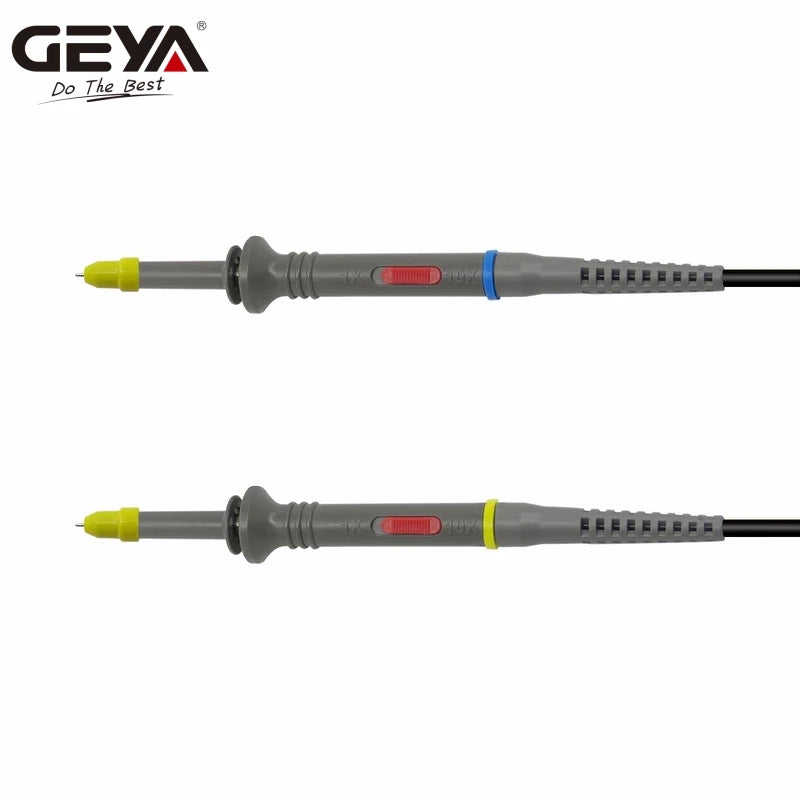

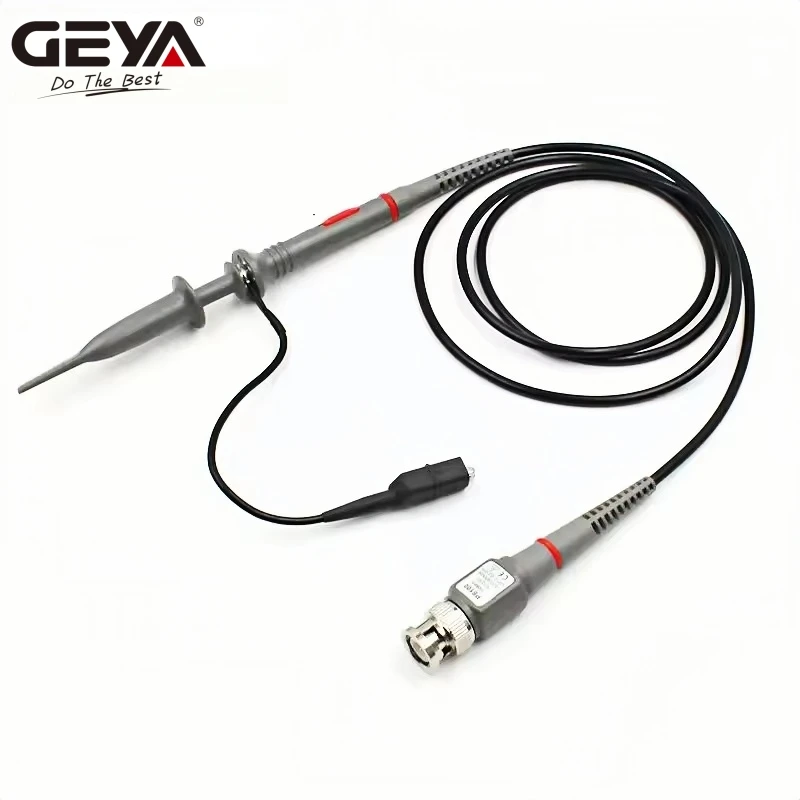

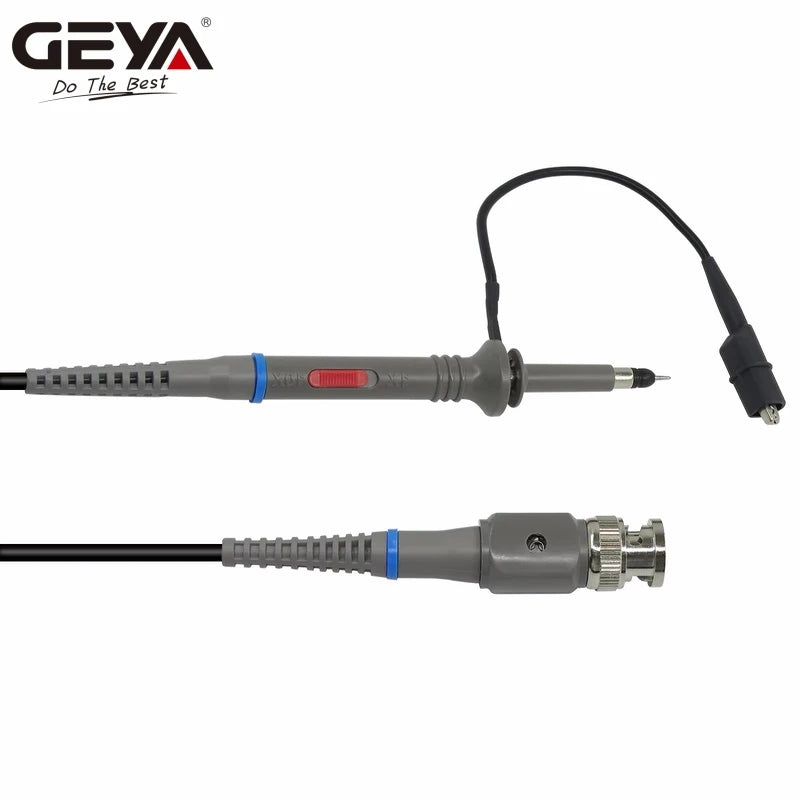

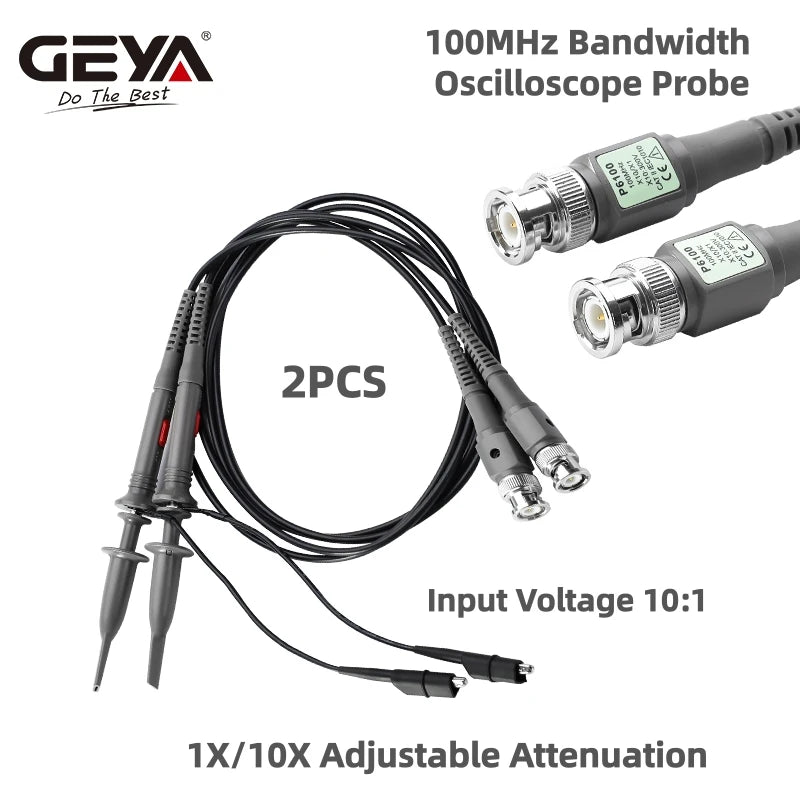

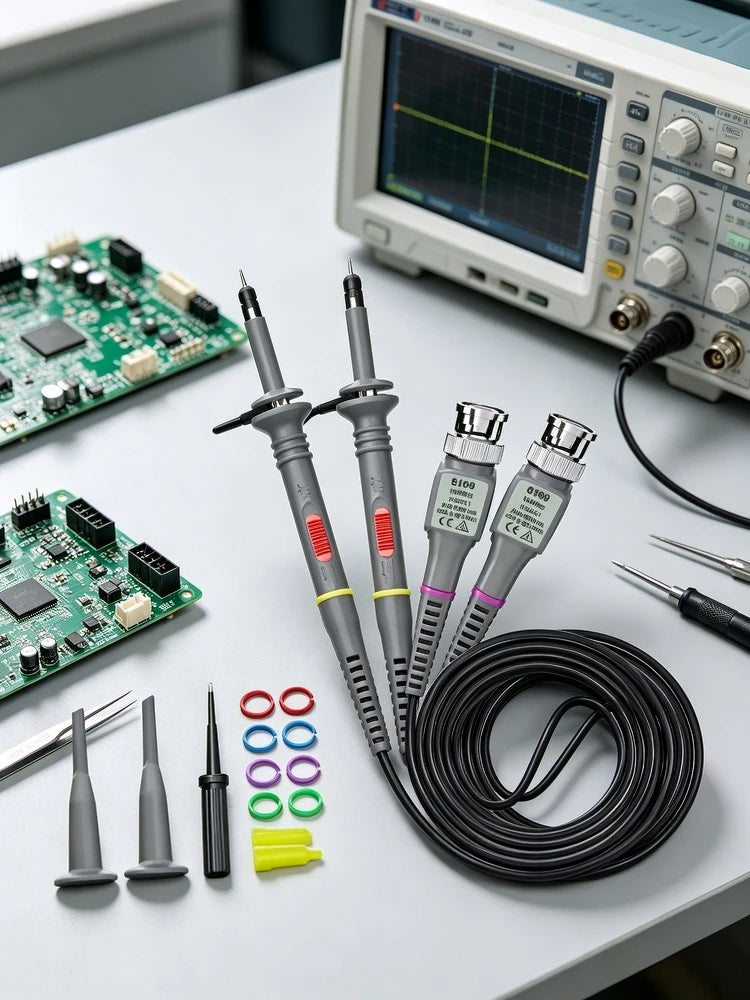

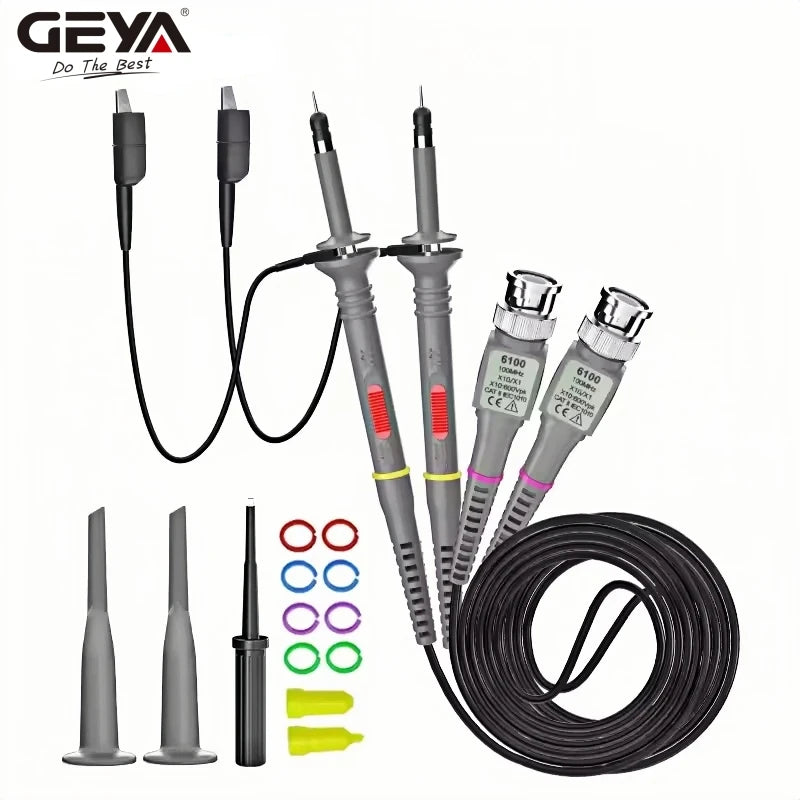

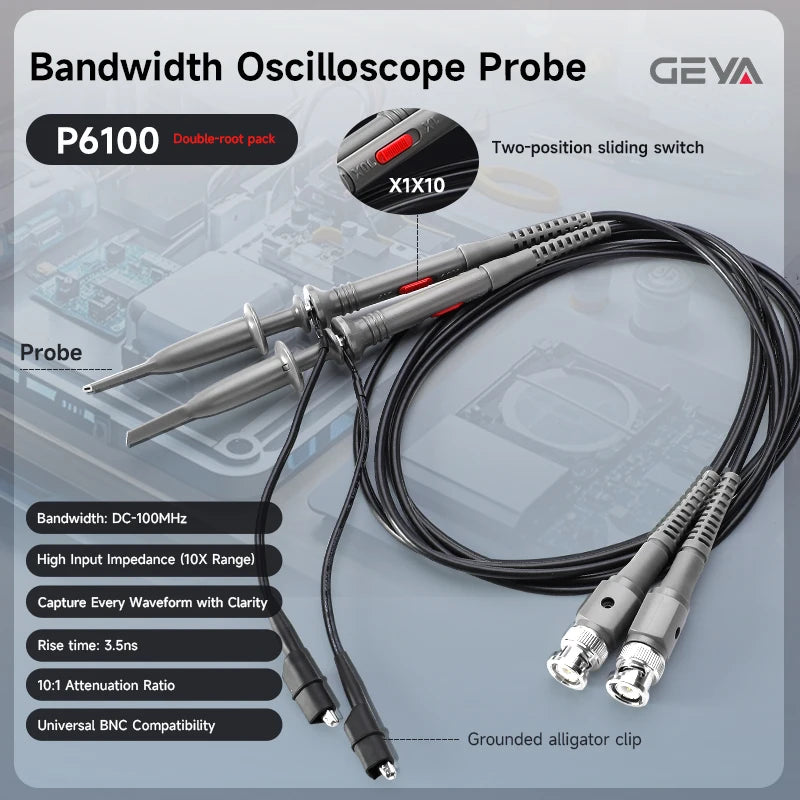

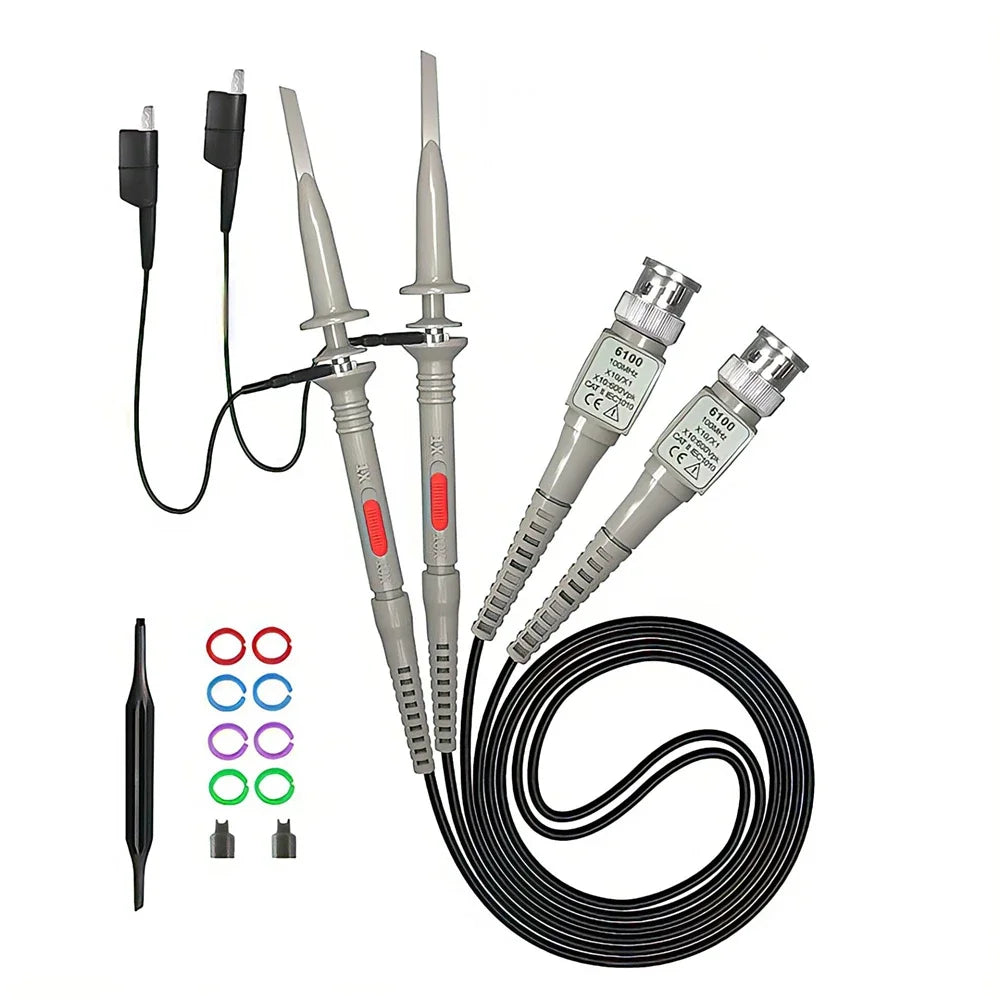

P6100 2pcs 100MHz Bandwidth Oscilloscope Probes 1X/10X

Features and specifications:

·Universal Oscilloscope Probes 10:1 and 1:1 Switchable Bandwidth 100MHz

·Usable with Scopes having Bandwidth up to 100 MHz

·Interchangeable Probe Tip.High Sensitivity, Excellent Performance and Reliable Function
·High Input Impedance (X10 Range)

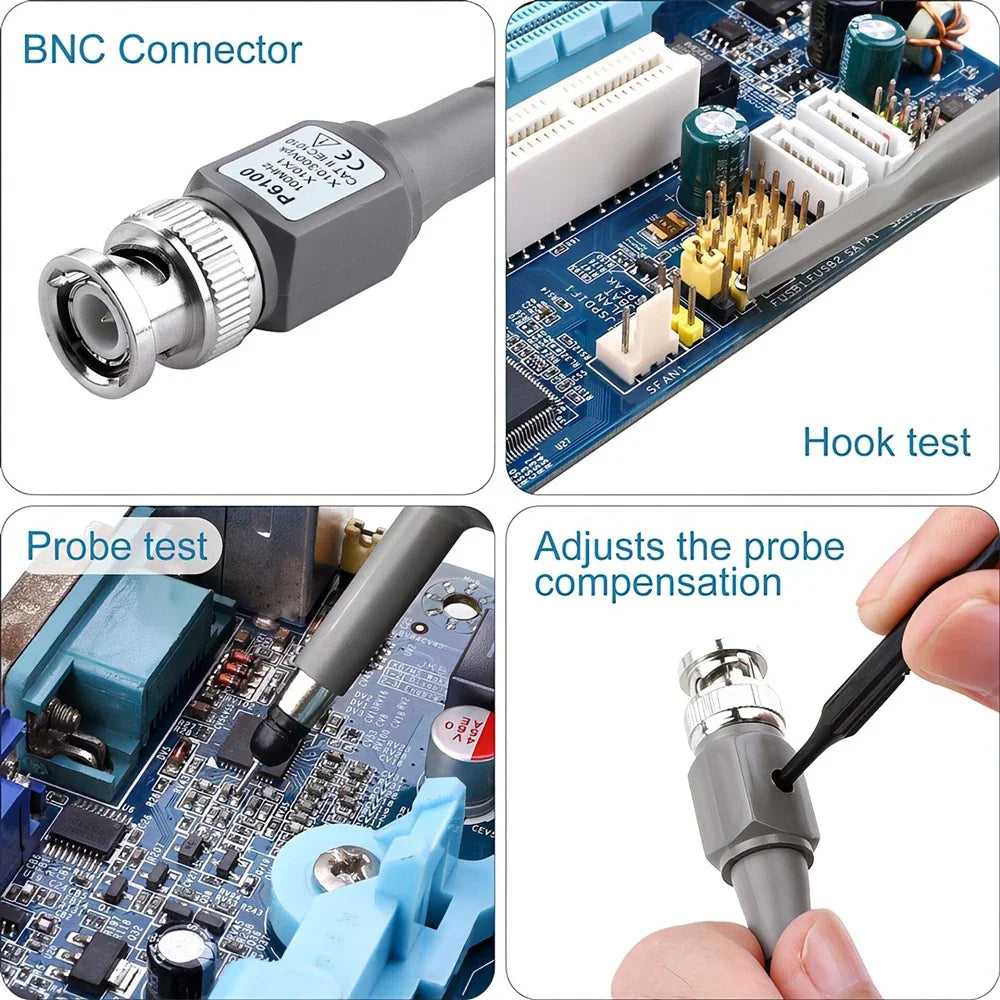

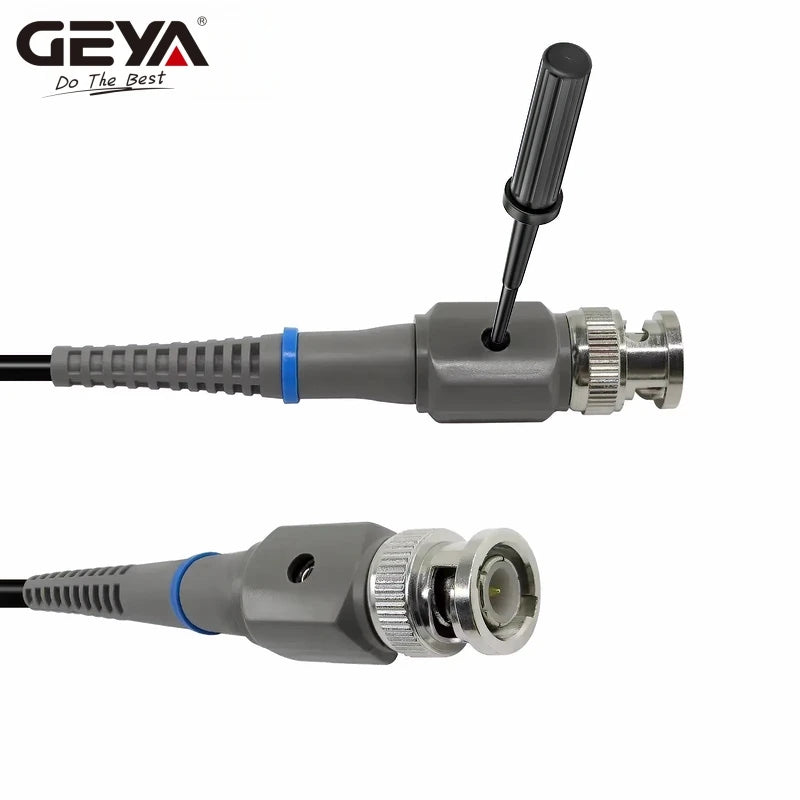

·Used with Oscilloscopes from All Manufacturers , Equipped with The Standard BNC Connector

·Adjustable oscilloscope probe that is compatible with the BNC interface, digital oscilloscopes, virtual oscilloscopes, handheld oscilloscopes, etc.

Parameters

Model: P6100-2PCS

Bandwidth: DC-100MHz

Rise time: 3.5ns

Attenuation ratio: 1X/10X

Input resistance: 1MΩ/10MΩ±2%

Input capacitance: 1X:70pF-120pF, 10X:13pF-18pF

Maximum input: 300 working voltage (Vp-p)

Compensation range: 14 - 35pF

Operation environment: 0-50℃ ,0-80%RH

Storage environment: -20-60℃ ,0-90%RH

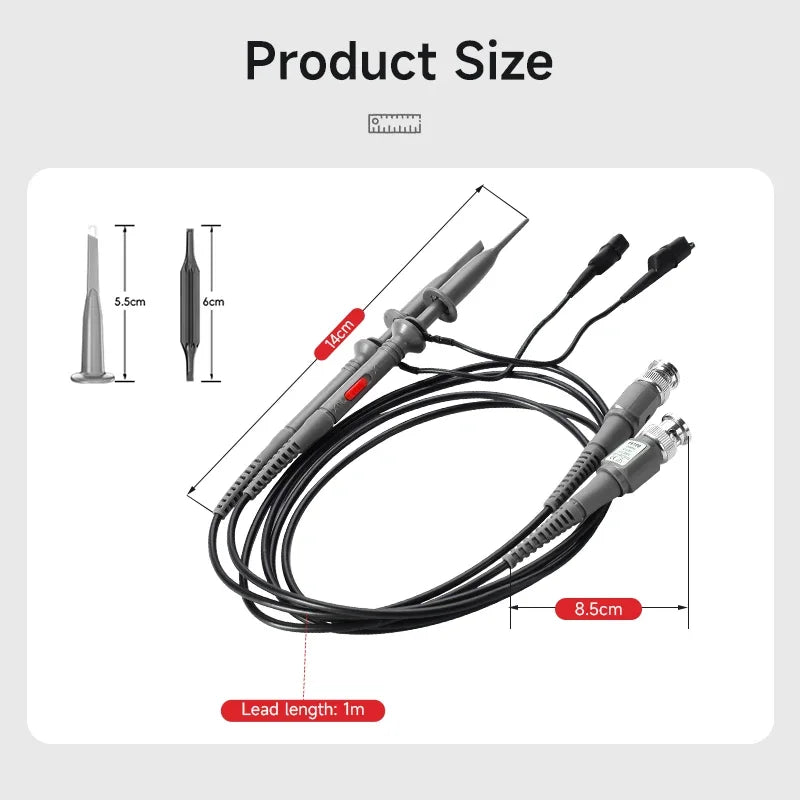

Size:110 ± 2cm Weight: About 130g/set
