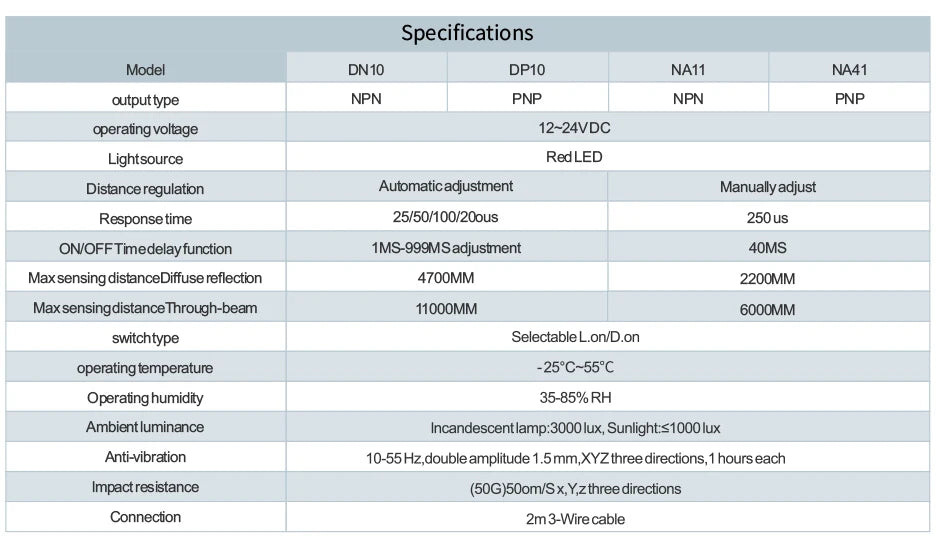

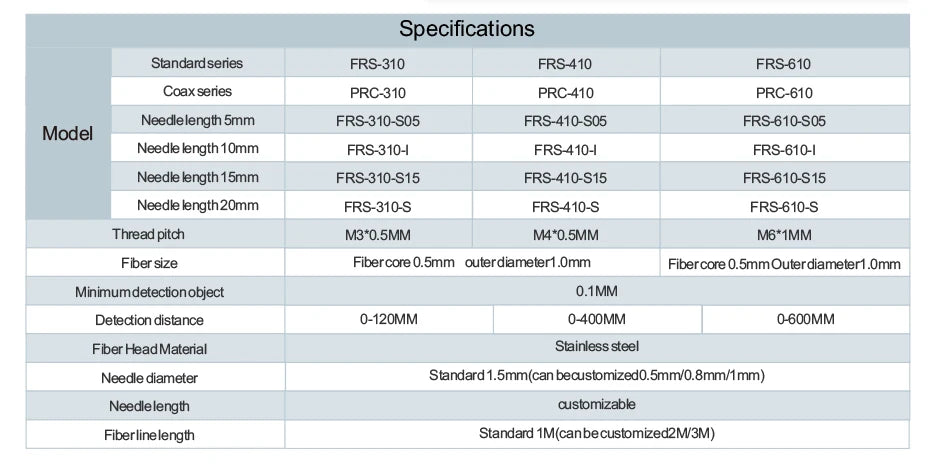

SPECIFICATIONS

Brand Name: GTRIC

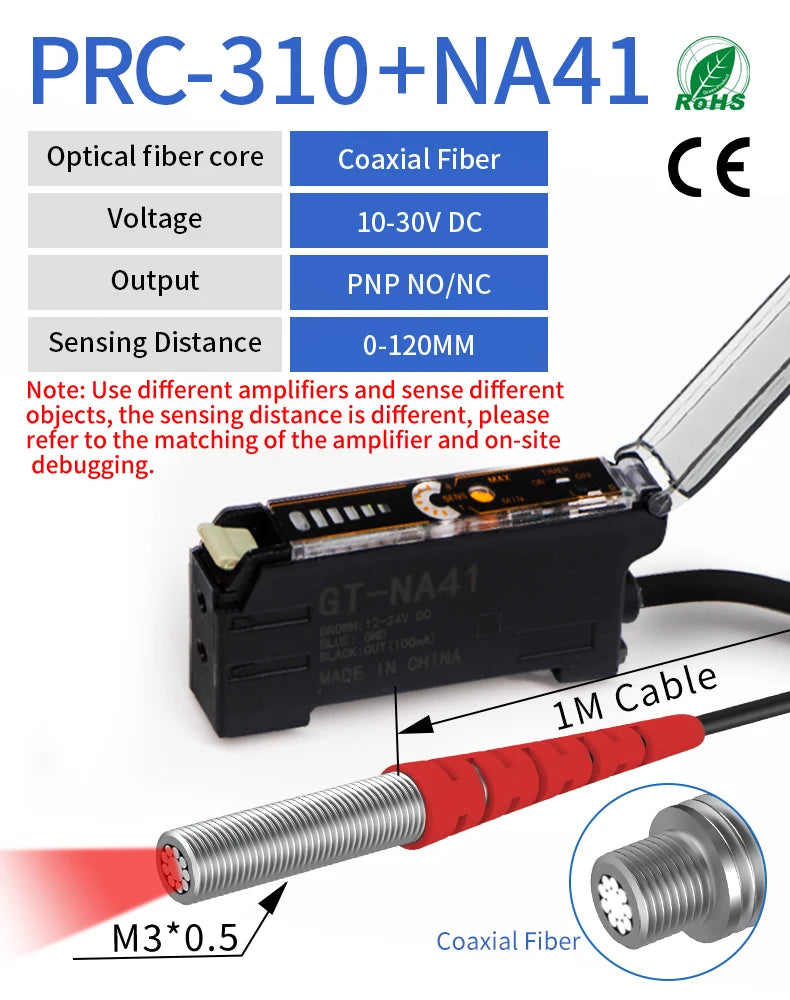

Connection: 1M Fiber Cable

Function: Emitter power optional Output time delay optional

High-concerned chemical: none

Material: Metal

Minimum sensing distance: 0-0.1mm

Origin: Mainland China

Output: Switching Transducer

Protection: IP 67

Residual voltage: DC≤1V

Response frequency: 600 Hz

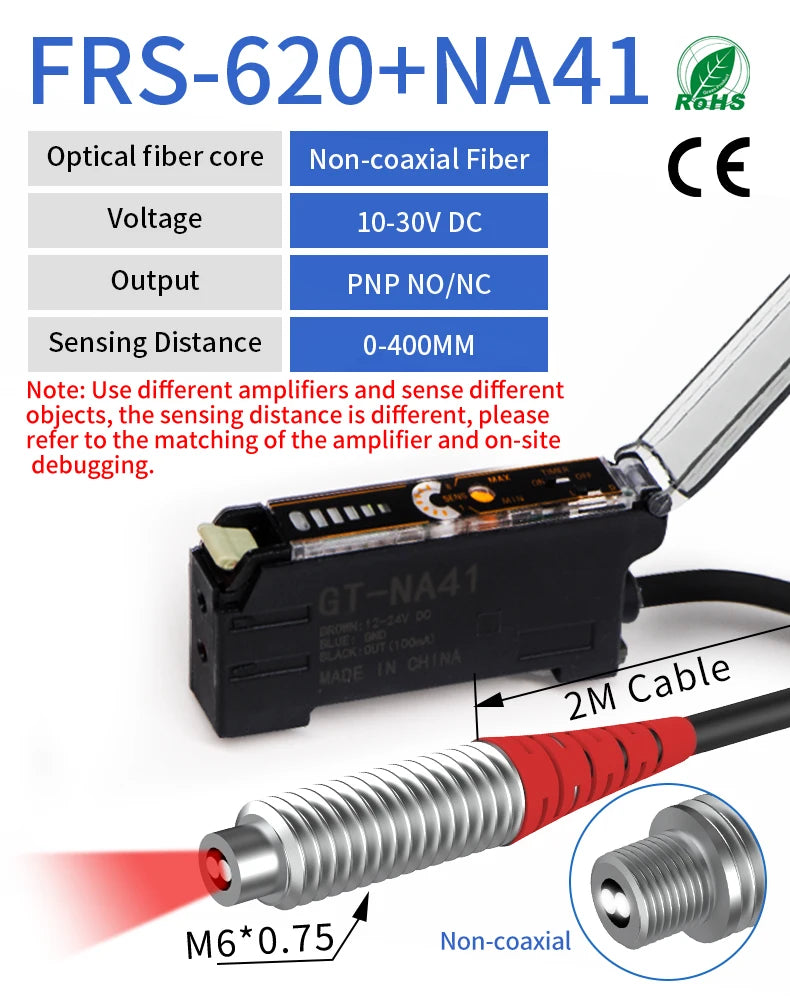

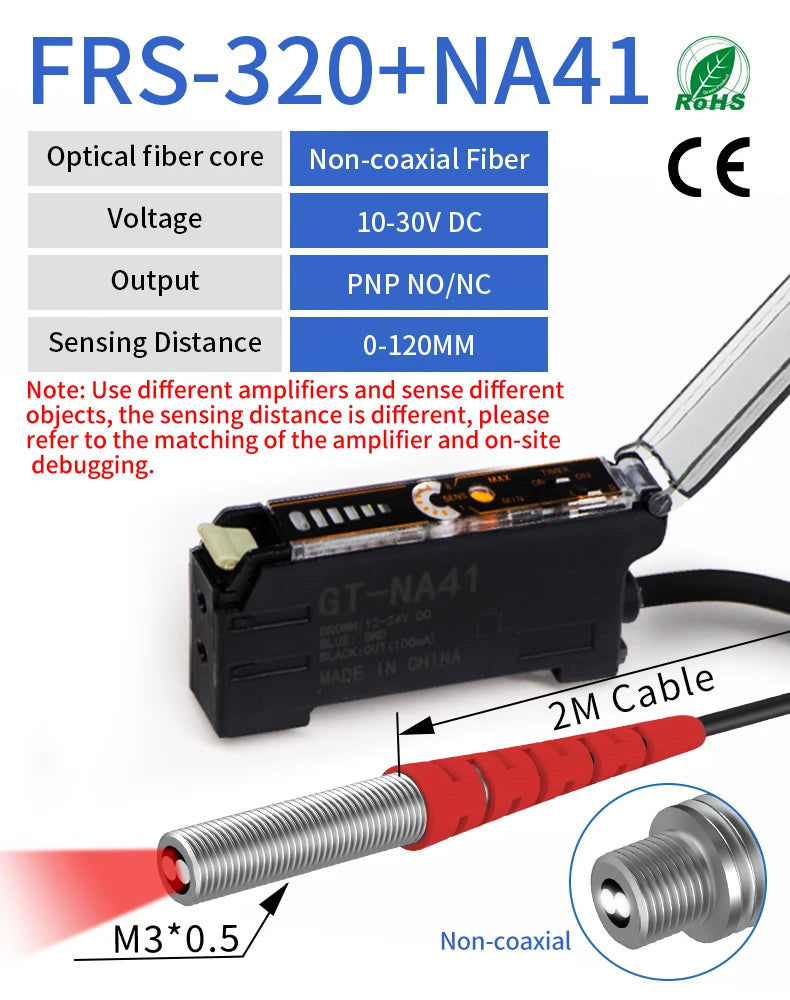

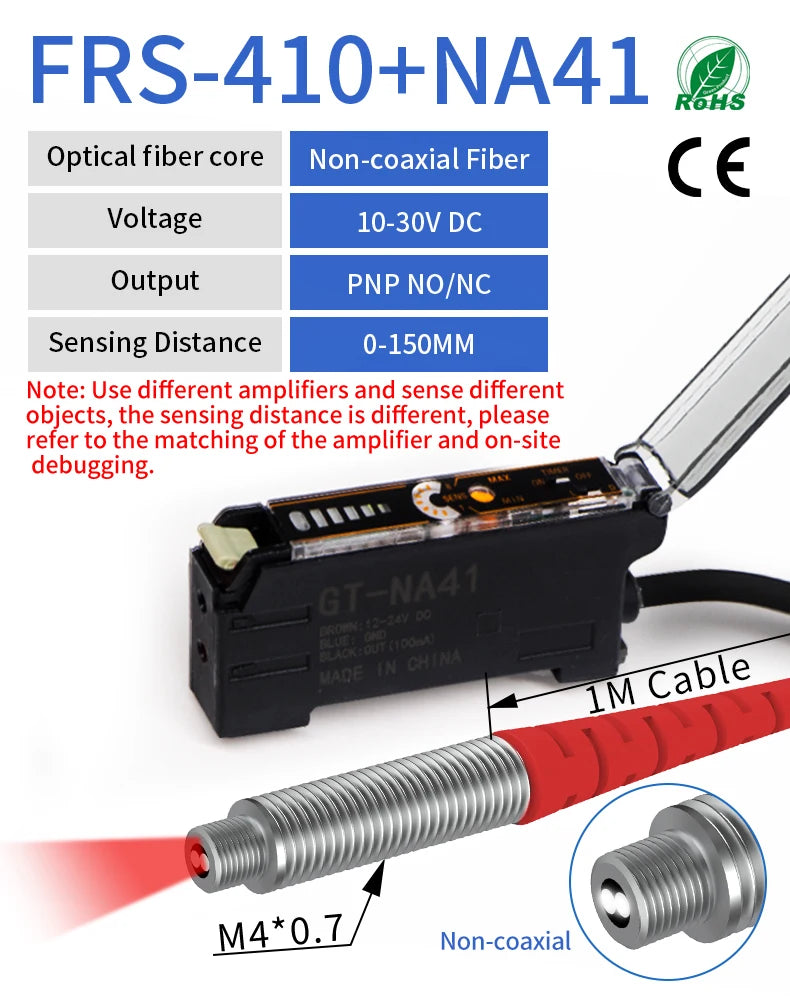

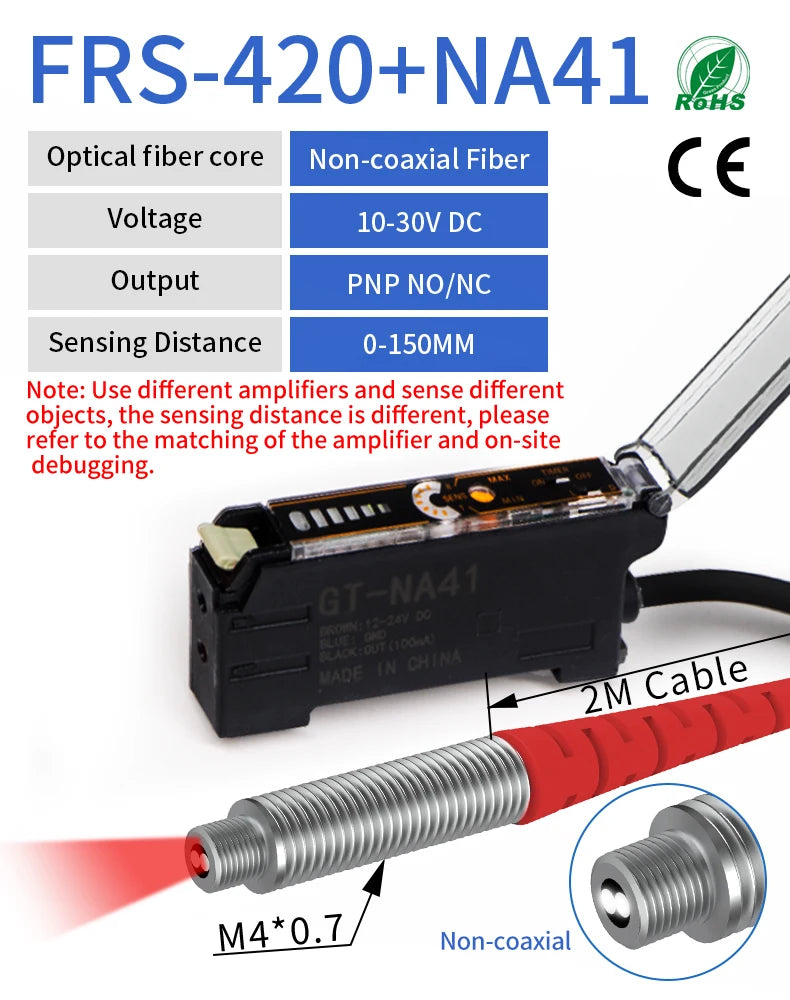

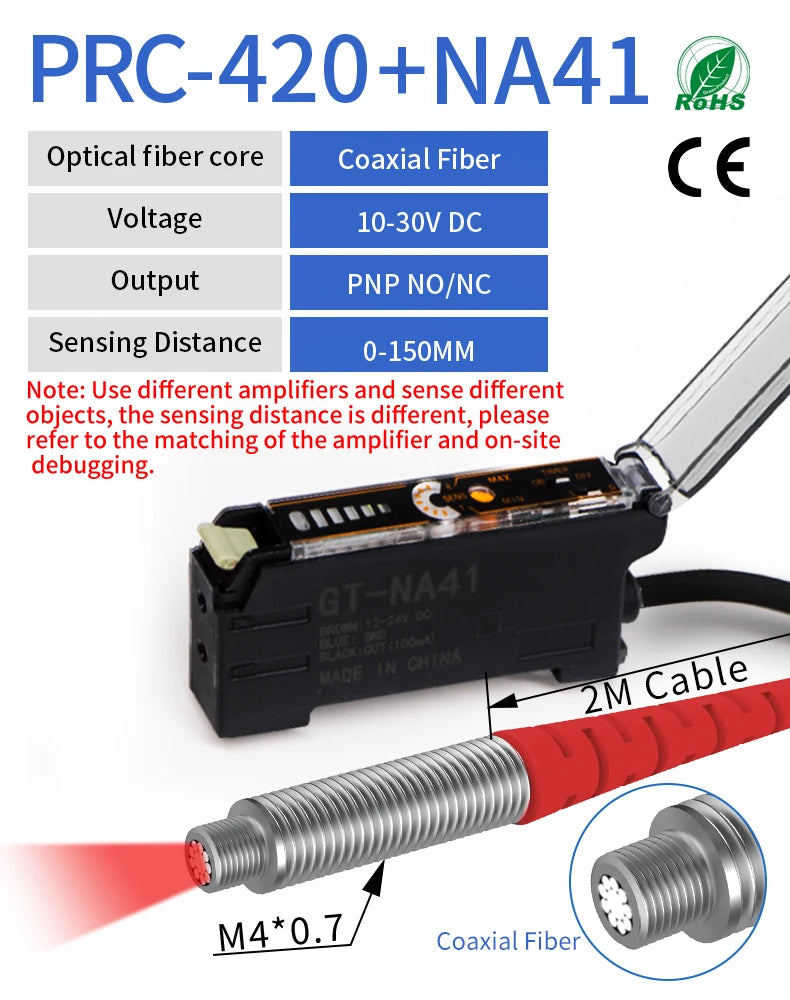

Sensing distance: 0-120MM/150MM/400MM

Standard targe: White card reflcetion rate 90%

Supply voltage: 10-30 VDC 3-wries

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Position Sensor

is_customized: Yes

NOTE:

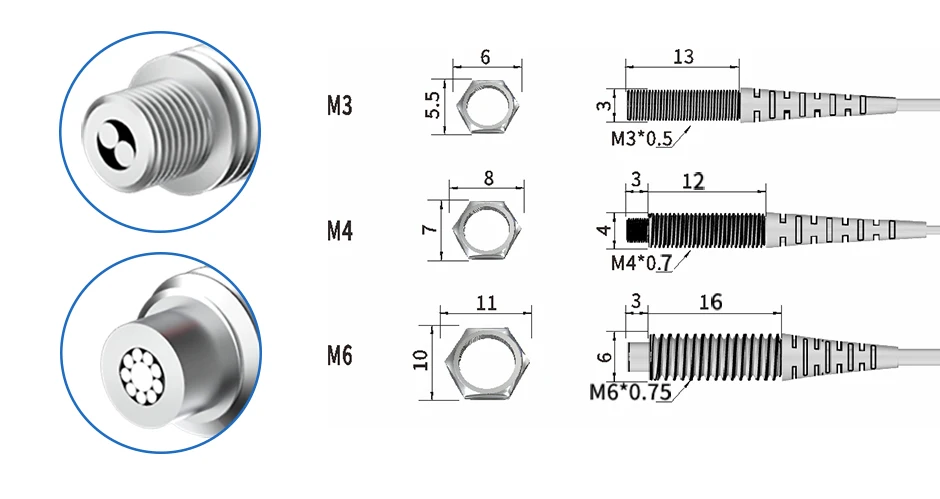

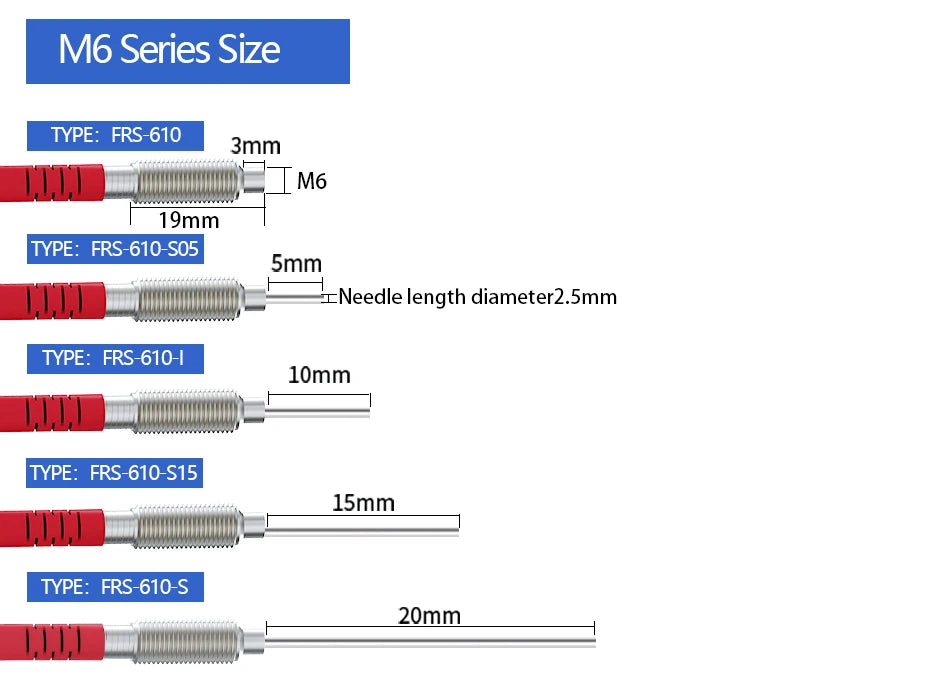

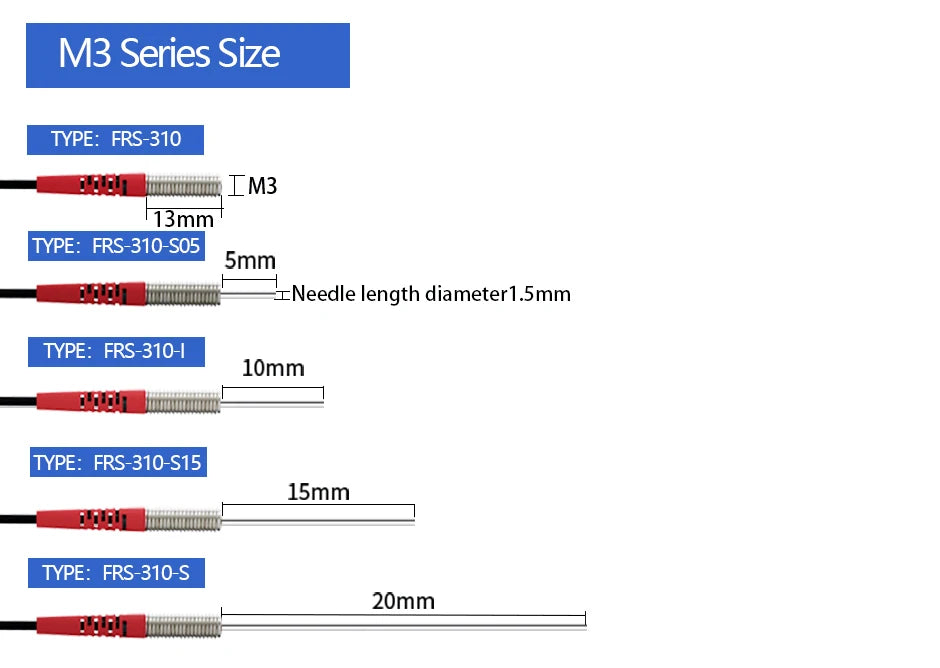

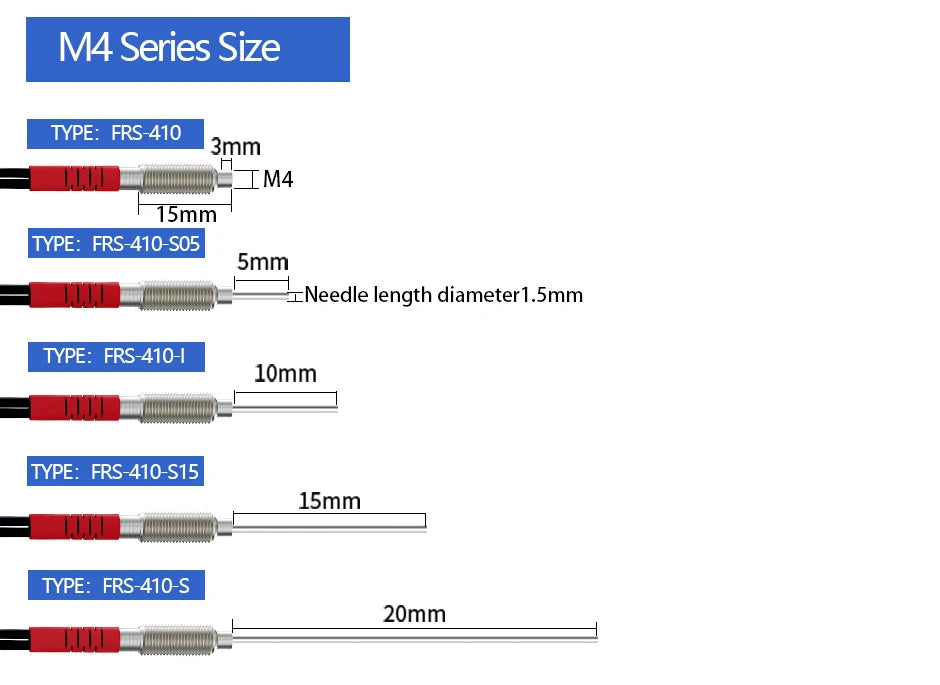

Can be customized Needle length and cable length,please consult the store for details.

The actual sensing distance is related to the sensing object and the environment,please refer to the on-site adjustment amplifier for details.About GTRIC

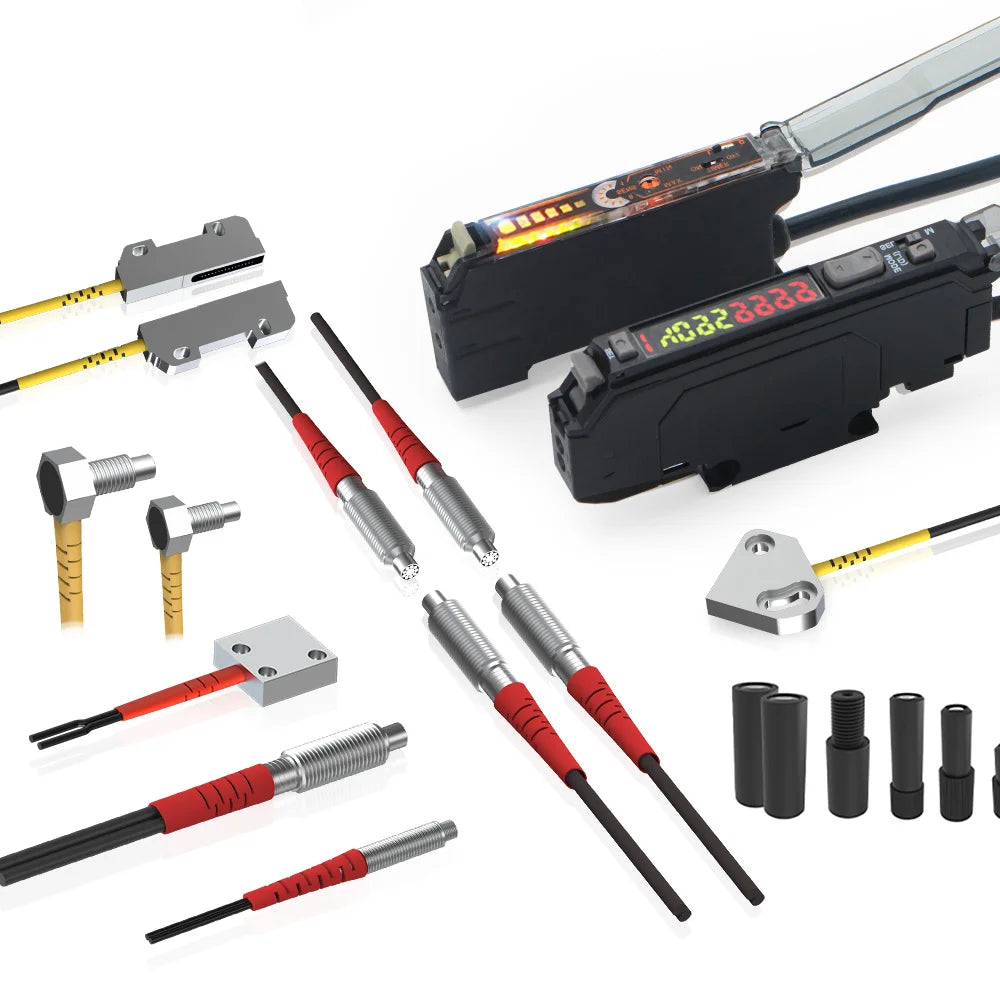

    Wenzhou Gtric Technology Co., Ltd. is located in Yueqing IoT sensors Park, which covers 5,000 square meters, with over 100 employees. We are focuses on intelligent manufacturing and industrial automation, our main businesses are sensors, encoders, button switch, coupling, expansion set and other industrial automation products, providing standard and individual products and solutions for customers.
