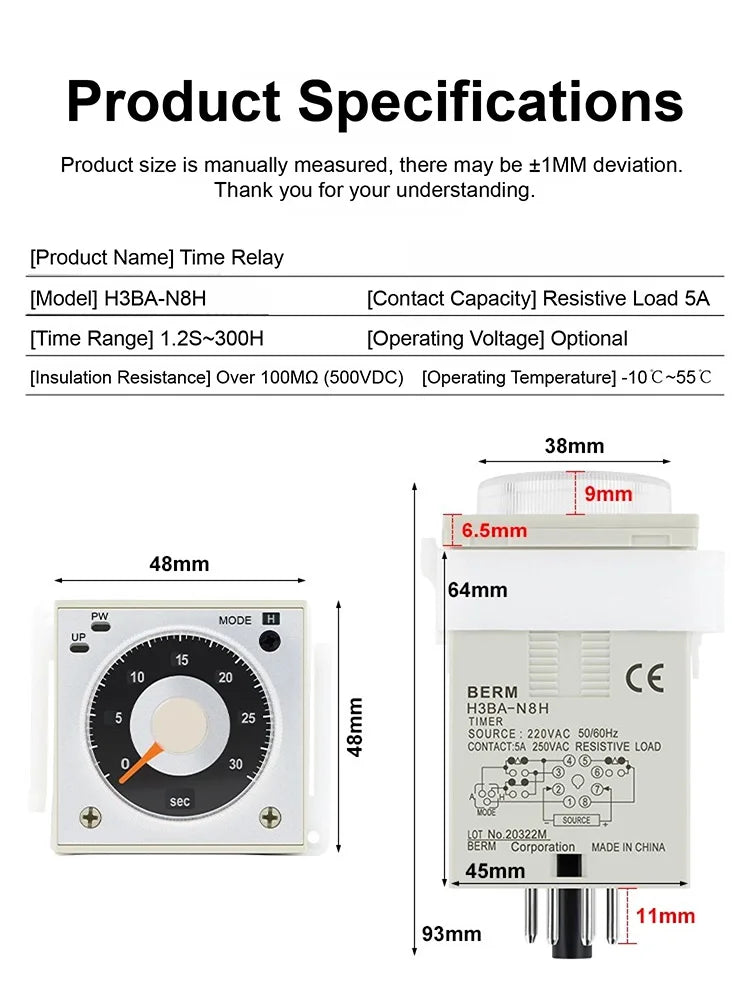

SPECIFICATIONS

Ambient Temperature: -10°C ~ +55°C

Brand Name: NONE

Contact Capacity: 5A (resistive load)

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Housing Material: PC (Polycarbonate)

Insulation Resistance: ≥100MΩ (500VDC)

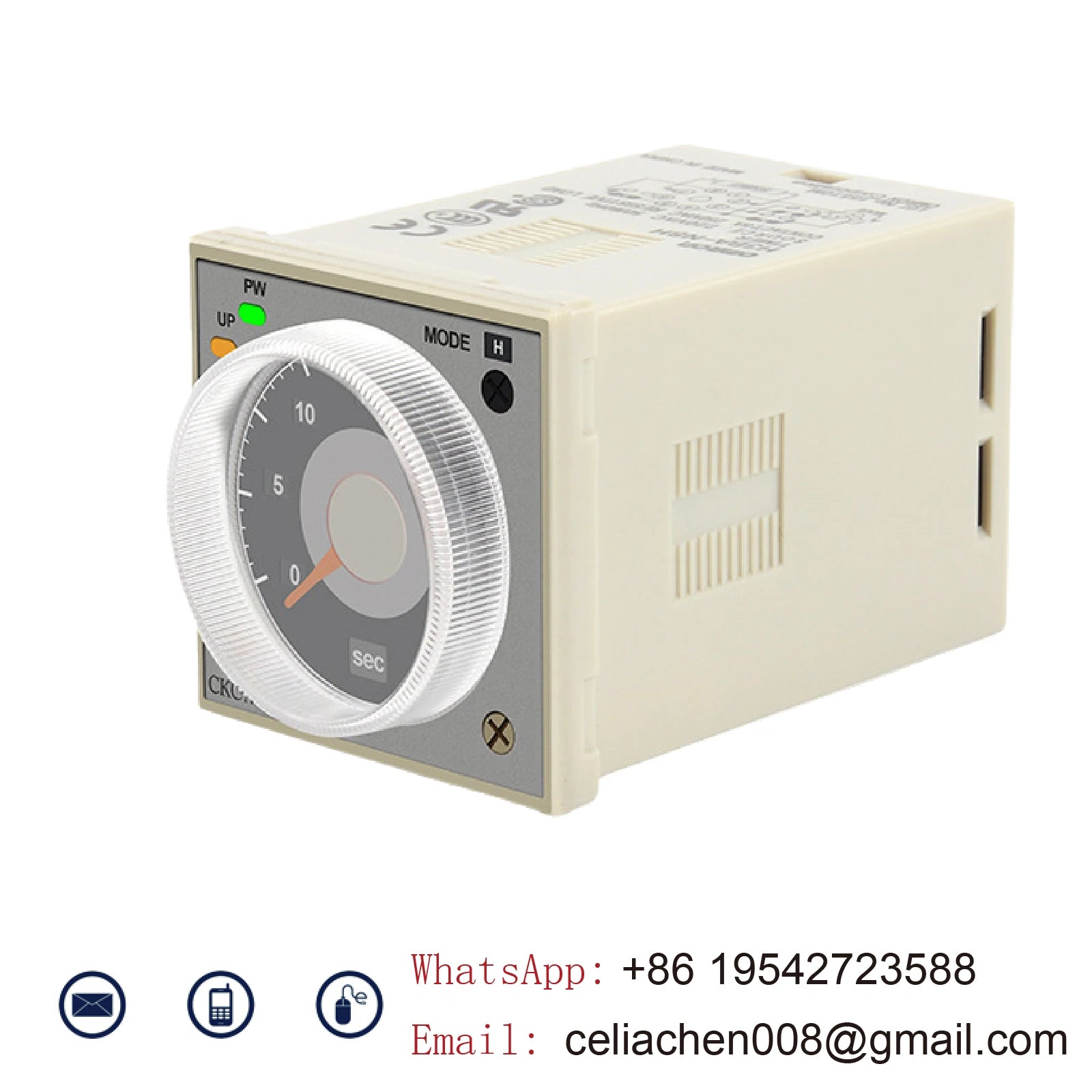

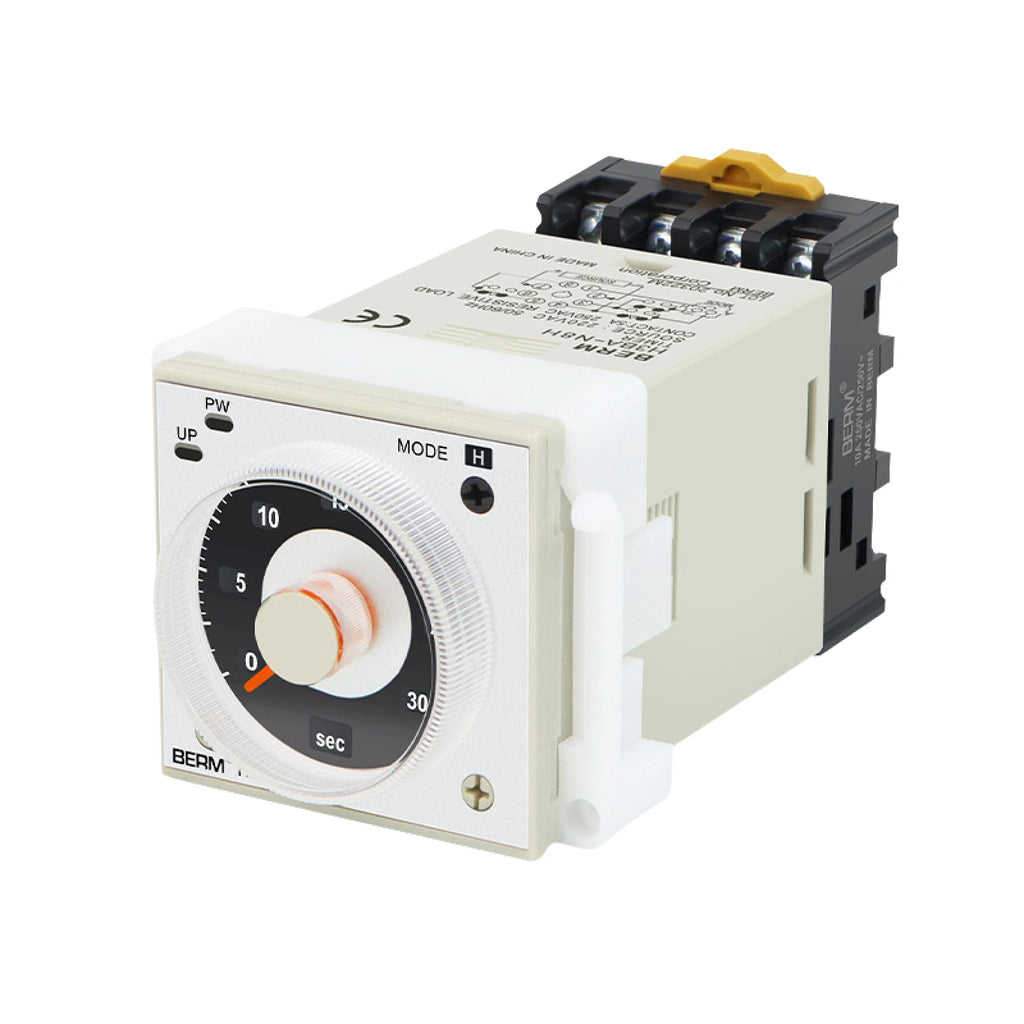

Model: H3BA-N8H

Mounting Type: 8-pin DIN socket

Origin: Mainland China

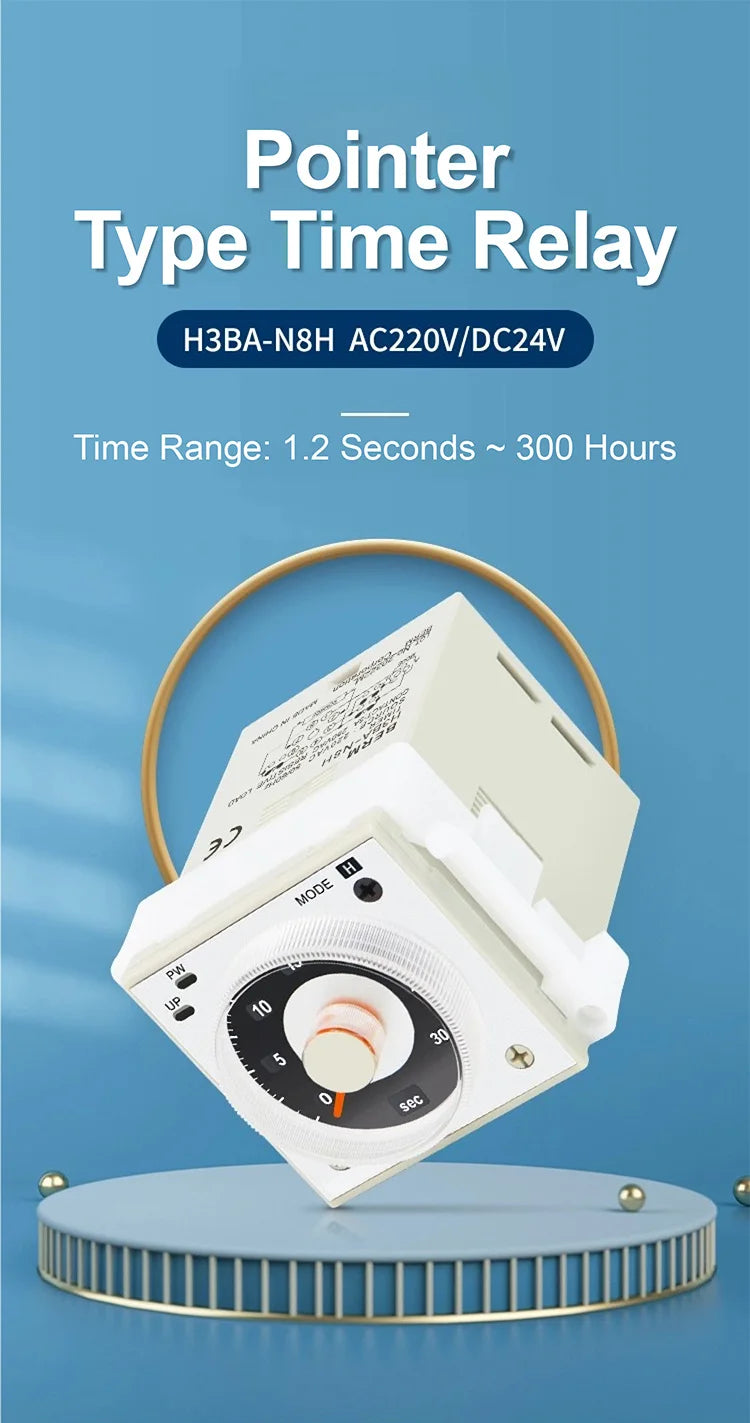

Time Range: 1.2 seconds ~ 300 hours

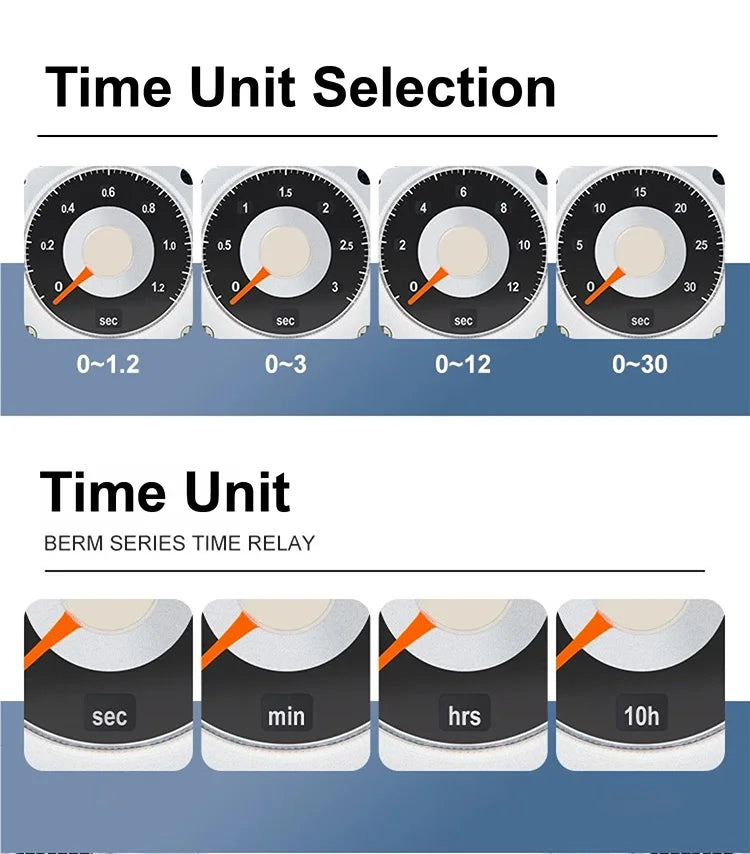

Time Range Selection: 1.2 / 3 / 12 / 30

Time Units: sec / min / hrs / 10h

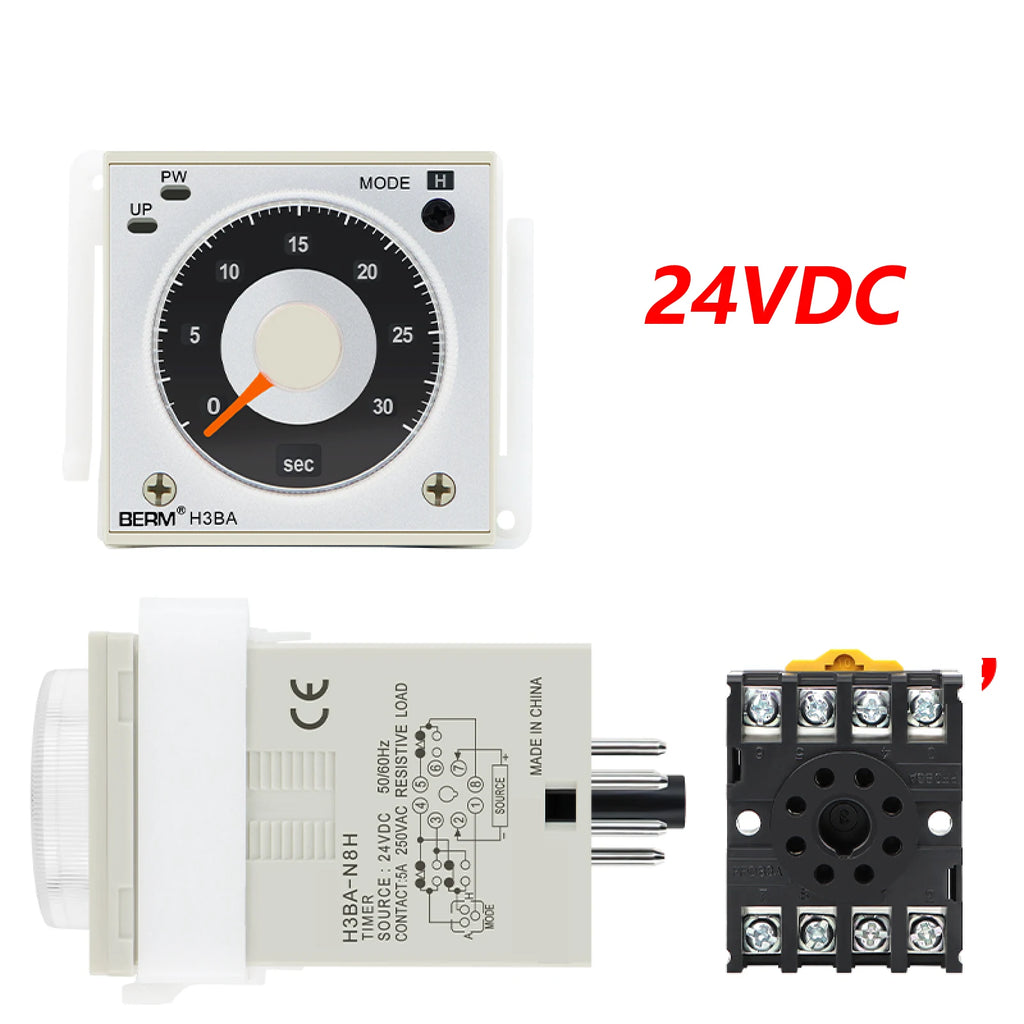

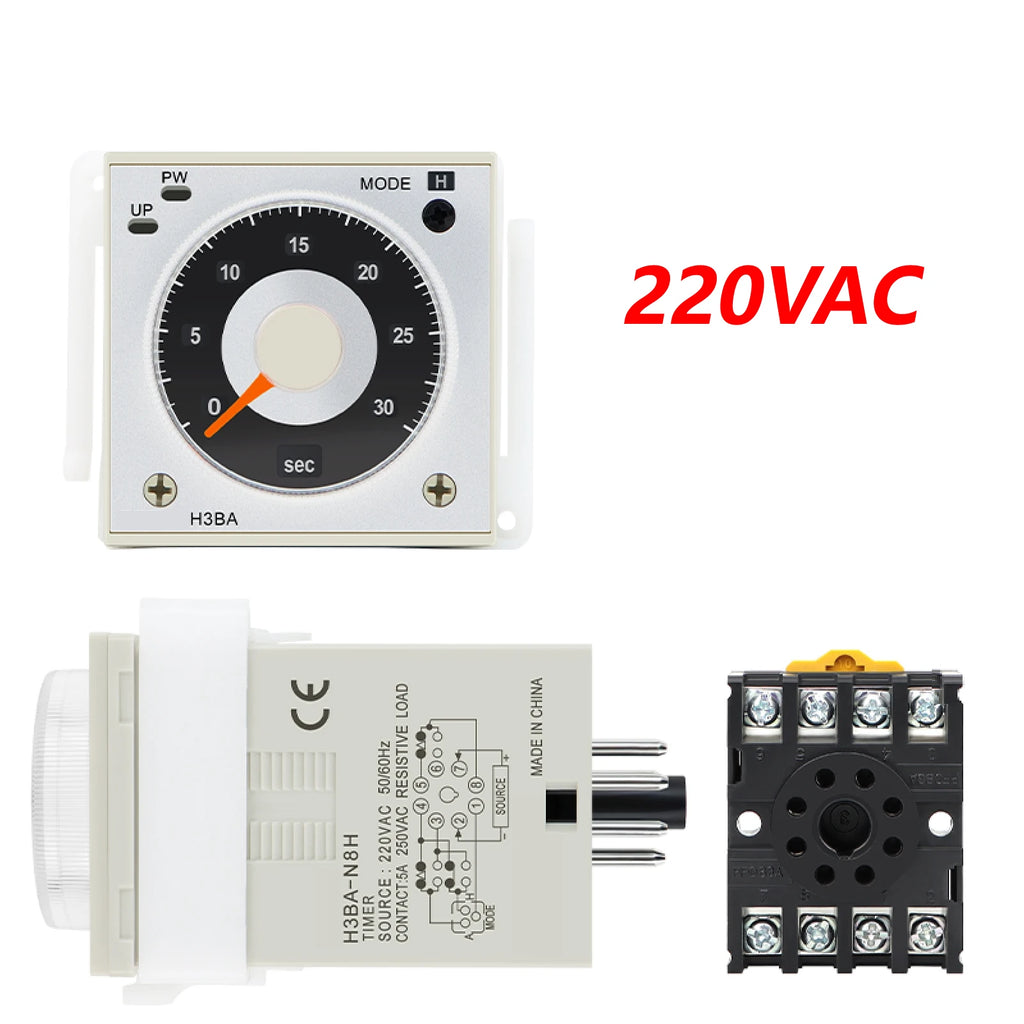

Voltage Options: AC220V / DC24V (optional)

1.NOTE

Due to page display limitations, some product configurations or usage methods may not be fully listed. Please contact us for any special requirements.

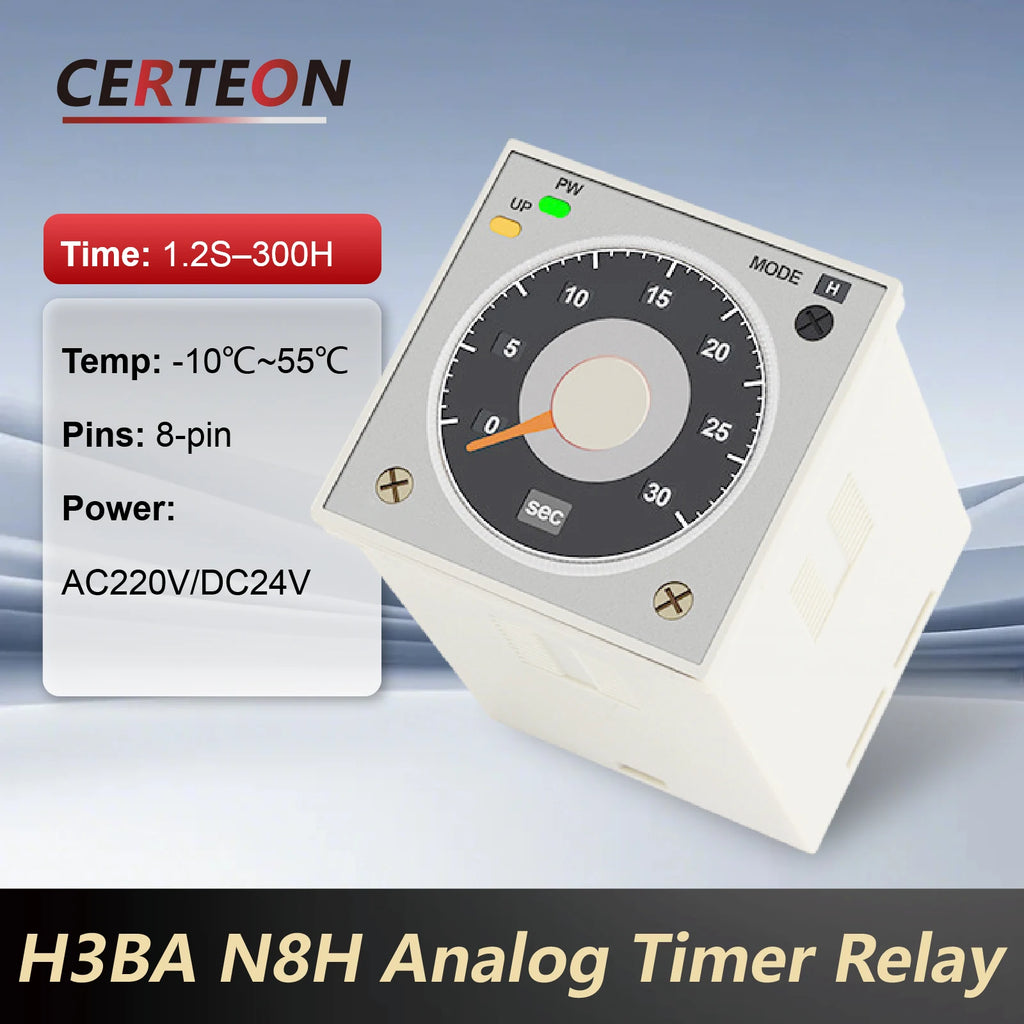

Default configuration:
Time range: 1.2S~300H
Power supply: AC220V / DC24V
Pins: 8-pin
Temperature resistance: -10℃~55℃

2. Parameters

3. Features

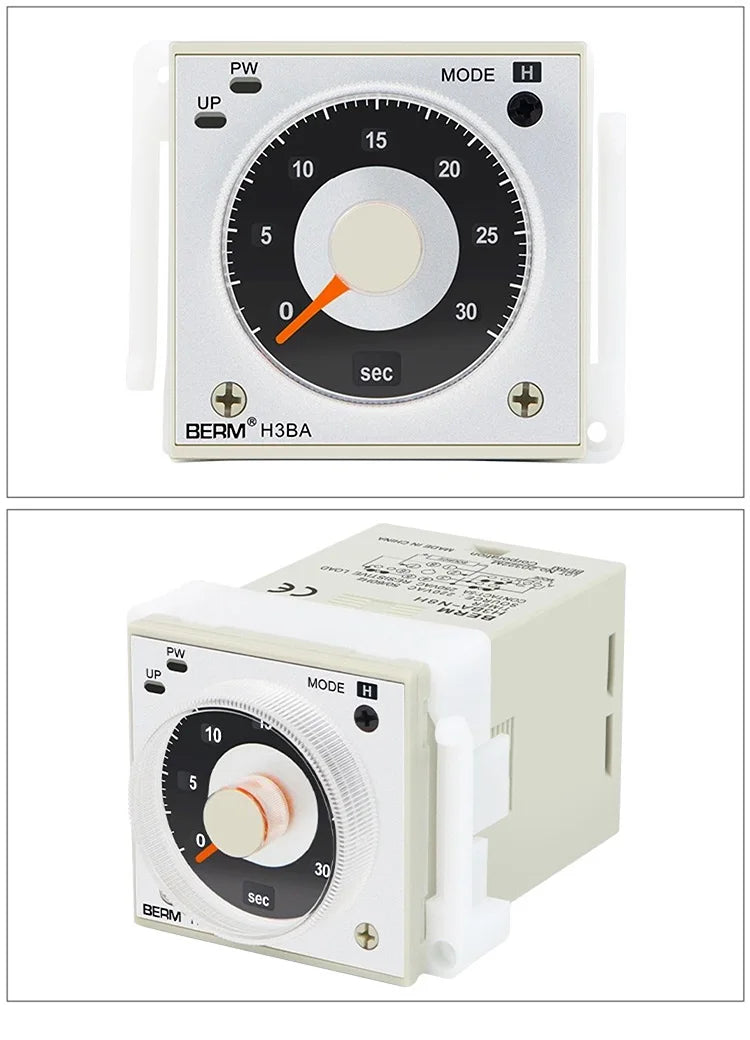

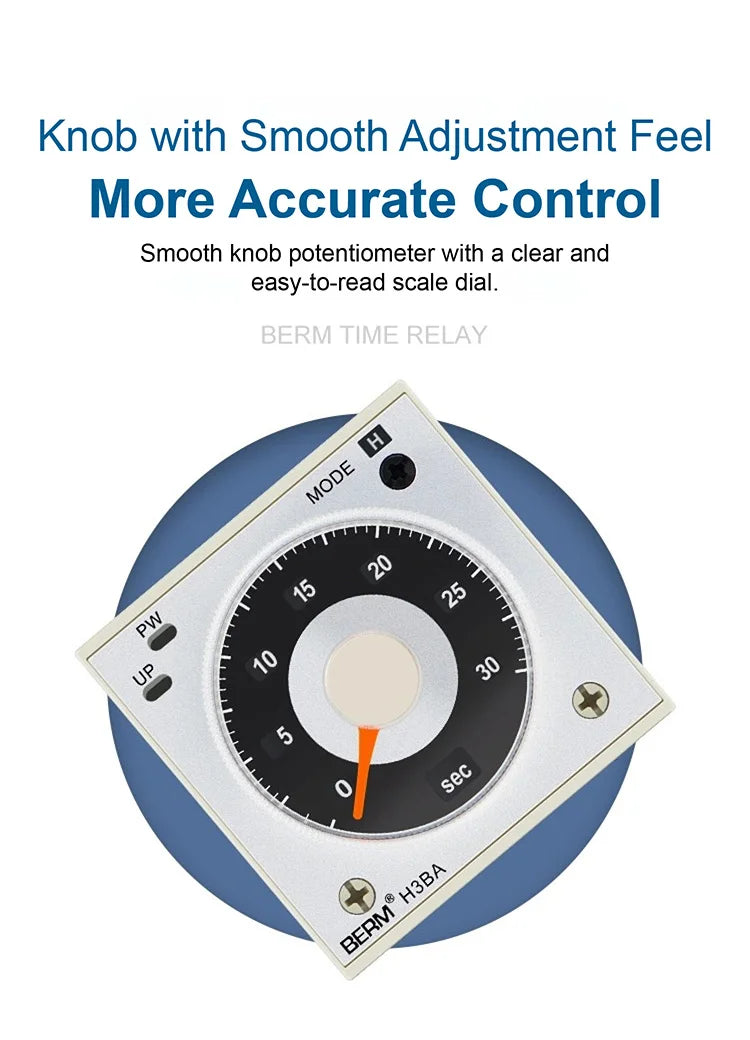

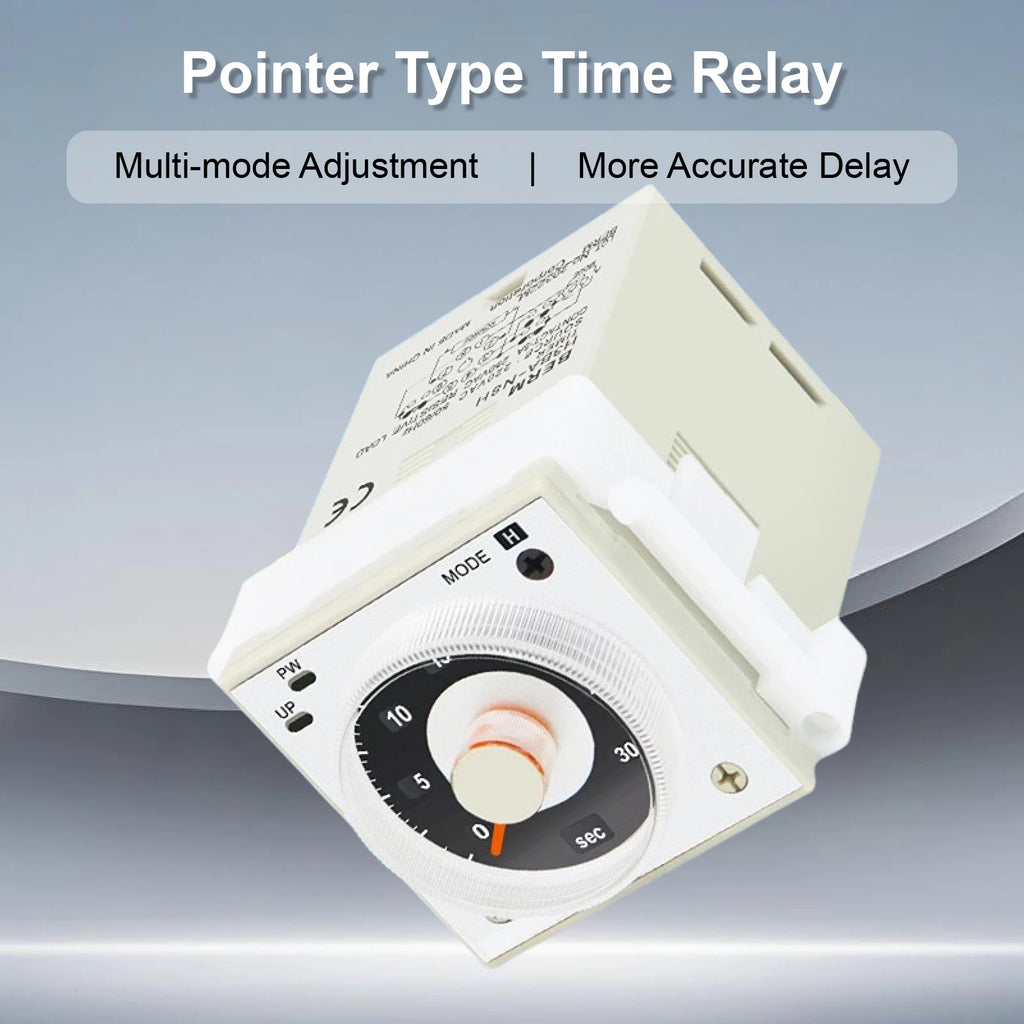

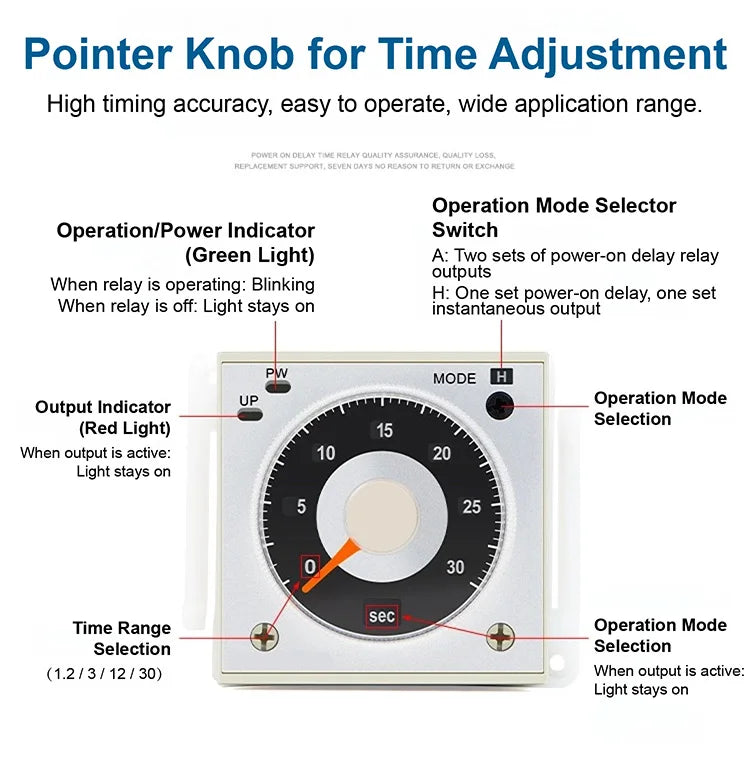

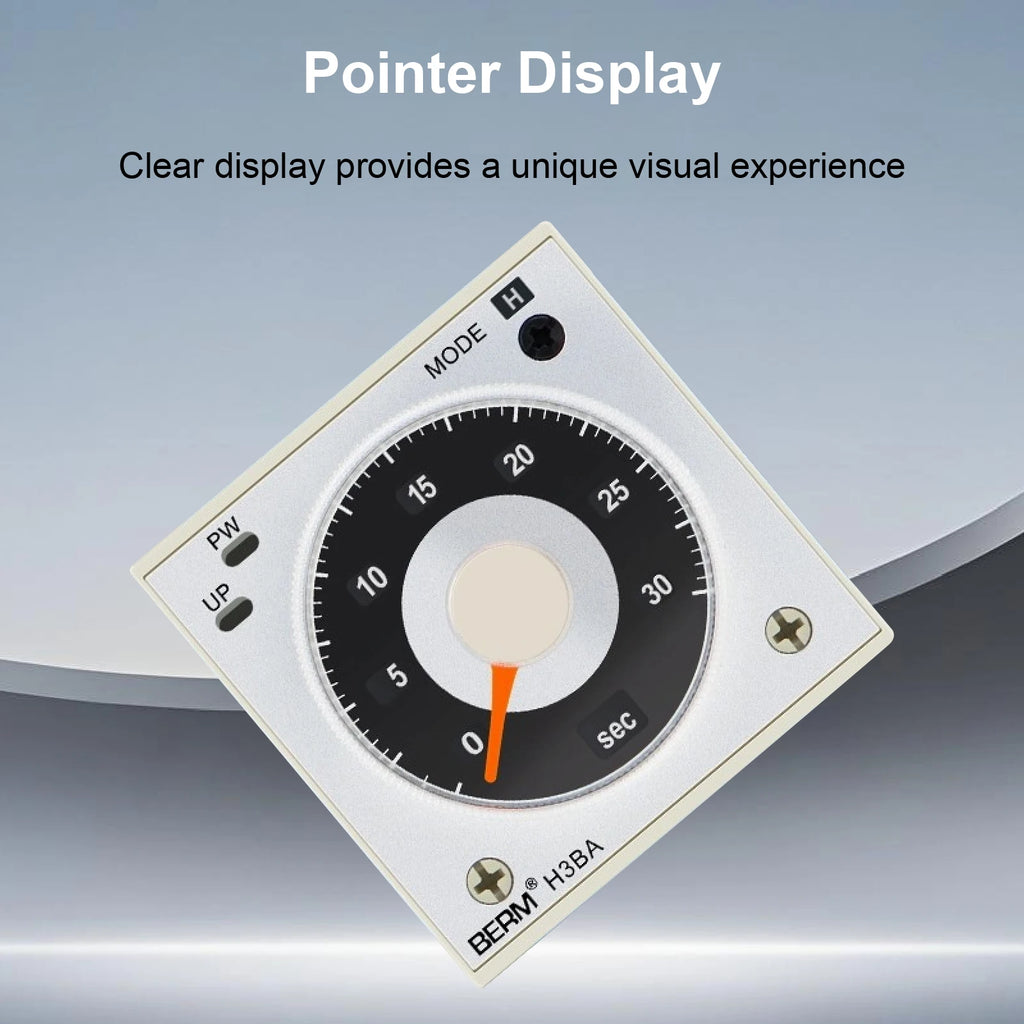

Precise Analog Timing
Smooth dial knob for accurate and user-friendly time setting.

Wide Timing Range
Covers from 1.2 seconds to 300 hours with selectable time units.

Multi-mode Function
Supports various delay settings to meet diverse control needs.

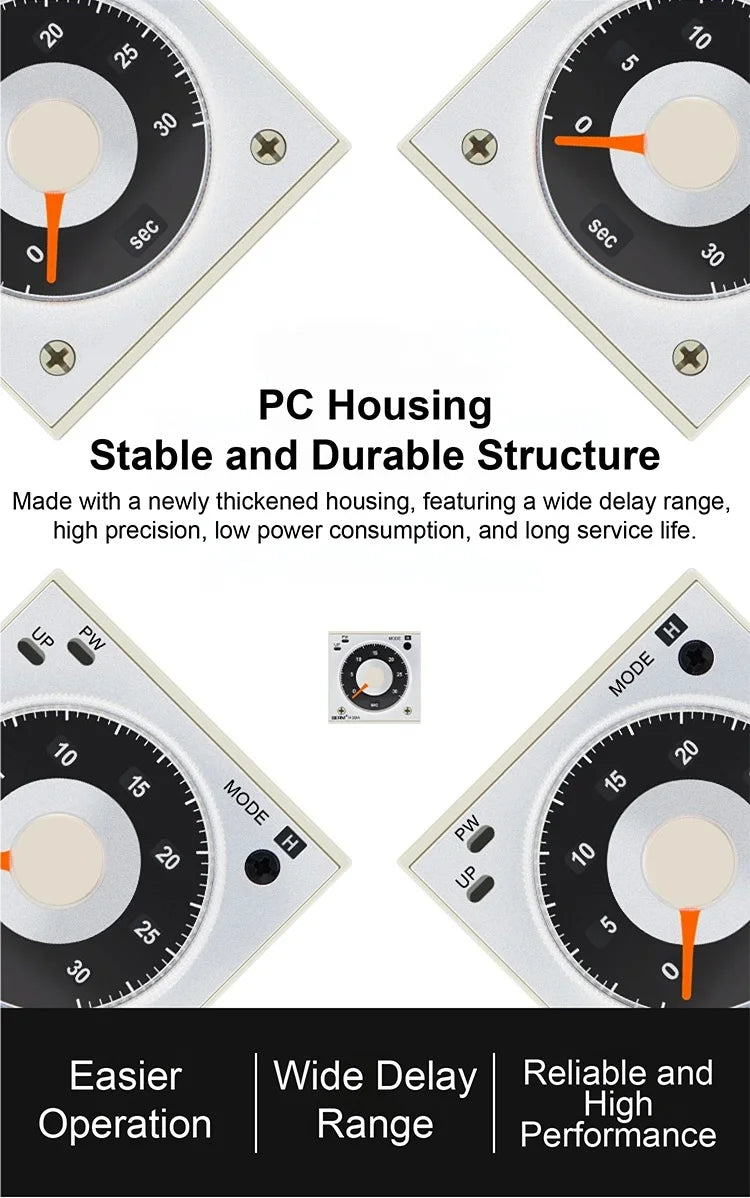

Durable PC Housing
Rigid polycarbonate case ensures reliable operation in industrial environments.

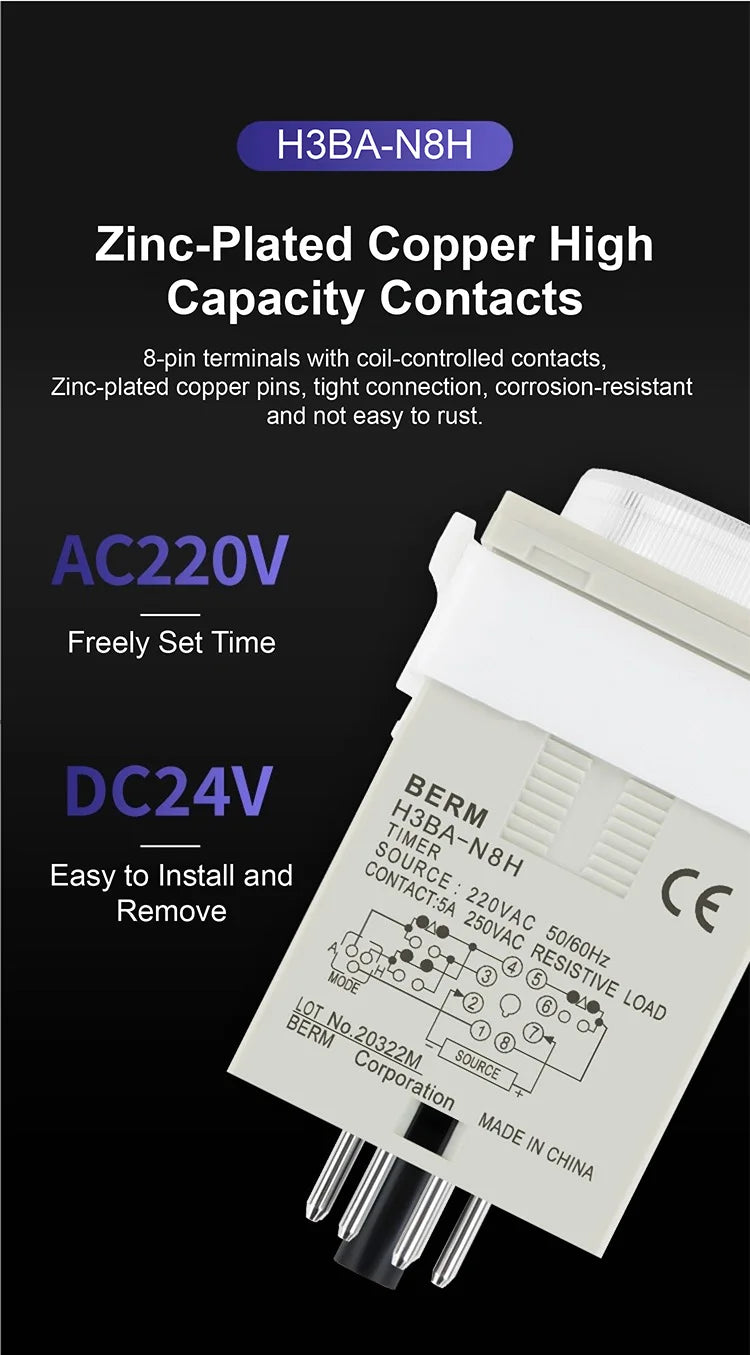

Reliable Terminal Connection
Copper-zinc terminals provide secure and corrosion-resistant contact.

Quick Installation

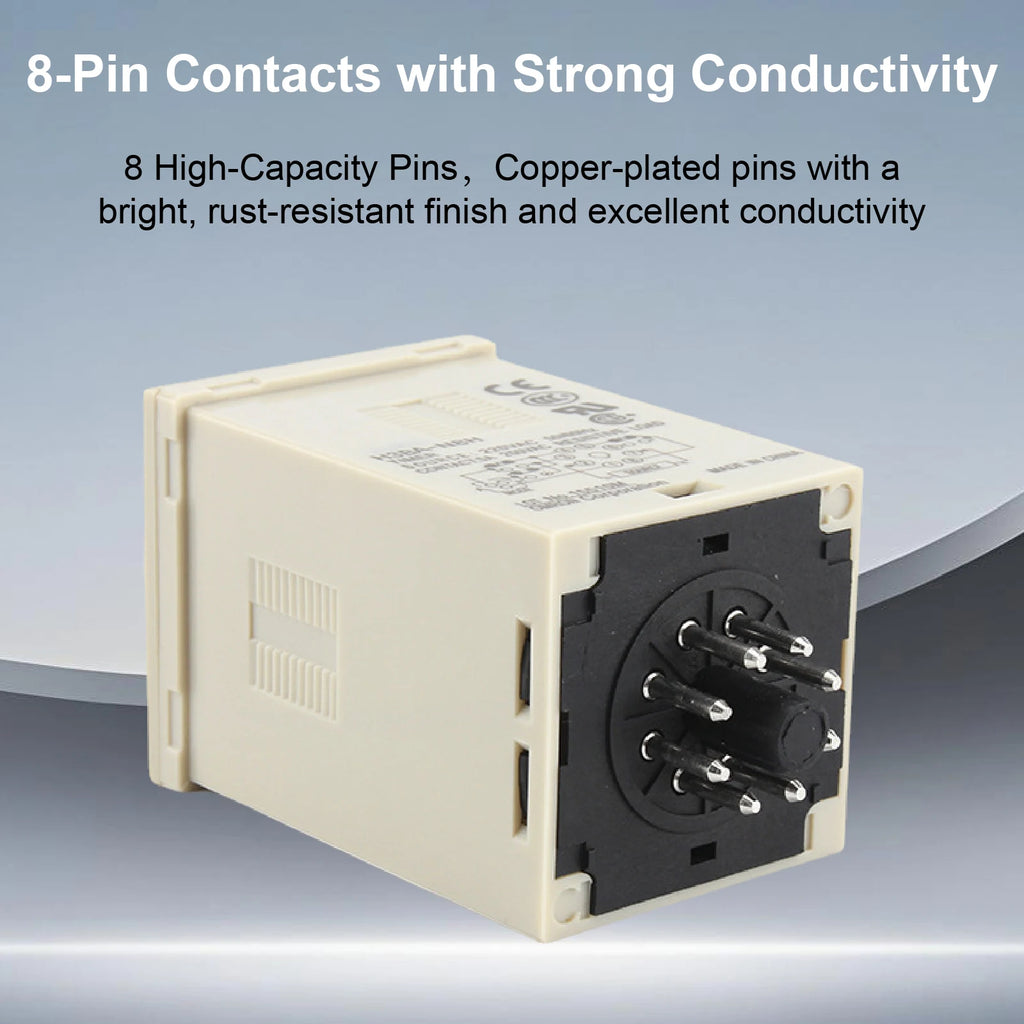

Standard 8-pin socket design for fast setup and replacement.

4. Applications

Suitable for industrial automation control, machine timing, lighting delay, HVAC systems, and more.

5. FAQs

Q1: What is the timing range supported by this relay?
A1: The timing range is from 1.2 seconds to 300 hours with selectable time units.

Q2: Is this relay easy to install?

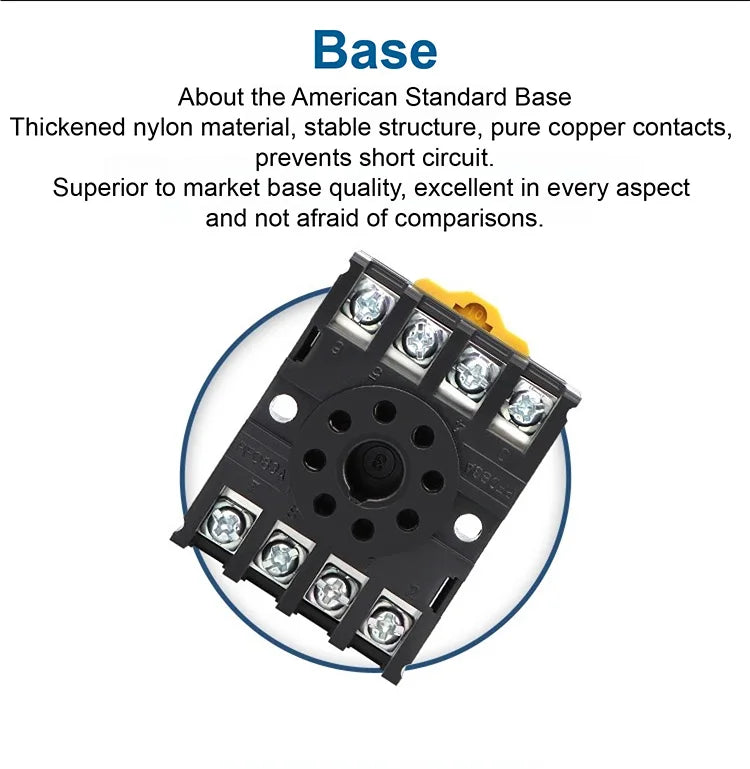

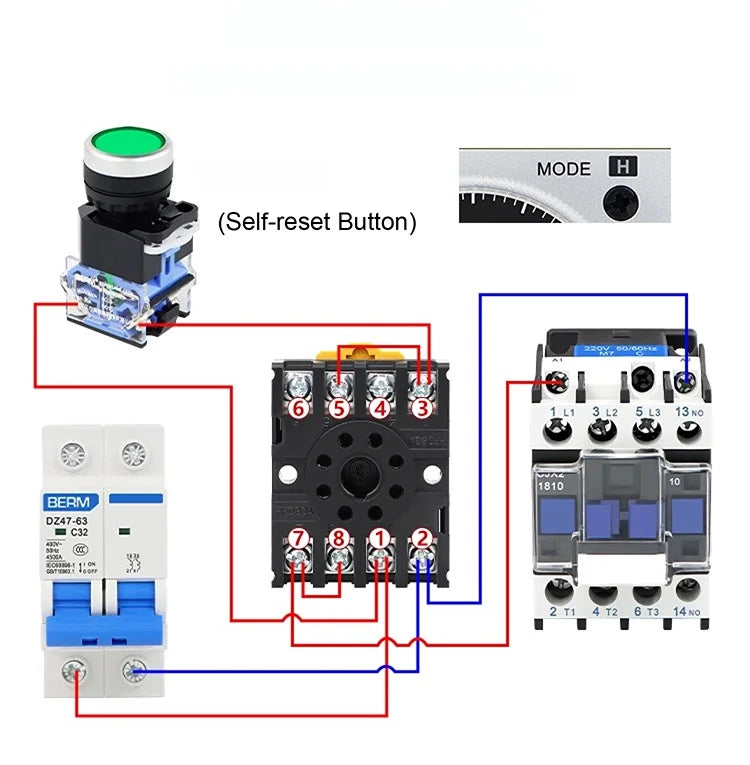

A2: Yes, it uses a standard 8-pin DIN socket for quick connection.

Q3: Does it support delay-off function?
A3: Yes, it can automatically cut off power after the preset time in "H" mode.
