Description

SPECIFICATIONS

Brand Name: NONE

Certification: FCC,CE,RoHS

DIY Supplies: Electrical

Display Type: Analog Only

High-concerned chemical: none

Origin: Mainland China

Notes!!! if you want other specifications pls contact us or leave a message about the parameters you want

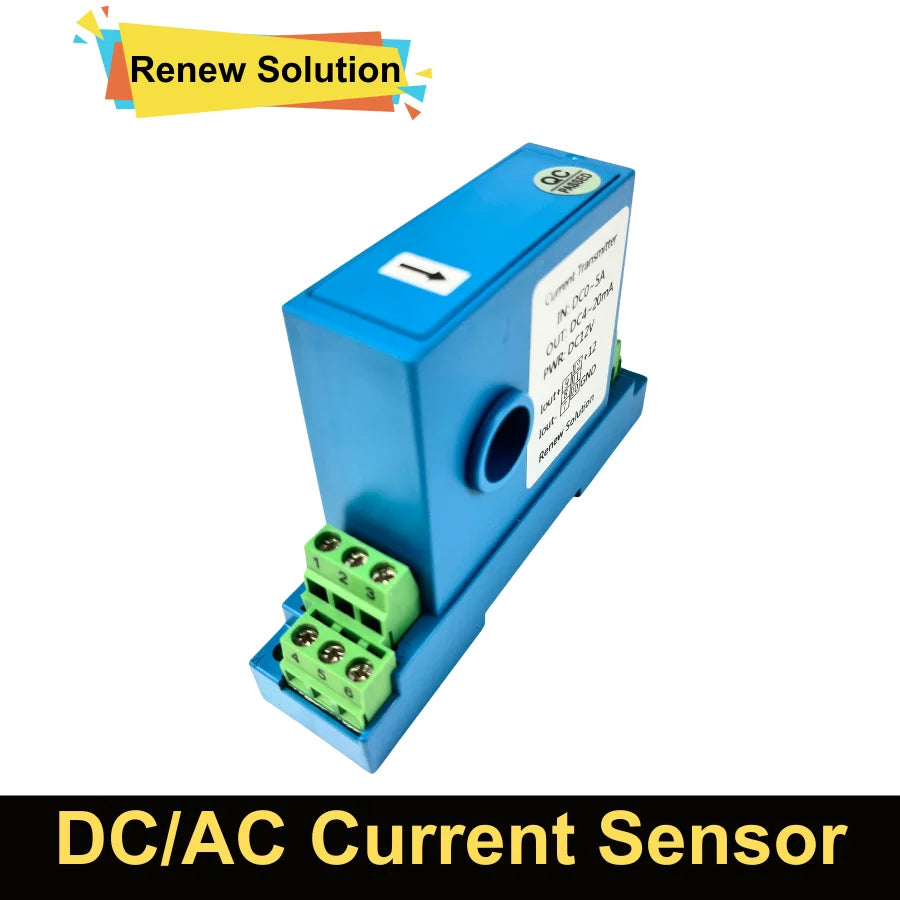

Introduction

<1>. Working principle: open loop direct measurement.
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Application: Frequency conversion speed control system, welding machine, electrochemistry, power supply monitoring, locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration,Parameter customizable.

Technical parameters

Power Supply
Power supply	DC5V, DC12V, DC15V, DC24V, ±15V, DC12~28V, AC220V, Customizable
Input
Input signal	AC/ DC 0~150A
Output
Output signal	4-20mA, 0-20mA, 0-5V, 0-10V, Customizable
Other Parameters
Installation	Standard rail +Plane screw fixation

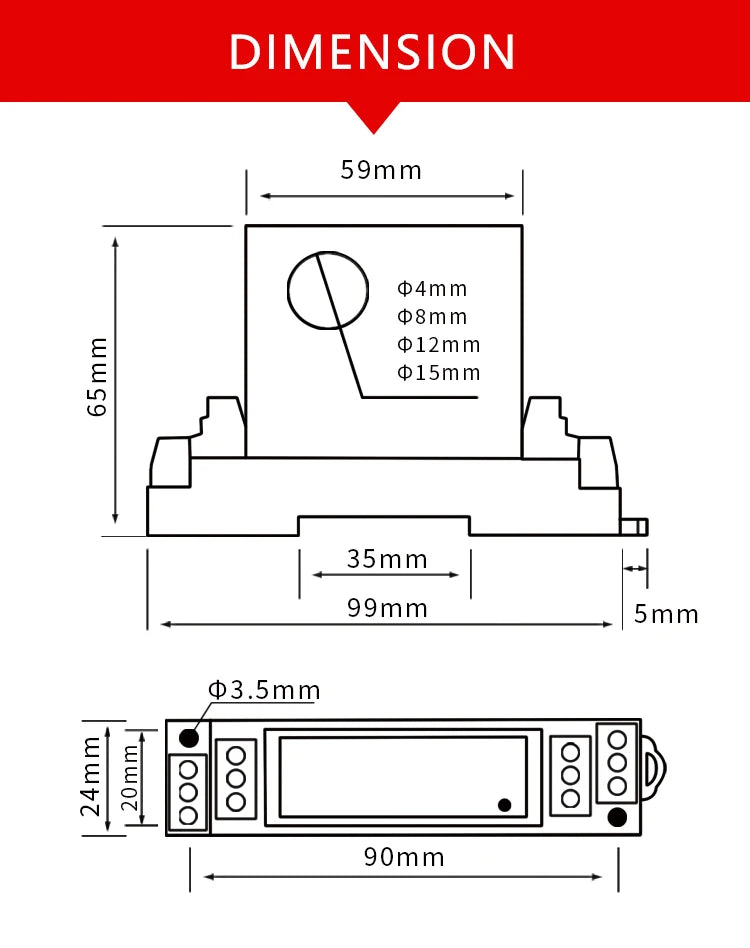

Aperture available	4mm, 8mm, 12mm
Accuracy	0.5%F.S.
Respond time	<200ms
Linearity	0.5%F.S.
Temperature drift	≤500PPM/℃
Band width	DC~20KHz
Consumption of current	≤25mA
Isolation voltage resistance	2.5k/50Hz,1Min
Offset voltage	≤20mvV
Zero output	≤0.15mA
Di/dt follow	>50A/uS
Working ambient	-10℃~+70℃
Storage ambient	-25℃~+85℃
