Description

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

DIY Supplies: Electrical

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

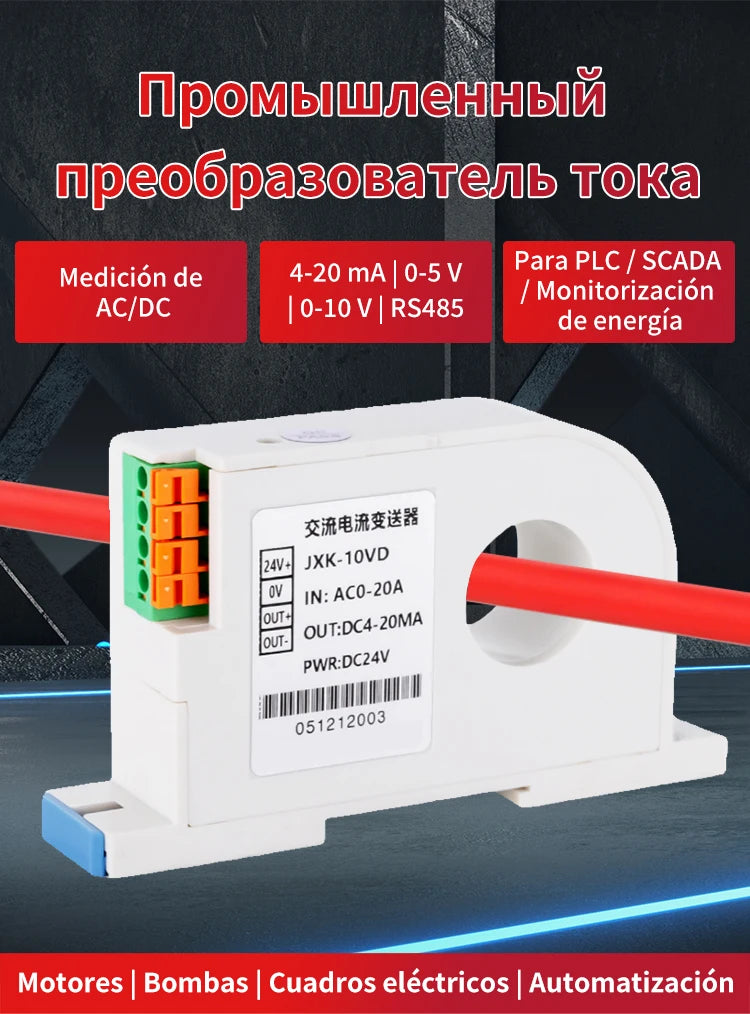

Through-beam sensor and hall current transducer

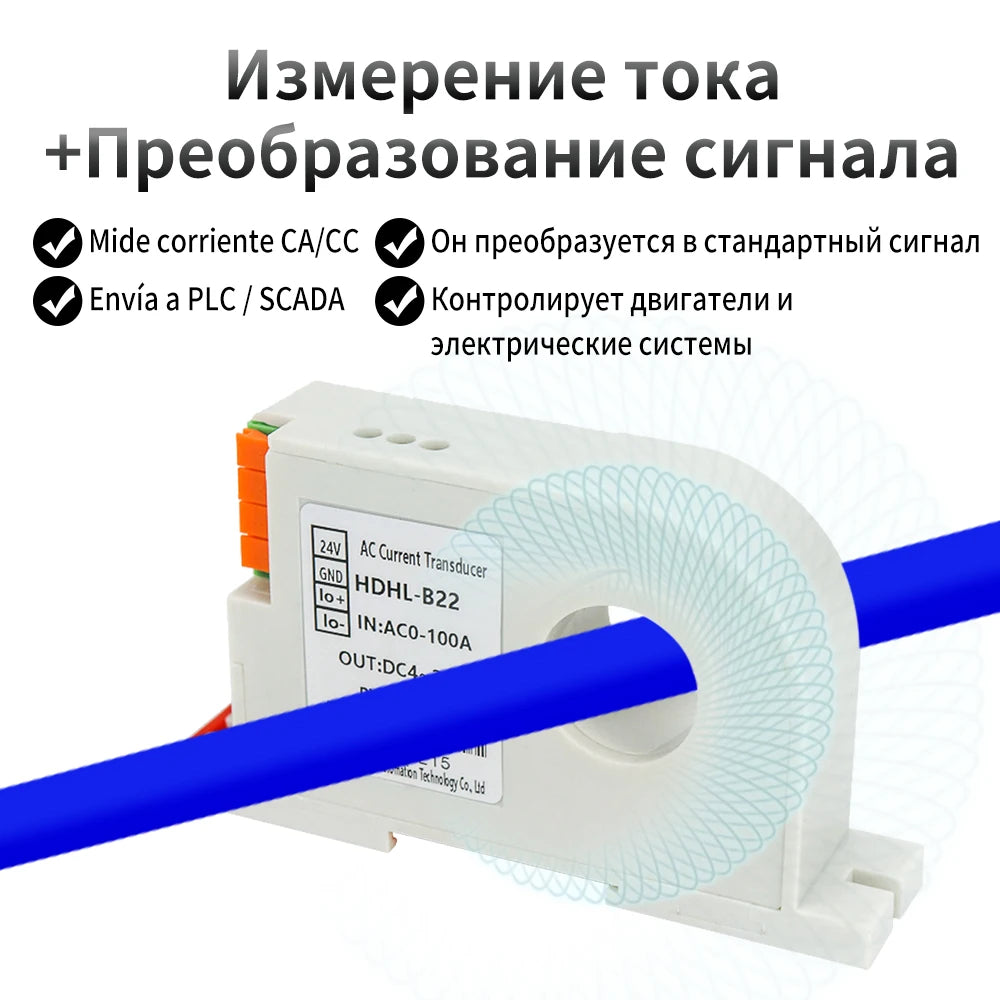

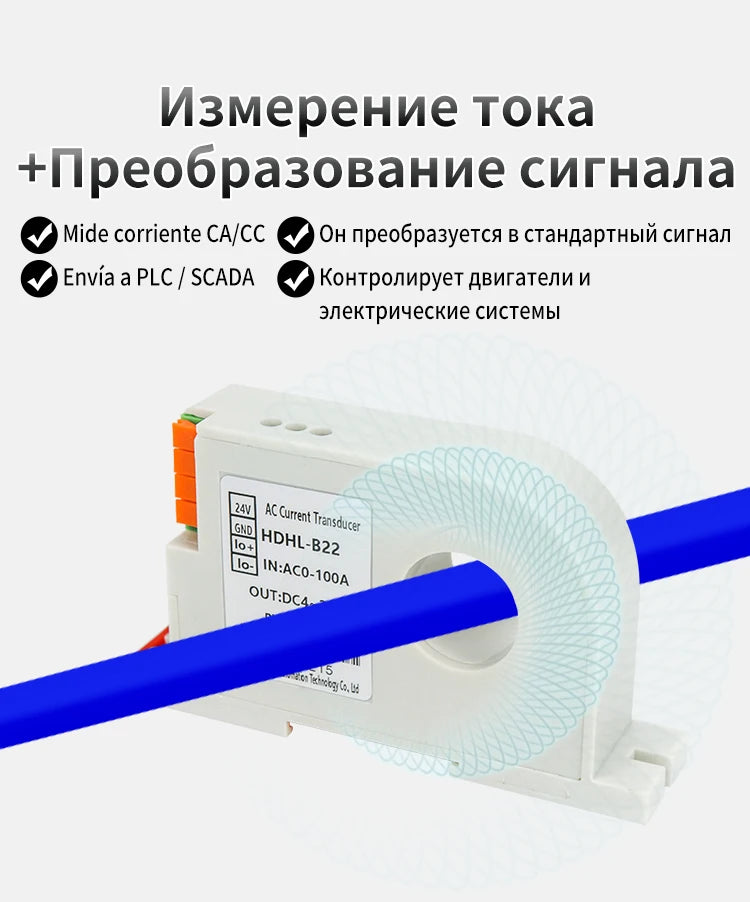

The hhd optically isolated closed loop current sensor is designed for precise non-contact measurement of dc and ac current.the conductor is passed through the opening of the sensor, making it easy to install in control cabinets, distribution boards, industrial equipment and energy monitoring systems.

Various measuring ranges are available.depending on the selected execution, the transmitter can output a 4-20ma, 0-10v, or rs485 signal for connection to plc, dcs, scada, and data acquisition systems.

Core advantages

Ac and dc measurement
Closed loop measurement on hall effect

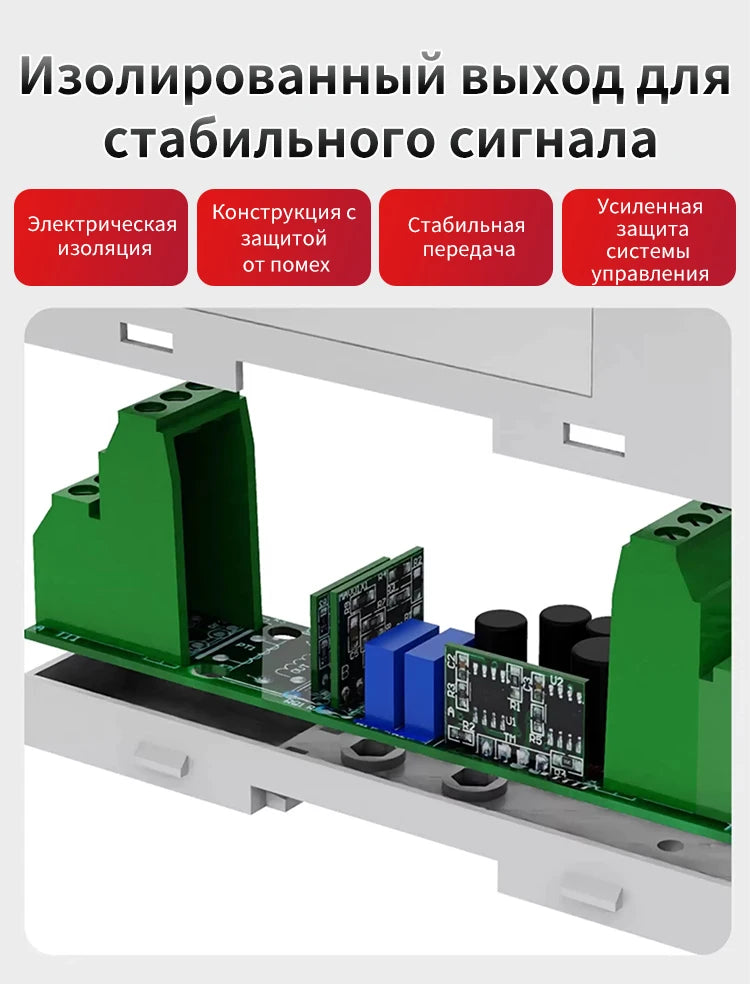

Optical galvanic isolation
Accuracy up to ±0.5%
Pass-through type non-contact installation
Multiple current measurement ranges

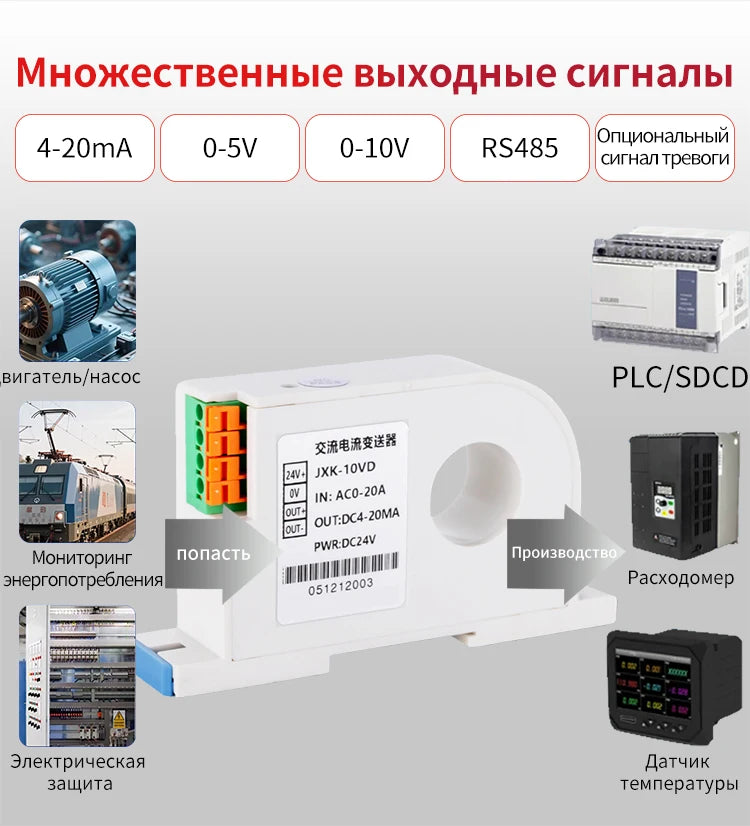

4-20ma, 0-10v or rs485 output
Connecting to plc, dcs, and scada
Localized technical support
Some specifications are available from local or regional warehouse
Oem customization and engineering matching

Technical specifications

Parameter	Feature
Instrument type	Through-beam sensor / hall current transmitter
Measuring principle	Closed loop hall effect
Measured current	Ac and dc
Method of installation	Conductor passes through the sensor hole

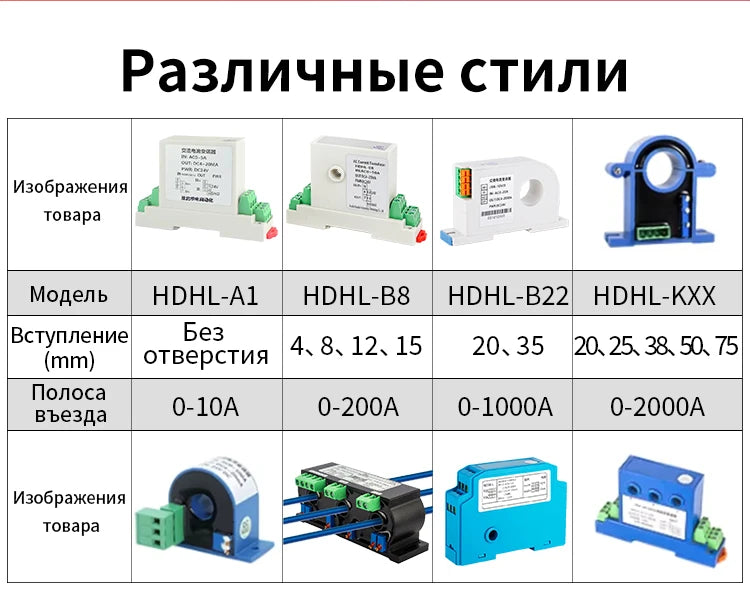

Standard ranges	1a, 5a, 10a, 50a, 100a, 500a and other ranges
The accuracy	Up to ±0.5% when operating conditions are met

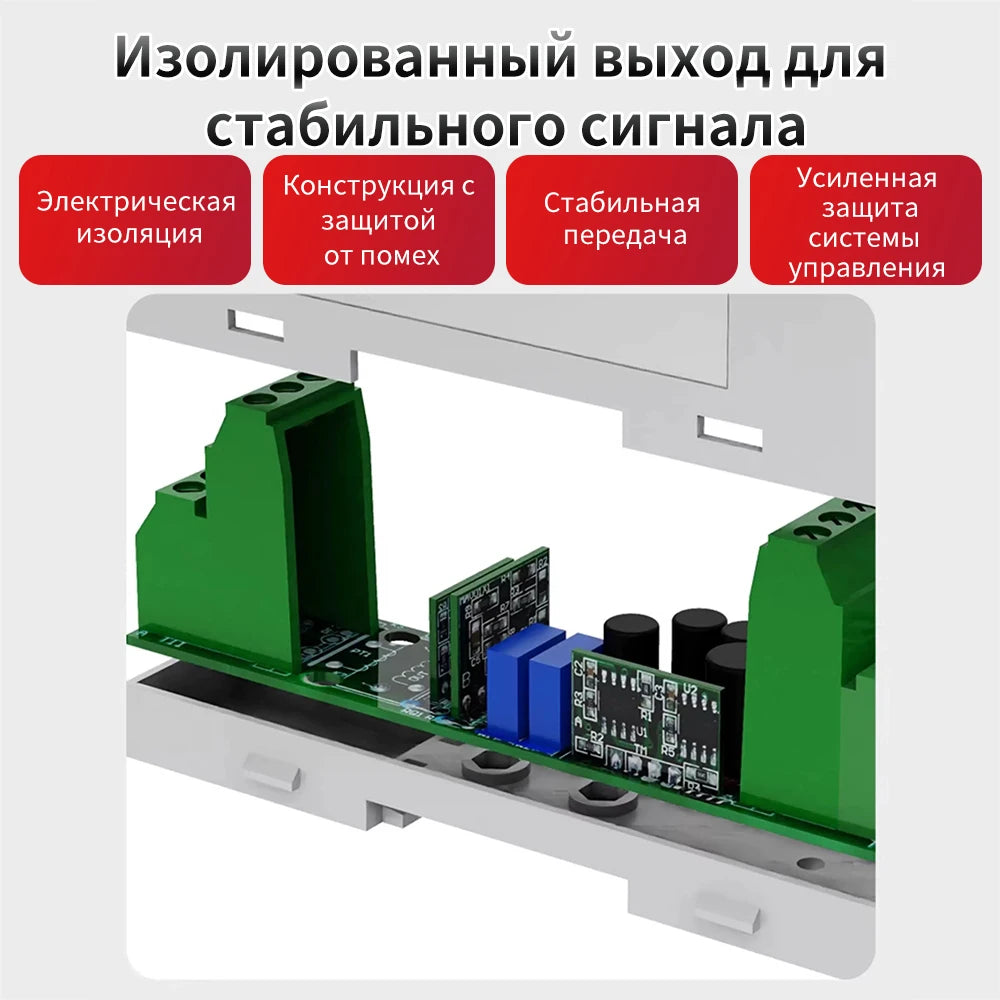

The insulation	Optical galvanic isolation

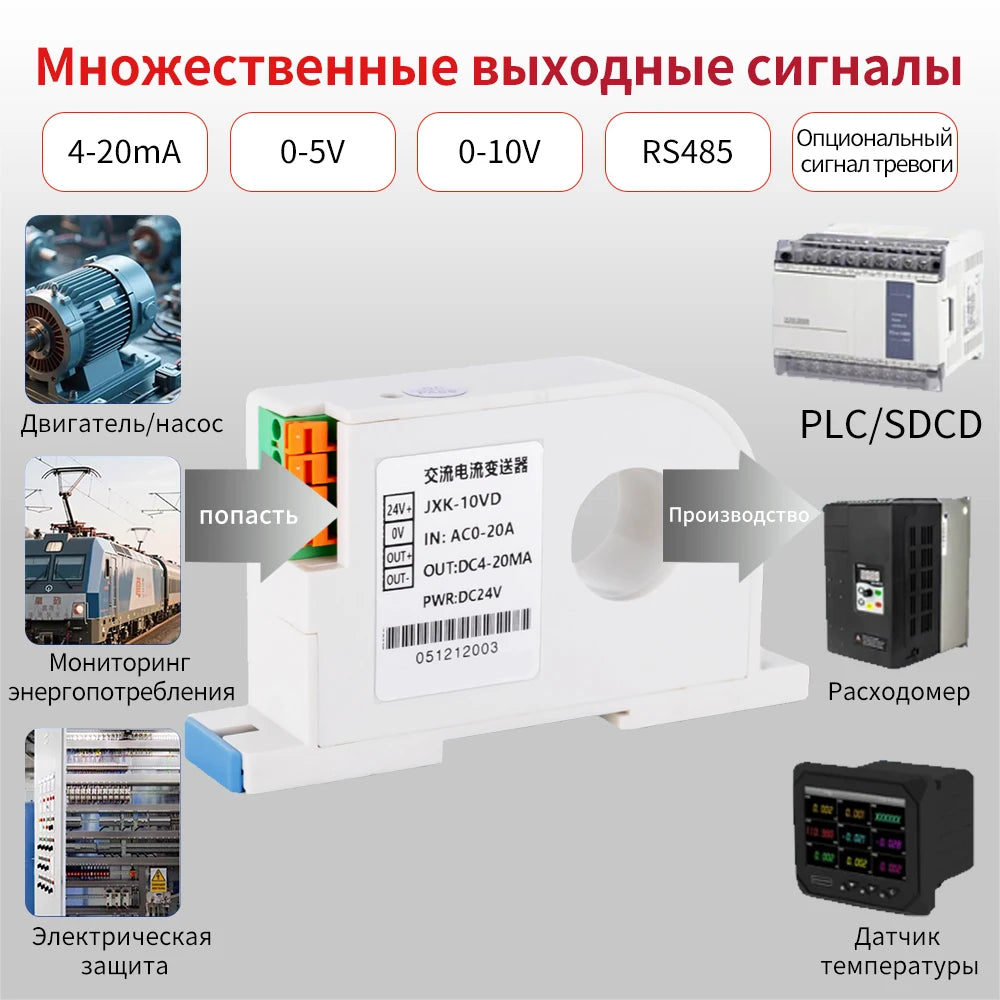

Output options	4-20ma, 0-10v or rs485
The integration	Plc, dcs, scada, hmi and data acquisition systems

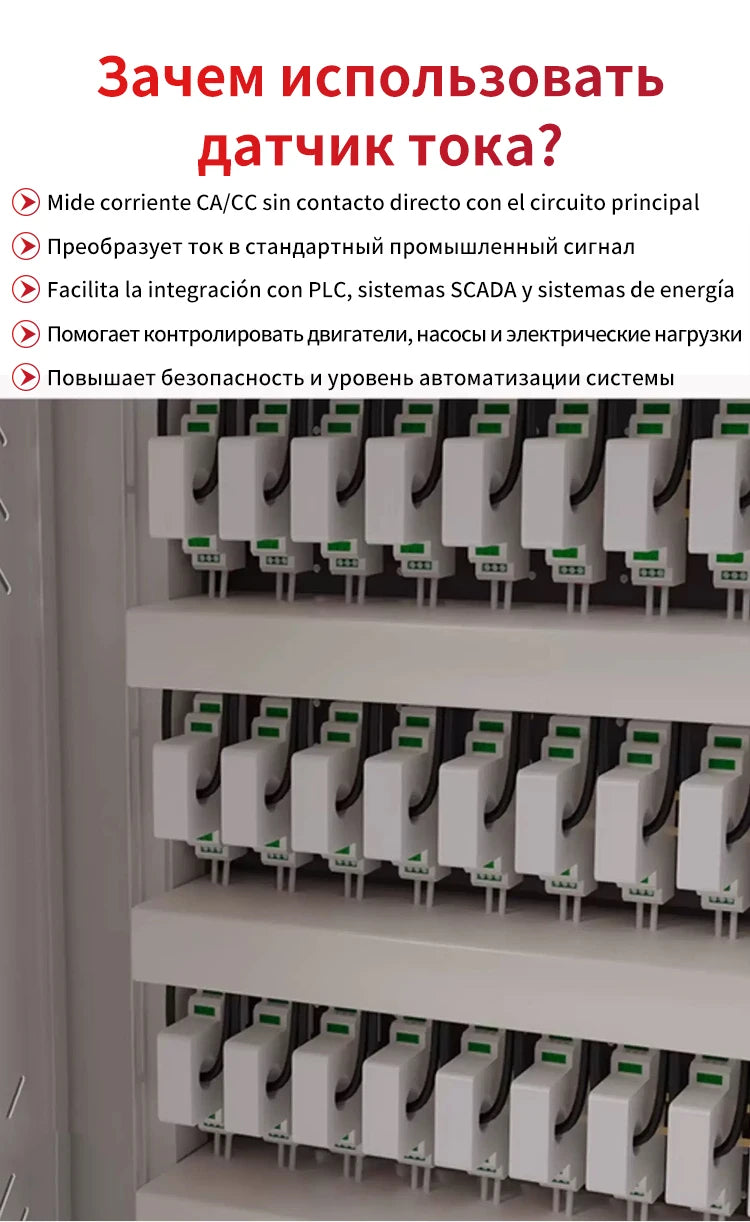

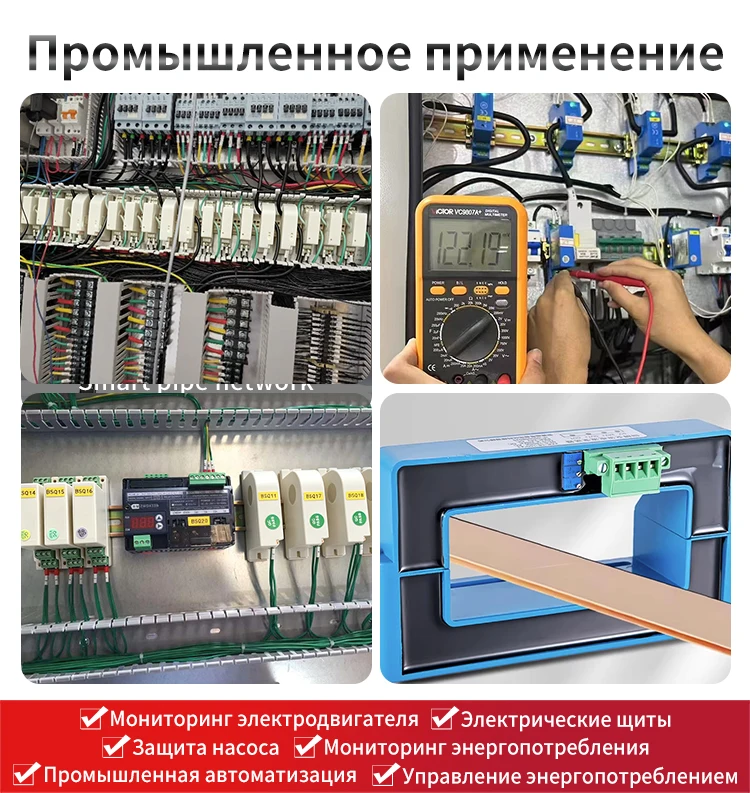

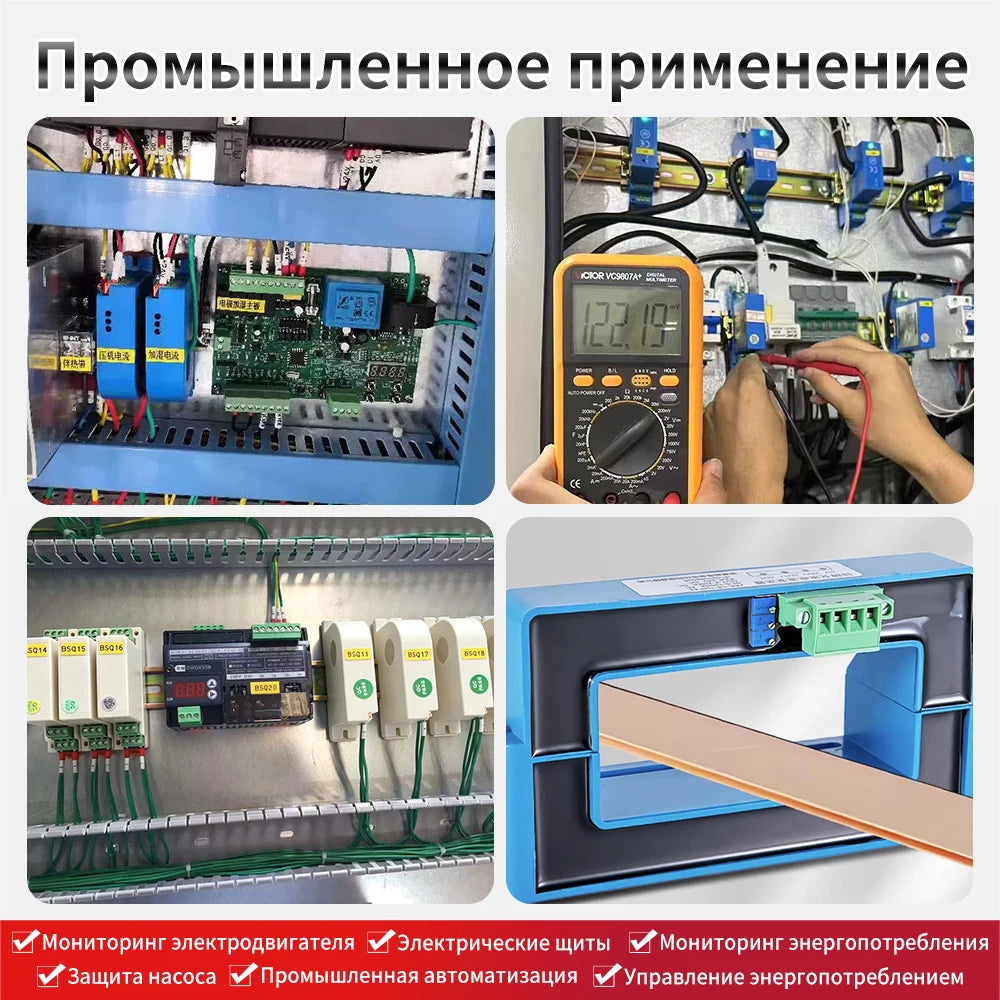

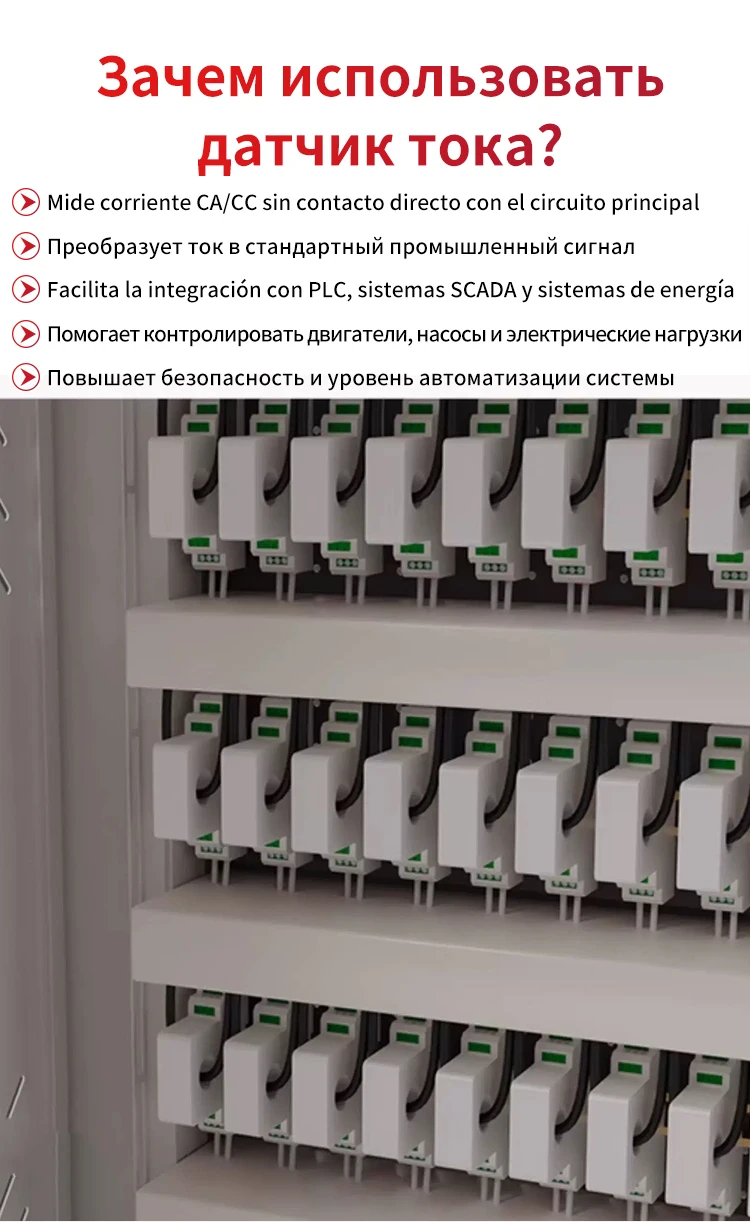

The application	Control cabinets, switch cabinets, industrial equipment and energy metering
Oems	Range, hole size, output, power supply and labeling by order

Before order

Please specify the type of measured current—ac or dc, rated current and maximum current, conductor diameter, aperture size, output signal, power supply, installation method and rs485 protocol.the listed outputs are alternative options unless otherwise agreed.

Technical support and cooperation

Provide localized technical support, engineer matching, and oem customization.some models and specifications are available to ship from local or regional warehouse.

Welcome distributors, system integrators, control cabinet manufacturers and channel partners in russia and cis countries.
