SPECIFICATIONS

Brand Name: haozee

Certification: CE

Choice: yes

Detect distance: 0.3-9m(default 6m)

High-concerned chemical: none

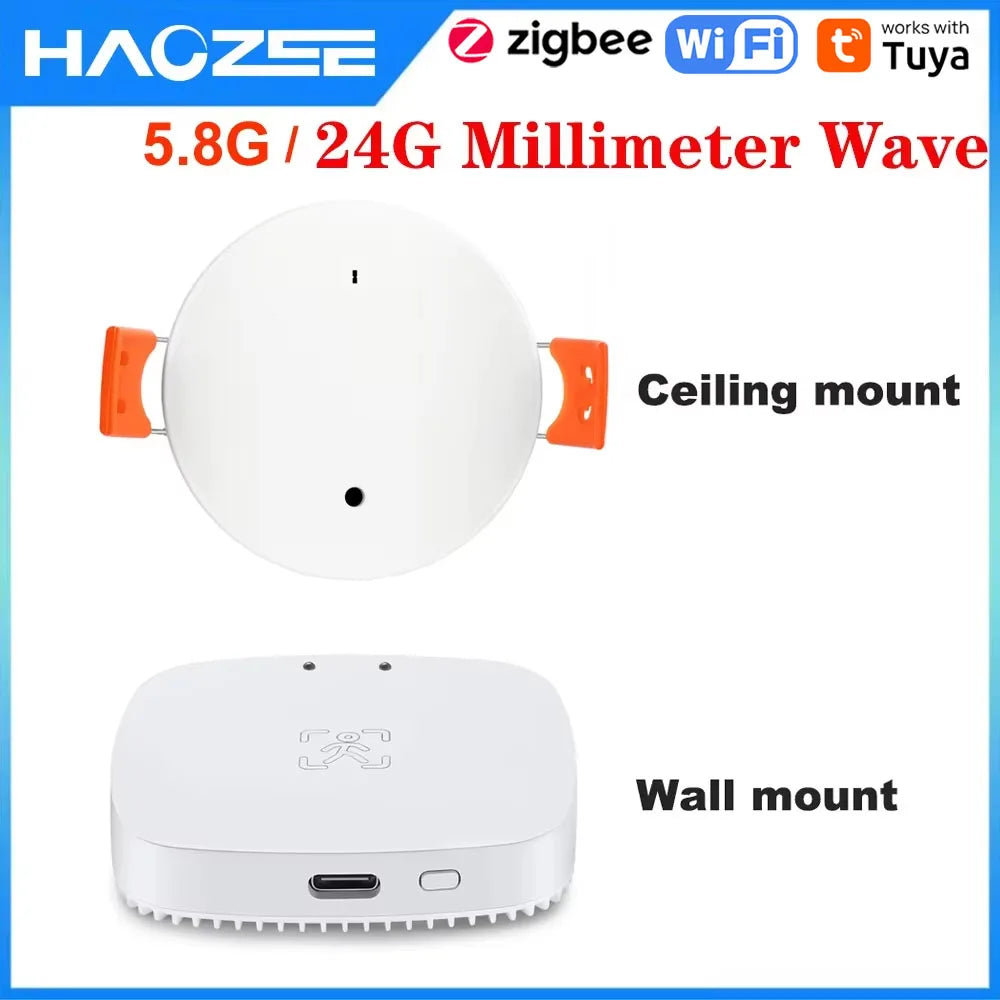

Installation mode: WALL/ceiling

Light sense: 0-2000Lux

Model Number: ZY-M100

Origin: Mainland China

Radar: 5.8G/24G optional

Sensitivity: 0-9(default 7)

Smart home platform: Tuya

Wireless technology: ZigBee/Wifi

Working current: ≤70mA

Working temperature: -20℃~+70℃

Working voltage: DC80-250V

Zigbee version: zigbee version need tuya zigbee hub to operate

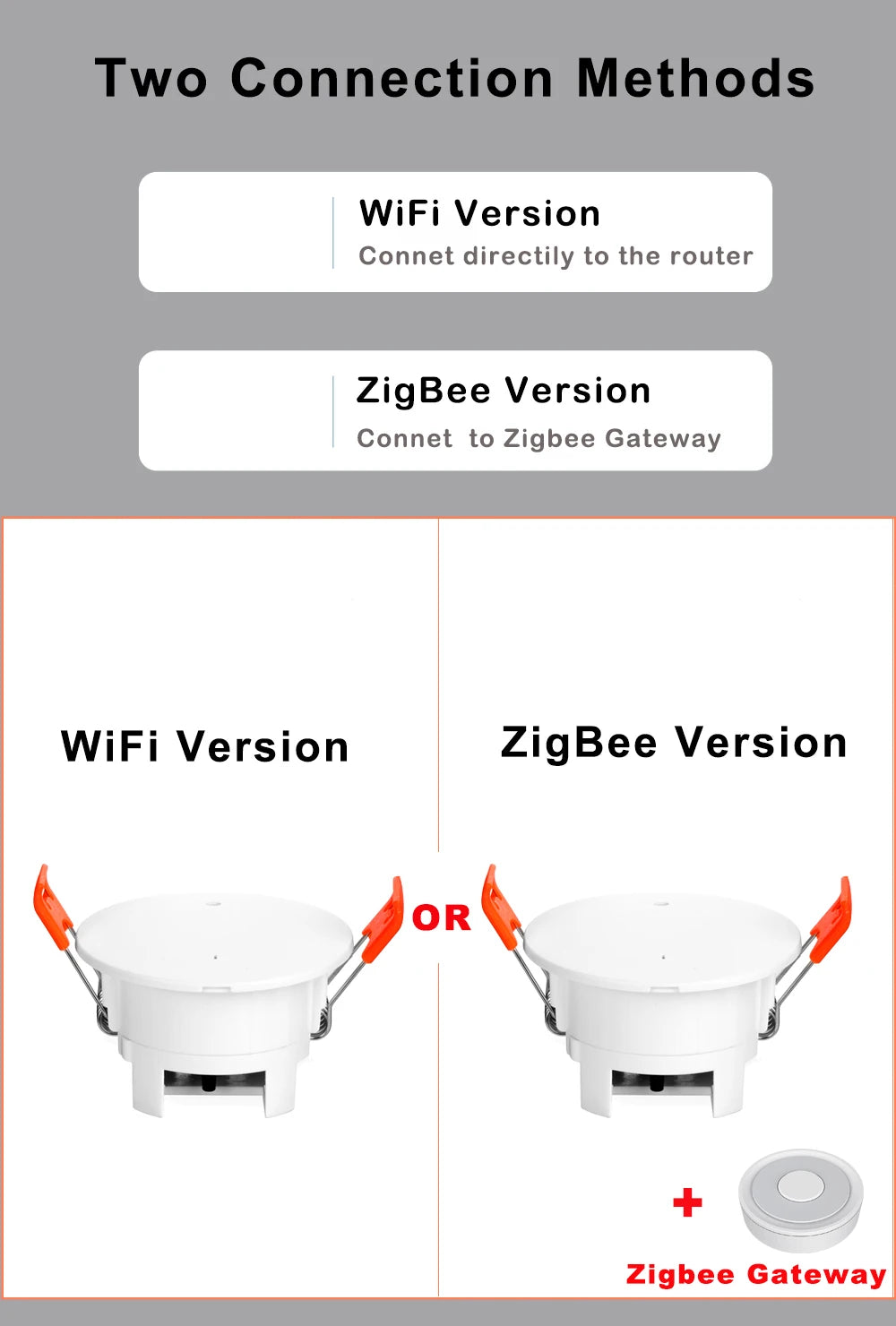

1.Please choose the correct version.

Wifi version doesn't need zigbee hub to operate.

zigbee version need Zigbee Hub to operate.and it support home assistant zigbe2mqtt

You can choose the power by USB or By AC 80-220V.

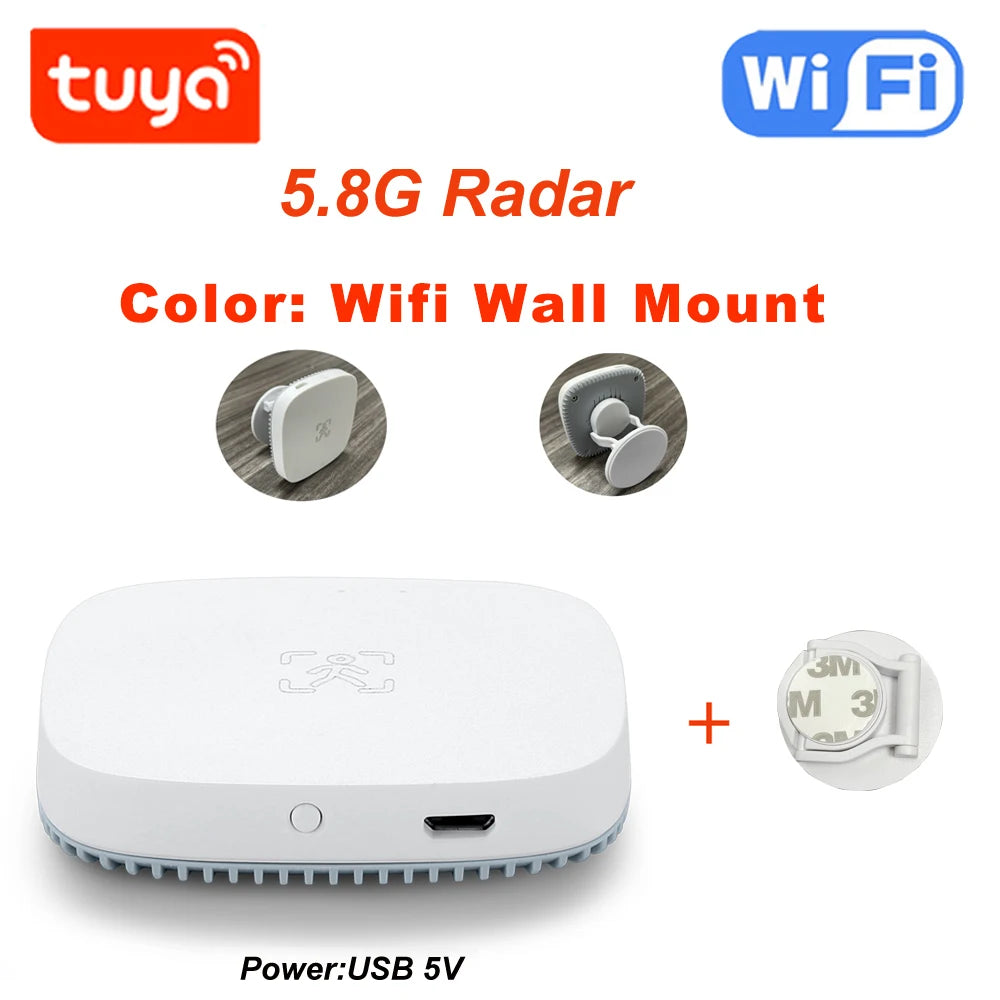

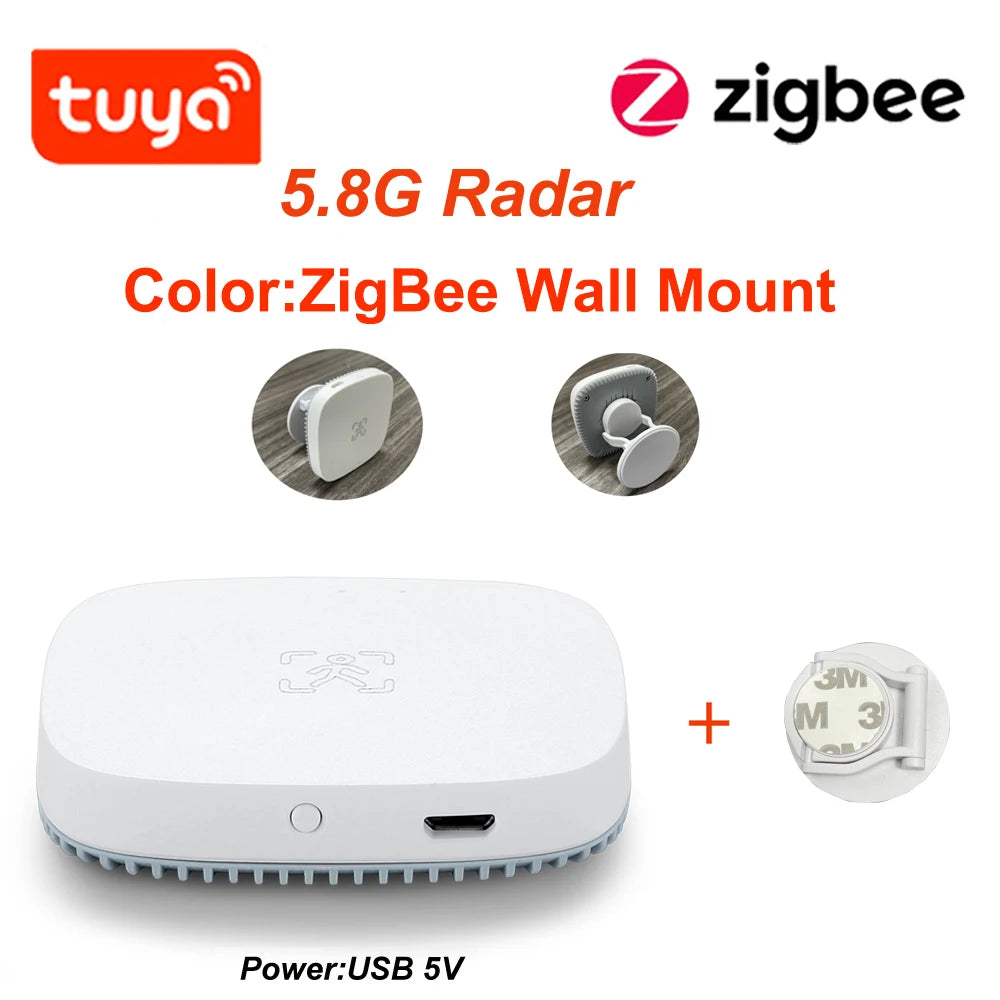

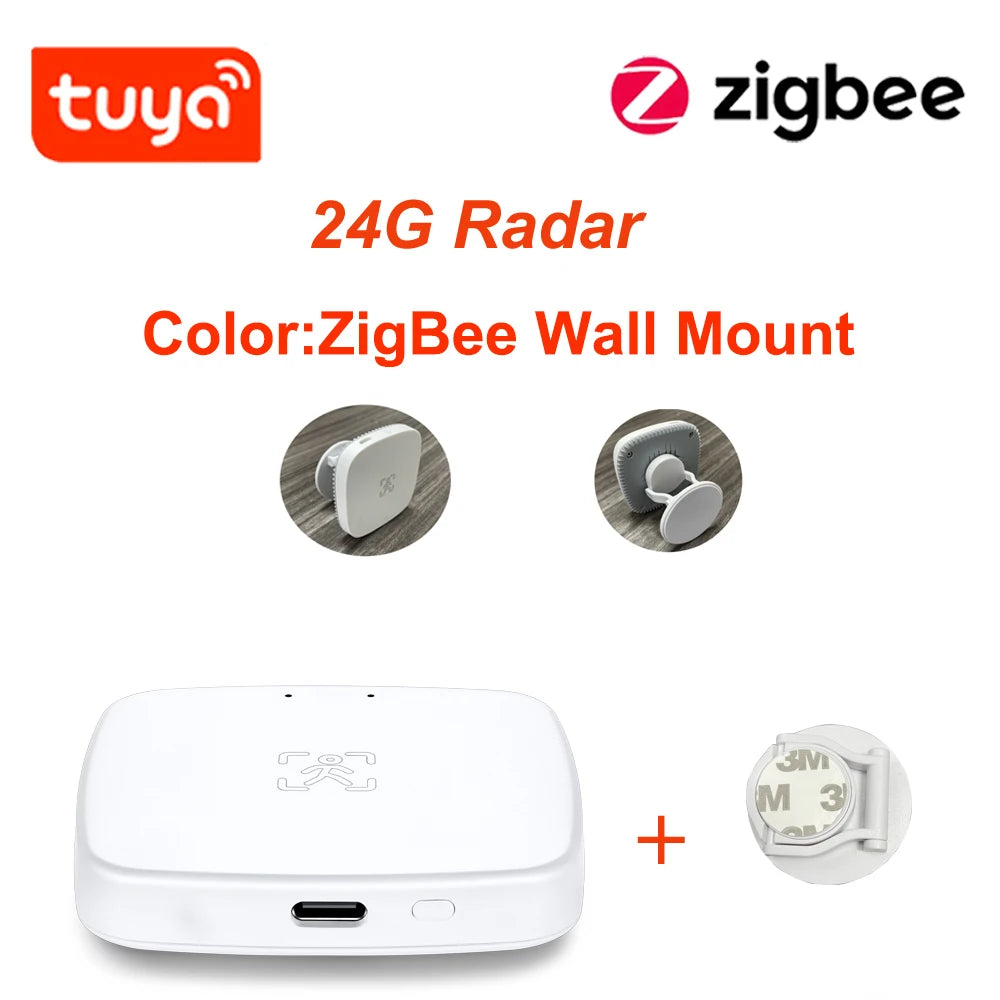

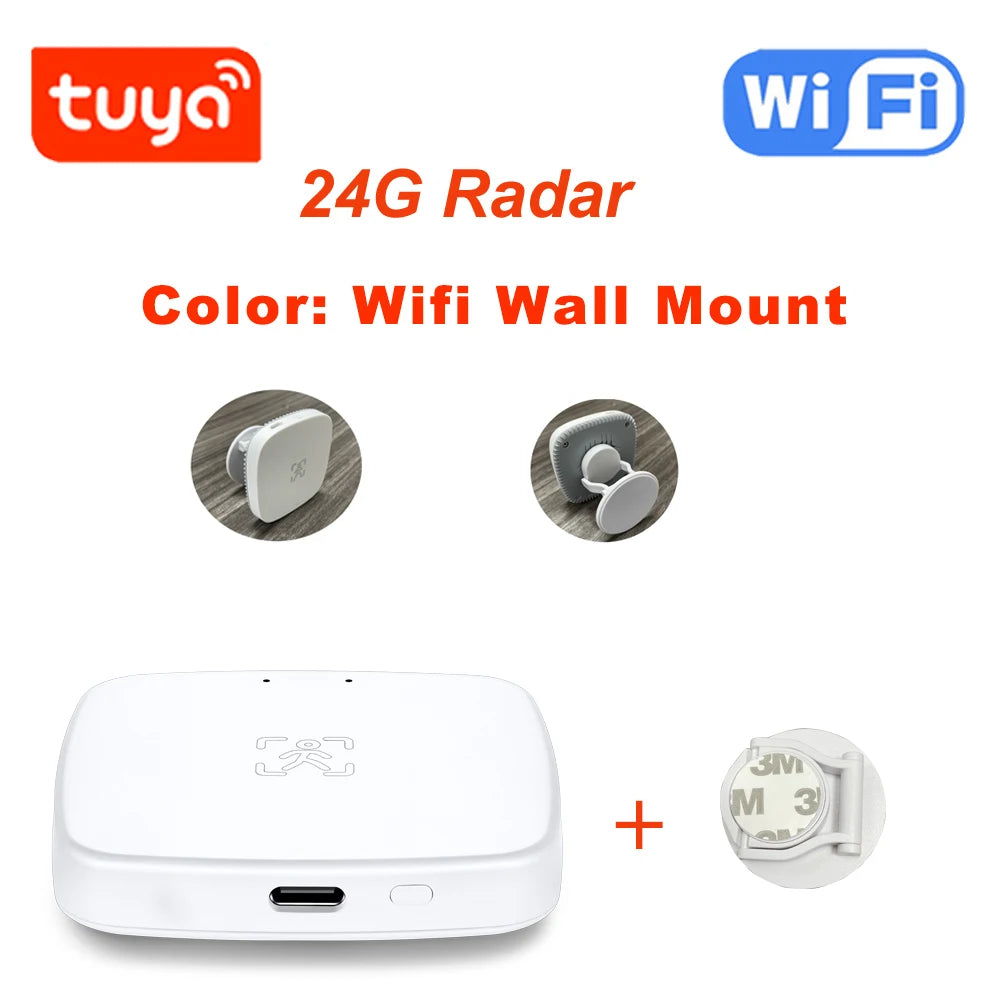

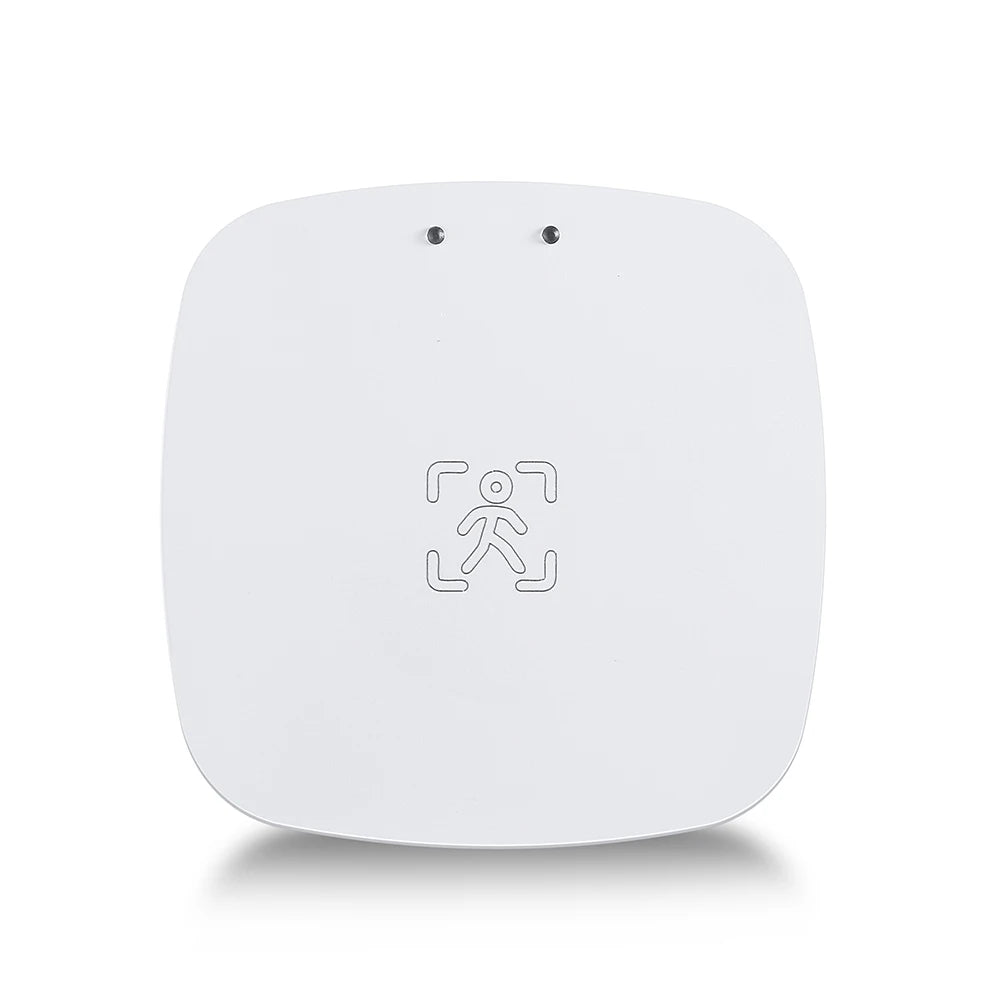

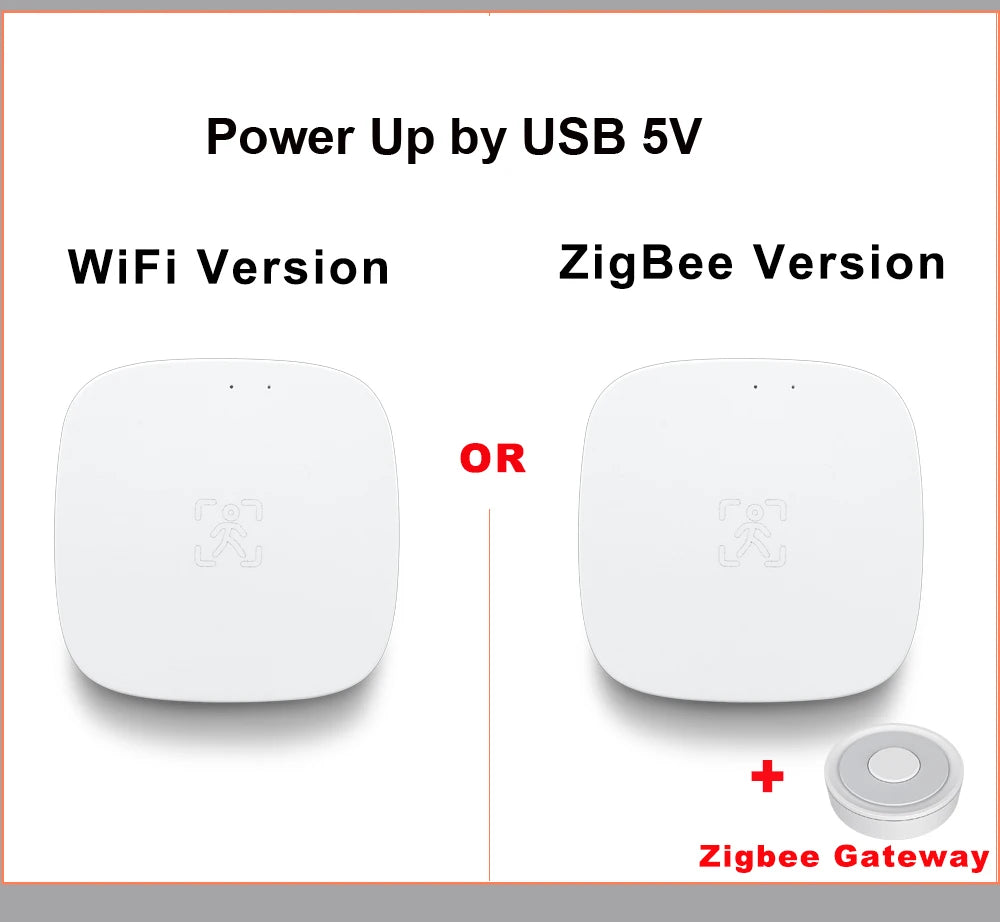

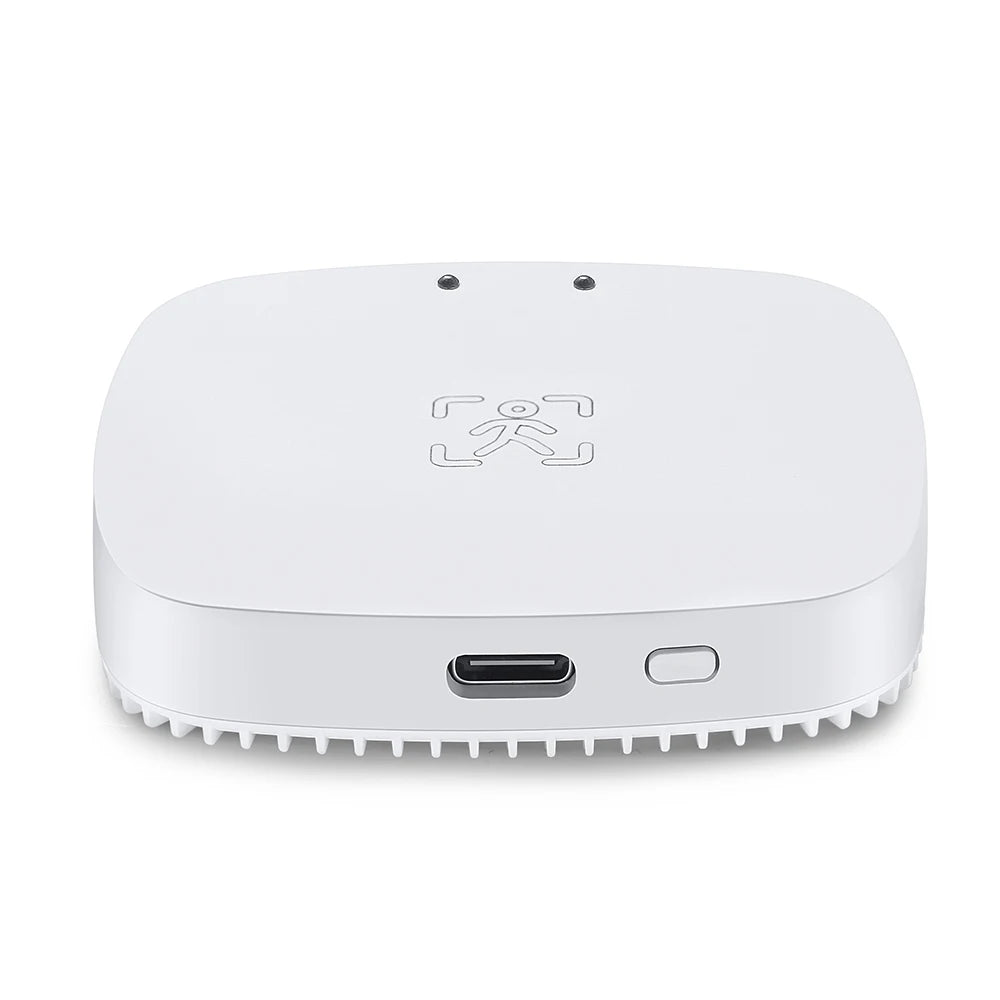

Wall mount version have wifi and zigbee ,it is power by USB 5V

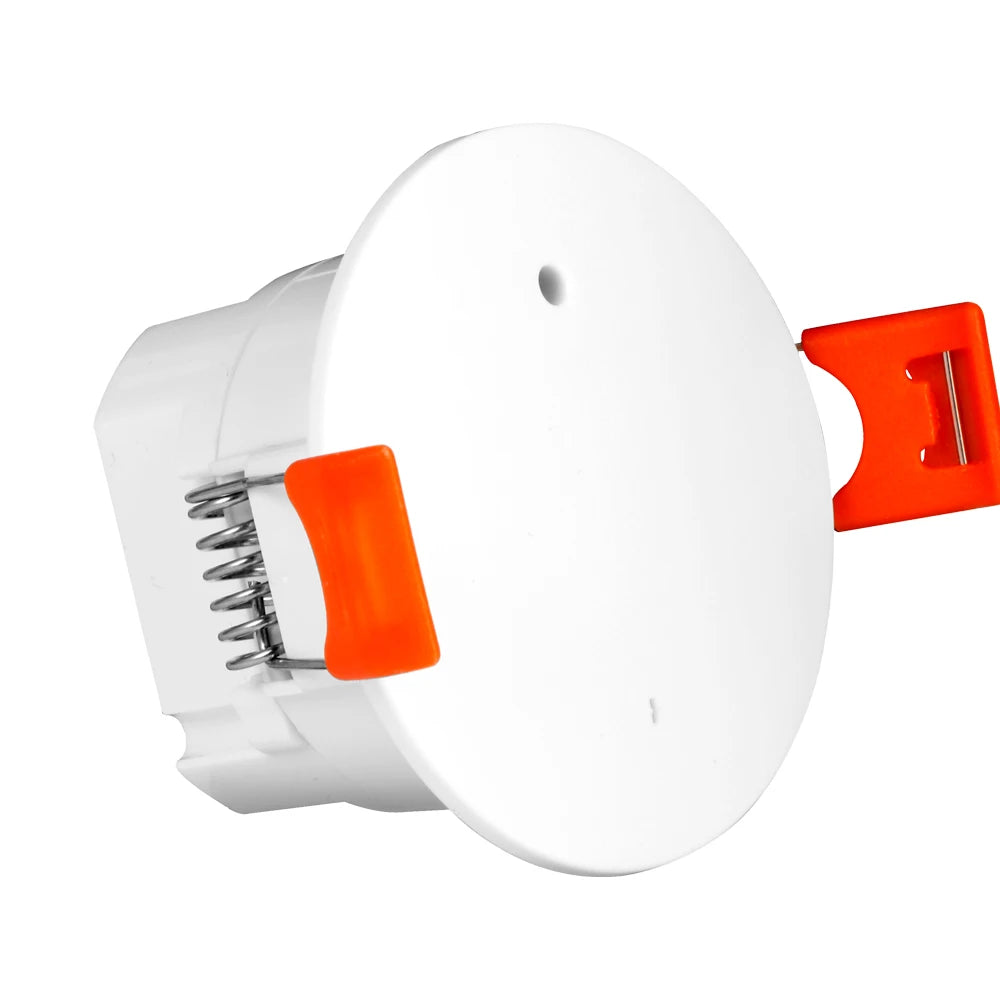

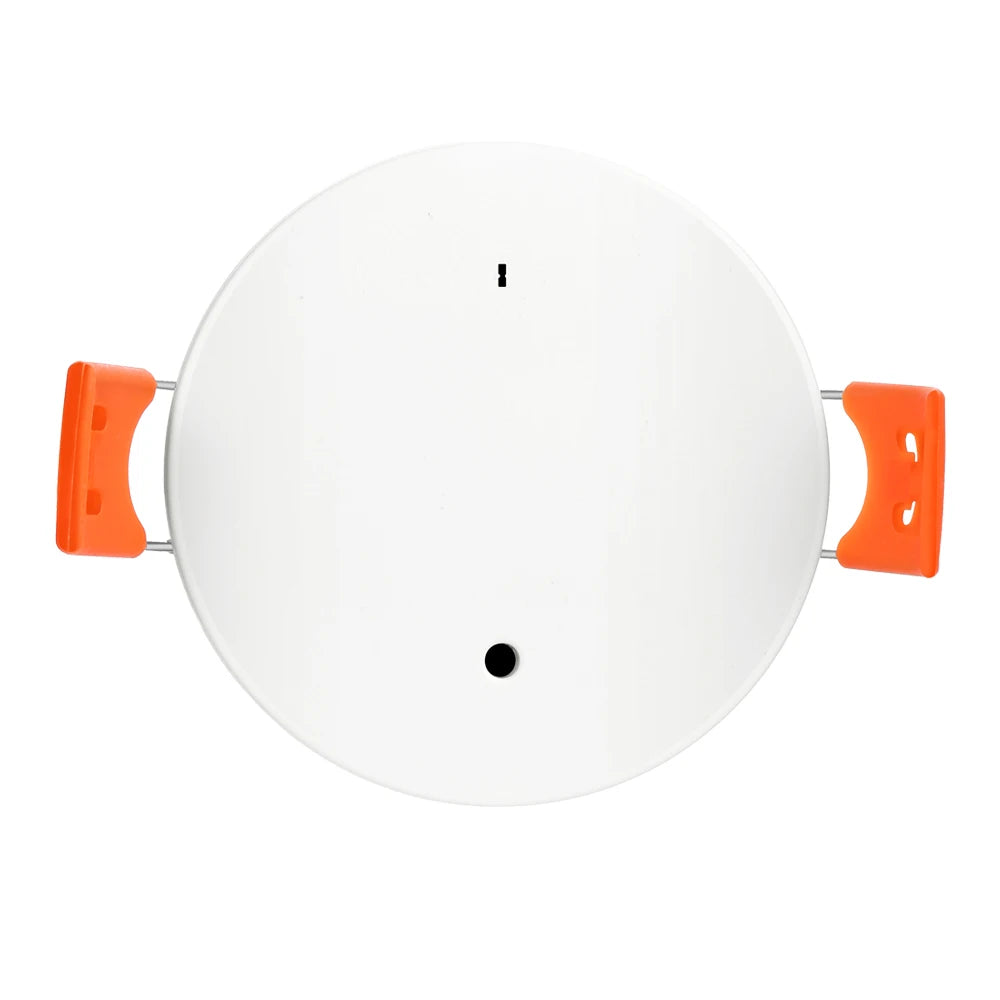

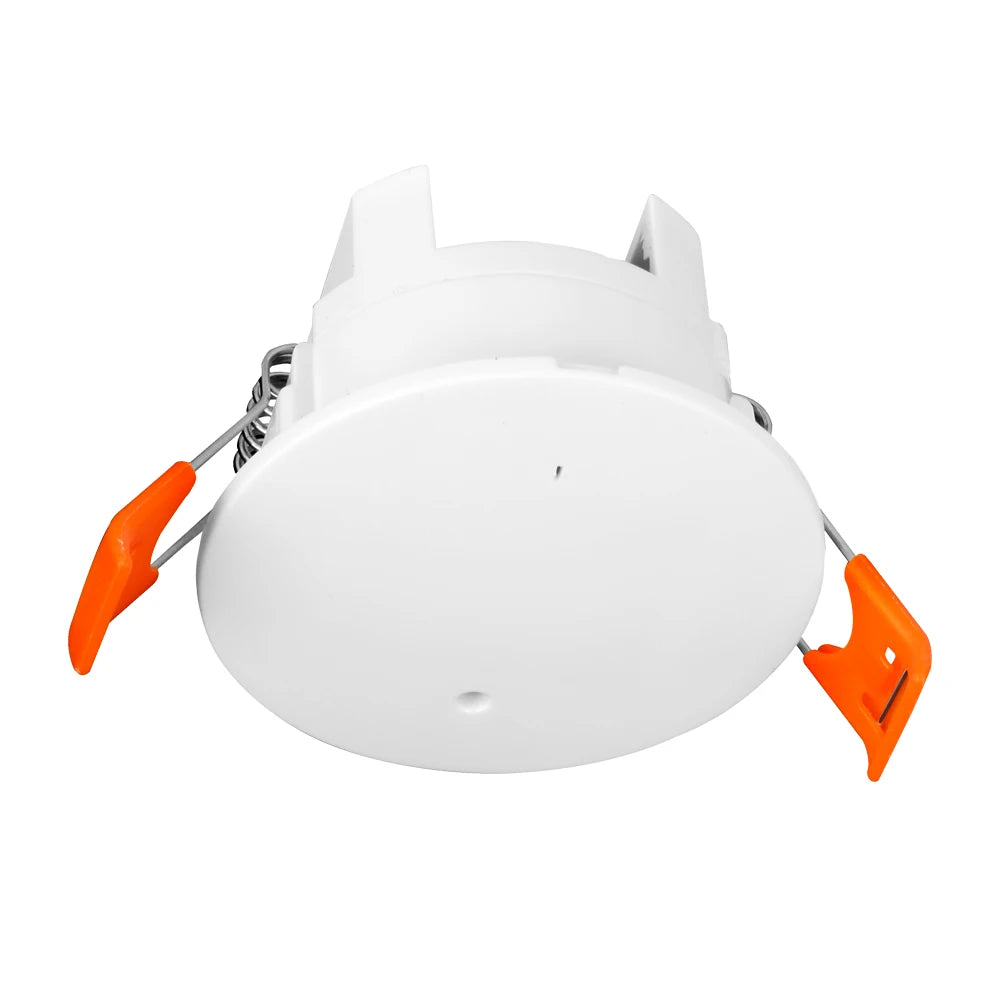

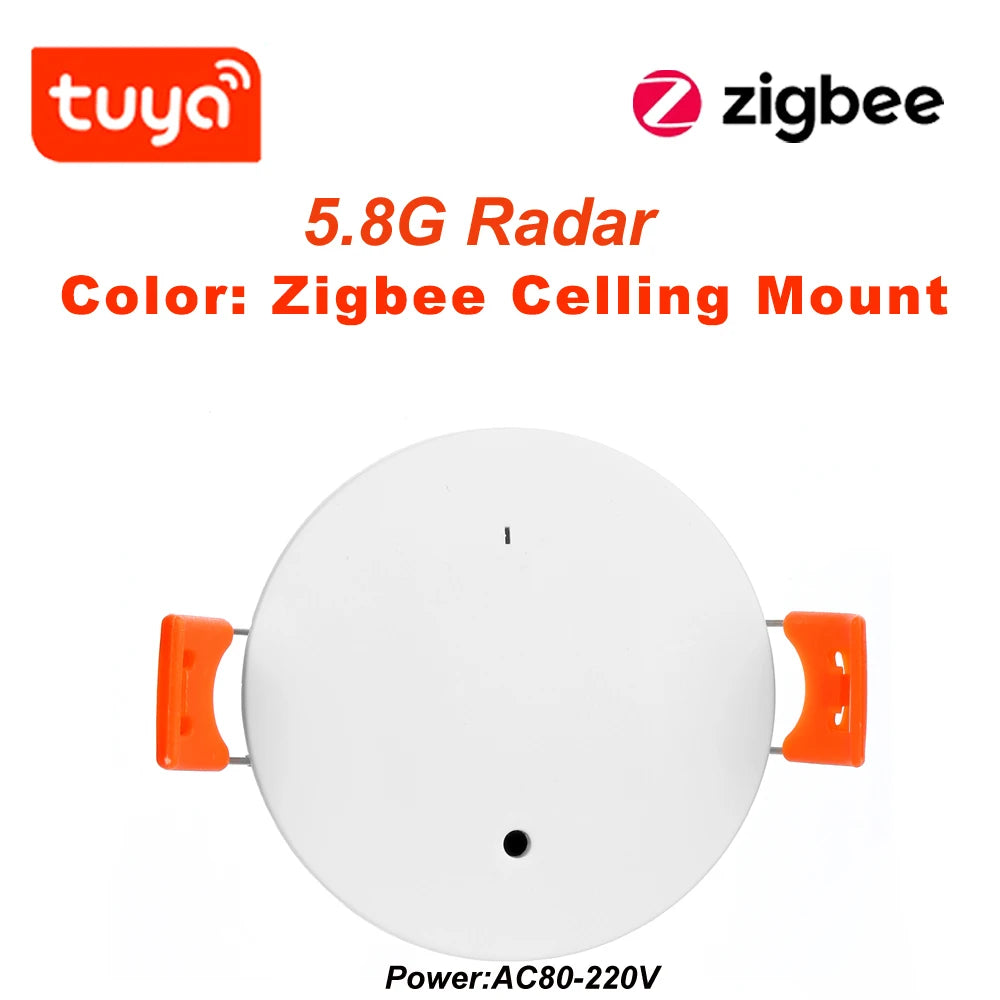

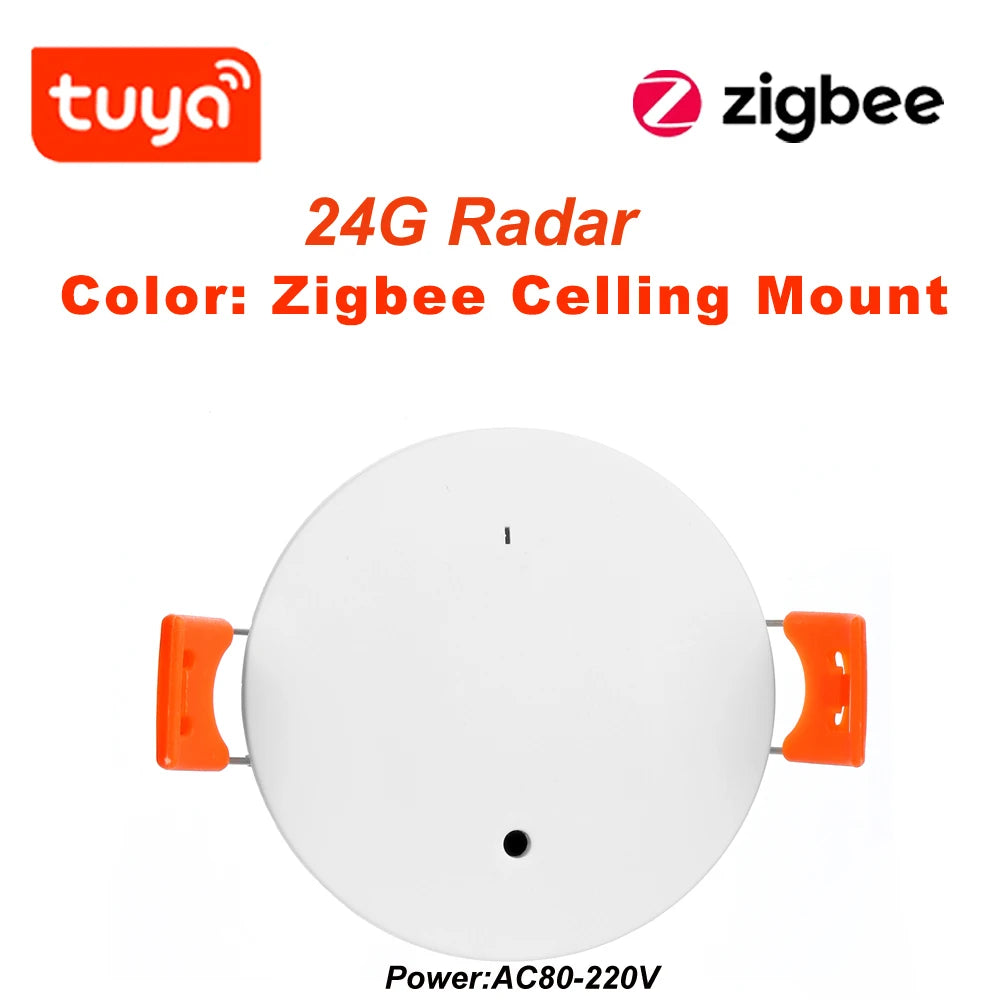

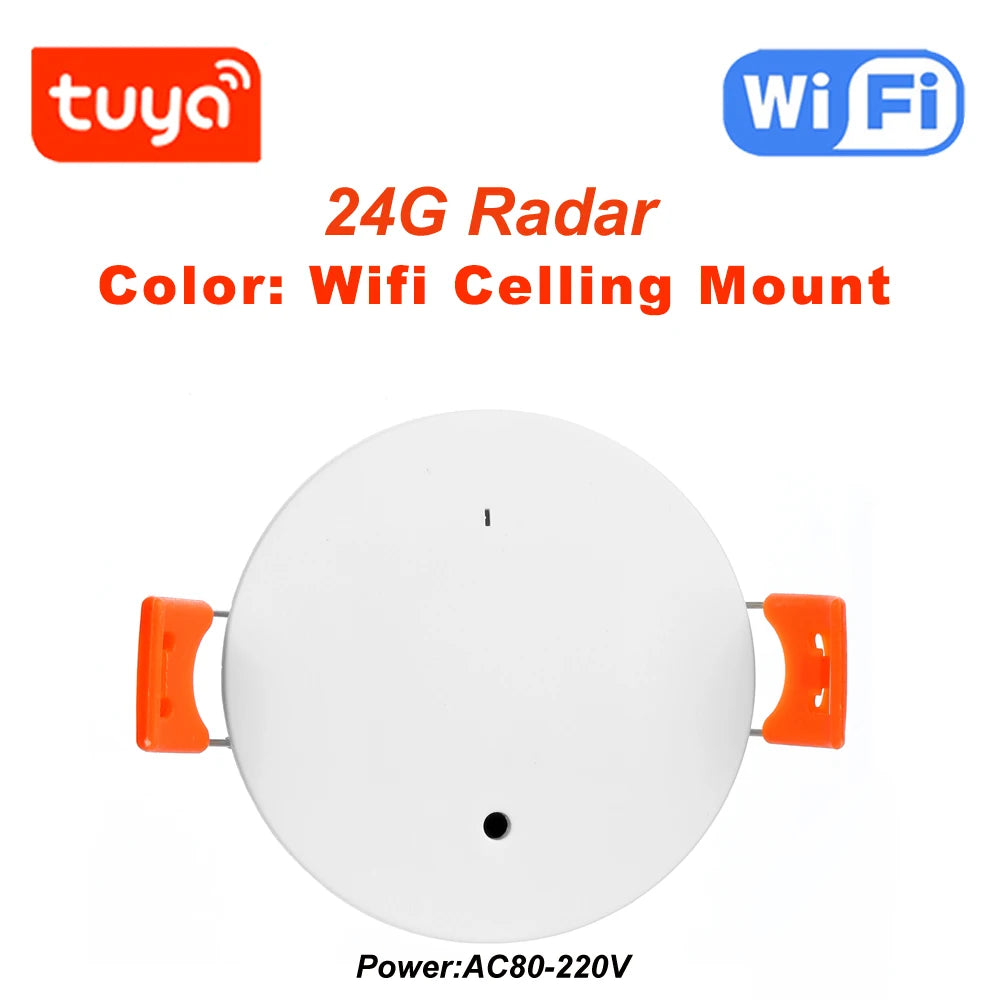

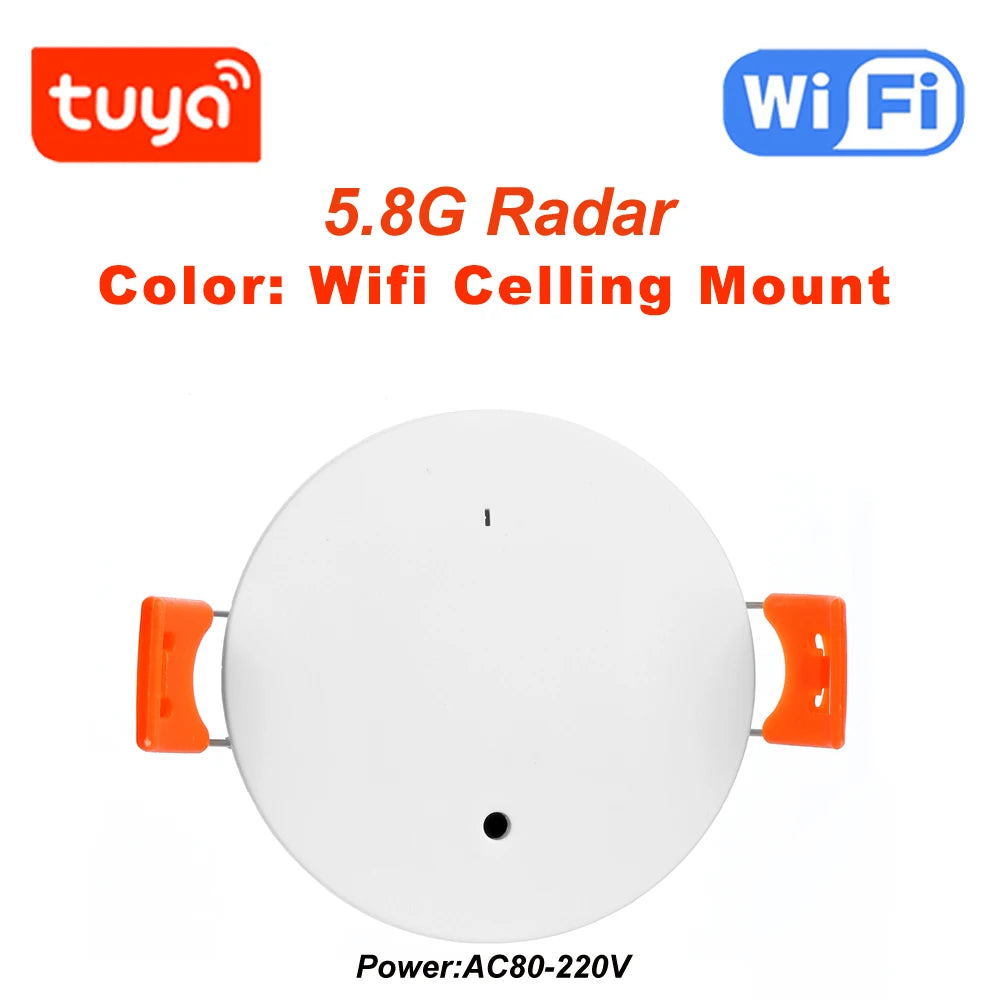

Ceiling mount version have wifi and zigbee,it is power by AC 80-220V

2.What is difference between 5.8G and 24G?

Compared to 5.8G radar, 24G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.

The Micro motion sensor can be widely used in lighing,security,home appliance.hotels,garages,buildings.transportation.LOT internet of things and other industries that need to detect human micro motion,motion and control detection distance

Smart Human Presence Detector:the human presence sensor adopts millimeter wave radar,sensing human movement and static presence.It can detect the tiniest movement,even breathing and heatbeat.

Home Security :With human presence detection,you can used to detect intruders,whether it's in your personal home,an office or retail setting or even an industrial environment.

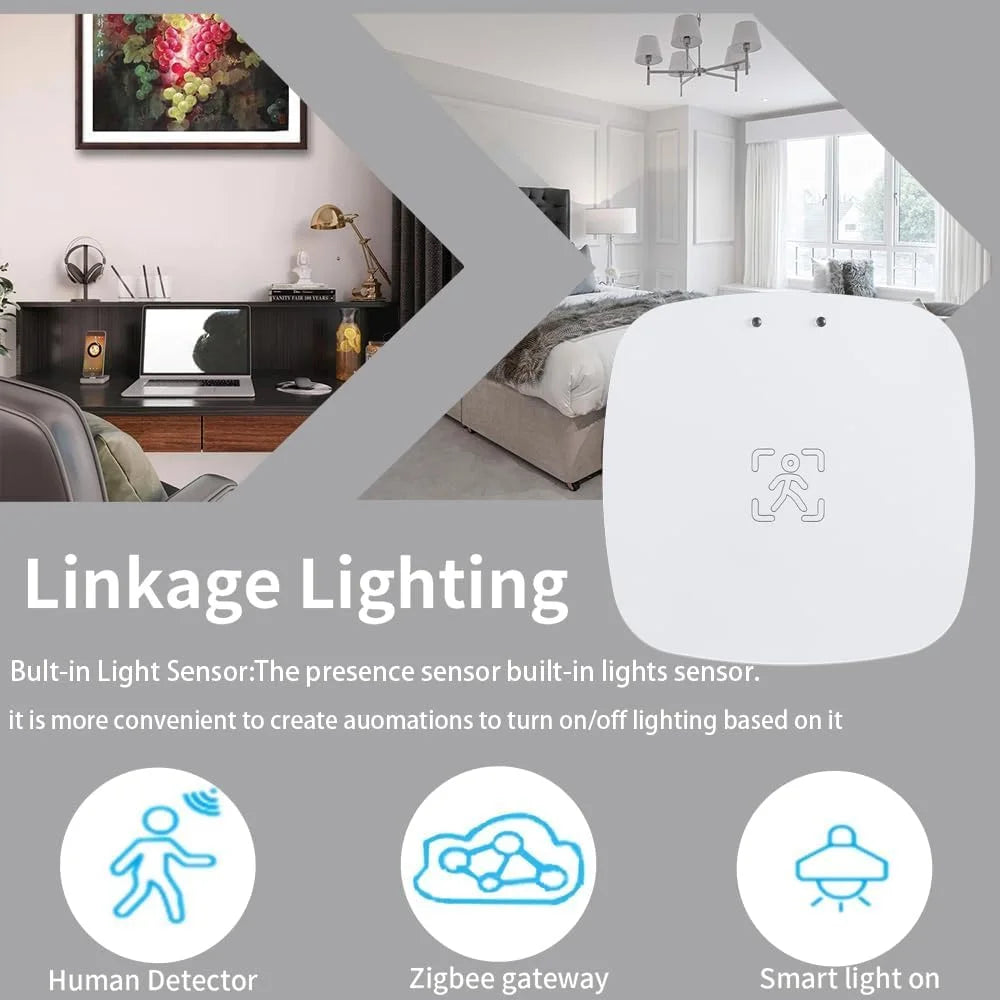

Energy Conservation:It can not only be used to detect moving,but also non-moving people.it enables seamless background features,like the litchen light turns on once you enter the room and off once you leave.

APP Remote Control:It detect micro/macro motions enables you to detect human presence within a configured distance.and get alerts in real time via app.

History Record View:User can check the history record via app.

ZigBee Hub needed:Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.

Specifications:

Product name:Human presence sensor

Wireless technology:ZigBee/Wifi

Working voltage:DC80-250V or USB5V (optional)

Working current:≤70mA

Working temperature:-20℃~+70℃

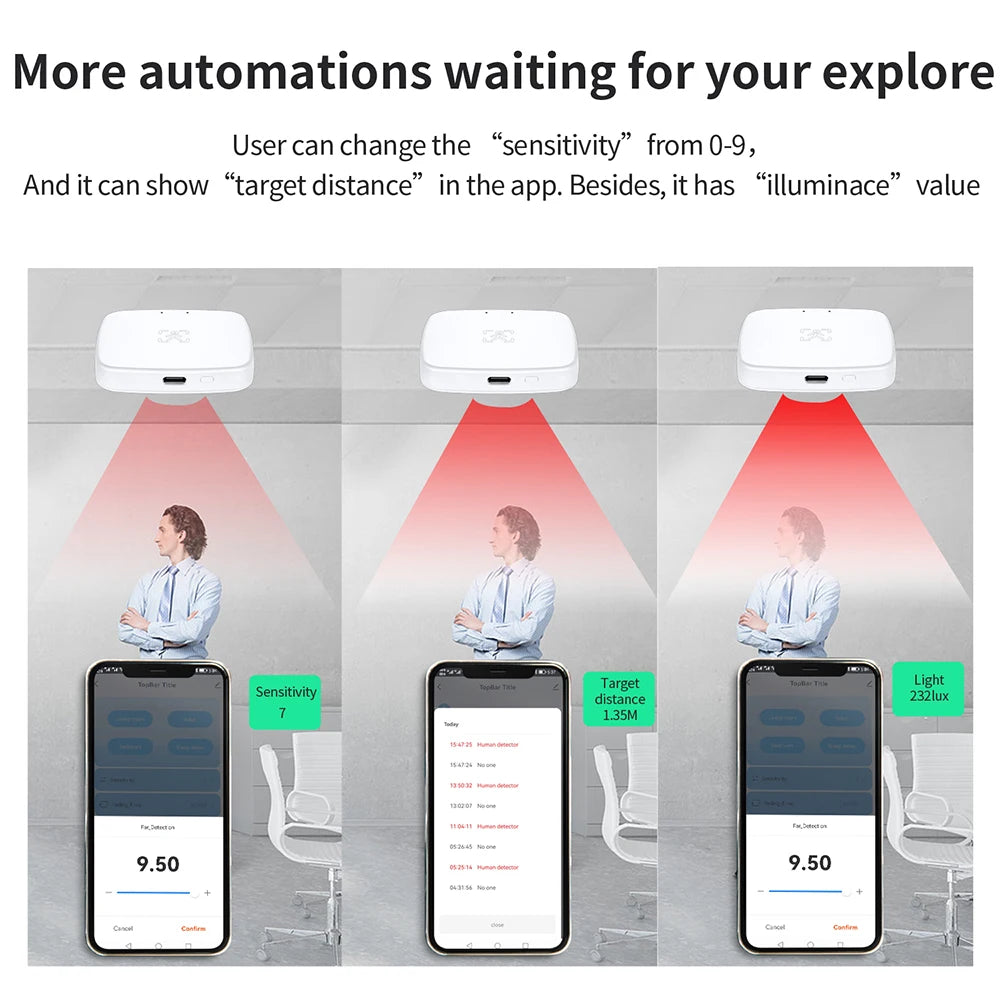

Sensitivity:0-9(default 7)

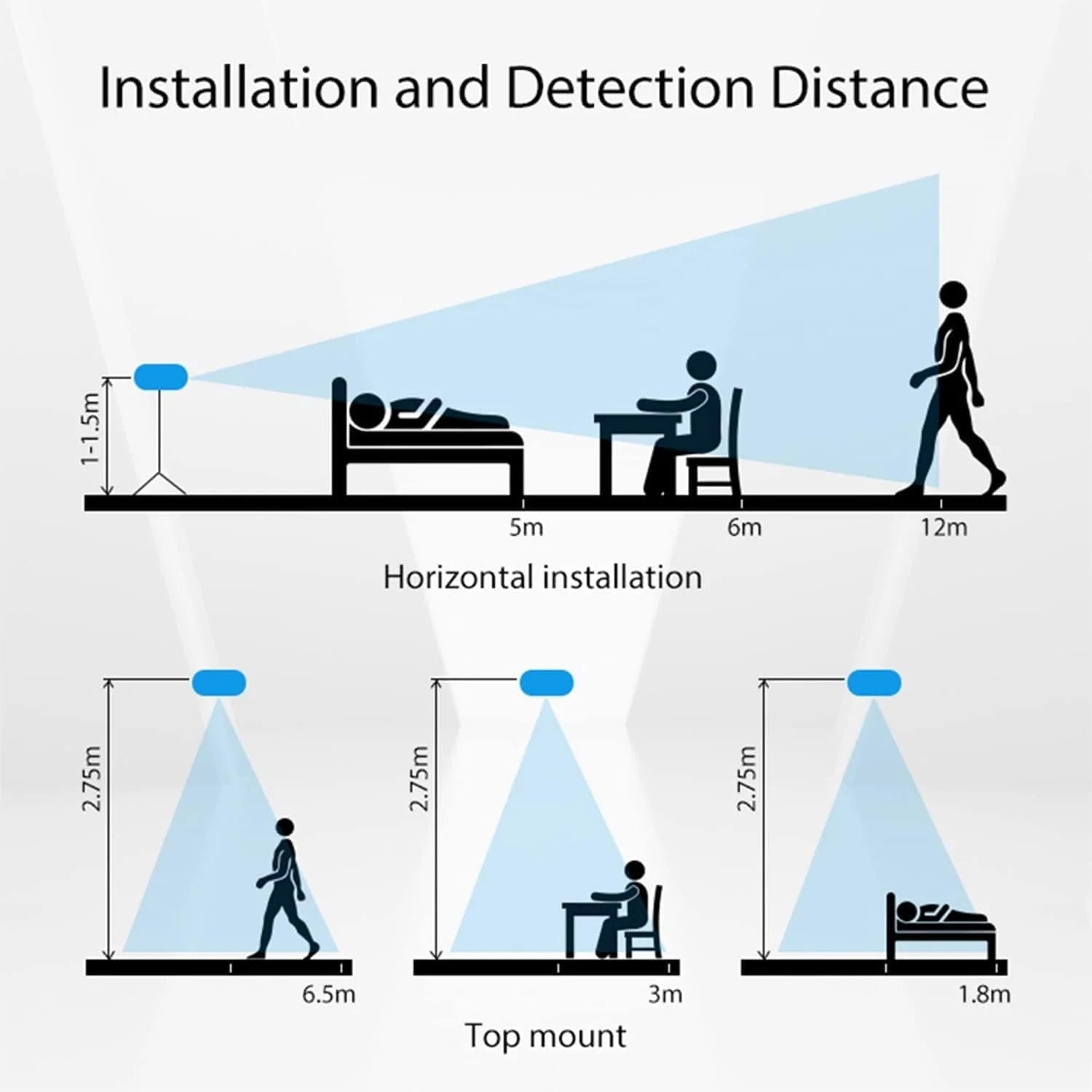

Detect distance:0.3-9m(default 6m)

Delay time:1.target detection confirmation time:0-10s

2.target disappearance delay time:0.5s-25min.

It is recommended not to be less than 15s.It is too short to miss the human motion.

Light sense:0-2000Lux

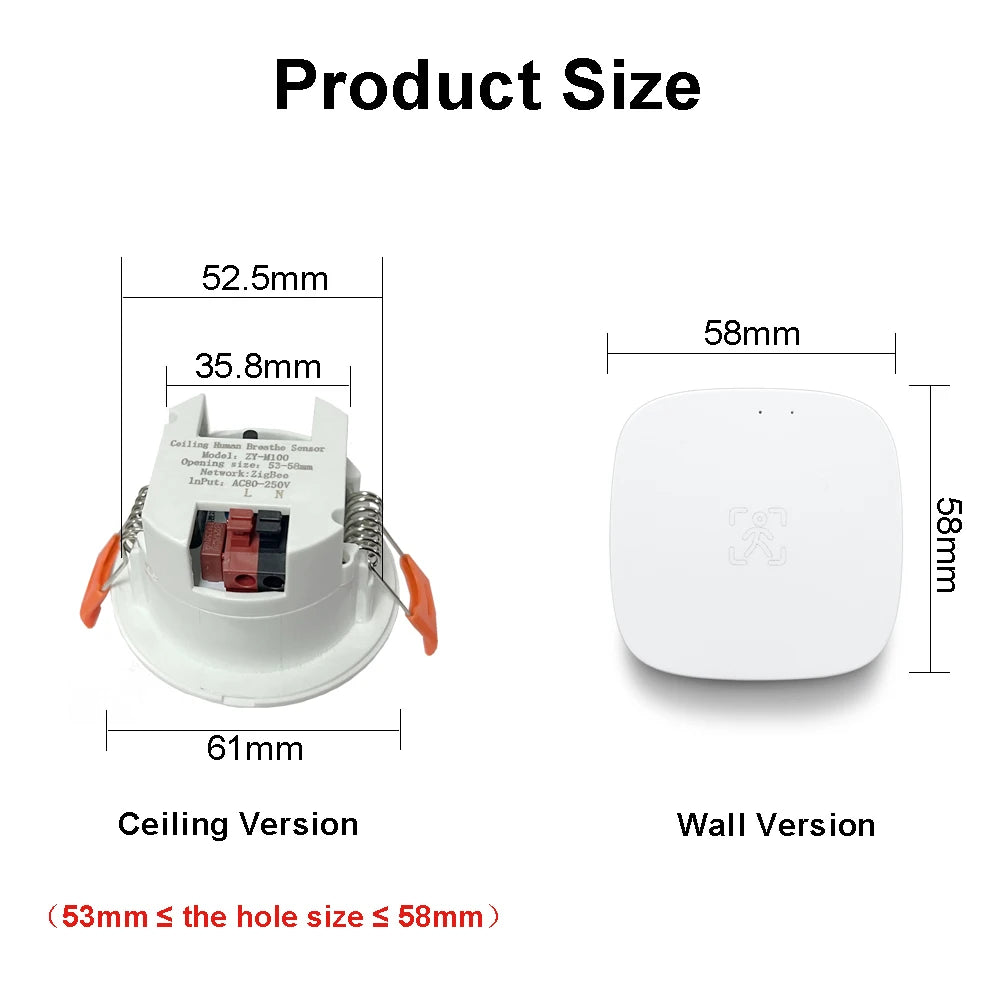

Installation mode:wall/ceiling
