SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh

Brand Name: Heltec Automation

Certification: CE,FCC

Compatible With: Lora 32

Demo Board Type: ARM

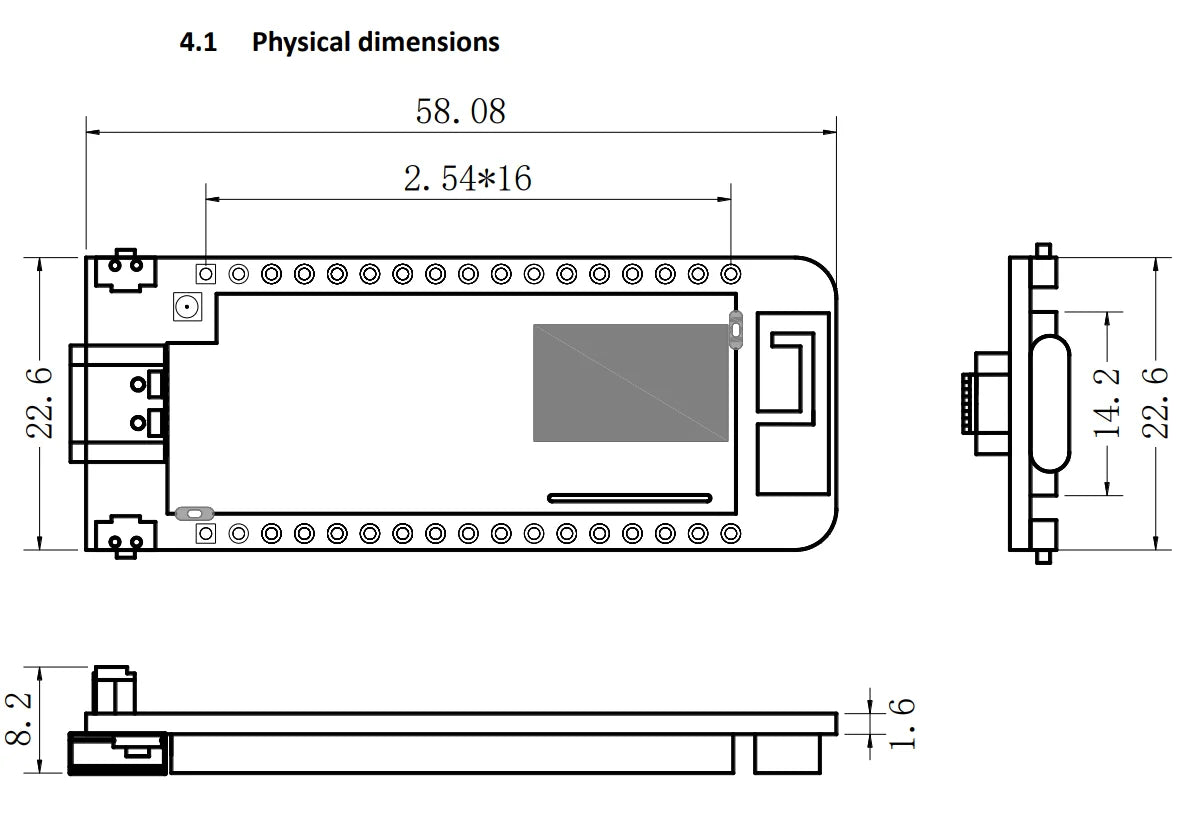

Dimensions: 58.08 * 22.6* 8.2 mm

Display: 0.49-inch OLED

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc

Heltec Stick: SX1262

High-concerned chemical: none

Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*17*2.54 Header Pin

Intergrated Feature: WiFi 802.11b/g/n,bluetooth

LoRa Chipset: SX1262

Master Chip: ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor)

Max. Receiving sensitivity: -134 dBm

Max. TX Power: 21 ± 1 dBm

Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

Operating temperature: -20 ~ 70 ℃

Origin: Mainland China,Mainland China

Typical Application Fields: Internet of Things (IoT)

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

Description

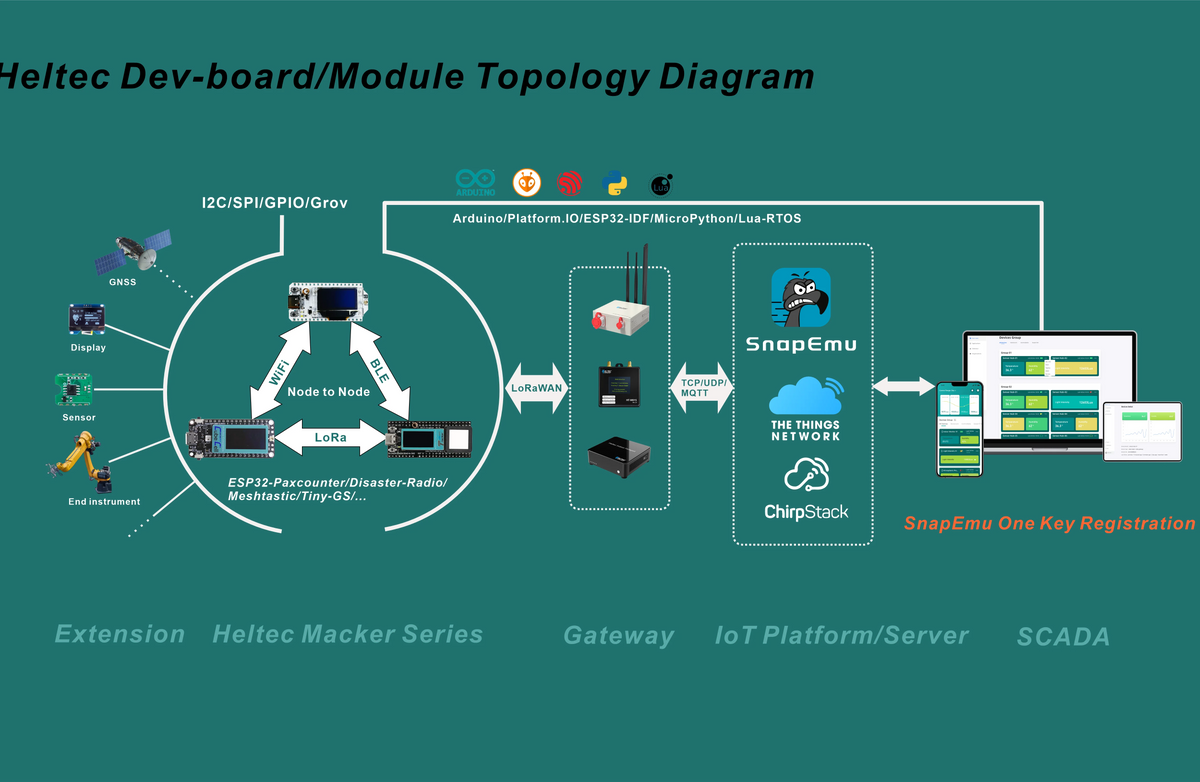

Why do we need Maker series products?

Summary

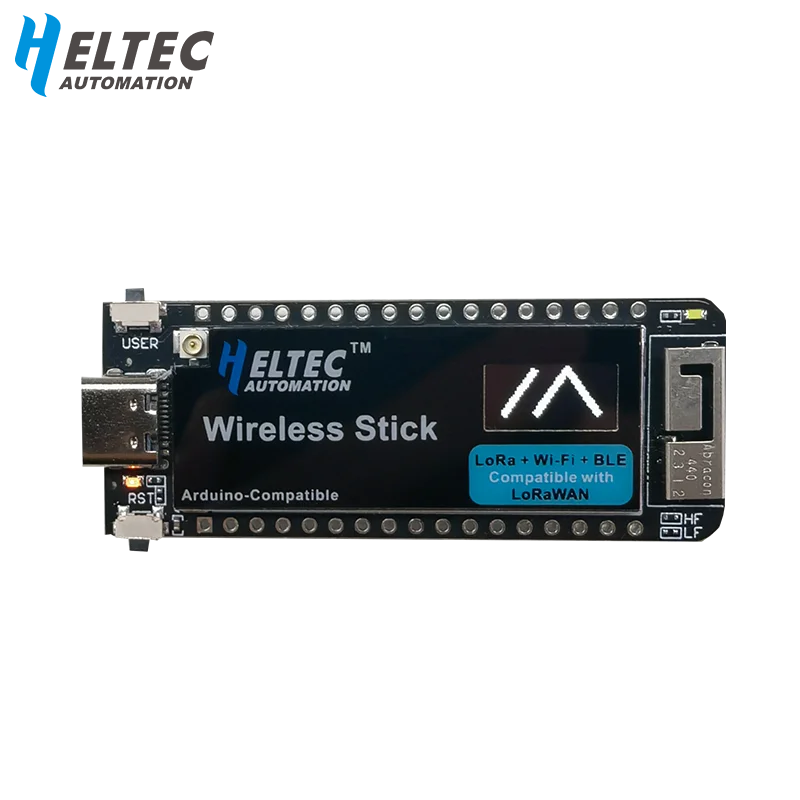

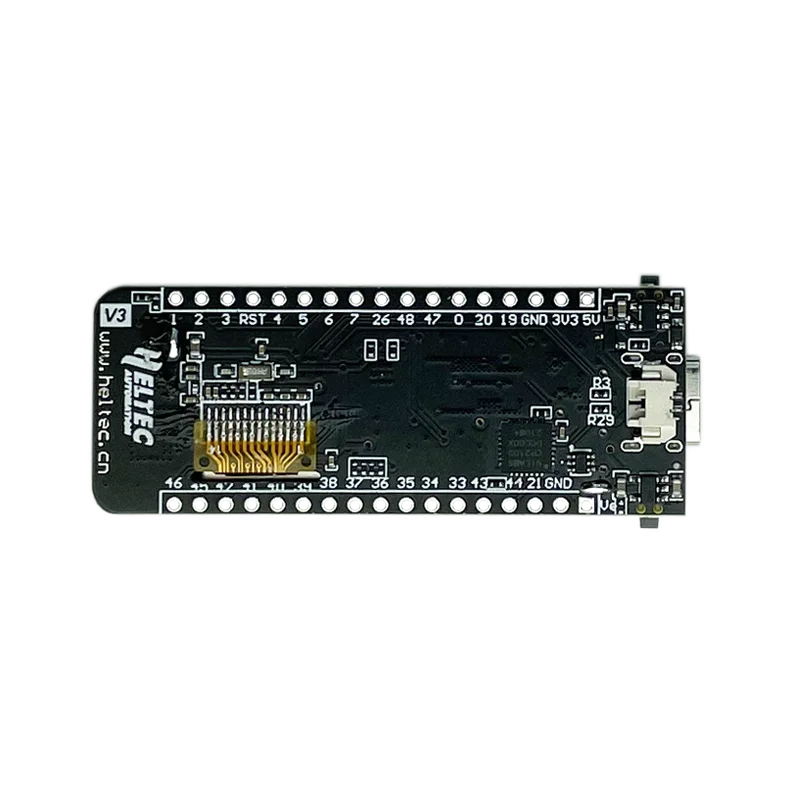

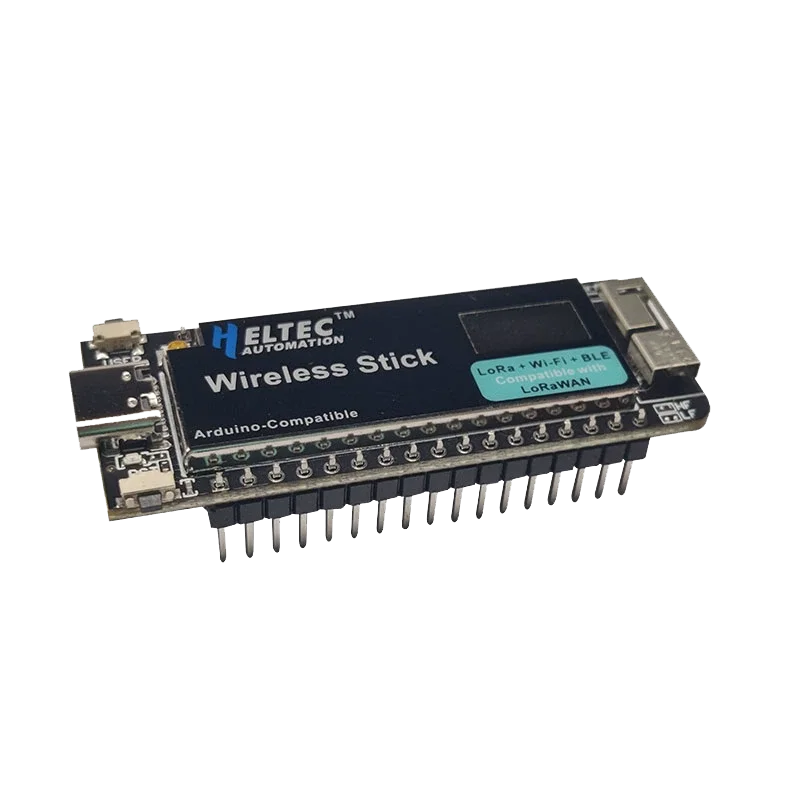

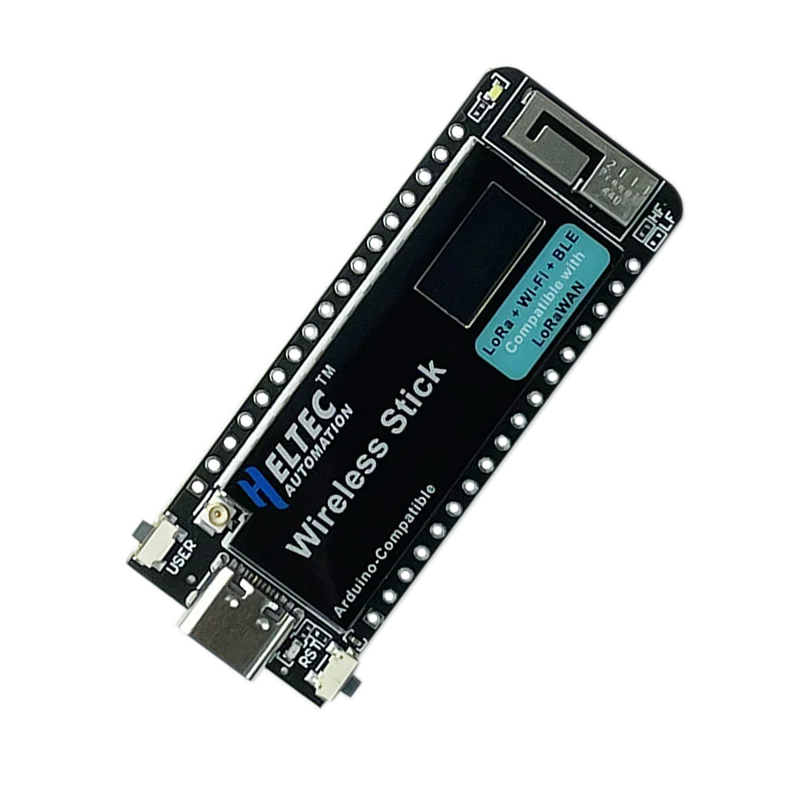

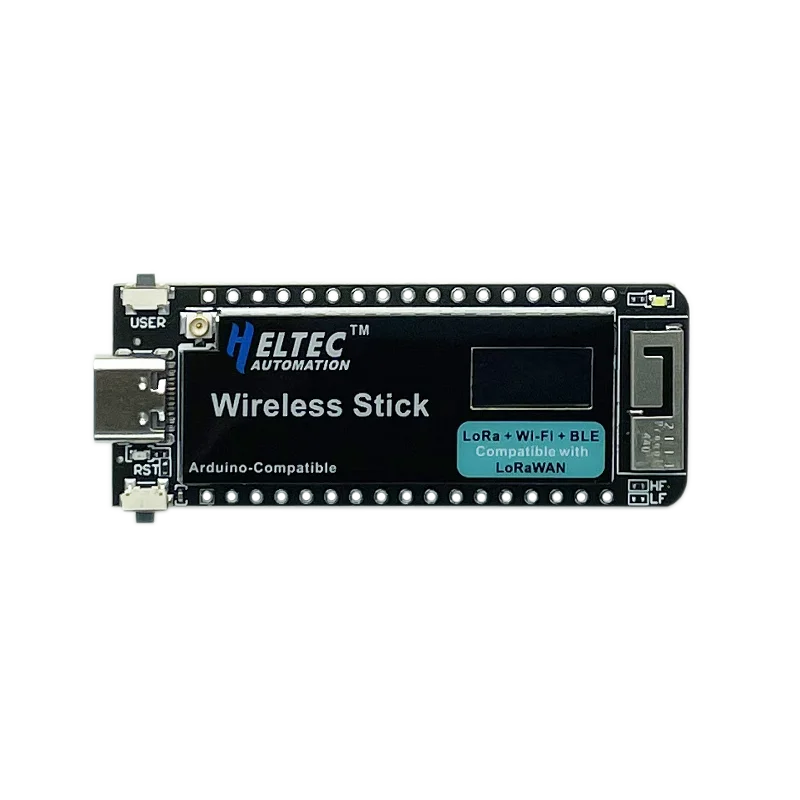

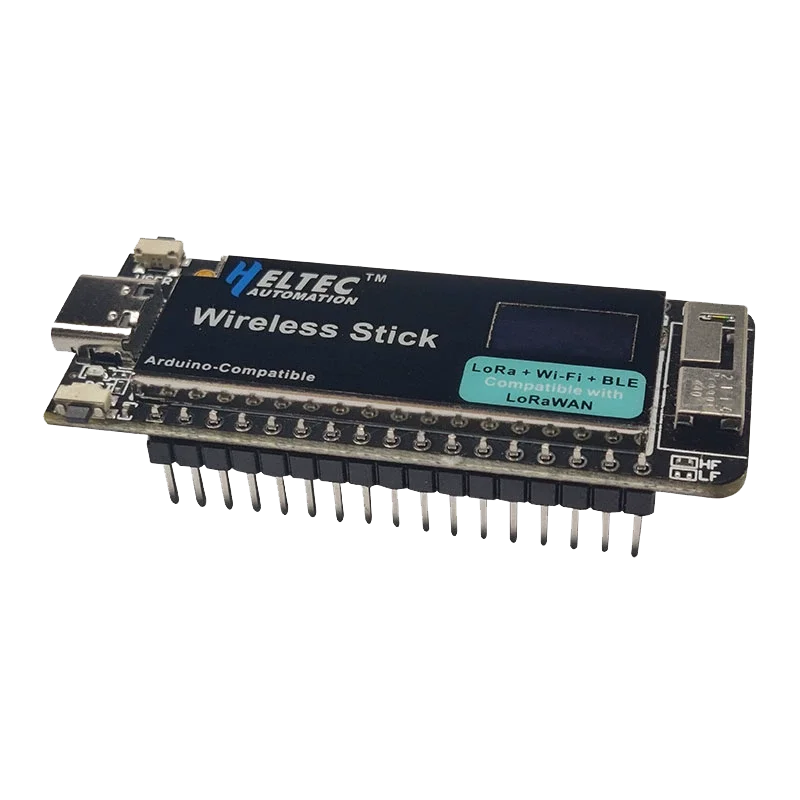

HTIT-WS is a development board for Wi-Fi, Bluetooth and LoRa. Its functions are
basically the same as “WiFi Lora 32”, except that the screen is reduced to 0.49 inch and
a shielding shell is added.

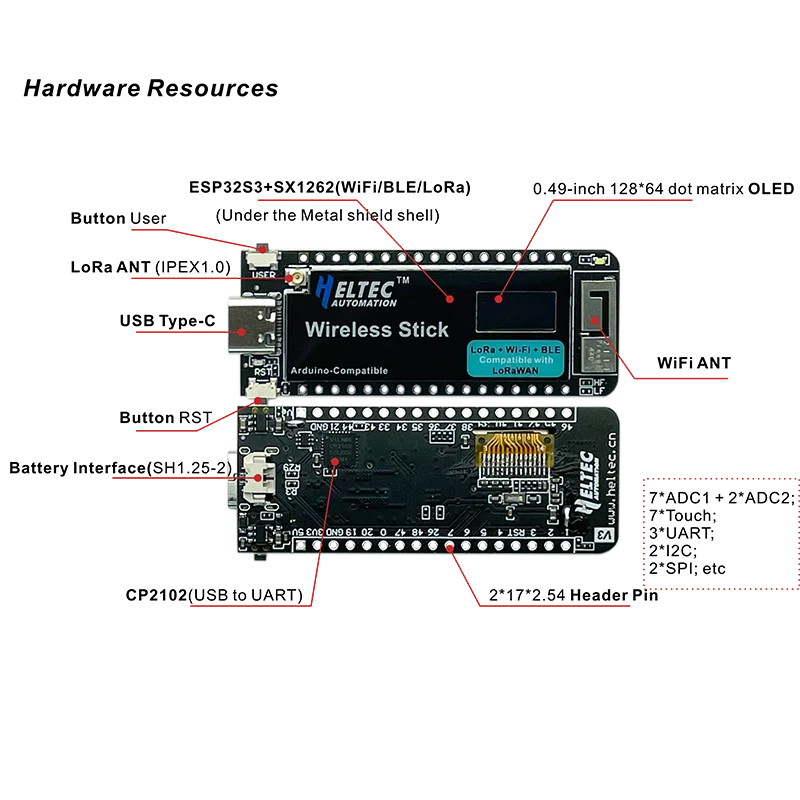

The HTIT-WS is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers
(SX1262), perfectly support Arduino®. Users can easily carry out secondary
development and application.

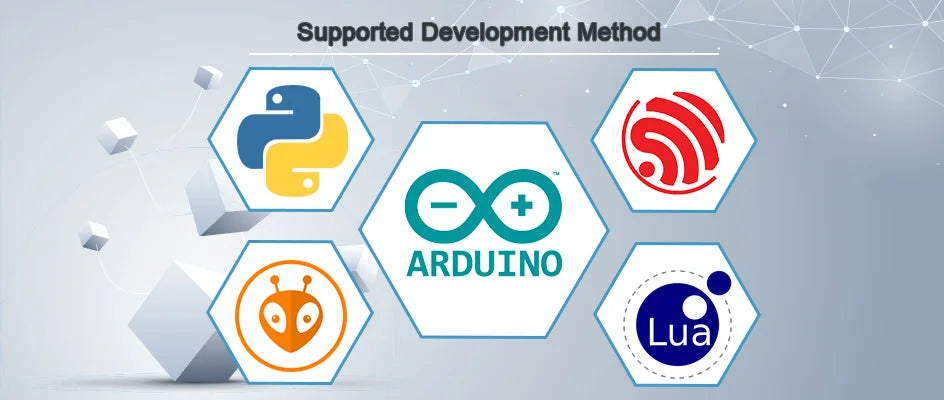

Wireless Stick (V3) supports the following development methods:

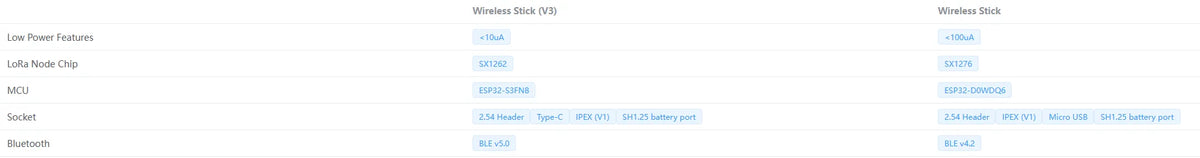

Compared to Wireless Stick (V2), V3 has made the following upgrades:

Wireless Stick is compatible with the following open-source projects:

• ESP32 Paxcounter

• Disaster Radio

• Meshtastic

• Tiny GS

• ...

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Resource

Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

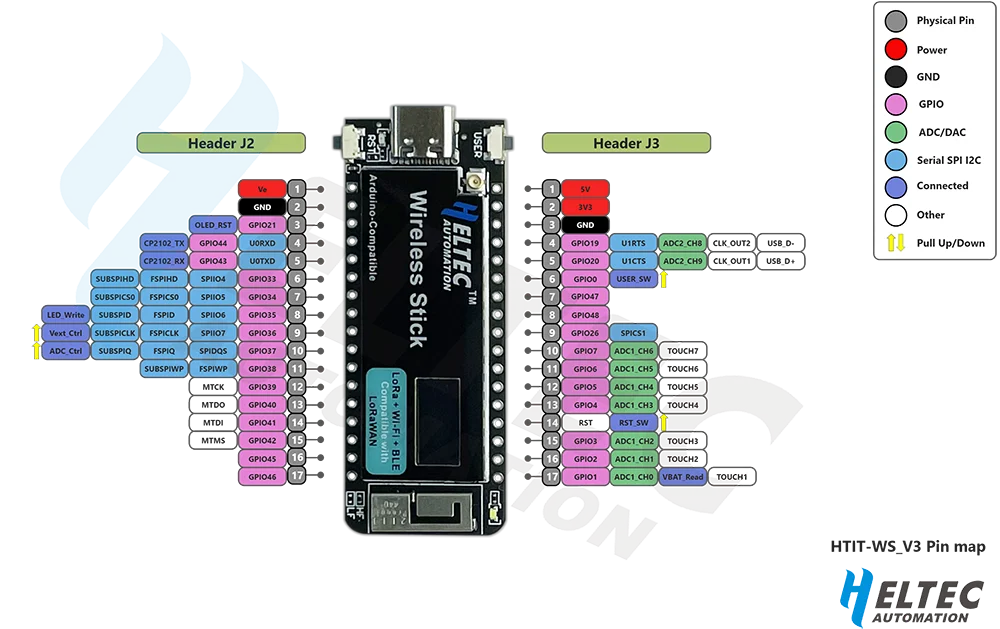

Schematic diagram
