SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery Included: no

Bluetooth: Bluetooth 5 (LE)

Brand Name: Heltec Automation

Certification: CE,FCC

Compatible With: Lora 32

Demo Board Type: RISC-V

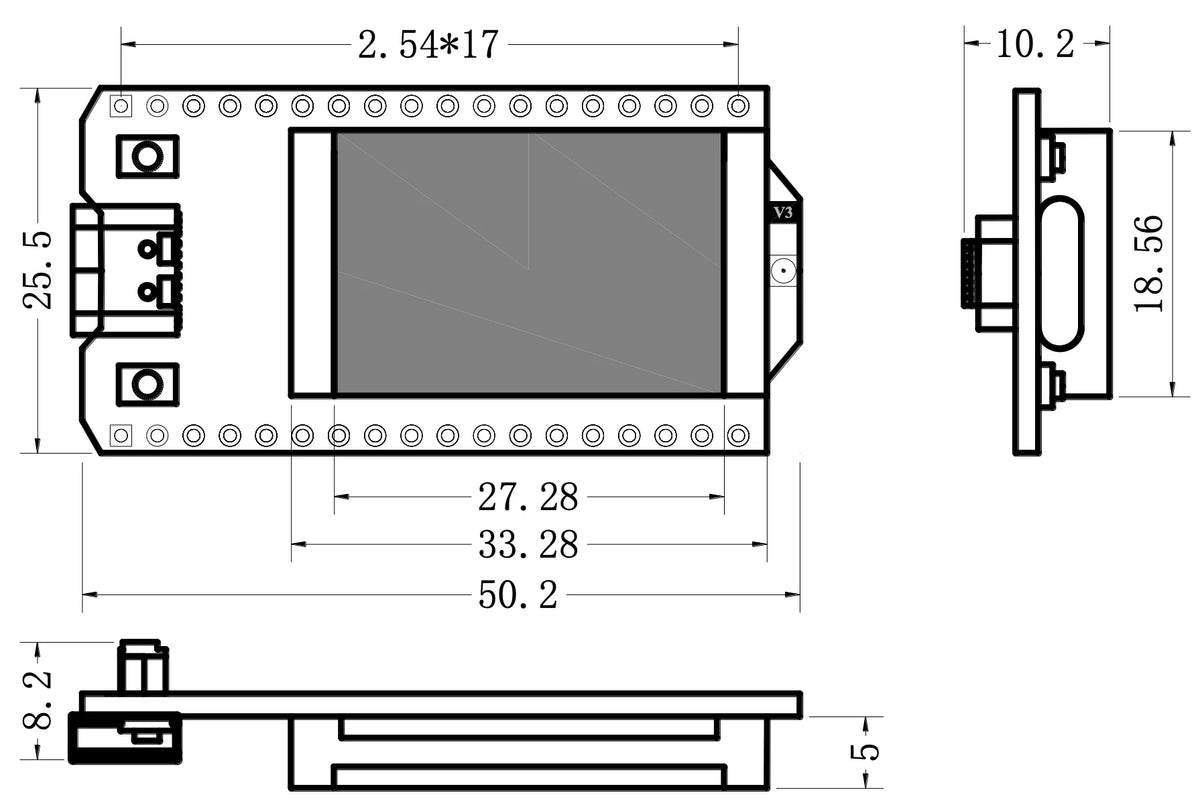

Dimensions: 50.2 * 25.5* 10.2 mm

Frequency: 470~510MHz, 863~928MHz

Function: ESP32 LoRa WiFi BLE

High-concerned chemical: none

Intergrated Feature: WiFi 802.11b/g/n,bluetooth

LoRa Node Chip: SX1262

Master Chip: ESP32 S3FN8 (Xtensa 32 bit lx7 dual core processor)

Max. Receiving sensitivity: -136dBm@SF12 BW=125KHz

Max. TX Power: 20±2dBm

Origin: Mainland China

Supported: meshstatic

Typical Application Fields: Internet of Things (IoT)

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

Description

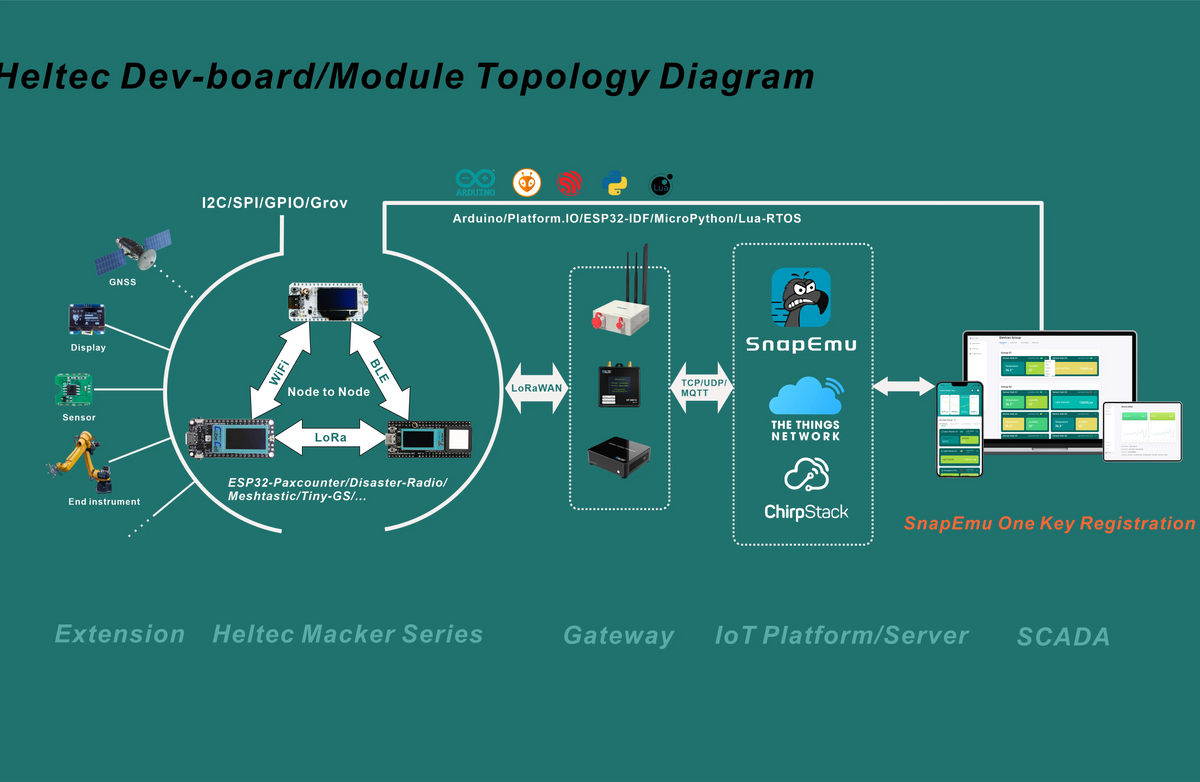

Why do we need Maker series products?

Summary

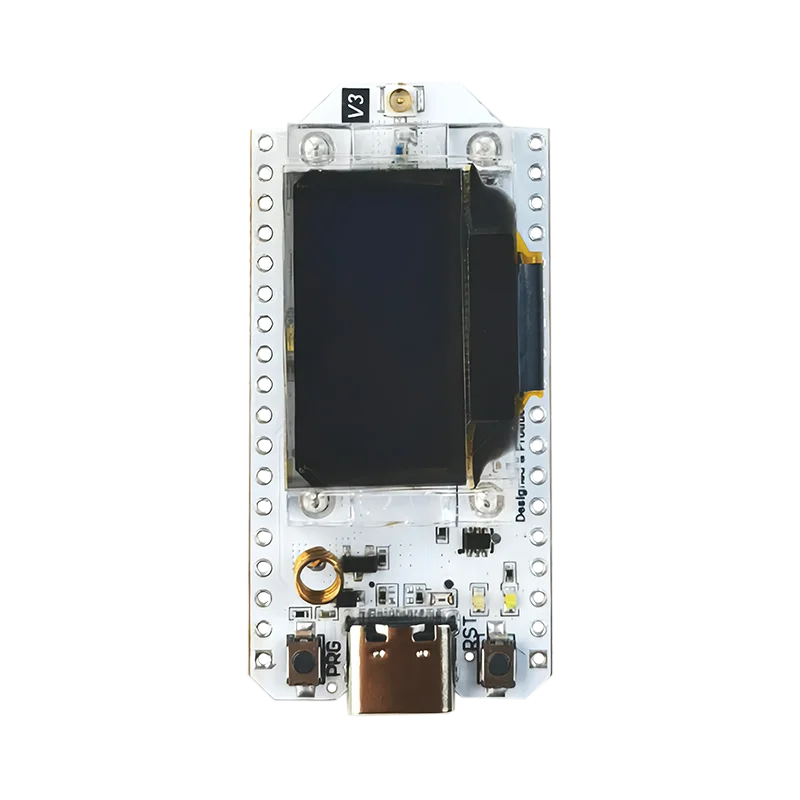

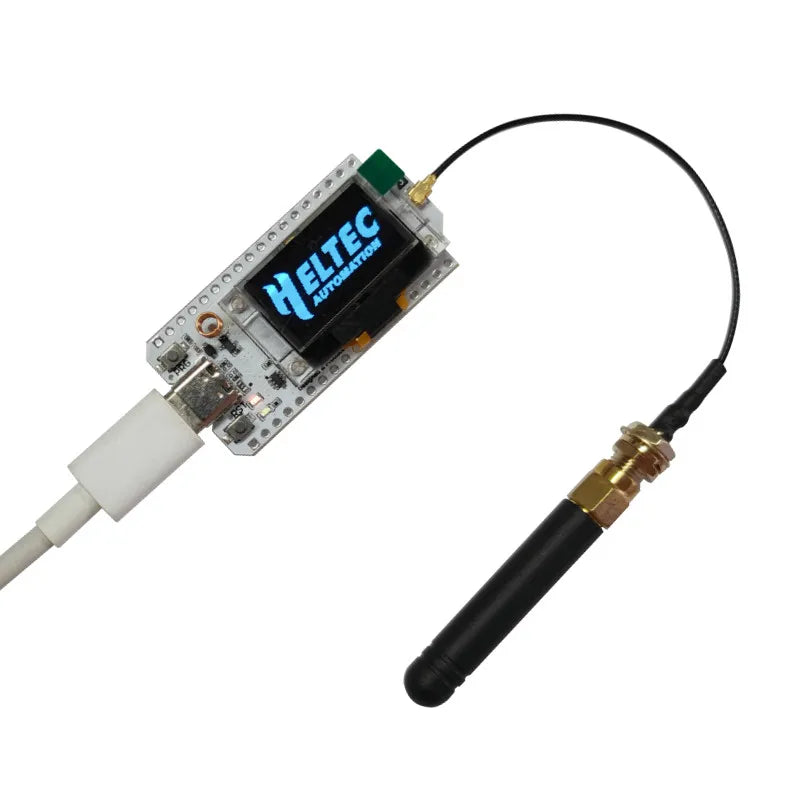

●WiFi LoRa 32(V3) is a classic IoT dev board designed & produced by Heltec Automation.

●Since its launch in 2017, it has been loved by developers and makers.

●Widely used in numerous excellent open-source projects and directly made into products for LoRa/LoRaWAN features.

●The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

●It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

Main Features

● Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

● SX1262 LoRa node chip.

● Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

● Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

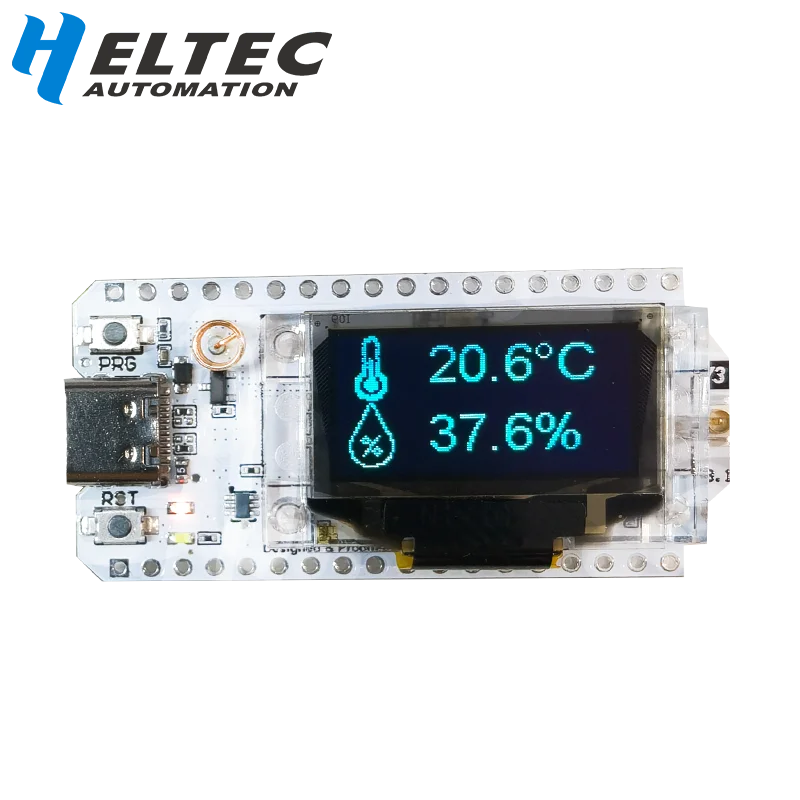

● Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.

● Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

● Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

● Support the Arduino development environment.

● With good RF circuit design and low-power design.

WiFi LoRa 32 (V3) supports the following development methods:

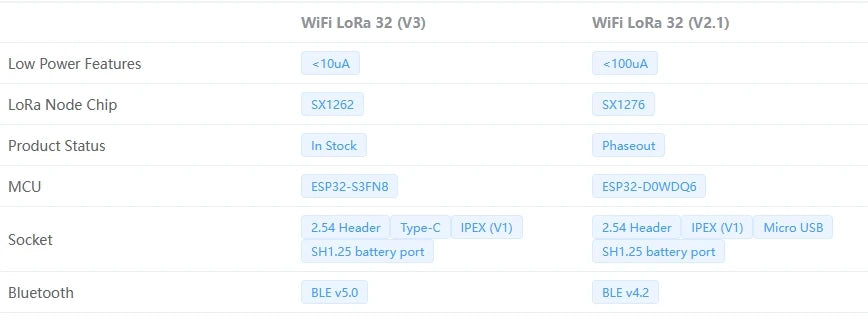

Compared to WiFi LoRa 32 (V2), V3 has made the following upgrades:

WiFi LoRa 32 is compatible with the following open-source projects:

●ESP32 Paxcounter

https://github.com/cyberman54/ESP32-Paxcounter?spm=a2g0o.detail.1000023.11.3612JhPxJhPxgo

●Disaster Radio

https://disaster.radio/

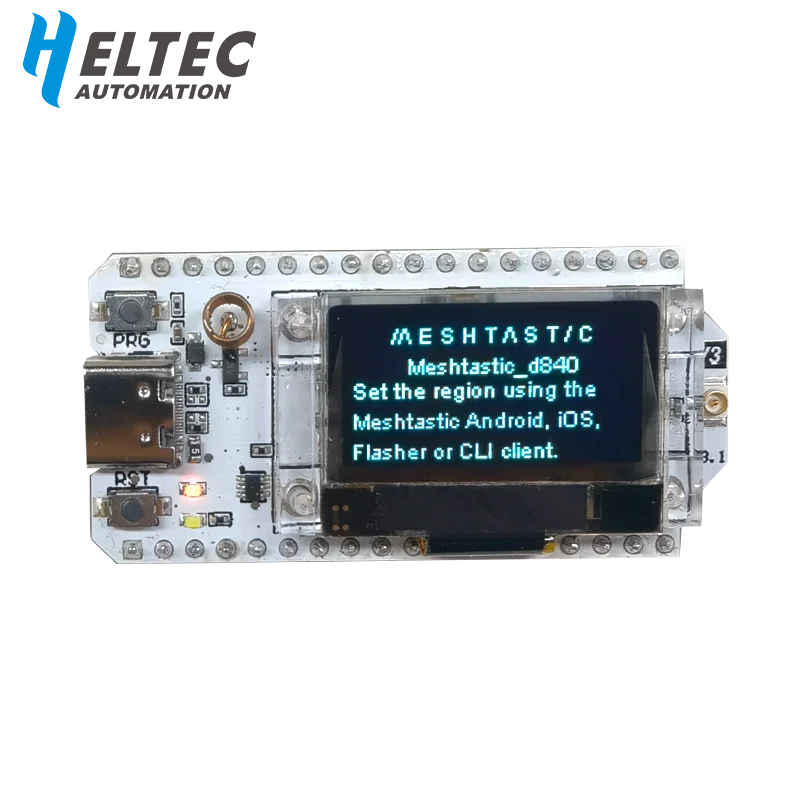

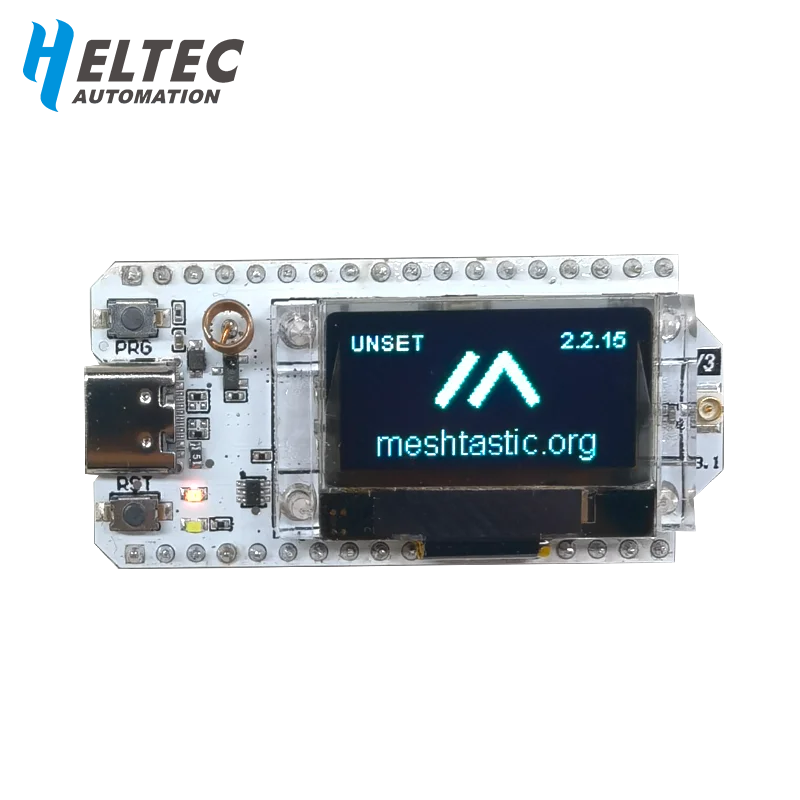

●Meshtastic

https://meshtastic.org/

●Tiny GS

https://tinygs.com/

●...

We also provide a standard ESP32 Arduino LoRaWAN library:

●Heltec ESP32 LoRaWAN

https://github.com/HelTecAutomation/ESP32_LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series

Resource

●WiFi LoRa 32 V3 details on Heltec website

https://heltec.org/project/wifi-lora-32-v3/

●Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series

●WiFi LoRa 32 V3 Documents

https://docs.heltec.org/en/node/esp32/wifi_lora_32/index.html

●Downloadable Resource

https://resource.heltec.cn/download/WiFi_LoRa_32_V3/

●Hardware update logs

https://docs.heltec.cn/en/node/esp32/hardware_update_log.html

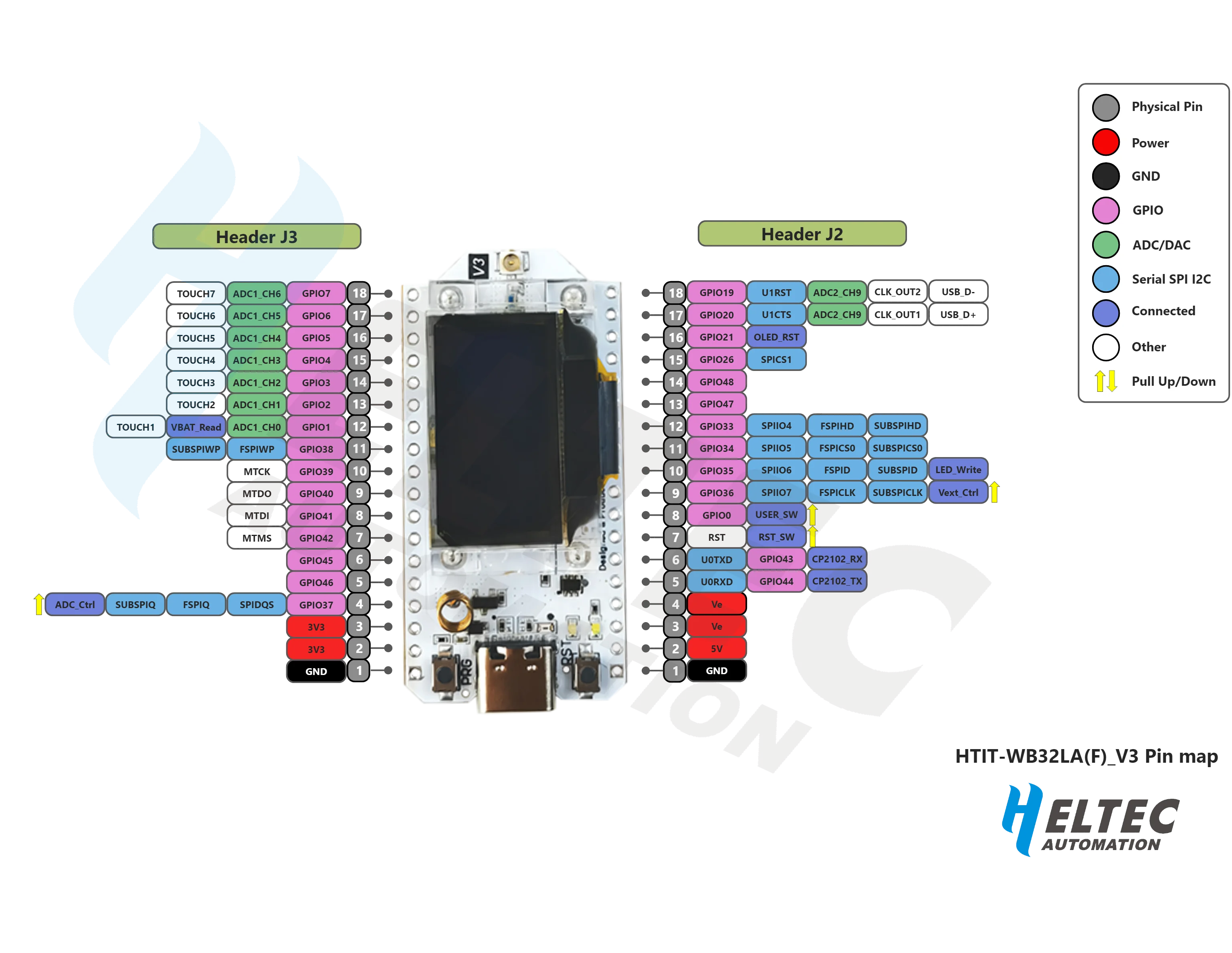

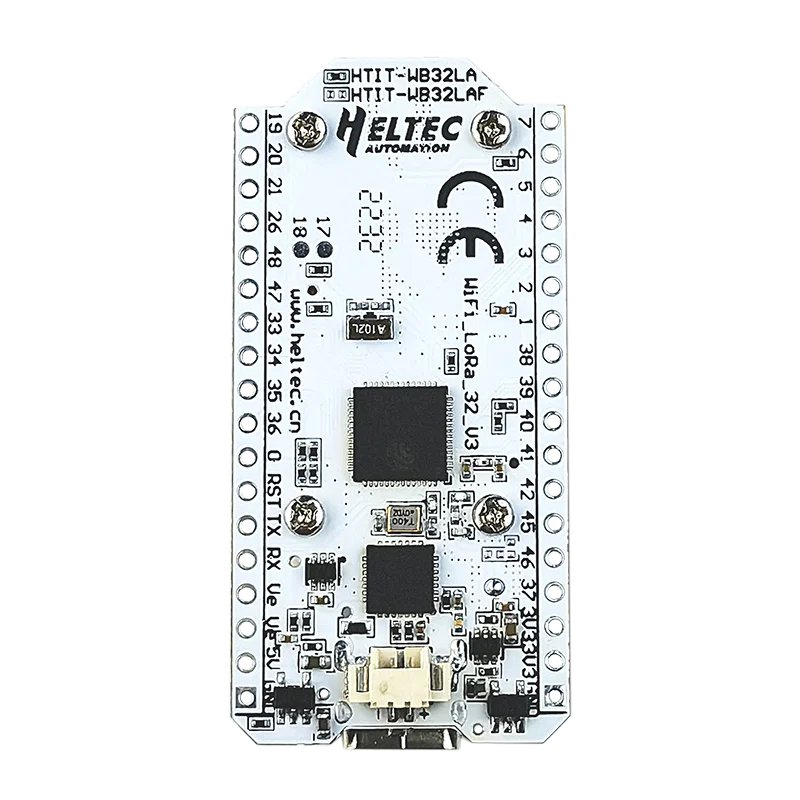

Pin Map

with shell

no shell

Specifications

Packing List

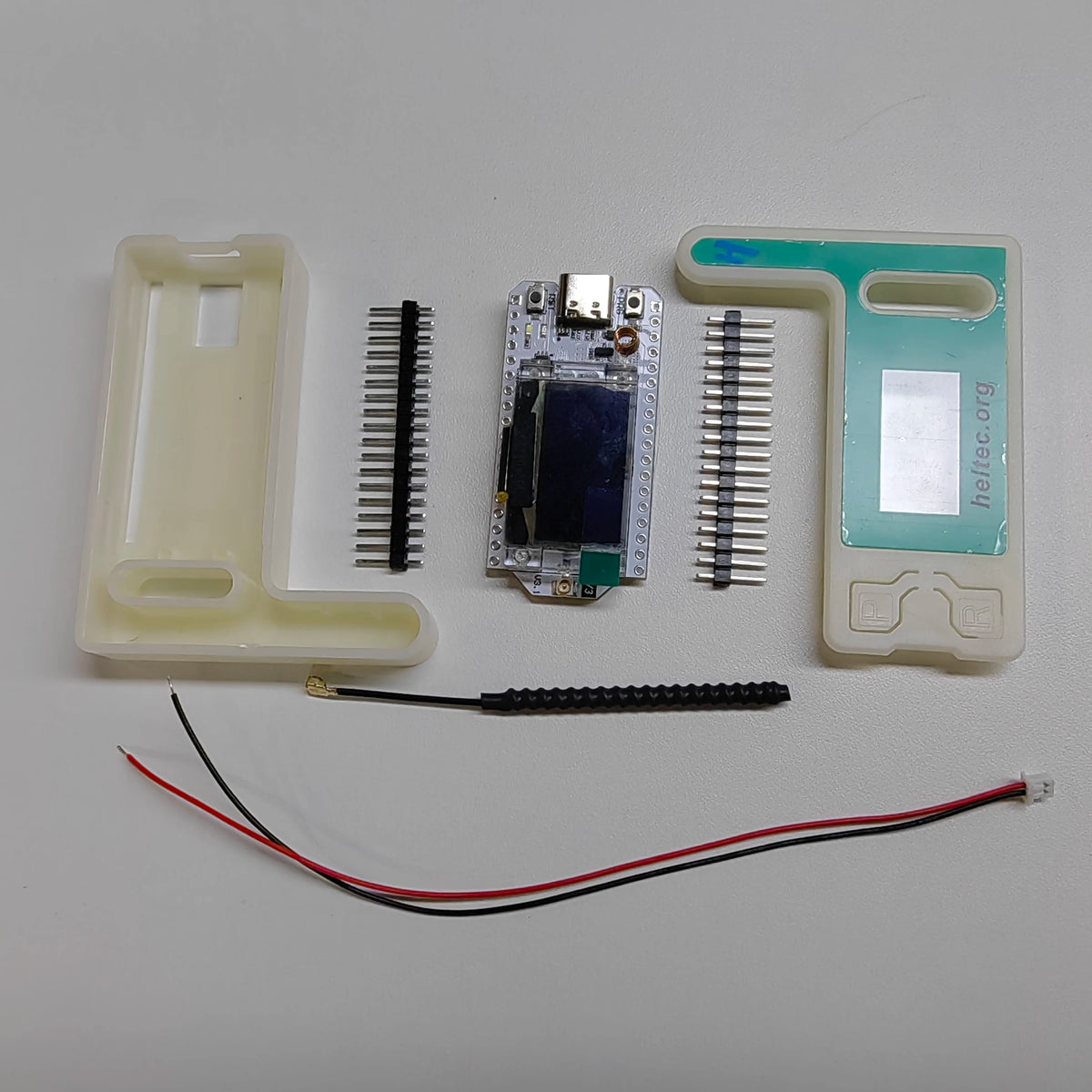

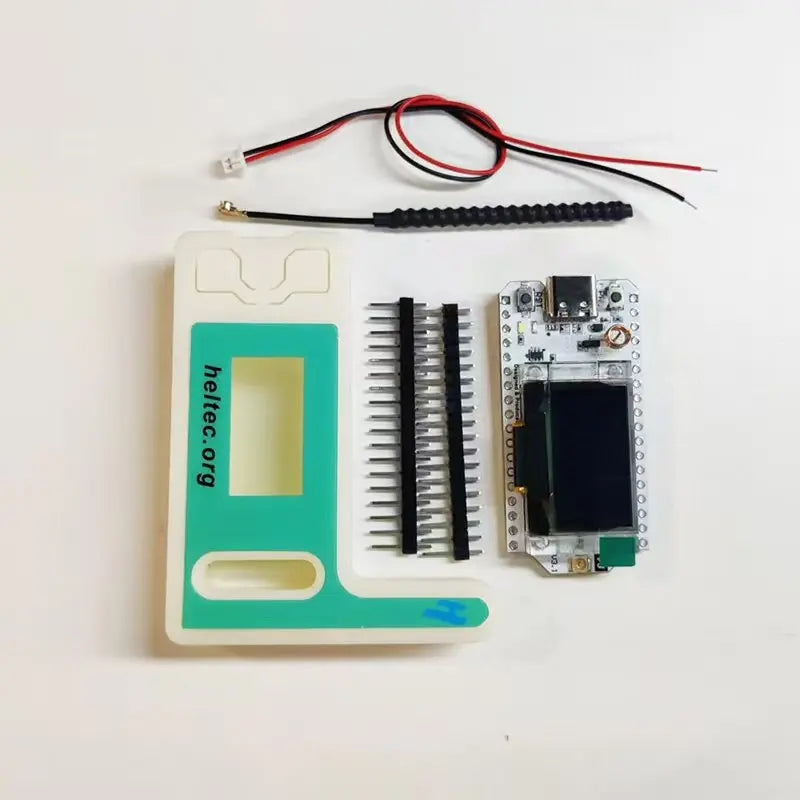

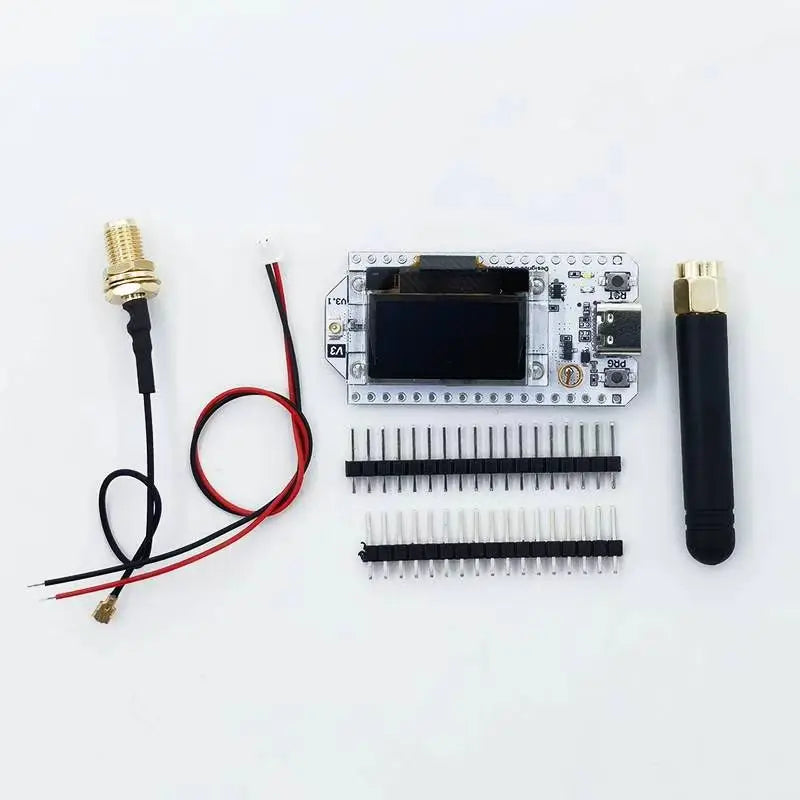

The default packing list without selecting any accessories is as follows:
