HLTNC 4 Axis Kit 3A 2N.M Nema23 425 Oz-in Stepper Motor TB6600 Driver+350W Power Supply MACH3 Controller Card For CNC Engraver
$935.72
Sale price
$935.72
Regular price
$0.00
Description
SPECIFICATIONS
Application: CNC machine
Brand Name: HLTNC
Certification: CCC,ce,ROHS,RoHS,CE,CCC,CCC, CE, ISO, ROHS, UL
Controller card: 4 Axis USB CNC Controller card
Current / Phase: 3A
Does it include a Battery?: No
Does it include wireless functionality?: No
Driver name: TB6600
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Holding Torque: 425oz-in/ 3NM
Model Number: 57HS11230
Motor Name: Nema23 57HS76
Motor wires: 4
Name: 3 4 axis CNC stepper motor controller kit
Origin: Mainland China
Phase: 2,2
Power supply: 36V/9.7A 350W
Step Angle(degrees): 1.8
Type: HYBRID
is_customized: Yes
there is not CD put on the parcel now, please contact with us, we would send the files through email .
or maybe you can try to download the files through these links (google drive)
(mach3 software) https://drive.google.com/file/d/1yoa7EdBHP0LmFZDceVldNOOF81X0rGR6/view?usp=drive_link
(plugin ) https://drive.google.com/file/d/1LKaYwL6L5c0NTqYJEwmiFuc5mnzHAttP/view?usp=drive_link
Model No |
Buy Now |
Step Angle (°) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (Kg.cm) |
Detent Torque (G.cm Max) |
Rotor Inertia (g.cm^2) |
Motor Length (mm) |
Lead Wires No. |
Motor Weight (Kg) |
|
57hs56-3004 |
Link |
1.8 |
2.85 |
3 |
0.95 |
2.8 |
12 |
400 |
300 |
56 |
4 |
0.7 |
|
57hs76-3004 |
Link |
1.8 |
2.7 |
3 |
0.9 |
3.5 |
20 |
680 |
480 |
76 |
4 |
1 |
|
57hs82-3004 |
Link |
1.8 |
3 |
3 |
1.4 |
5 |
22 |
700 |
510 |
82 |
4 |
1.2 |
|
57hs100-3004 |
Link |
1.8 |
3 |
3 |
1 |
4.5 |
25 |
1000 |
680 |
100 |
4 |
1.4 |
|
57hs112-4004 |
Link |
1.8 |
3.6 |
4 |
0.9 |
4 |
30 |
1200 |
800 |
112 |
4 |
1.7 |
|
57hs112-3004 |
Link |
1.8 |
3.9 |
3 |
1.3 |
6.5 |
30 |
1200 |
800 |
112 |
4 |
1.7 |
Related Products
| ||||
|
4* Nema23 57x76mm 2Nm Stepper Motor |
|||
|
4* TB6600 |
|||
|
1* 350W 36V Power Supply |
|||
|
1* 4 Axis Breakout Board +USB Cable (Sent the Files Through Email) |
|||
|

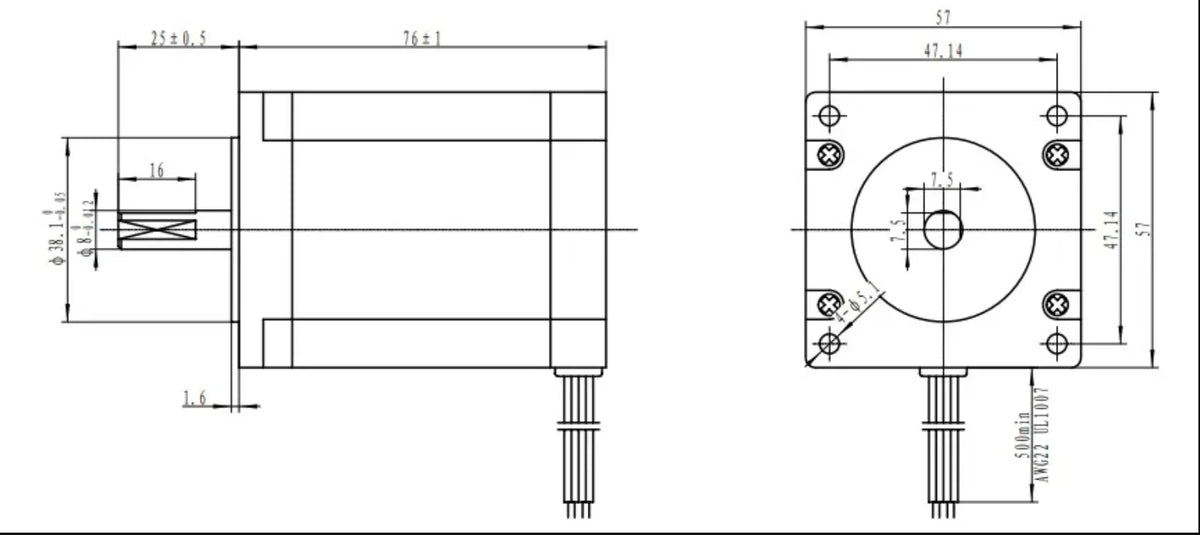

Hybrid Stepper Motor Type 57HS76 | ||||
|
Specifications |
Diagram |
|||
Step Angle |
1.8°± 5% |
Current |
3.0A |
|
Phase No. |
2 |
Resistance |
1.3±10% Ω |
|
Insulation Resistance |
100Mohm(500V DC) |
Inductance |
6.5±20% mH |
|
Insulation Class |
B |
Holding Torque |
30kg.cm (3Nm) |
|
|
Microstep Driver TB6600 | |
Specifications | |
Name |
TB6600 Stepper Motor Driver |
Voltage |
9-42VDC |
Current |
0.5-3.5A |
Mricostep |
1-32 |
|
350W 36V Power Supply | |
Type |
S-350-36 |
Voltage DC |
36V |
Rated Current |
9.7A |
Current Range |
0-9.7A |
Rated Power |
349.2W |
Ripple and Noise |
240mVp-p |
Voltage Adjustment Range |
32-40V |
Voltage Accuracy |
± 1.0% |
Linear Adjustment Rate |
± 0.5% |
Load Adjustment Rate |
± 0.5% |
Start-up and Rise Time |
200ms 50ms |
Retention Time |
20ms |
