HLTNC 4 Axis Nema34 86x156mm 12N 1600ozin Stepper Motor Kit With DM860H Driver + 400w 60v Power Supply For CNC Milling Engraver

HLTNC 4 Axis Nema34 86x156mm 12N 1600ozin Stepper Motor Kit With DM860H Driver + 400w 60v Power Supply For CNC Milling Engraver

$2,384.92

$2,384.92 $0.00

Description

SPECIFICATIONS

Brand Name: HLTNC

Certification: CCC,ce,ROHS,RoHS,CE,CCC

Controller Board (BOB): 4 Axis USB Port Mach3 Card

Current / Phase: 6.2A

Does it include a Battery?: No

Does it include wireless functionality?: No

Driver Model: DM860H

Dual Shaft: Support

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Holding Torque: 12Nm

Inductance: 9.0±20%mH

Insulation Resistance: 100Hohm(500v DC)

Model Number: 86HS156-6204

Motor Cable: 500mm

Motor Flange: 86 x 86mm

Motor Length: 156mm

Motor Shaft: 14mm with 5mm key

Origin: Mainland China

Phase: 2

Power Supply (PSU): 400W 60V 6.7A

Resistance: 0.7±10% Ω

Shaft Length: 34±1 mm

Step Angle(degrees): 1.8±5%

Type: HYBRID

there is not CD put on the parcel now, please contact with us, we would send the files through email .or maybe you can try to download the files through these links (google drive)
(mach3 software) https://drive.google.com/file/d/1yoa7EdBHP0LmFZDceVldNOOF81X0rGR6/view?usp=drive_link
(plugin ) https://drive.google.com/file/d/1LKaYwL6L5c0NTqYJEwmiFuc5mnzHAttP/view?usp=drive_link

Packing Content:

4 pcs nema34 12n stepper motor
4 pcs DM860H driver
4 pcs 400w 60v power supply
1 pcs 4 axis usb breakout board+usb

General Specification:
Phase:2
Step Angle:1.8 deg
Current:5.5A
Holding Torque:12.5 Nm
Shaft Diameter:14mm (Key shaft 5mm)
Black(A+), Green(A-), Red(B+), Blue(B-)

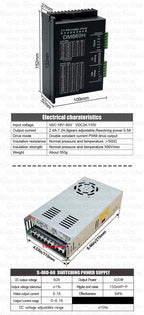

Model Number: DM860H
Power Supply: DC
colour:black
Material:Metal + ABS
size:14.3*9.5cm
Package Contents:
1*Stepper Motor Driver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
