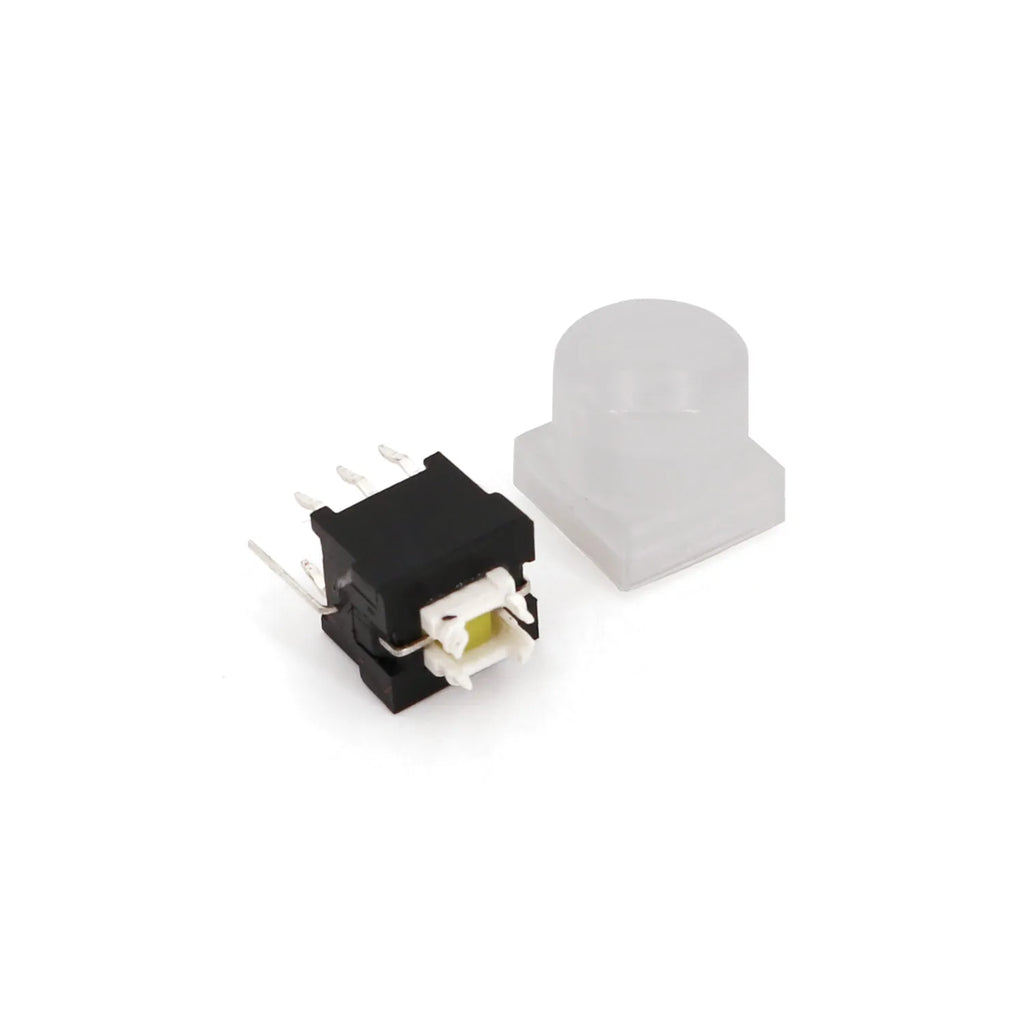

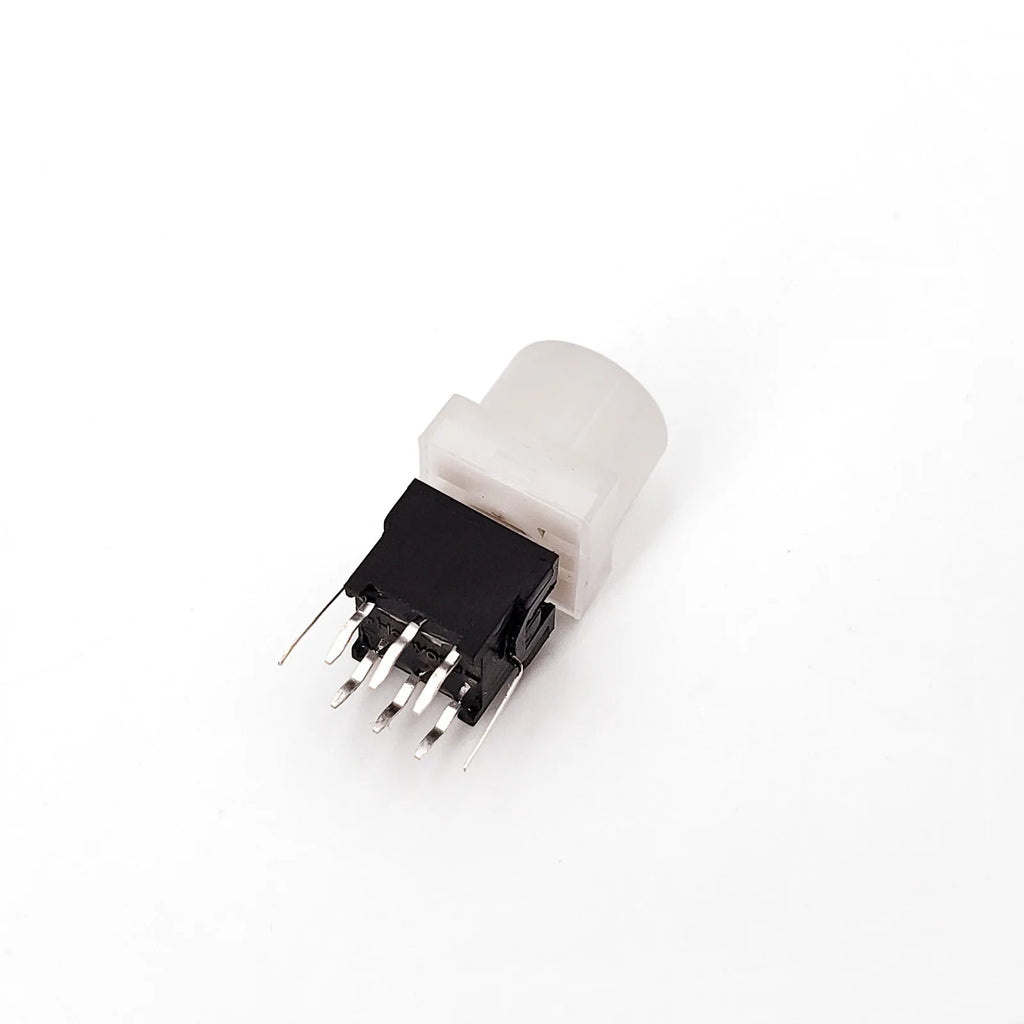

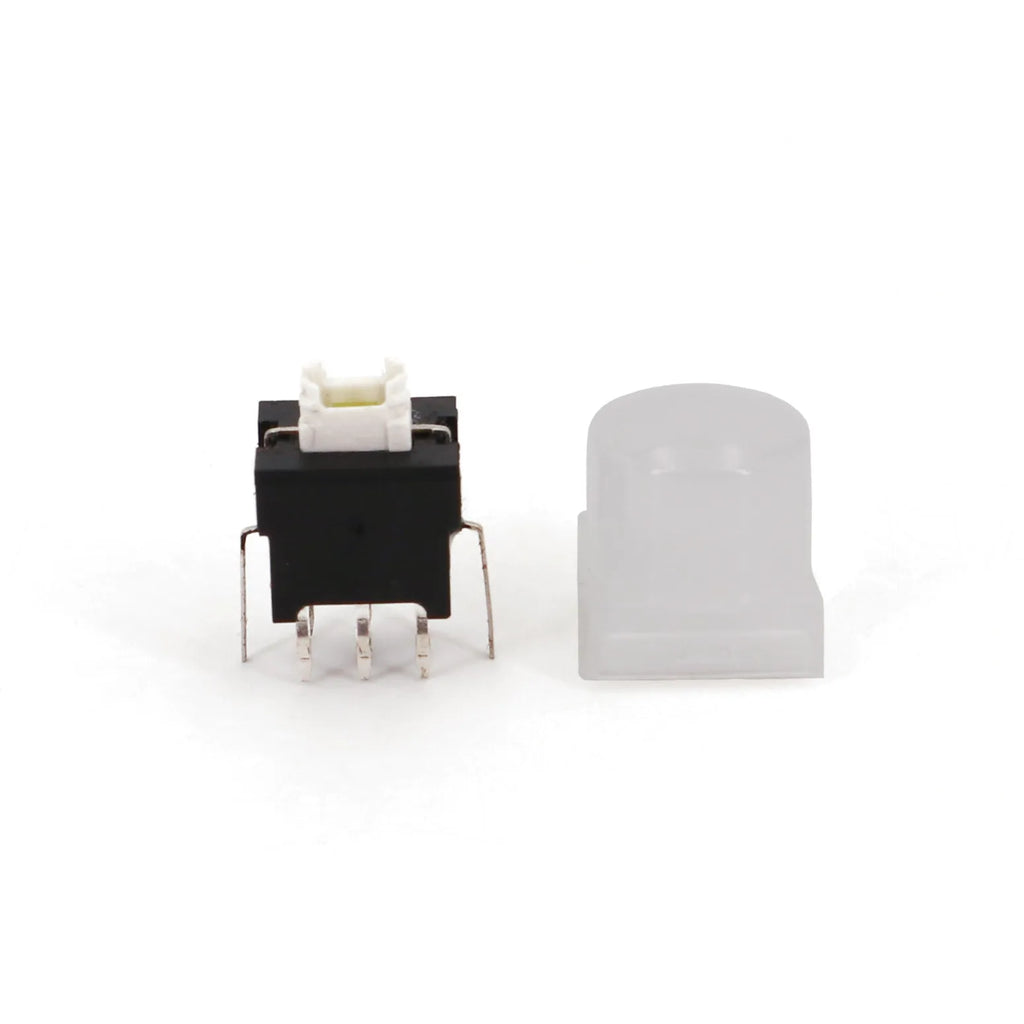

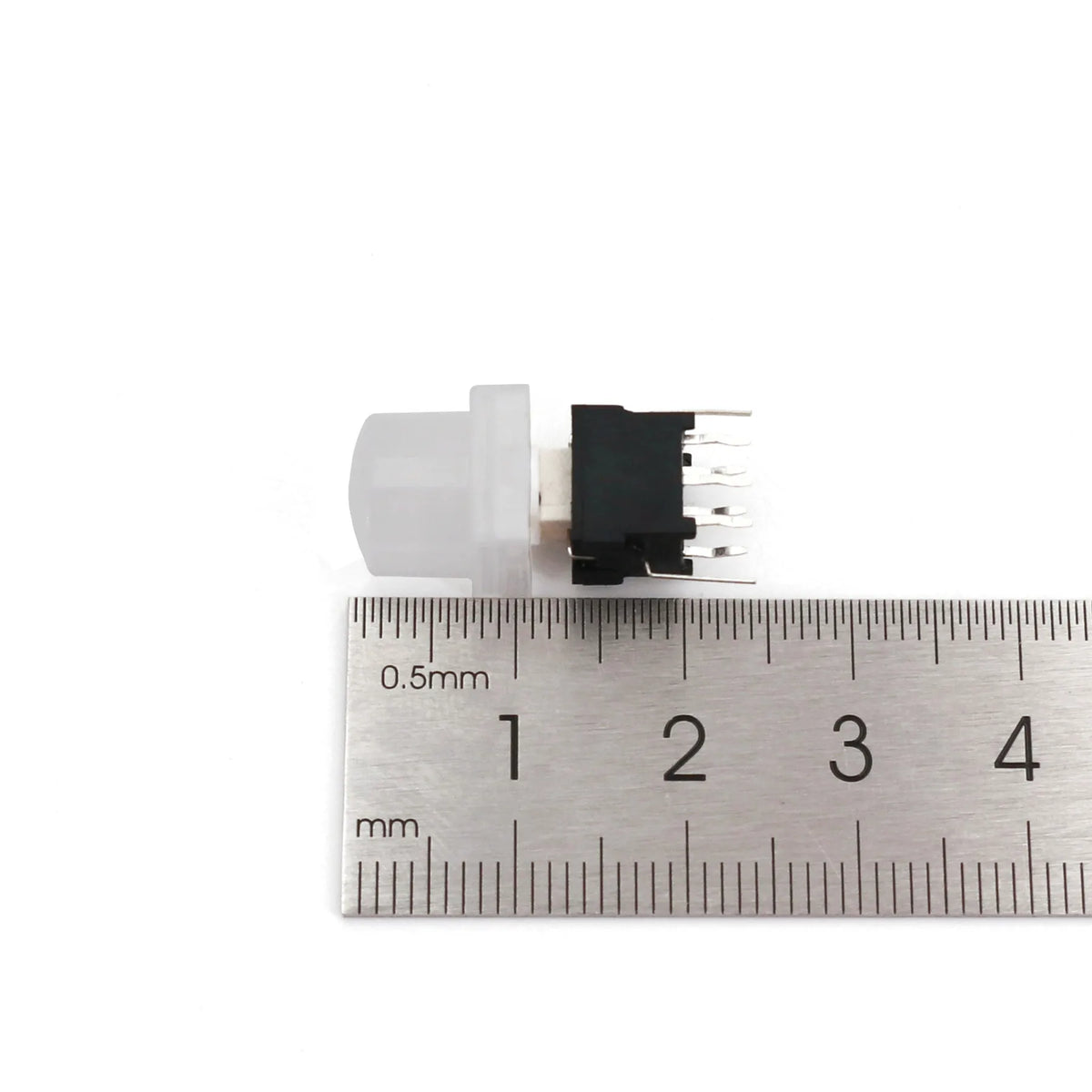

Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch

Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch

Red LED / Momentary
$5.54
$5.54 $0.00
Skip to product information
Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
  • Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
Honyone TS6-A Series Round Top 10mm Cap With LED 6+2 Pin DPDT PCB Mount Mini Push Button Switch
$5.54
$5.54 $0.00
Color
Size
Description

SPECIFICATIONS

Brand Name: NONE

Certification: RoHS

Current: 100mA

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Latching or Momentary

High-concerned chemical: none

Item Type: SWITCHES

Material: Plastic

Model Number: TS6-A

Origin: Mainland China

Switch Type: Push Button Switch

Warranty: 1 Year

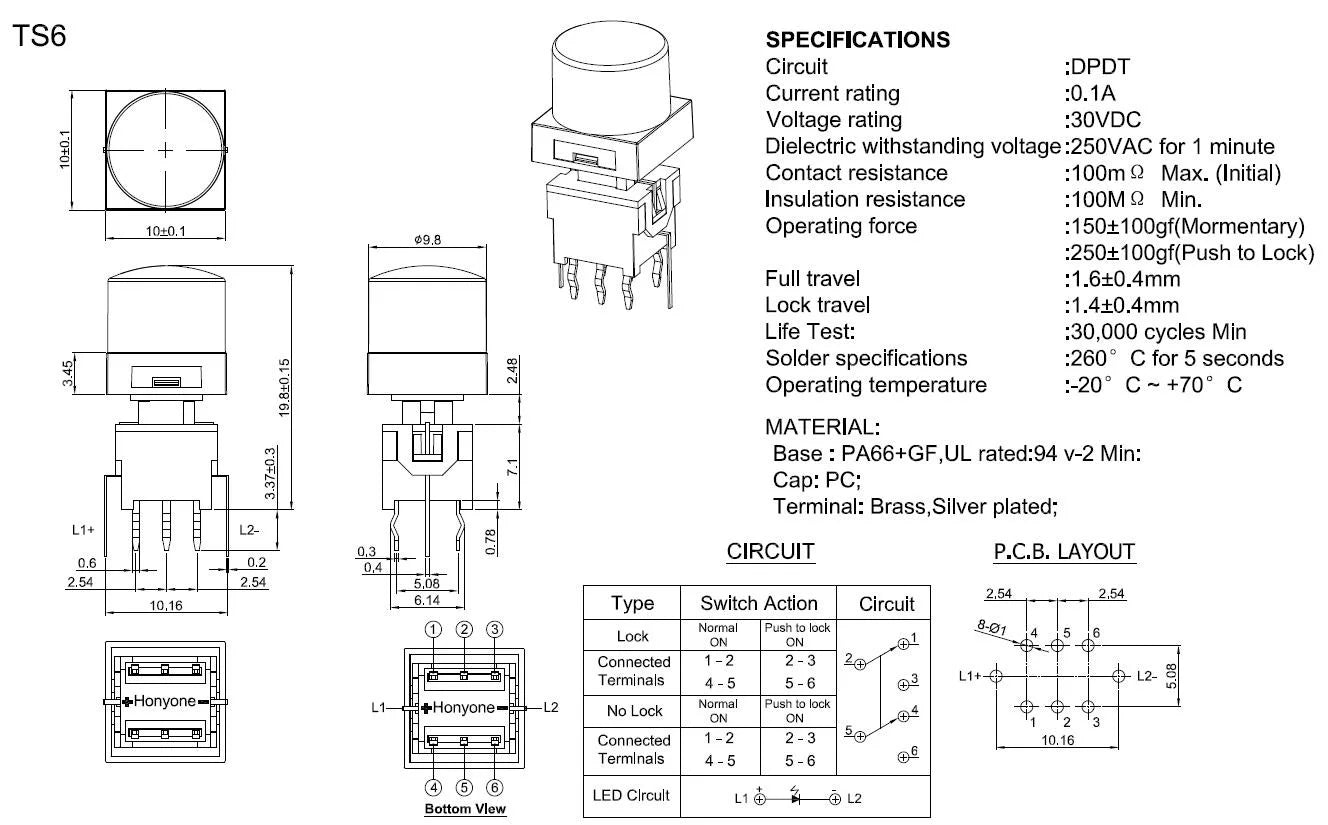

Feature

Model:TS6

Switch Action: Momentary (Self-Return)

When you release the button will return

Latching (Self-Locking)

When you release the button will fixed

Circuit: DPDT

Switch Rating: 0.1A 30VDC

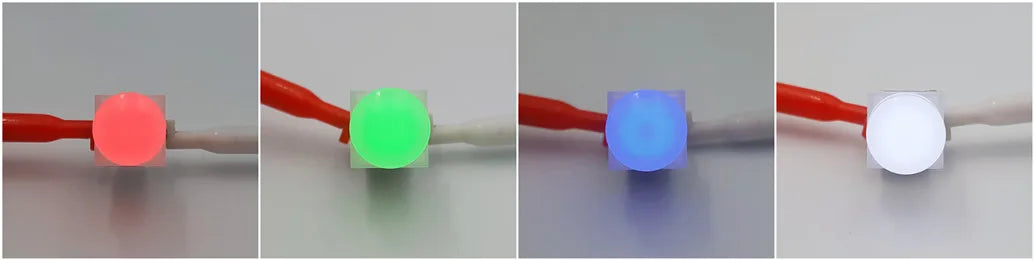

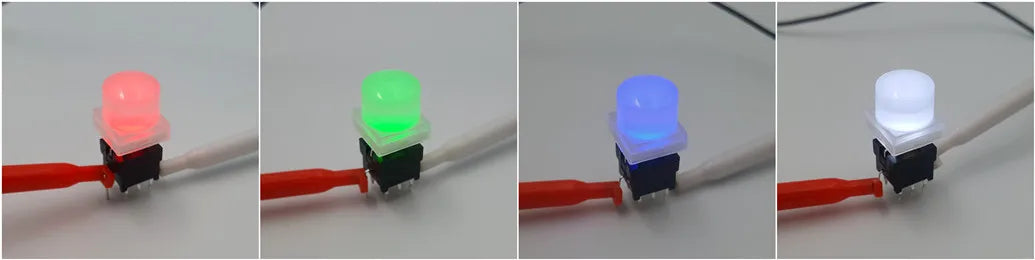

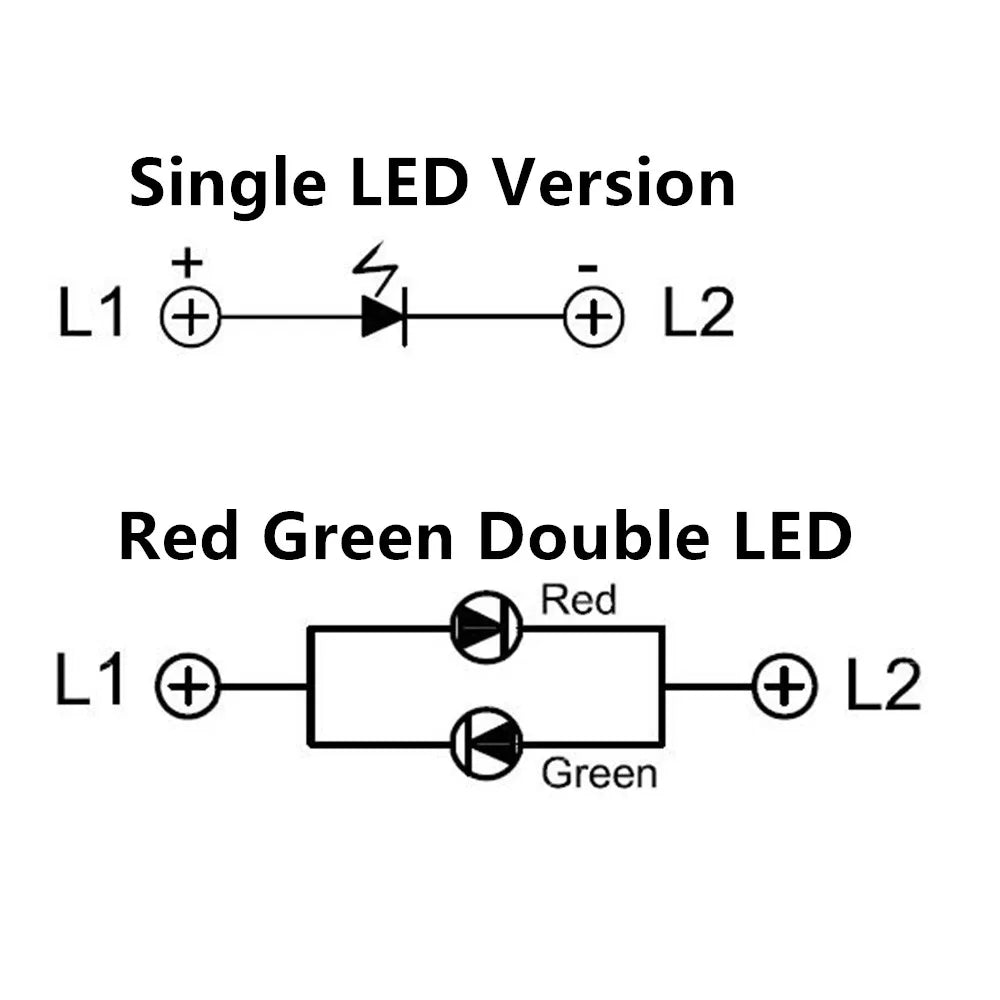

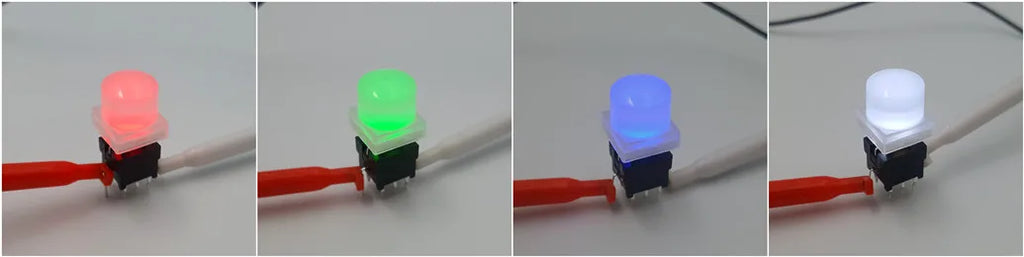

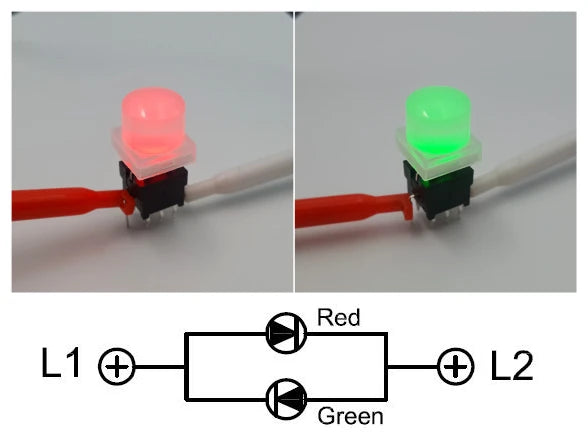

LED Working Voltage (25mA Max)

Red:1.6-2.6V

Green:2.8-3.6V

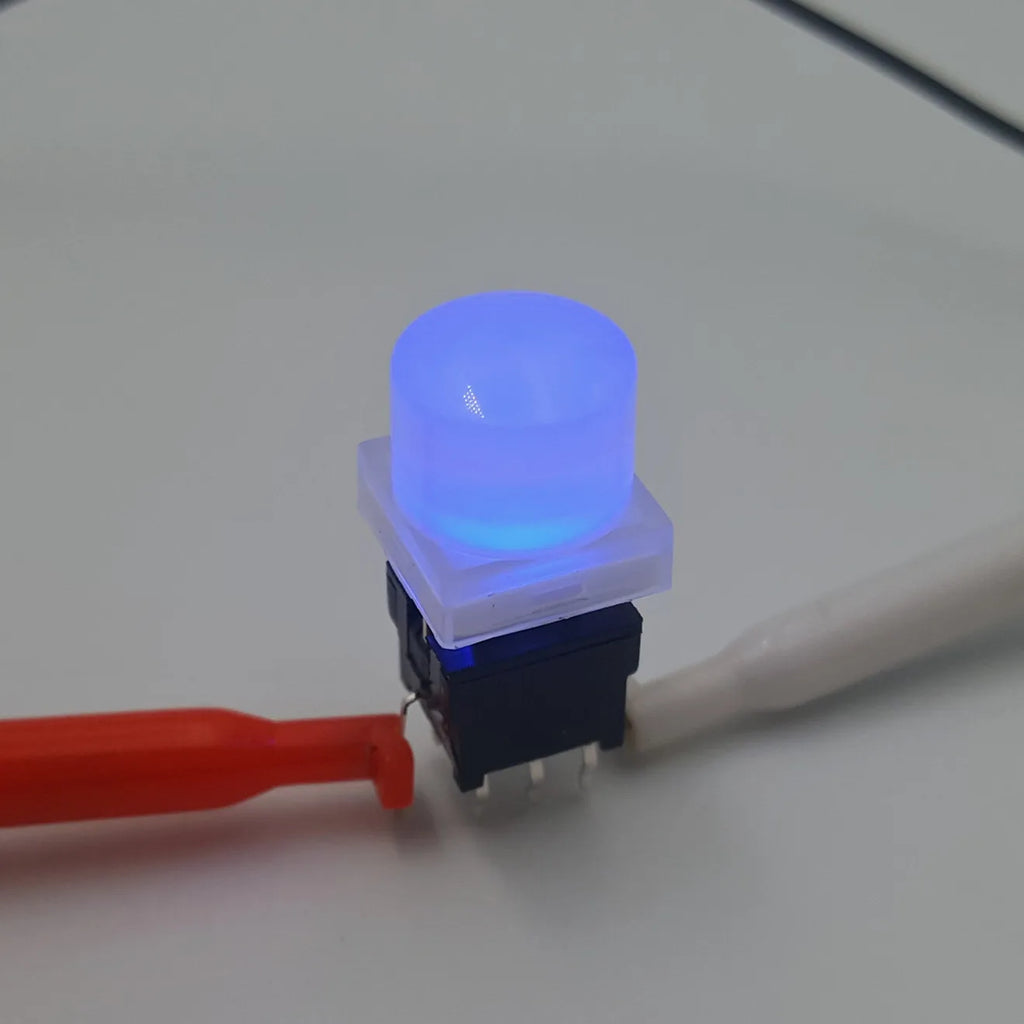

Blue:2.8-3.8V

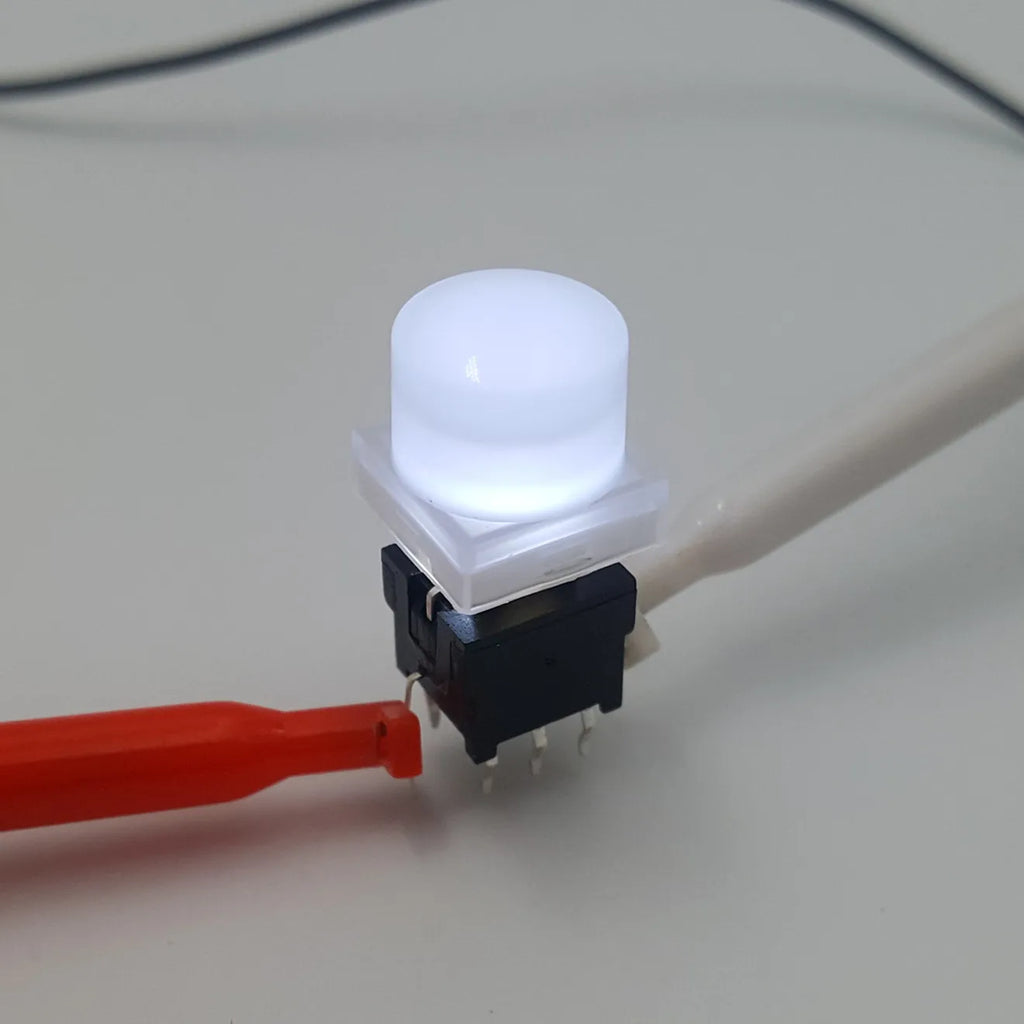

White:2.8-3.8V

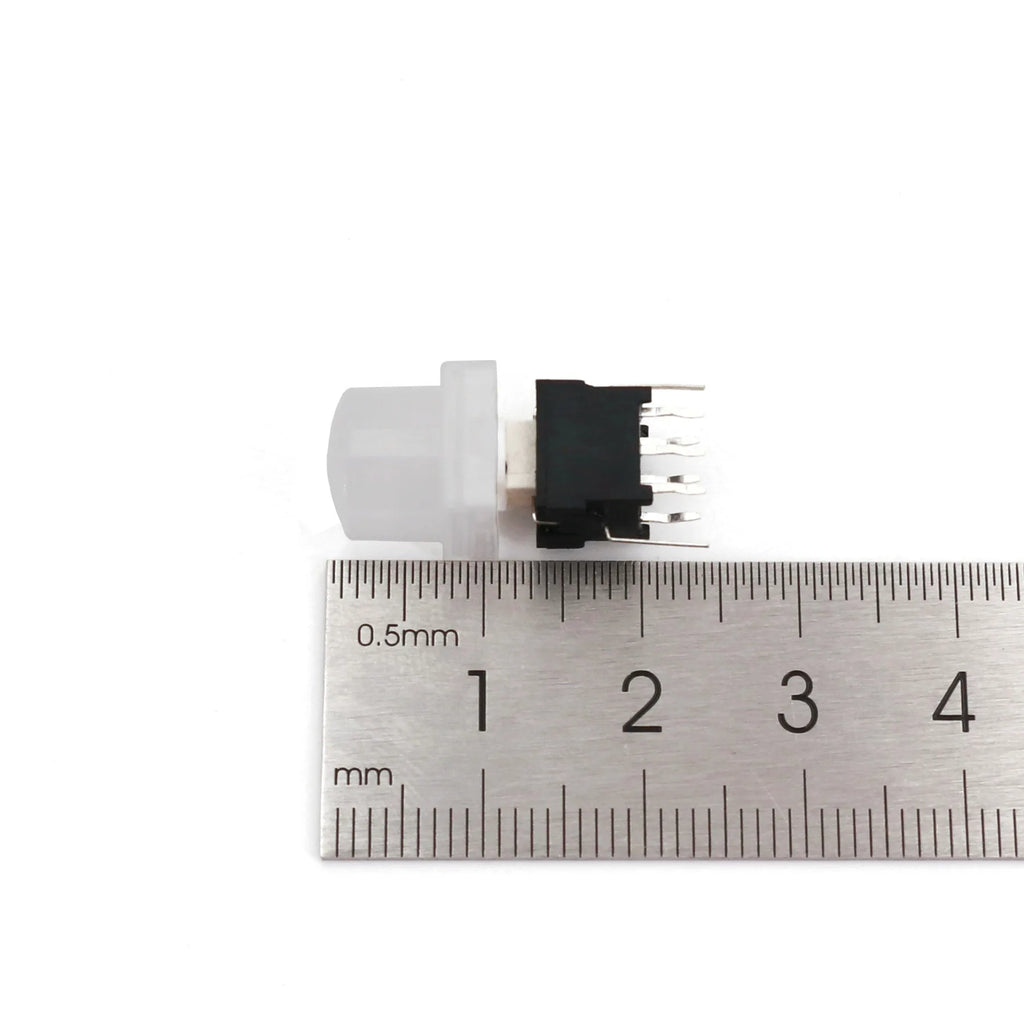

Button Diameter:10mm

Button Color: White

Button Travel:1.4±0.4 mm

Solder Specifications:260℃ for 5 Seconds

Operating Temperature:-20 - 70℃

Weight:1.2g
