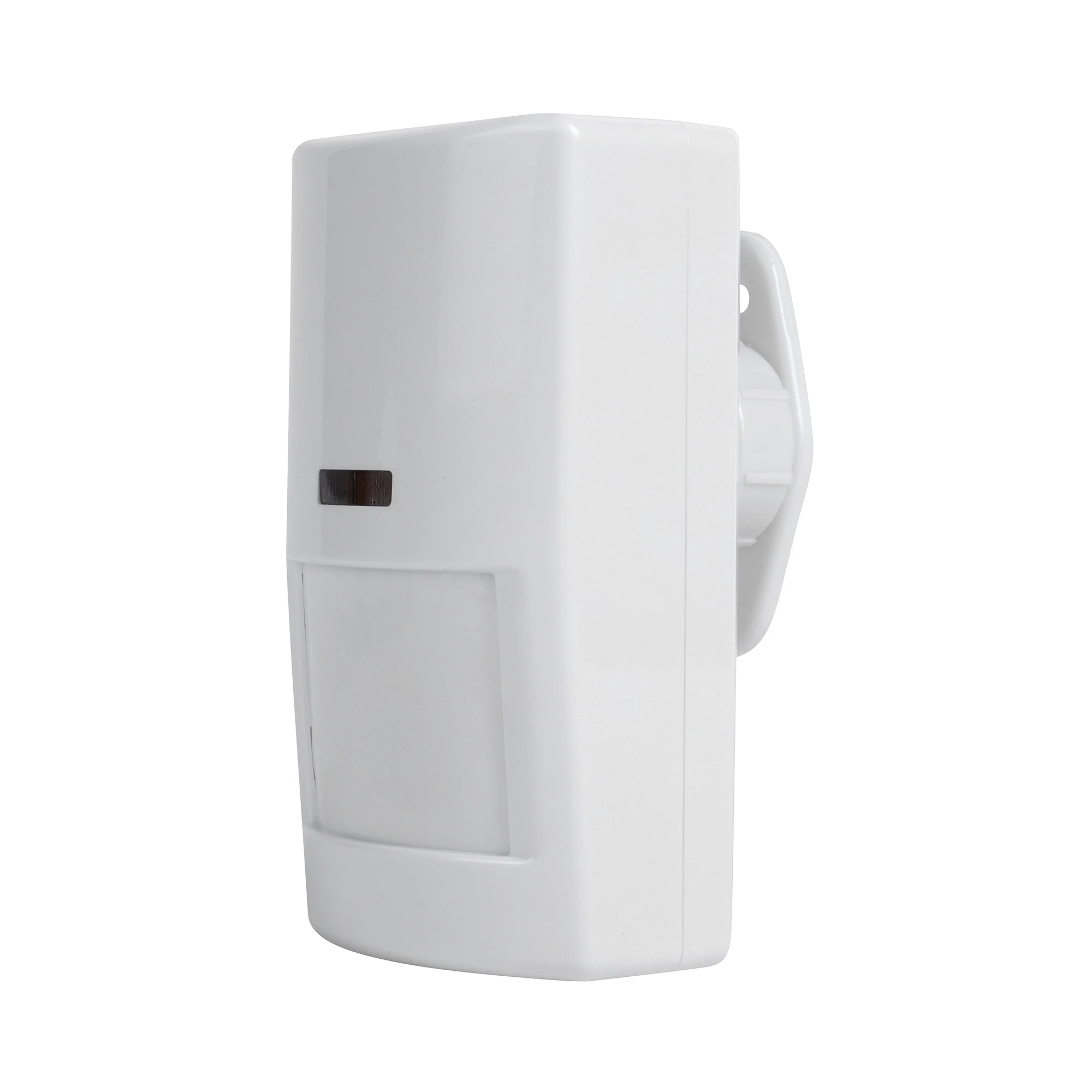

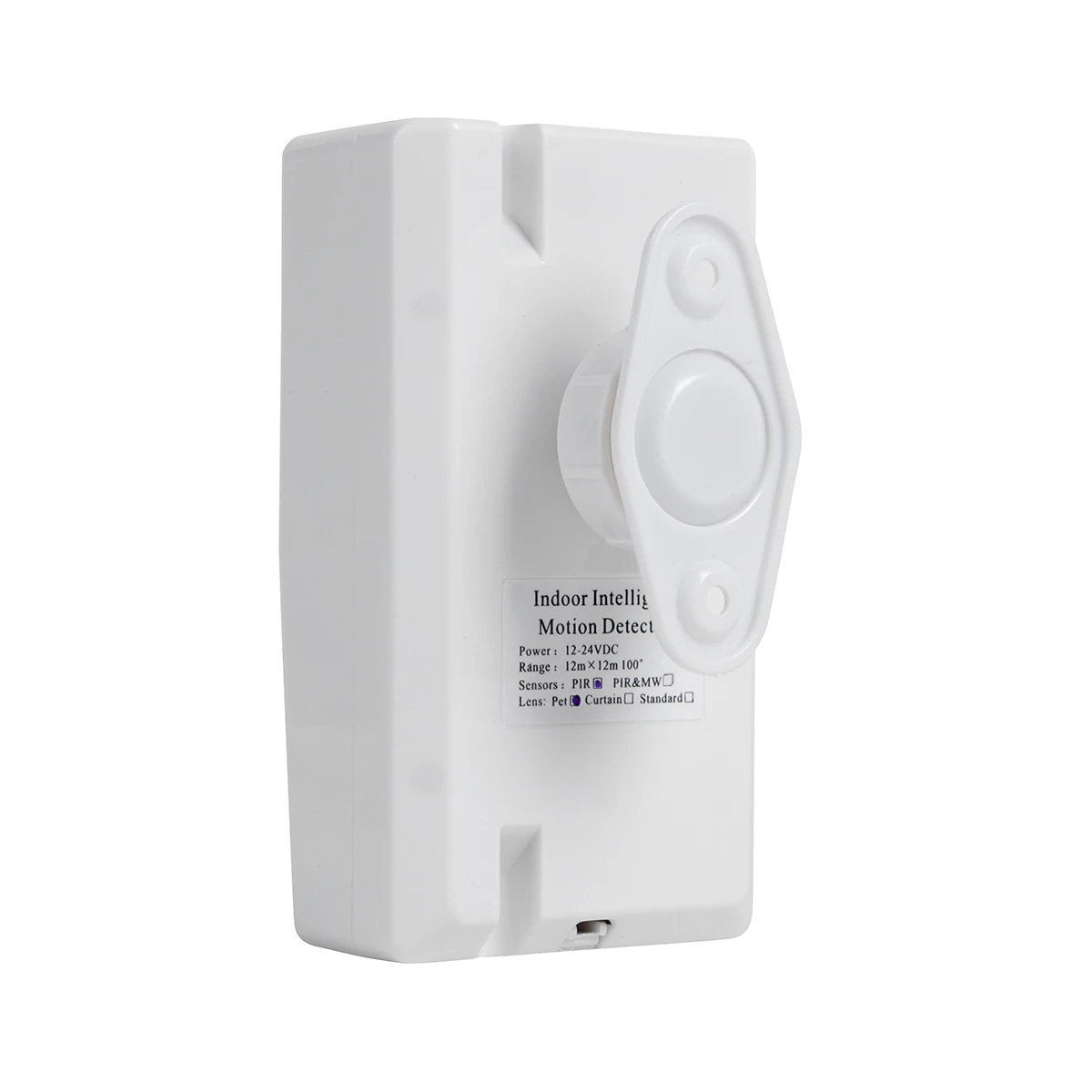

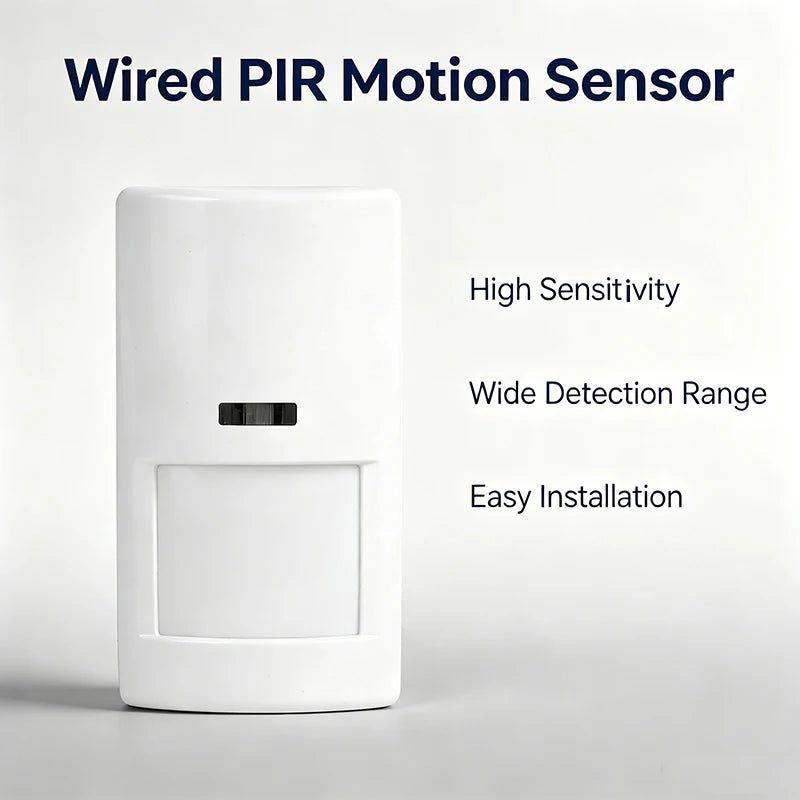

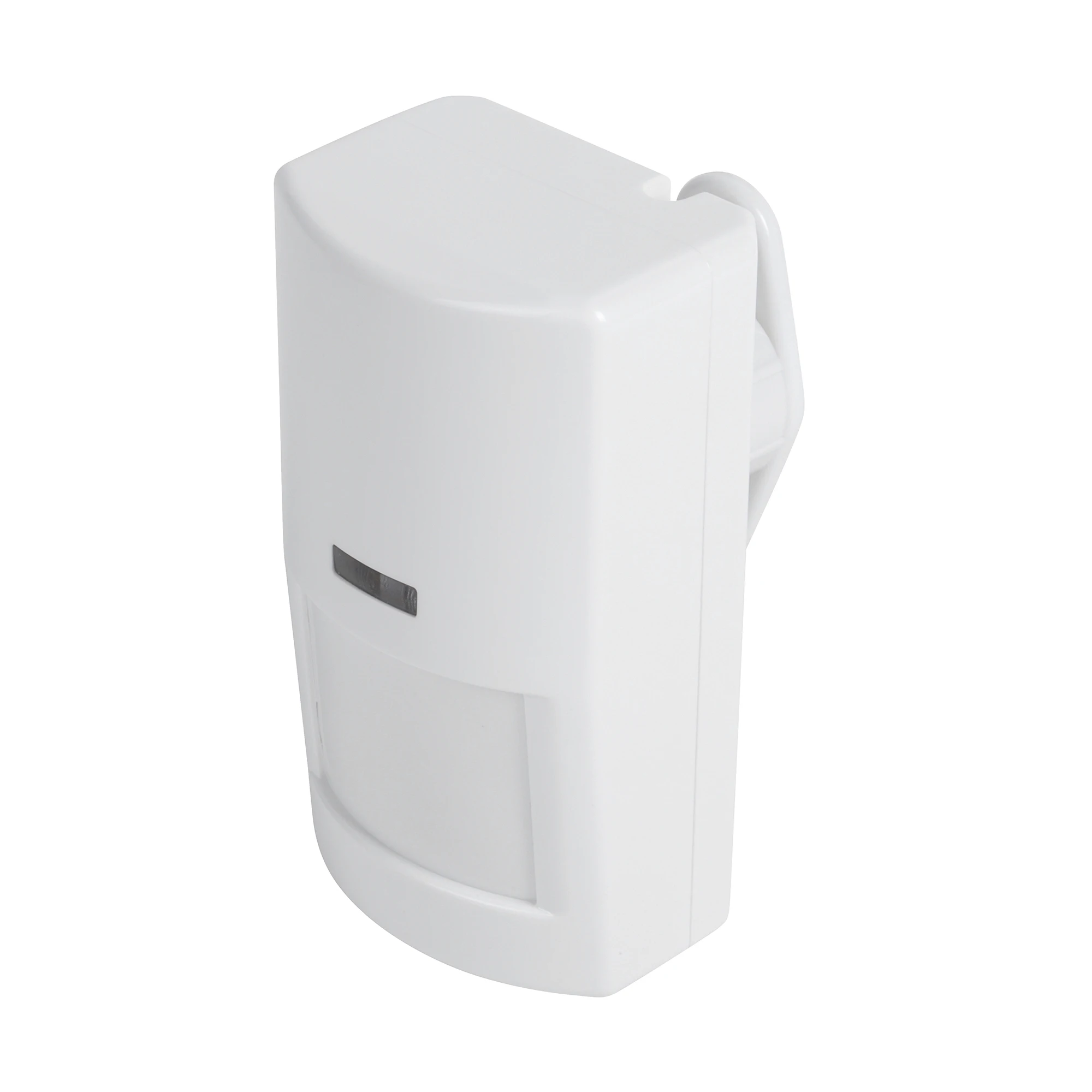

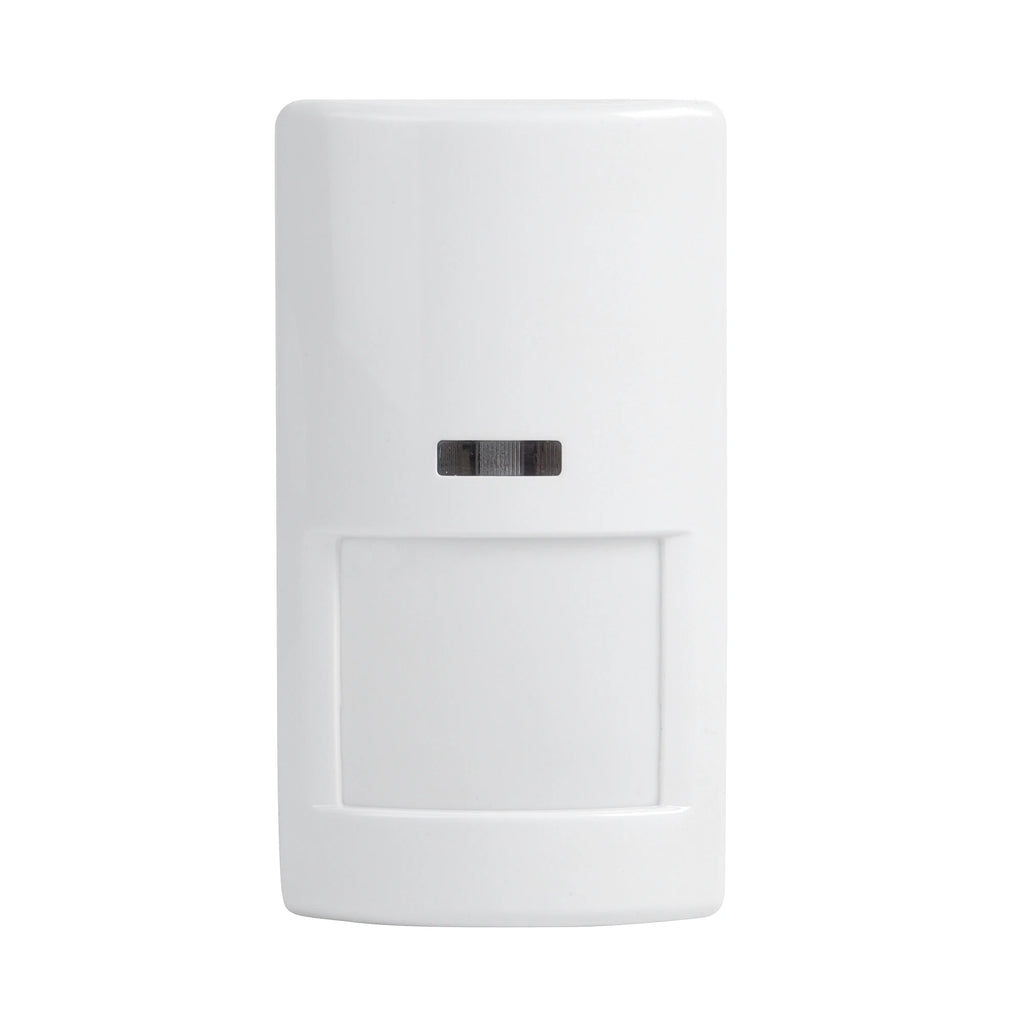

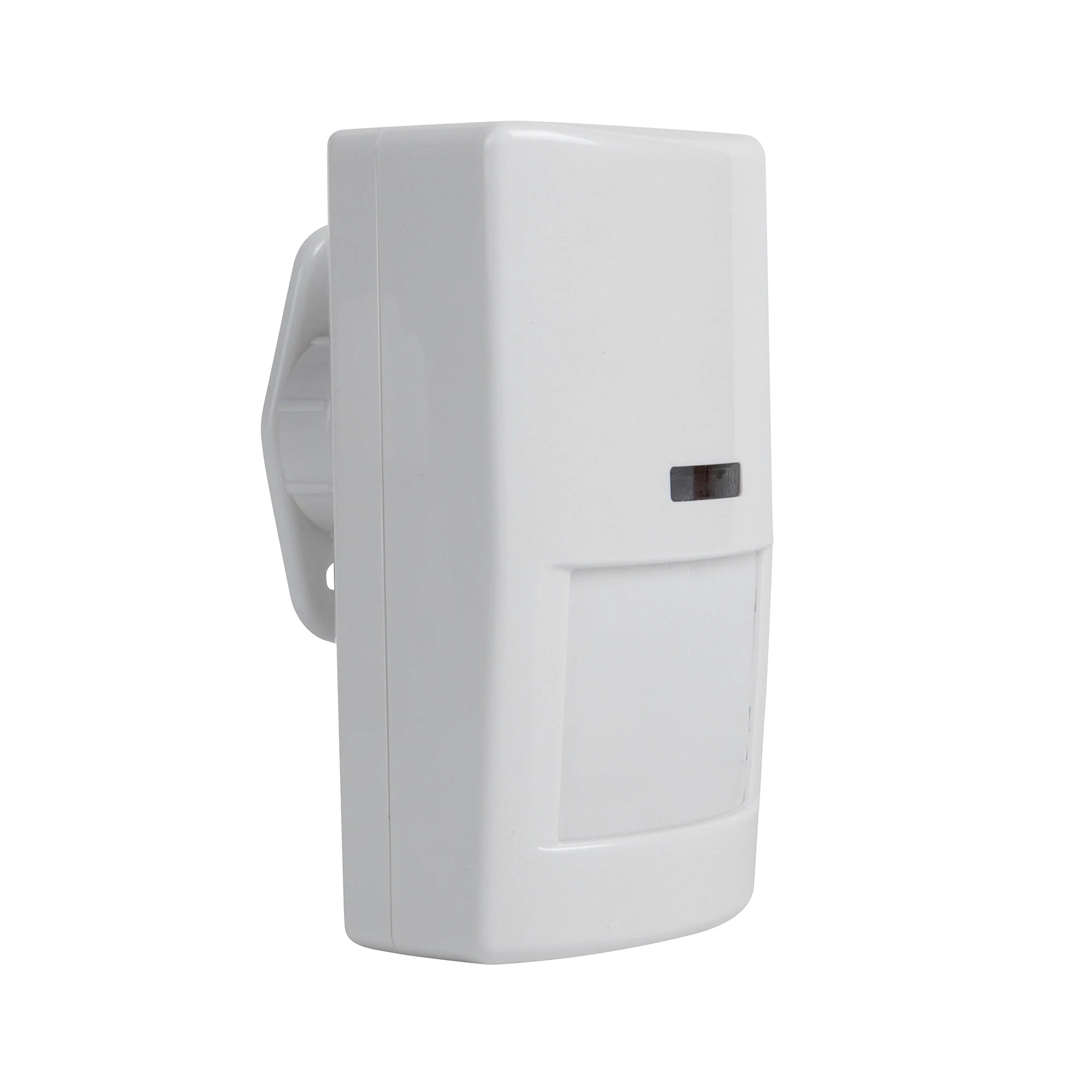

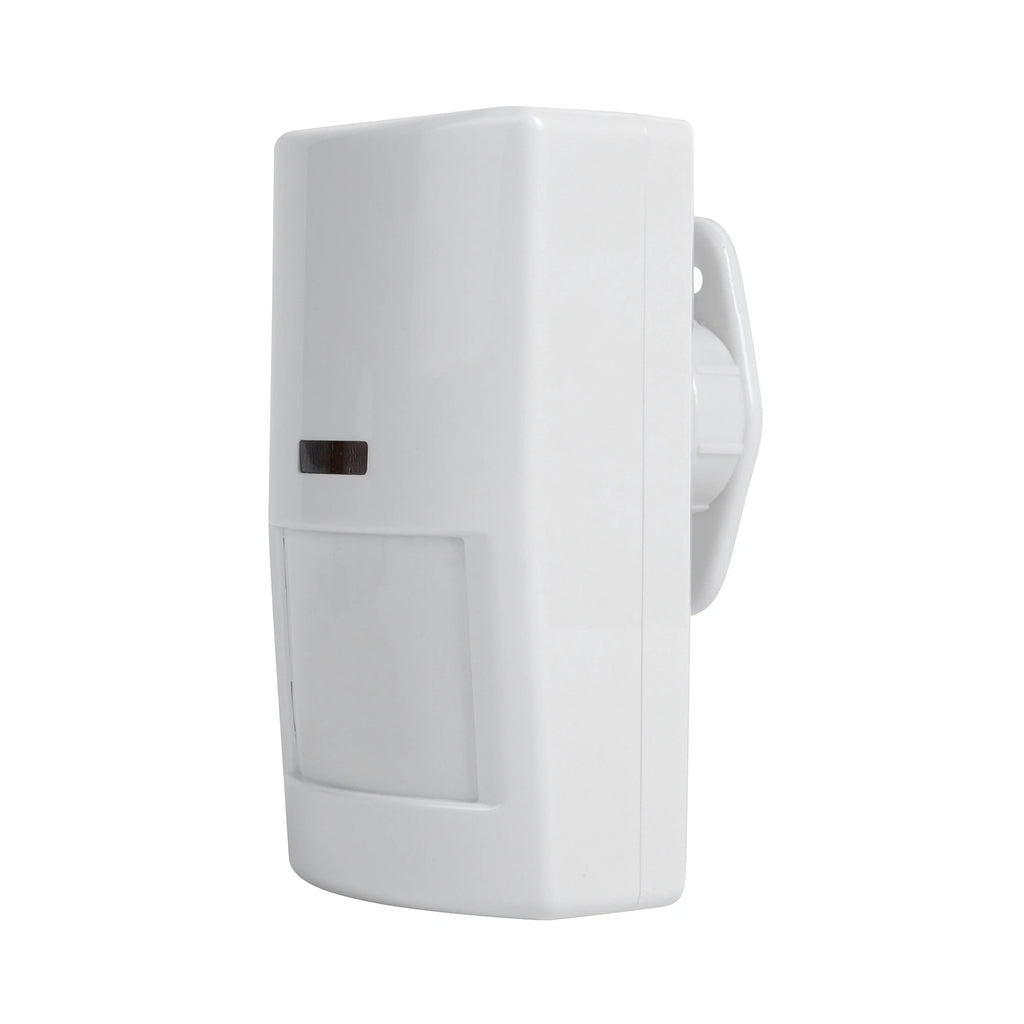

Indoor DC12V-24V Wired PIR Alarm Motion Sensor Detector CE Certified Pet Friendly for Home Alarm System with NO NC Alarm Output
1pc Pet Immune type / China Mainland
$75.02
Sale price
$75.02
Regular price
$0.00
Skip to product information
Indoor DC12V-24V Wired PIR Alarm Motion Sensor Detector CE Certified Pet Friendly for Home Alarm System with NO NC Alarm Output
$75.02
Sale price
$75.02
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
High-concerned chemical: none
Model Number: MDT-400S
Origin: Mainland China
Smart home platform: Other
detection range: 100° 12M Detecting Range
feature 1: Pet Immune

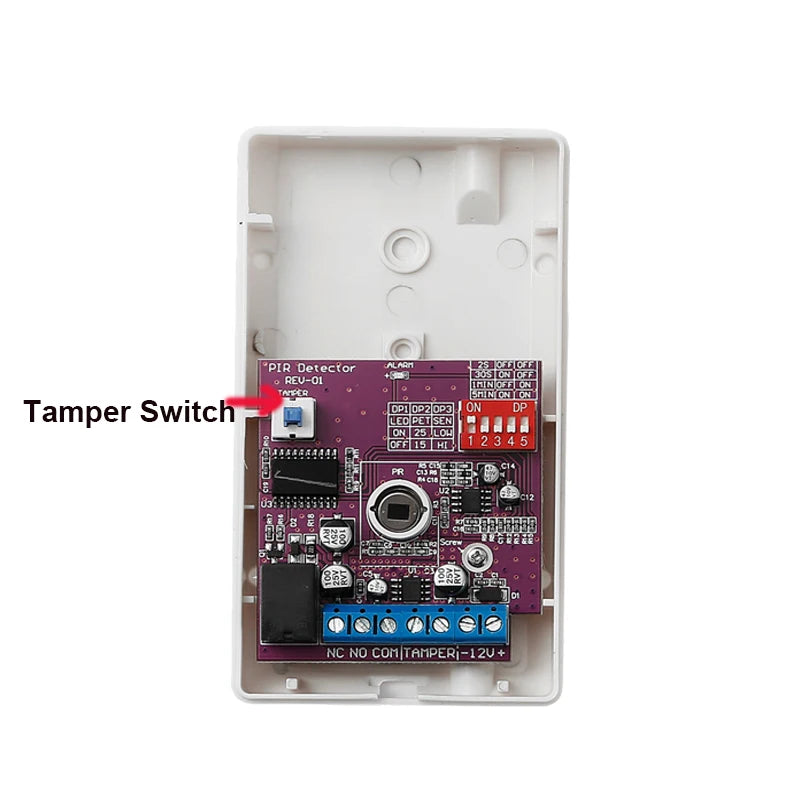

feature 2: tamper switch button
product name 1: Indoor Wired PIR Motion Sensor
product name 2: Wire Passive Infrared Sensor
product name 3: sensor de movimiento
product name 4: detecteur de mouvement
product name 5: alarma hogar
use for: Smart Home Security Protection
CE Certified New Indoor DC12V Wired PIR Alarm Motion Sensor Detector Pet Friendly for Home Alarm System with NO NC Alarm Output
Introduction:
This Indoor PIR Motion Sensor Alarm features advanced control circuit technology, ensuring an exceptionally low false alarm rate. Utilizing dual-path temperature compensation technology, it achieves reliable intrusion detection across a wide temperature range. With its innovative pet immunity algorithm, the device effectively ignores animals up to 20kg through unique pet movement pattern analysis. It demonstrates excellent resistance to false triggers from environmental movements such as air currents and shifting curtains, while maintaining stable detection performance across two adjustable sensitivity levels. The system combines consistent operational reliability with enhanced stability for optimal security monitoring
Feature:
- Output hold time four options
- Dual passive infrared detection technology
- Unique full range temperature compensation
- Adopt intelligent processing technology
- Protection against strong EMI
- Two passive infrared sensitivity adjustable
- Anti white light interference
- Two anti-pet levels are adjustable
- Anti-pet rating: 20 kg
- Alarm output NO/NC Optional
- Fully sealed optical fittings
- Complete SMT parts design
- Detection range:100° 12 meters (Pet immune type)
- Dual passive infrared detection technology
- Unique full range temperature compensation
- Adopt intelligent processing technology
- Protection against strong EMI
- Two passive infrared sensitivity adjustable
- Anti white light interference
- Two anti-pet levels are adjustable
- Anti-pet rating: 20 kg
- Alarm output NO/NC Optional
- Fully sealed optical fittings
- Complete SMT parts design
- Detection range:100° 12 meters (Pet immune type)
Parameter:
Power supply: 12-24VDC
Current : 15mA(Stand by)
Install high: 1.5m-2.4m
Coverage: 12m×12m 100° (Pet immune type)
Compensation: hyperbolic
Alarm time: 2s/30s/1min/5min
Anti RFI: 0.1-1000MHz/30V /m
Anti EMI: 50000v
Anti-white light: >10000Lux
Alarm output: 3A/220V
Tamper output: 200mA/125V
Temperature: -10°C/+55℃
Humidity(RH): 95%（RH)
Anti-pet weight: 20kg max (Pet immune type)
PIR Sensitivity : 2 level
Detect speed: 0.2m/s to 3.5m/s
Dimensions: 116mm×64mm×48mm
Current : 15mA(Stand by)
Install high: 1.5m-2.4m
Coverage: 12m×12m 100° (Pet immune type)
Compensation: hyperbolic
Alarm time: 2s/30s/1min/5min
Anti RFI: 0.1-1000MHz/30V /m
Anti EMI: 50000v
Anti-white light: >10000Lux
Alarm output: 3A/220V
Tamper output: 200mA/125V
Temperature: -10°C/+55℃
Humidity(RH): 95%（RH)
Anti-pet weight: 20kg max (Pet immune type)
PIR Sensitivity : 2 level
Detect speed: 0.2m/s to 3.5m/s
Dimensions: 116mm×64mm×48mm

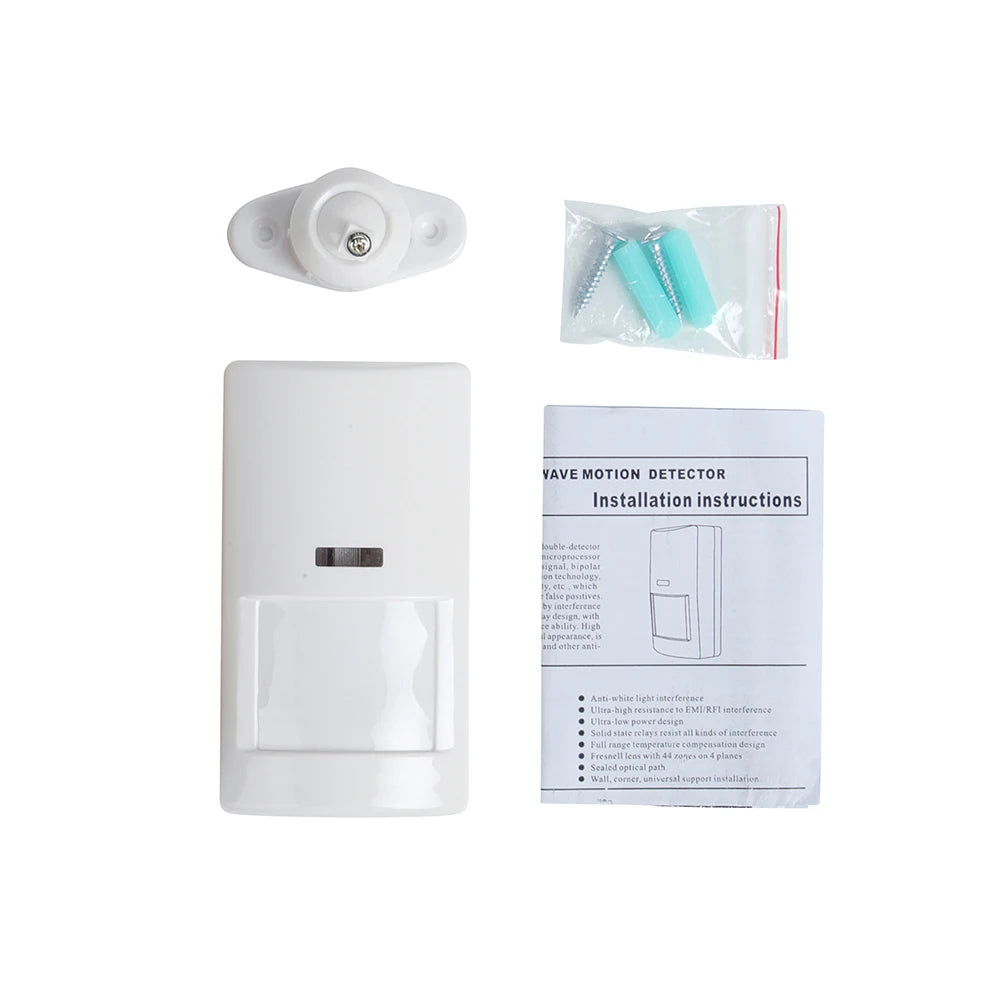

Package Content:

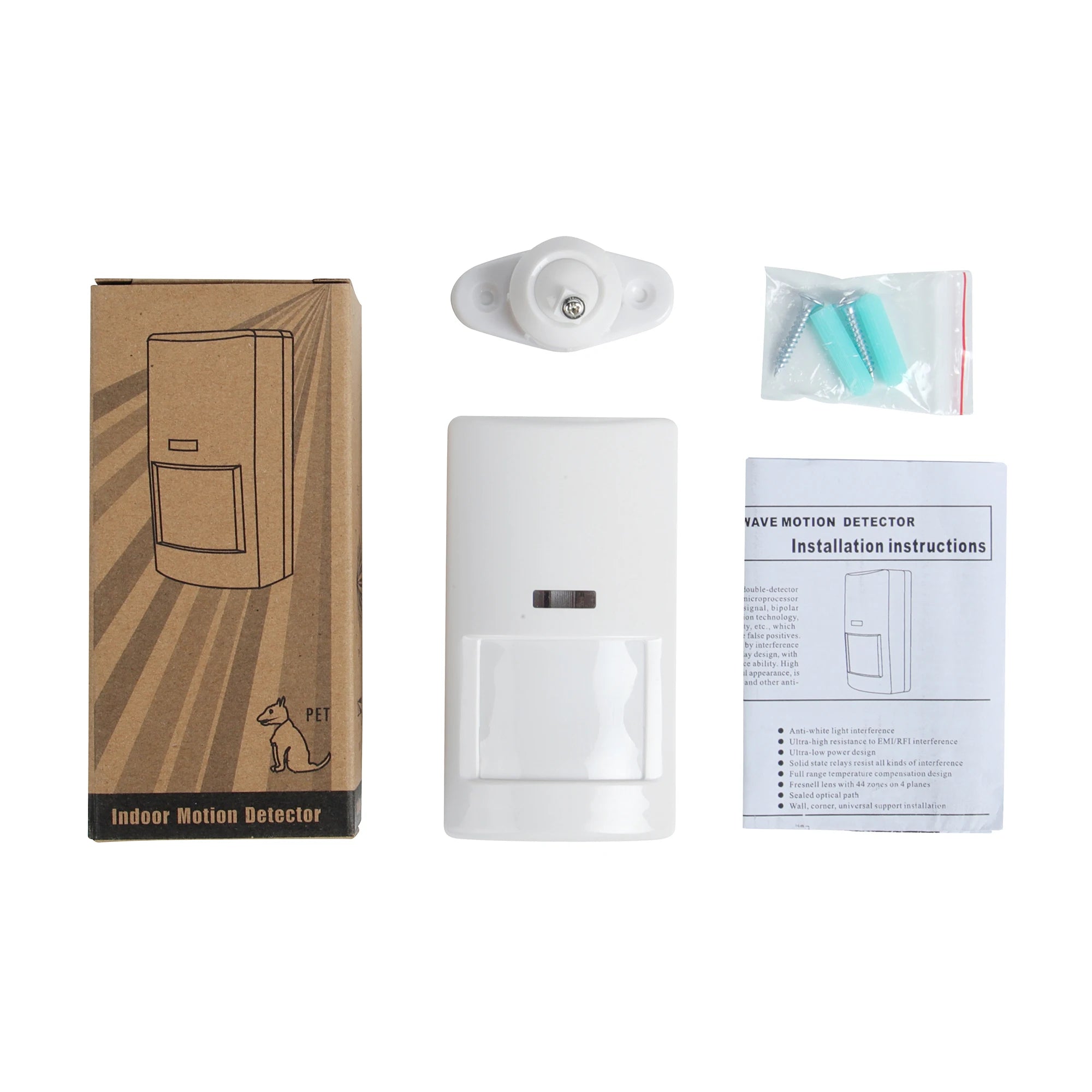

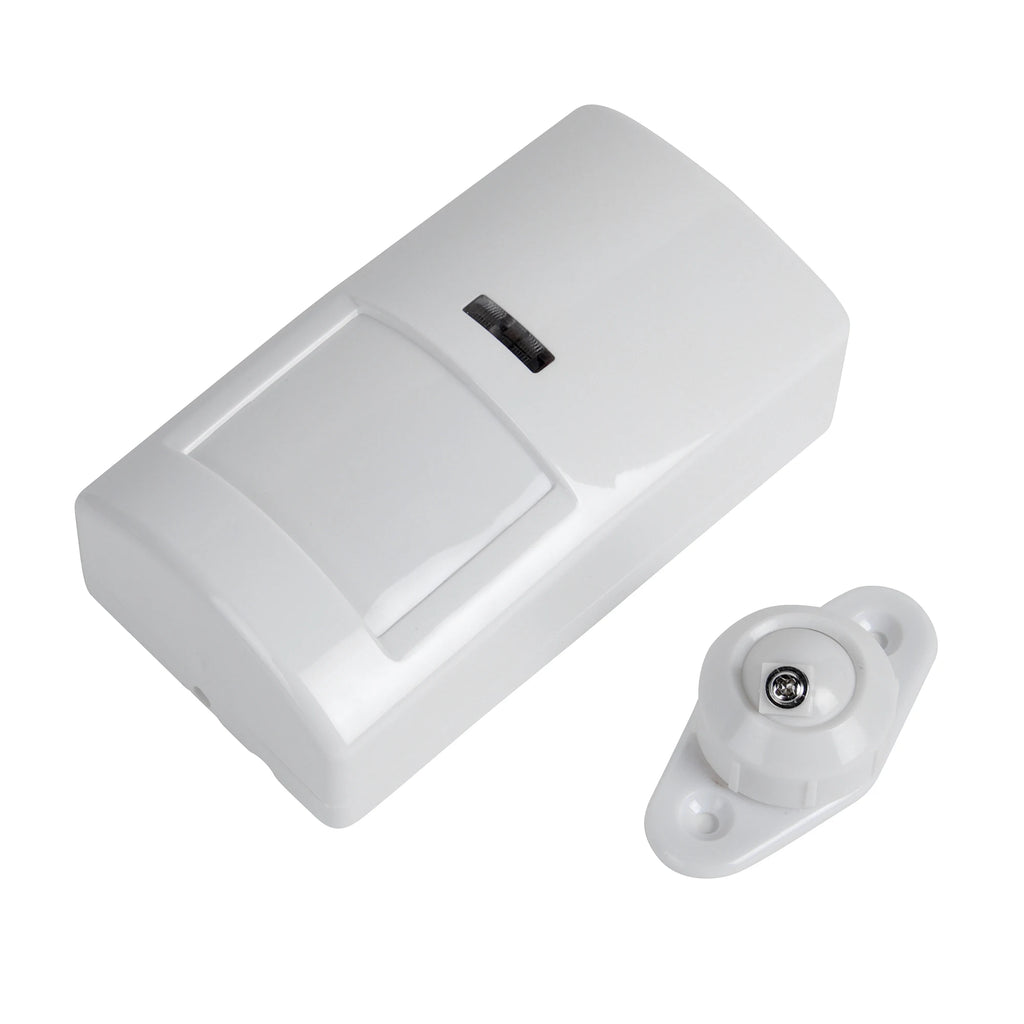

1pc Wired Indoor PIR motion sensor ( bracket, screws, English manual included).
Note:
This wired pir motion sensor can not work alone, it works with all home alarm host which has wired port.
