Indoor Wired Pet Friendly 12V PIR Motion Sensor Detector With Relay Output NC NO

Indoor Wired Pet Friendly 12V PIR Motion Sensor Detector With Relay Output NC NO

$84.29

$84.29 $0.00

Description

SPECIFICATIONS

Brand Name: Emooluxr

Communication Interface: Wired

Detection Range: 12 meters

Feature 1: with tamper switch

Feature 2: Anti White Light >10000LUX

High-concerned chemical: none

Model Number: MDT-400S

Origin: Mainland China

Pet Immune: up to 25kgs

detection angle: 100 degrees

Indoor Wired Pet Friendly 12V PIR Motion Sensor Detector With Relay Output NC NO

Introduction:

This Indoor PIR Motion Sensor Alarm With advanced control circuit technology,The false alarm rate is very low and it,  dual way temperature compensation technology that can complete intrusion detection in a wide temperature range.The pet immunity can reach 20kg with unique pet variable calculation way. It has good performance in false moving objects such as hot air and moving curtain,which providing stable detection in the two sensitivity level,with stable performance and stability.

Feature:

- Output hold time four options
- Dual passive infrared detection technology
- Unique full range temperature compensation
- Adopt intelligent processing technology
- Protection against strong EMI
- Two passive infrared sensitivity adjustable
- Anti white light interference
- Two anti-pet levels are adjustable
- Anti-pet rating: 20 kg
- Alarm output NO/NC Optional
- Fully sealed optical fittings
- Complete SMT parts design
- Detection range:100° 12 meters

Parameter:

Power supply:               12-24VDC
Current :                        15mA(Stand by)
Install high:                   1.5m-2.4m
Coverage:                      12m×12m 100°
Compensation:              hyperbolic
Alarm time:                    2s/30s/1min/5min
Anti RFI:                         0.1-1000MHz/30V /m
Anti EMI:                        50000v
Anti-white light:            >10000Lux
Alarm output:                3A/220V
Tamper output:             200mA/125V
Temperature:                 -10°C/+55℃
Humidity(RH):                95%（RH)
Anti-pet weight:              20Kg
PIR Sensitivity :              2 level
Detect speed:                 0.2m/s to 3.5m/s
Dimensions:                   116mm×64mm×48mm

Package Content:

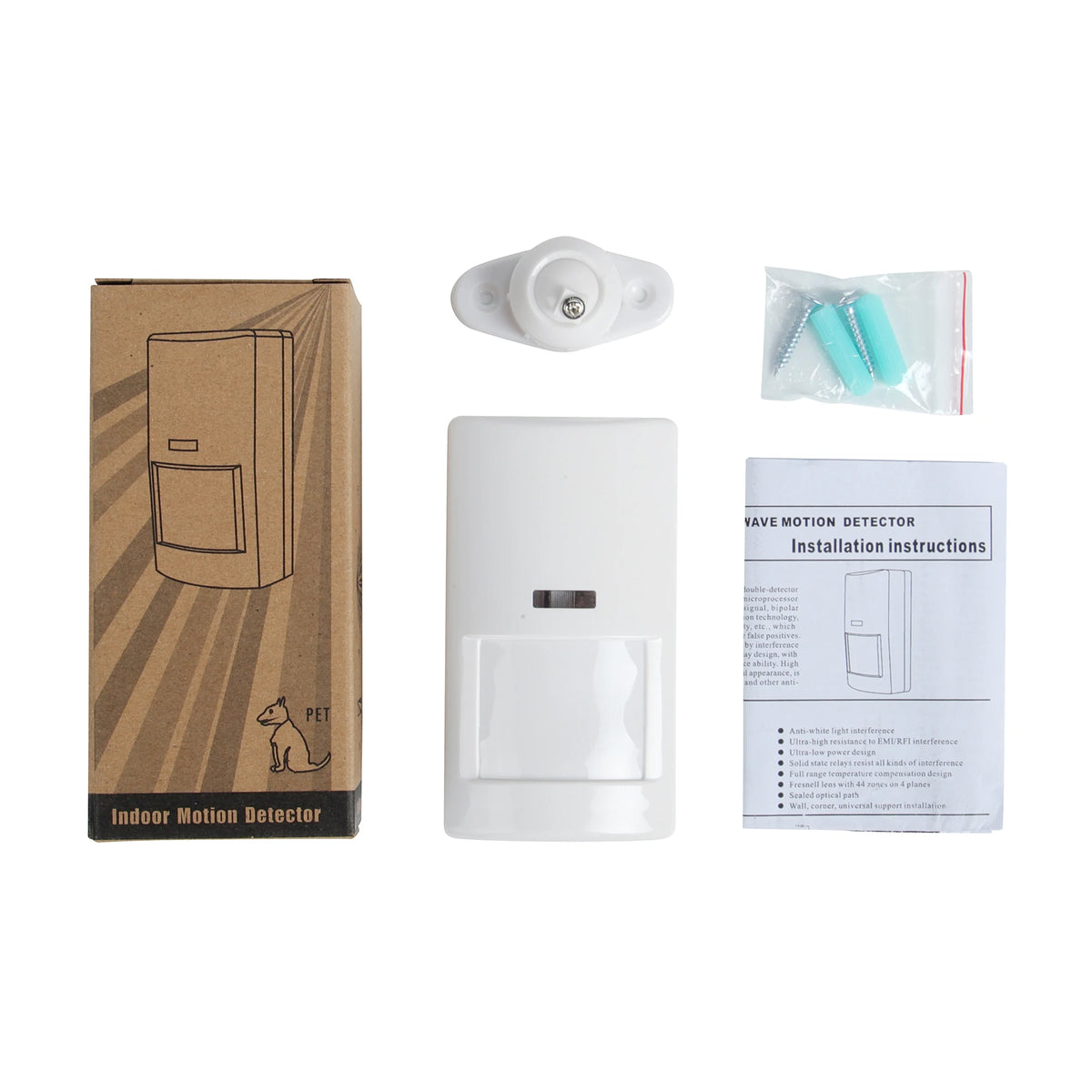

1pc Wired PIR motion sensor ( bracket, screws, English manual included).

Note:

This wired pir motion sensor can not work alone, it works with all home alarm host which has wired port.
