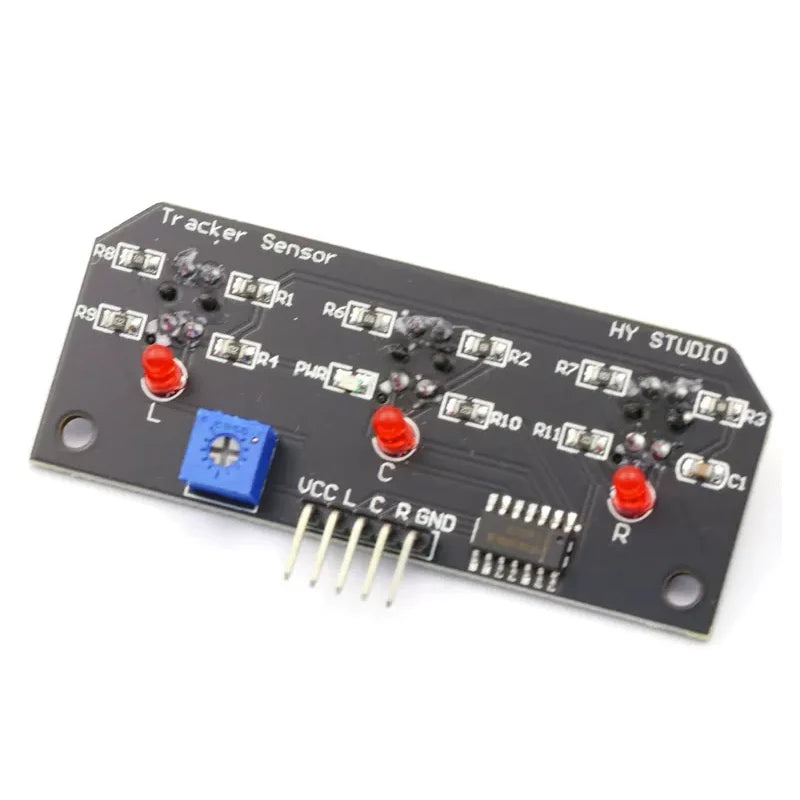

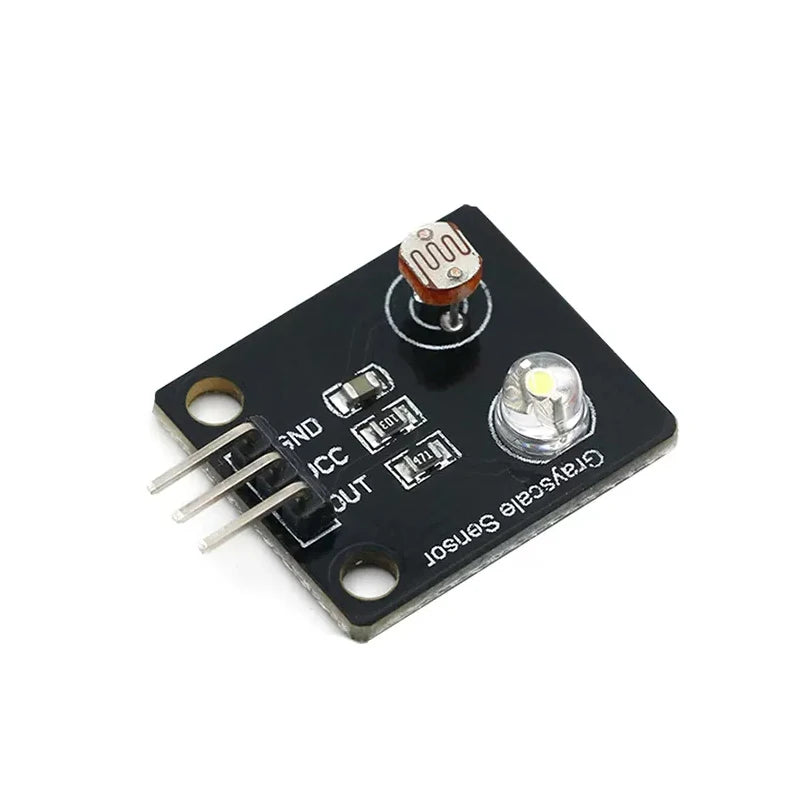

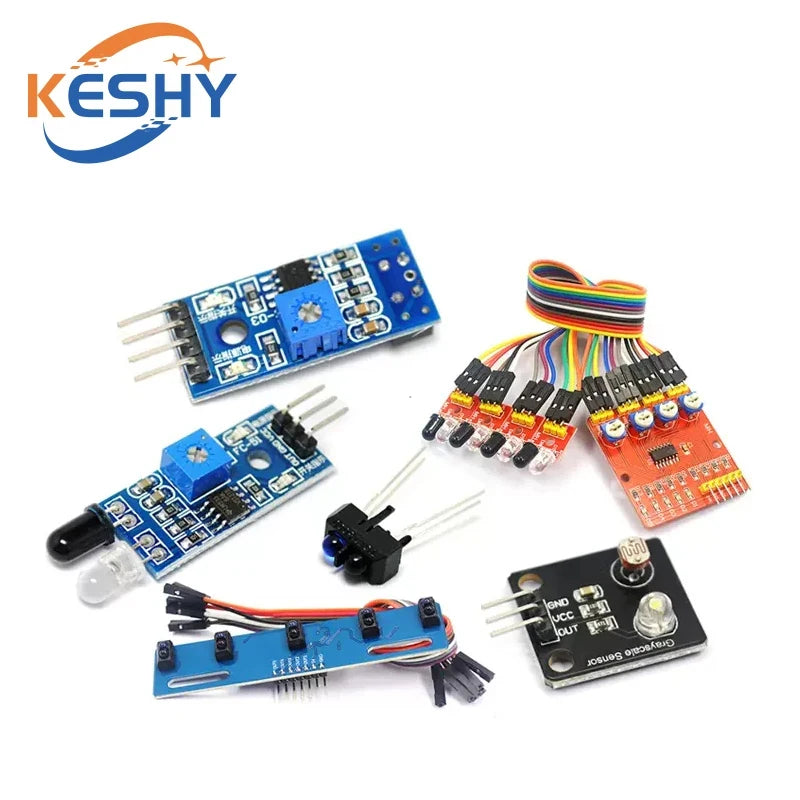

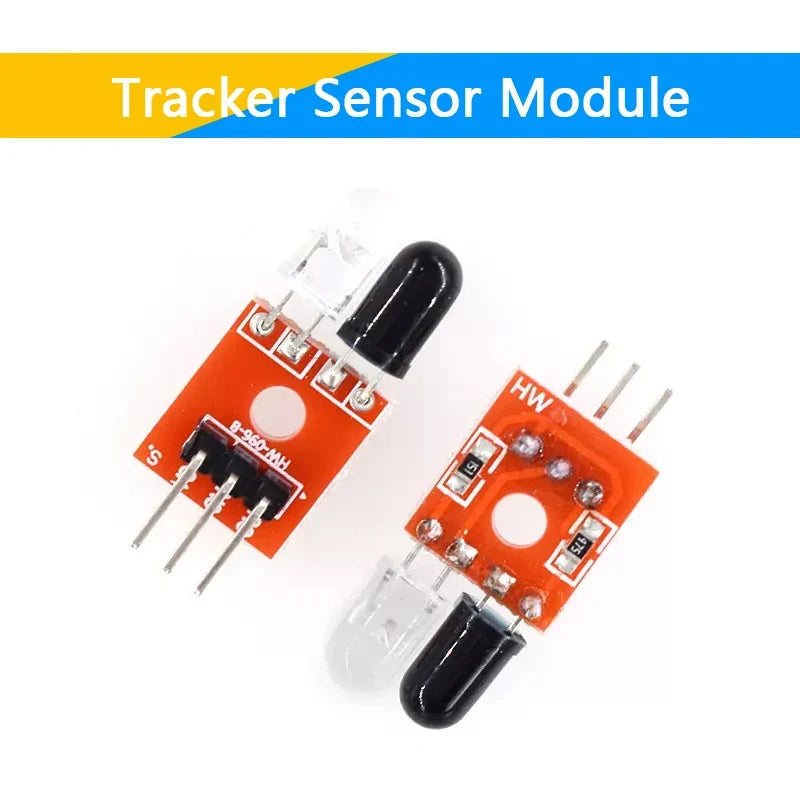

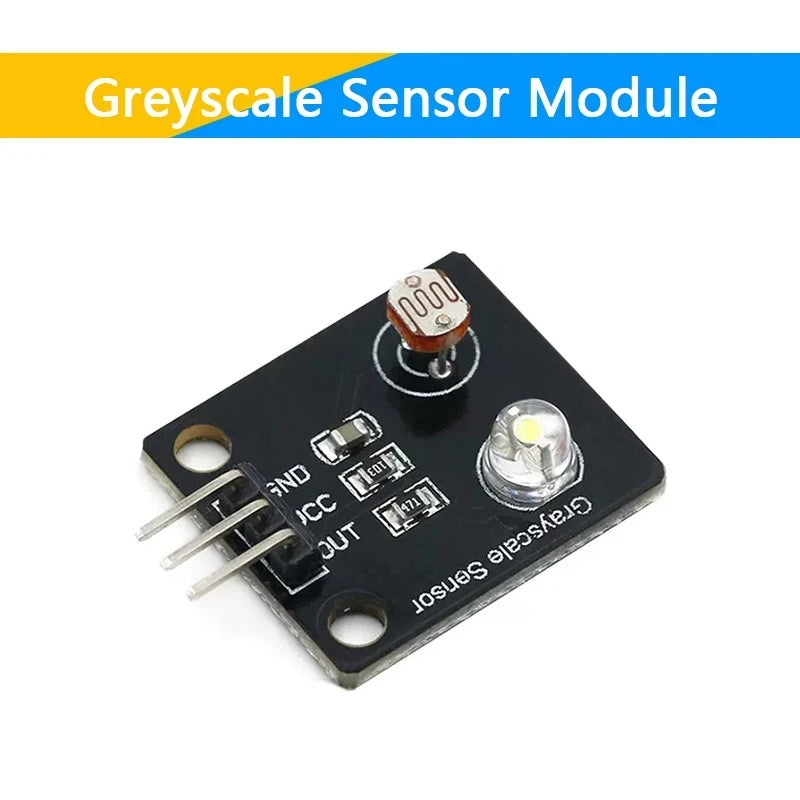

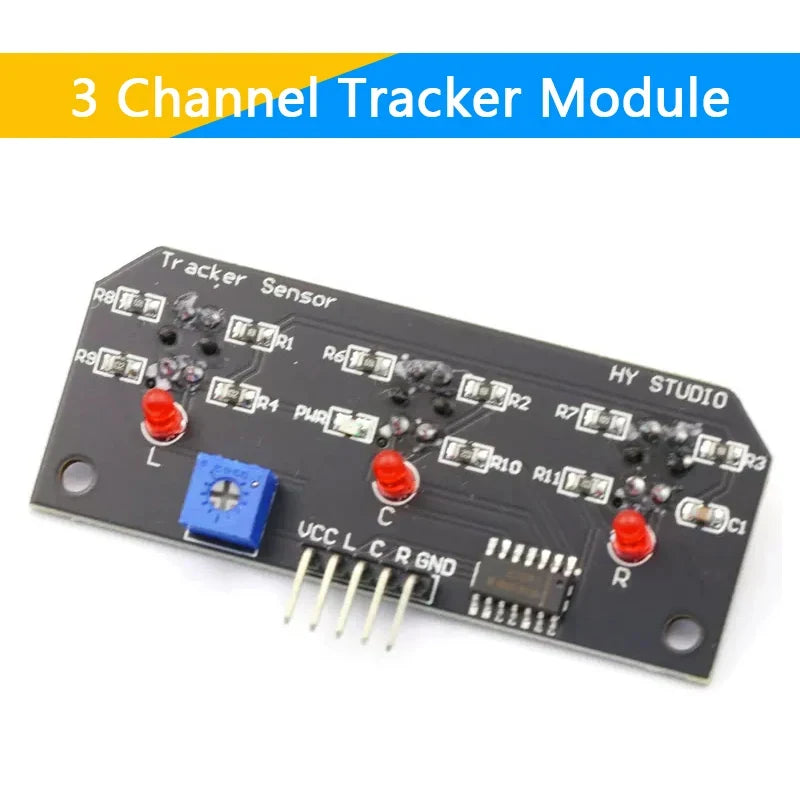

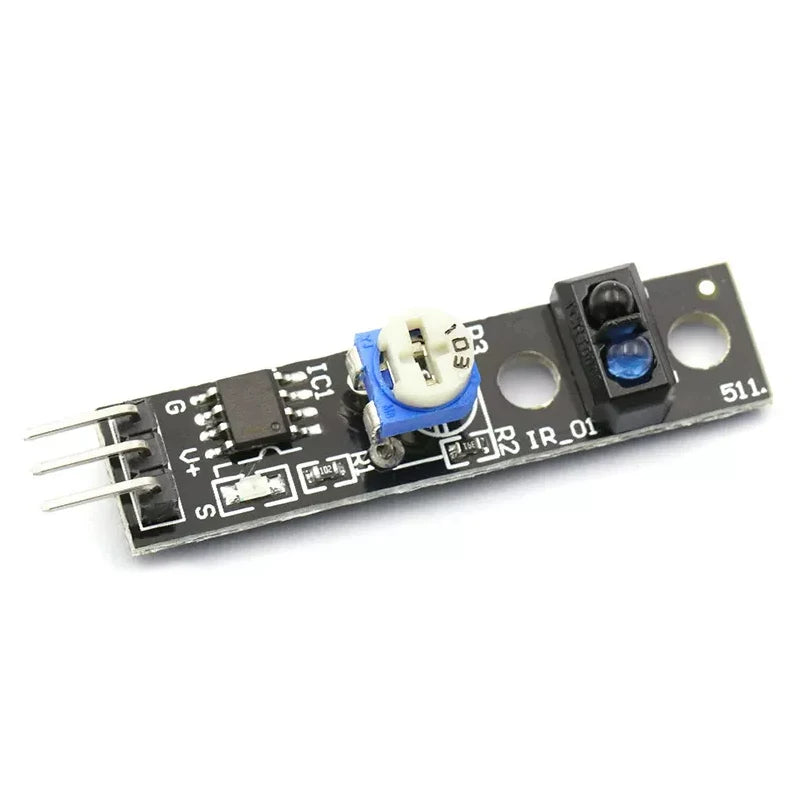

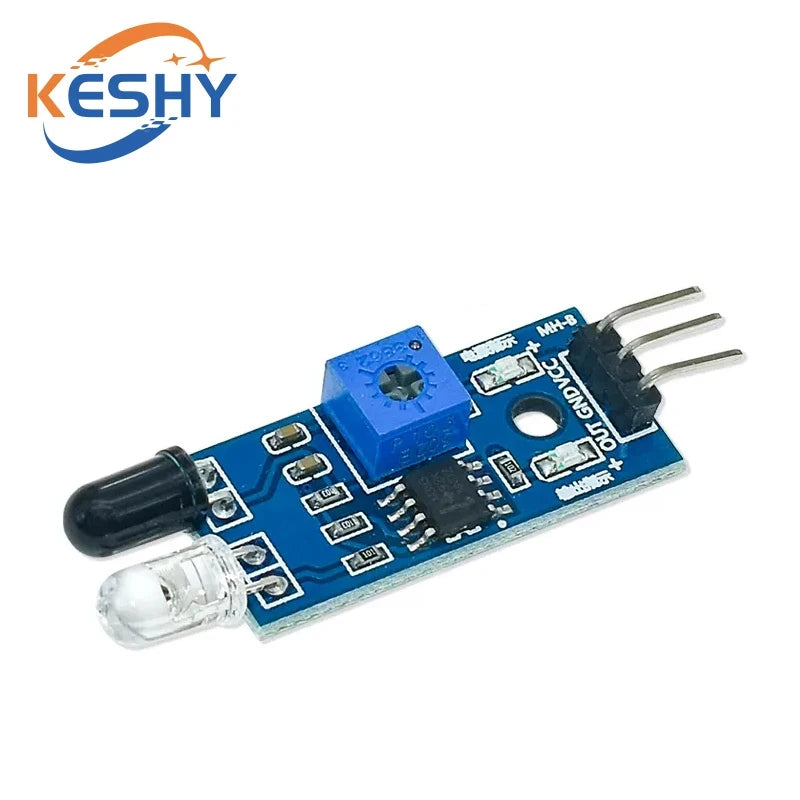

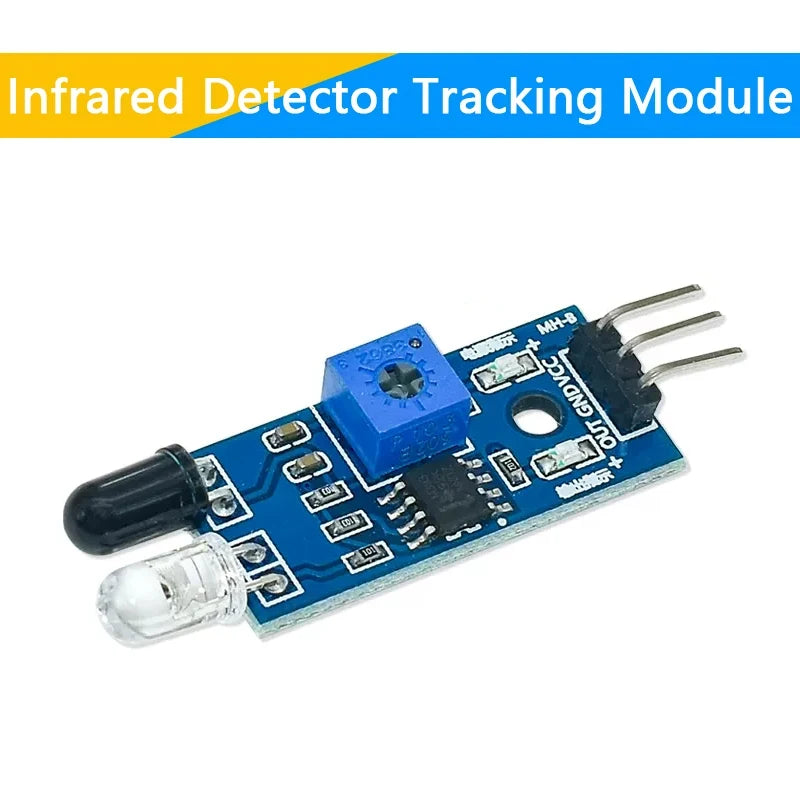

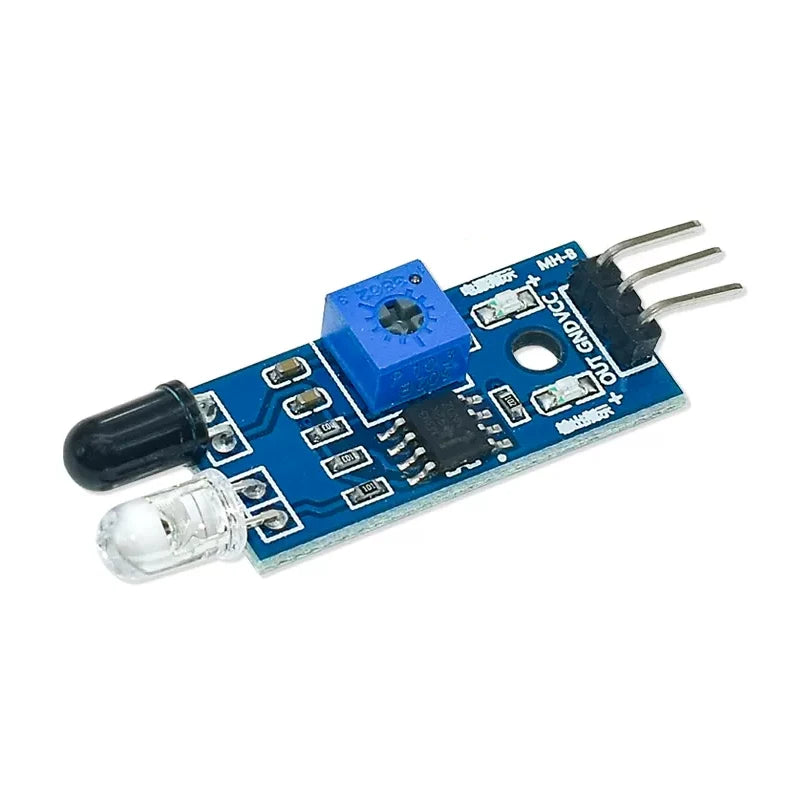

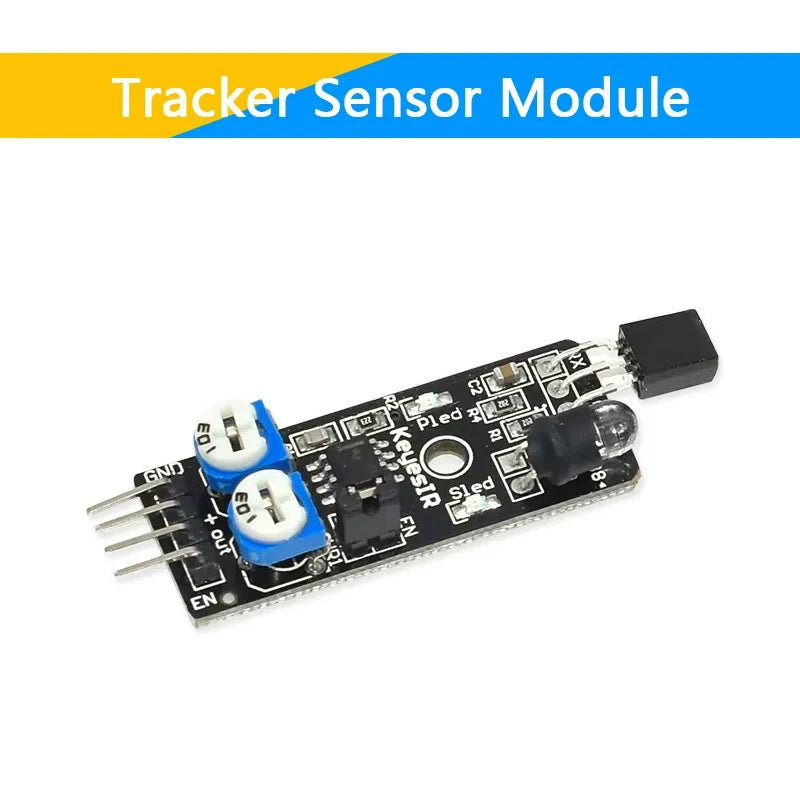

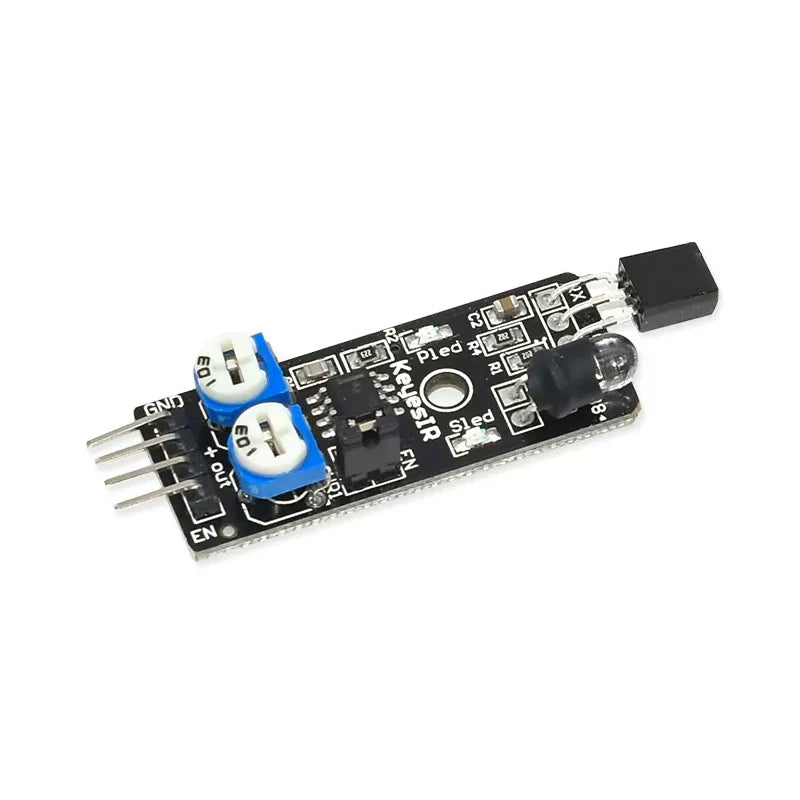

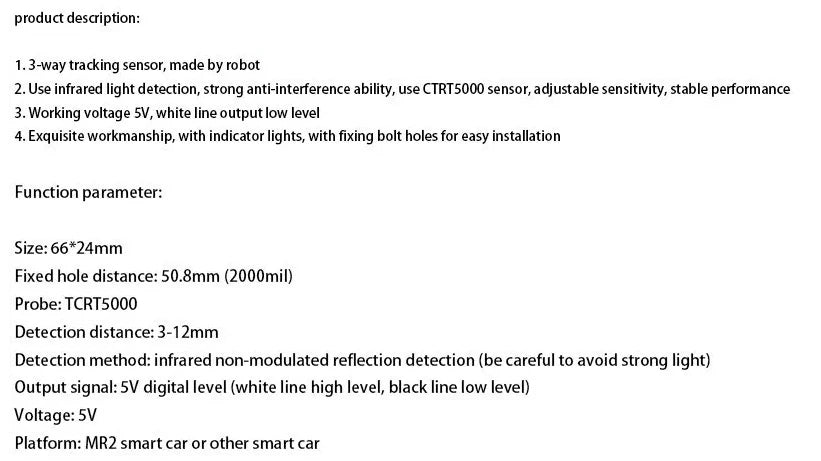

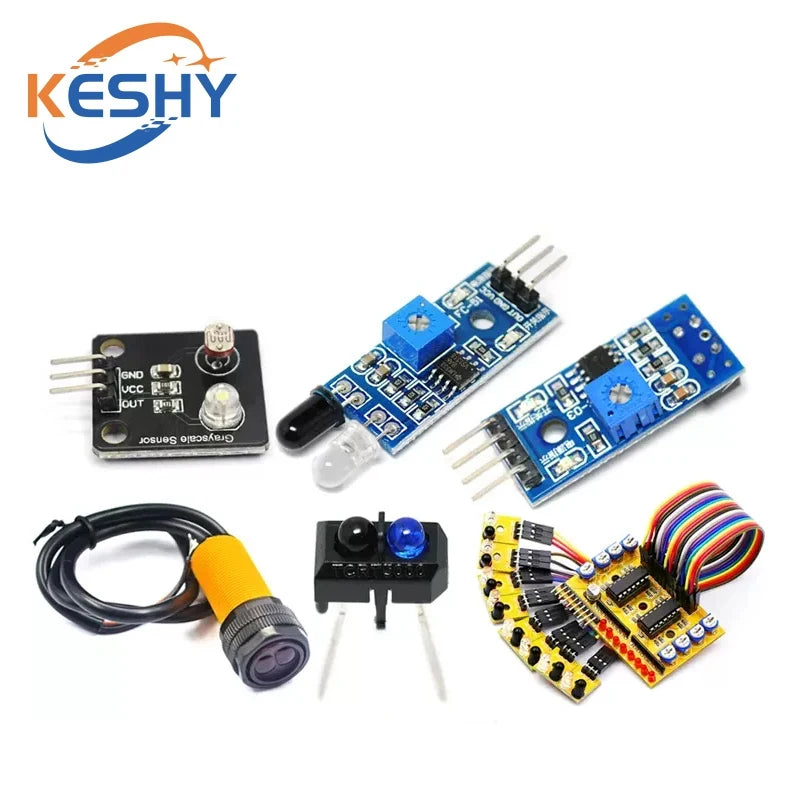

IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on. the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay. It has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal). Can be used for 3-5V DC power supply modules. It has red power indicator.

Specification

The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted Can be used for 3-5V DC power supply modules When the power is turned on, the red power indicator light Using the comparator LM393

Interface :

1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)

2. GND: GND External

3. OUT: Small board digital output interfaces (0 and 1)

Connection : VCC-VCC; GND-GND; OUT-IO

With the screw holes of 3mm , easy fixed installation

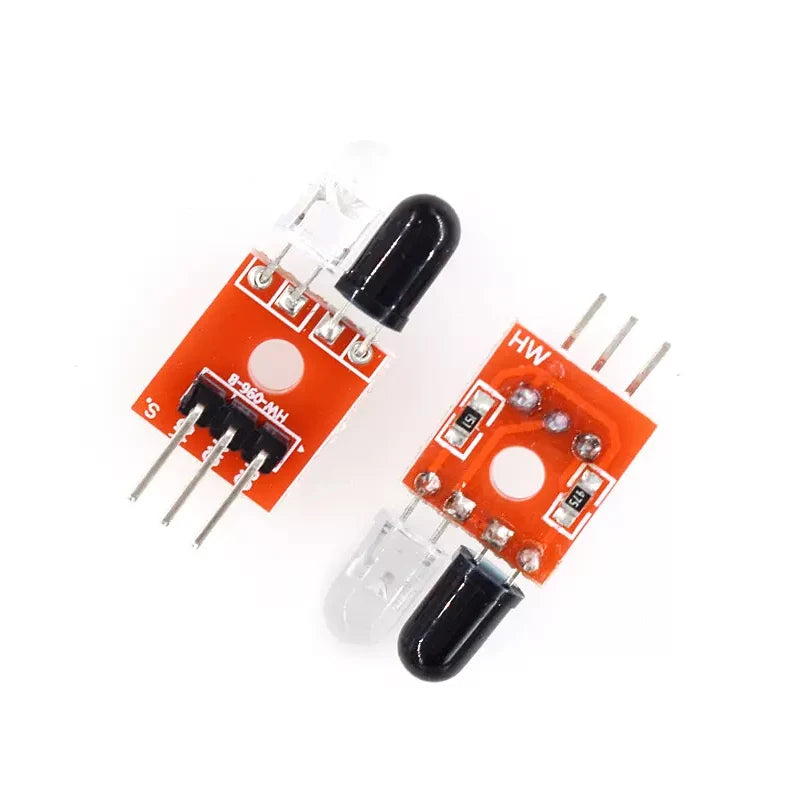

This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to the requirements. The sensor has a detection distance by visible light interference is small, cheap, easy to assemble, easy to use features, can be widely used robot obstacle avoidance, pipeline piecework and many other automation products.

Electrical Characteristics:
U: 5VDC
I: 100mA
Sn :3-80cm

Size:

Diameter: 17mm
Sensor length: 45MM
Lead Length: 45CM

Applications:

1, the production line goods automatic counting device
2, multi-functional reminder
3, Maze Robot
4, kitchen Automation system
5, security anti-theft system

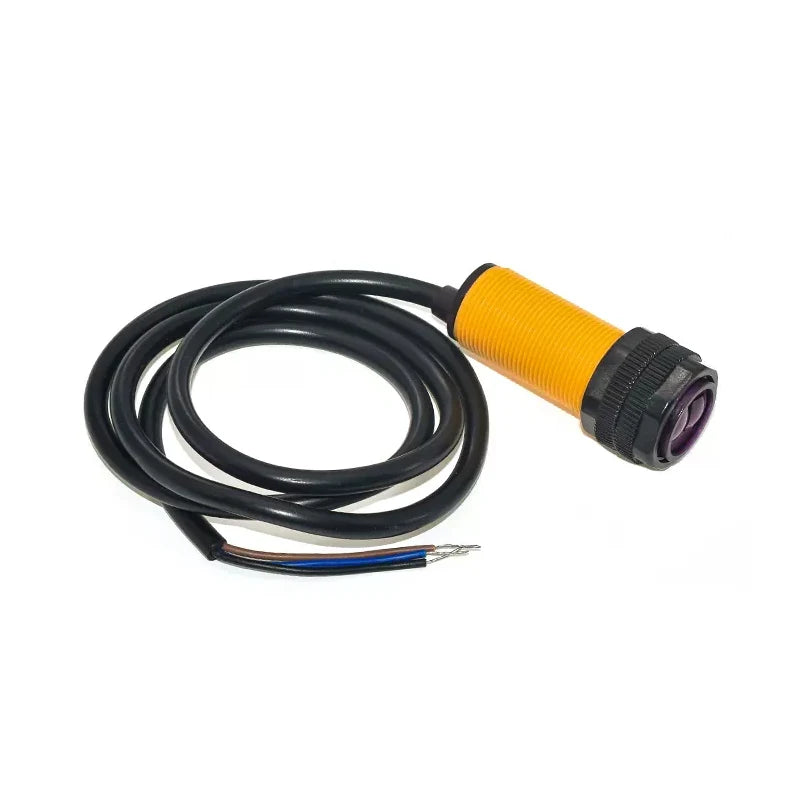

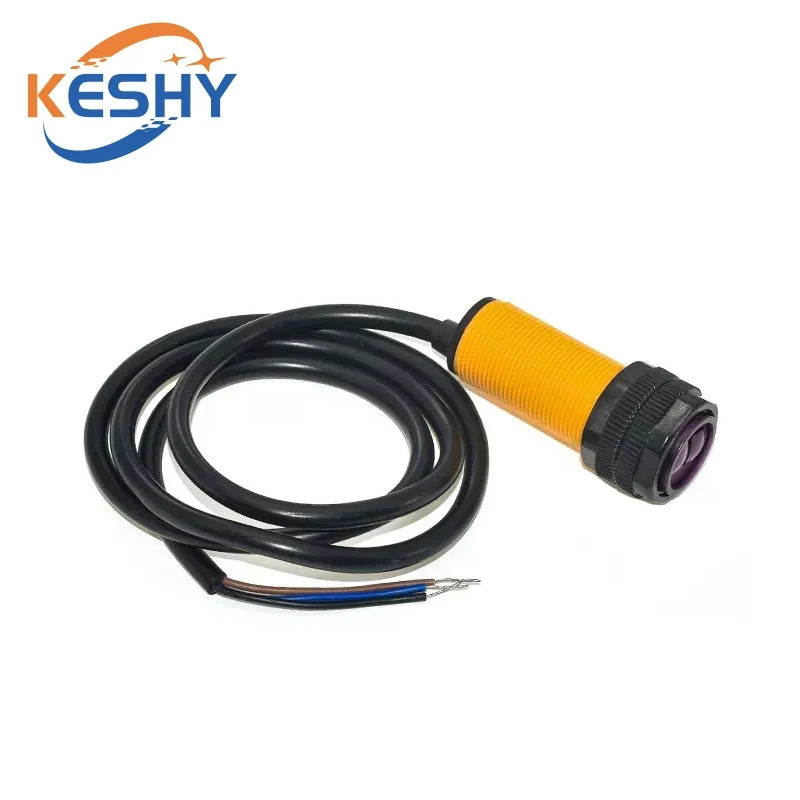

Photoelectric sensor (photoelectric switch) NPN normally open

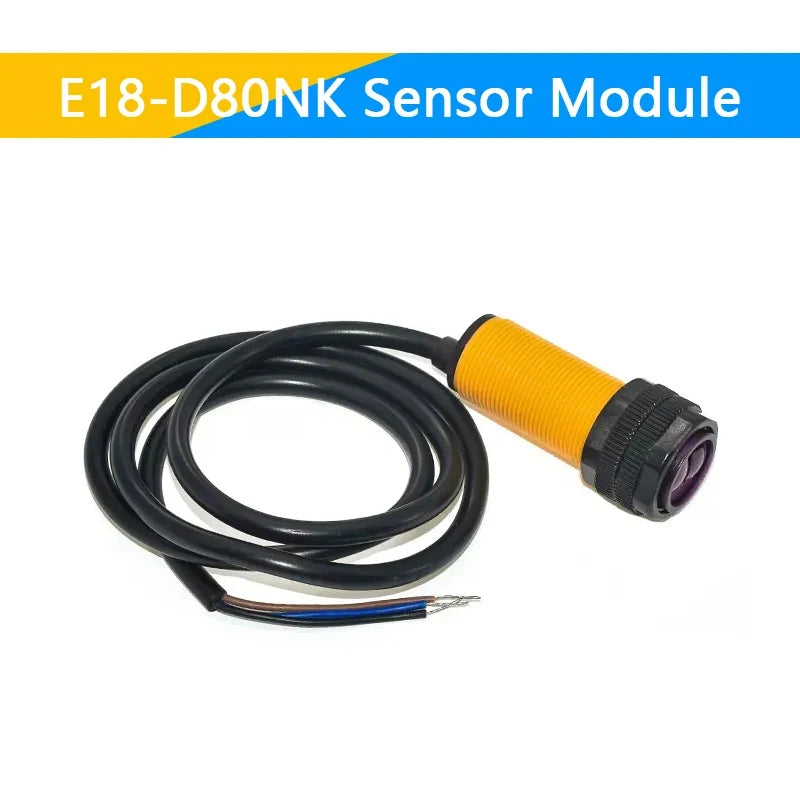

Model: E18-D80NK.

Photoelectric switch E18 Technical parameters:
1, the output current DC / SCR / Relay Control output: 100mA/5V supply
2, the consumption of current DC <25mA
3, the response time <2ms
4, point angle: ≤ 15 °, the effective distance of 3-80CM adjustable
5, object detection: transparent or opaque
6, the working environment temperature: -25 ° C to +55 ° C
7, the standard sensing object: sunlight below 10000LX incandescent 3000LX
8, Case Material: Plastic

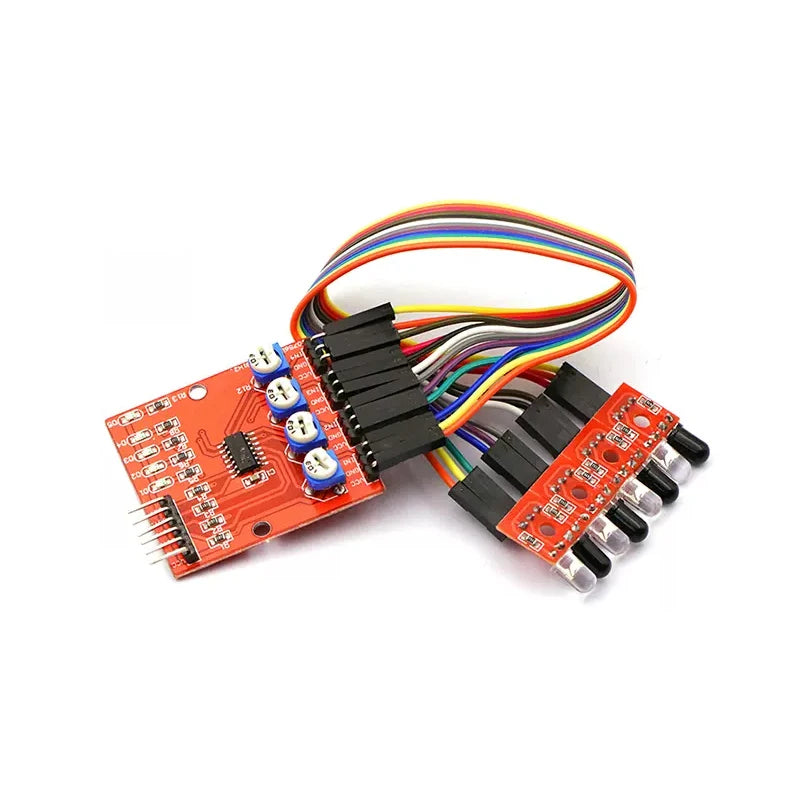

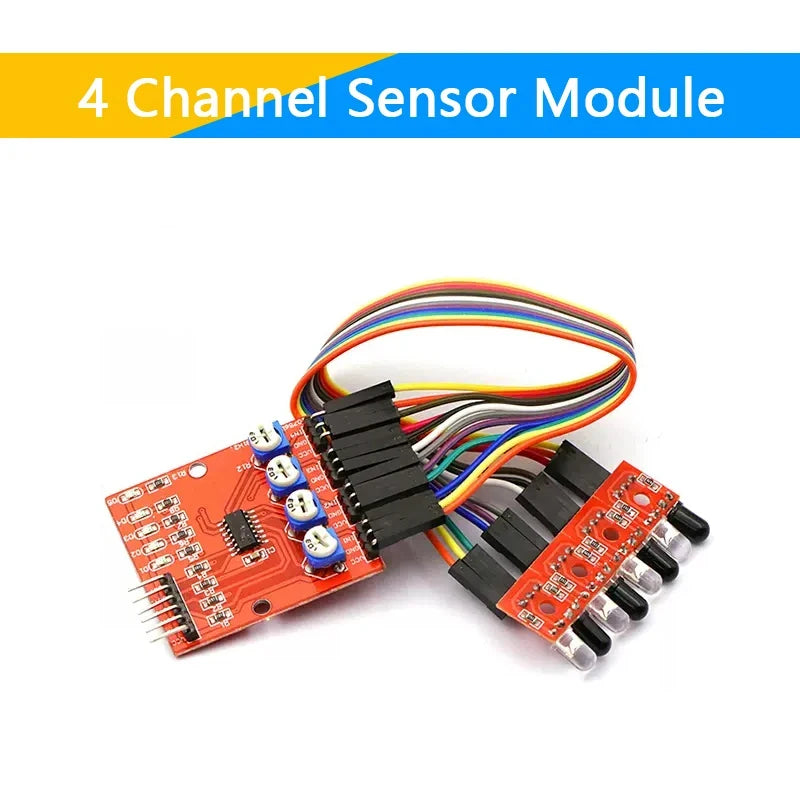

Four-way infrared tracing / 4 channel tracking module / transmission line modules / obstacle avoidance / car / robot sensors

Product Usage:
1. Pulse data sampling of watt-hour meter
2. Facsimile paper shredder paper detection
3. Obstacle detection
4. Black and white line detection

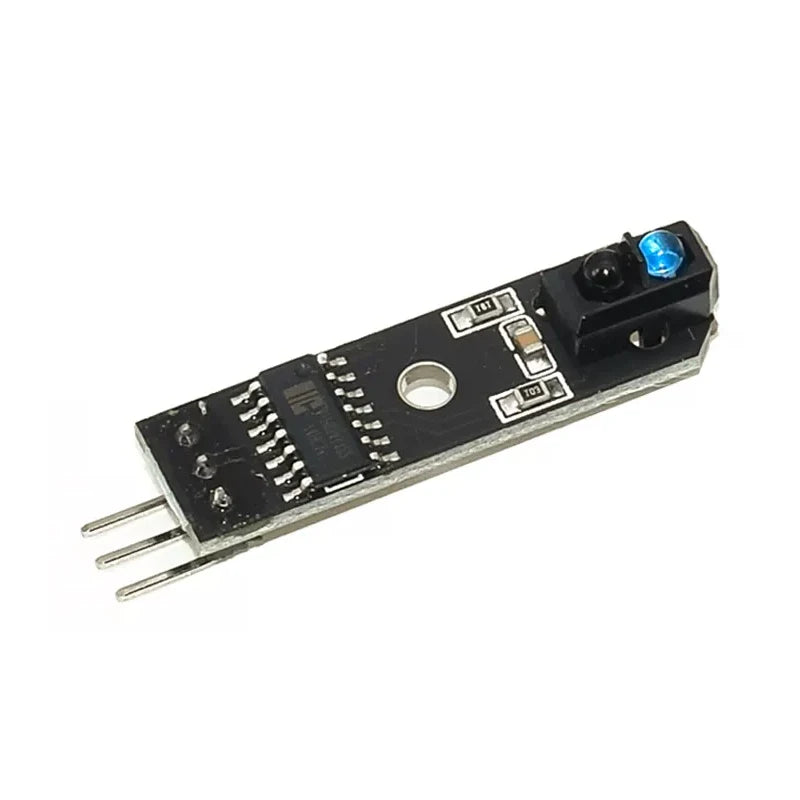

Product description:

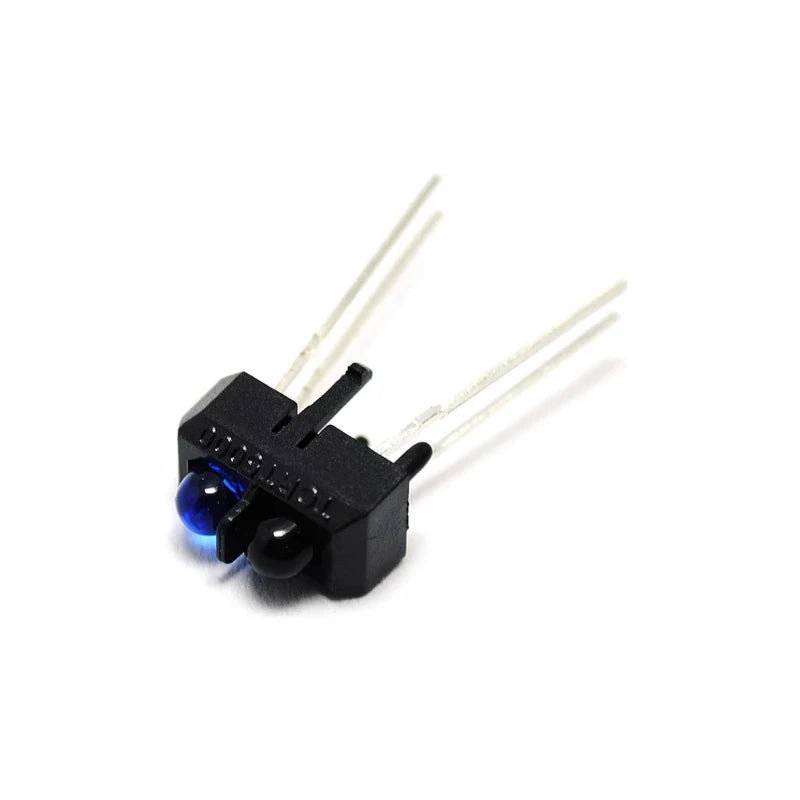

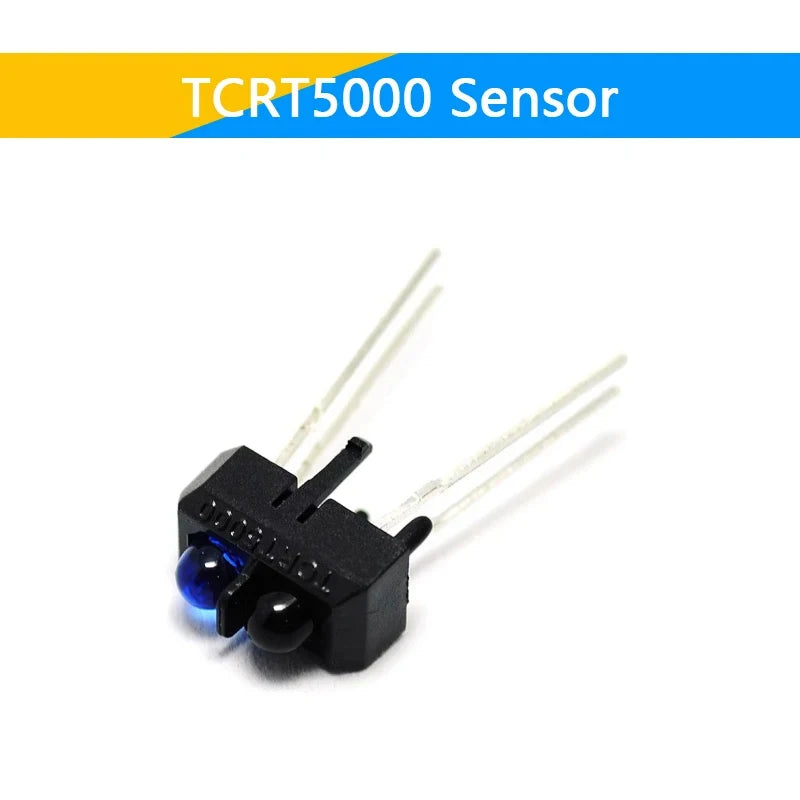

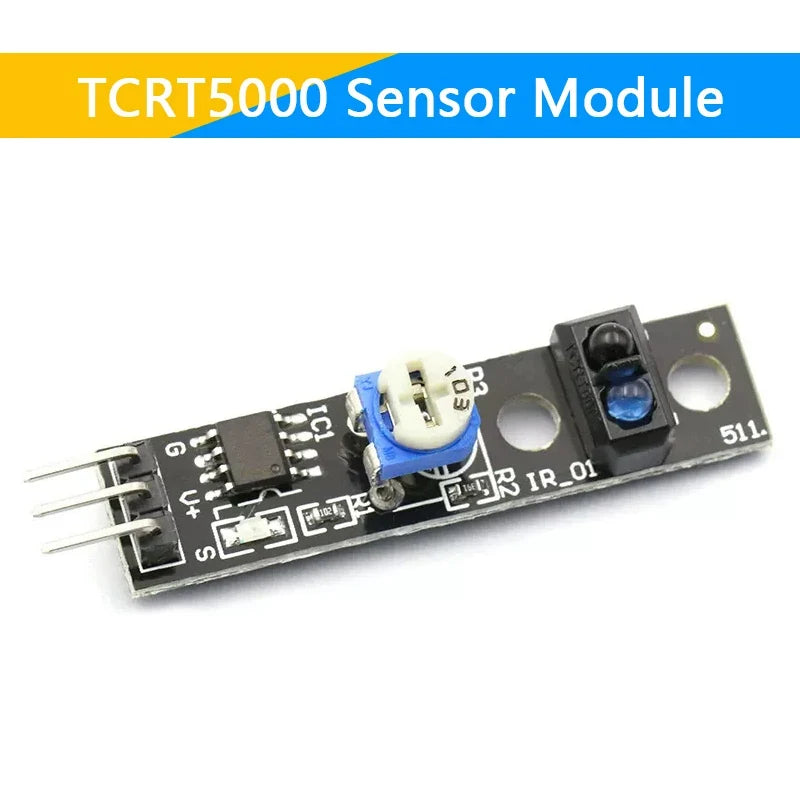

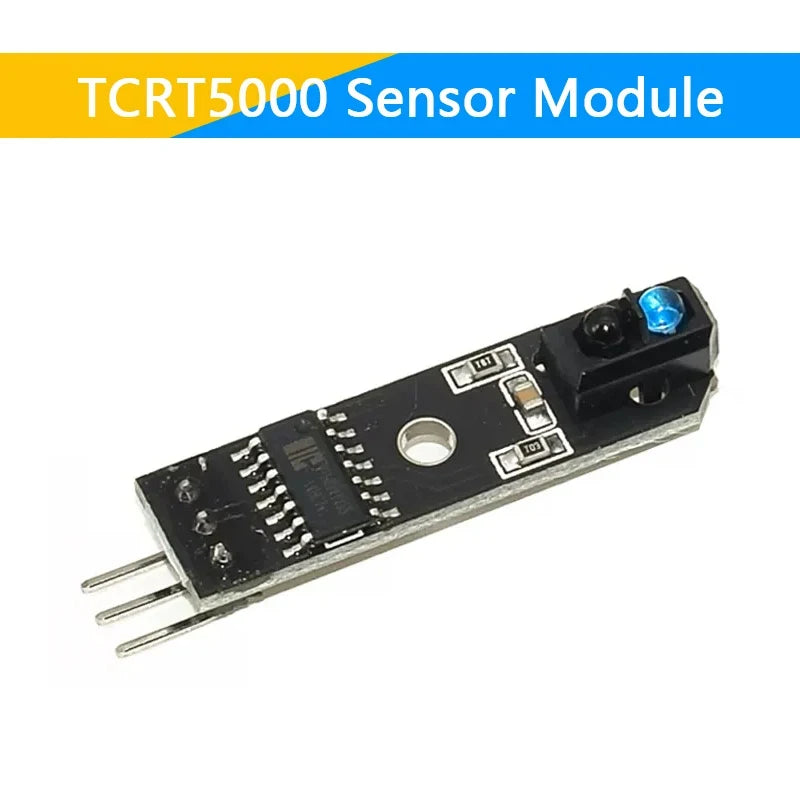

1. Using TCRT5000 infrared reflection sensor
2. Detection reflection distance: 1mm~25mm applicable
3. Working voltage: 5V
4. Output form: digital signal (0 and 1)
5. Equipped with fixing bolt holes for easy installation
6. Small board PCB size: 3.5cm x 1cm
7. Single weight: 4.5g

Features:
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not strong enough, the infrared receiving tube is always in the off state, and the output terminal of the module is at low level, indicating The diode is always in the off state; when the detected object appears in the detection range, the infrared is reflected back and the intensity is large enough, the infrared receiving tube is saturated, and the output terminal of the module is high at this time, indicating that the diode is lit.

Wiring:
1. VCC: Connect to the positive pole of the power supply (5V)
2. GND: connect to the negative pole of the power supply
3. OUT: high/low level switch signal (digital signal 0 and 1)

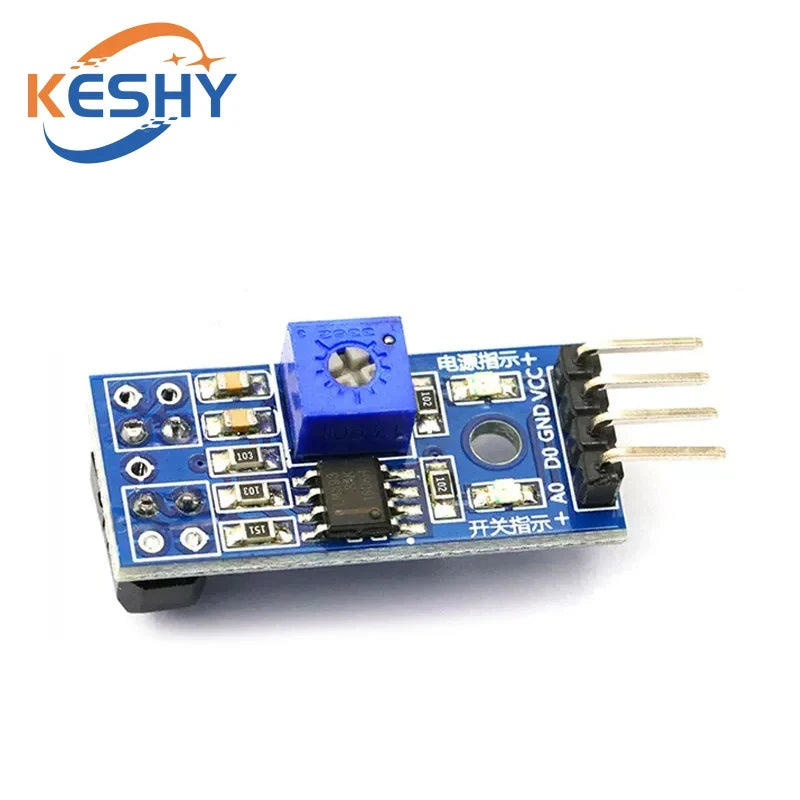

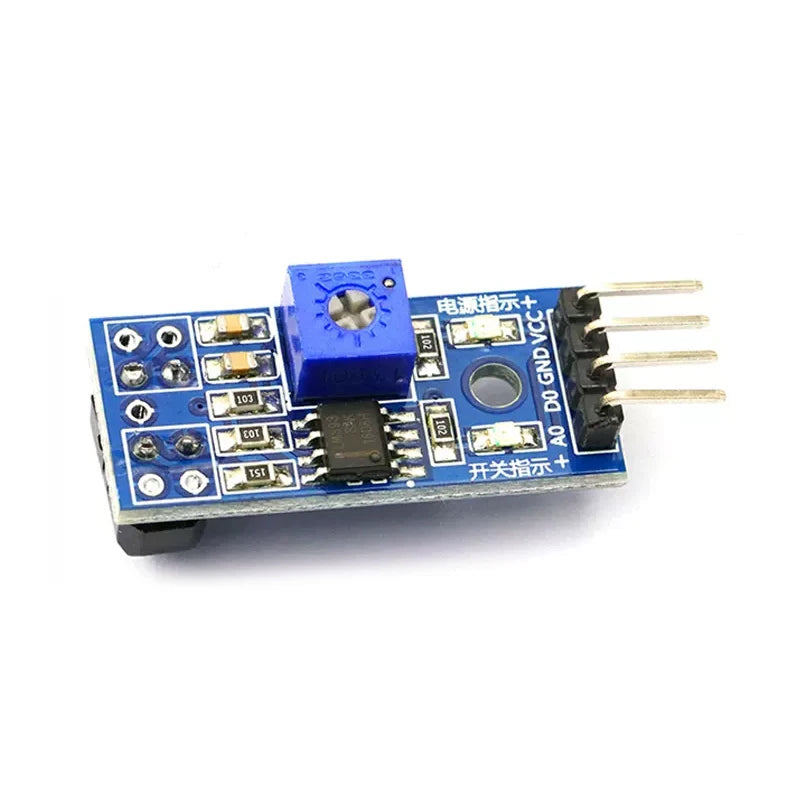

The baby description

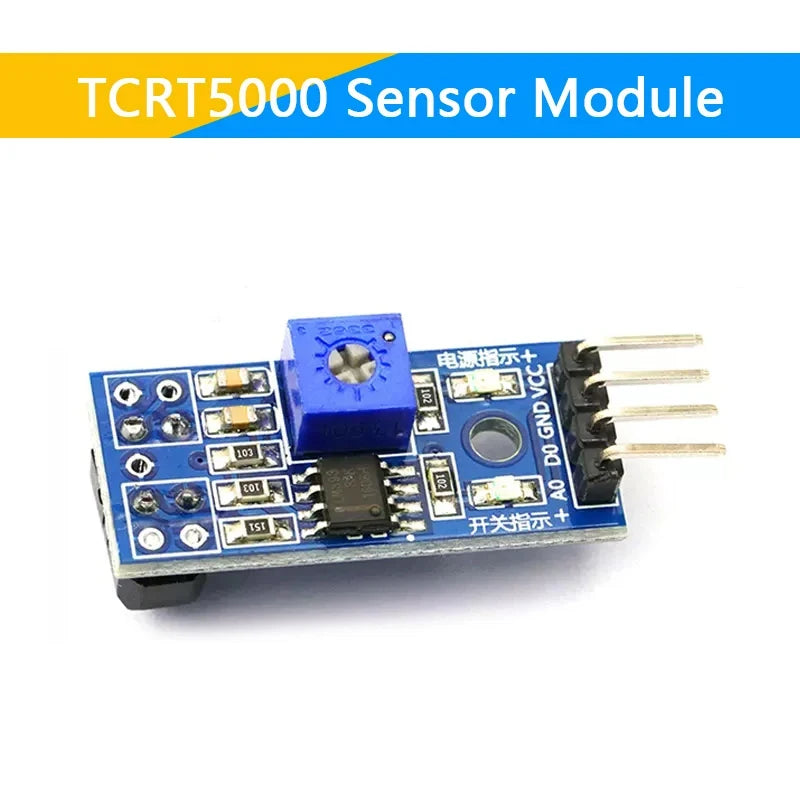

1 sensor adopts TR5000, high sensitivity
2 sensitivity adjustable digital potentiometer to adjust (blue)
3 modules can induction block from 0 to 3 cm
4-5 V working voltage of 3.3 V
5 a output form the output analog voltage (0 to 5 v)
B digital switch output (0 and 1)
6 has a fixed bolt hole, the work of the installation
Seven small board PCB size: 3.5 cm * 1.5 cm
8 the power indicator light (red) and digital switch output indicator light (green)
9 comparator USES the LM393 chips, work stability
Three small plate interface specifications wire (4)
1 VCC external 3.3 V to 5 V
2 GND external GND
3 DO small plate digital output interface (0 and 1)
4 small AO plate analog output interface (0 to 5 v)
Four instructions
The module can be 1 2 intelligent tracing car obstacle avoidance, material testing, color detection
2 modules in shining or keep out the short is greater than the set threshold the DO output high level, the when the module block short is less than the setting threshold, the module D0 output low level;
3 small plate digital output D0 can be attached directly to the microcontroller, through single chip microcomputer to detect the high and low level, thus to detect been the modules are triggered.
4 small plate digital output DO can directly drive our relay module, which can be composed of a photoelectric switch;
5 small plate analog output can AO and AD modules are linked together, through the AD conversion, the can module are obtained and the obstructions of short.

The TCRT5000 sensor works in the same way as a general infrared sensor. The TCRT5000 has an infrared transmitting tube and an infrared receiving tube. When the infrared signal of the transmitting tube is received by the receiving tube through reflection, the resistance of the receiving tube changes. Generally, the circuit is reflected in the form of voltage change, and the output result is processed after being converted by ADC conversion or LM324. The change of resistance starts from the intensity of the infrared signal received by the receiving tube, and is often expressed on the reflective surface. The distance between the color and the reflective surface receiving tube is two or two. The hardware reference schematic is as follows:

The structure of the dimension drawing is marked with the pin polarity function Coll, E, A, Cath

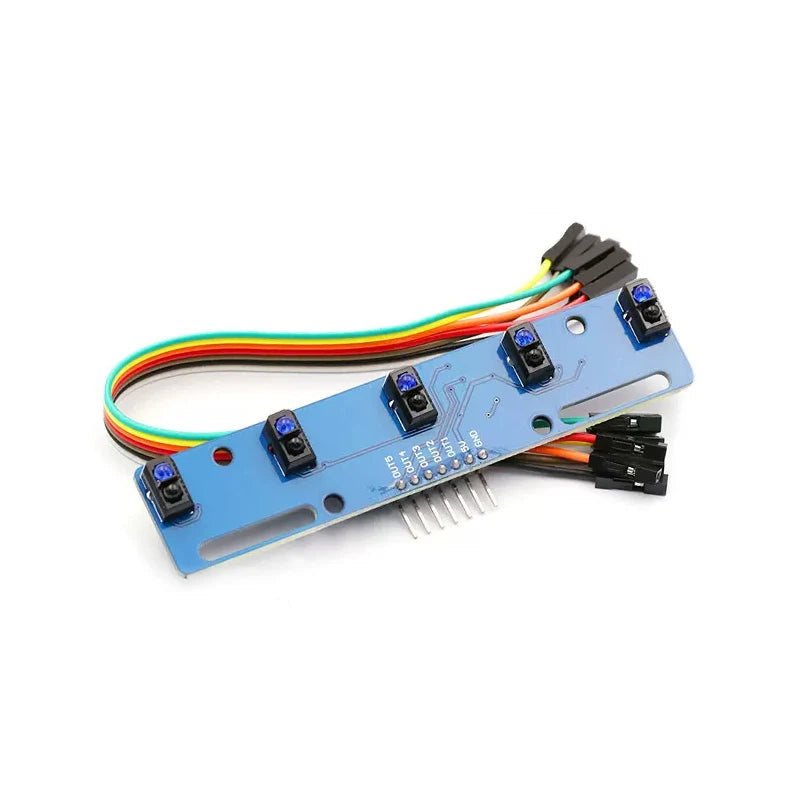

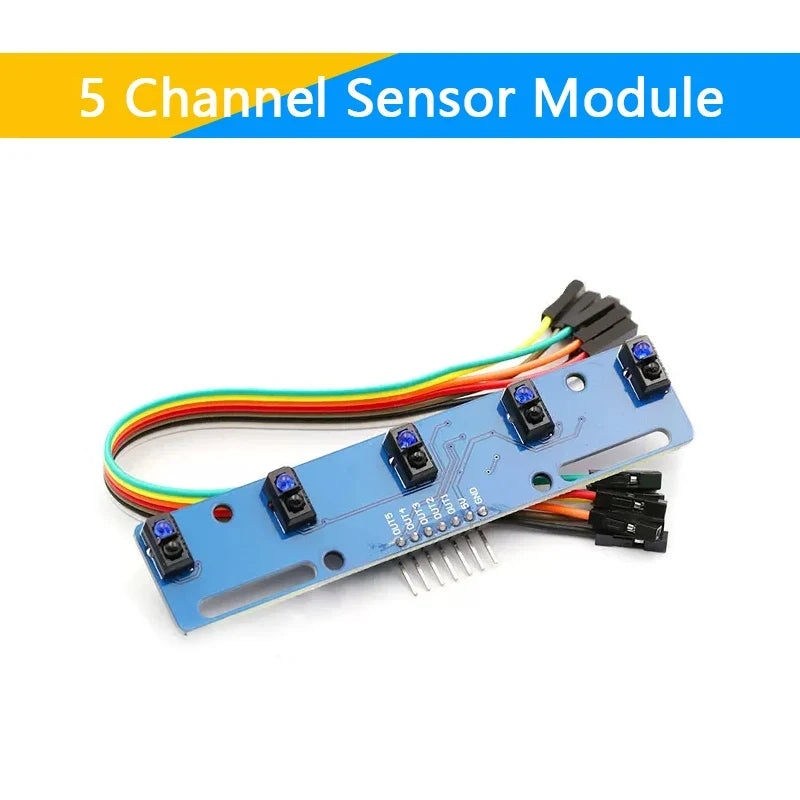

5-channel tracing module analog output, analog output and distance, object color related. The stronger the infrared reflection (white), the larger the output, the weaker the infrared radiation (black), and the smaller the output. The closer the detector is to the black line, the smaller the output, so that the distance of the black line can be judged by the output analog. The smaller the value, the closer the sensor is to the black line. Compared with other track sensors that can only output high and low levels, the 5-channel analog output of this product can feedback the distance of the black line, and the feedback is more accurate.

5-channel infrared tracking sensor overview:

Based on the TRCT5000 infrared reflection sensor, it is often used to make tracking smart cars. The infrared emitting diode of the TRCT5000 sensor continuously emits infrared rays. When the emitted infrared rays are reflected by the object, they are received by the infrared receiver and output analog values. The output analog value is related to the object distance and the color of the object. The position of the tracking line is judged by calculating the analog value of the five outputs.

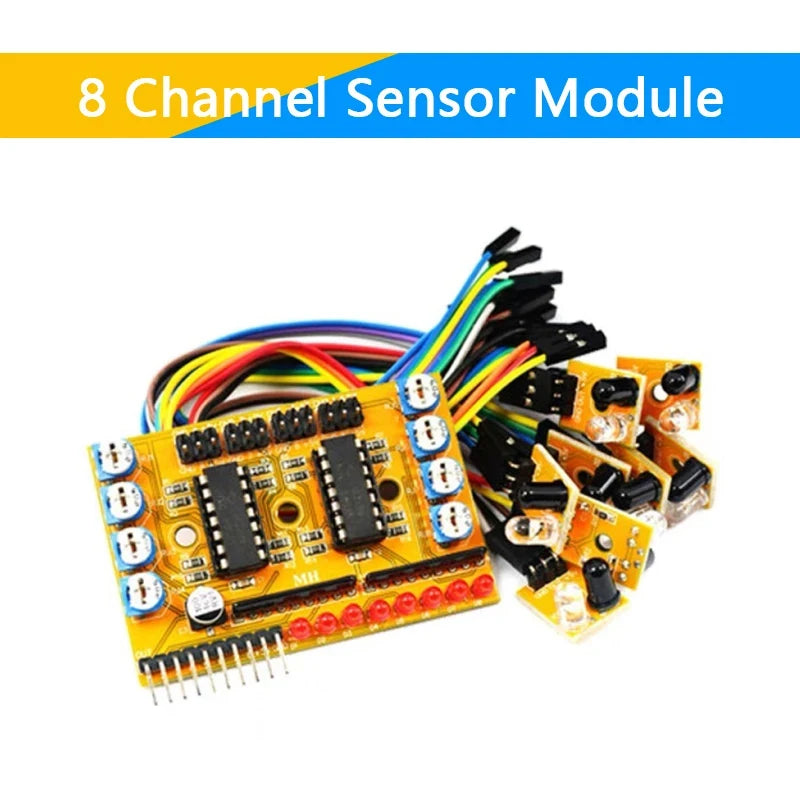

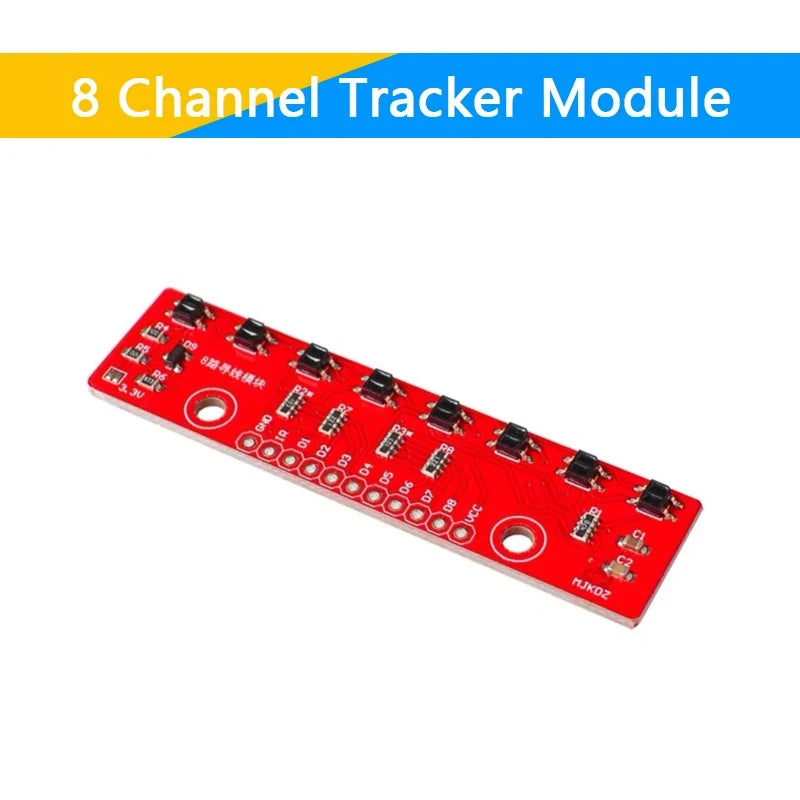

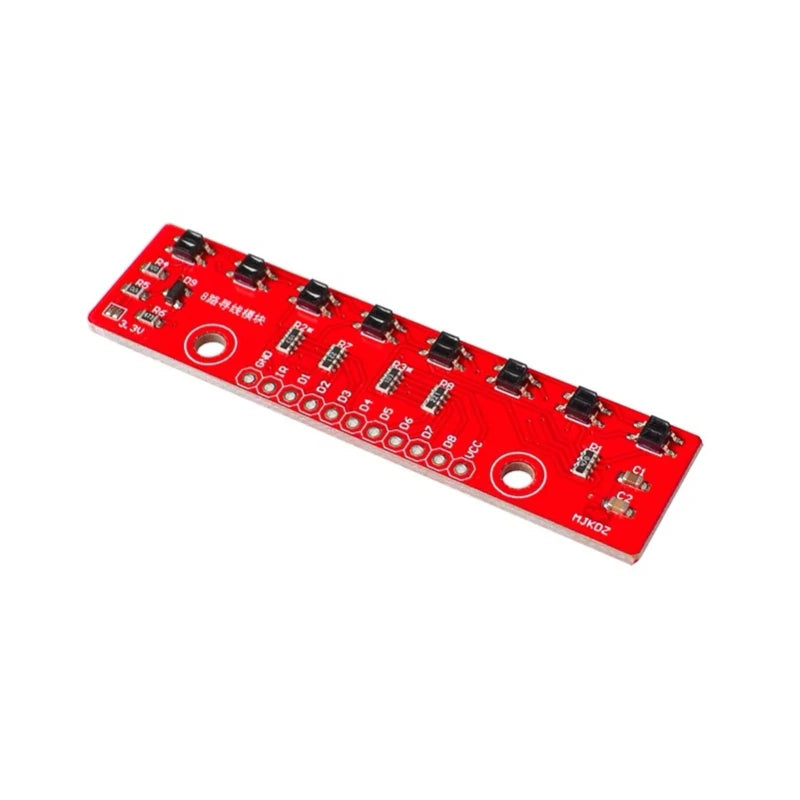

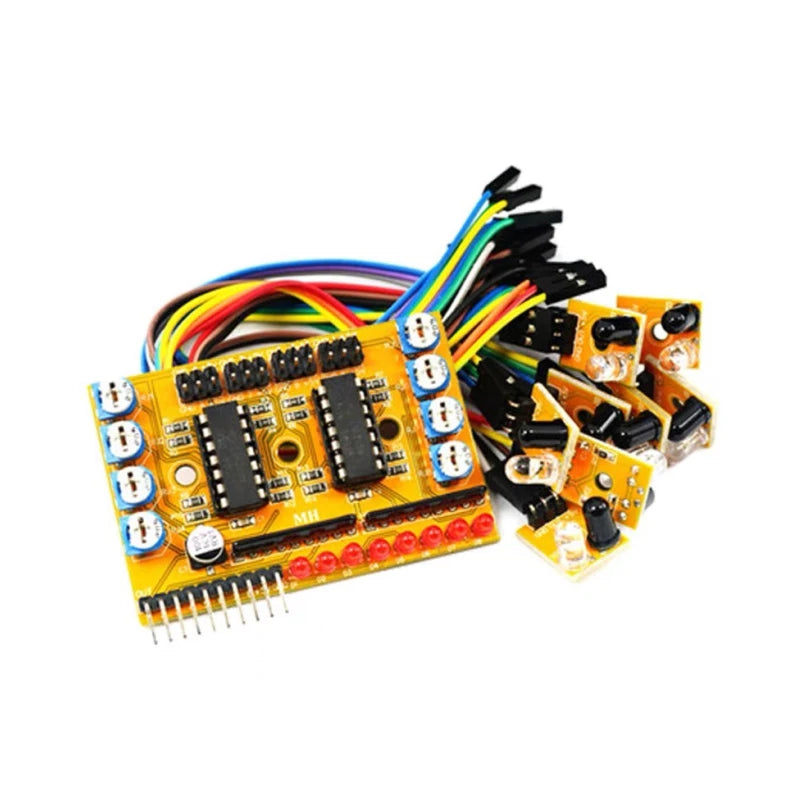

Hunt eight modules tracking module tracking passage module 8 hunt module tracking module
