SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: DIP

Quantity: 1

Type: Module

is_customized: Yes

semi_Choice: yes

Description:

OB SEGGER developed by a separate set of debugging downloader, usually designed to major companies Evaluation Board ("on-board"), which is the suffix "OB" reasons.

Entitled "OB" downloader debugger with USB communication with PC communications, and the other end through the JTAG or SWD way communication device can support complete debugging download task.

Feature:

Full compatible with conventional, with all the feature.

Inexpensive and comprehensive assessment of debugging solutions
Support JTAG, SWD + SWO (SW) communication
It may prohibit the use of other external debug circuitry
lt is compatible with most devices
lntegrated circuit is simple, stable, reliable and convenient mobile portable
Since the -OB mostly internal circuitry integrated into the evaluation board, meaning its use is limited to only one kind of debugging download an MCU in order to debug download other equipment is almost impossible.

To solve this malpractice, must be separated from the -OB out the original evaluation board,here under the separated -OB debugging downloader (- OB renovation Edition).

Package Included:

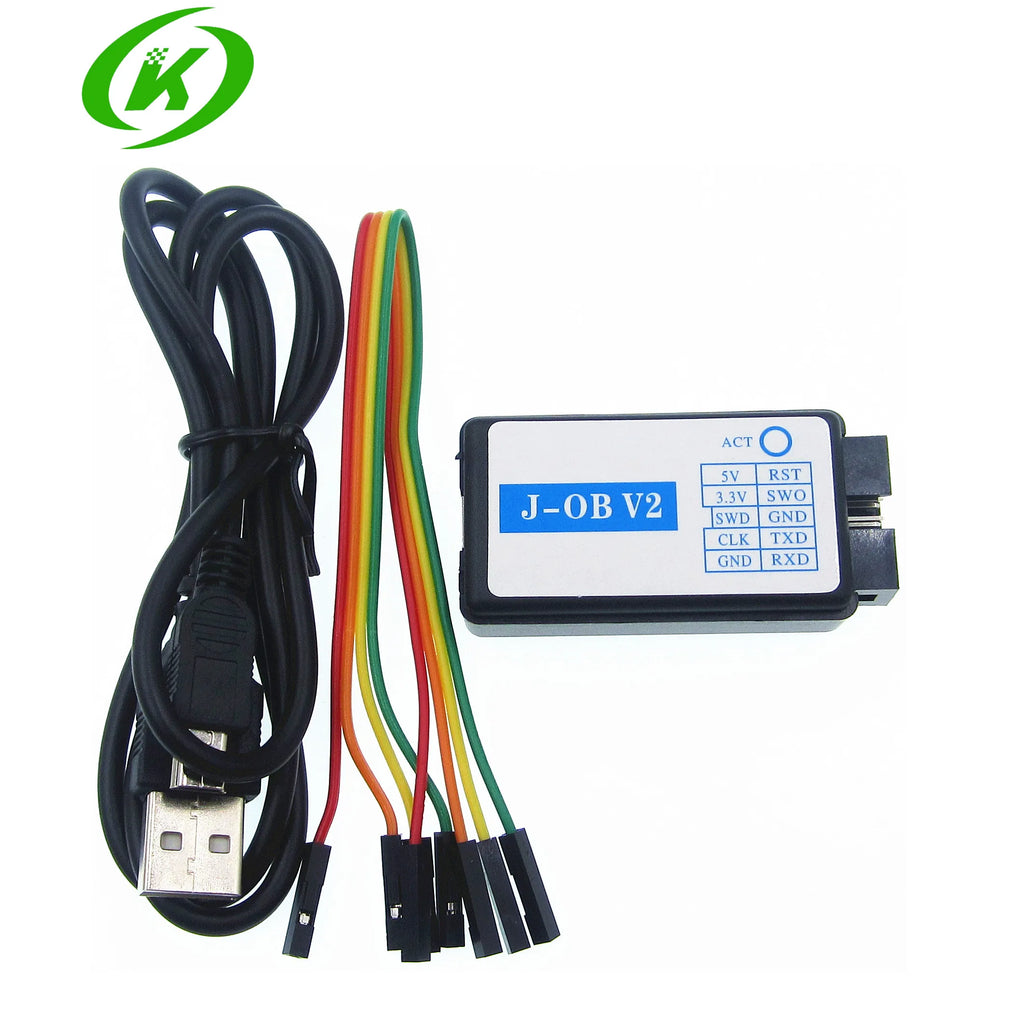

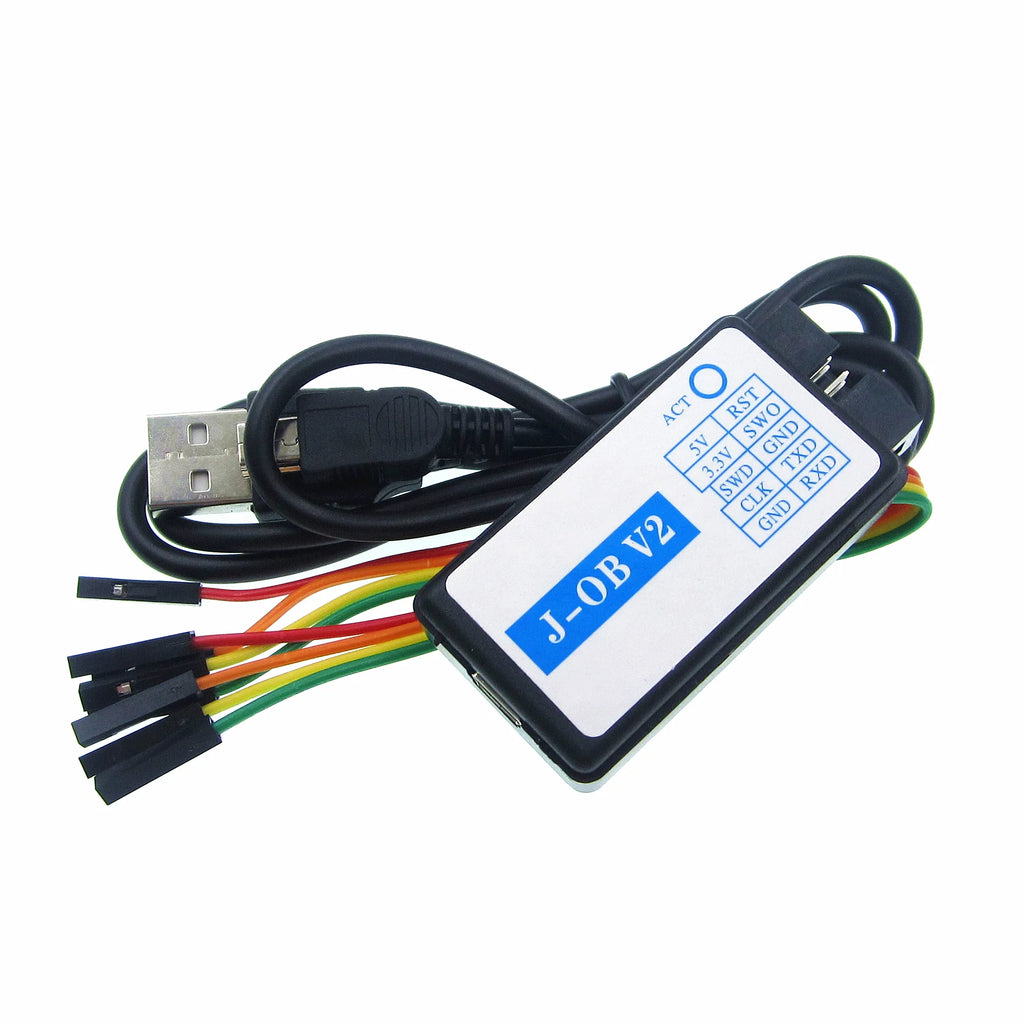

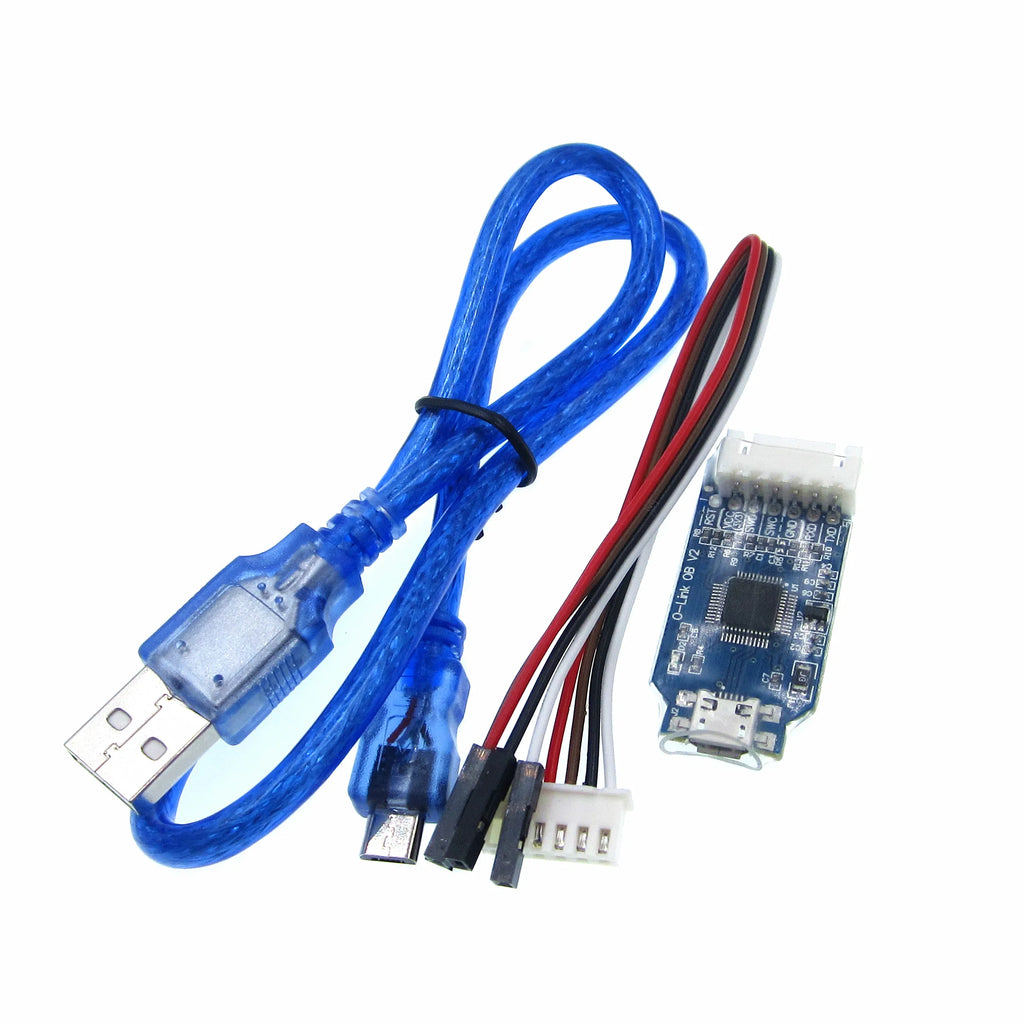

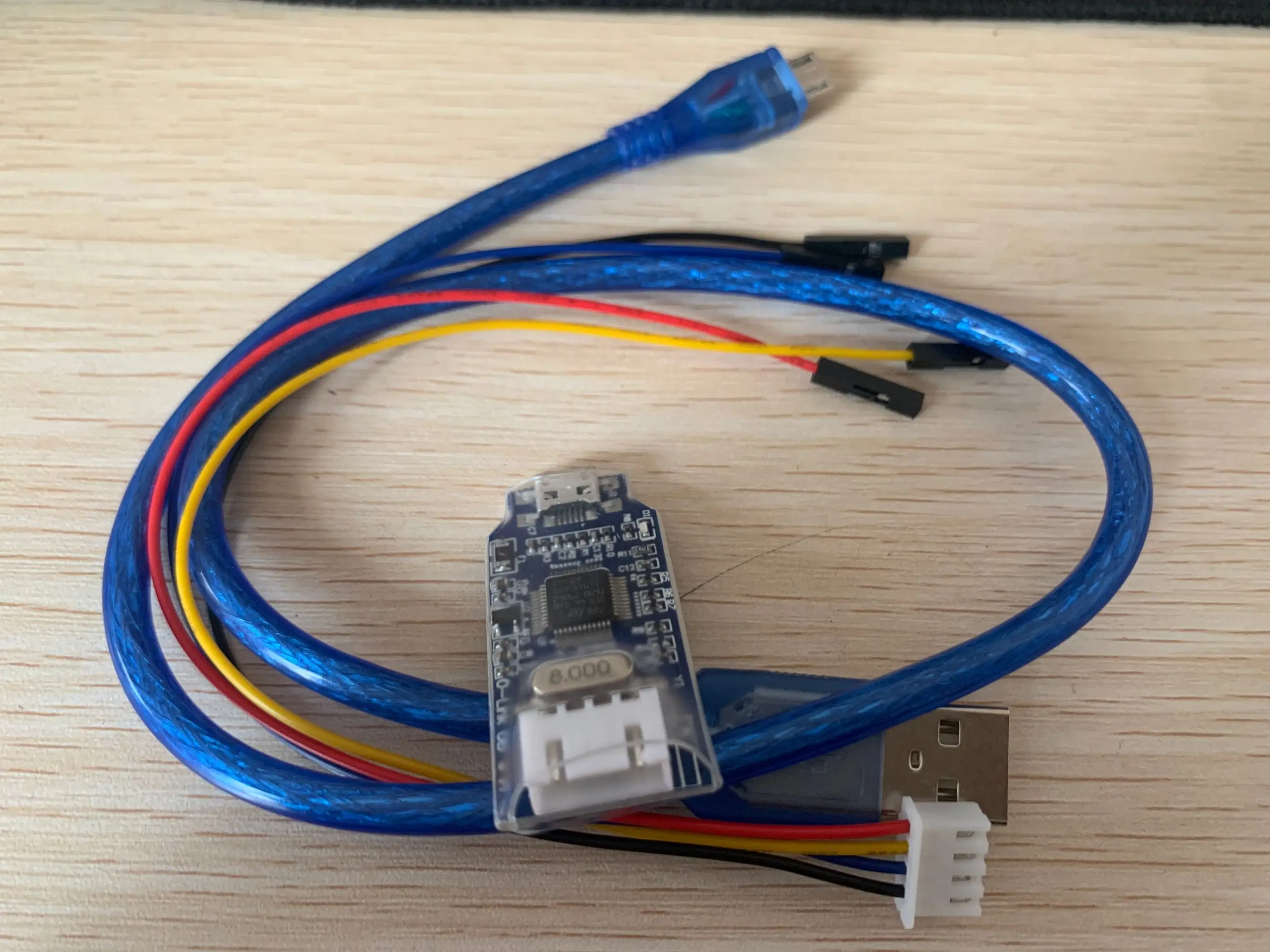

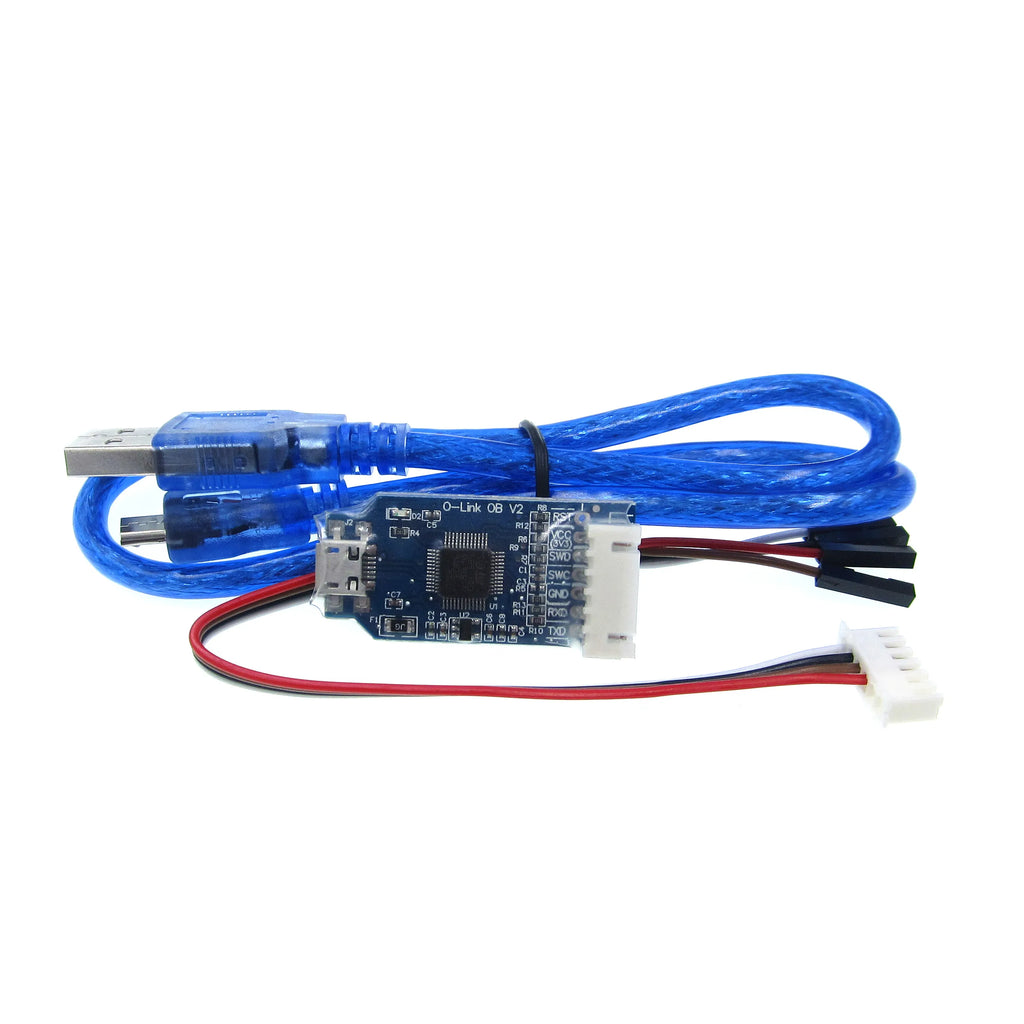

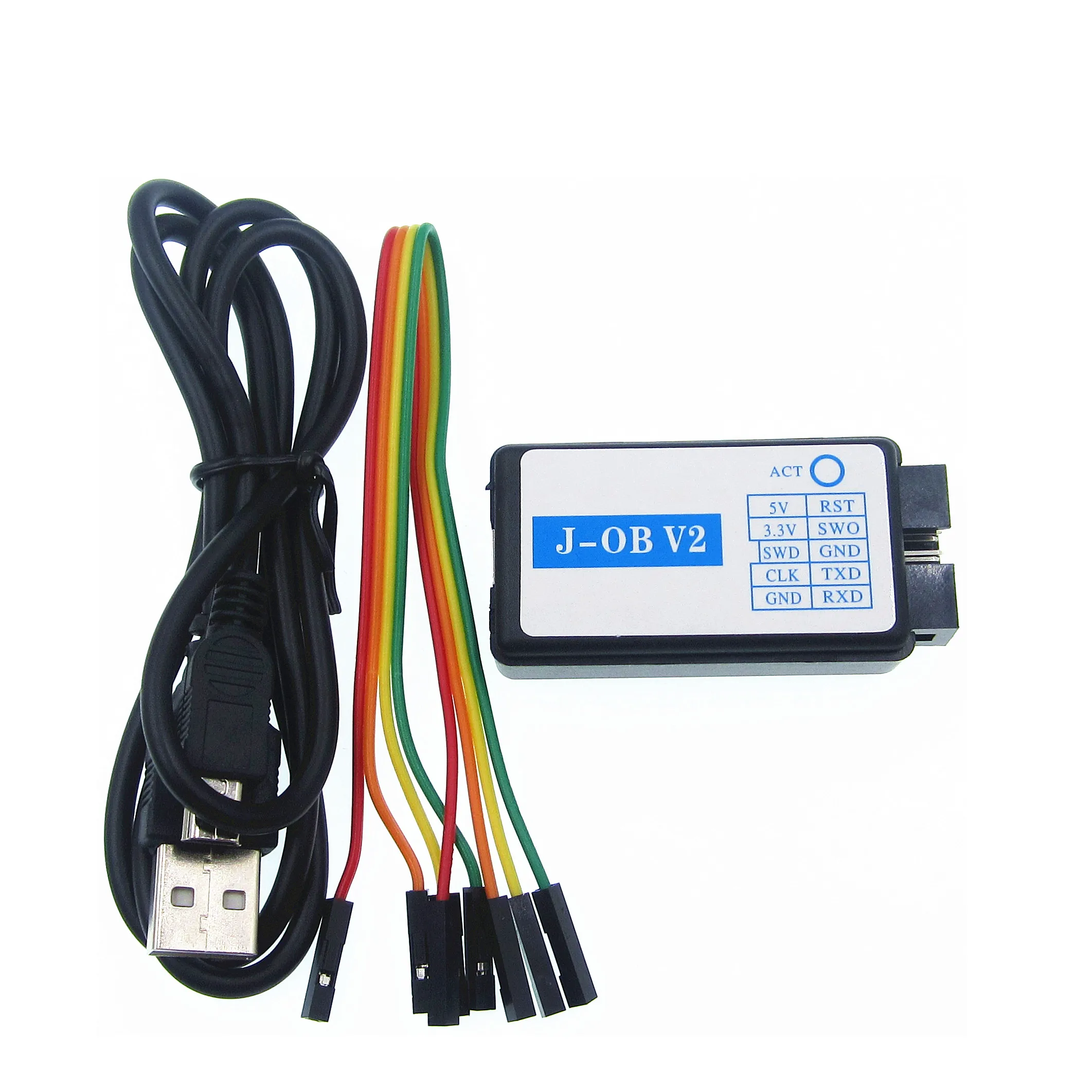

1 x J-link OB ARM Debugger Programmer Downloader replace v8 SWD M74 Top
