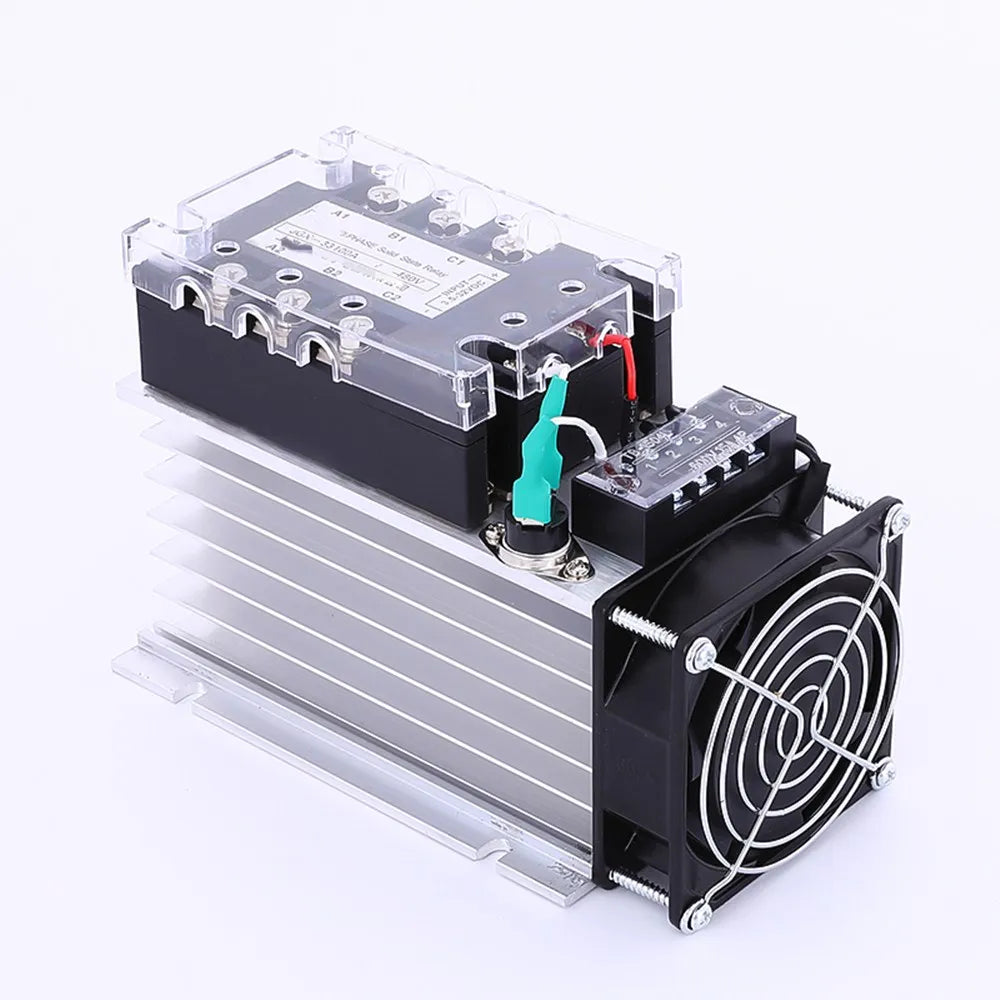

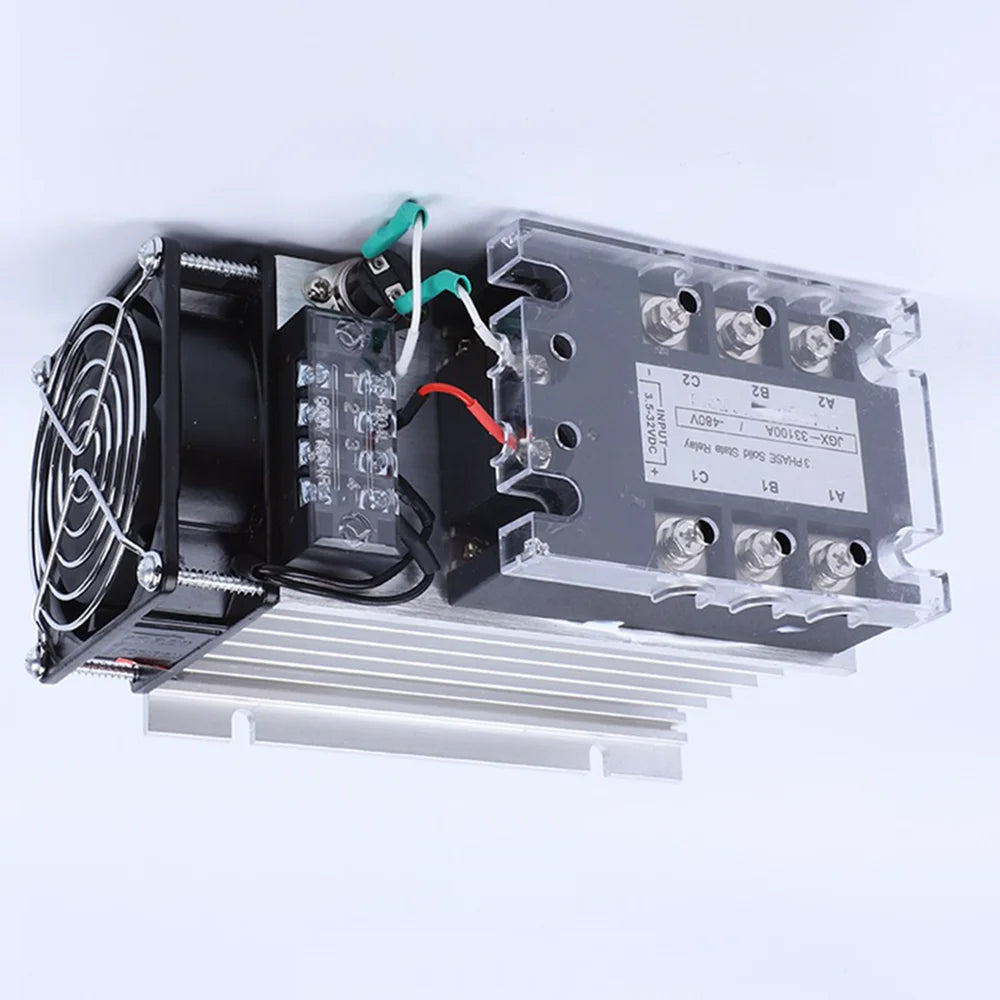

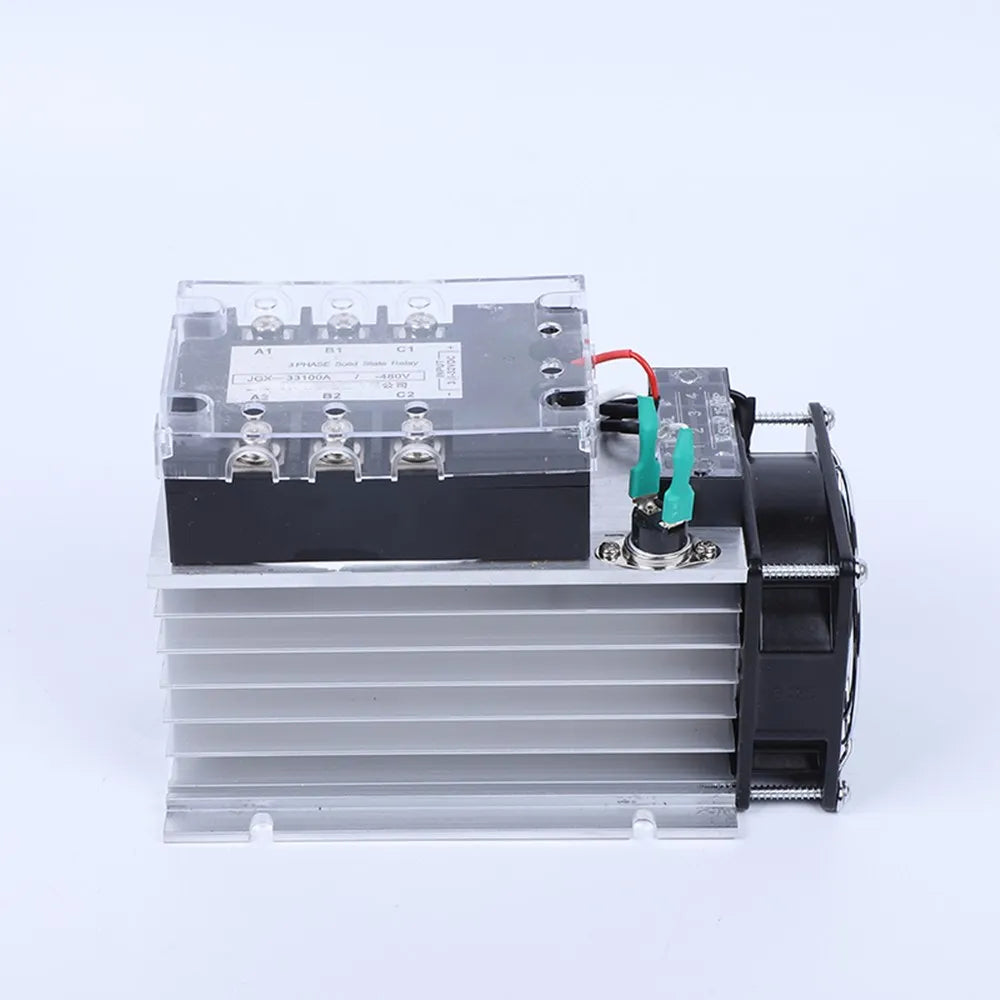

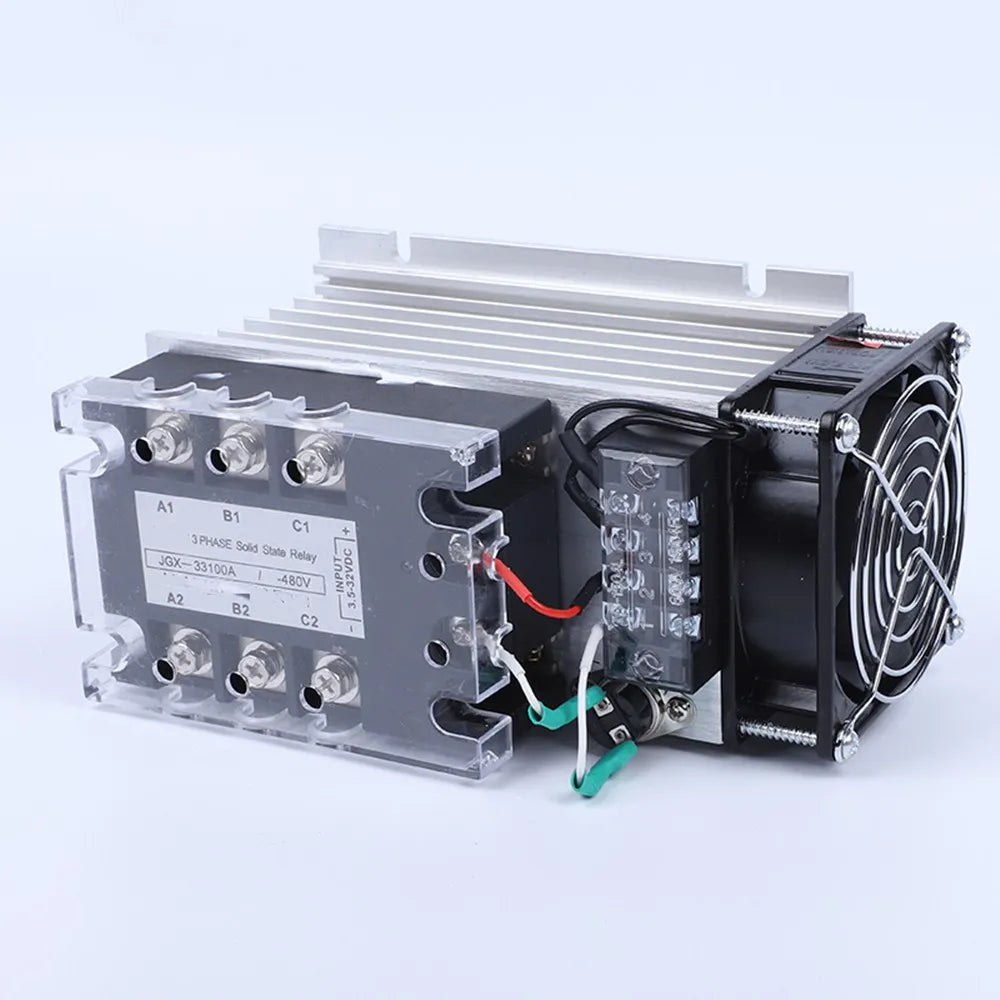

JGX-33100A Three Phase Solid State Relay AC480V 100A DC control AC Solid State Relay SSR AC Three DC-AC With Fan and Radiator
JGX-33200A
$446.63
Sale price
$446.63
Regular price
$0.00
Skip to product information
JGX-33100A Three Phase Solid State Relay AC480V 100A DC control AC Solid State Relay SSR AC Three DC-AC With Fan and Radiator
$446.63
Sale price
$446.63
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Contact Load: High Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: JGX-33100A
Origin: Mainland China
Power Source: Ac
Protect Feature: Sealed
Theory: Solid State Relay
Use: General Purpose
Voltage: 380V
is_customized: Yes
Product Name: JGX-33100AThree Phase Solid State Relay With Fan
control voltage: 3-32VDC
control current: Less than or equal to 25mA
Motion instructions: LED
Load Voltage: 380VAC
Rated load current:100A
On voltage: ≤1.5v
Dielectric Strength: 3000VAC
Insulation Resistance: 100MΩ
On-off Time: ≤10ms
Ambient Temperature: -30~+75
Mounting Methods: Bolting

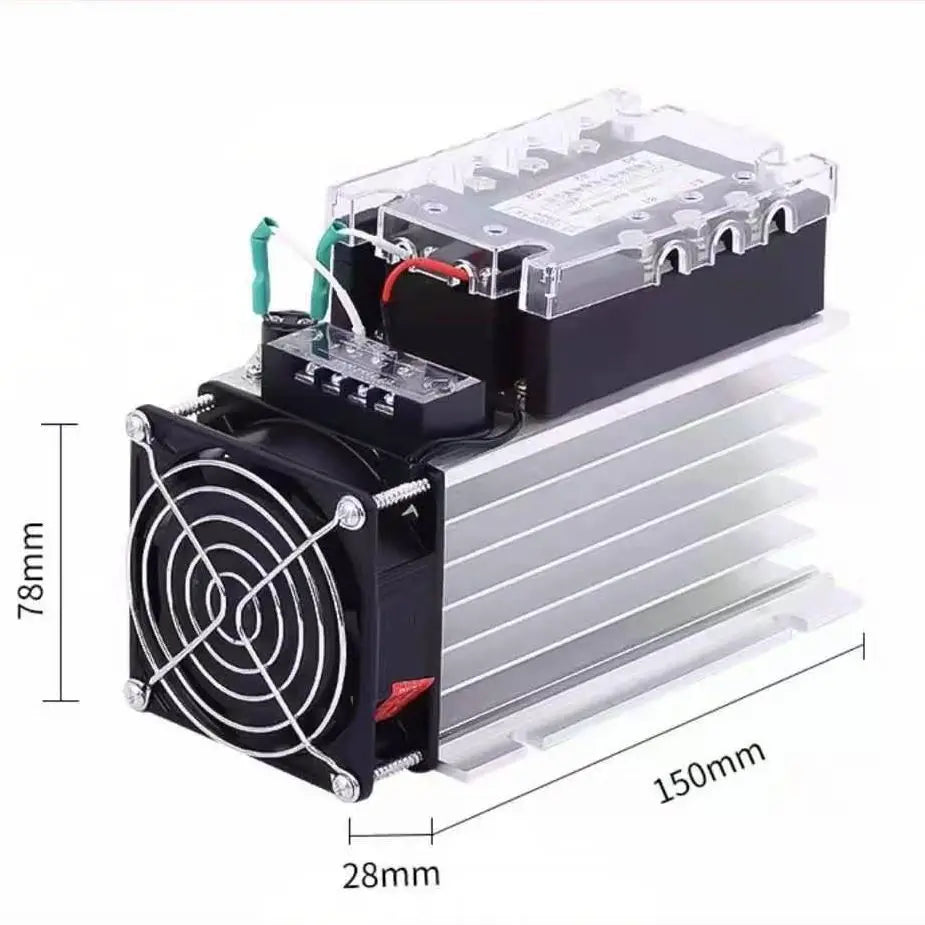

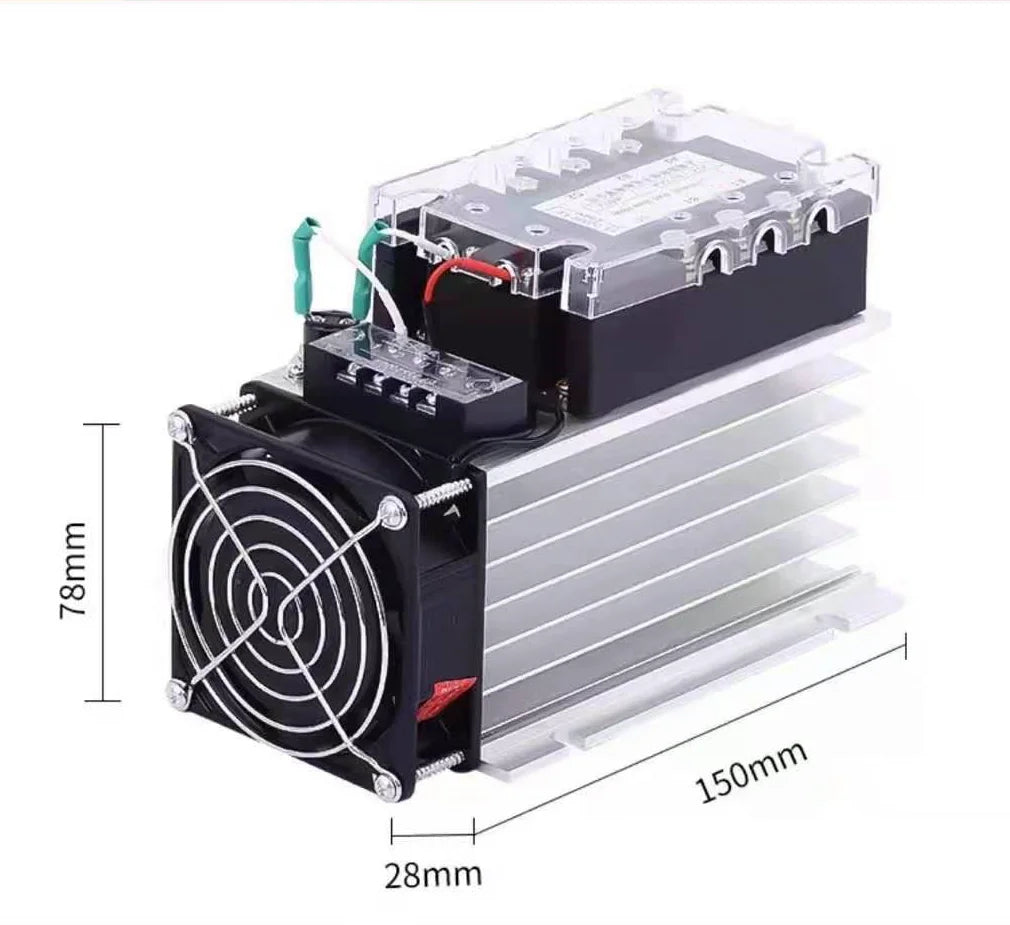

Overall dimensions: length 150mm, width 28mm, height 78mm

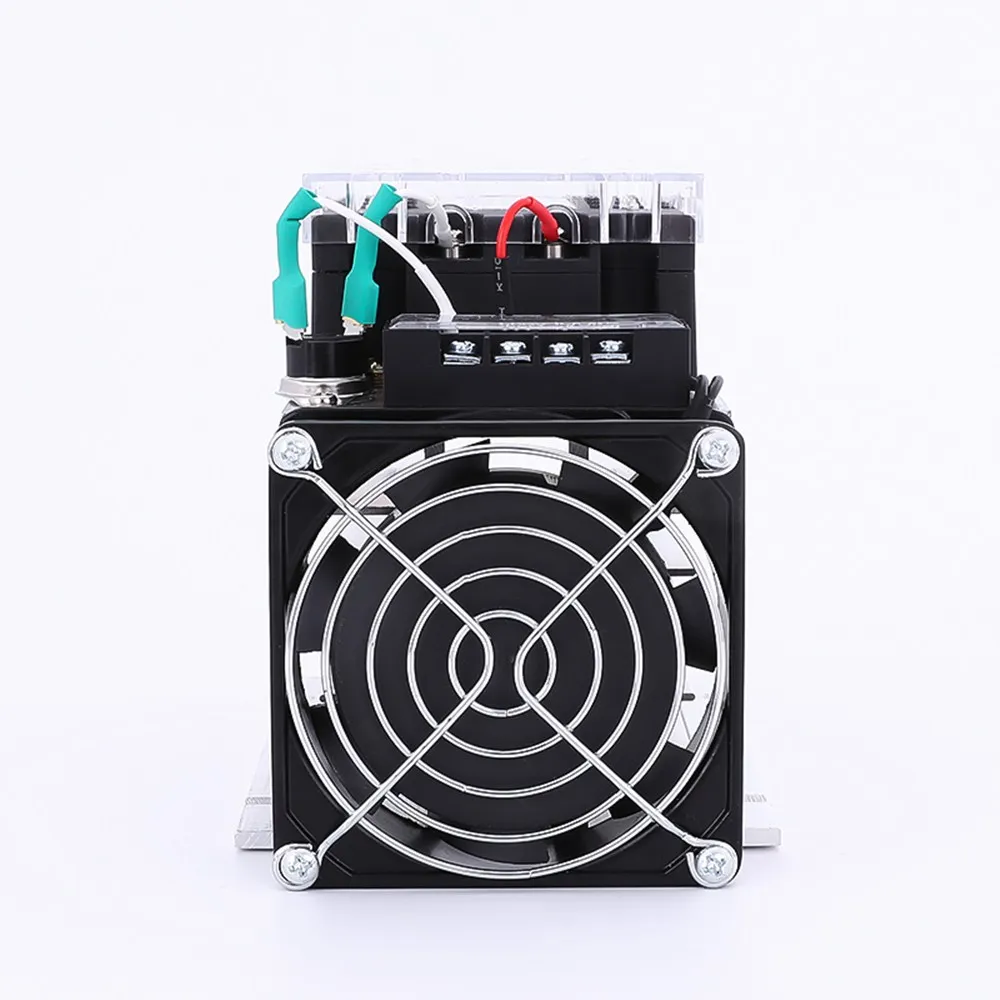

Using pure copper wire bass fan, aluminum shell can effectively reduce its own heat energy, strong wind can instantly reduce the heat sink surface and surrounding heat. Double temperature control protection switch
1. Protection module is forbidden to work under ultra-high temperature conditions
2. Control the reasonable start and stop of the fan, thereby increasing the life of the fan several times and saving 70% of the energy.
Package:
1pc JGX Three Phase Solid State Relay With Fan and Radiator
