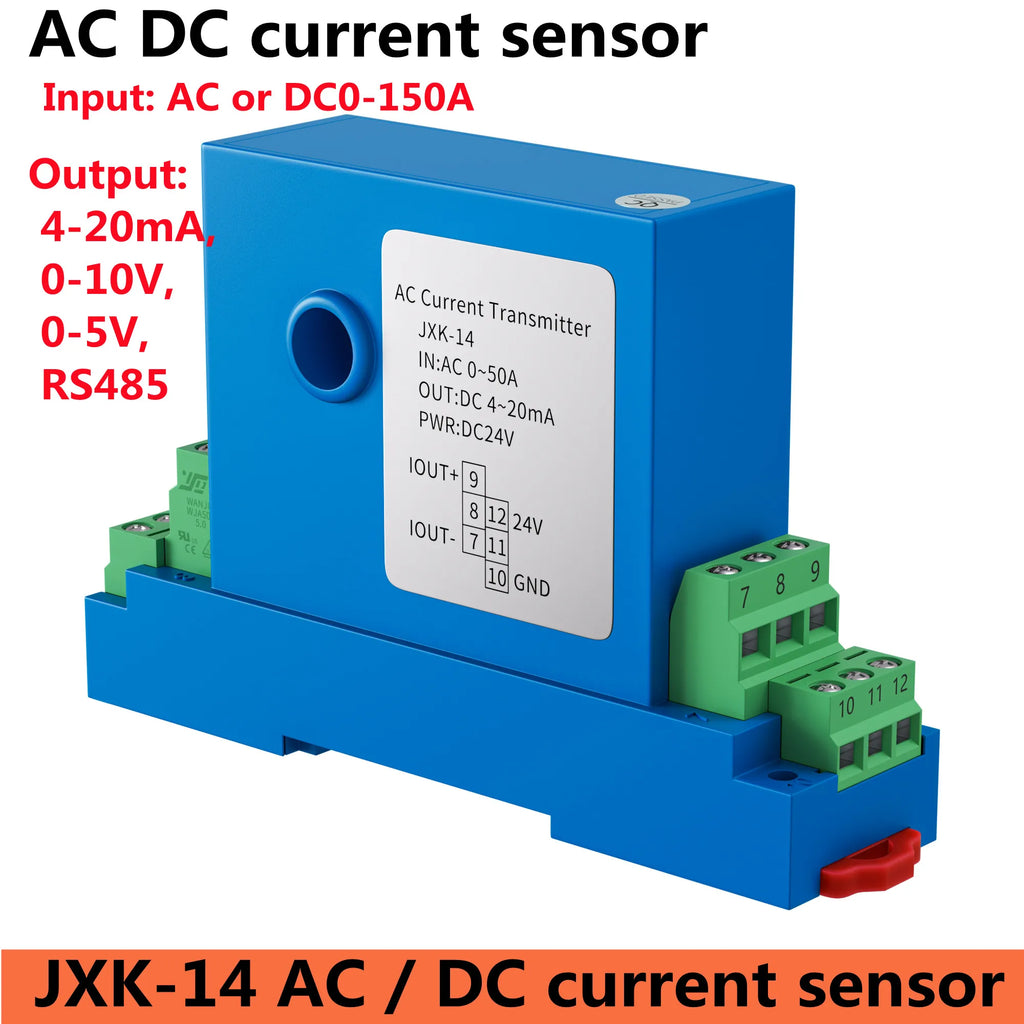

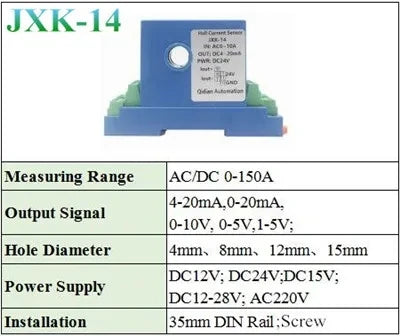

JXK-14 Hall Current Sensor AC 5A 10A 20A 50A 100A 4-20mA 0-10V RS485 Output Ampere Transducer Current Transformer

RS485 output / hole diameter 8mm / DC24V|AC 0-15A Input

$176.58

Sale price $176.58 Regular price $0.00

Skip to product information

JXK-14 Hall Current Sensor AC 5A 10A 20A 50A 100A 4-20mA 0-10V RS485 Output Ampere Transducer Current Transformer

JXK-14 Hall Current Sensor AC 5A 10A 20A 50A 100A 4-20mA 0-10V RS485 Output Ampere Transducer Current Transformer

$176.58

Sale price $176.58 Regular price $0.00

Color RS485 output 4-20mA Output 0-5V DC Output 0-10V DC Output

Size hole diameter 8mm hole diameter 12mm

Description

SPECIFICATIONS

Accuracy Class: 0.5%

Battery Included: no

Brand Name: Ah Qidian

Certification: CE,FCC,RoHS

DIY Supplies: Electrical

Dimensions: 24 * 99 * 65 mm

Display Type: Analog Only

High-concerned chemical: none

Input: AC or DC 0-150A

Model Number: JXK-14 AC Sensor

Operating Temperature: -20 ° C ~ 60 ° C

Origin: Mainland China

Output signal: 4-20mA,0-10V,0-5V,1-5V RS485 etc

Product name: JXK-14 current sensor

Semi-finishedproduct: No

Supply Voltage: DC24V

hole size: 4mm,8mm,12mm

power supply: DC24V,DC12V customized

Introduction:

<1>. Working Principle: Open loop direct measurement.

<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
Full channel configuration,Parameter customizable

FEATURES:

High Integration
Small Volume, easy installation
High accuracy, good linearity
Standard 35mm DIN Rail Installtion or screw
Strong anti-interference
Parameters can be customized

Technical parameters:

Input signal	0-5A.0-10A.0-50A.0-100A,200A ,300A, 600A
Active current	0 (1) mA ~ 20mA; 0mA ~ 10mA
Output signal	4-20mA, 20-4mA.0-10V,RS485, etc.
Output signal	4-20mA, 20-4mA.0-10V,RS485, etc.
Wiring method	4mm ,8 mm, 12 mm perforation
Power supply	DC24V, DC12V
Accuracy	0.50%
Linearity	0.10%
Insulation voltage	3KV / 50HZ, 1 minute
Output temperature drift	100ppm / °C
Full load power consumption	1W
Load capacity	≤500Ω
Response time	≤50MS
Working temperature	-20 ° C ~ 60 ° C
Dimensions	24 * 99 * 65 mm

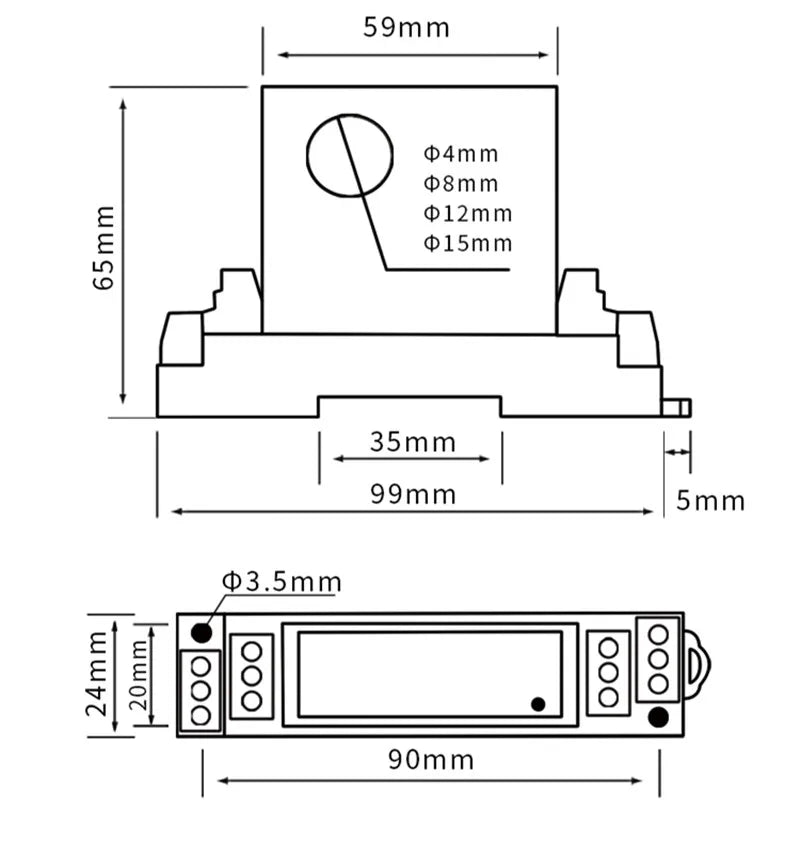

Size:

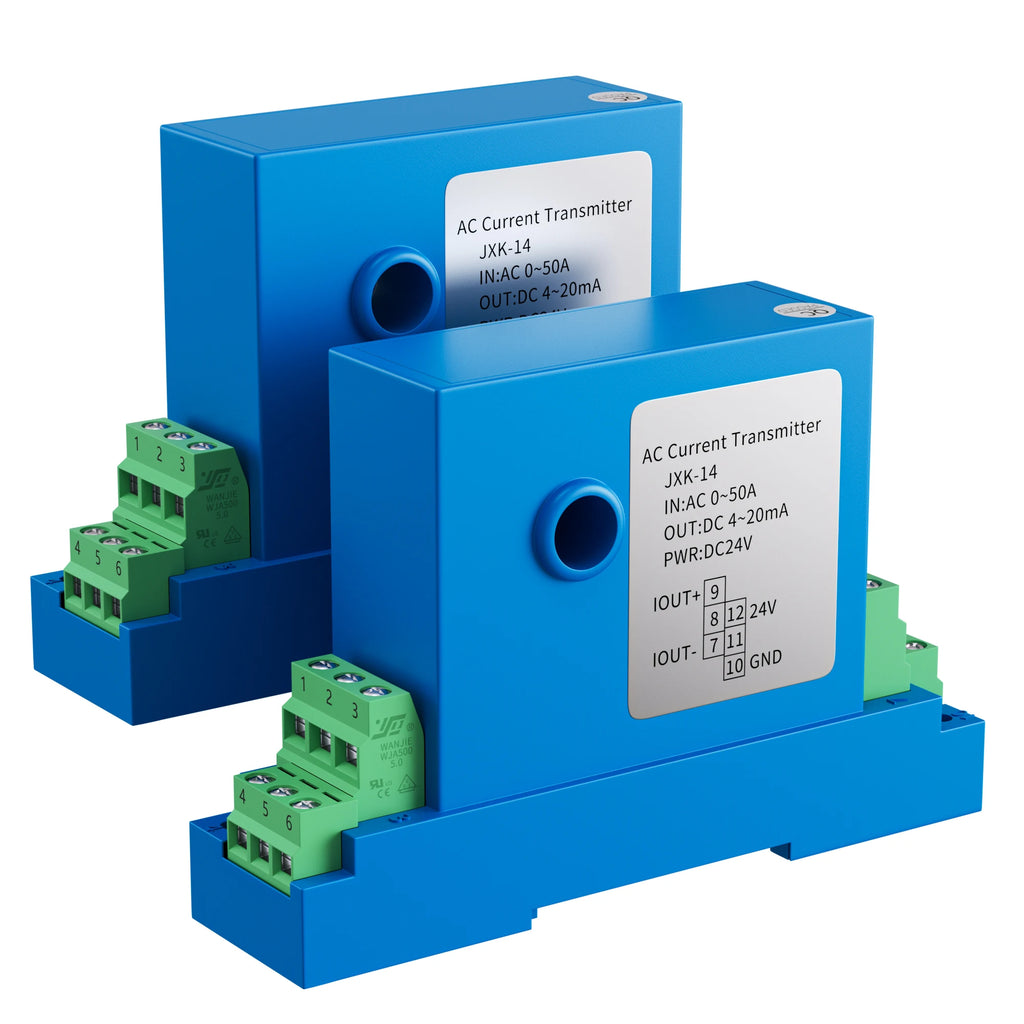

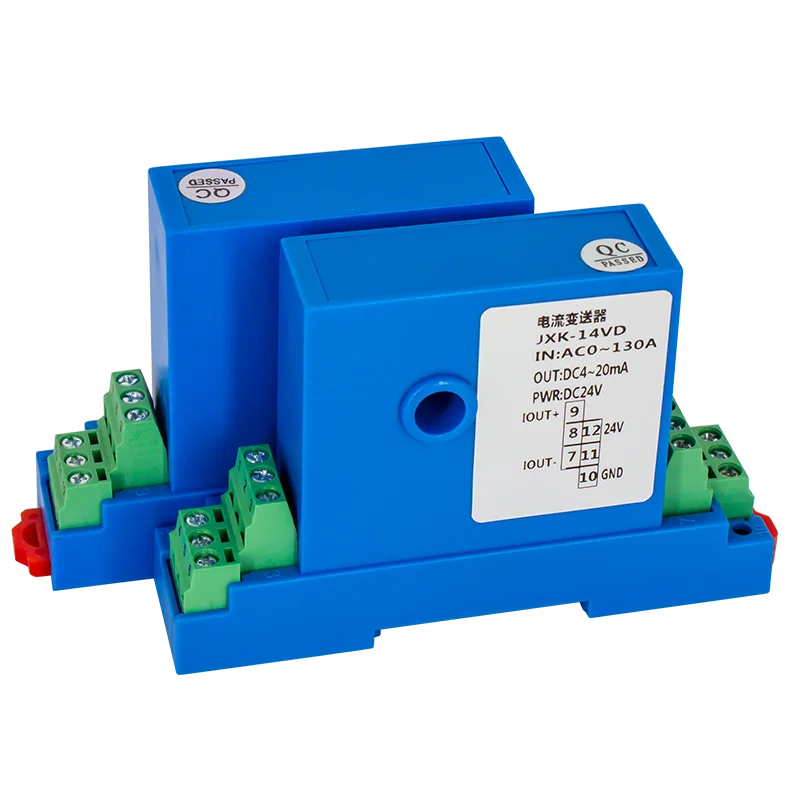

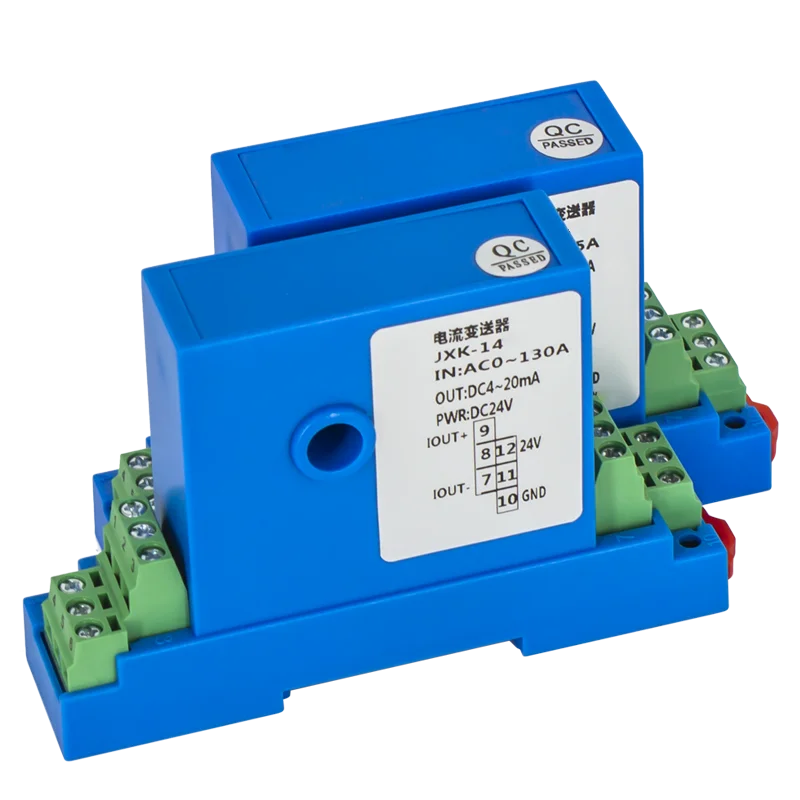

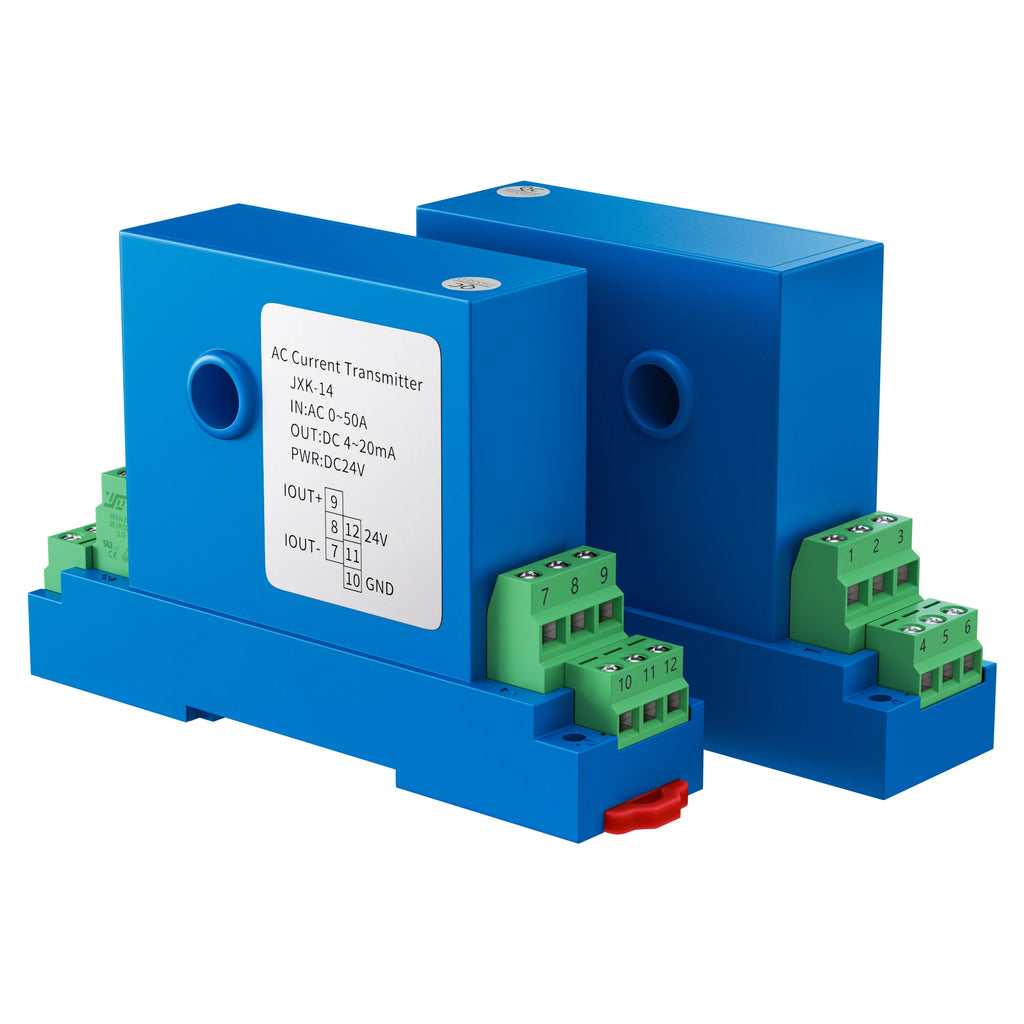

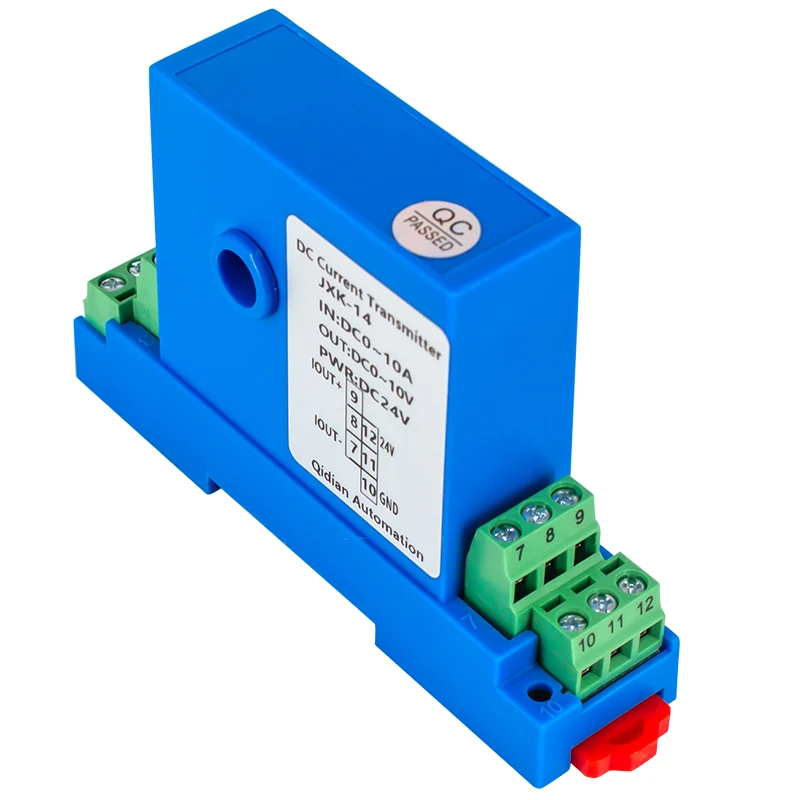

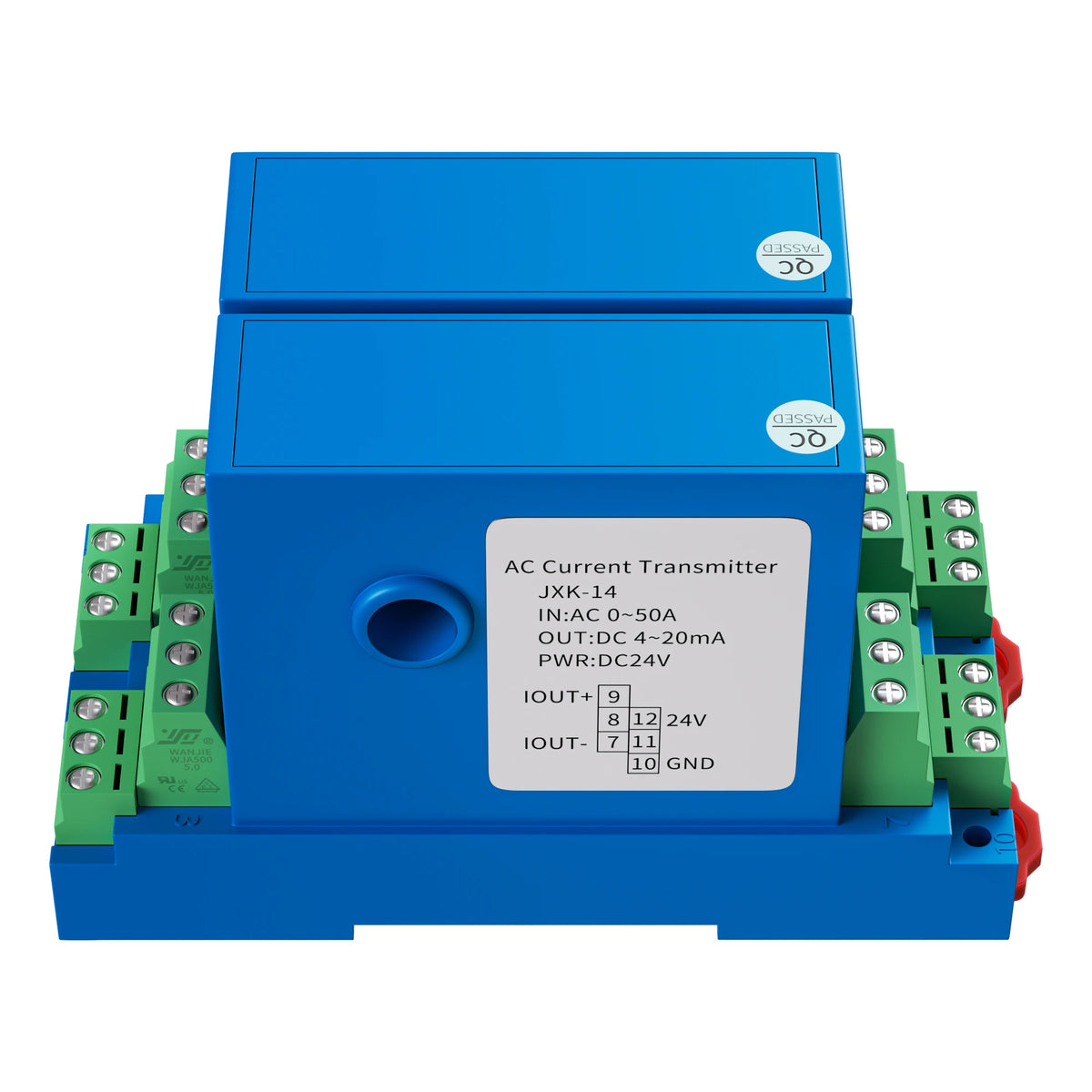

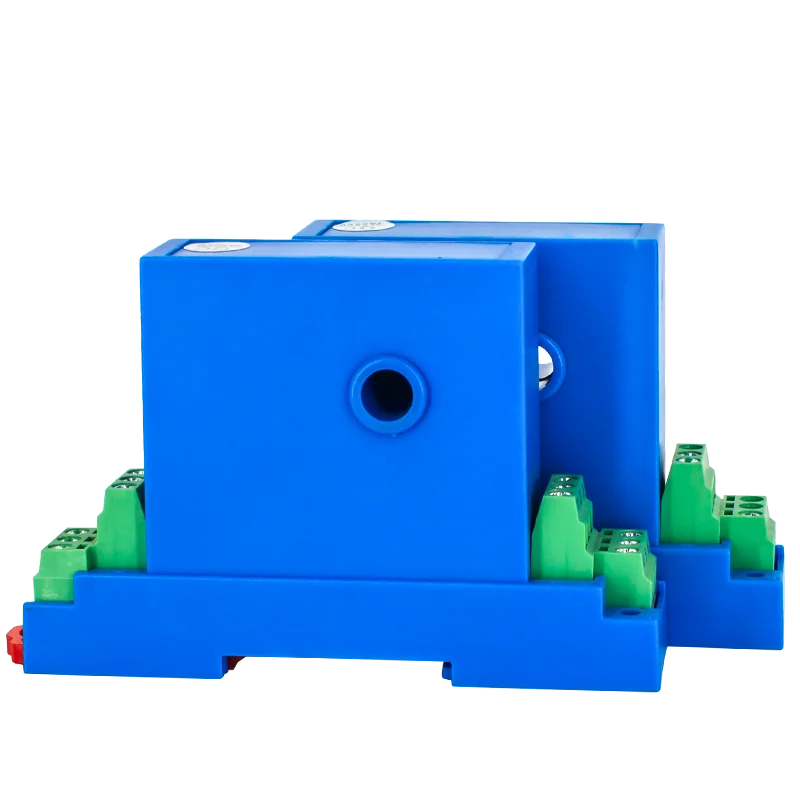

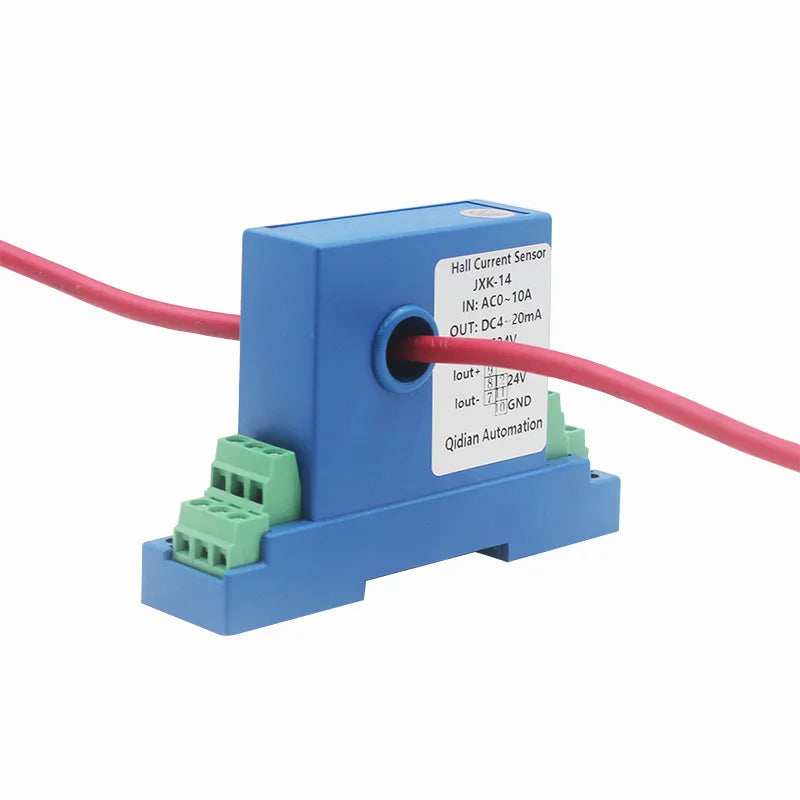

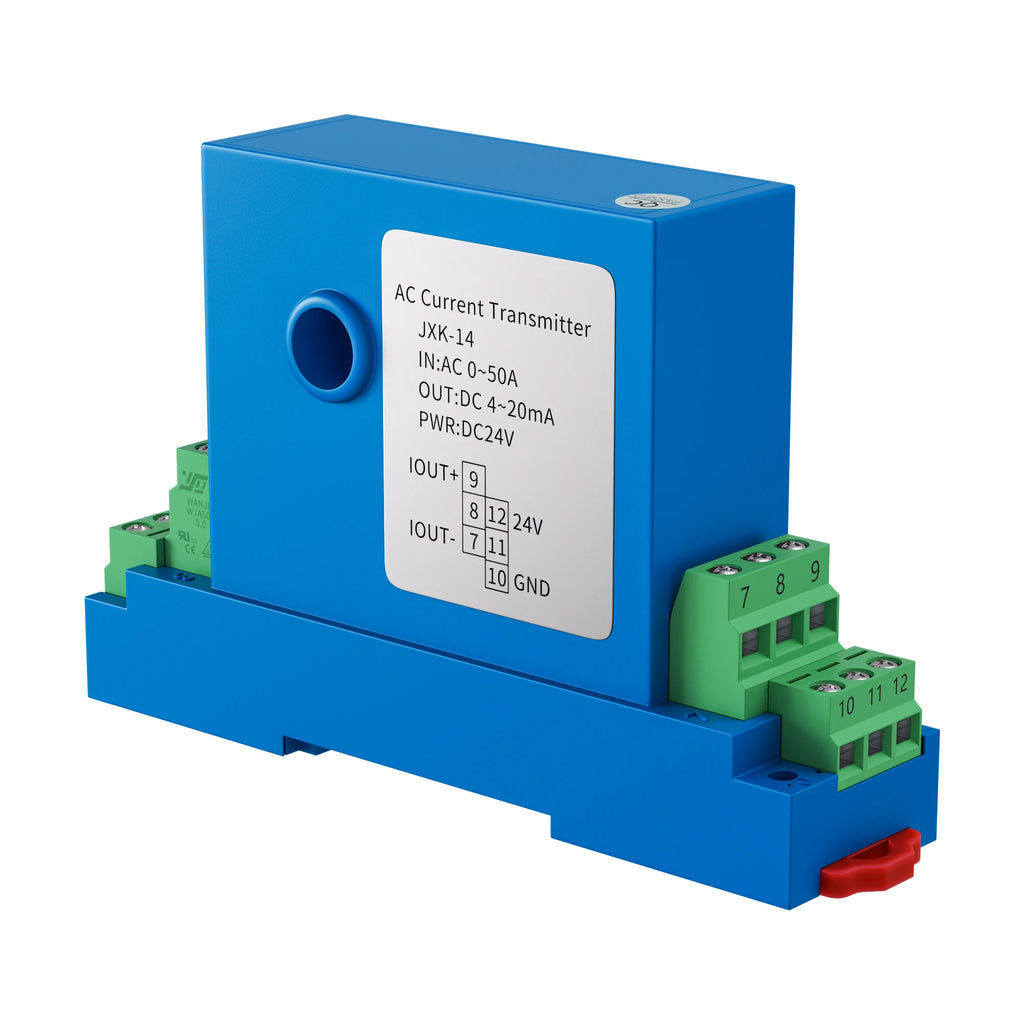

Real Photo:

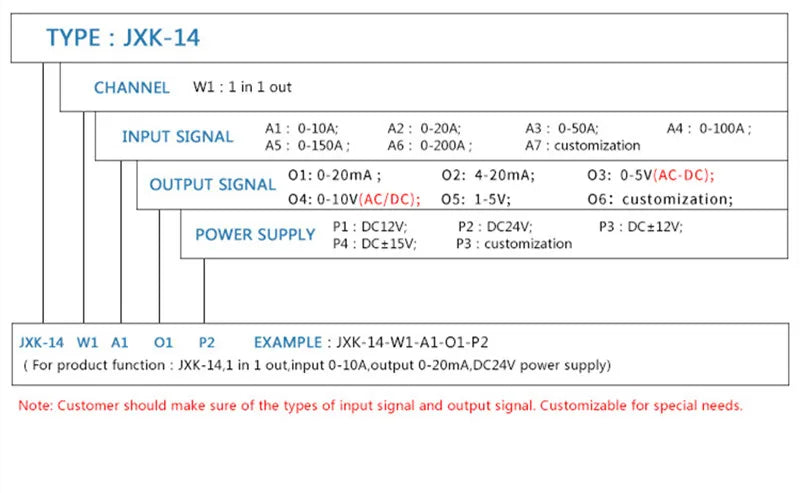

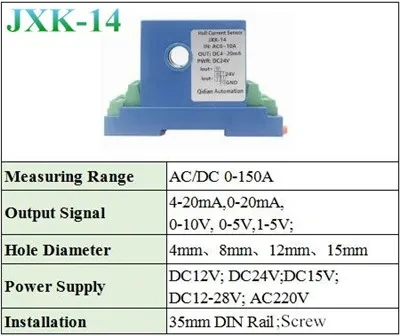

Ordering Guide:

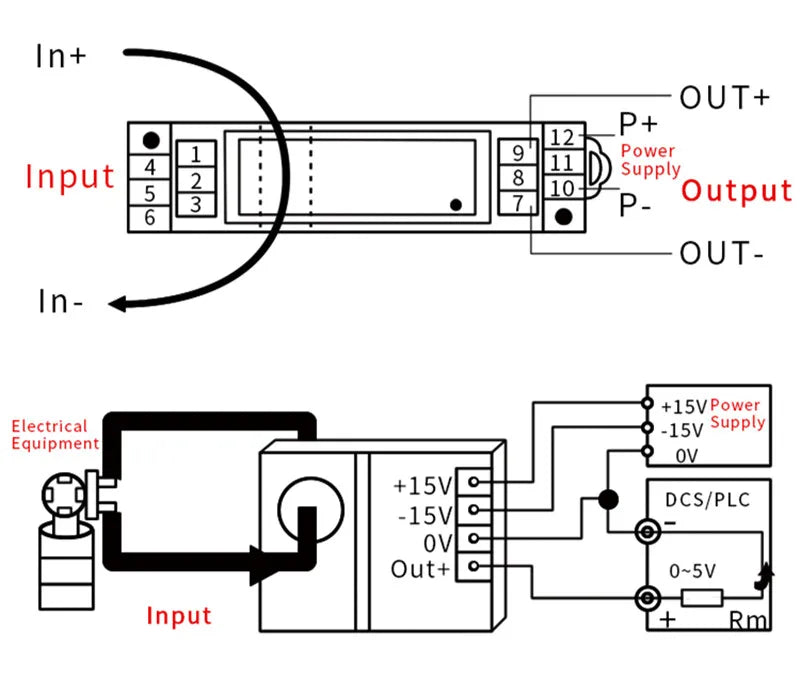

Installation:

FAQ :

Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for pressure transducer.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation?
A: Contact us directly at you will get the reply within 12hours, and the quotation will send to you according to your requirements.
Q: How can I get my sensors?/ What's the means of transport?
A: We main delivery goods by express: Aliexpress, e-Packet, DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q: How to order other parameters I want ?
A:In order to recommend you the most suitable (Sensors) and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
