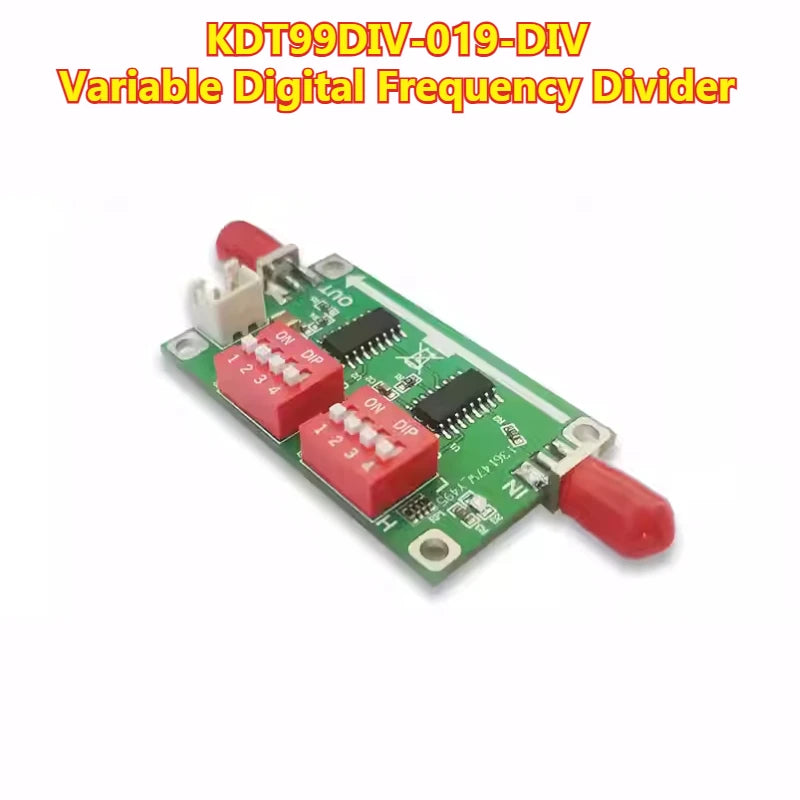

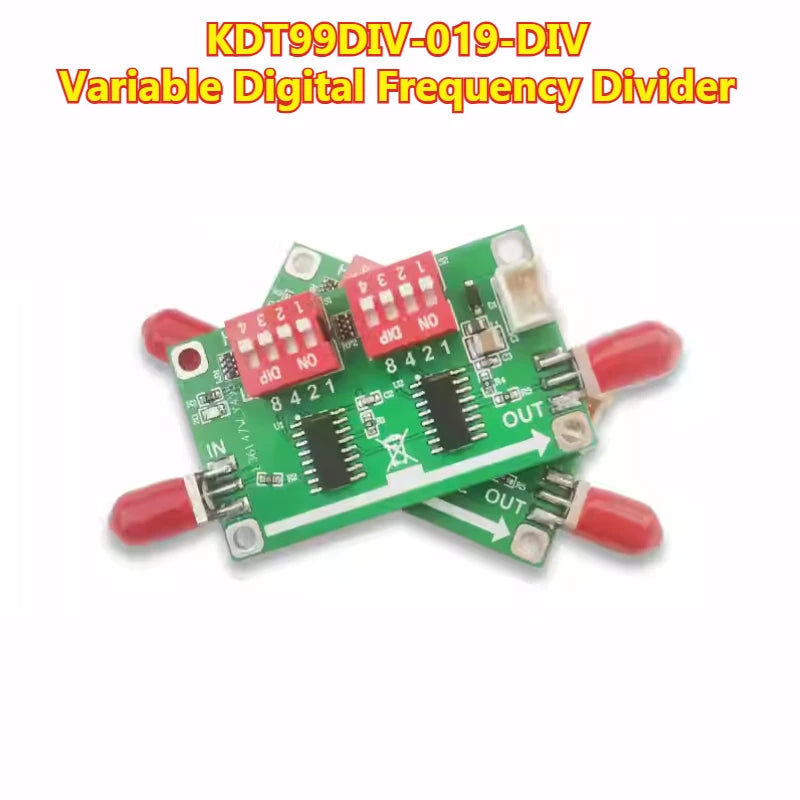

KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
  • KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
KDT99DIV-019-DIV Digital Frequency Divider 1-225 1MHz Bandwidth, Phase Locked Loop Divider, Logic Divider
$116.24
$116.24 $0.00
ColorKDT99DIV-019-DIV
Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

  • Model: KDT99DIV-019-DIV
  • Main Chip: Logic Frequency Divider Counter
  • Function: Variable Digital Frequency Divider

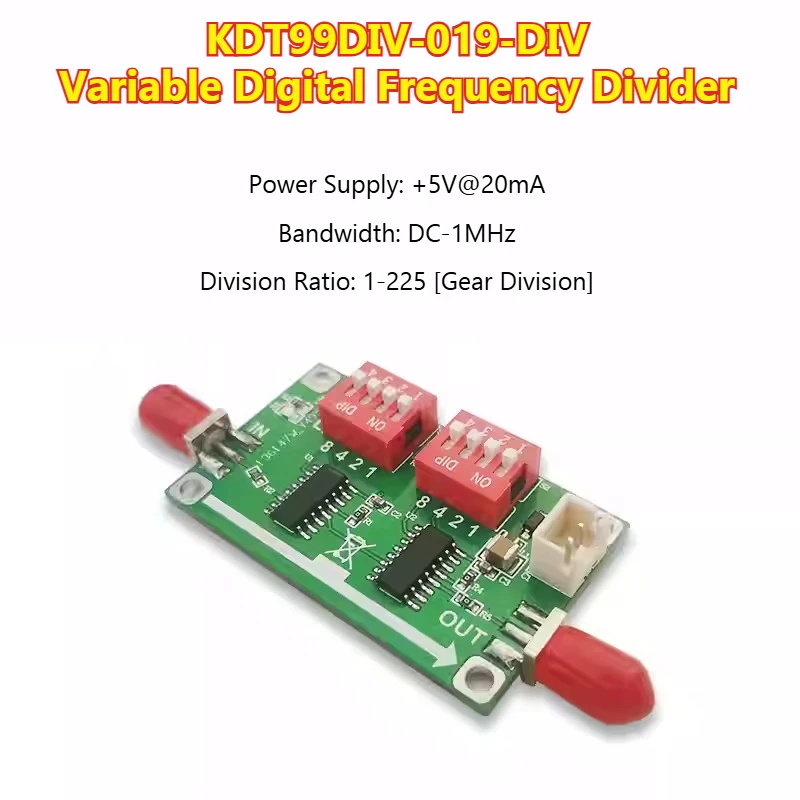

  • Supply Voltage: +5V@20mA
  • Bandwidth: DC-1MHz
  • Division Ratio: 1-225 (Gear Division)
  • Control Method:
    • (1) Multiply the values of two DIP switches;
    • (2) For example, if A DIP switch is set to 2 and B DIP switch is set to 5, then the total input-output division ratio is 2×5=10
  • Input Level: 0-3.3V or 5V (Square Wave or Sine Wave)
  • Output Level: 0-5V-TTL
  • Input and Output Impedance: High Impedance [e.g., Oscilloscope Input 1M Ohm Impedance]
  • Output Waveform Duty Cycle: Square Wave, Non-standard 50% Duty Cycle [The Higher the Input Frequency, the Smaller the Duty Cycle]
  • Output Signal Edge Transition Information: RISE/FALL TIME Better than 120nS
  • Signal Interface: SMA RF

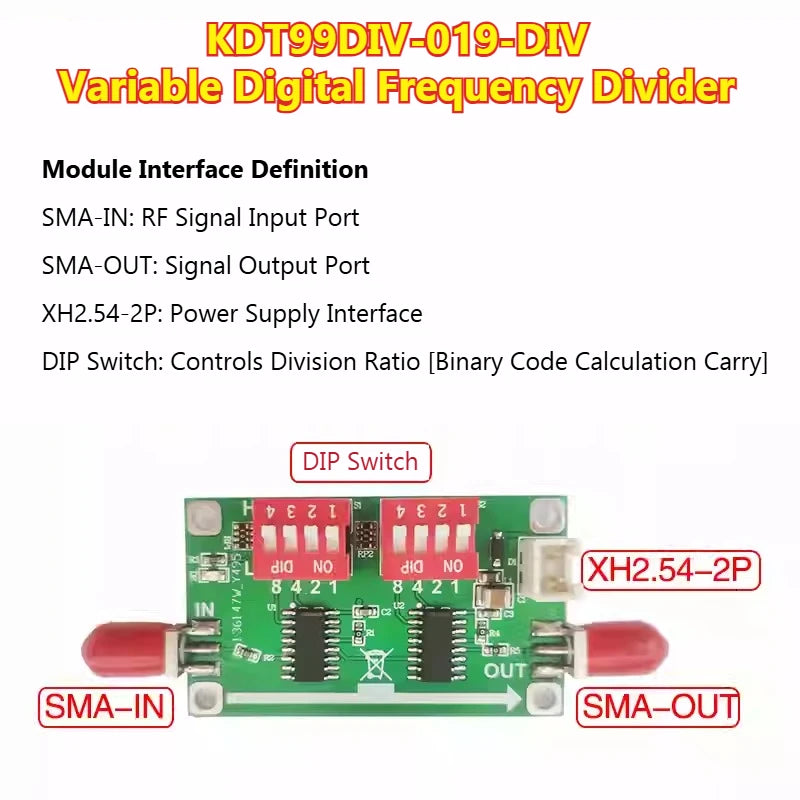

  • Power Supply Interface: XH2.54-2P (Default Wiring)
  • Application: Fixed Frequency Divider
  • Weight: 11.24g

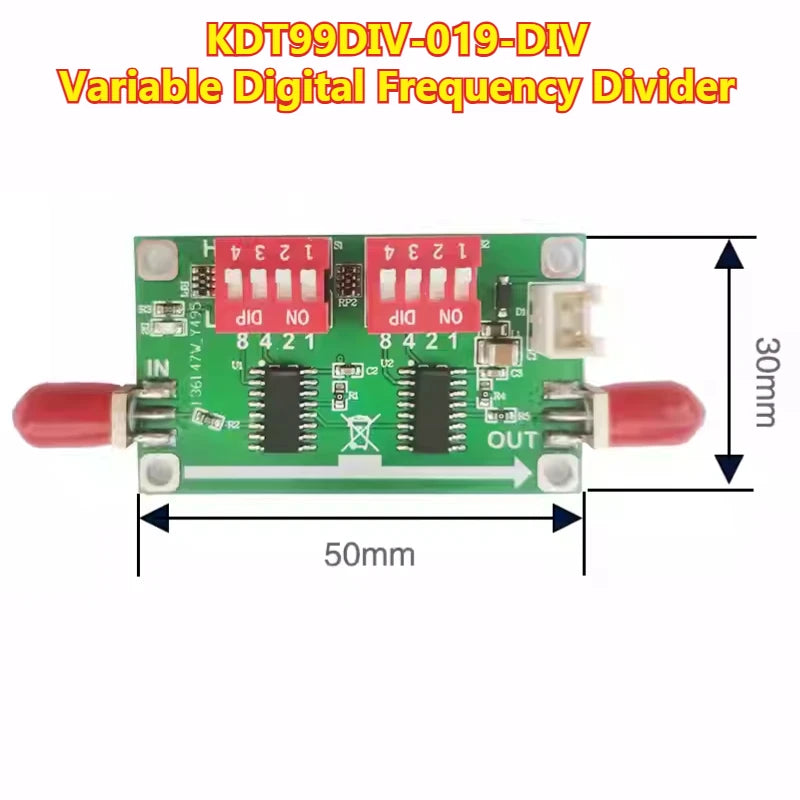

  • Specification: 50X30X10 (Length X Width X Height【mm】)
  • Positioning Holes: Four Corners M3 Holes
  • Operating Temperature Range: 0℃ - +60℃
  • Storage Temperature Range: -25℃ - +85℃

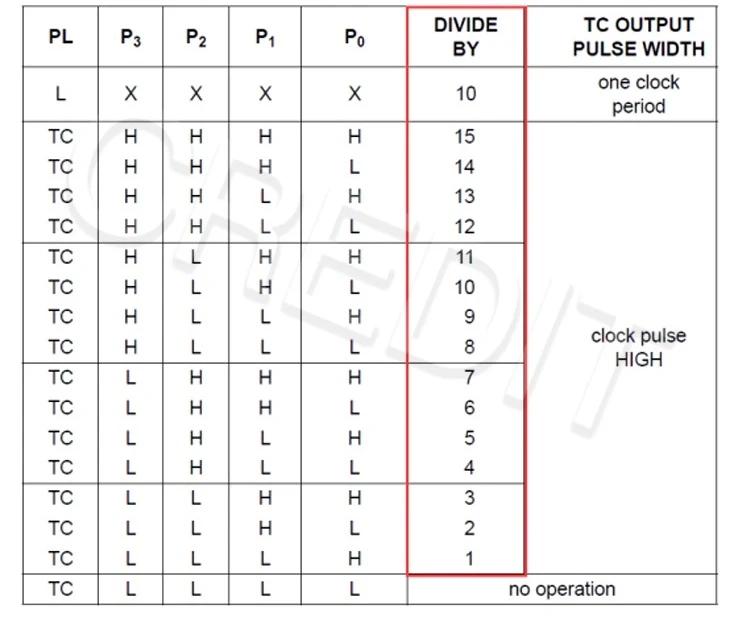

  • Division Ratio and DIP Switch Code Table Introduction [The Chart is for a Single DIP Switch Code Value]:
