SPECIFICATIONS

Access: to 3Pin headers connection

Application: micro:bit control board

Brand Name: keyestudio

Comes with: serial port communication pins

Condition: New

Drive Partial Working Current: ≤1.2A

Four motor control modes: Forward/Reverse /Brake /Stop.

High-concerned chemical: none

Operating Temperature: 0-40

Origin: Mainland China

Package: DIP

Supply Voltage: 3.3-5V

Type: Voltage Regulator

is_customized: Yes

The BBC micro:bit is a powerful handheld, fully programmable, computer designed by the BBC. It was designed to encourage children to get actively involved in technical activities, like coding and electronics.

It features a 5x5 LED Matrix, two integrated push buttons, a compass, Accelerometer, and Bluetooth.

It supports the PXT graphical programming interface developed by Microsoft and can be used under Windows, MacOS, IOS, Android and many other operating systems without downloading the additional compiler.

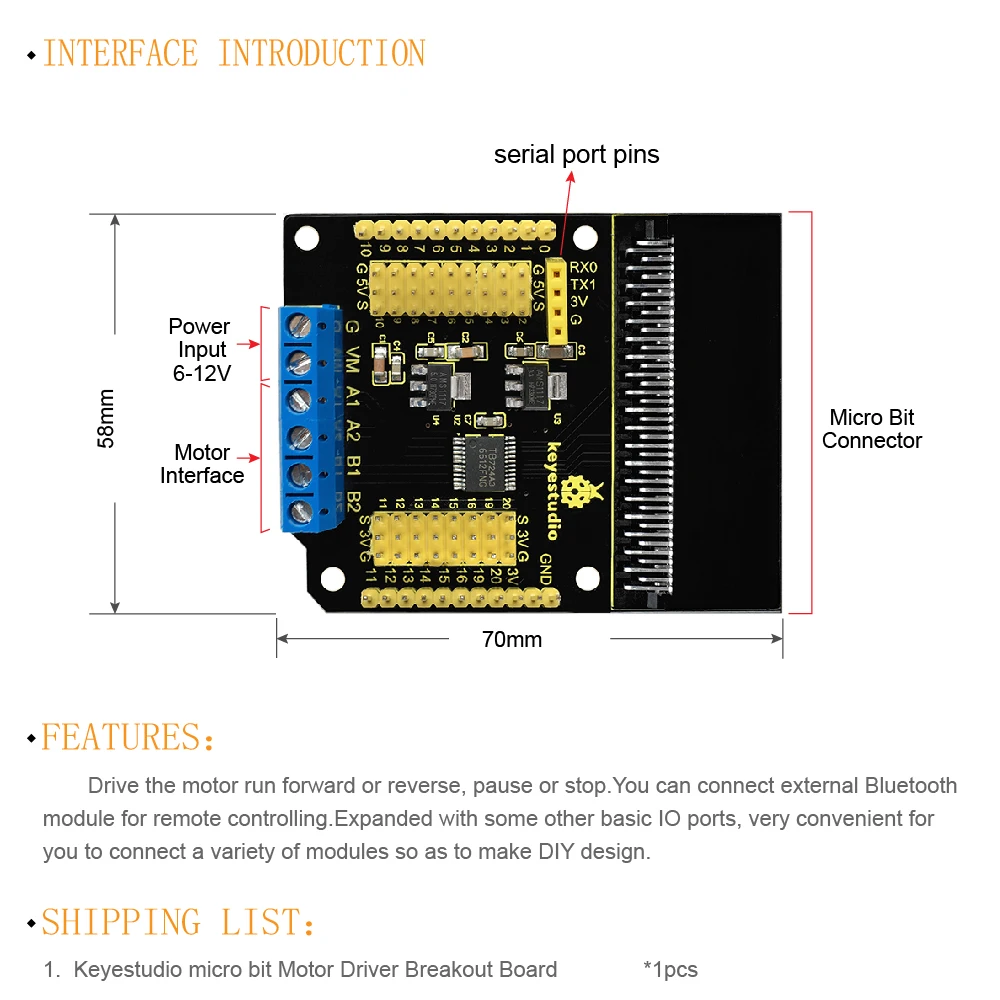

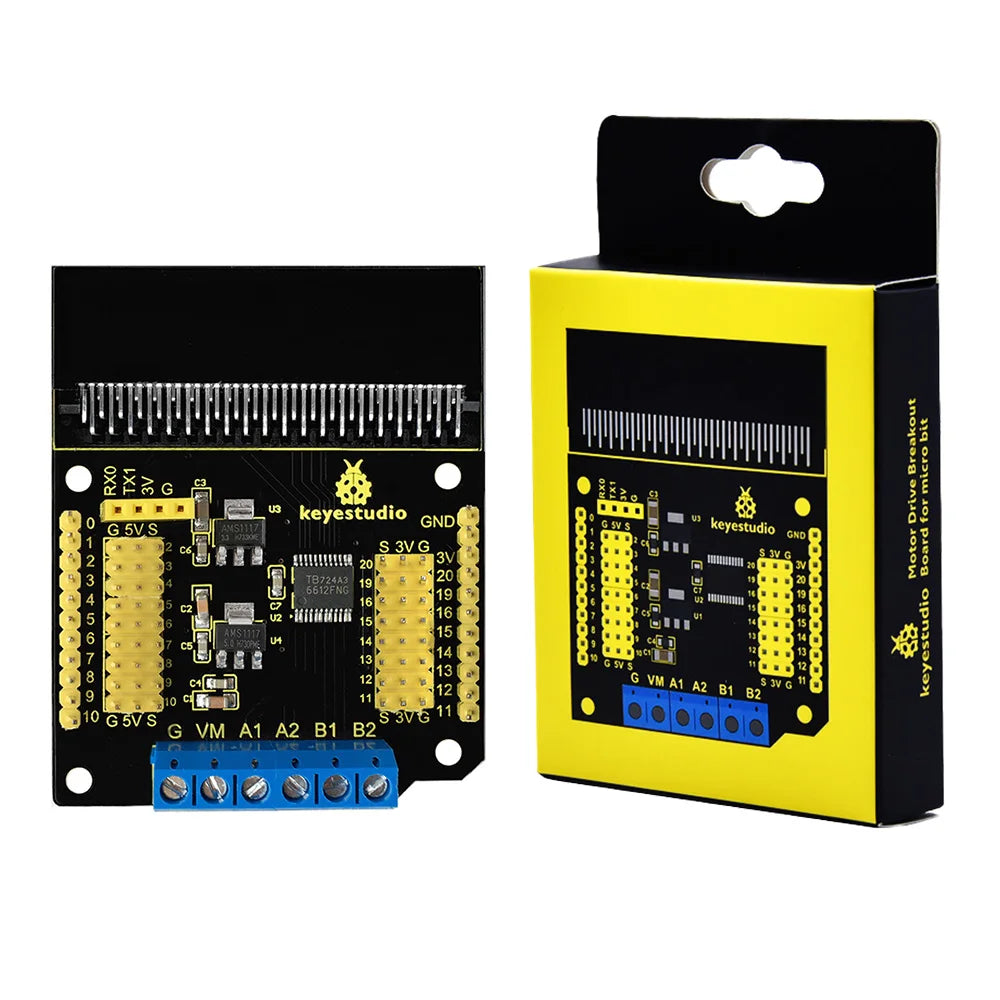

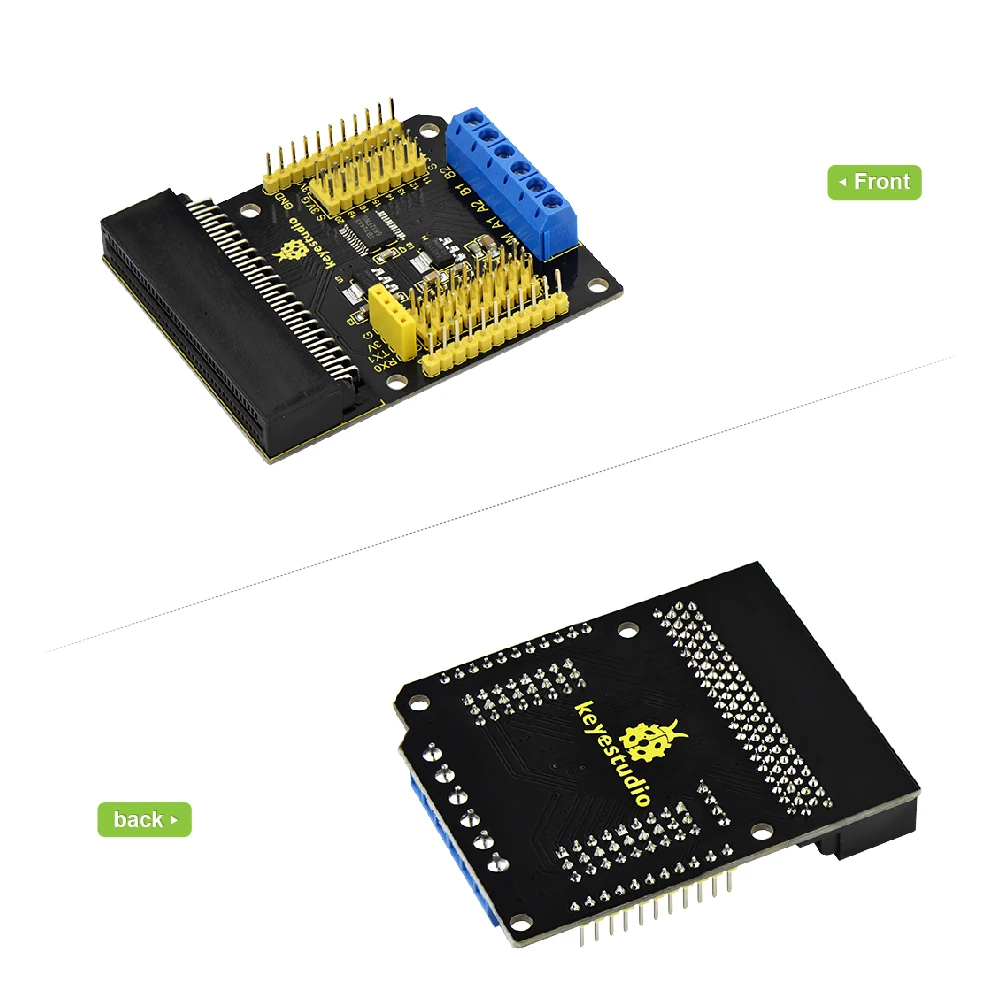

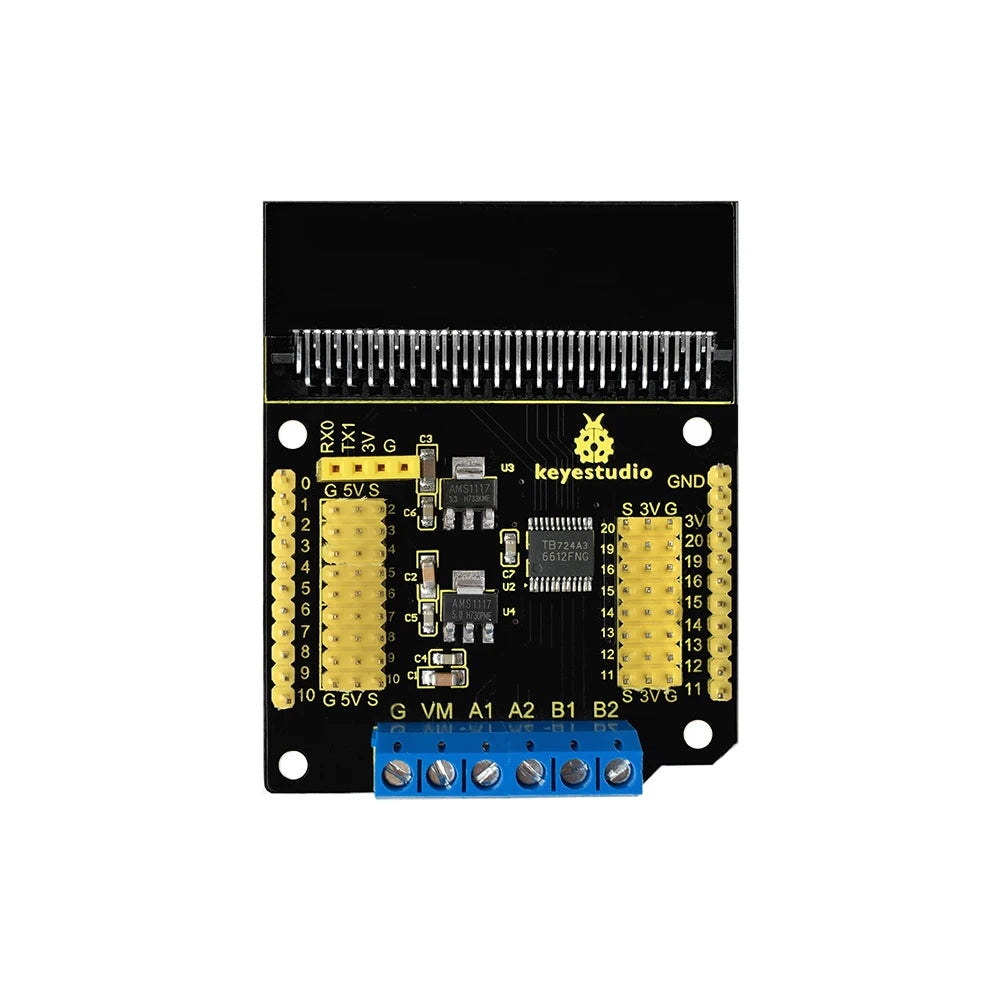

Looking to do more with your BBC micro:bit? Unlock its potential with this motor drive breakout board for the BBC micro:bit!

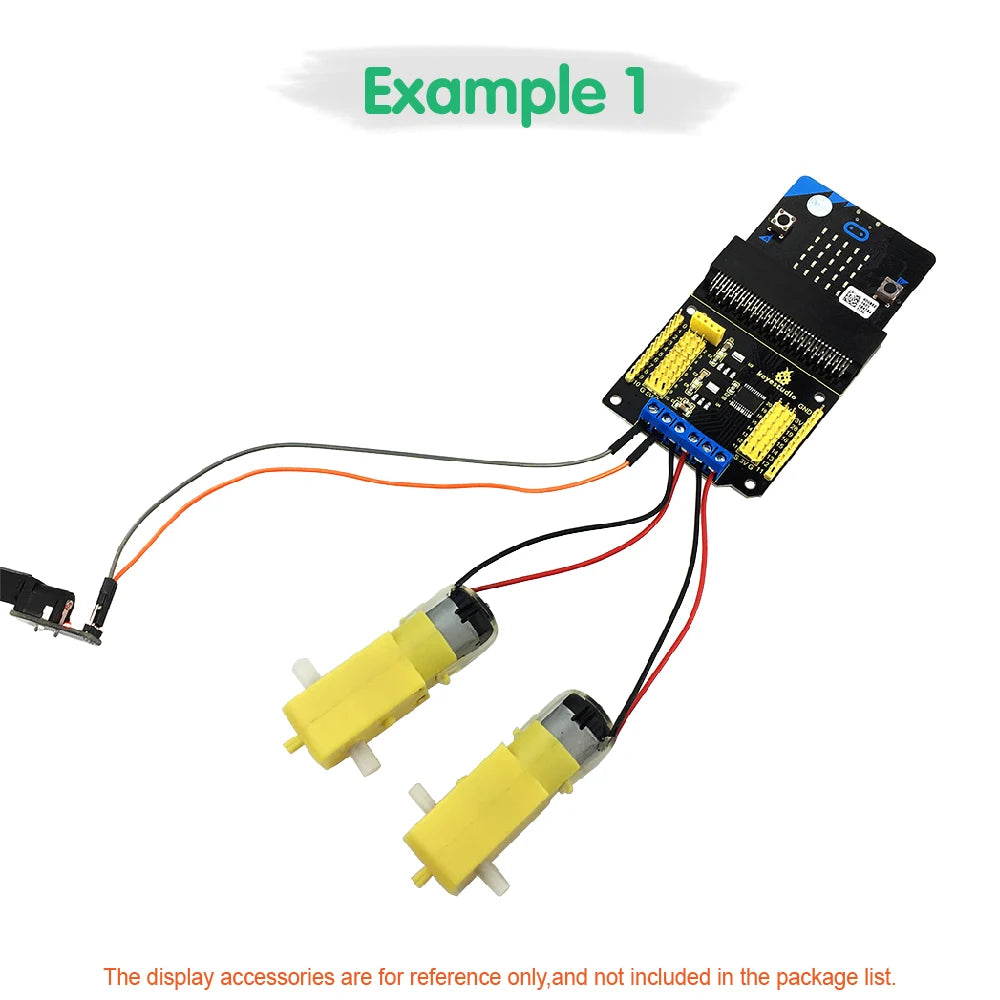

The motor drive breakout board integrates TB6612FNG chip. Its per channel can output up to 1.2 A continuous drive current, with peak current up to 2A/3.2A.

There are 4 motor control modes: Forward/Reverse /Brake /Stop. And PWM supporting frequency is up to 100 kHz.

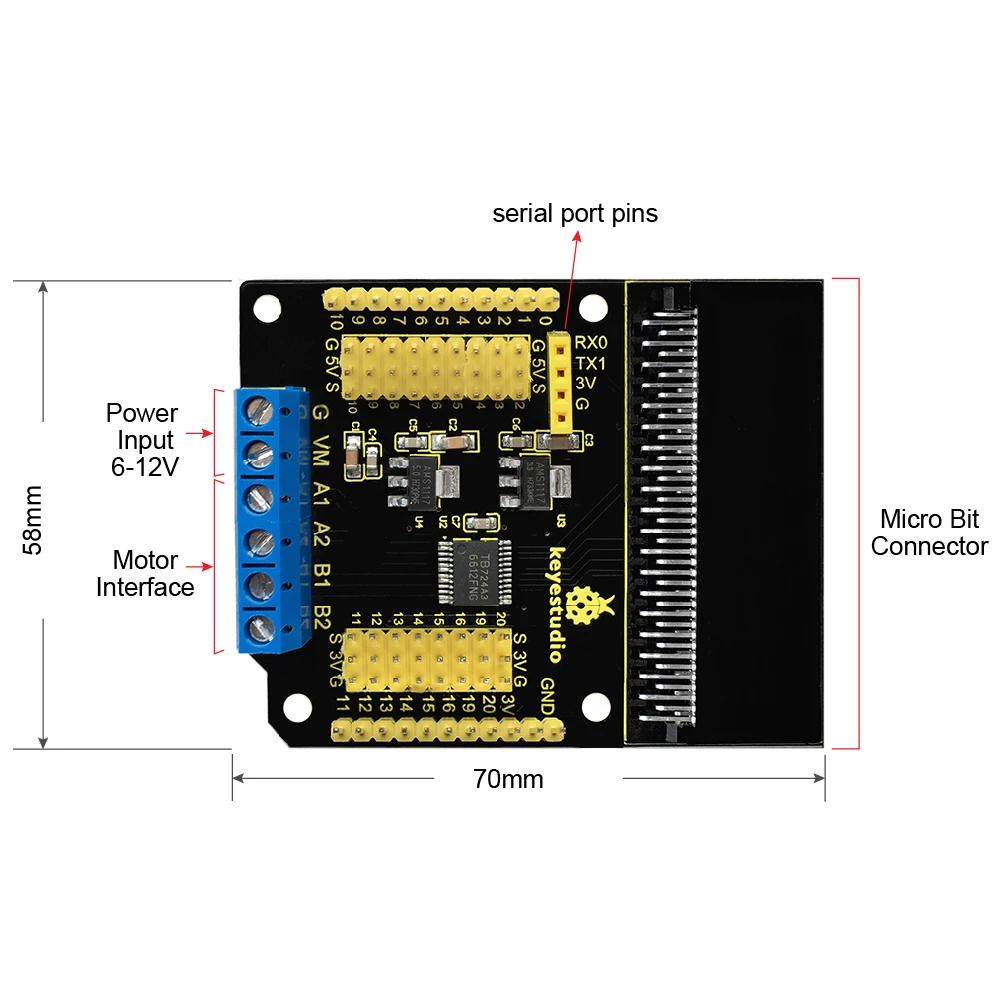

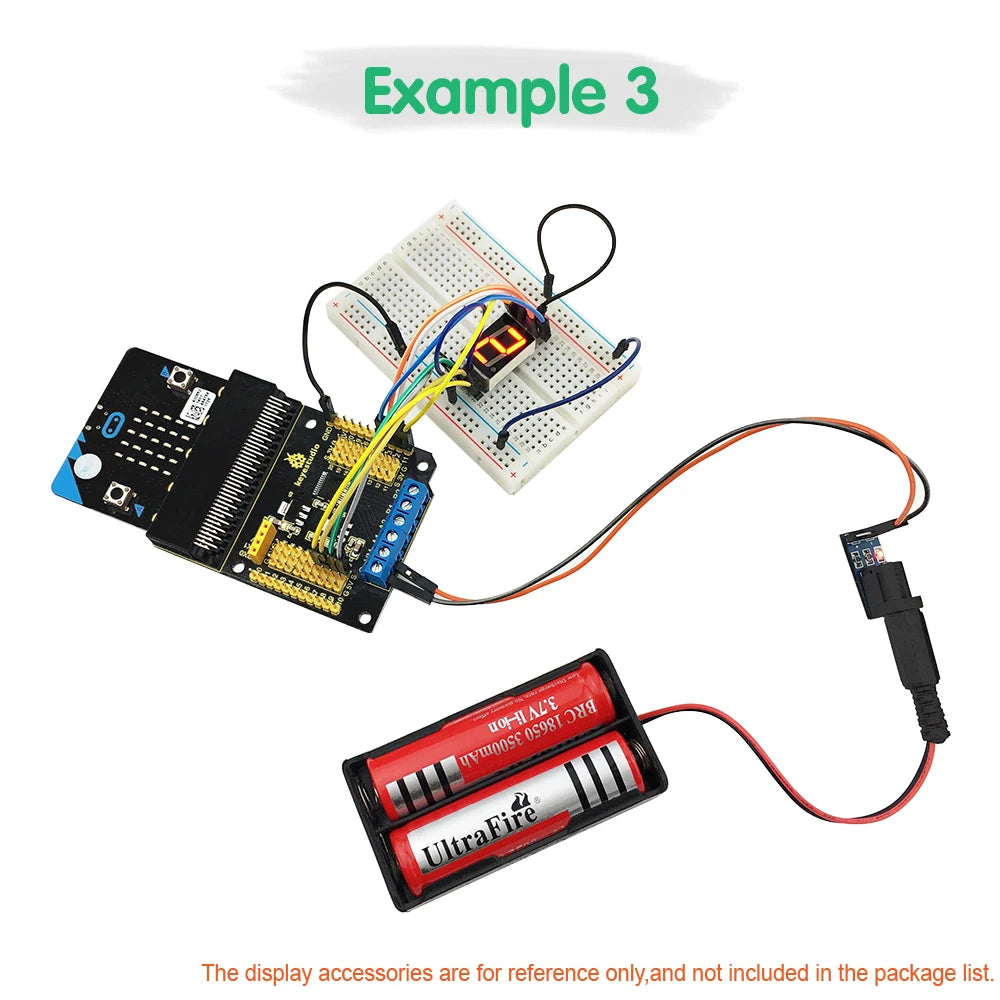

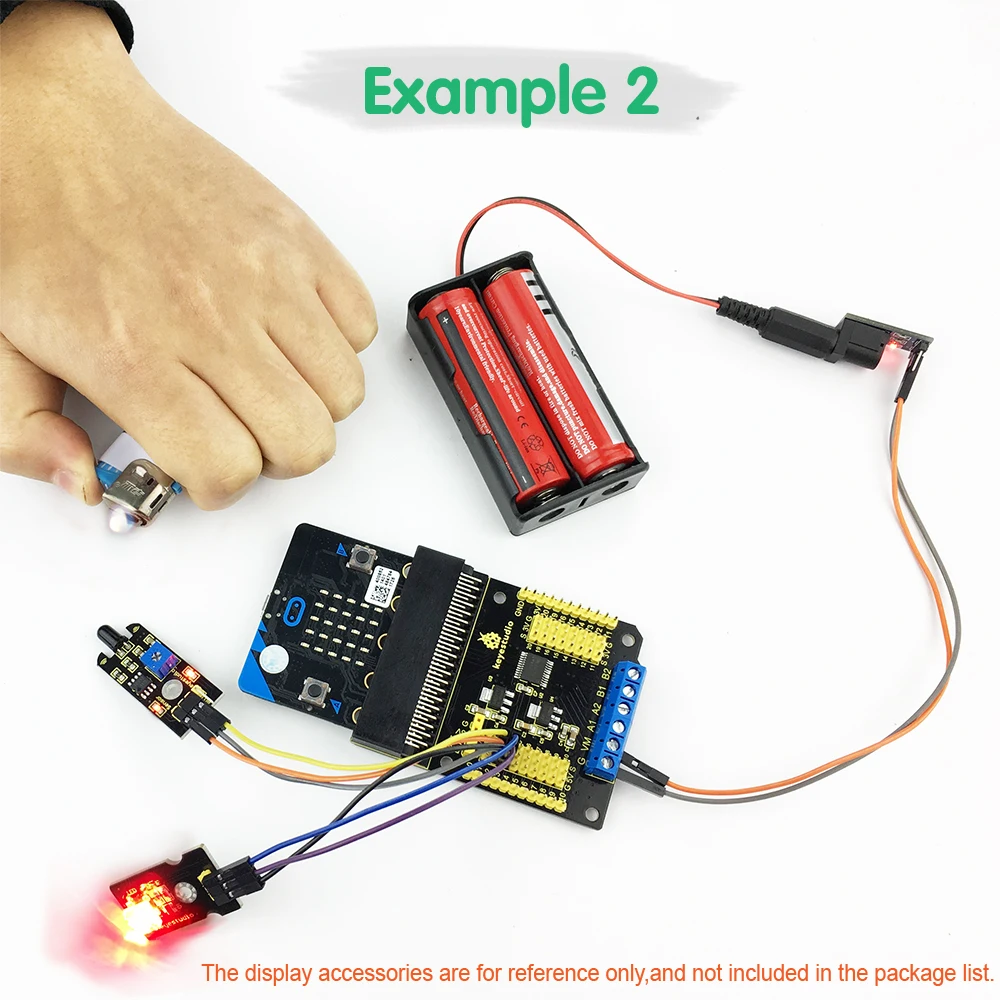

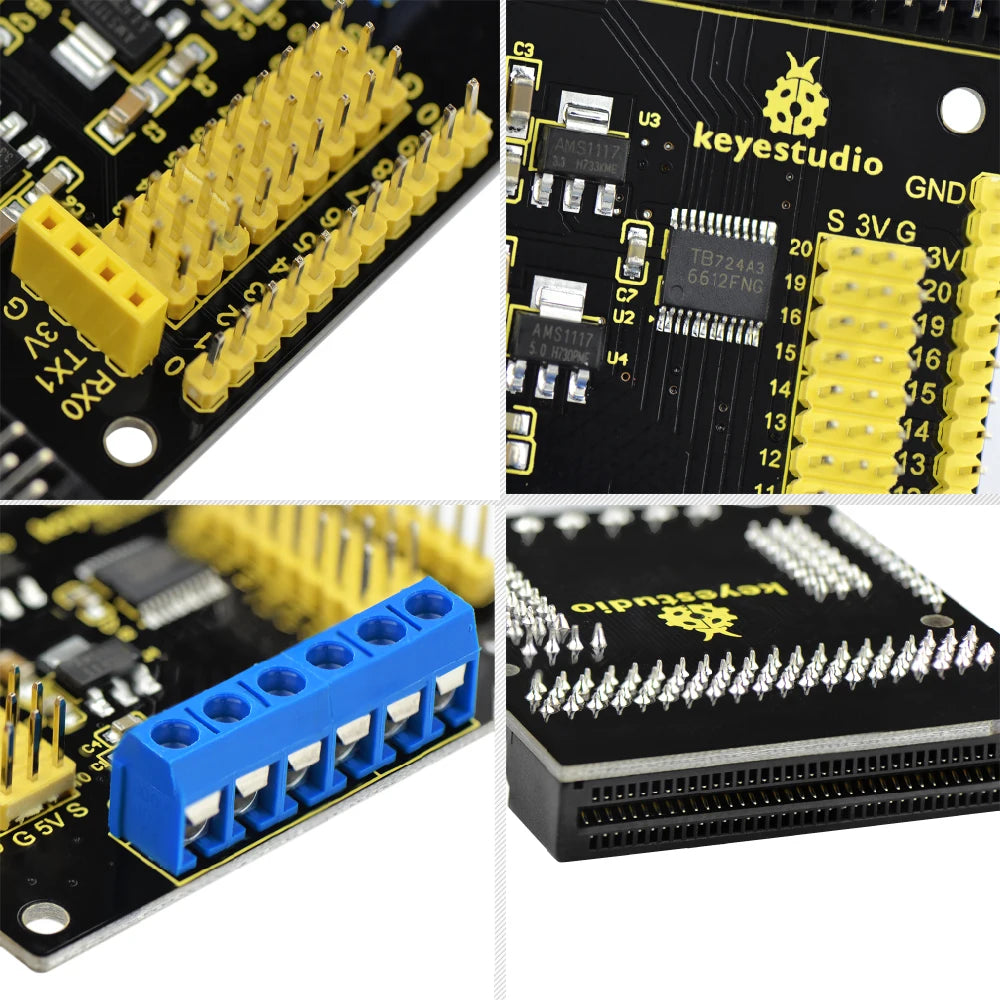

The BBC micro:bit pins are broken out to 3PIN headers. These provide an easy way of connecting circuits using 3PIN jumper wires.

At the same time, a 3.3V and 5V voltage-regulator chip is integrated on the breakout board, breaking out 3.3V and 5V power output interfaces.

The board also comes with serial port communication pins.



Features

Four motor control modes: Forward/Reverse /Brake /Stop.

Access to 3Pin headers connection

Integrated with 3.3V and 5V voltage-regulator chip

Comes with serial port communication pins



Parameters

Input Voltage：DC 6-12V

Drive Partial Working Current：≤1.2A

Size：70mm*58mm



Resources:

https://fs.keyestudio.com/KS0308
