SPECIFICATIONS

Application: laser engraving

Brand Name: keyestudio

Condition: New

High-concerned chemical: none

Operating Temperature: -10~50℃

Origin: Mainland China

Package: SMD

Product number: KS0363

Supply Voltage: 12v

Type: Logic ICs

is_customized: Yes

Description

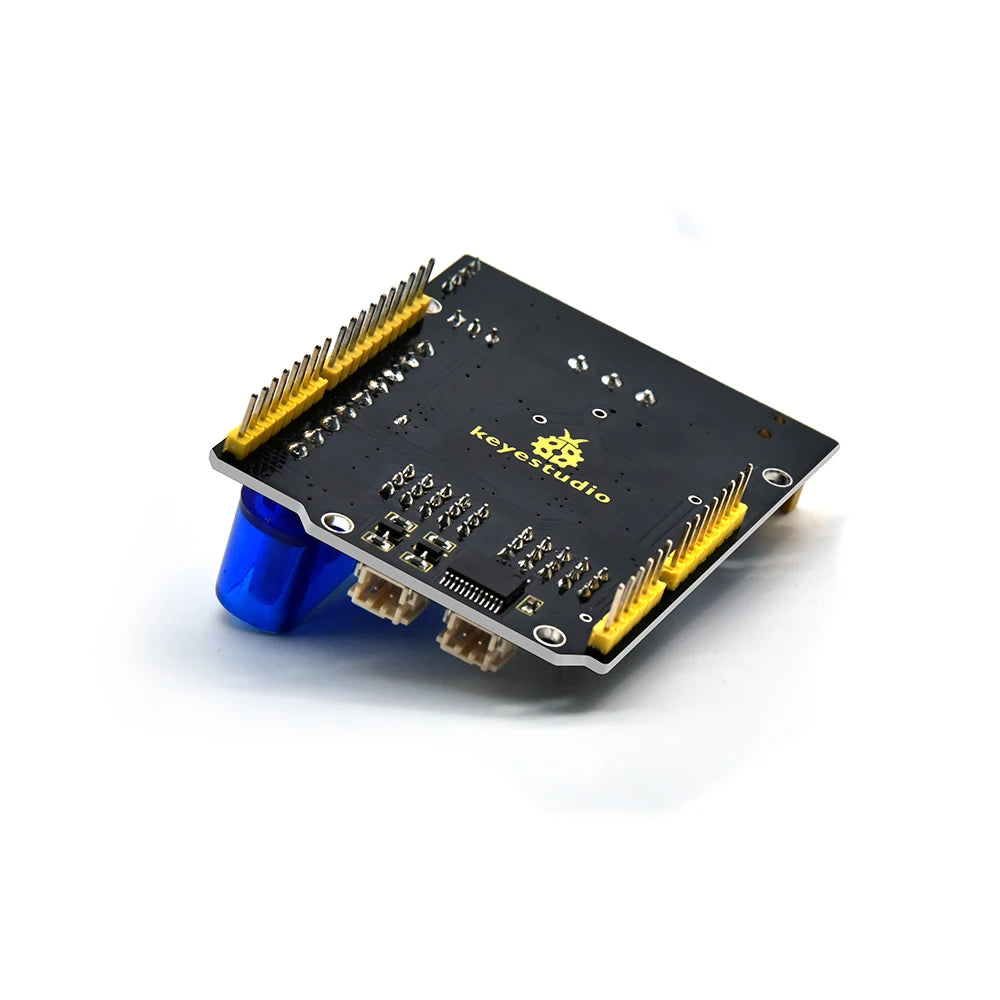

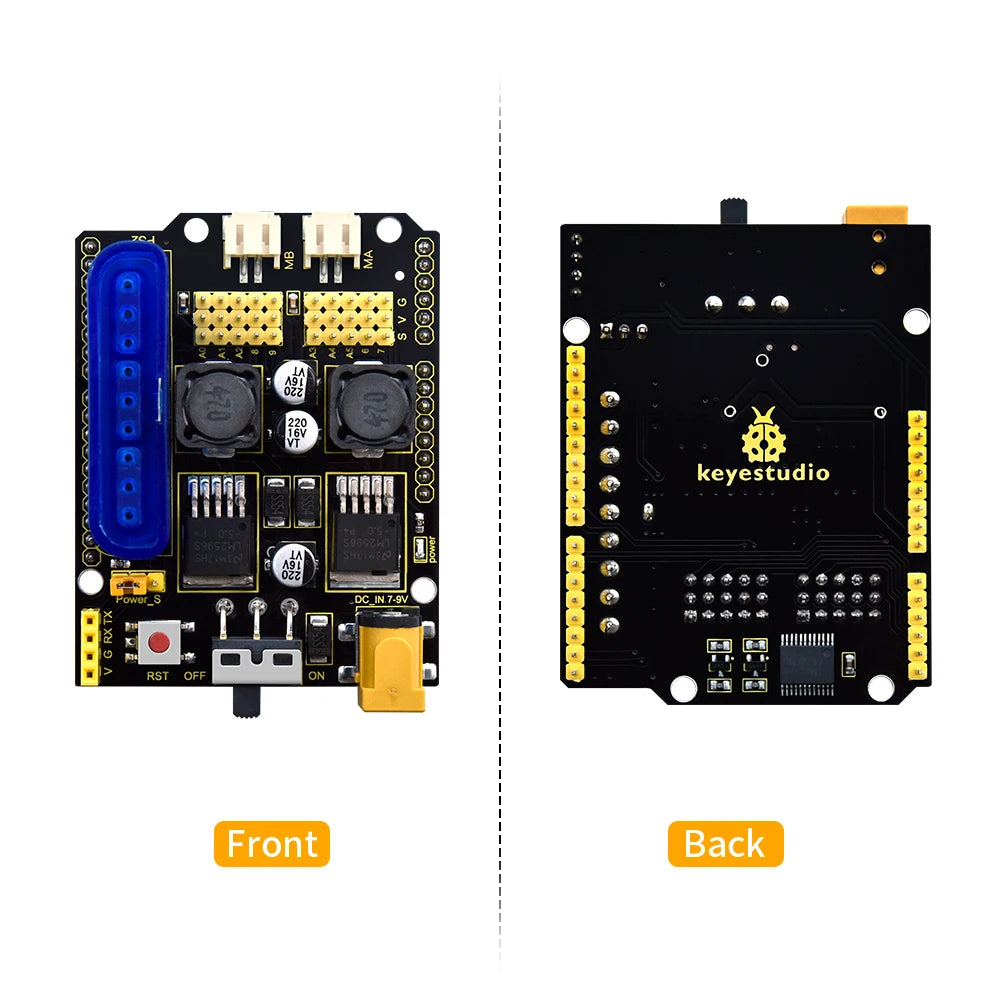

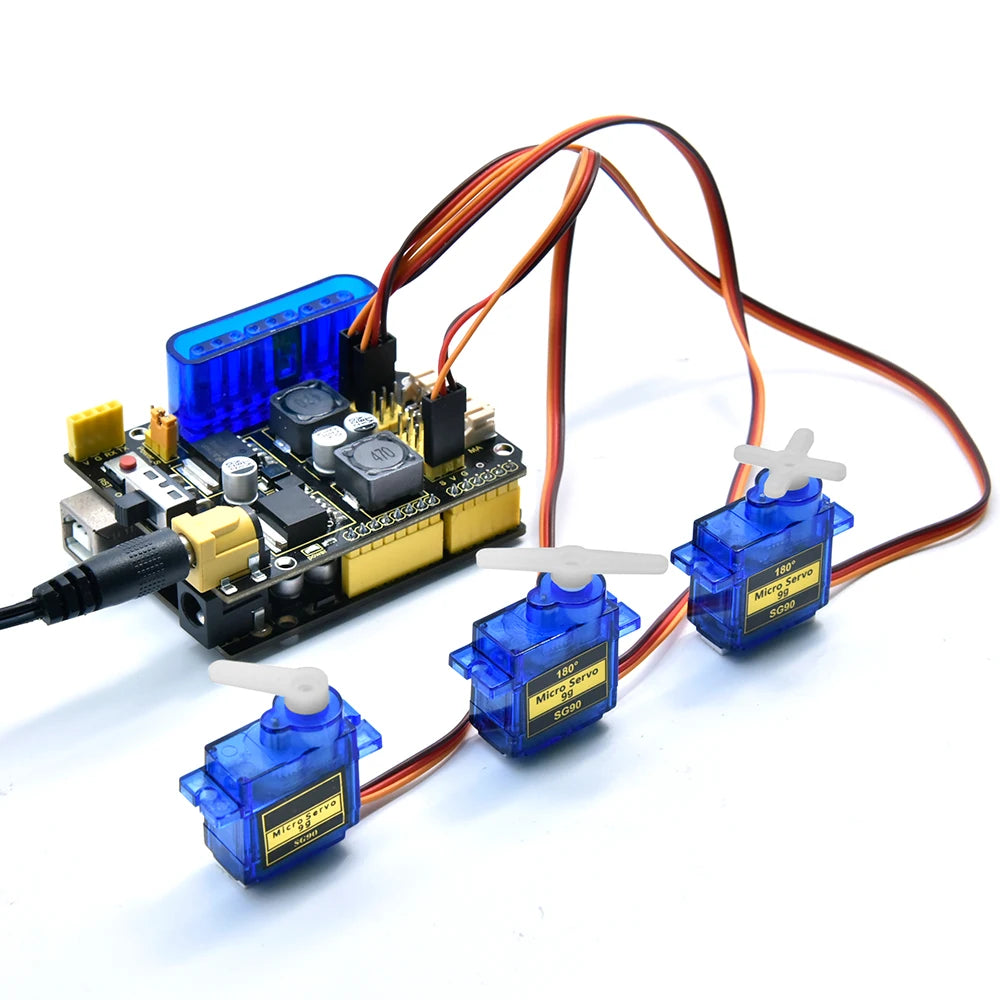

Keyestudio motor/servo driver expansion board is used with keyestidio plus development board and keyestudio UNO R3 development board.

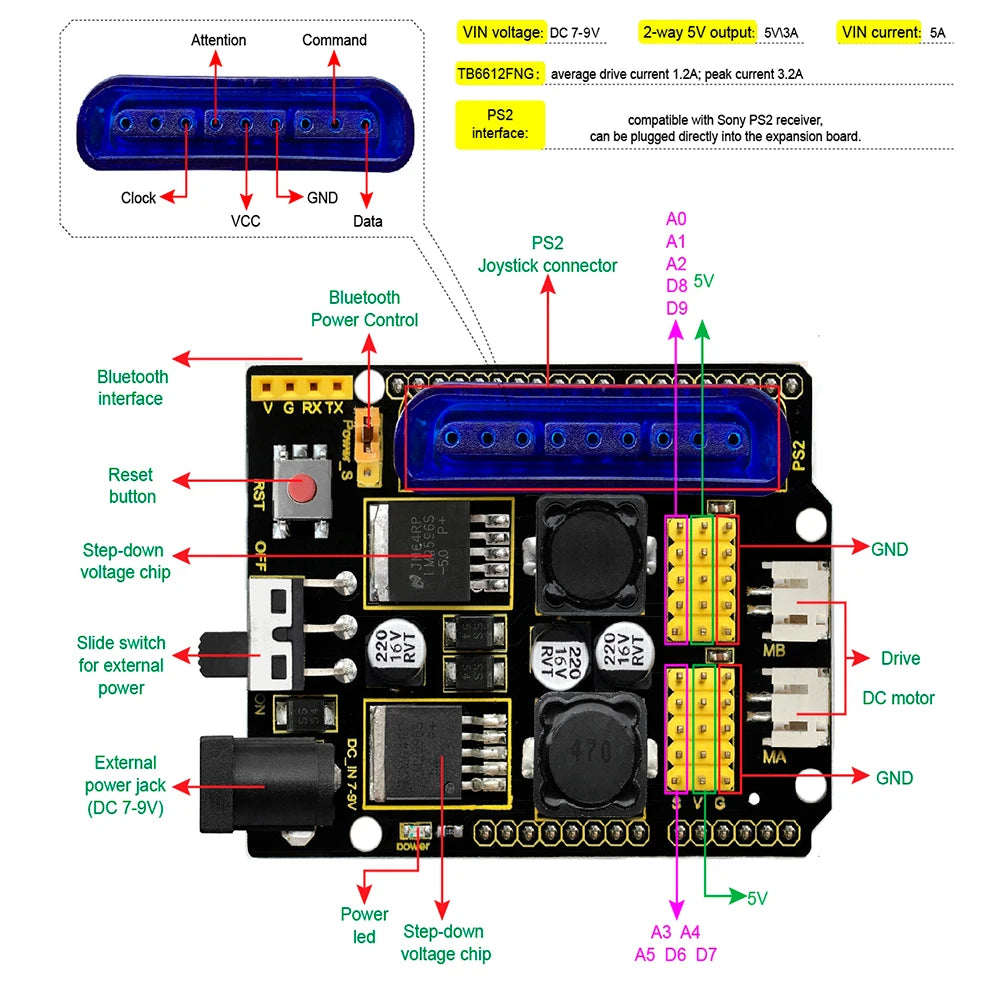

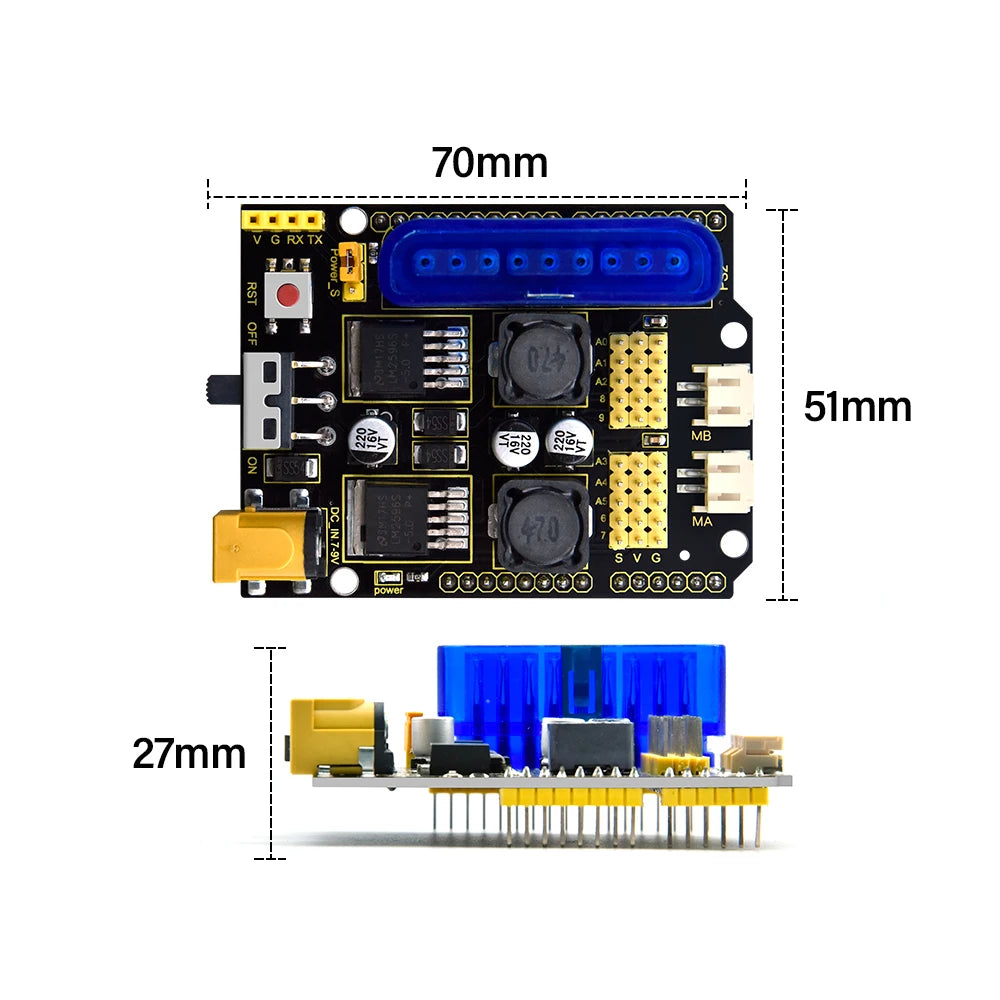

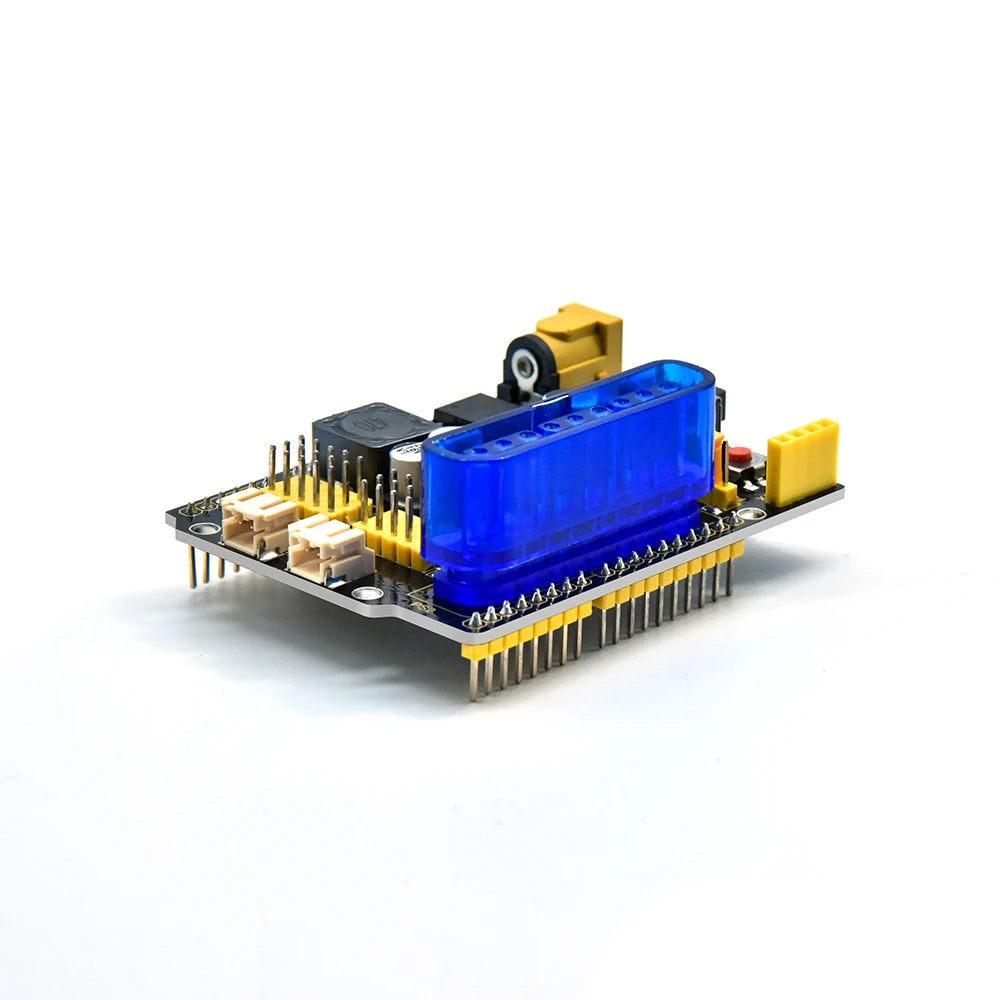

It extends the pin ports in the form of servo wire sequence. What’s more, the board sets a serial communication interface, a PS2 interface as well as a PH2.0MM-2P motor interface.

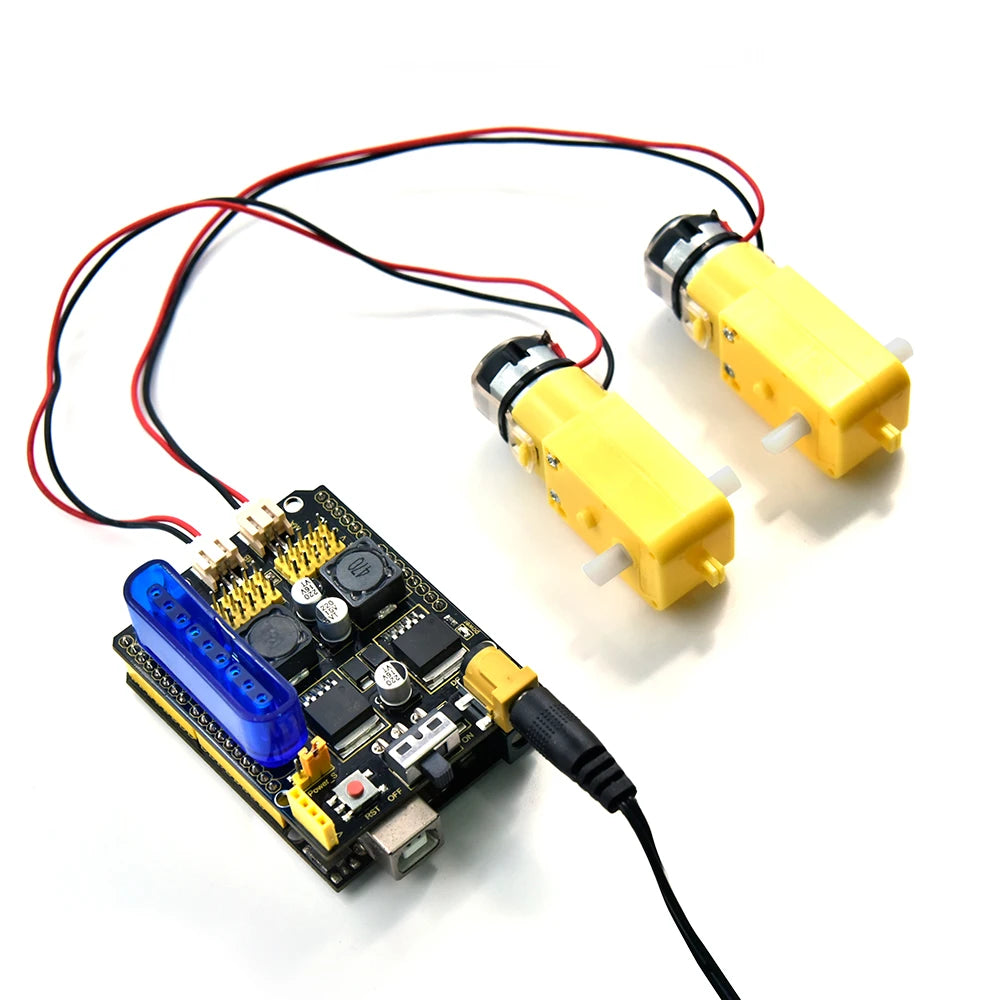

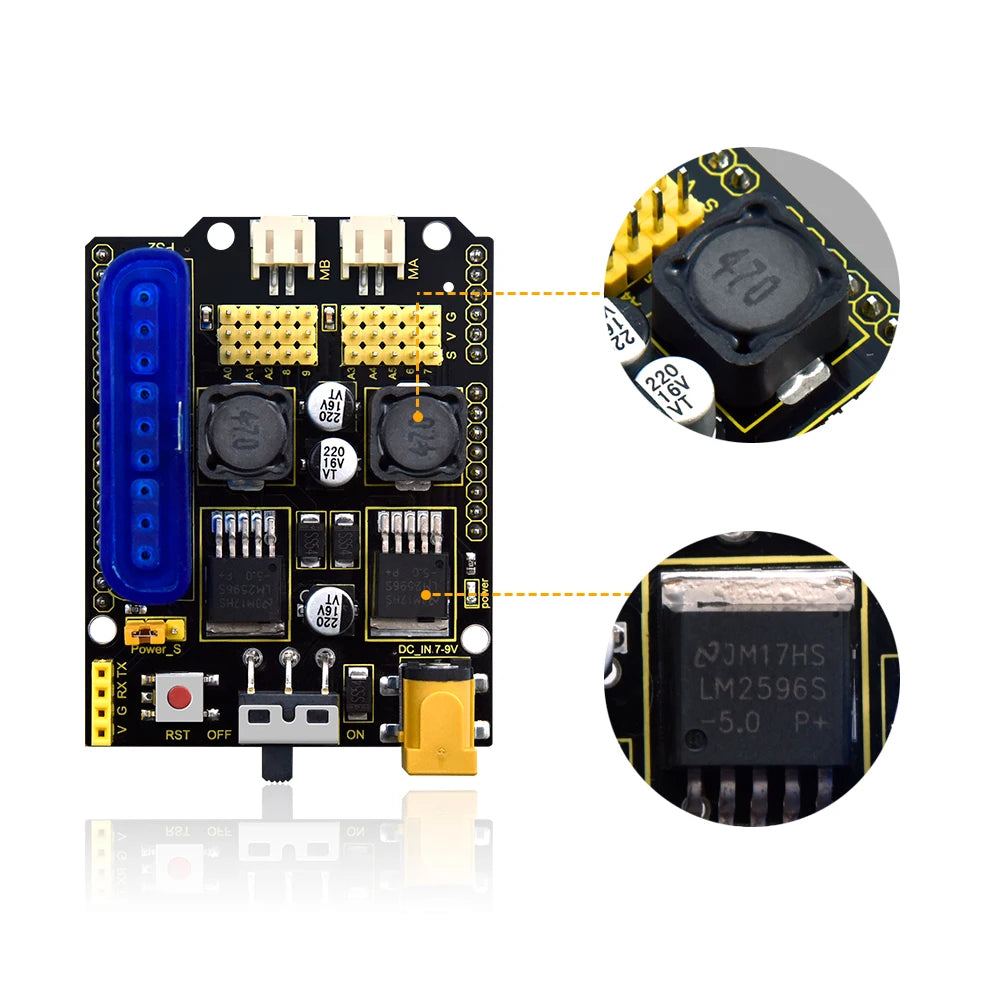

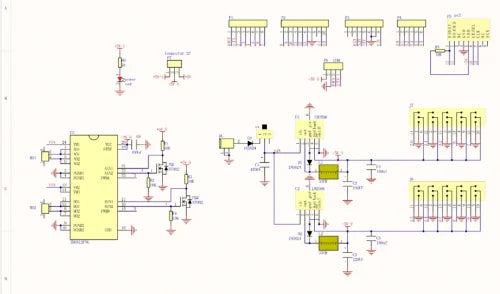

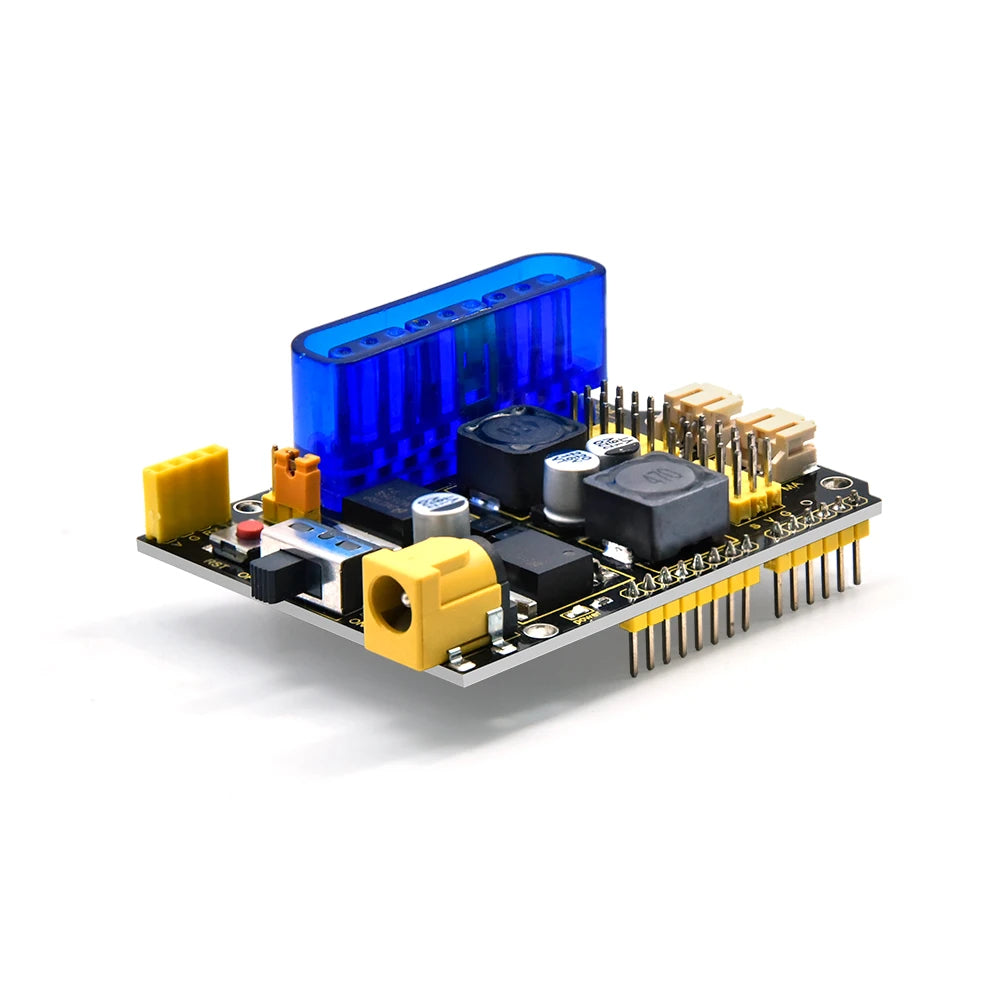

It is a expansion board equipped with two LM2596S-5.0V DC-DC depressurization modules, which is enable to driver multiple servos easily. Furthermore, it contains a TB6612FNG motor drive IC, which can control two motors.

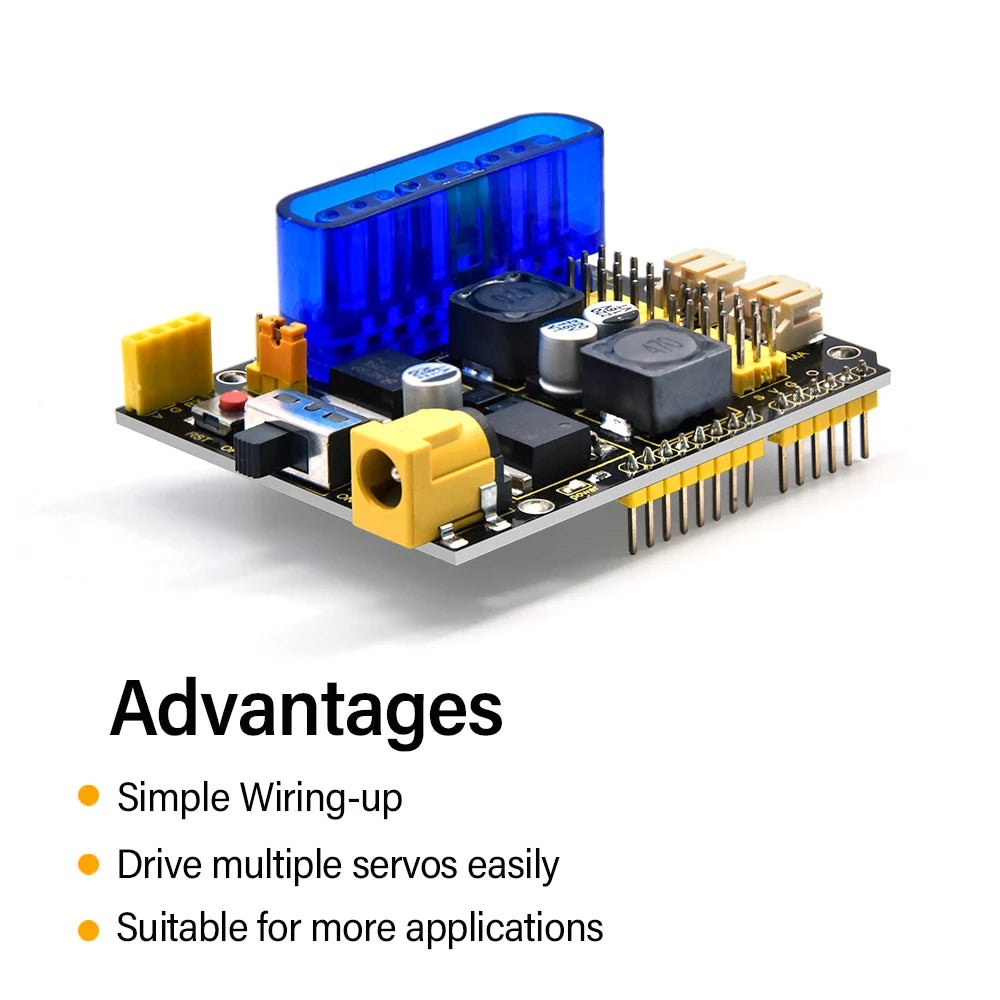

The diversity of the expansion board makes it more suitable for use, which is easier to connect and don’t need to worry about the number of VCC ports.

Note: PS2 interface VCC pin output is DC5V voltage, operating voltage below 5V

PS2 receiver is not suitable, so as not to cause burn.
