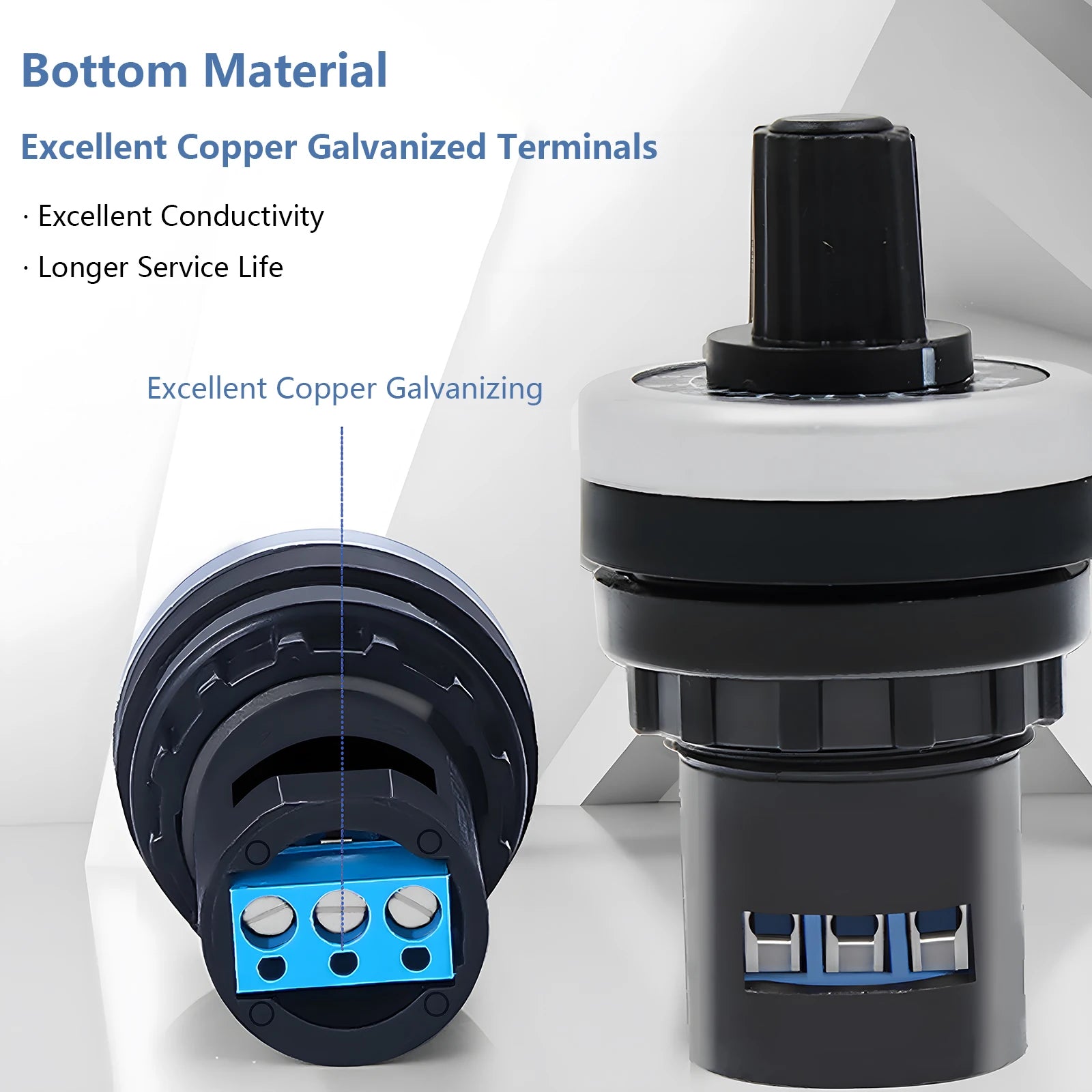

LA42DWQ-22 1/2/5/10/20/50/100/200/500K Ohm Variable Speed Drive Potentiometer 22mm Rotary Inverter Converter Resistance Switch
5K Ohm
$32.04
Sale price
$32.04
Regular price
$0.00
Skip to product information
LA42DWQ-22 1/2/5/10/20/50/100/200/500K Ohm Variable Speed Drive Potentiometer 22mm Rotary Inverter Converter Resistance Switch
$32.04
Sale price
$32.04
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Color: Black
Condition: New
High-concerned chemical: none
Max. Operating Voltage: 250
Model: LA42DWQ-22
Origin: Mainland China
Resistance: 1/2/5/10/20/50/100/200/500K
Resistance Tolerance: 0.25
Name: Single turn potentiometer variable frequency governor

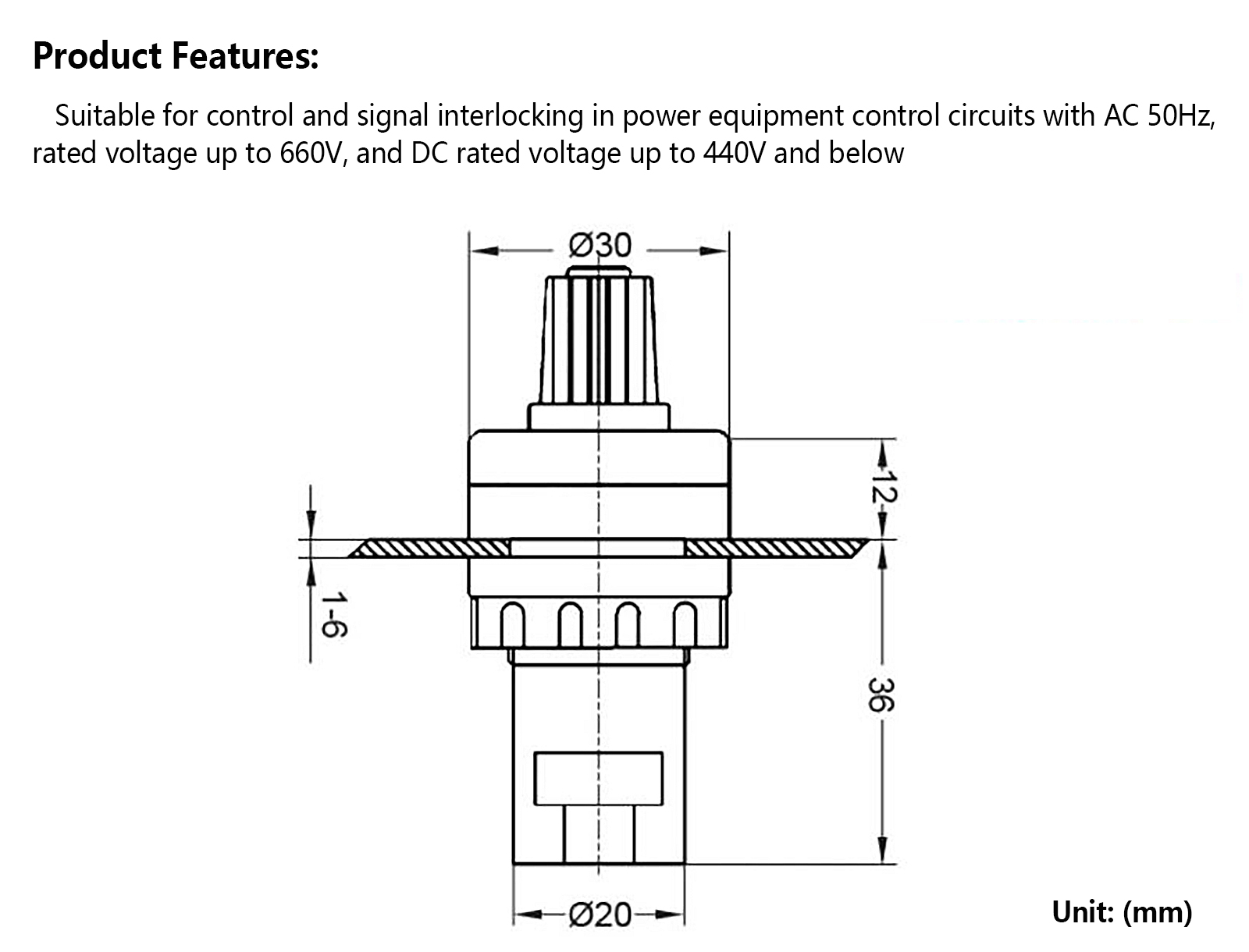

Installation aperture: 22mm
Resistance value: 1K 2K 5K 10K 20K 50K 100K 200K 500K
Color: Black
Protection level: IP65

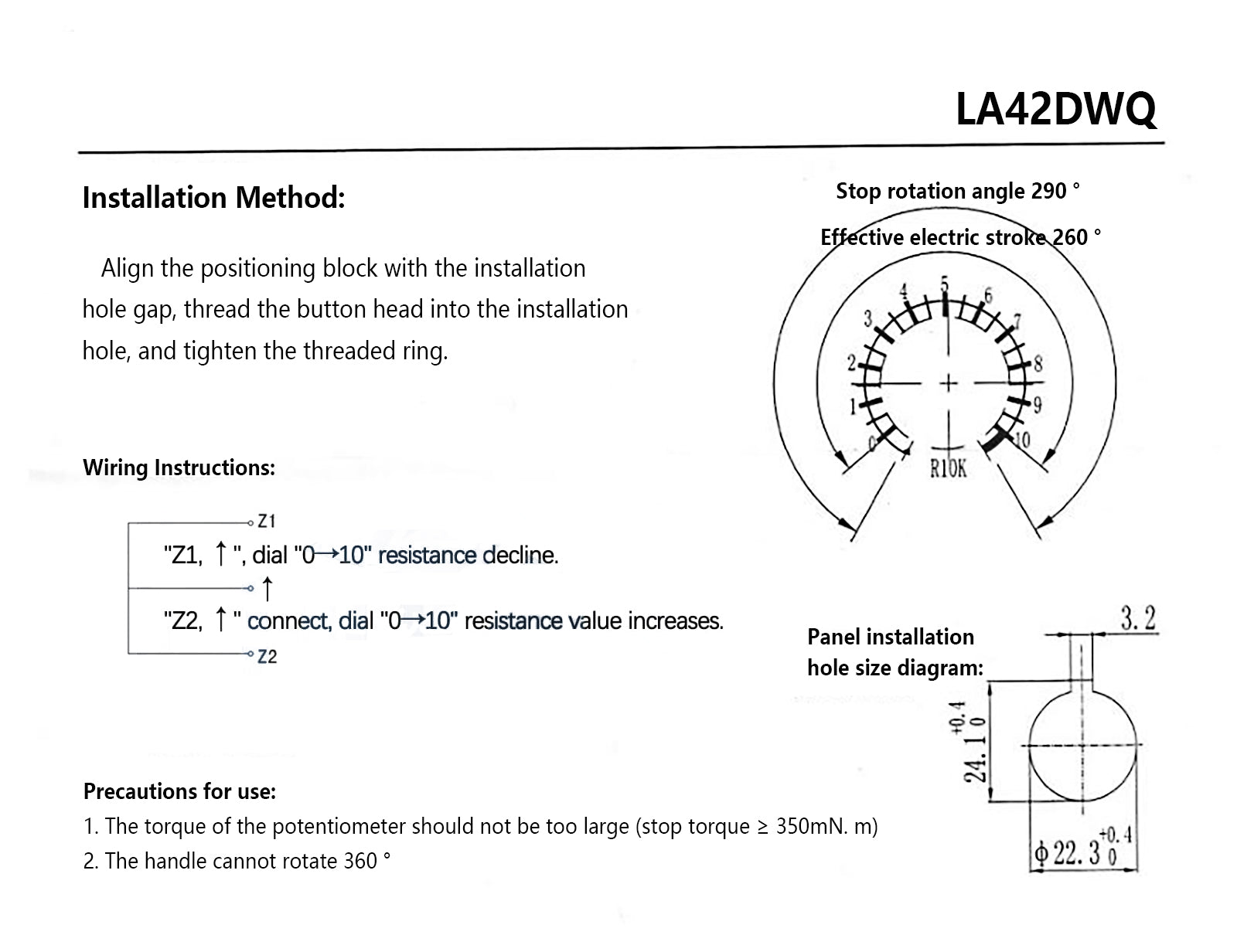

Installation method: Align the positioning block with the gap in the installation hole, thread the button head into the installation hole, and tighten the threaded ring.

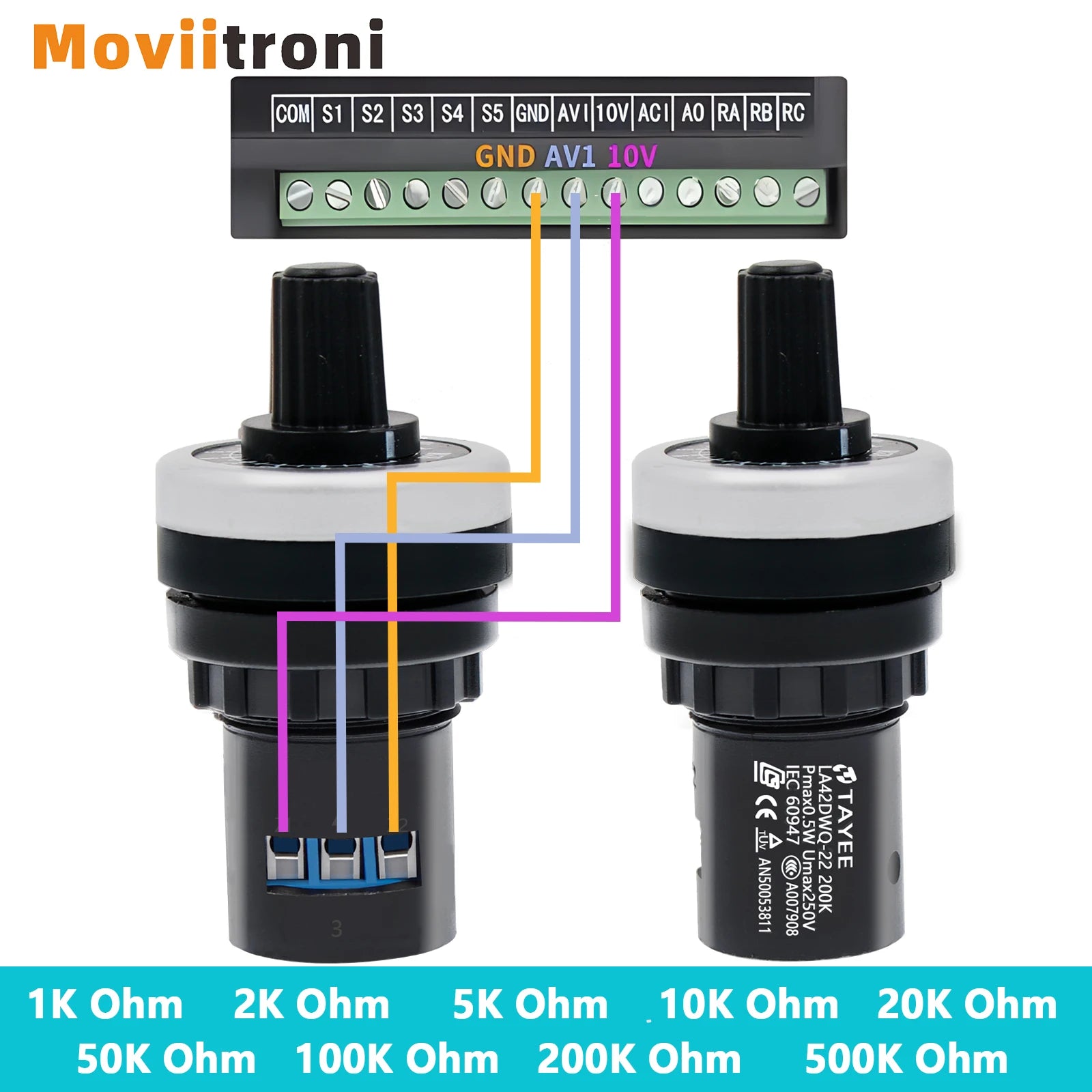

Wiring instructions: Connect "Z1, ↑", and the resistance value of the dial "0 → 10" decreases.

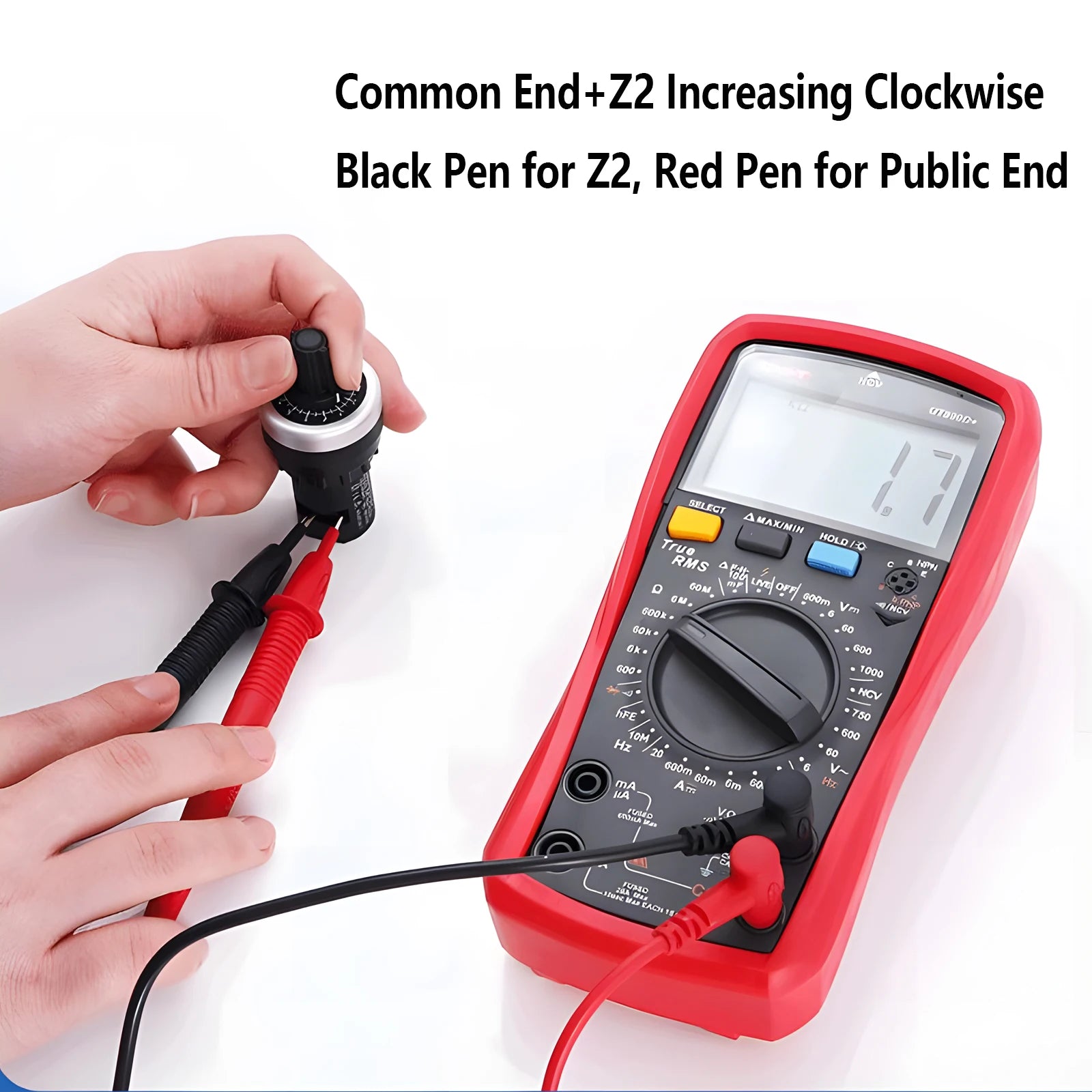

"Z2, ↑" is connected, and the resistance value of the dial "0 → 10" increases.
Precautions for use:
1. The torque of the potentiometer should not be too large (stop torque ≥ 350mN. m)
2. The handle cannot rotate 360 °.
Installation aperture: 22mm
Resistance value: 1K 2K 5K 10K 20K 50K 100K 200K 500K
Color: Black
Protection level: IP65
Installation method: Align the positioning block with the gap in the installation hole, thread the button head into the installation hole, and tighten the threaded ring.
Wiring instructions: Connect "Z1, ↑", and the resistance value of the dial "0 → 10" decreases.
"Z2, ↑" is connected, and the resistance value of the dial "0 → 10" increases.
Precautions for use:
1. The torque of the potentiometer should not be too large (stop torque ≥ 350mN. m)
2. The handle cannot rotate 360 °.
