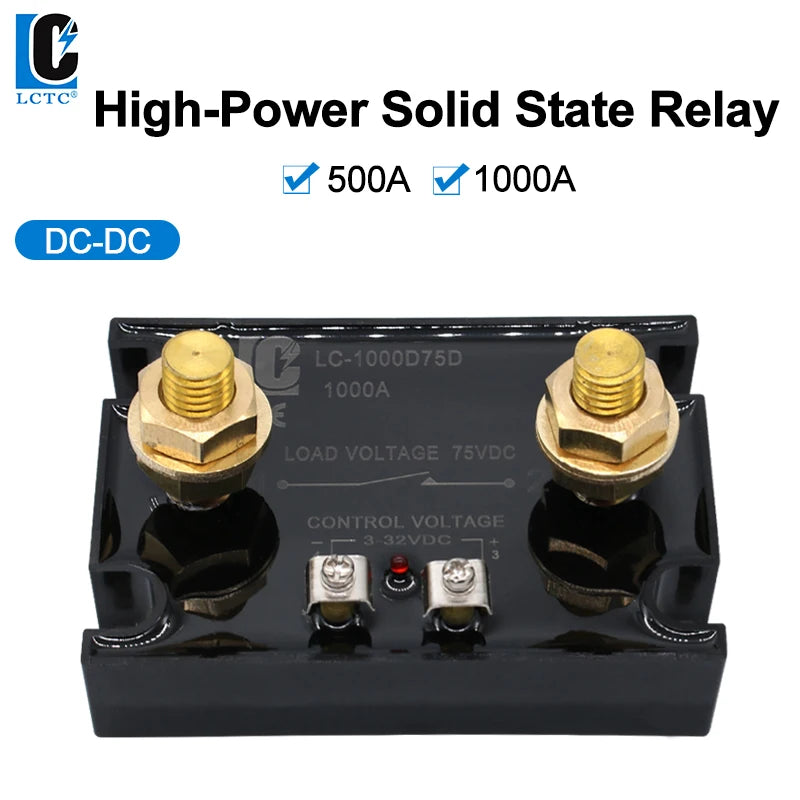

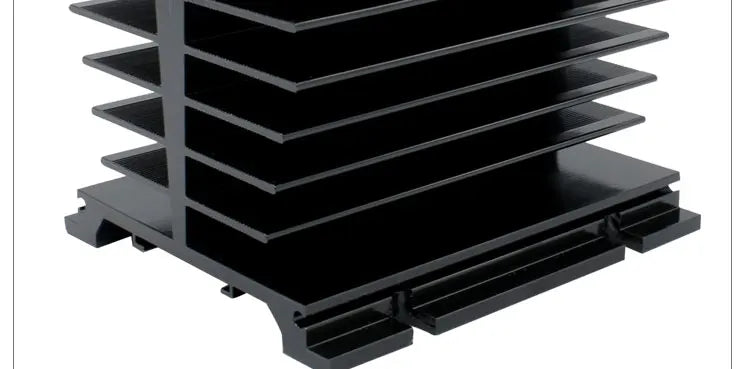

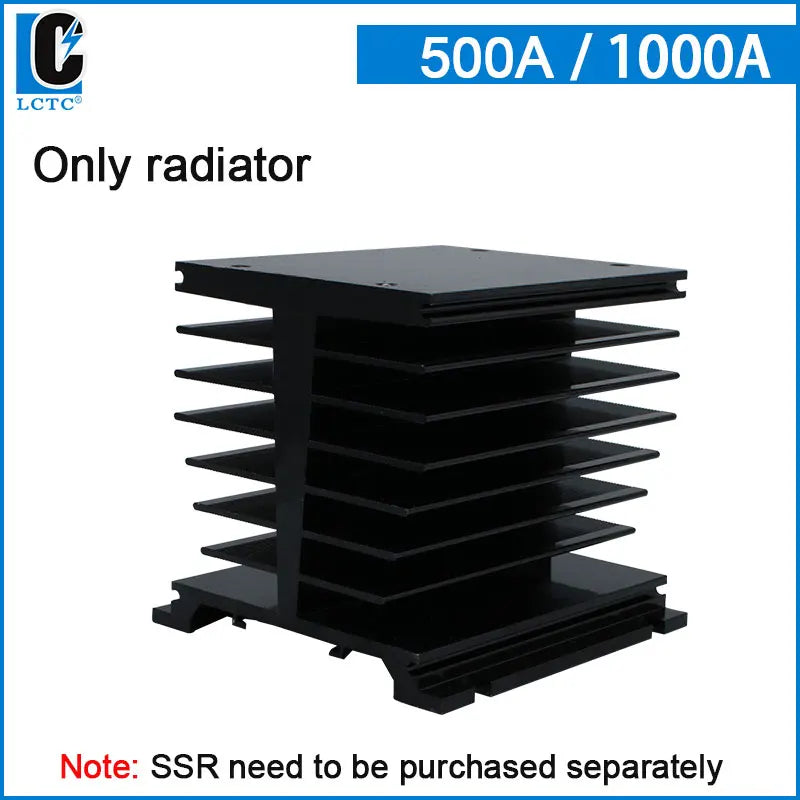

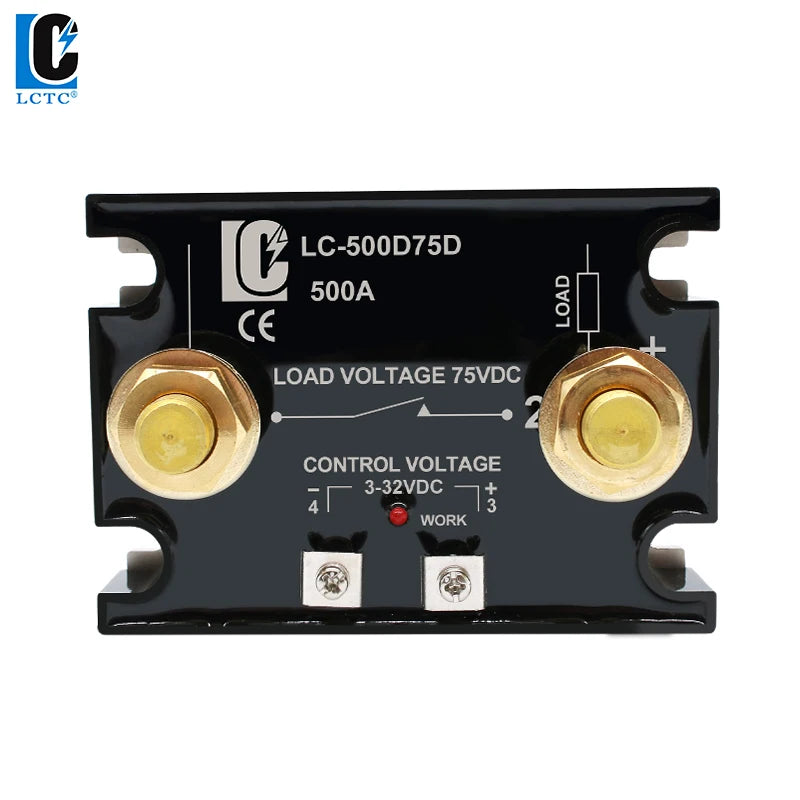

LCTC DC Control DC Solid State Relay 500A 1000A With Radiator SSR Heat Sink High Power Controller 3-32VDC LC-500D75D

LCTC DC Control DC Solid State Relay 500A 1000A With Radiator SSR Heat Sink High Power Controller 3-32VDC LC-500D75D

$668.70

$668.70 $0.00

Description

SPECIFICATIONS

Brand Name: LCTC

Certification: CE

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SSR-500A 1000A DD 75VDC

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: Protective

Voltage: 75VDC

is_customized: Yes

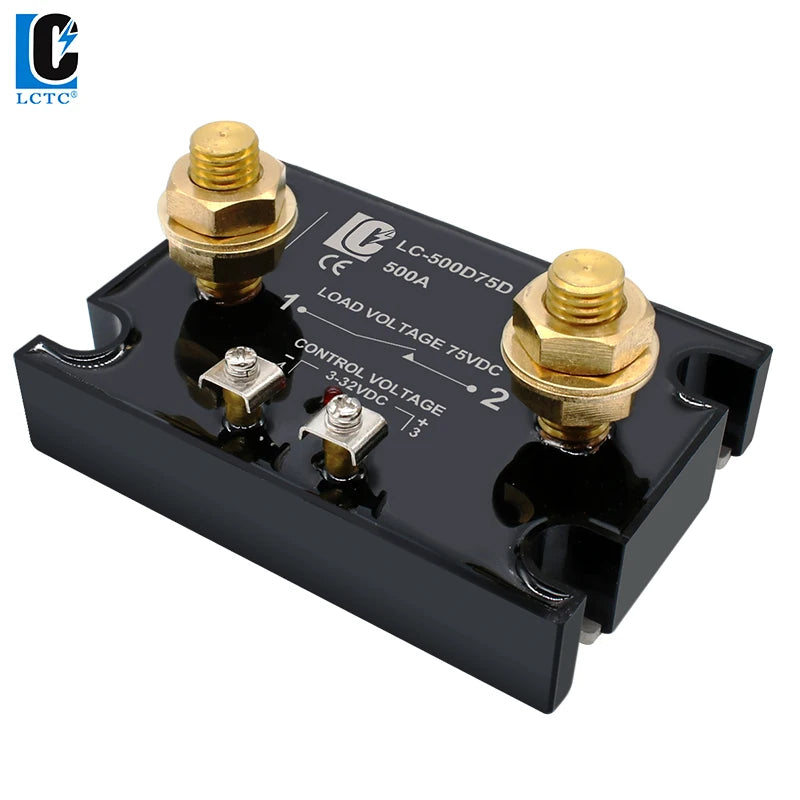

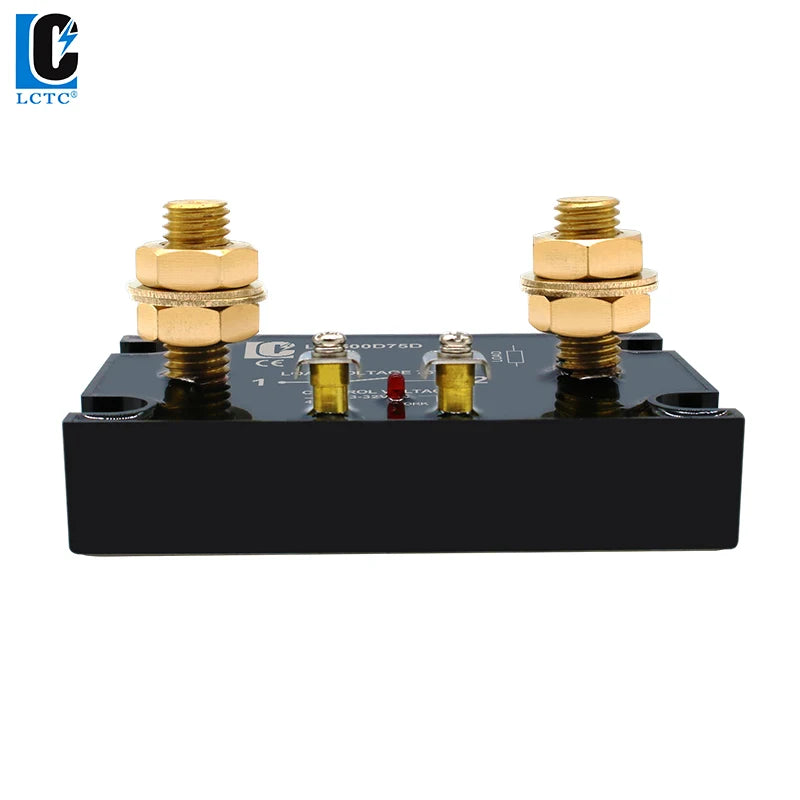

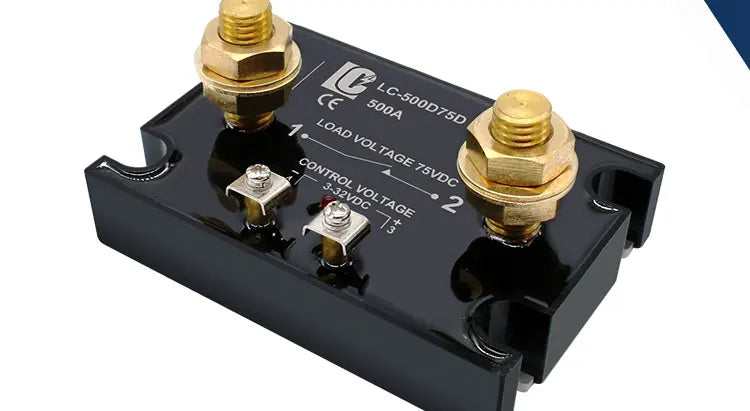

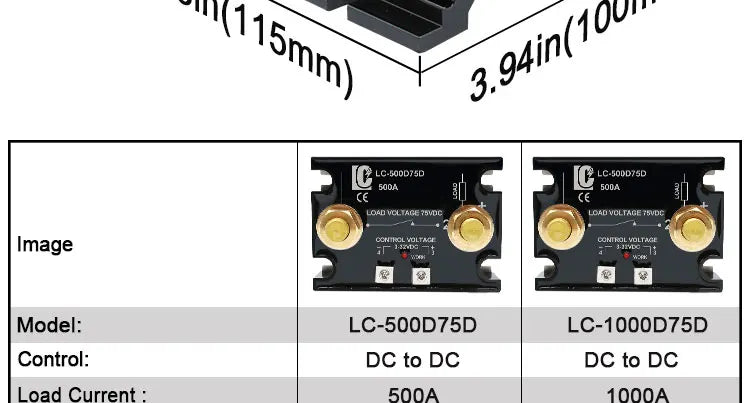

Model LC-500D75D

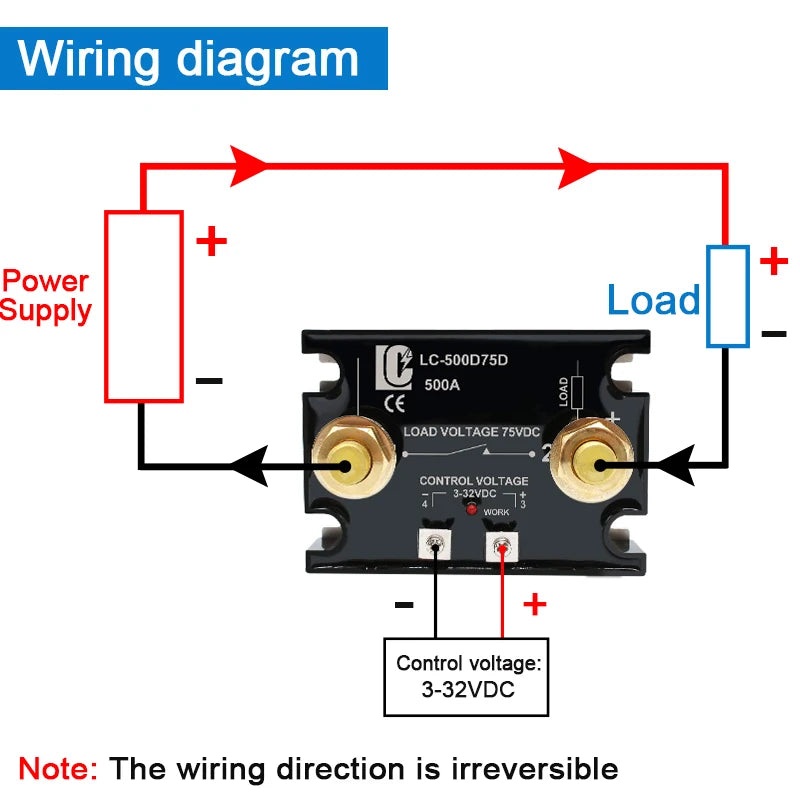

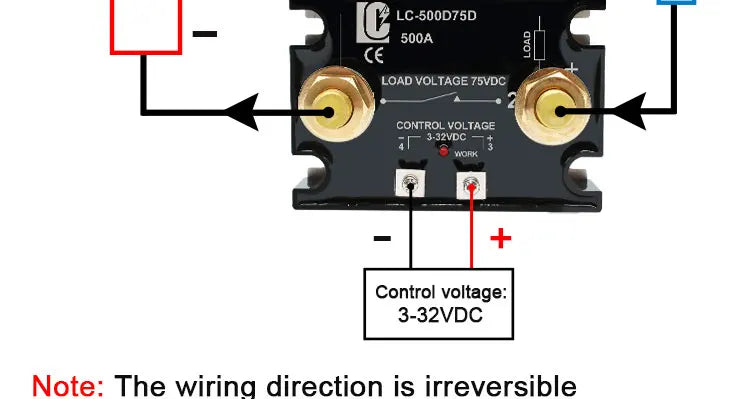

Control DC to DC
Load Current 500A

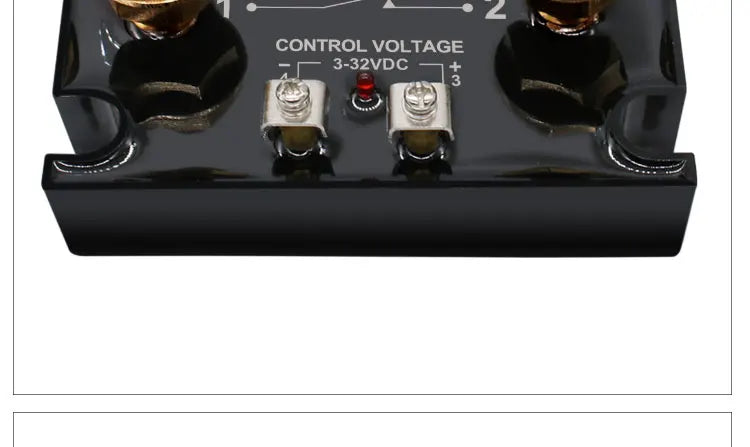

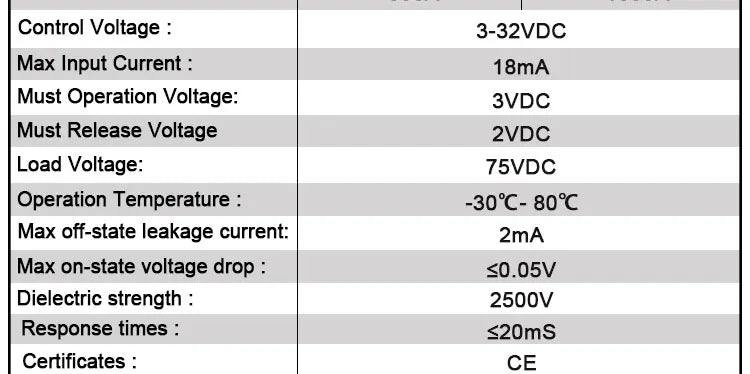

Control Voltage 3-32VDC
Max Input Current 18mA
Must Operation Voltage 3VDC
Must Release Voltage 2VDC
Load Voltage 75VDC
Operation Temperature -30℃ to 80℃
Max off-state leakage current 2mA
Max on-state voltage drop ≤0.05V
Dielectric strength 2500V
Certificates CE

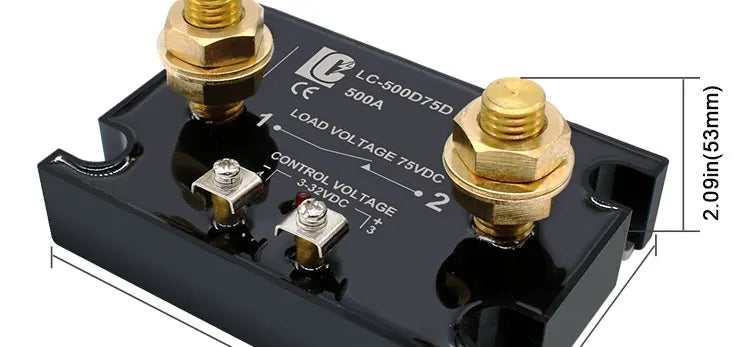

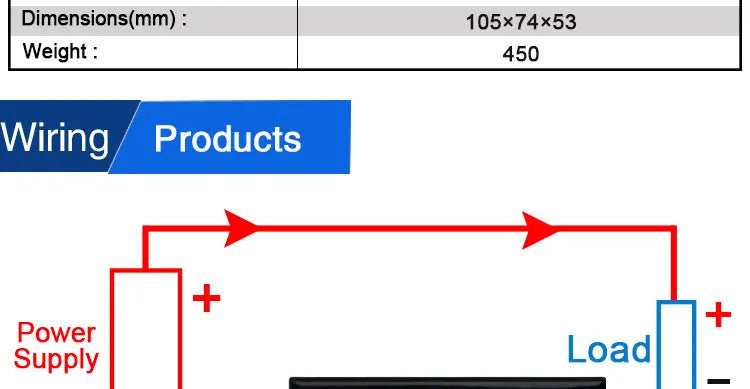

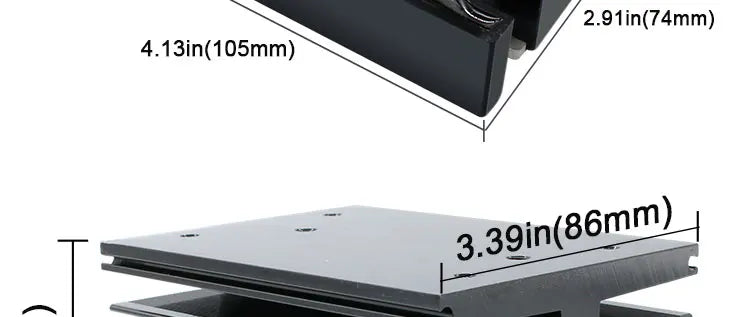

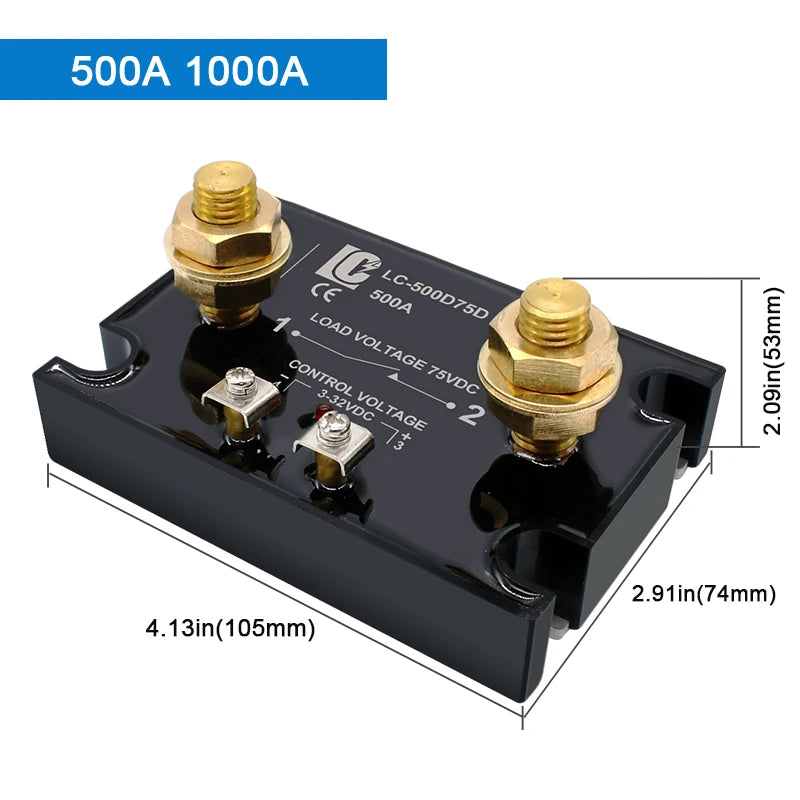

Dimensions(mm) 105L x 74W x 53H
Weight 450

Features

1.MOSFET output.

2.With LED indicator.

3.Low on-state resistance.

4.Photo isoation.

Precautions

1.Must add suppression circuit for inductive load.

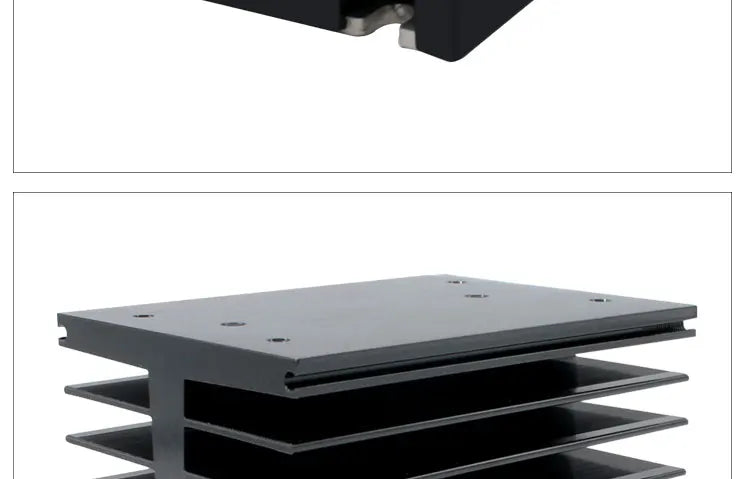

2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.

3.Tighten the ssr terminal screws properly.

4.Please do not use the relay beyond the descriptions in the data sheet.
