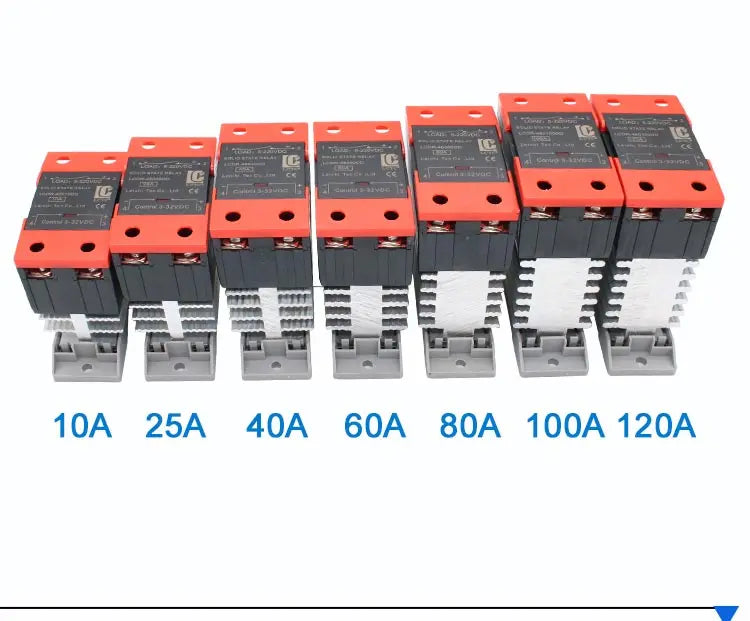

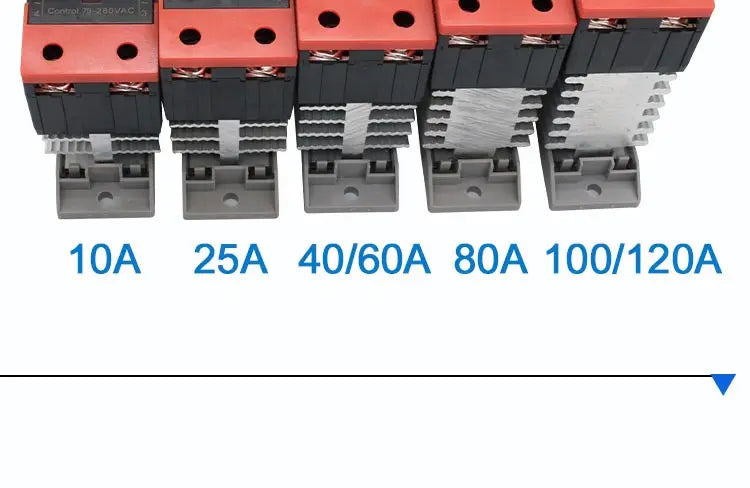

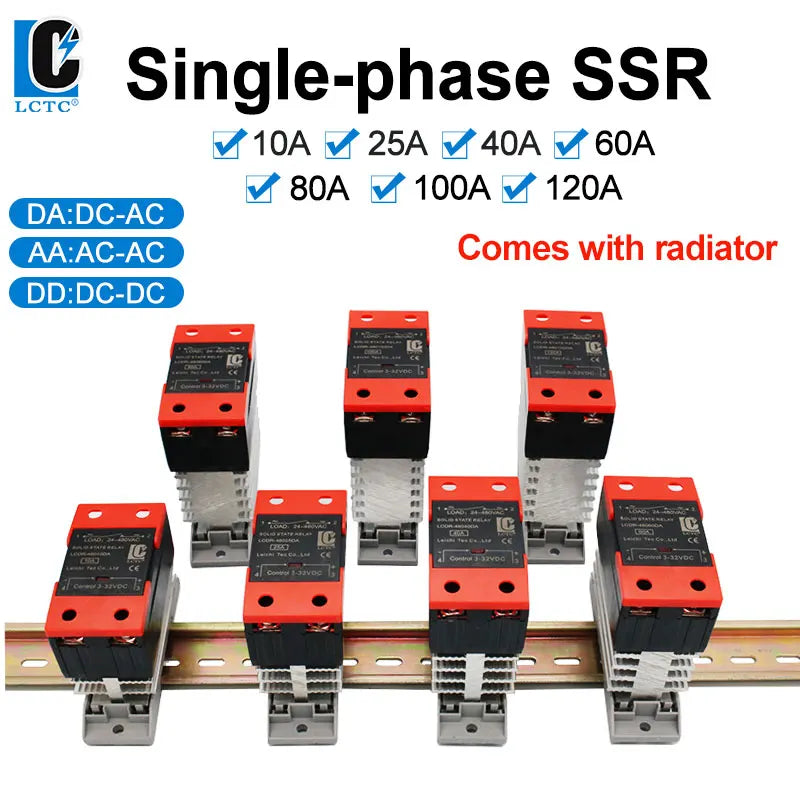

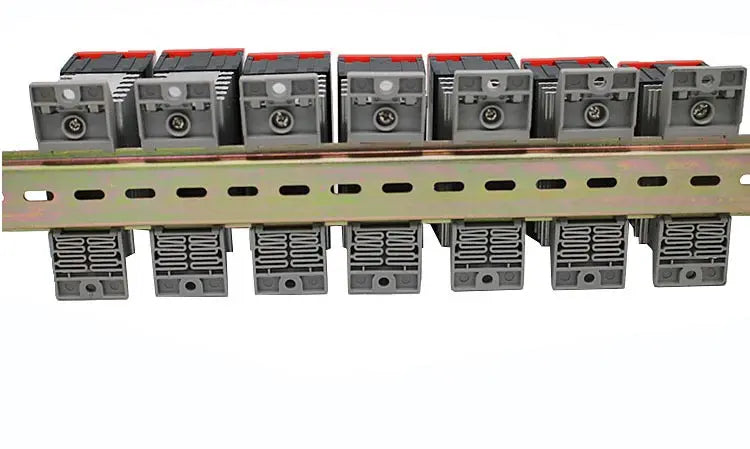

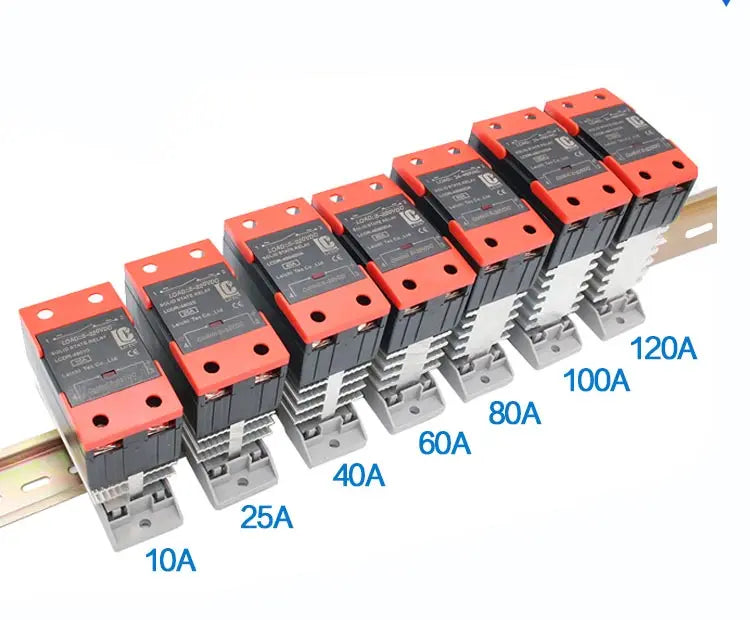

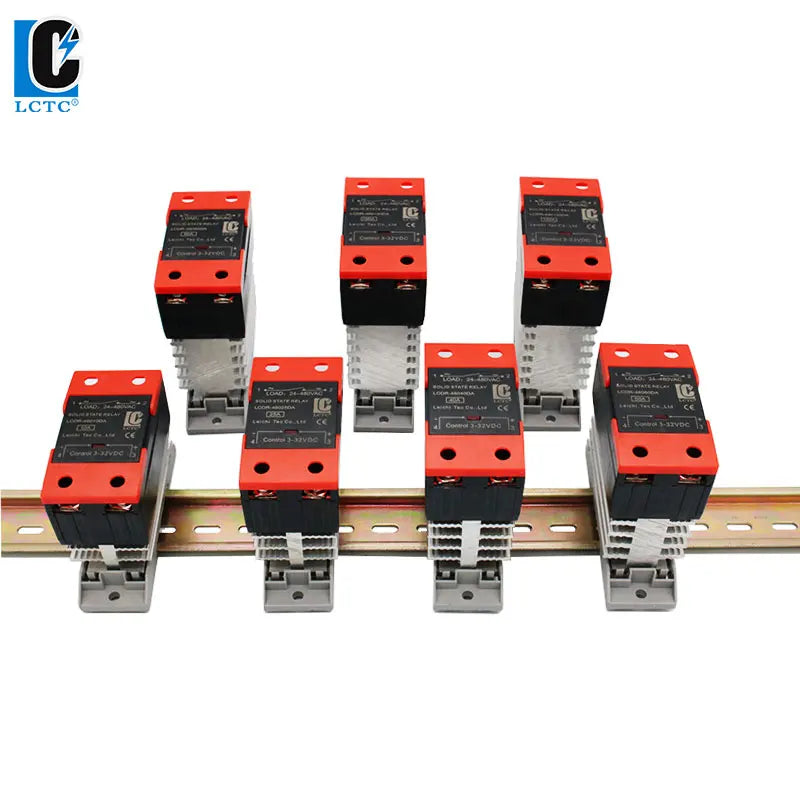

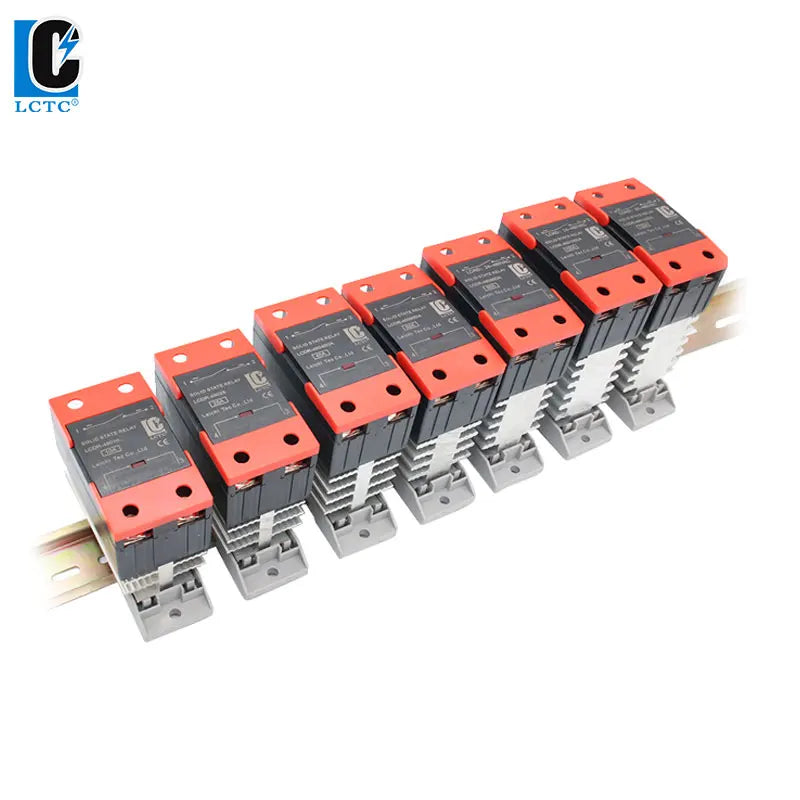

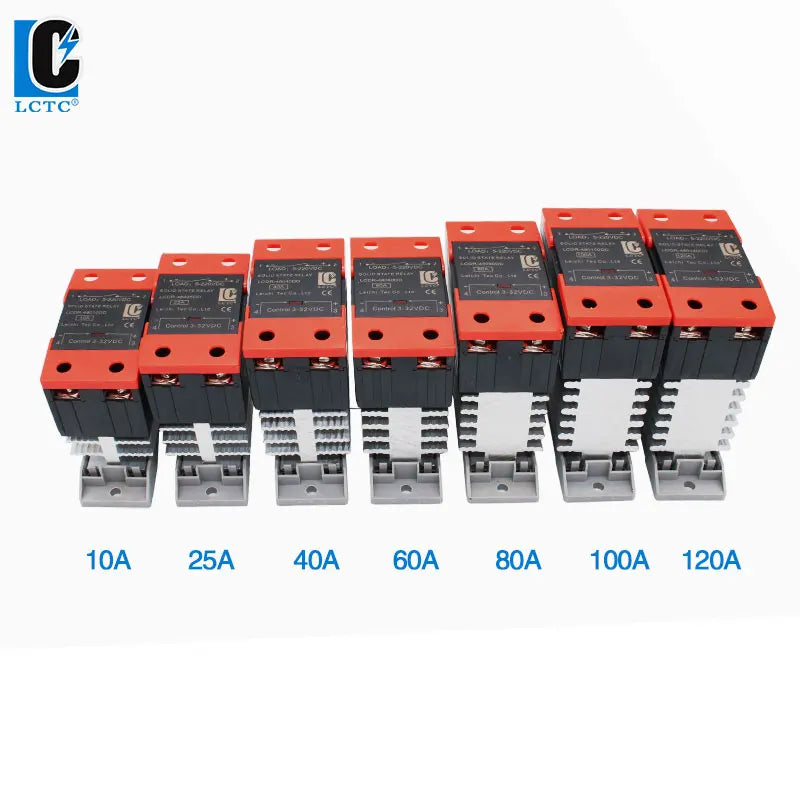

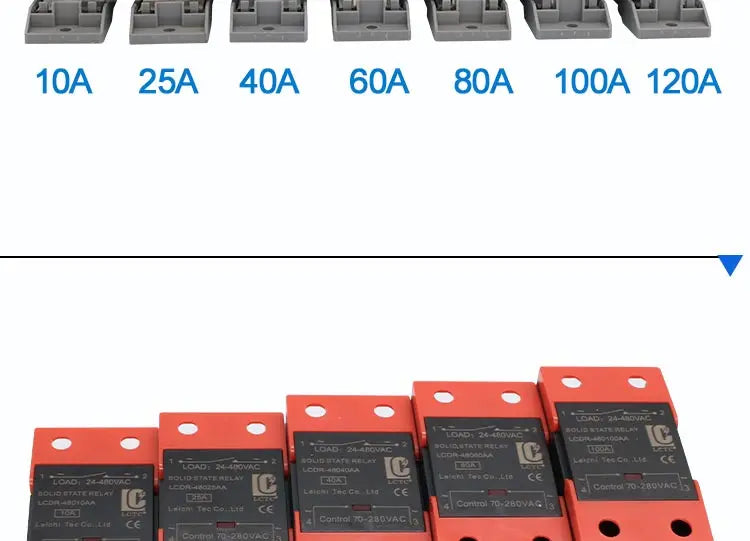

LCTC Solid State Relay 10A25A40A60A80A100A120A DIN Installation DC to AC AC to AC DC to DC Single-phase SSR With Radiator
120A / AC-AC
$162.77
Sale price
$162.77
Regular price
$0.00
Skip to product information
LCTC Solid State Relay 10A25A40A60A80A100A120A DIN Installation DC to AC AC to AC DC to DC Single-phase SSR With Radiator
$162.77
Sale price
$162.77
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: LCTC
Certification: CE
Choice: yes
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: LCDR-48010~120DA AA DD
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Solid State Relay
Use: Protective
Voltage: 480v
is_customized: Yes
semi_Choice: yes

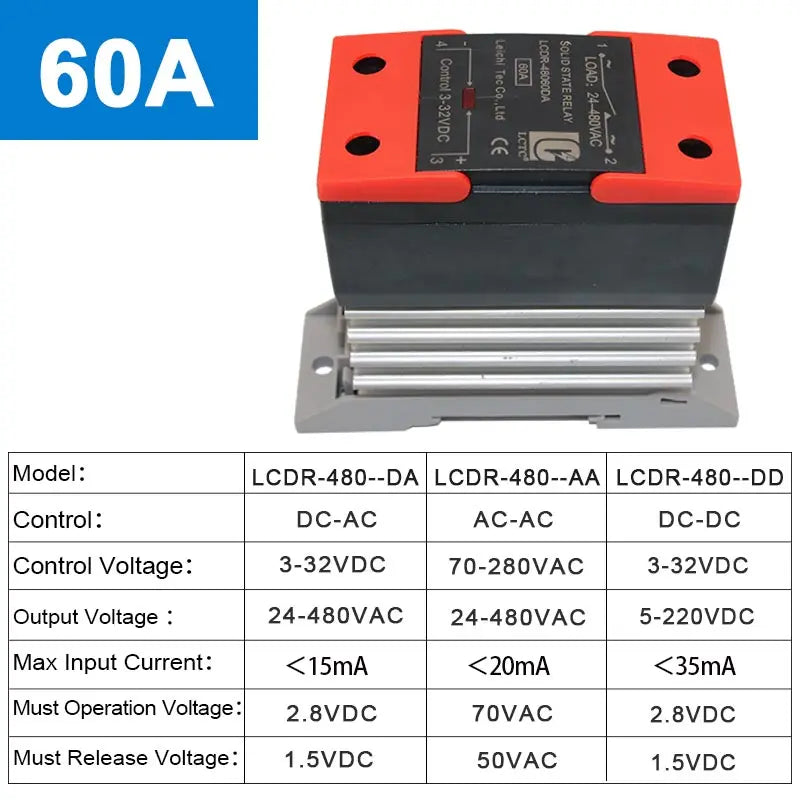

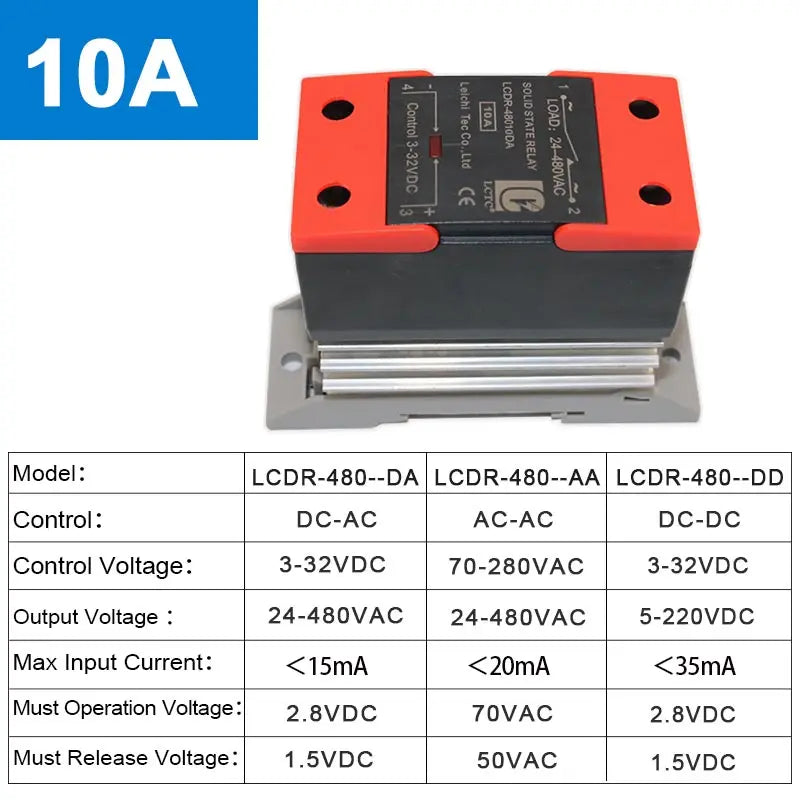

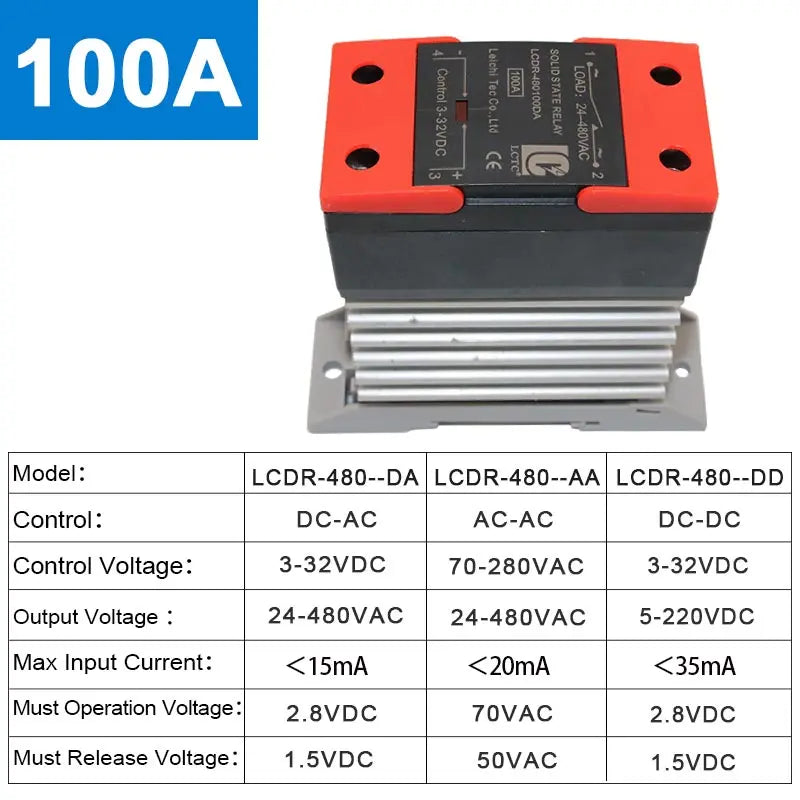

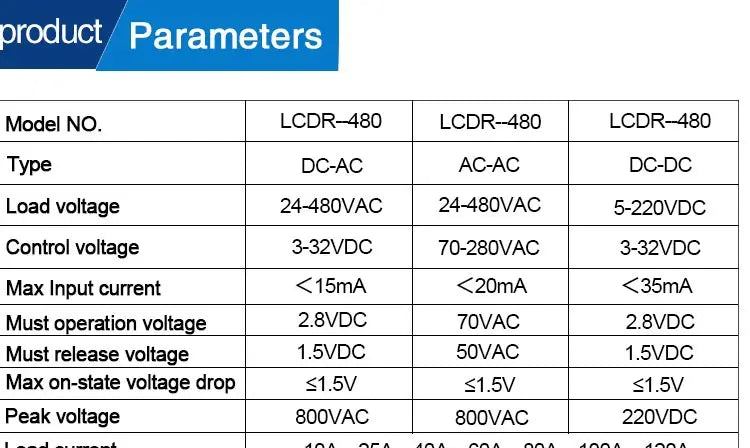

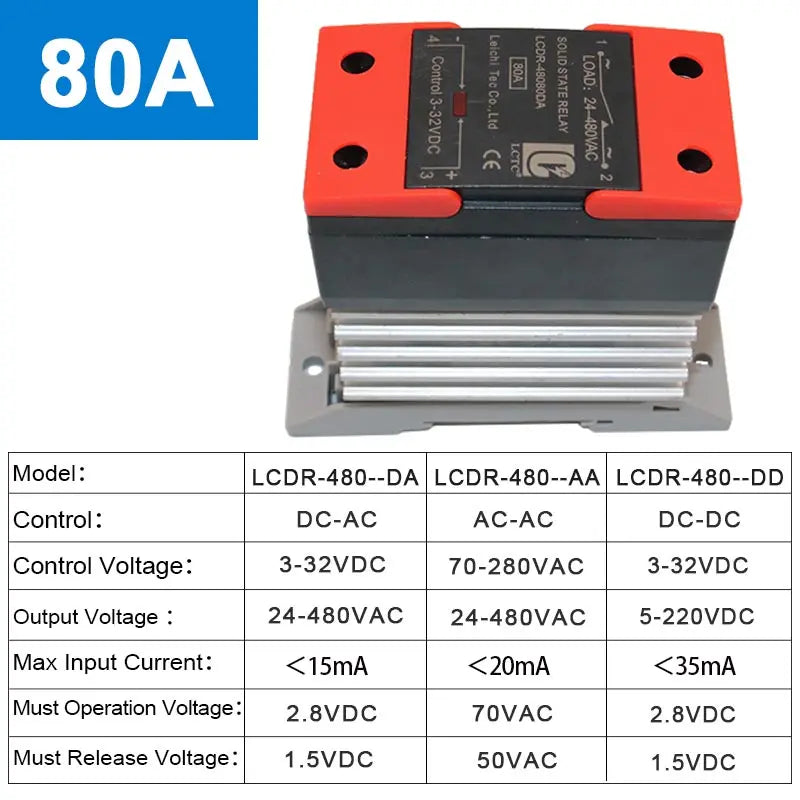

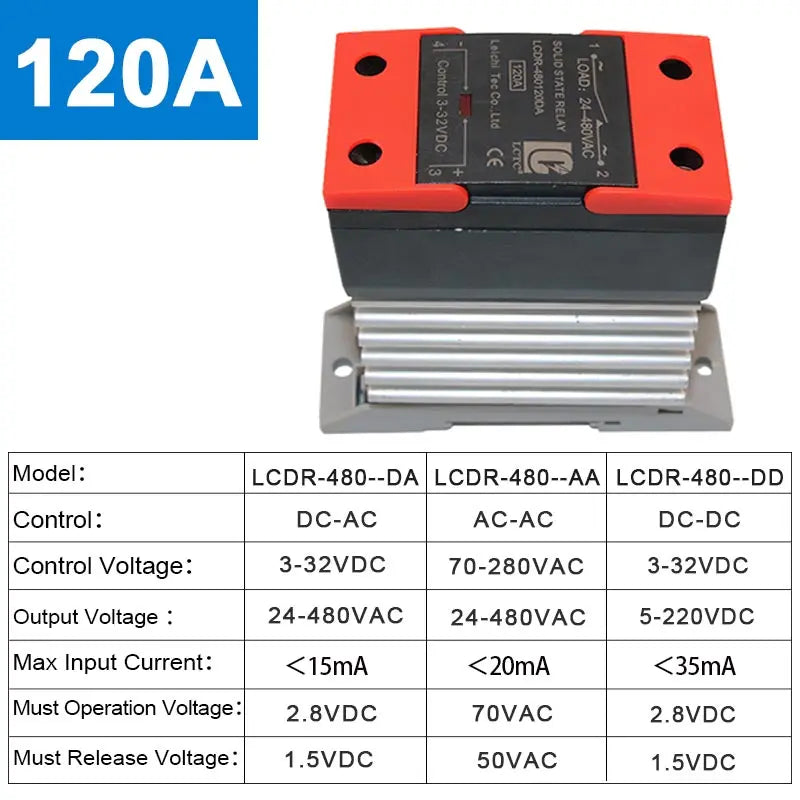

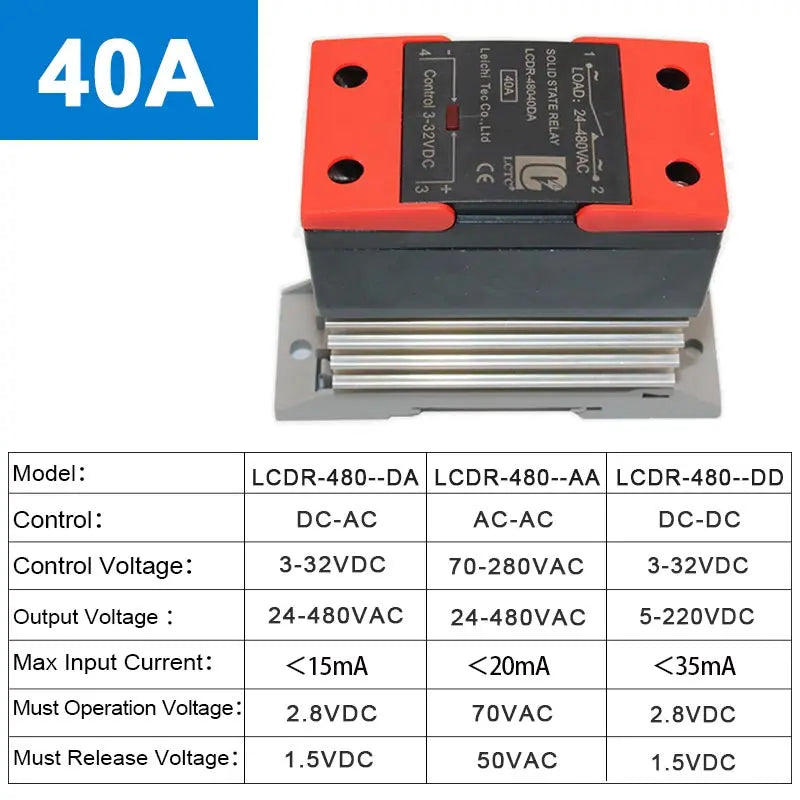

STEP 1: Choose a correct control Model
DA: DC control AC Input: 3-32VDC Load：24-480VAC
AA: AC control AC Input: 70-280VAC Load：24-480VAC

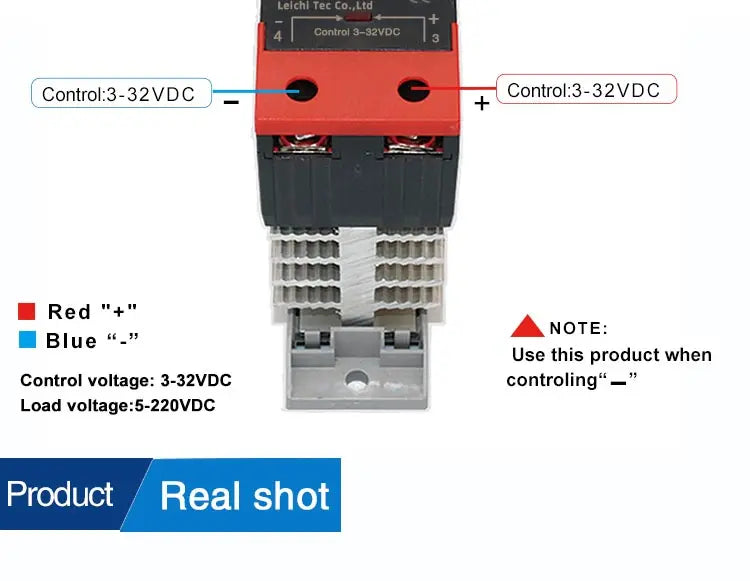

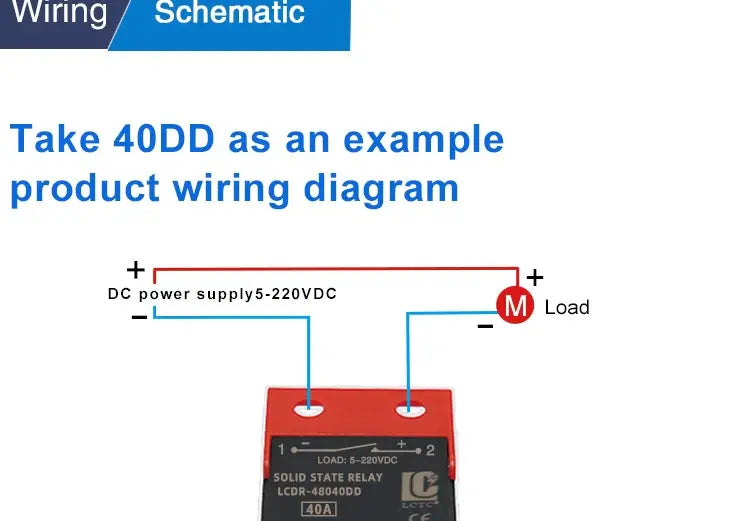

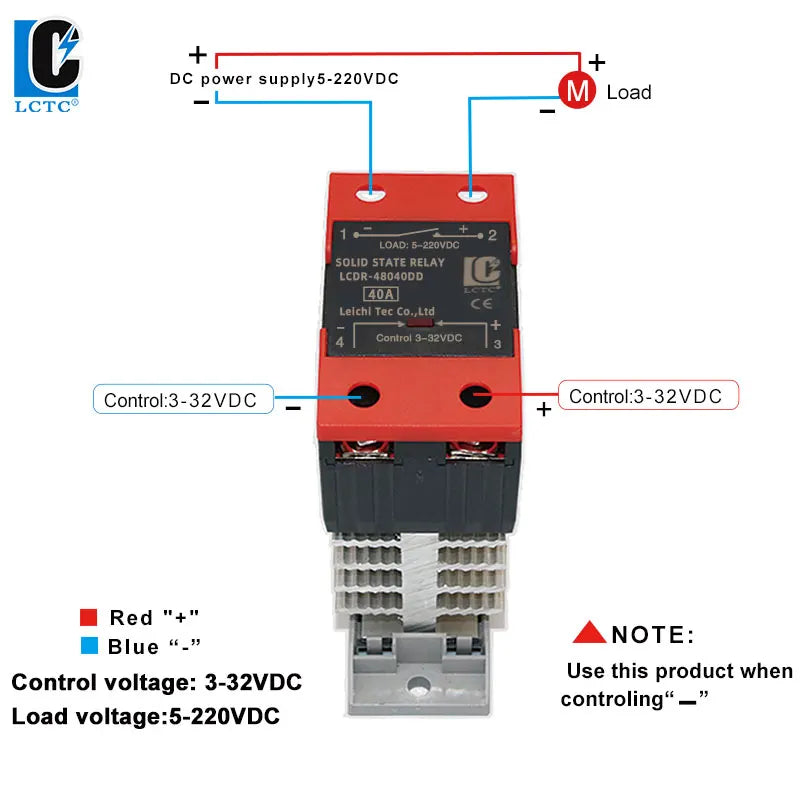

DD: DC control DC Input: 3-32VDC Load：5-220VDC
STEP 2: Choose a correct type for current
For Resistive load: Current of SSR =3 x working current of load
Resistive load such as Resistance furnace, Incandescent lamp, Oven, Heating rod, Electric water heater.
For Inductive load: Current of SSR =6 x working current of load
Inductive load such as Motor,Fan,Transformer,Pump,Air conditioner and other loads with inductives.
For Capacitive load: Current of SSR =10 x working current of load
Capacitive load such as Compensating capactitors,Batteries and other loads with capacitors

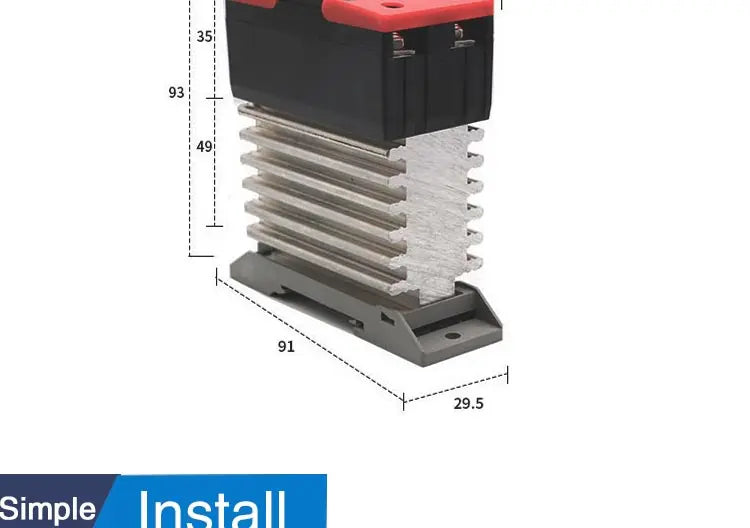

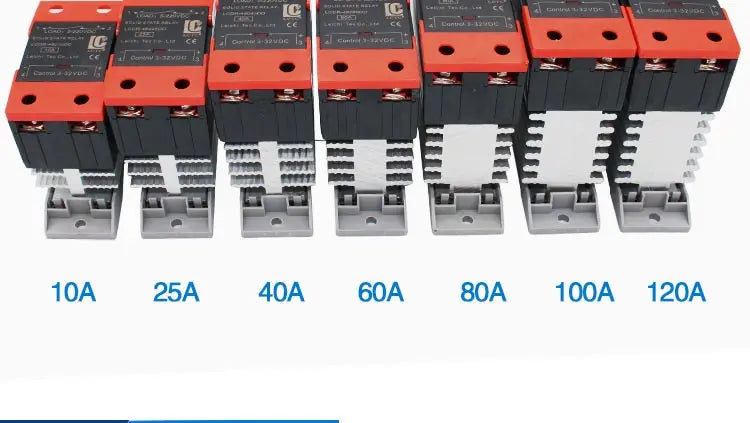

STEP 3: Choose a suitable heat sink.
The temperature of heatsink at use must below 80℃ .Apply heat-conductive silicon grease between SSR and heatsink.
Attentions:
1. SSR cannot be tested without load,and must be added load of more than 50W to test
2. Use fast fuse(70% Amp of rated SSR) to protect SSR from load short circuit.
3: Zero-cross Or Random turn-on.
The default is zero cross SSR.
Random turn-on needs to be customized.
