SPECIFICATIONS

Z390 LGA 1151 ATX gaming motherboard with Aura Sync, DDR4 4266 MHz+, dual M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2

LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

Comprehensive cooling: Onboard M.2 heatsink, water-pump header and a fan-extension header

5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig

Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors

Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action

Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync, DDR4 4266 MHz+, dual M.2, SATA 6Gbps, High Definition Multimedia Interface and USB 3.1 Gen 2

LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

Comprehensive cooling: Onboard M.2 heatsink, water-pump header and a fan-extension header

5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig

Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors

Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action

Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

CPU

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to aduo.asus.com for CPU support list

Memory

4xDIMM,Max.64GB,DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to aduo.asus.com for the Memory QVL (Qualified Vendors Lists).

Storage

Intel® Z390 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

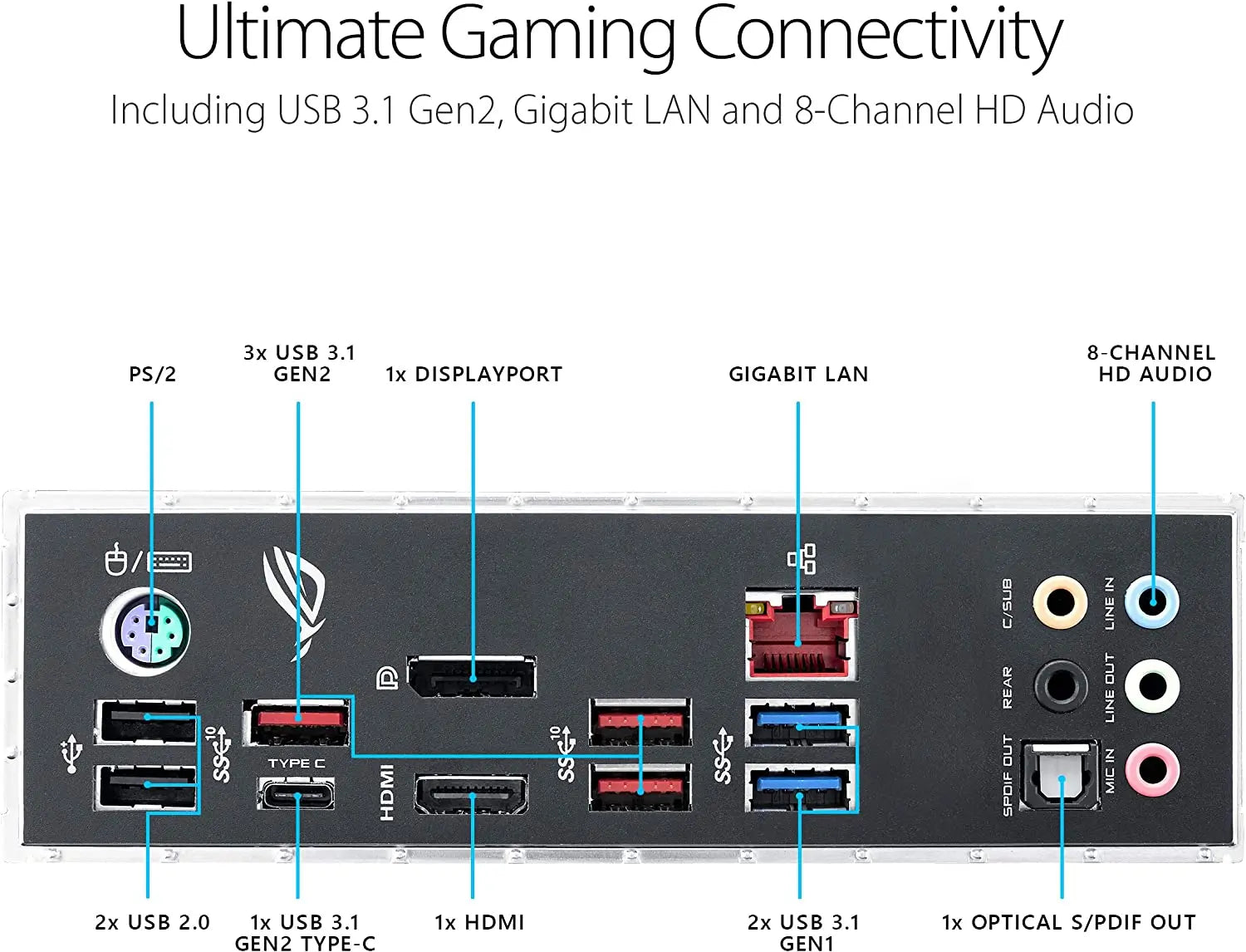

Back I/O Ports

1 x DisplayPort

1 x High Definition Multimedia Interface

1 x LAN (RJ45) port(s)

4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)

2 x USB 3.1 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

Internal I/O Ports

1 x Aura Addressable Strip Header(s)

1 x AAFP connector

2 x Aura RGB Strip Header(s)

1 x USB 3.1 Gen 1 front panel TypeC™ connector

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x M.2_FAN connector

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x MemOK! II switch(es)

1 x Thermal sensor connector(s)

1 x CPU OV

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x 14-1 pin TPM connector

1 x COM port header

1 x AIO PUMP Header
