SPECIFICATIONS

Brand Name: LINCUKOO

Certification: CE,FCC,RoHS

Choice: yes

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

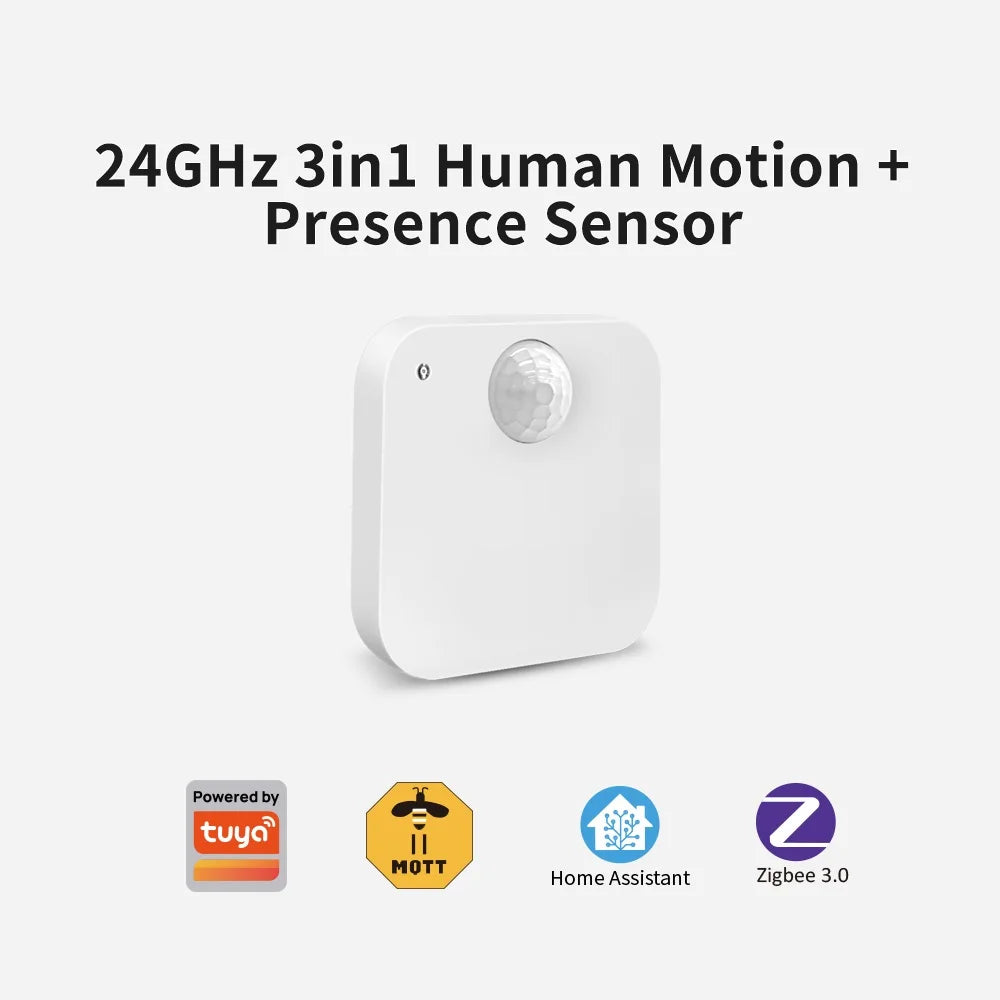

Lincukoo Tuya Zigbee Smart 3in1 Human Motion Presence Sensor Suitable for Tuya and Home Assistant platforms MQTT ZIGBEE3.0

Important Note:

The TZ version only be used on Tuya or Home Assistant platform, need zigbee gateway to use，Go to the link to buy the Tuya gateway

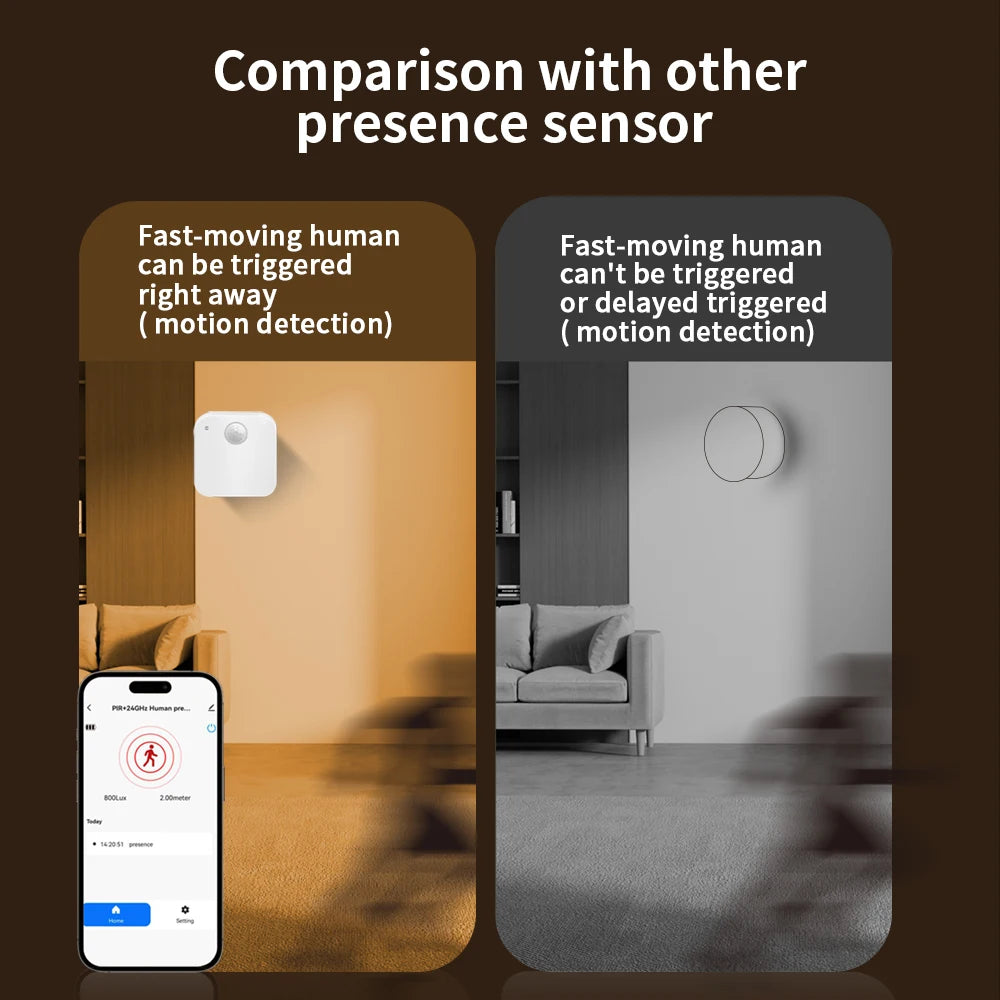

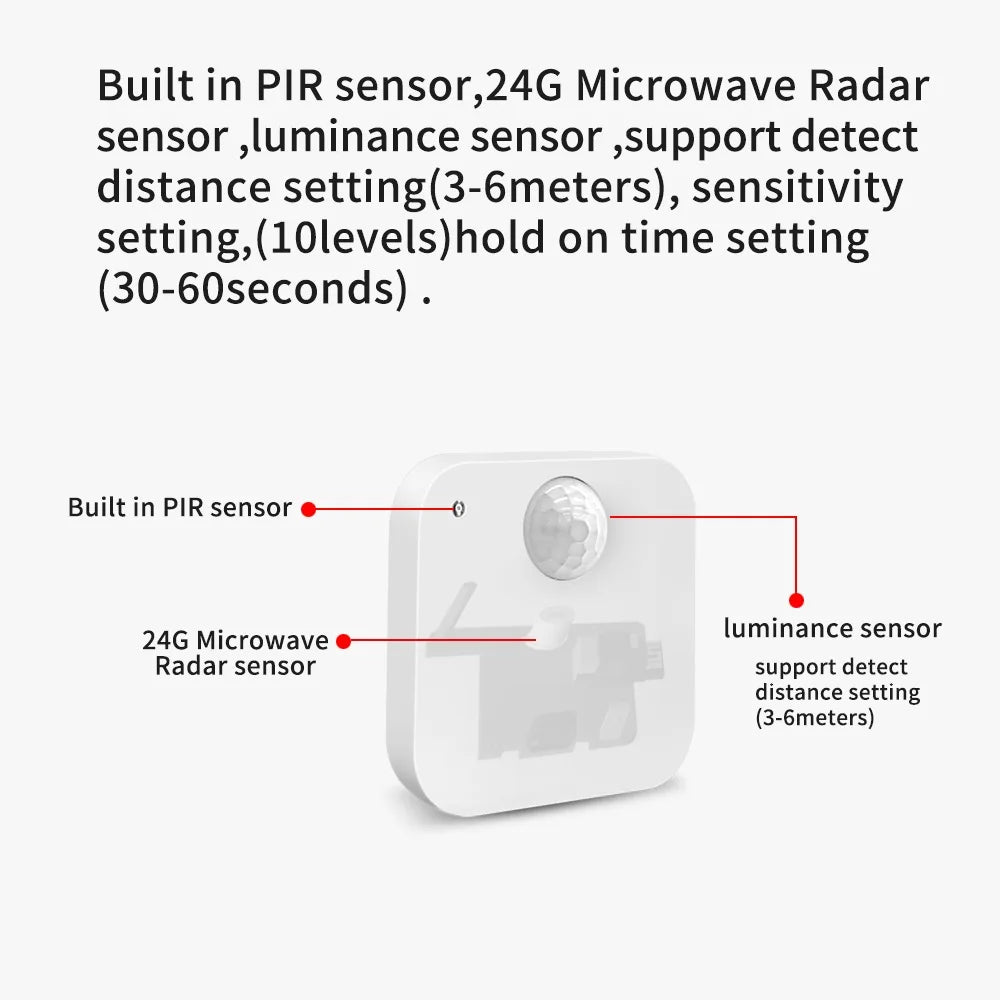

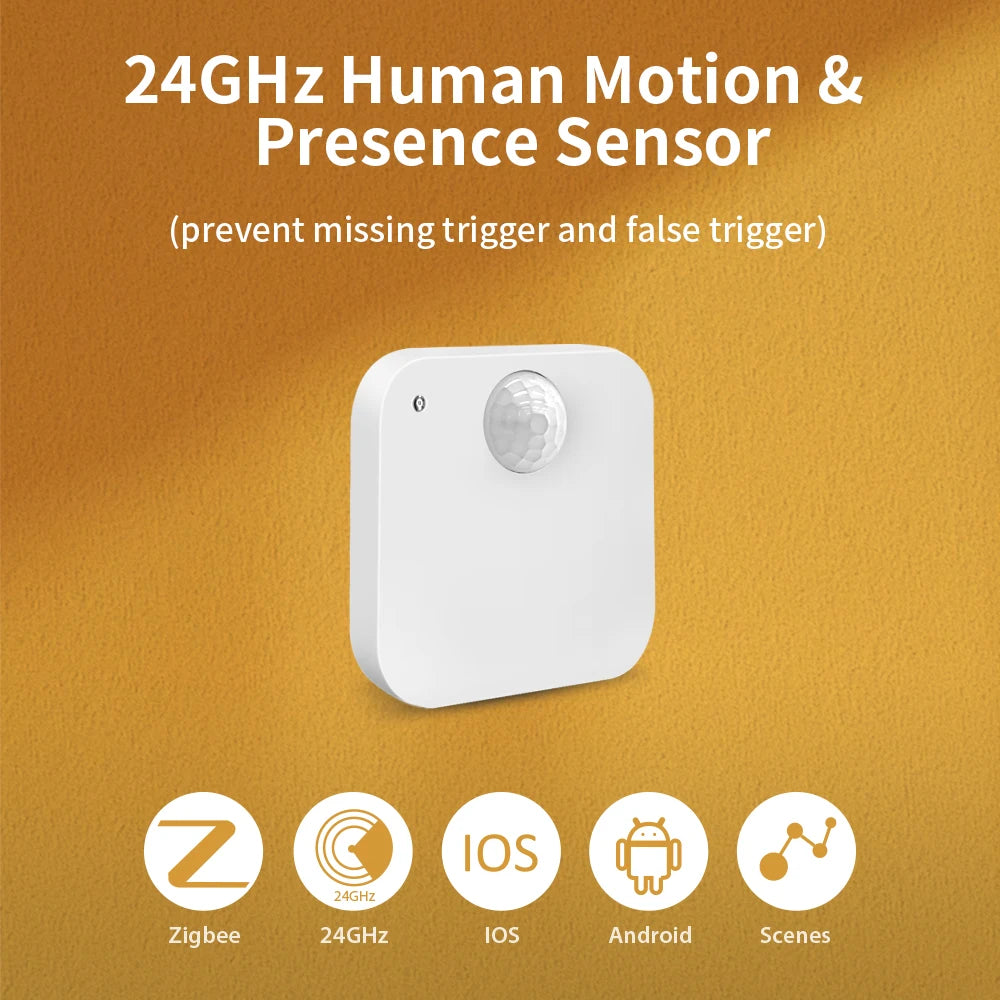

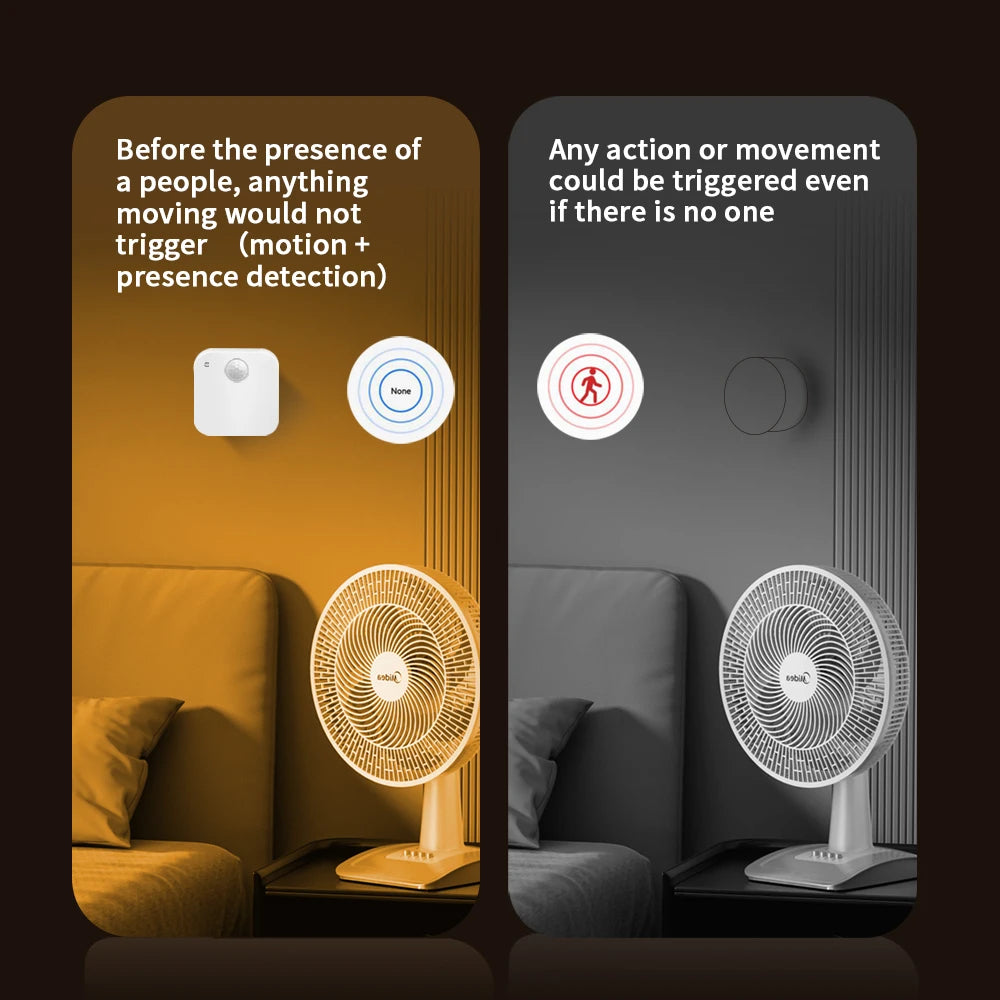

--This sensor not only detects human motion and presence, but also detects the luminance value, the most important is that it can recognize any trigger is caused by human or objects, so that improve the false trigger problem of common presence sensors

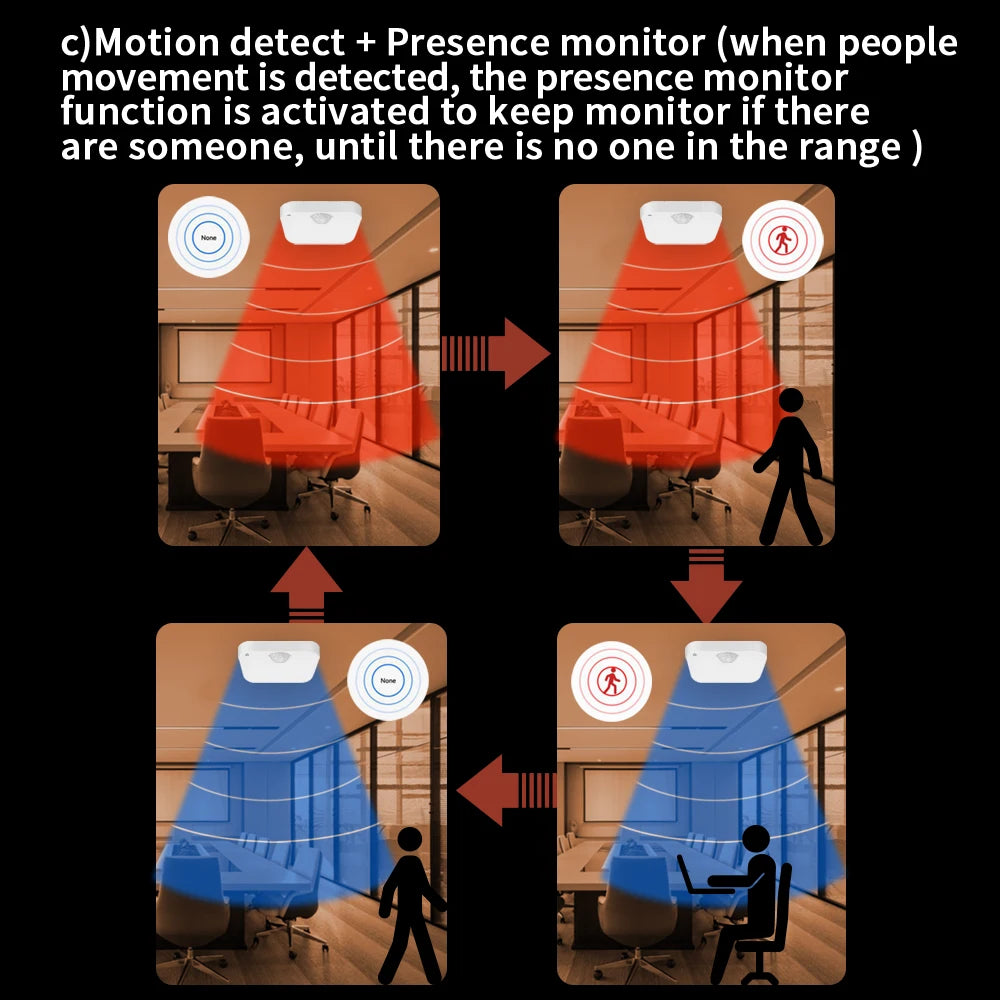

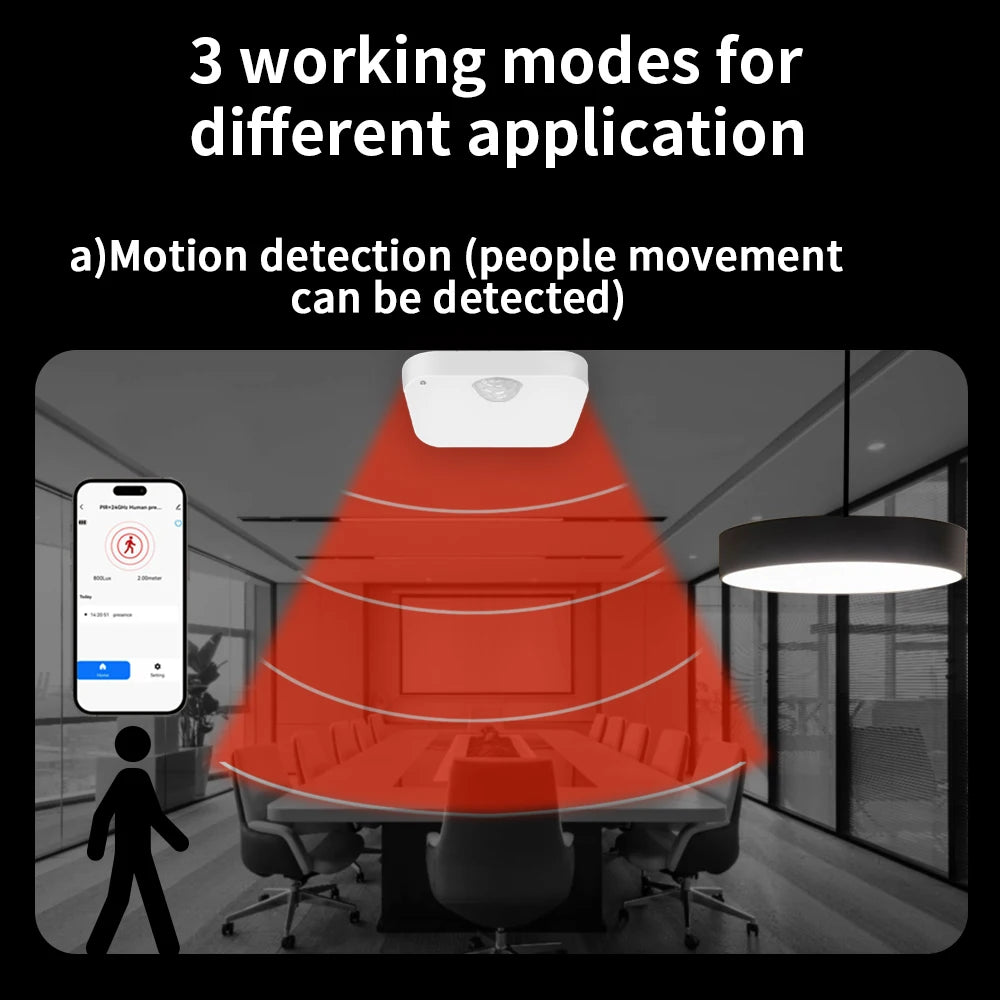

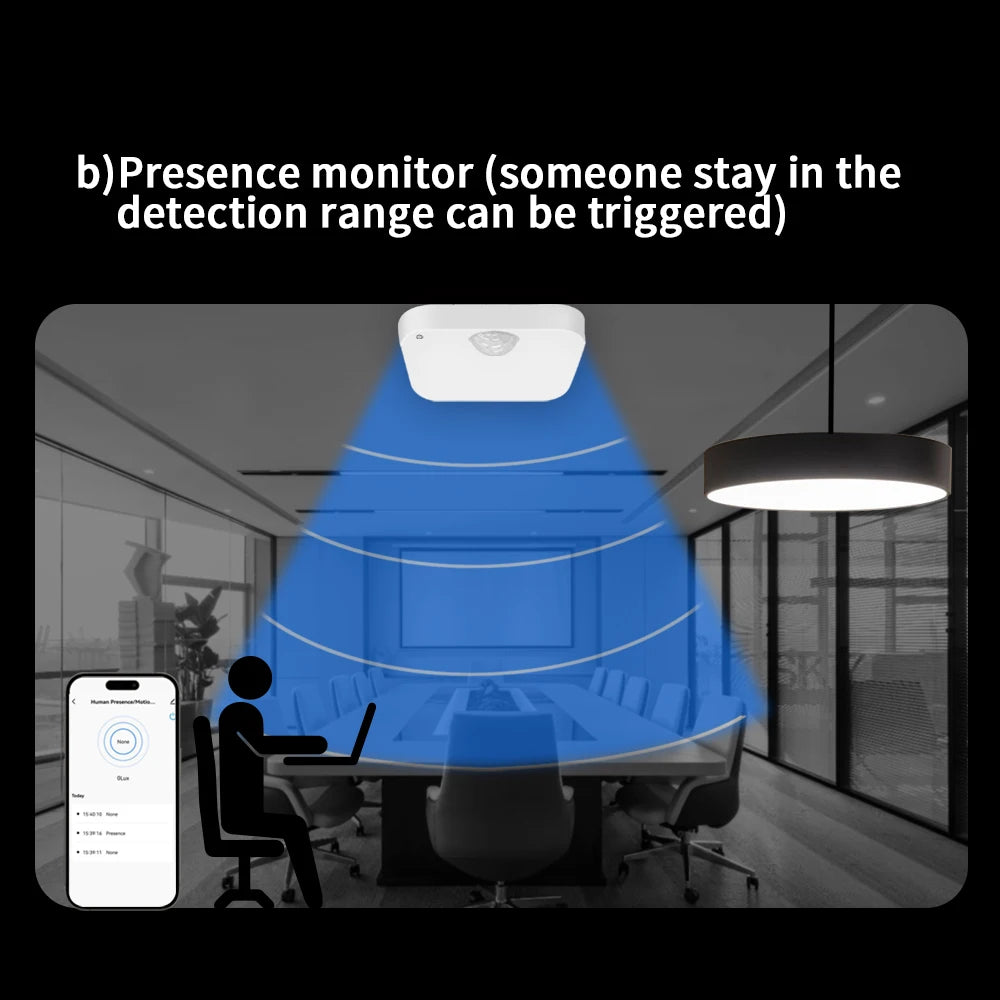

--It has 3working modes (motion mode, presence mode and combination mode), to meet kinds of needs for person detection, the motion mode detects the action of human, the presence mode detects if there is someone in the range for long time, and the combine mode will detect the human actionfirst, and then the radar starts to monitor if the person is in the range.

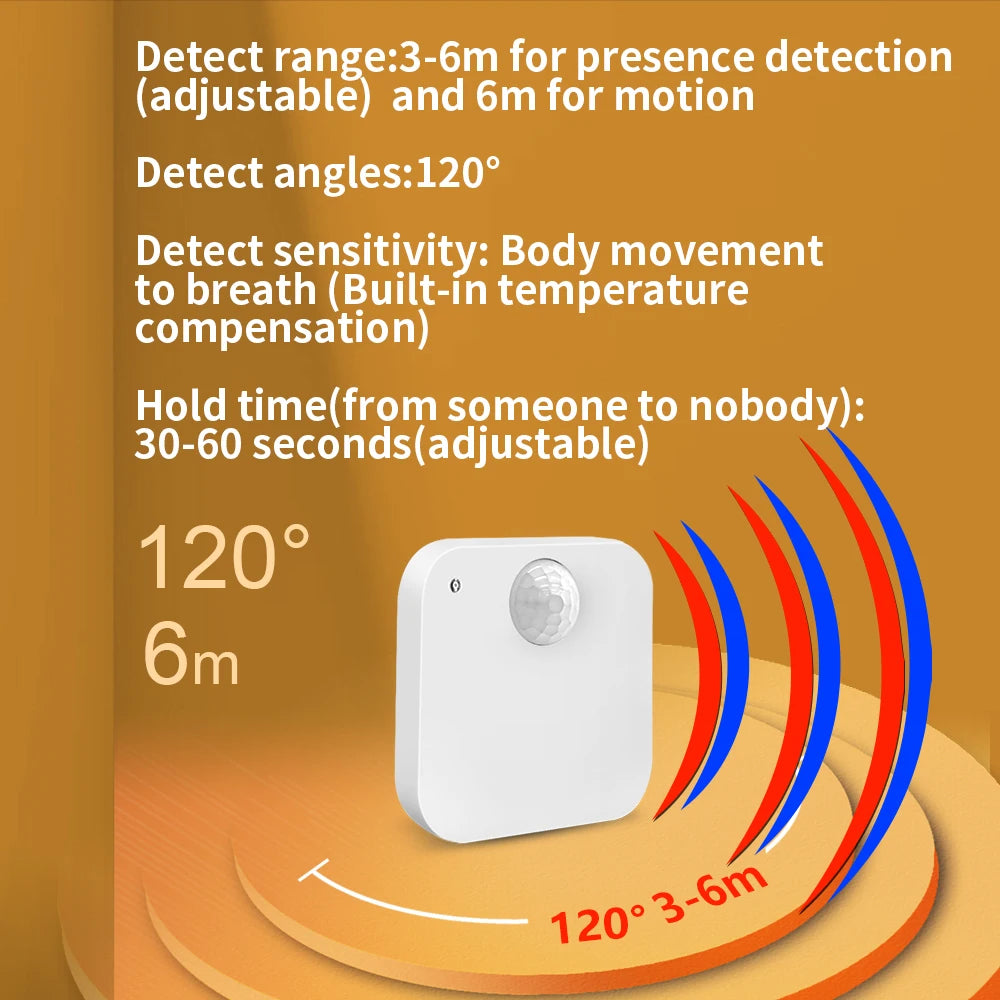

--Both the detect distance(3-6meters), the sensitivity(10 levels) and the hold on time(the delay after a person leaves the detect range) are adjustable, the luminance range is 0-1000lux.

--Suitable for rooms that require the light/air conditioner/curtain etc to be turned on when someone is present for long time and turned off when there is no one there, such as meeting room, reading room, living room…

--Support linkage with other devices through gateway, for example, if there is someone is detected in range, turn on the light and keep, until there is no one in the range, then turn off the light.

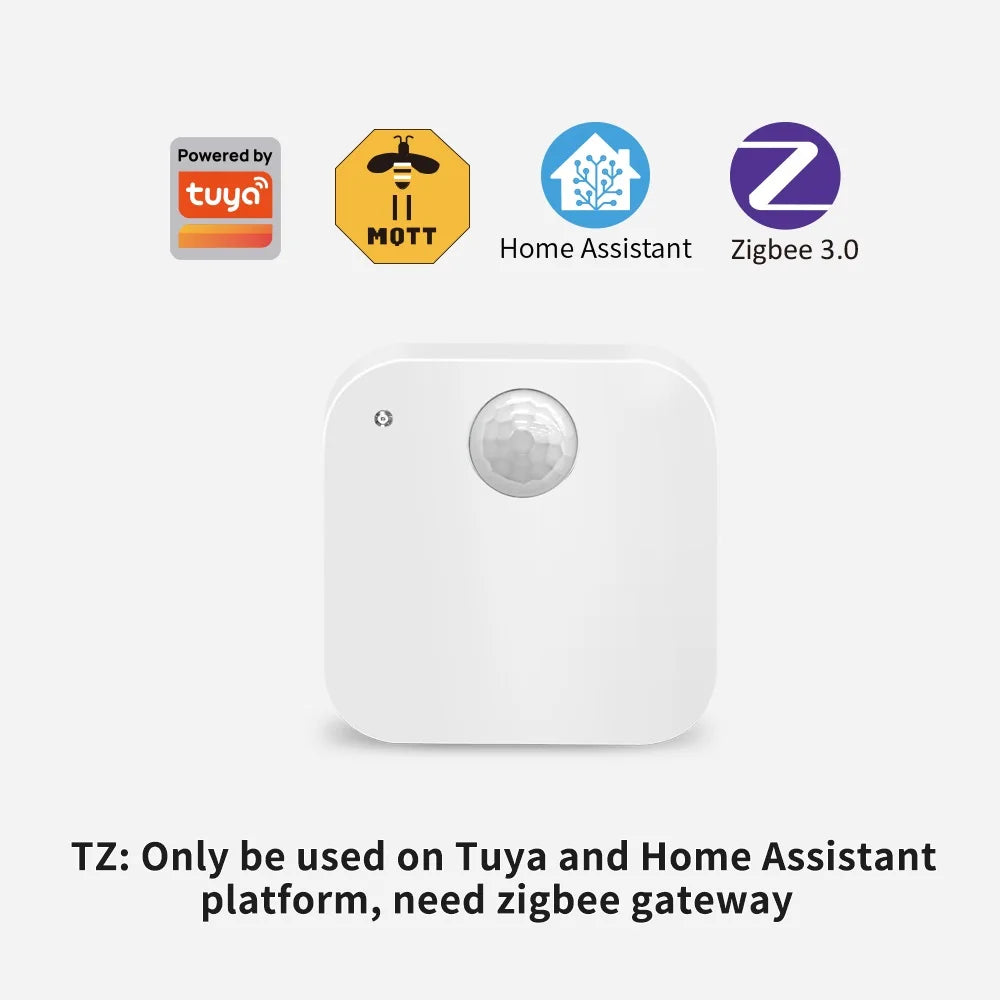

Version:TZ

Platform support:Tuya ,Home Assistant

Transmission Protocol ：Zigbee

Zigbee to MQTT support ：Yes

Transmission distance(max)：40meters

Detection mode：Motion, Presence, Combination

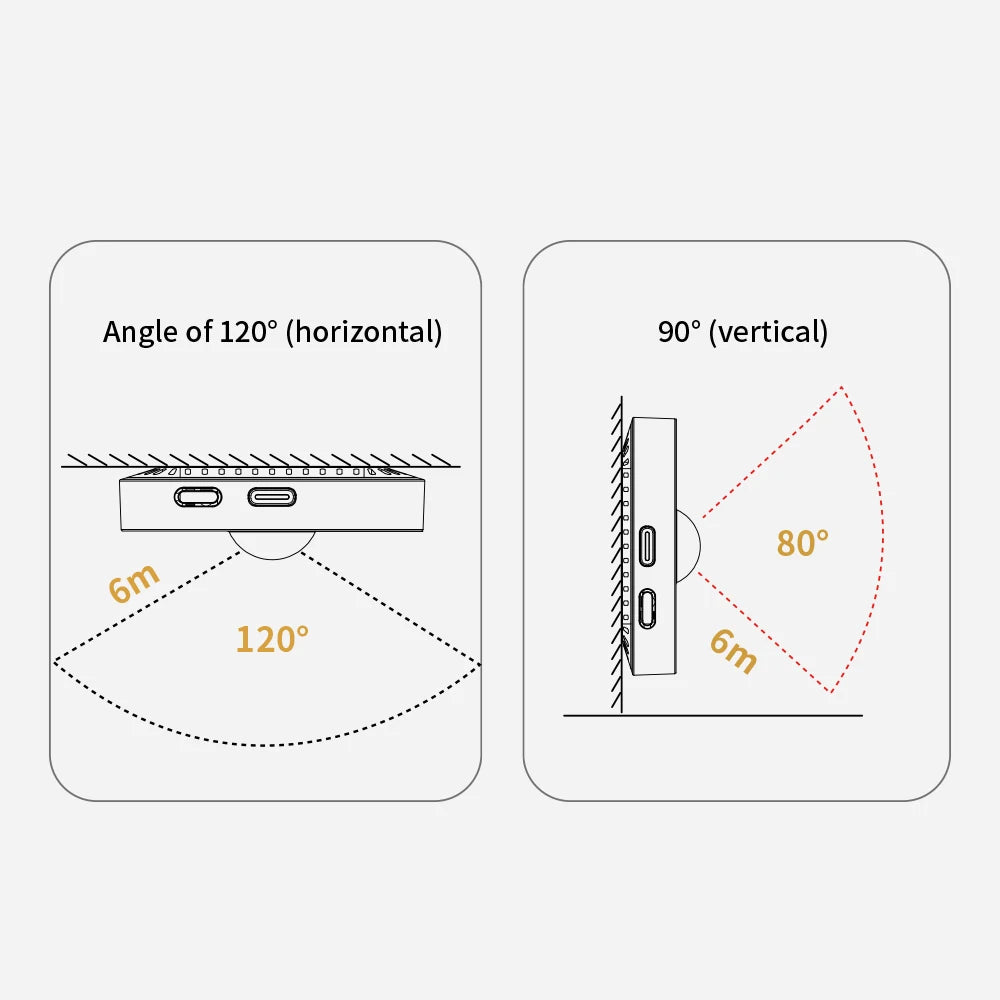

Detect range：3-6meters adjustable

Sensitivity adjustable：10 levels

Luminance Range：0-1000lux

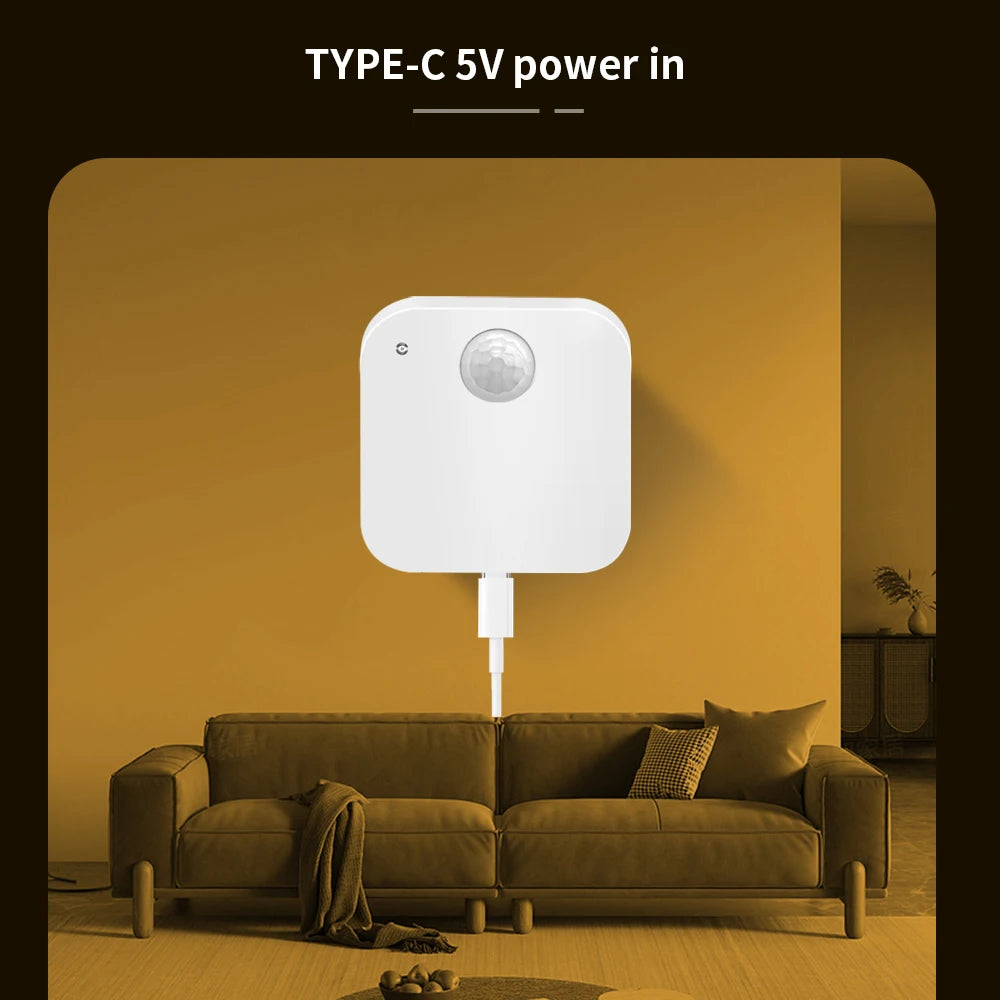

Power in：5v type-c

IP grade ：IP64

Size：60*60*10mm

Install mothed：Double-sided tape

Certification ：CE,Rohs,FCC
