SPECIFICATIONS

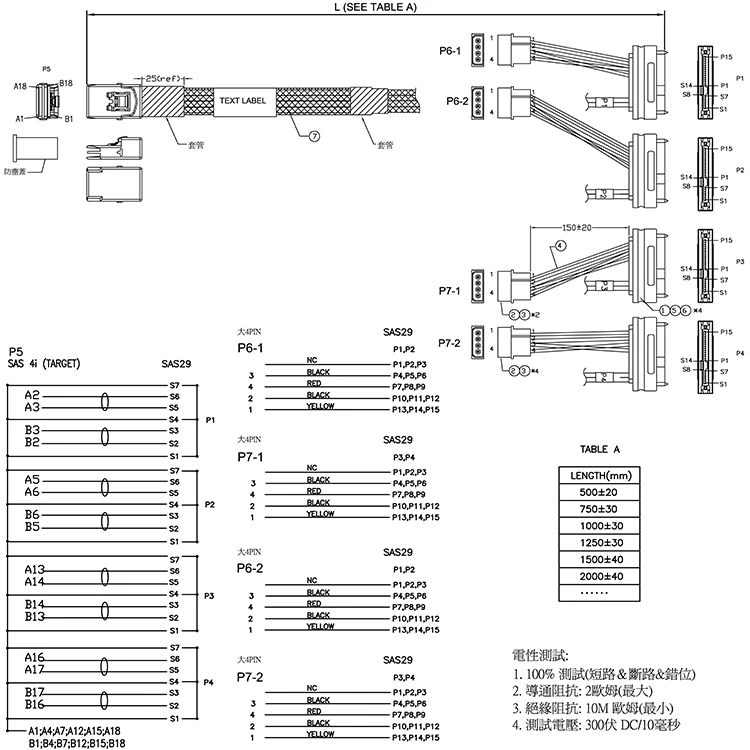

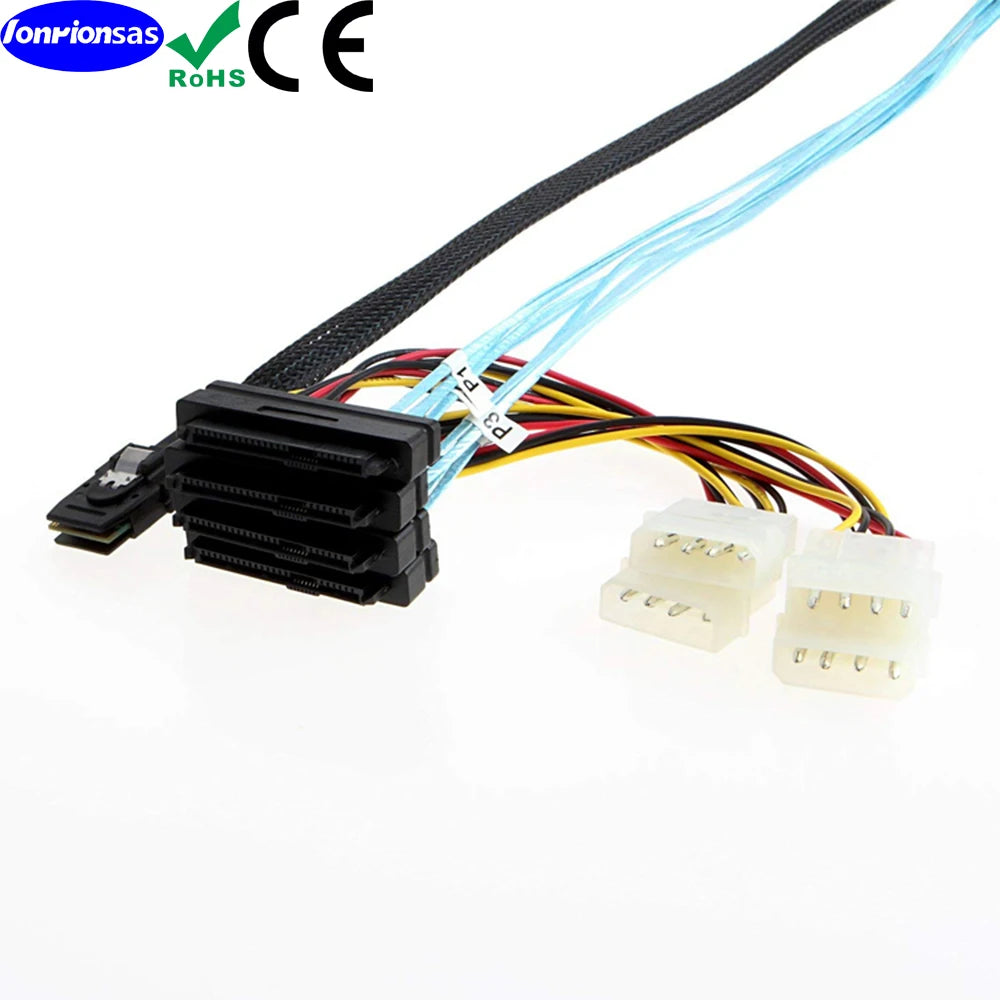

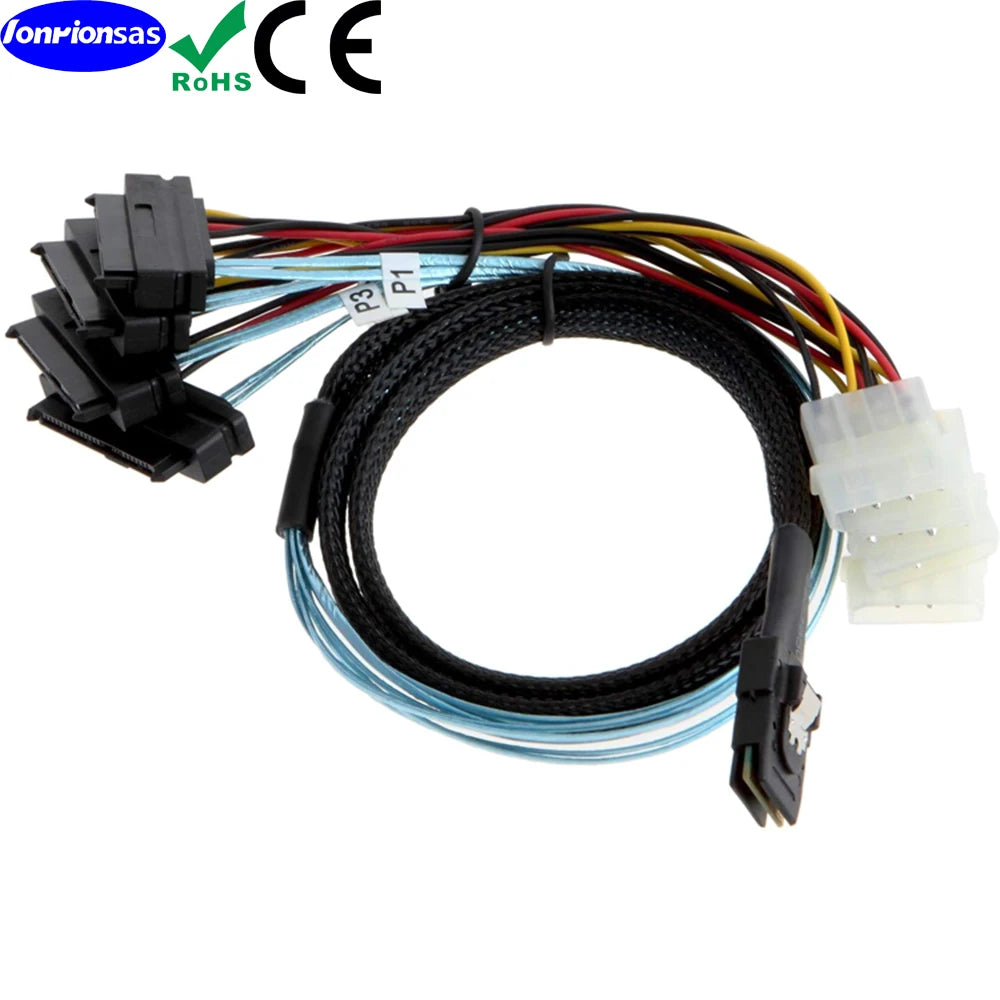

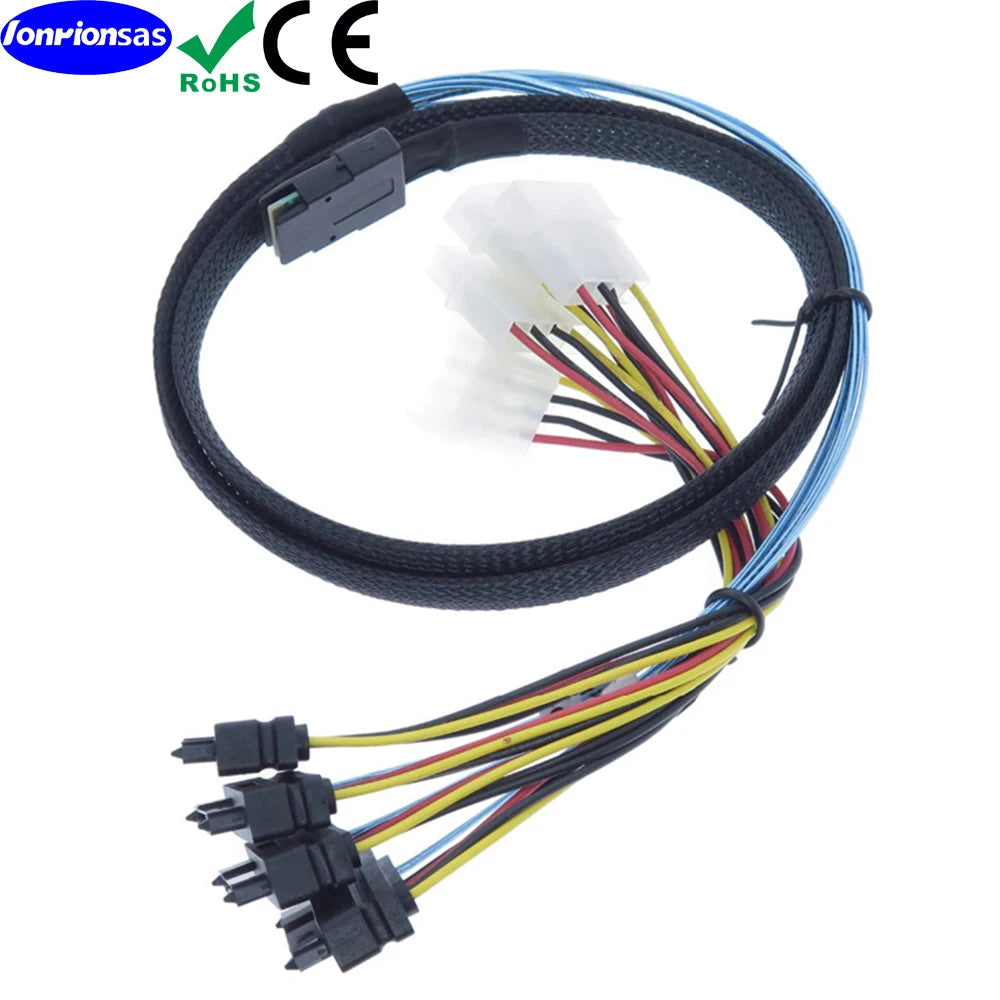

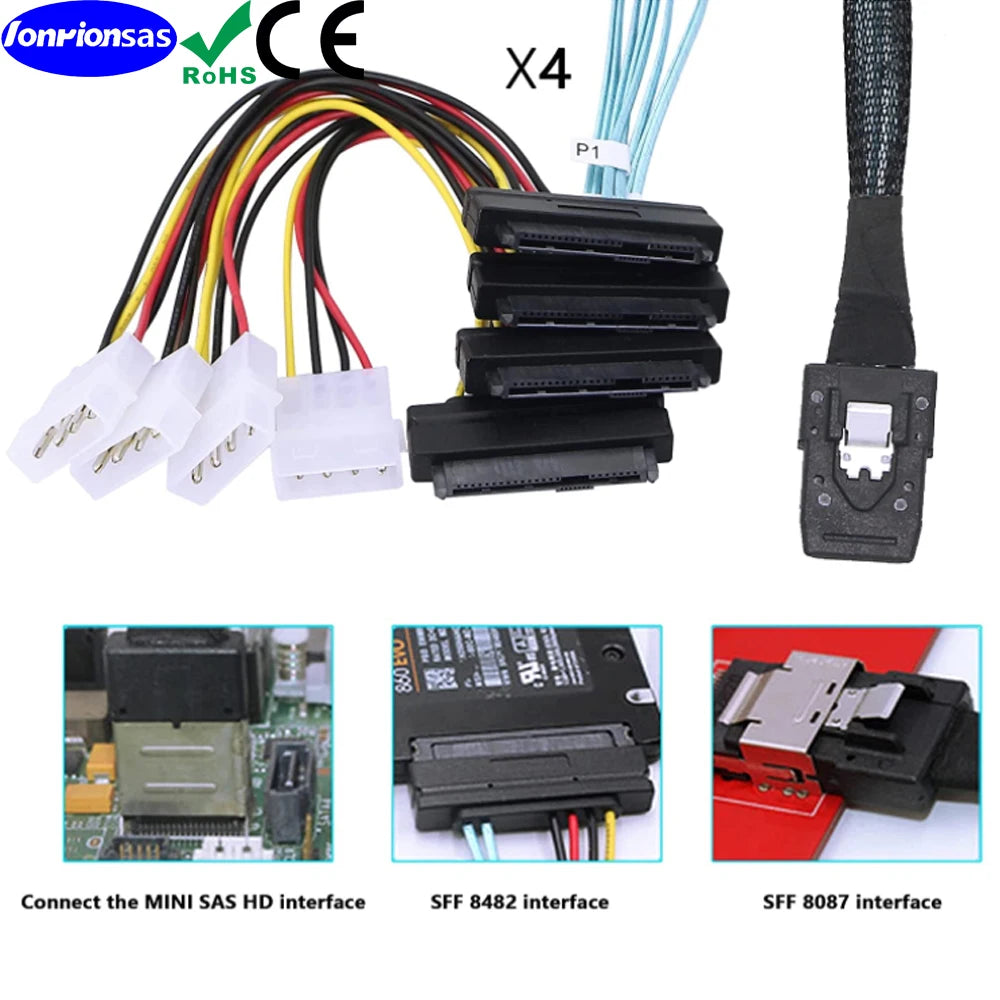

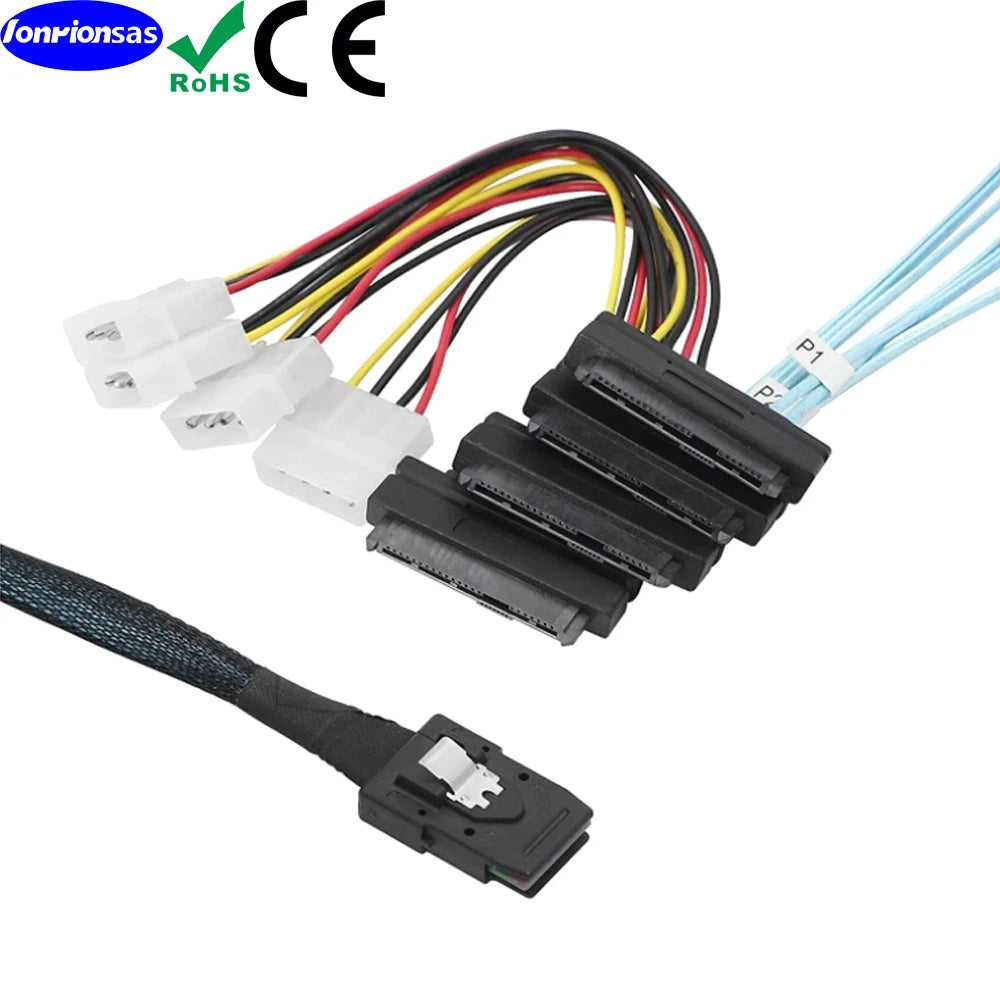

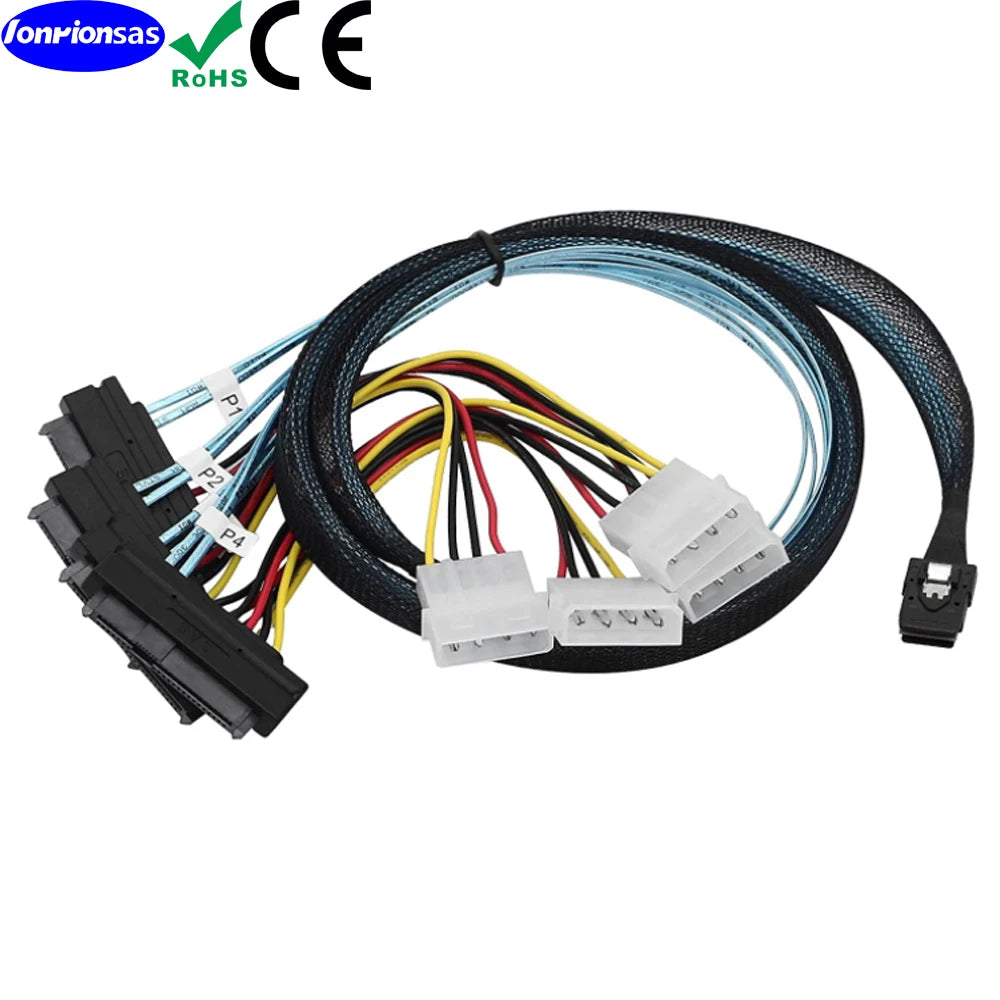

Product Description:

Series: Mini SAS

Cable Length: 0.5M /1M

Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM

Lock to Mating Part: With Latch

Plating: Au 30u' min over Ni 100u' min

Color: Cable white, Over mold Black

Environmental Compliance: ROHS

Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Applications

Data/Communications

1.RAID (Redundant Array of Independent Disks)

2.Workstations

3.Rack-mount server

4.Servers

5.Storage rack

Features and Benefits

1.Transmission rate 12Gbps.

2. Meet SAS4.0 specification.

Mechanical Performance

Mating Force and Unmating Force

Condition: EIA 364-13. Insert and extract at a speed of

25mm/minute.

Mating Force: 55 N maximum for Mini SAS.

Unmating Force: 49 N maximum for Mini SAS.

Electrical Performance

1.Contact Current Rating

0.5Amperes maximum per pin when mated.

2.Voltage Rating

30VAC per contact when mated or unmated.

3.Contact Resistance

30mohm max. initial, 15mohm maximum after stress test.

4.Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

5.Insulation Resistance

1000 Mohm minimum.

Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz;

6. Crosstalk: -26 dB up to 6Ghz;

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
