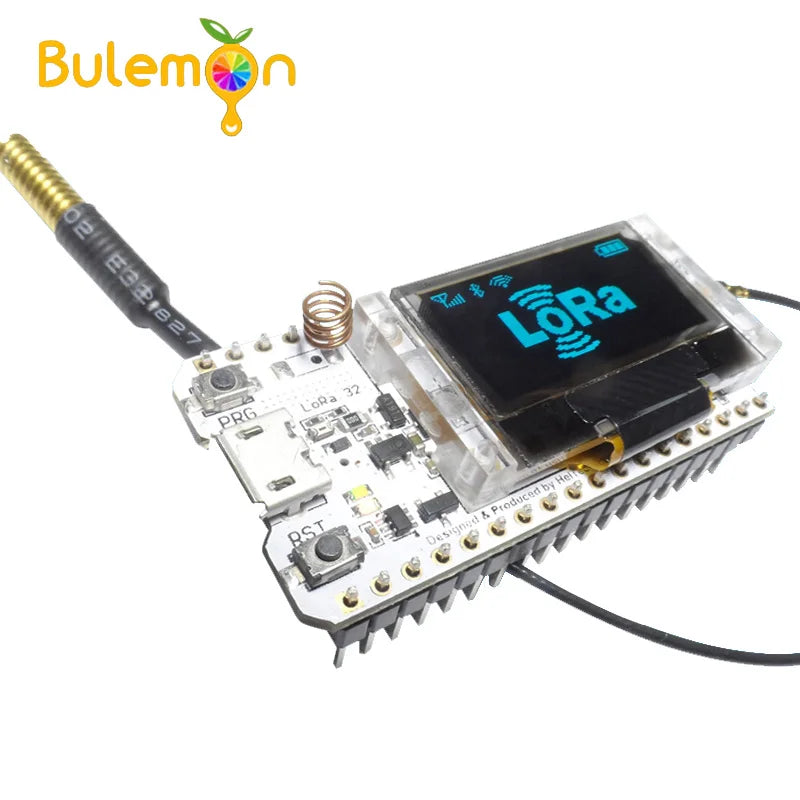

LoRa ESP32 -V3 0.96 Inch Blue OLED Display SX1262 WIFI Lora Kit 32 Module Internet Development Board for Arduino w/Antenna

LoRa ESP32 -V3 0.96 Inch Blue OLED Display SX1262 WIFI Lora Kit 32 Module Internet Development Board for Arduino w/Antenna

$80.44

$80.44 $0.00

Description

SPECIFICATIONS

Brand Name: ReYeBu

Condition: New

Frequency: 433-510MHz

Model Number: LoRa ESP32 OLED Development Board

Operating Temperature: -40 Celsius~90 Celsius

Origin: Mainland China

Supply Voltage: 3.3V to 7V

Supports: Sniffer, Station, softAP and Wi-Fi Direct modes.

Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n.

Type: Voltage Regulator

Version: V3

is_customized: Yes

If you need the information of this product,please contact us.

If you need the 863MHz and 928 MHz,Please click here.

WIFI Kit series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth-compatible (traditional Bluetooth-compatible and BLE low power Bluetooth-compatible).

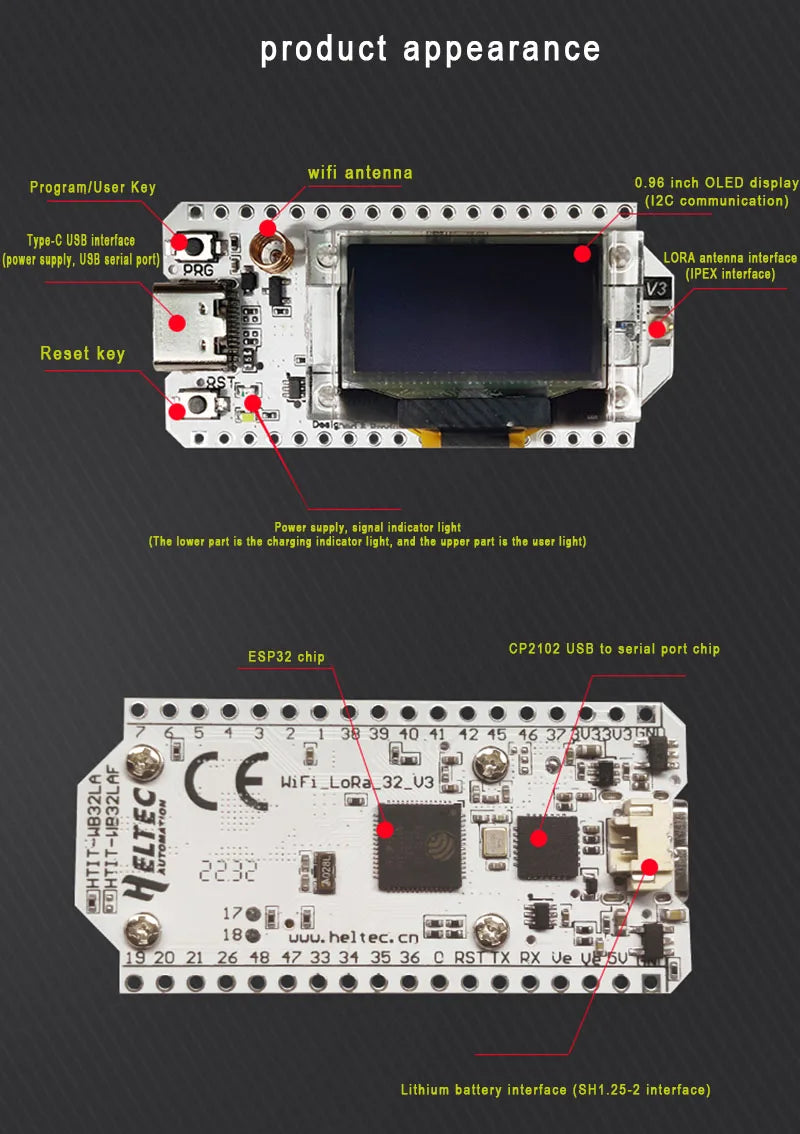

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Support frequency band: 433-510MHz

Main frequency: 240MHz

FLASH: 8Mbyte

Processor: Xtensa 32-bit LX7 dual-core processor

Main control chip: ESP32-S3FN8

LoRa chip: SX1262

Deep Sleep: <10µA

Open communication distance: 2.8KM

USB transfer interface chip: Cp2102

Dual-mode Bluetooth: Traditional Bluetooth and BLE Bluetooth Low Energy

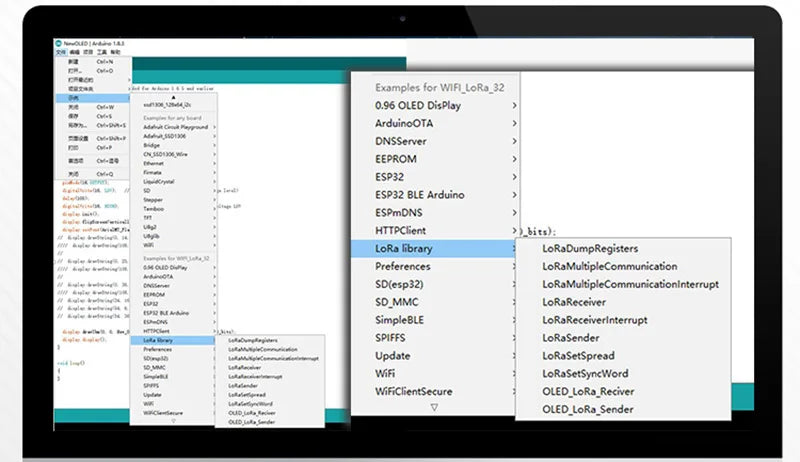

Development environment: perfect support for Arduino

Working voltage: 3.3~7V

Working temperature range: -20~70°C

Receiver sensitivity: -139dbm (Sf12, 125KHz)

Support mode: WIFI Bluetooth LORA

Support Arduino lDE

Support Espressif SDK, support Arduino, support MircoPython, support NodeMCU

Fully supports LoRaWAN protocol

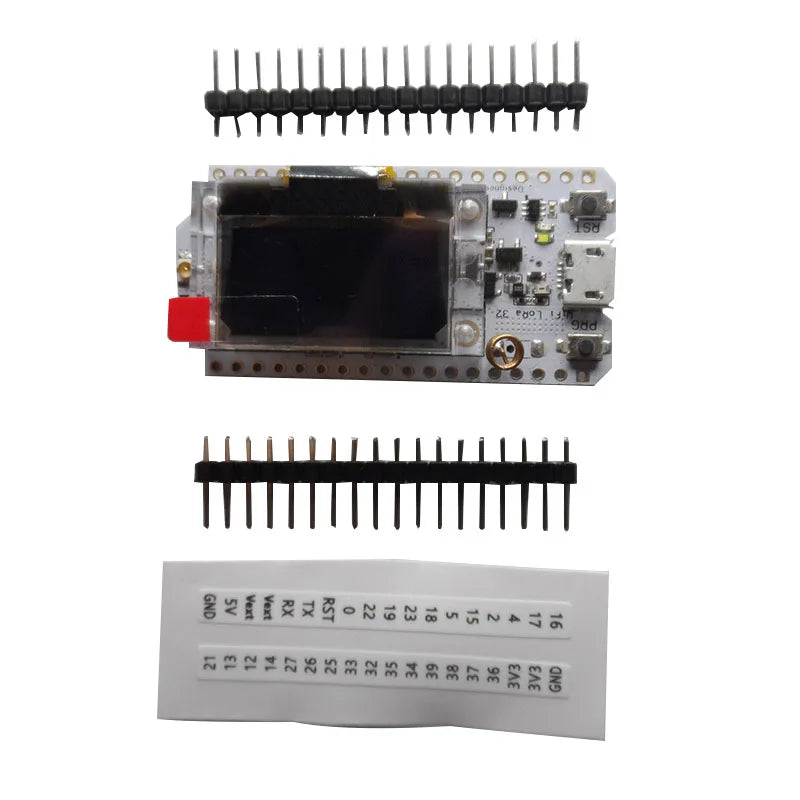

Default delivery: no soldering pin headers, no sticking pin stickers. If you order large quantities, you need to weld on your behalf and contact customer service.
