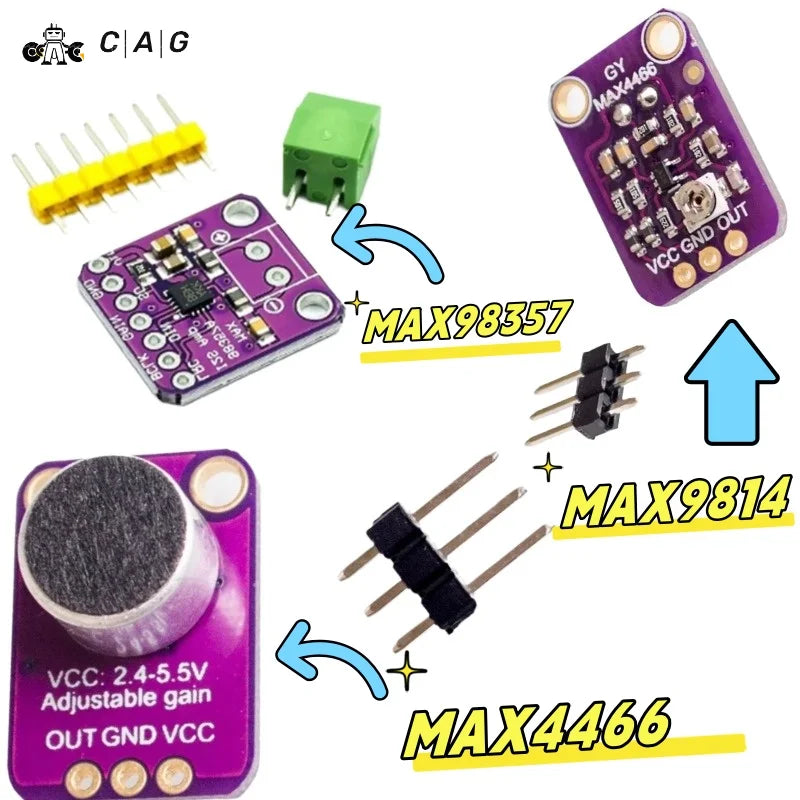

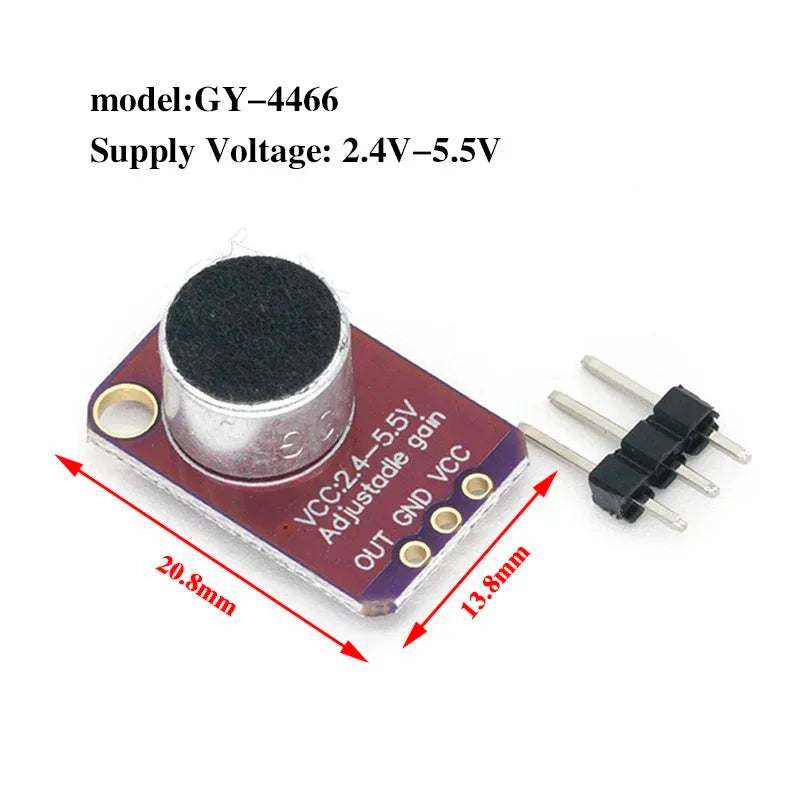

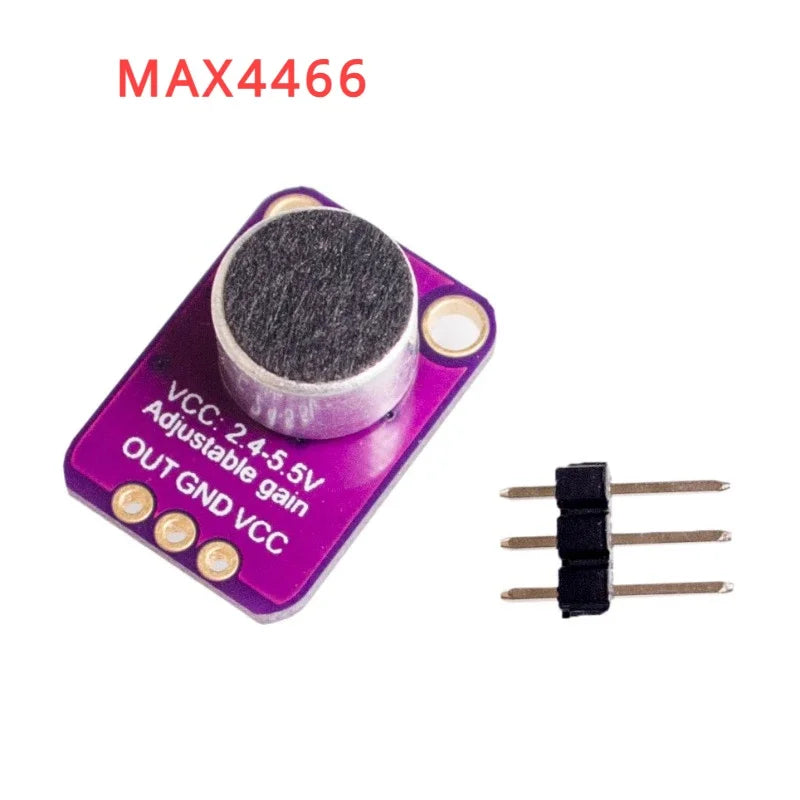

MAX4466:

Description:

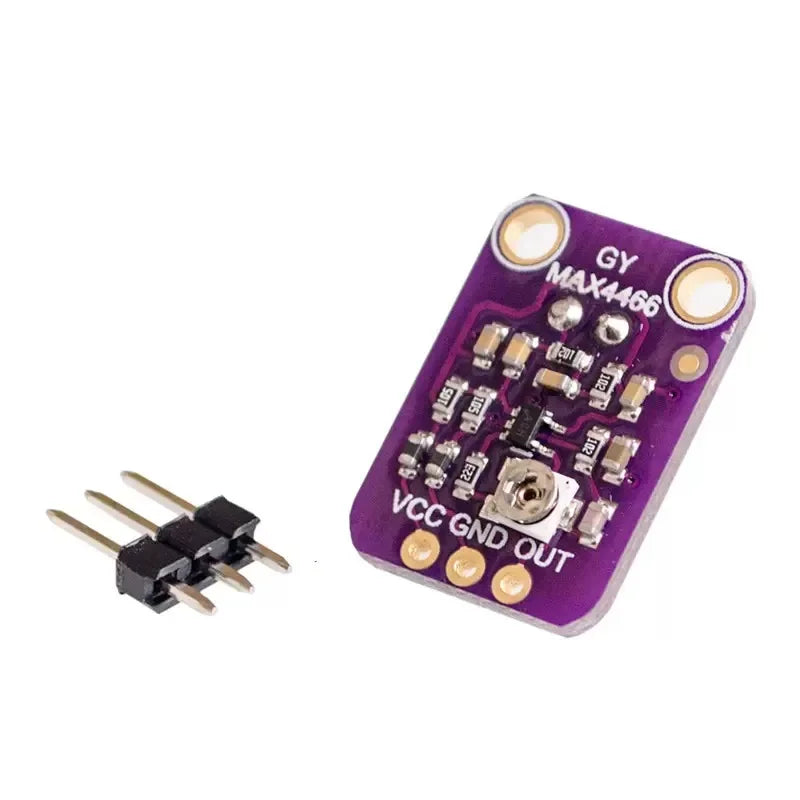

Add an ear to your project with this well-designed electret microphone amplifier. This fully assembled andtested board comes with a 20-20KHz electret microphone soldered on. For the amplification, we use theMaxim MAX4466, an op-amp specifically designed for this delicate task! The amplifier has excellent powersupply noise rejection, so this amplifier sounds really good and isn't nearly as noisy or scratchy as othermic amp breakouts we've tried!This breakout is best used for projects such as voice changers, audio recordingmpling, and audio-reactive projects that use FFT. On the back, we include a small trimmer pot to adjust the gain. You canset the gain from 25x to 125x. That's down to be about 200mVpp (for normal speaking volume about 6"away) which is good for attaching to something that expects 'line level' input without clipping, or up toabout 1Vpp, ideal for reading from a microcontroller ADC. The output is rail-to-rail so if the sounds getsloud, the output can go up to 5Vpp!
Using it is simple:
Connect GND to ground, VCC to 2.4-5VDC.For the best performance, use the "quietest" supply available (on an for Arduino, this would be the 3.3V supply).The audio waveform will come out of the OUT pin. The output will have a DC bias of VCC/2 so when itsperfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled). If the audio equipment you're usingrequires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device. Ifyou're connecting to an audio amplifier that has differential inputs orincludes decoupling capacitors, the100uF cap is not required.The output pin is not designed to drive speakers or anything but the smallest in-ear headphones- you'll needan audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers. If you'reconnecting to a microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUTpin directly to the microcontroller ADC pin.For audio-reactive projects, we suggest using an FFT driver library which can take the audio input and 'translate' it into frequencies.

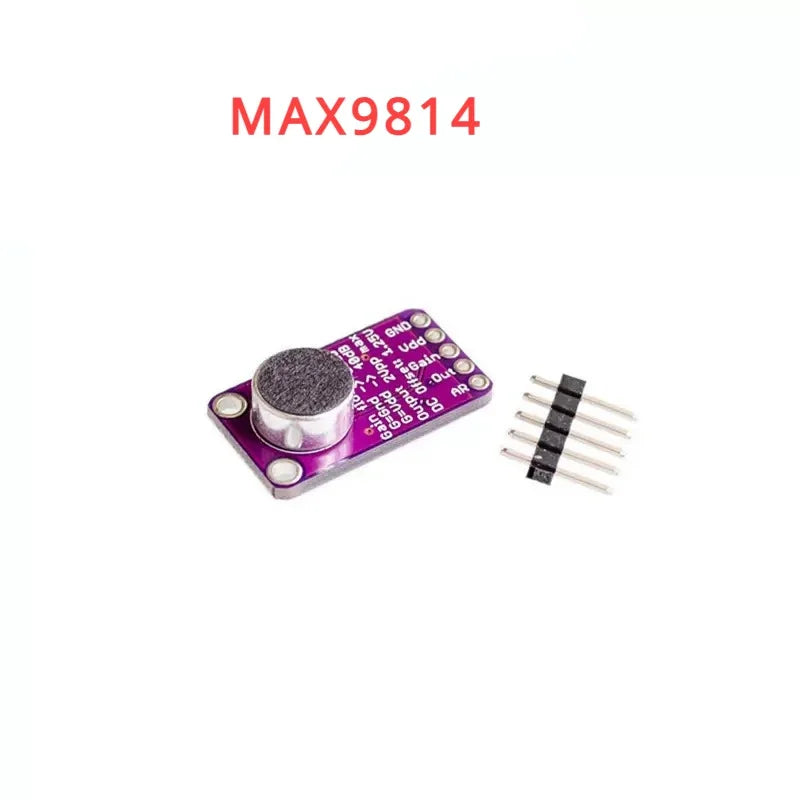

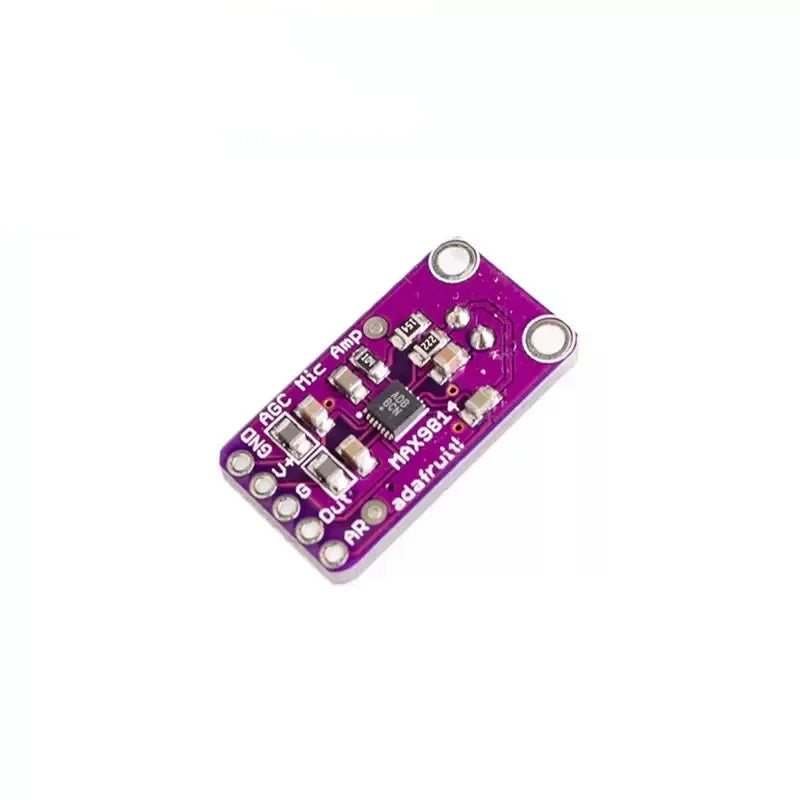

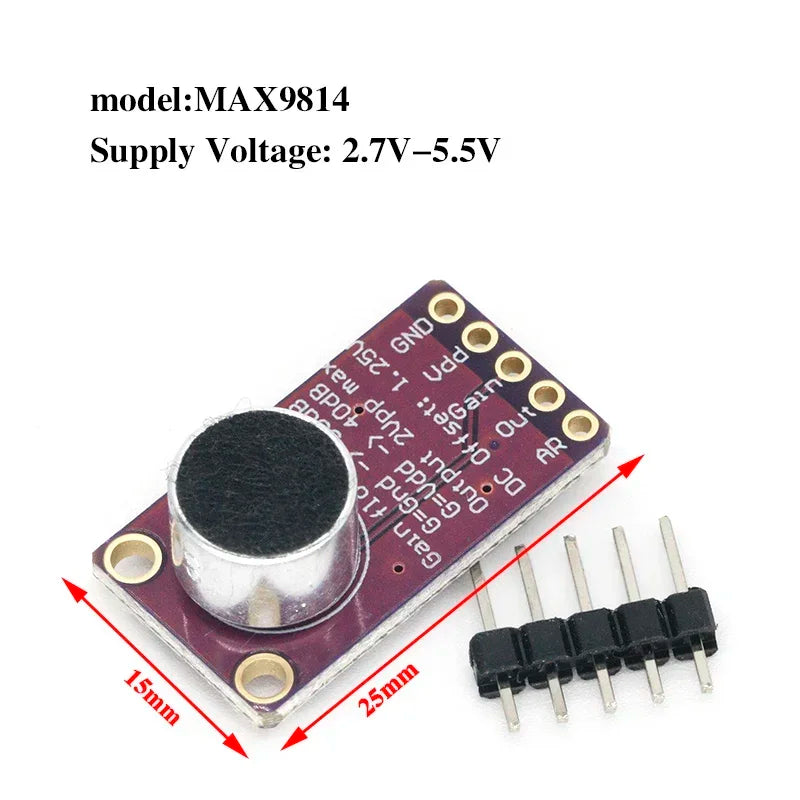

MAX9814:

Specifications:
- Supply Voltage: 2.7v-5.5v @ 3mA current
- Output: 2Vpp on 1.25V bias
- Frequency Response: 20Hz - 20KHz
- Programmable Attack and Release Ratio
- Automatic gain, selectable max from 40dB, 50dB or 60dB
- Low Input-Referred Noise Density of 30nV/
- Low THD: 0.04% (typ)
