SPECIFICATIONS

Brand Name: NONE

Certification: UL

Electrified: No

Feature: Cool / Hot Air,Temperature Adjustable,Temperature Digital Display

High-concerned chemical: none

Model Number: Yarboly 958D

Origin: Mainland China

Power Source: Ac

Rated Output Power: 600W

Rated Voltage: 110V

Use: Home DIY

Weight: 630G

is_customized: Yes

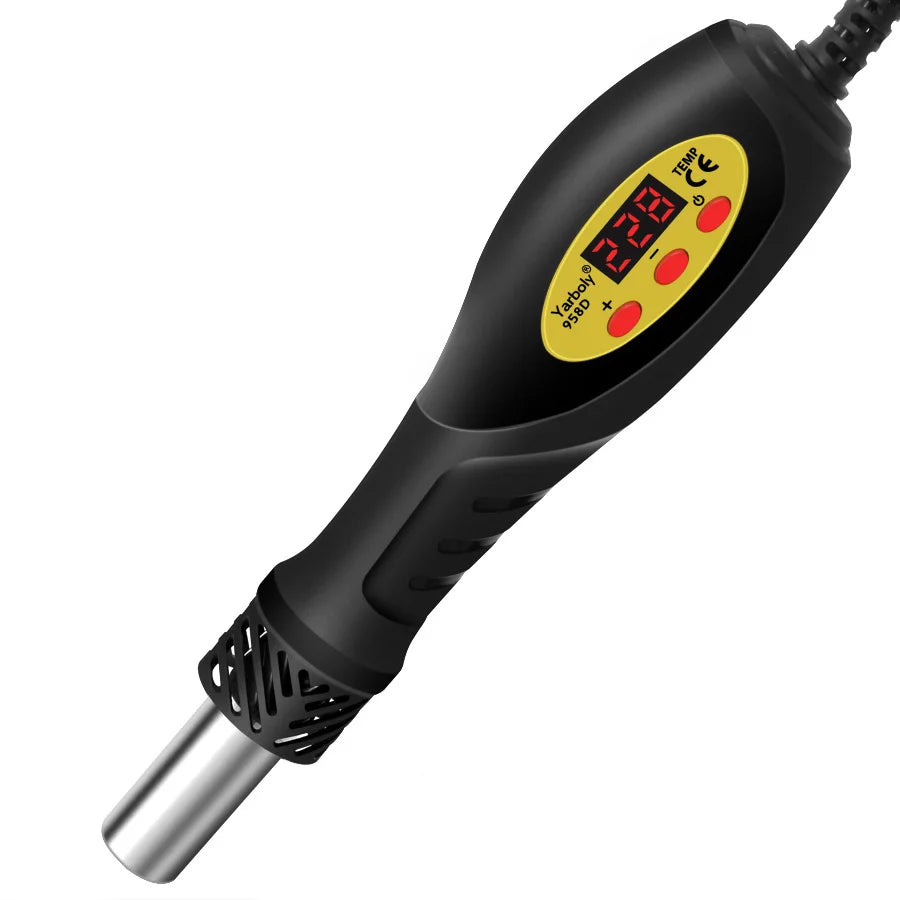

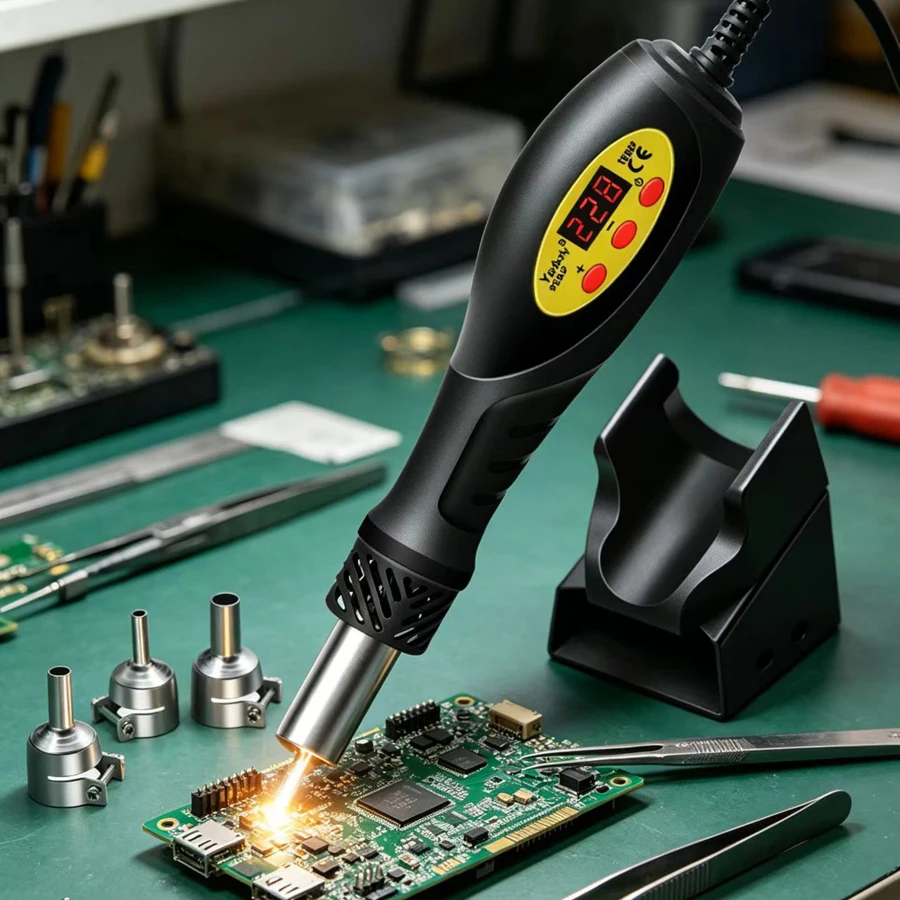

Micro Hot Air Gun 600W Rework Soldering Station LCD Digital Hair Dryer For Soldering 110V Heat Gun Welding Repair Tools

Single Air Gun Instruction Manual

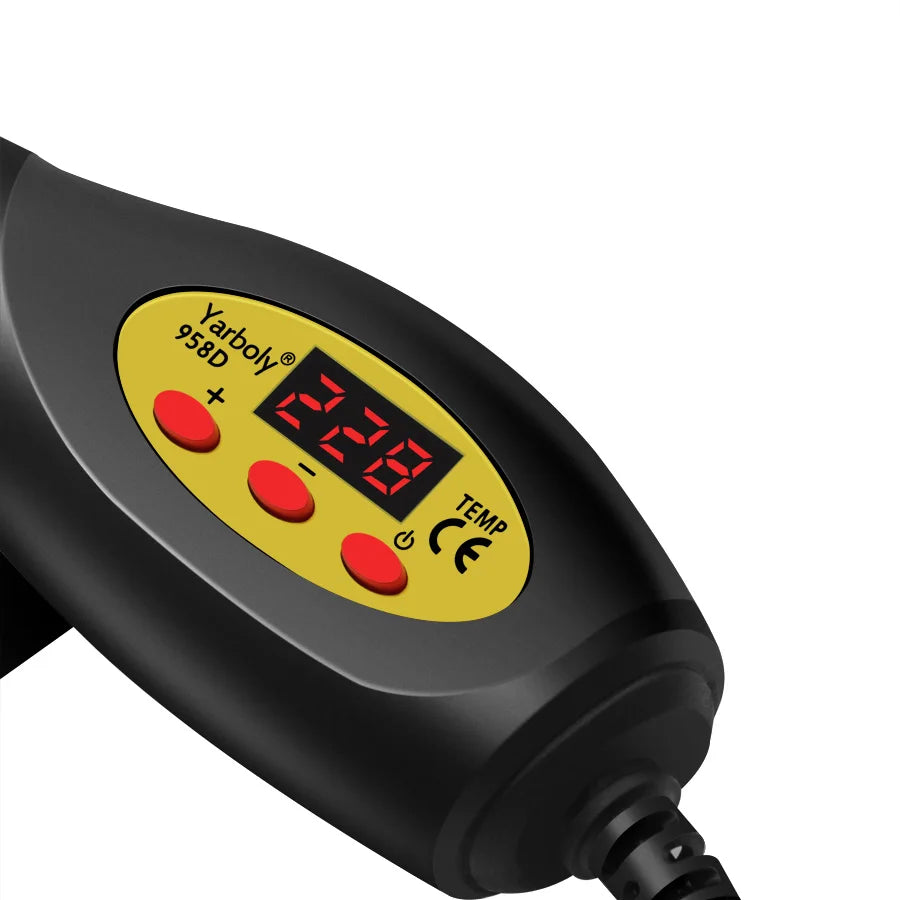

One、Appearance and Component Description

Two、Operation Instructions

(One)Power On/Off

When the air gun is off,the display shows "OFF".

Press and hold the power button for 1.5 seconds to turn on the device.

After power-on,the display shows the temperature value.The rightmost

decimal point flashes to indicate the heating state.

In the power-on state,press and hold the power button for 1.5 seconds

to shut down.If the temperature of the air gun is higher than 60℃when

shutting down,the air gun will blow air at maximum volume to cool down until the temperature drops to 60℃ and then shut down

completely.During the shutdown process,the display will flash "OFF".In

addition,pressing and holding the power button during shutdown can

re-enter the heating state.

(Two)Temperature Adjustment

On the power-on interface,press the+/-buttons to adjust the temperature:

A short press on +or-increases or decreases the set temperature by 1;

press and hold to adjust quickly.The adjustment range is(Celsius:150-

500)(Fahrenheit:302-932).

(three)Air Volume Adjustment and Function Switching

In the power-on mode,short-press the power button to switch between

temperature and air volume(F10-F99)settings.After entering the setting

state,the set temperature or air volume value will flash (press and hold +or-

for quick adjustment).It will automatically exit the setting state after 3 seconds,

and the flashing willstop after 3 times.

(four)System Settings

In the shutdown or heating mode,press the power button twice quickly to

enter the system setting interface,which has three menus:0,1,and 2.

Select Menu 0 and press the power button to exit the setting state.

1.Select Menu 1 and press the power button to enter the temperature

unit setting.You can switch between Celsius(C)and Fahrenheit(F)by

pressing the up and down buttons.After setting,press the power

button to confirm and exit.

2.Select Menu 2 to enter the calibration interface.You can calibrate within the range of±99 degrees by pressing the up and down buttons.After

setting,press the power button to confirm and exit.

three、Notes

When using the air gun,ensure operation in a well-ventilated

environment to avoid safety hazards caused by high temperature.

Do not touch high-temperature parts such as the air outlet when the air

gun is working to prevent burns.

Clean and maintain the air gun regularly to ensure stable performance. Supports 50HZ and 60HZ power supply detection.If the detection fails,
