Description

SPECIFICATIONS

Brand Name: NONE

Model Number: IP60

Origin: Mainland China

Set Type: Set Type 1

is_customized: Yes

Versatile Power Options

Choose from 6V, 12V, or 24V power options to suit your specific needs, ensuring optimal performance for various applications.

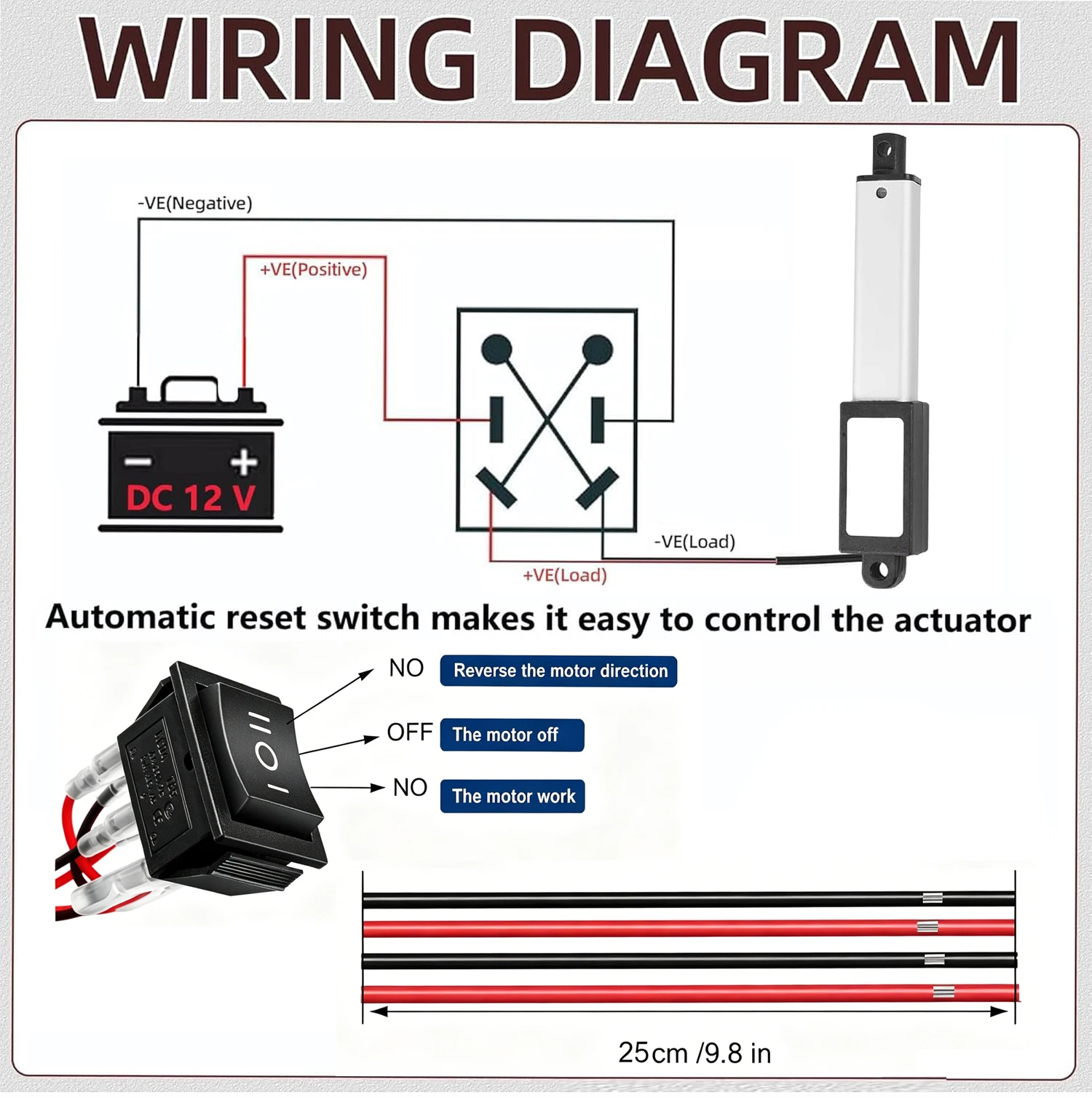

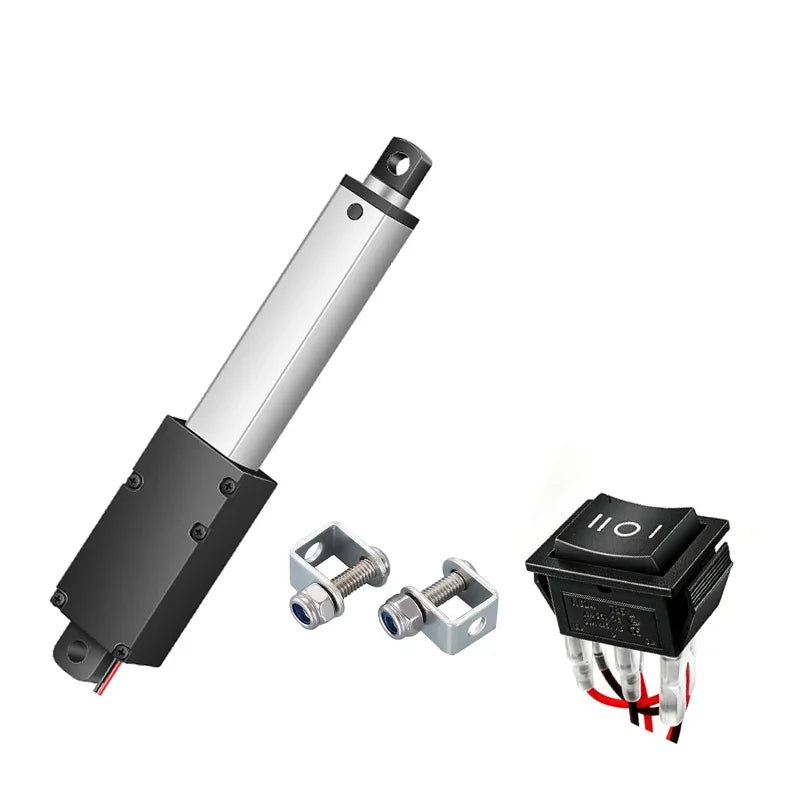

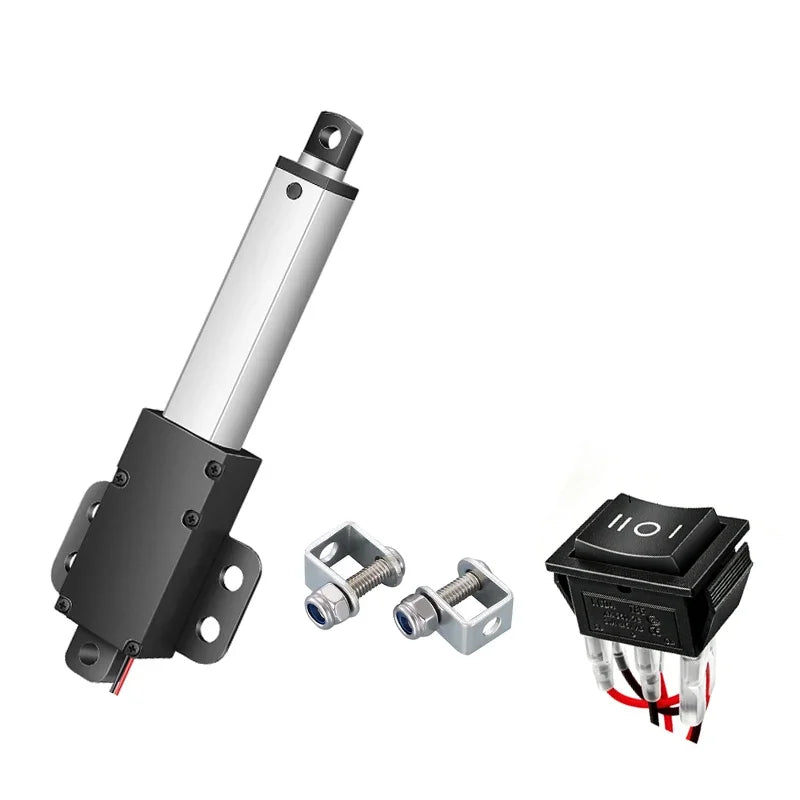

Integrated Rocker Switch

Featuring an integrated rocker switch, this actuator offers convenient control, allowing for easy operation and adjustment.

Durable Construction

Built with durability in mind, this linear actuator is designed to withstand frequent use, making it perfect for cosplay and other demanding scenarios.

High Force Output

With a force output ranging from 150N to 20N, this linear actuator is powerful enough to handle heavy loads with ease.

Compact Design

Its compact size makes it ideal for use in tight spaces, such as robot cabinets and shutters, without compromising on functionality.

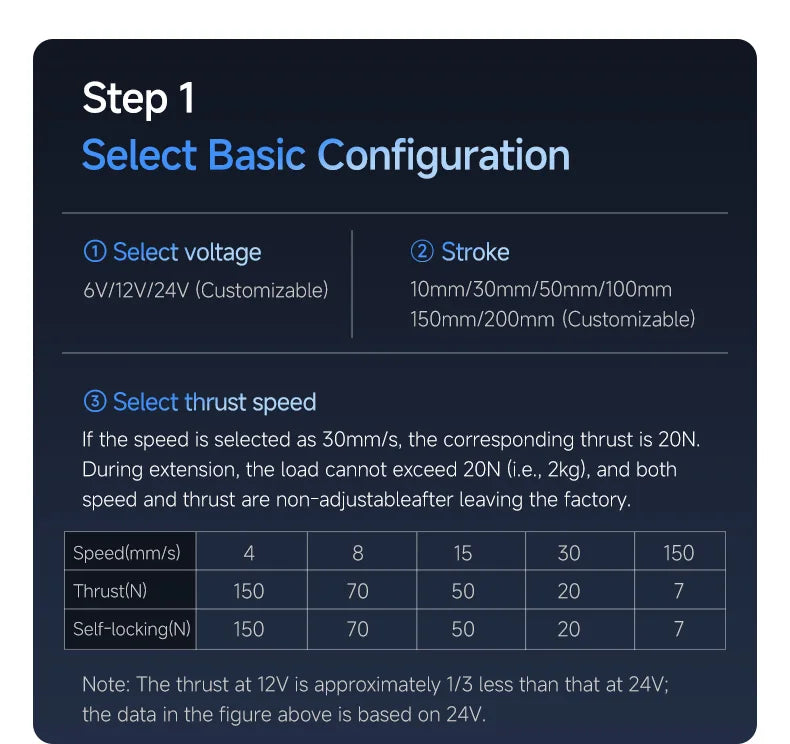

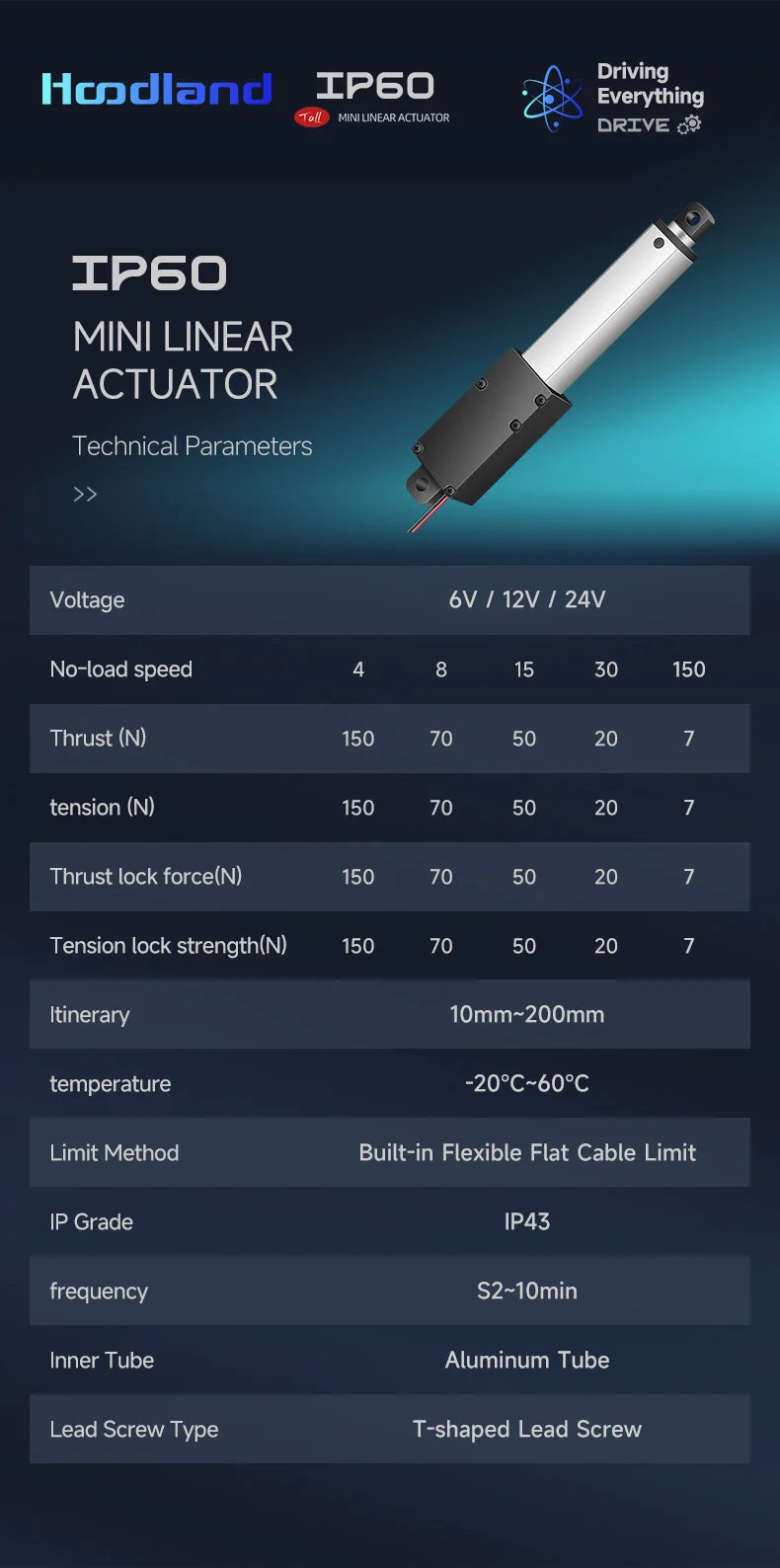

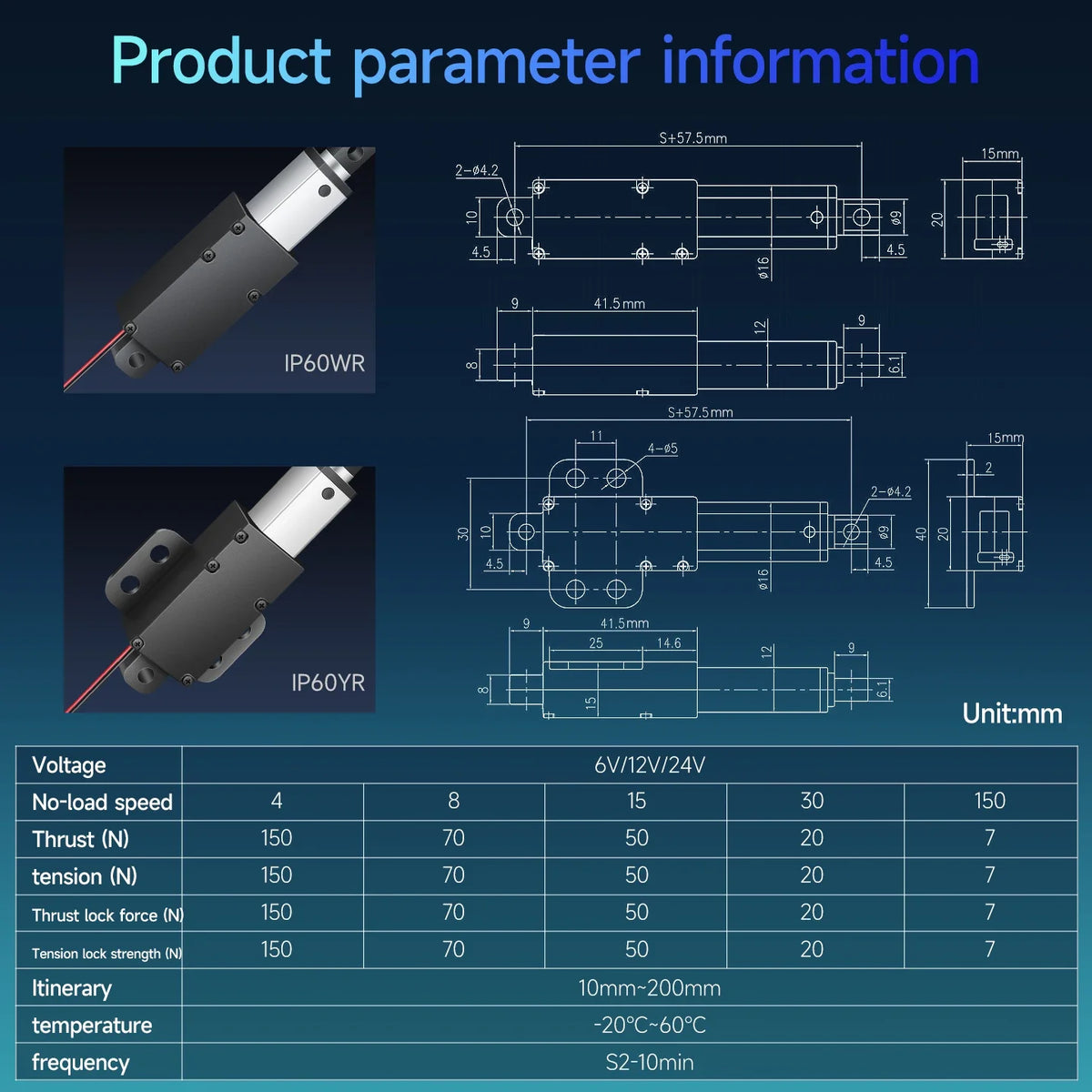

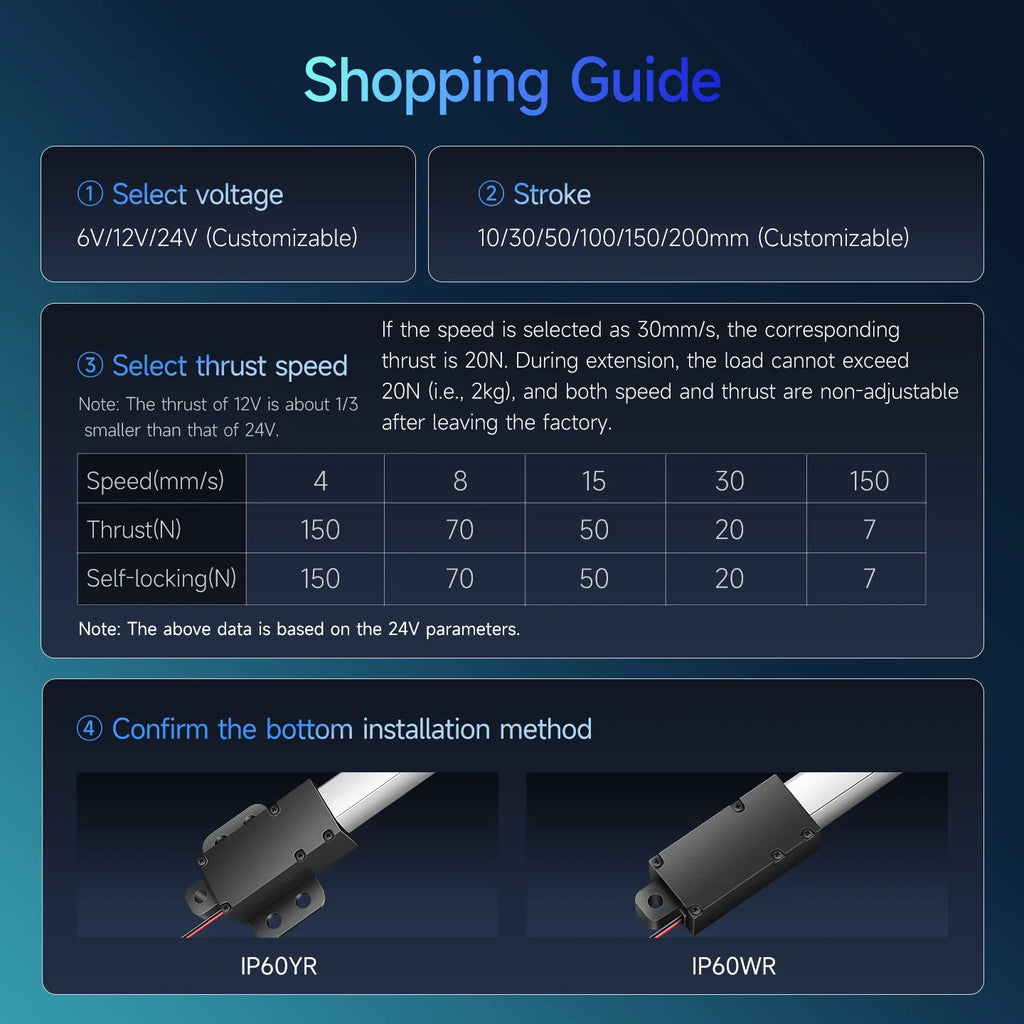

Technical Parameters

Voltage (V)	DC 6/12/24V
No-load speed (mm/s)	4	8	15	30	150
Load push capacity (N)	150	70	50	20	7
Load pull capacity (N)	150	70	50	20	7
Statoc damping (N)	150	70	50	20	7

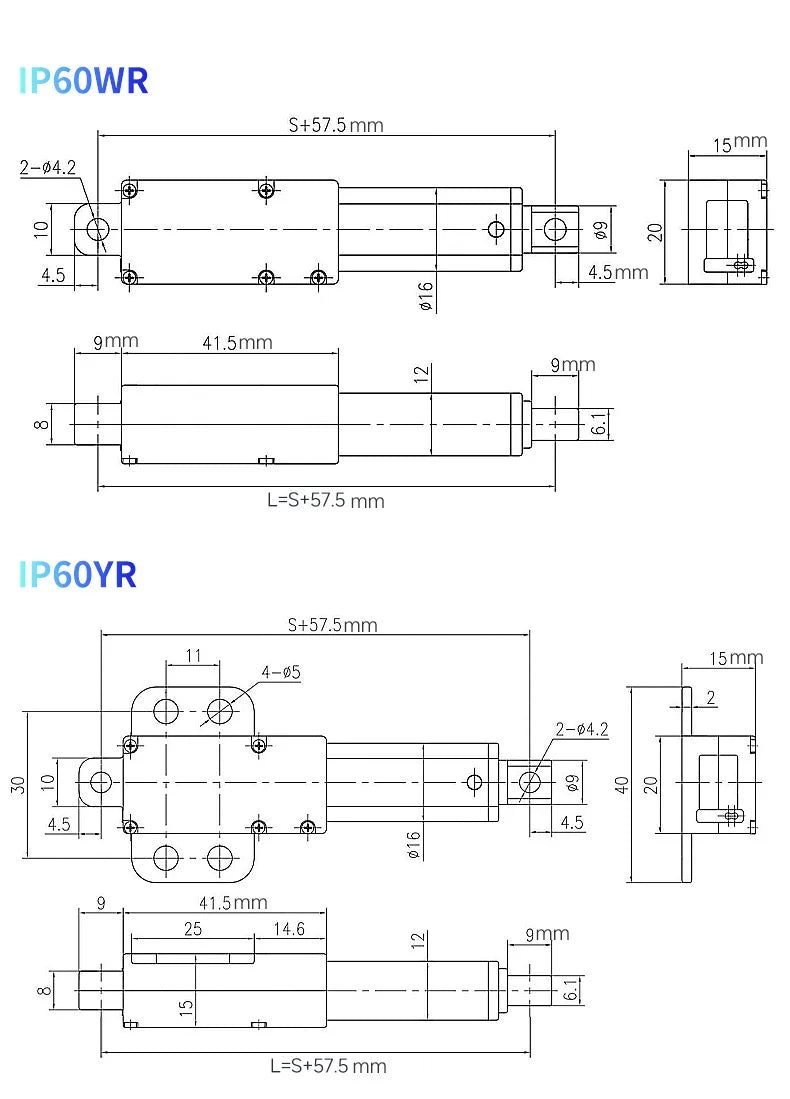

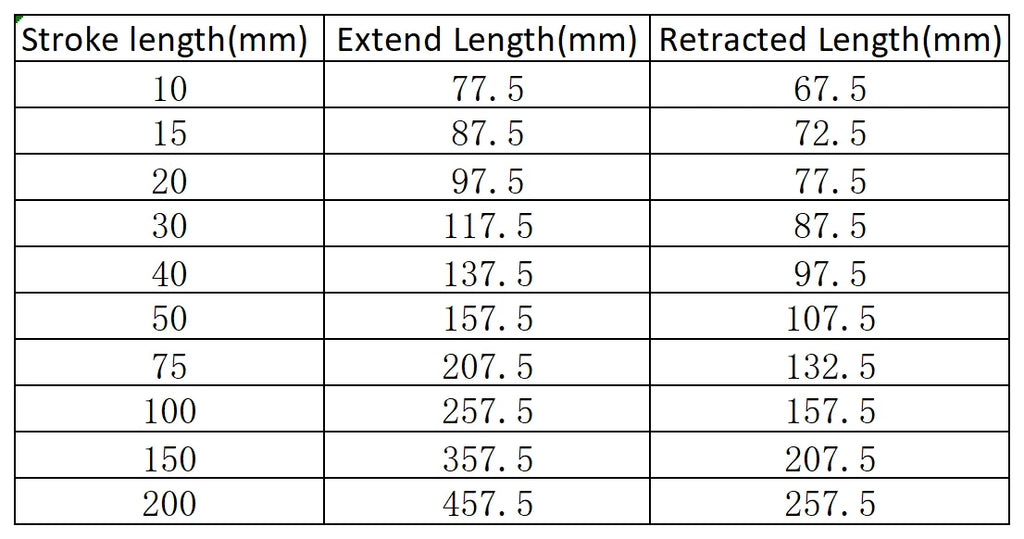

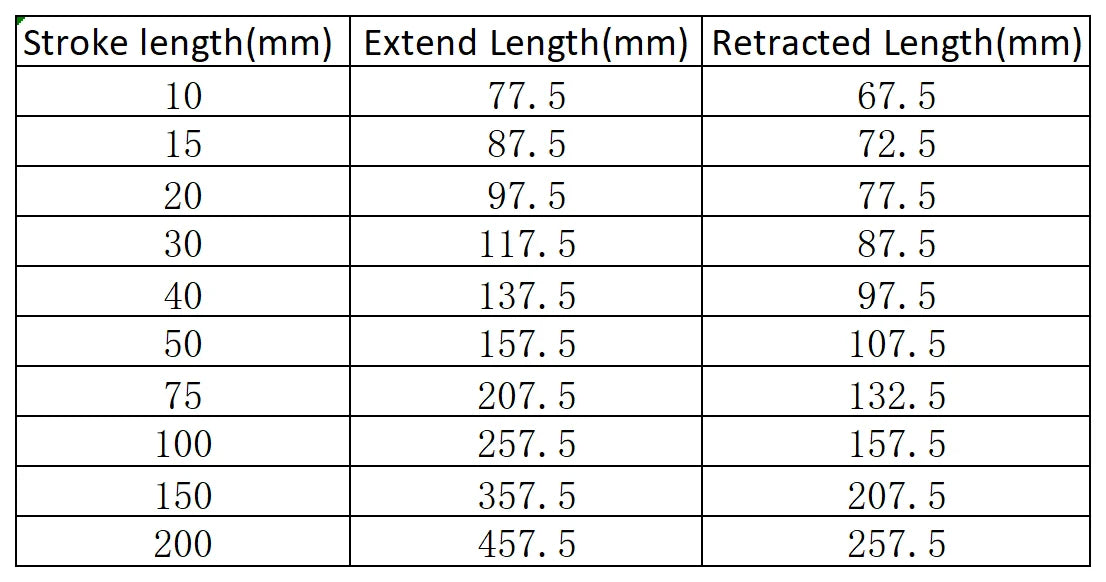

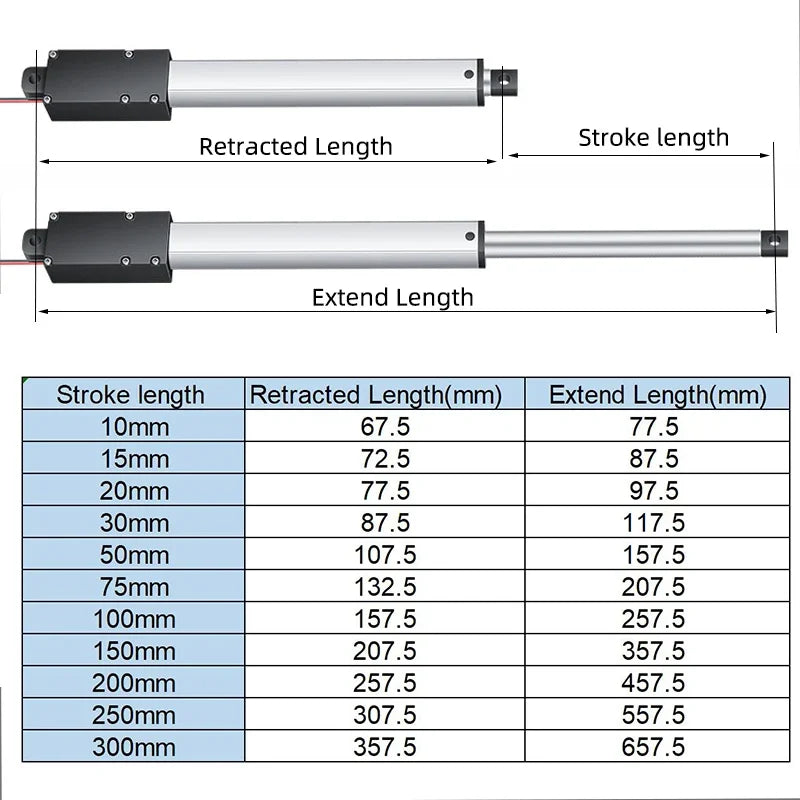

Stroke length (mm)	10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm
Operating temperature	-20~65℃
IP Grade	IP43

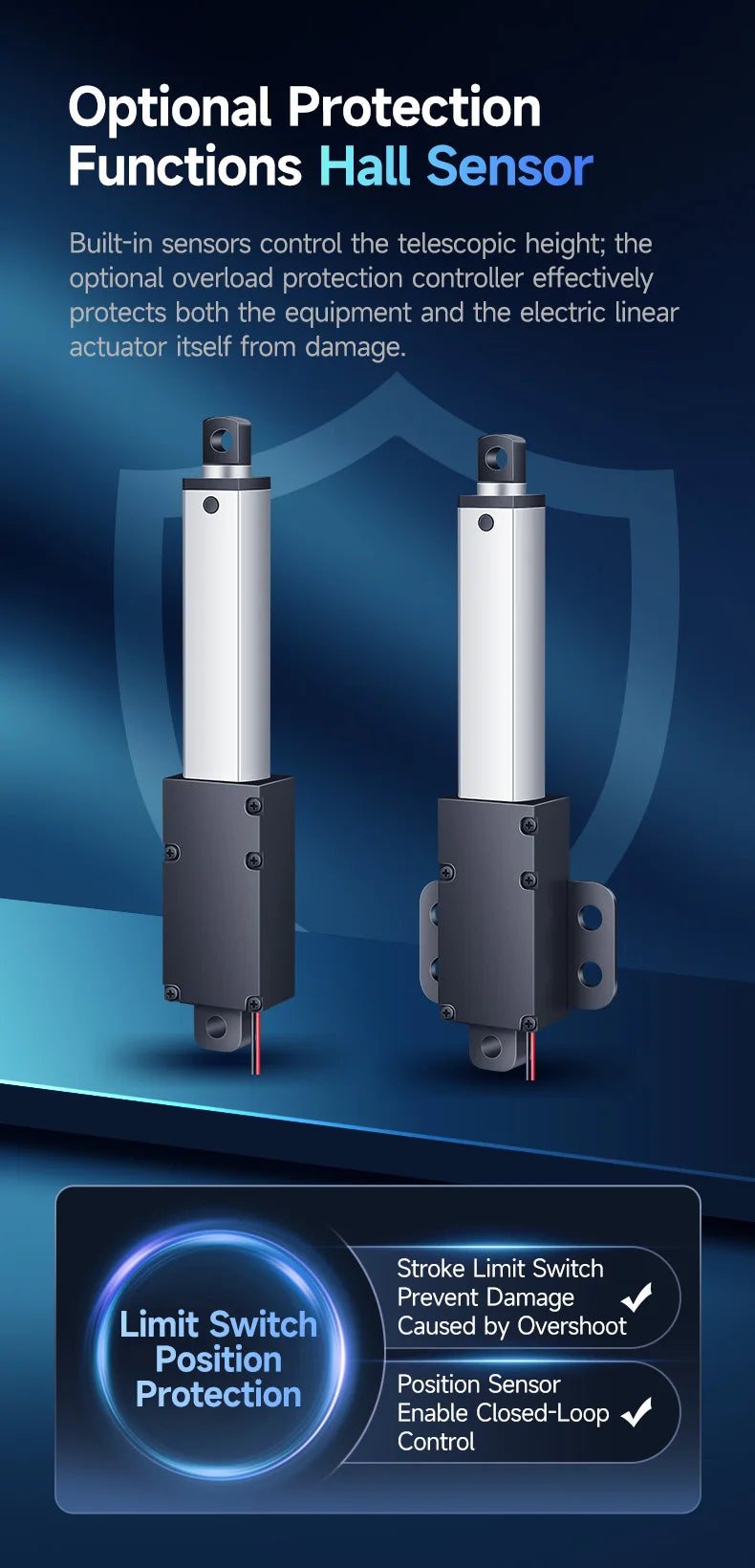

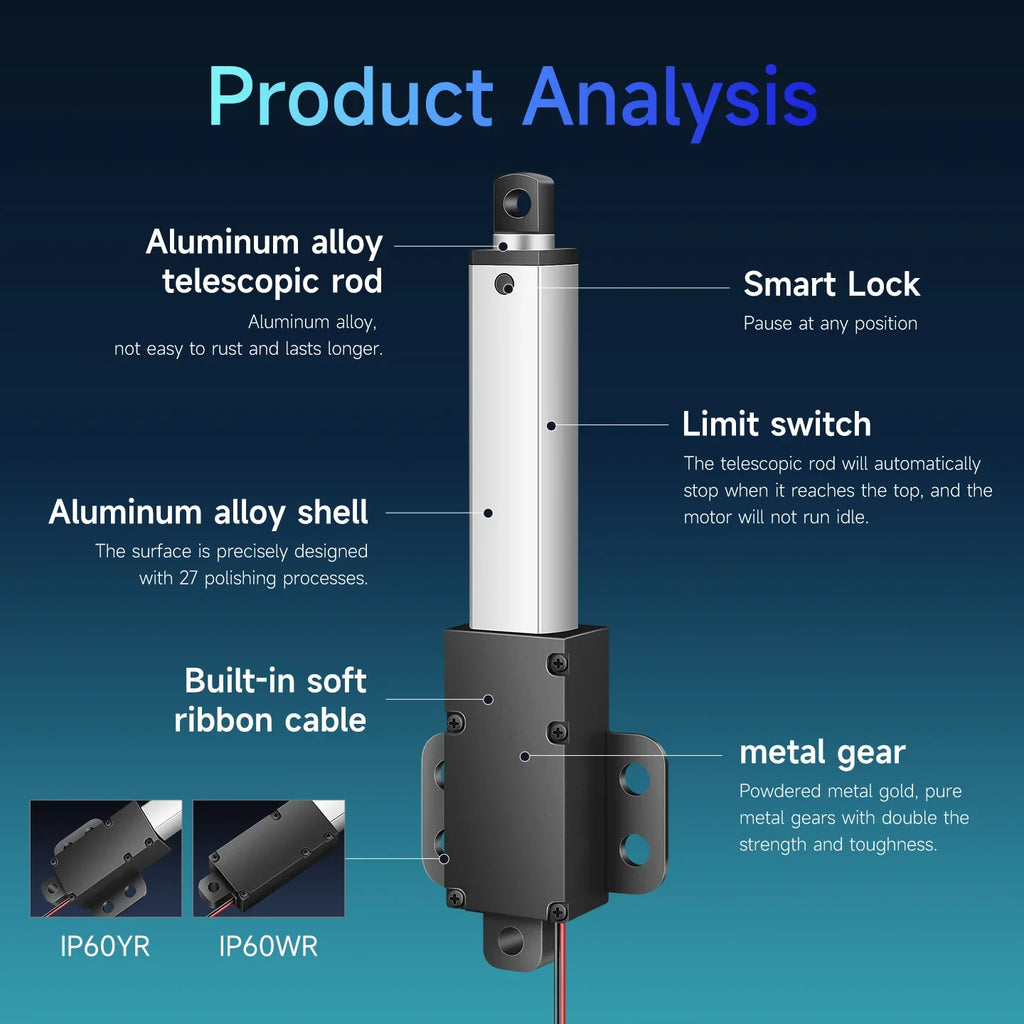

Limit switch	Built-in
Operating frequency	10% max 2min continuous use
Inner tube	Aluminum tube
Color	Silver gray
Lead screw type	T type
