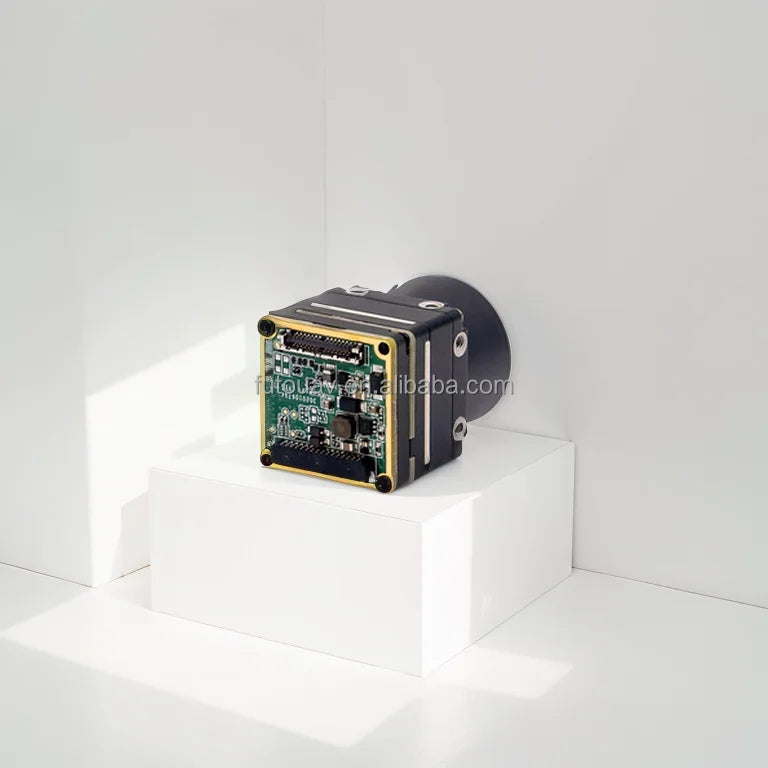

Mini2 640 25mm USB MIPI Infrared Thermal Imaging Camera for Drones Raspberry Pi and UAV Industrial Inspection Security Systems

Mini2 640 25mm USB MIPI Infrared Thermal Imaging Camera for Drones Raspberry Pi and UAV Industrial Inspection Security Systems

$2,815.16

$2,815.16 $0.00

Description

SPECIFICATIONS

Application: FPV/Security Systems

Brand Name: NONE,MINI 2

Connectivity: UART/I2C/USB2.0

Description: Thermal Imaging Module

Feature: thermal camera

High-concerned chemical: none

Material: Plastic

Model Number: 640

Mounting Type: standard

Origin: Mainland China

Place of Origin: Guangdong, China

Series: MINI Mould

Size / Dimension: 21x21

Storage: USB

Type: Hand Tool Parts

Video Compression Format: H.265

network: SDK

Thank you for visiting my store, If you see that the shipping fee is so high, please don't worry about it, as different country has different shipping fee, and it is hard for us to show the accurate shipping fee on the link, so it is better for you to contact me back via the whatsapp/Wechat +86 17744974612. Email ：ytsalesthree@outlook.com for the real shipping fee, also we can send you more video about the item if you really want it, hope I can offer you the best service with the best price.

Product Paramenters

Product Name

Mini2 640 25mm USB MIPI Infrared Thermal Imaging Camera for Drones Raspberry Pi and UAV Industrial Inspection Security Systems

Welcome to inquiry for other more products

Overview	MINI2 640
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	640×512
Effective Frame Rate	30/60Hz
Pixel Pitch	12μm
Spectral Band	8锝�14μm
NETD	≤40mK@25鈩�,F#1.0,25Hz
Thermal Time Constant	锛�12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional

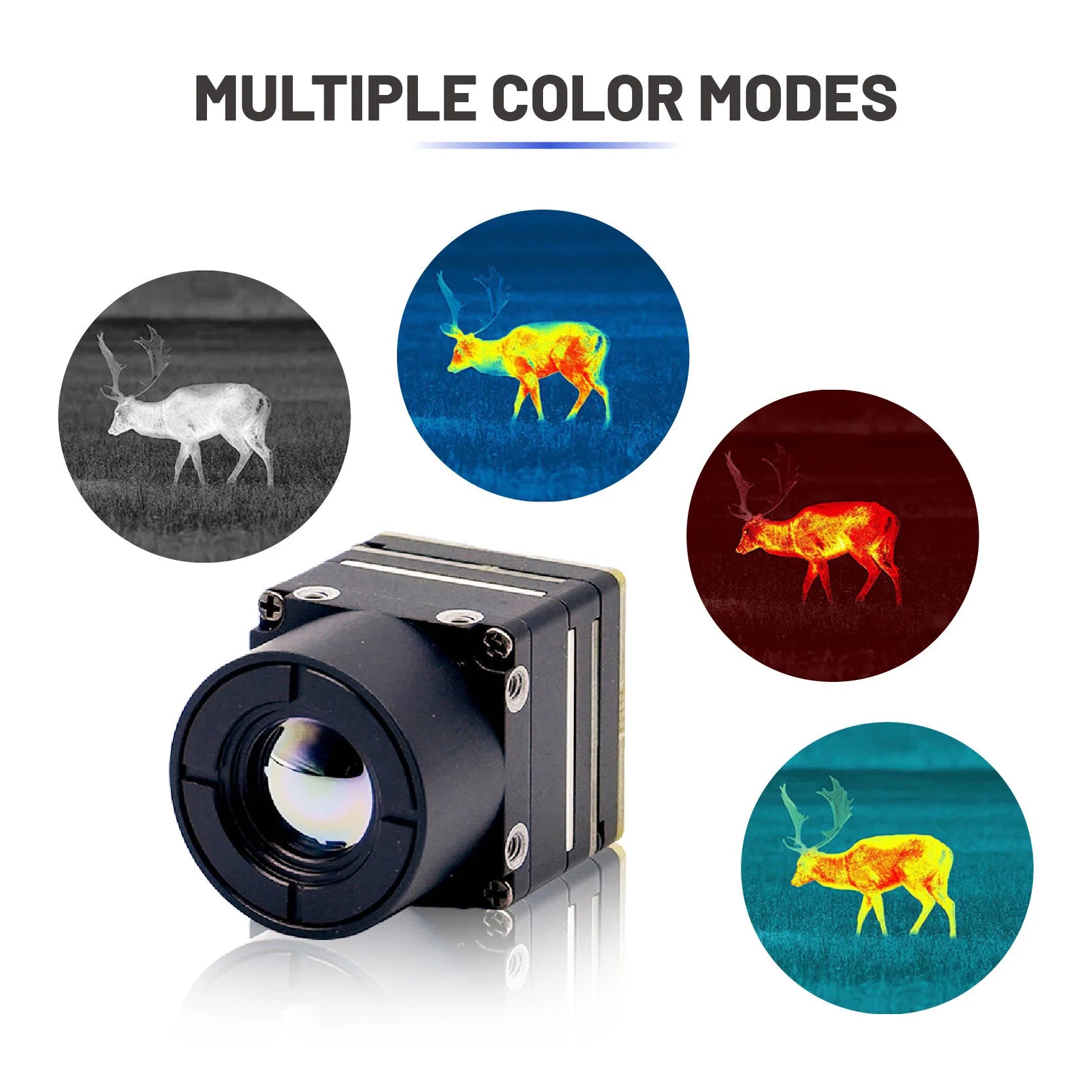

Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25鈩�	锛�0.7W
Physical Characteristics
Weight (without lens)	<8.6g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40鈩儈+80鈩�
Storage Temperature	-50鈩儈+85鈩�
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions

Lens size	FOV	Detection range	F Number
9.1mm	28.9°×21.7°	1.1km	1.0
15mm	17.5°×13.1°	1.7km	1.0
25mm	10.5°×7.9°	2.8km	1.0
35mm	7.5°×5.7°	3.9km	1.0

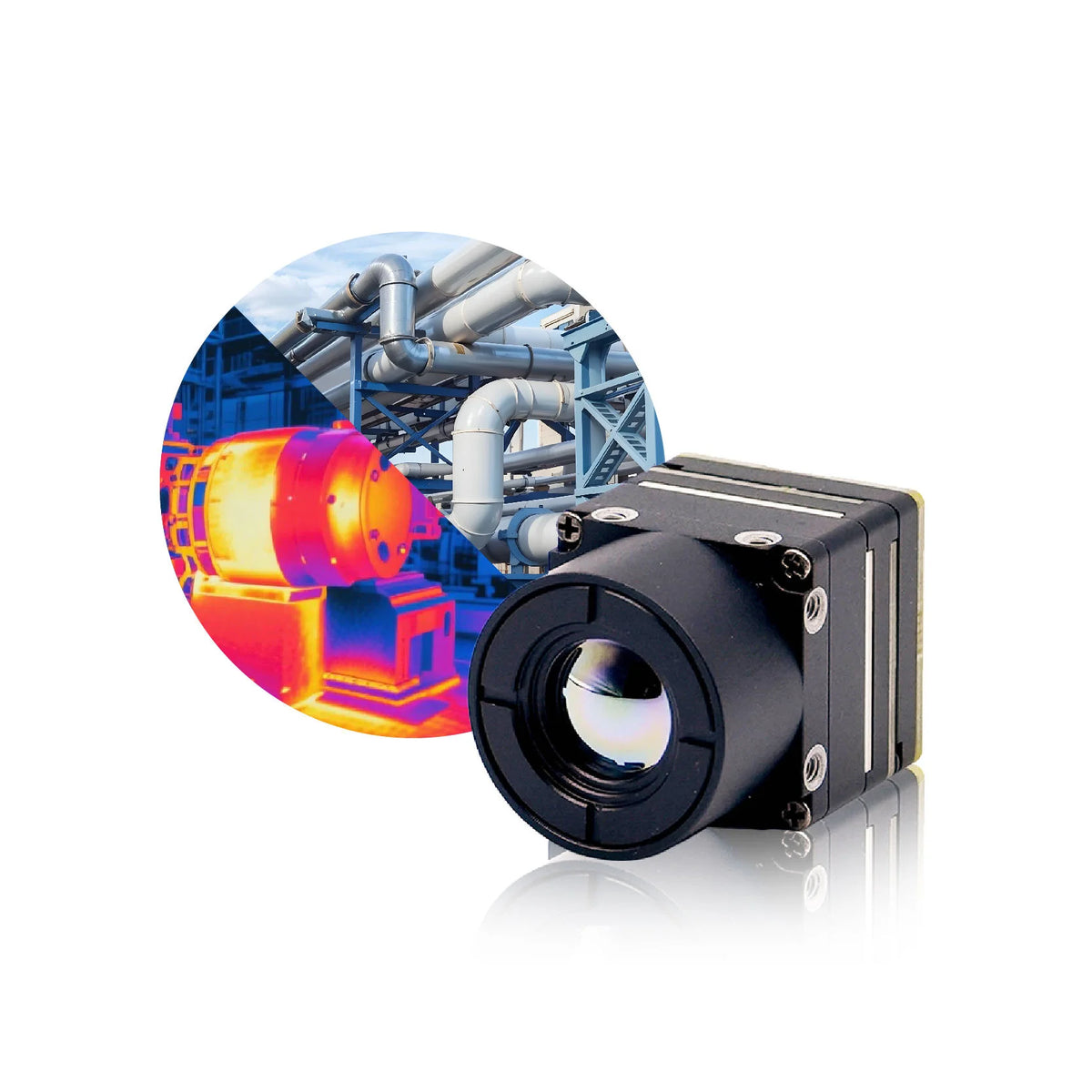

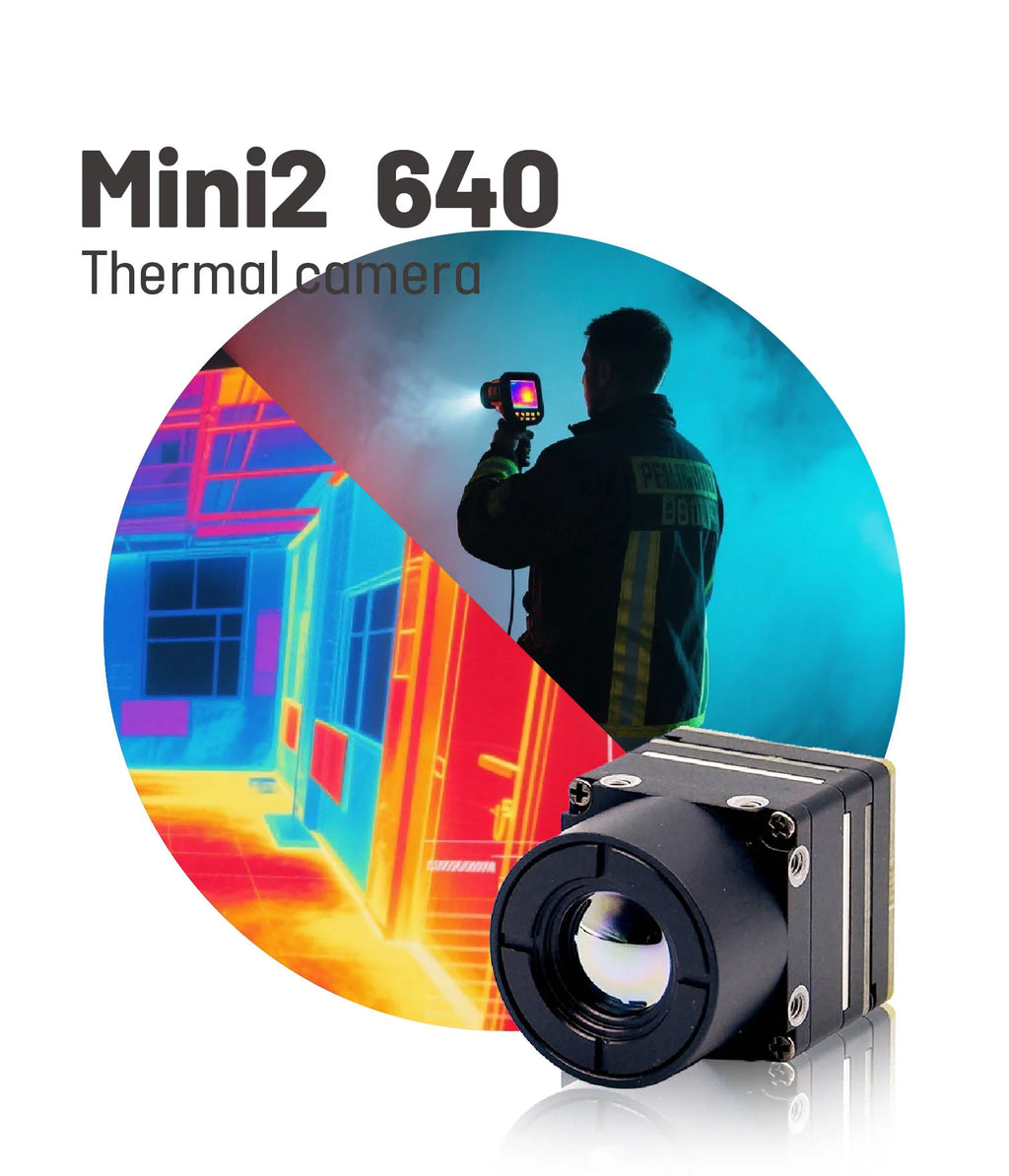

The MINI2 640 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The module provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.

Product Display
