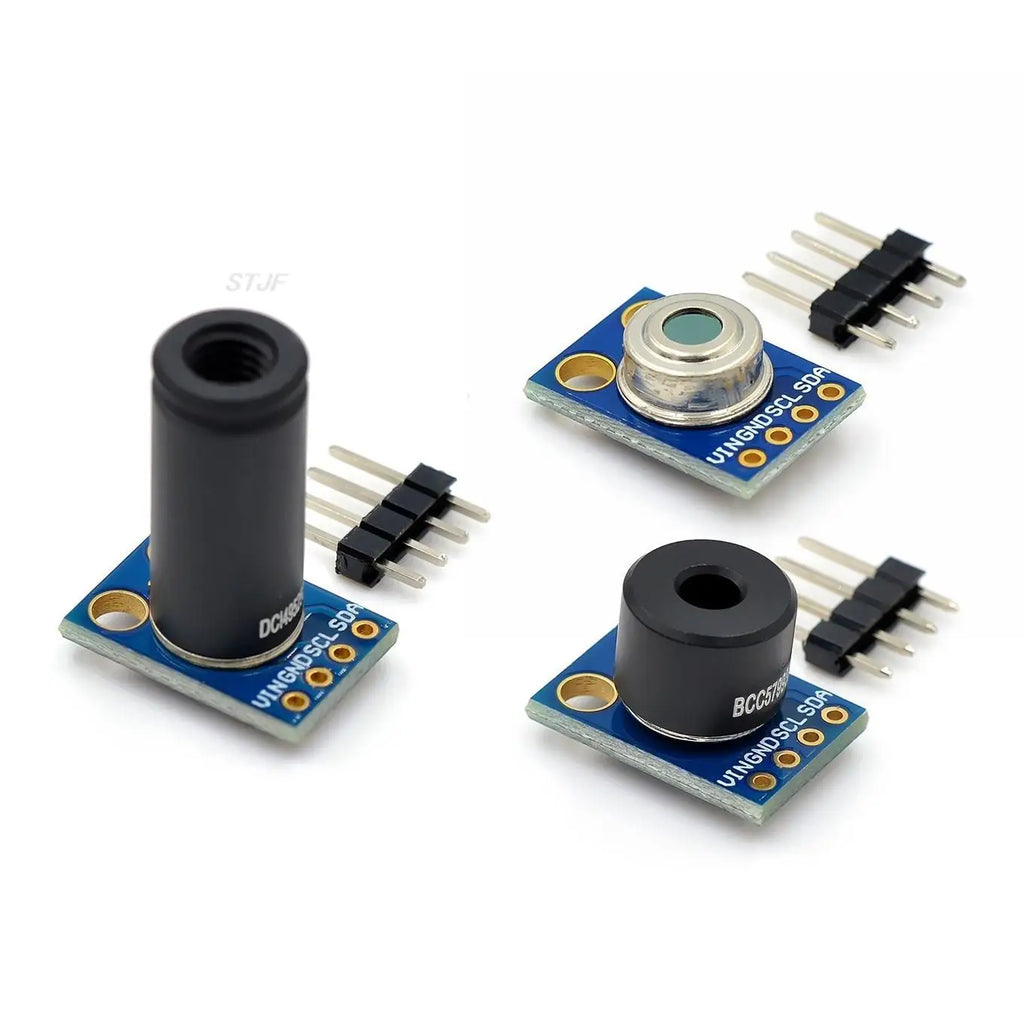

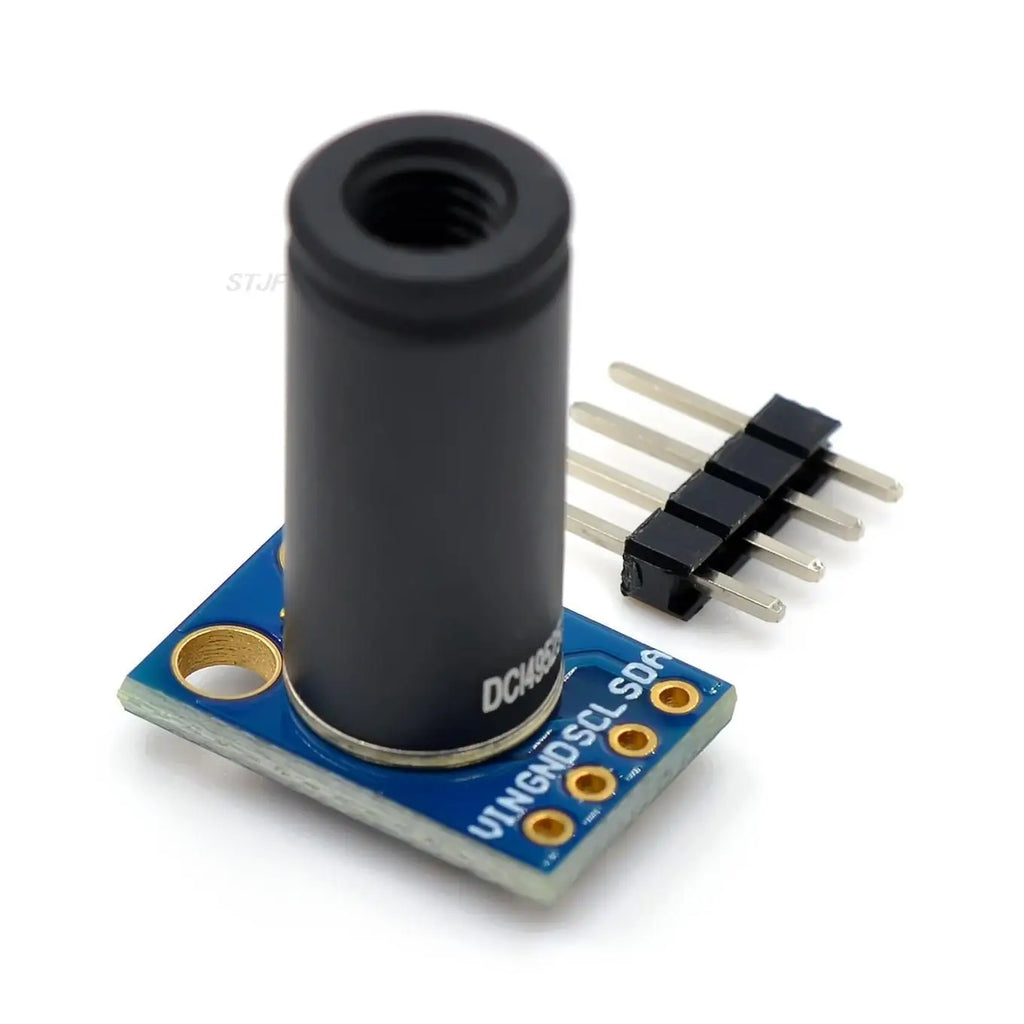

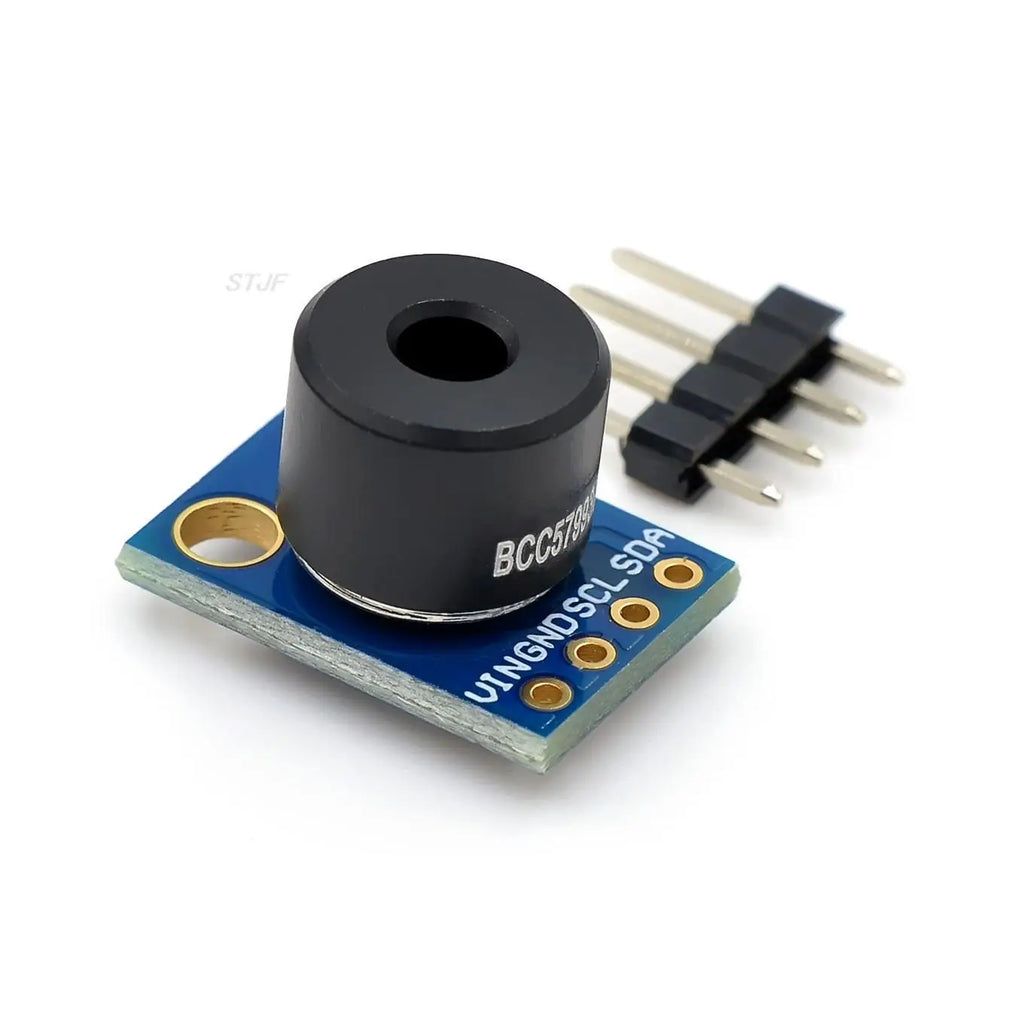

MLX90614ESF-DCI Sensor Module MLX90614 Infrared Temperature Sensors GY-906-DCI IIC Connector Long Distance Electronic DIY PCB

MLX90614ESF-DCI Sensor Module MLX90614 Infrared Temperature Sensors GY-906-DCI IIC Connector Long Distance Electronic DIY PCB

$49.32

$49.32 $0.00

Color BCC DCI BCC 1 BAA

Description

SPECIFICATIONS

Brand Name: STJF

Choice: yes

Functions: Electronic Module

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Output: Analog Sensor

Range of application: Switch And Sensor For Arduino STM

Theory: Current Sensor

Type: Biosensor

Use: MAGNETIC SENSOR

is_customized: Yes

semi_Choice: yes

The test distance of GY-906 is 2CM

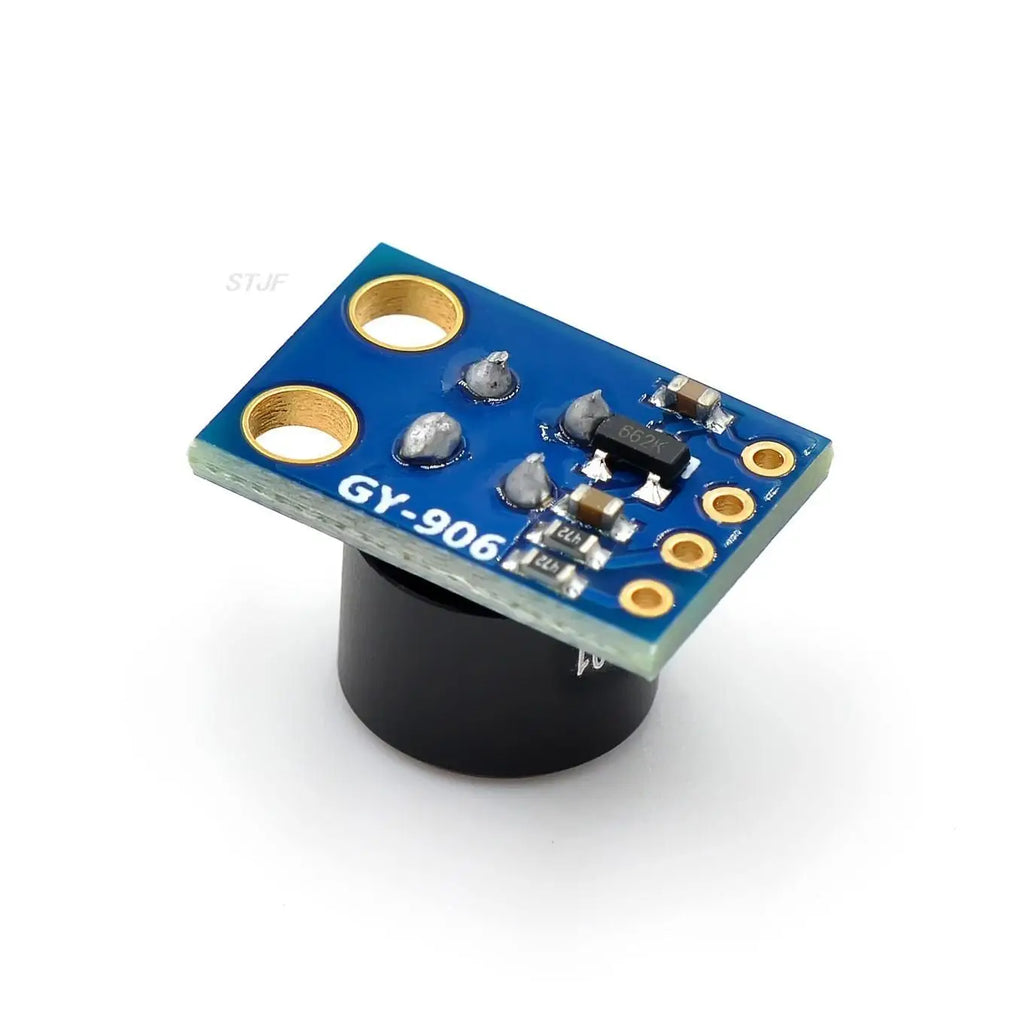

Module model: GY-906

Use chip: MLX90614

Power supply: 3-5v (internal low pressure difference regulator)

Communication mode: Standard IIC communication protocol

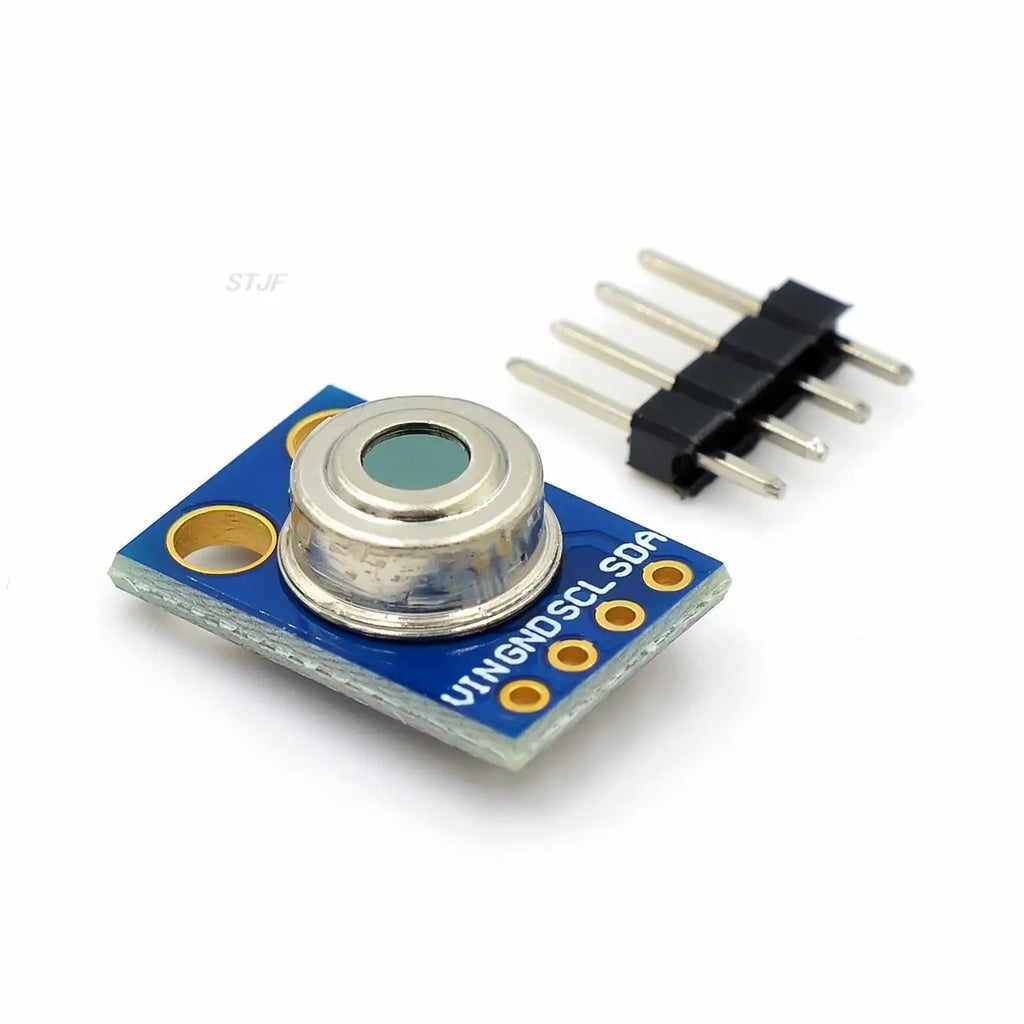

Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.

From the manufacturer:

Features and Benefits:

Small size, low cost
Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in wide temperature range:
-40…+125°C for sensor temperature and
-70…+380°C for object temperature.
High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02°C
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuousreading
Simple adaptation for 8…16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility
Automotive grade

Applications Examples:

High precision non-contact temperaturemeasurements
Thermal Comfort sensor for Mobile AirConditioning control system
Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control – up to 127sensors can be read via common 2 wires
Thermal relay / alert
Body temperature measurement
