Description
SPECIFICATIONS
Application: Computer
Brand Name: EC Buying
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: normal
Origin: Mainland China
Package: module
Smart Electronics Experiment: Switch And Sensor For Arduino STM32
Supply Voltage: 6V~12V 3.3V
TB6612FNG Motor Driver HAT Board Module: Shield Expansion Board I2C IIC PCA9685 PWM Interface for Raspberry Pi 4th Generation 3B
Type: Voltage Regulator
is_customized: Yes
Raspberry Pi not included.

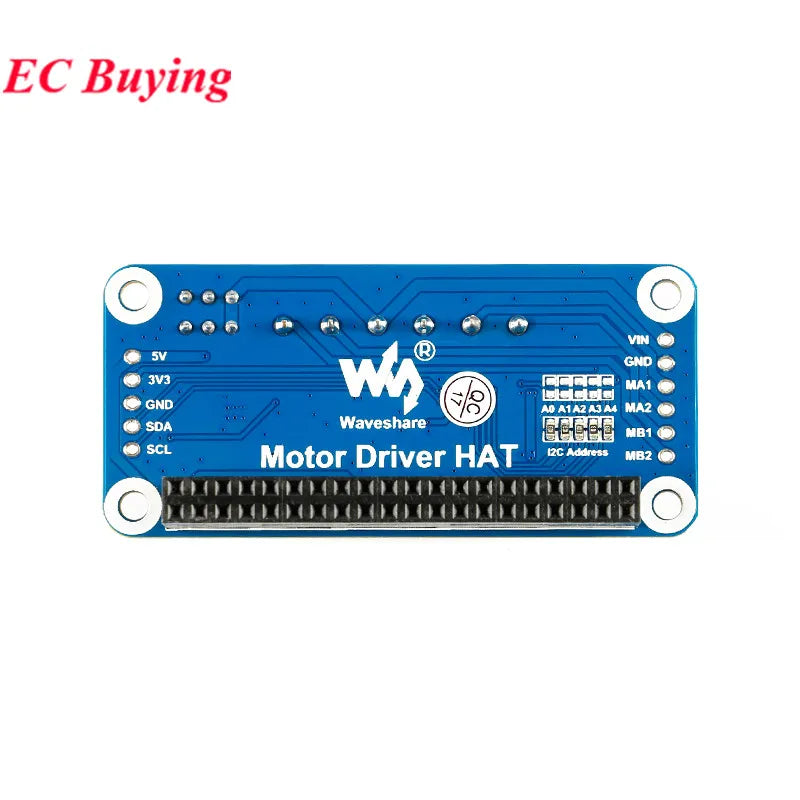

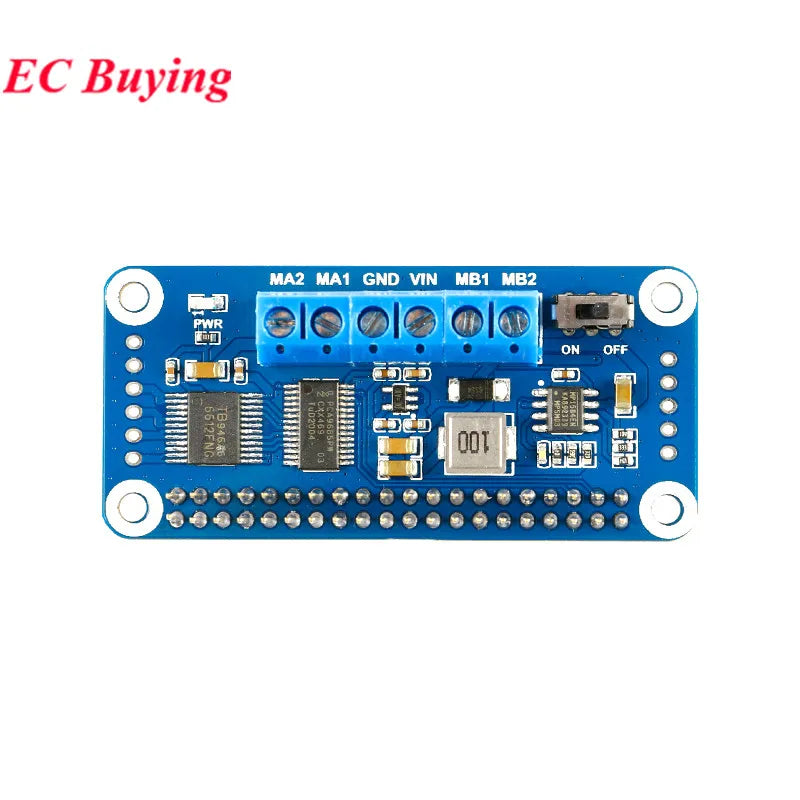

This is a motor drive board specially designed for the Raspberry Pi. It is controlled by I2C interface and is a good choice for your DIY smart car.
Product features:

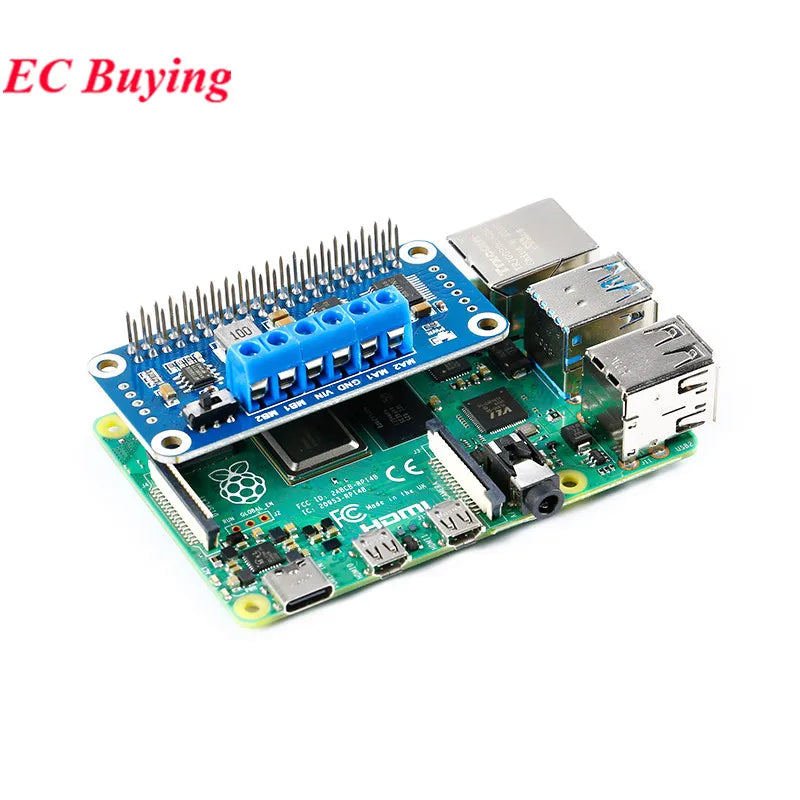

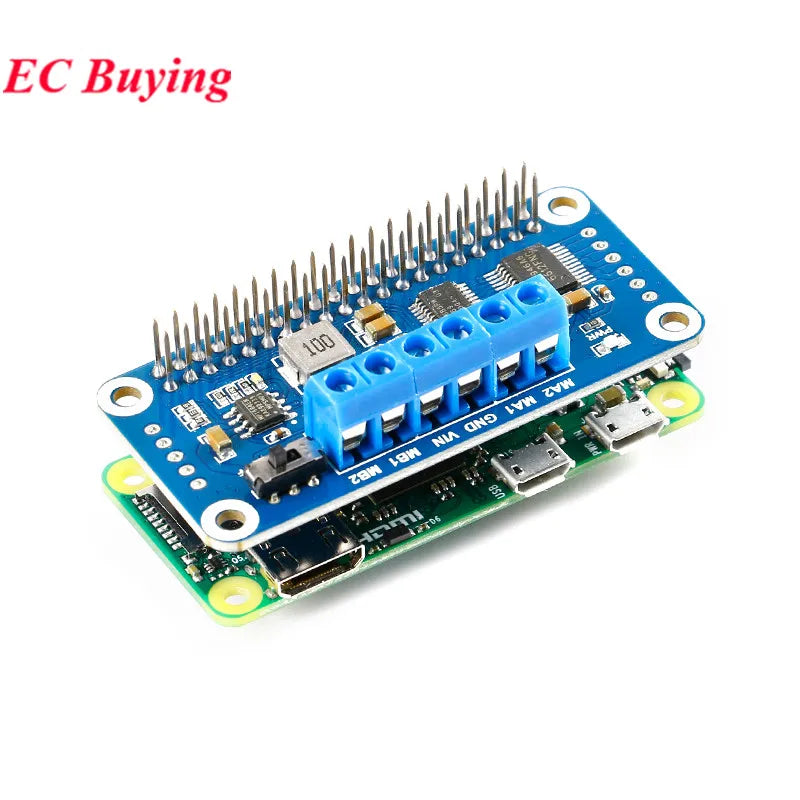

Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
I2C interface control, up to 32 modules can be connected at the same time by changing 5 address jumpers
PCA9685 chip on board, can output 12-bit hardware PWM control motor speed
Onboard TB6612FNG dual H-bridge motor driver chip, work efficiently and not easy to heat
Onboard 5V regulator chip, output up to 3A, can be connected to battery power via VIN terminal
Reserved I2C control interface for easy access to other main control boards
Product parameters:
Power supply voltage: 6V ~ 12V (VIN terminal)
Logic voltage: 3.3V
PWM driver chip: PCA9685
Control interface: I2C
Motor driver chip: TB6612FNG

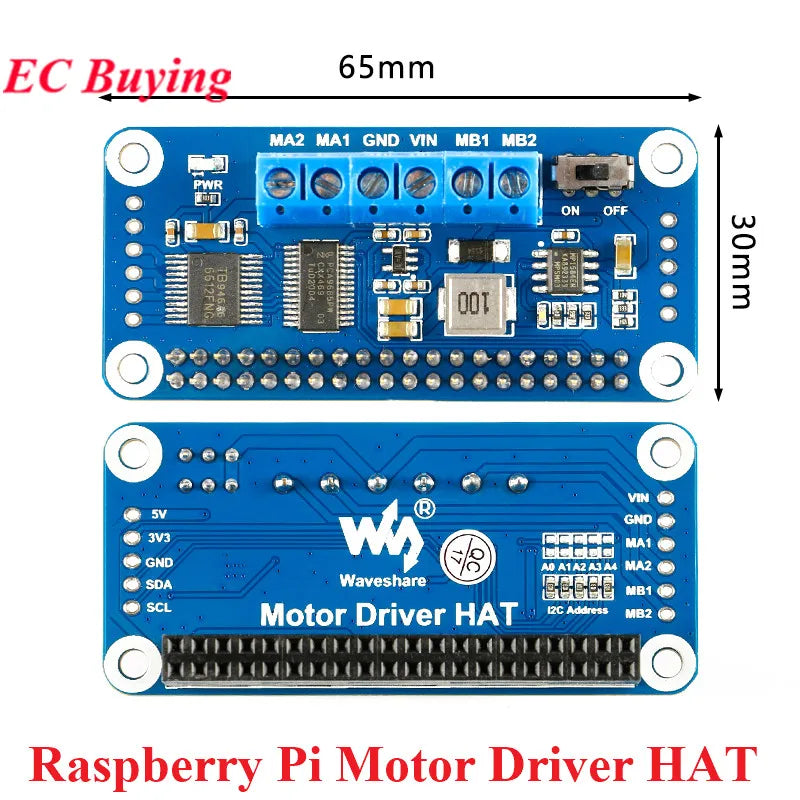

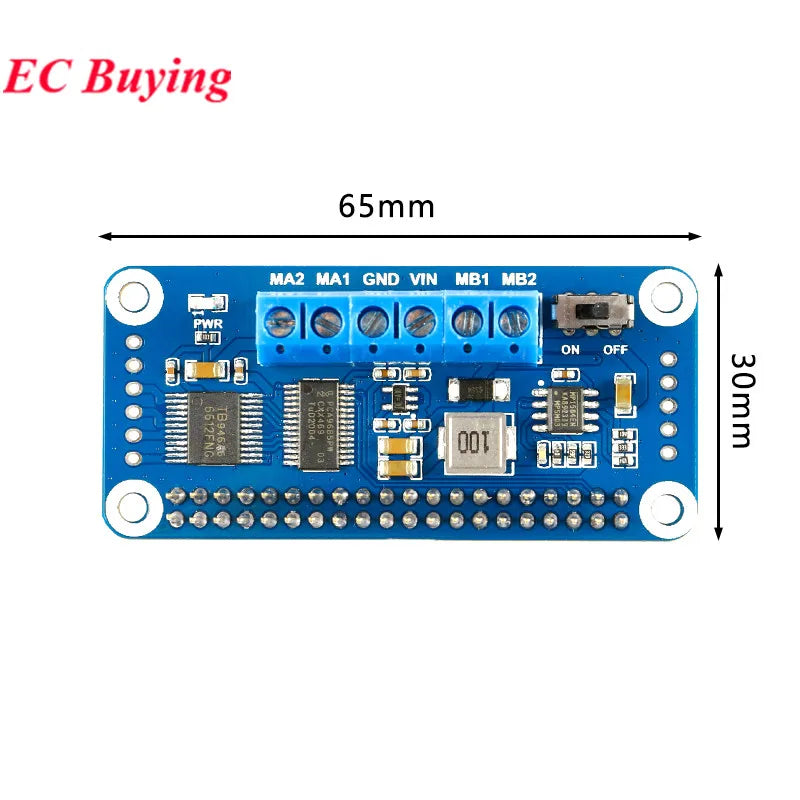

Product size: 65mm × 30mm
Via diameter: 3.0mm
