Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine

Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine

6UF
$15.44
$15.44 $0.00
Skip to product information
Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
  • Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
  • Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
  • Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
  • Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
  • Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
Motor Run Capacitors CBB60 450V AC Starting Capacitor 5% 3/4/5/6/8/10/12/14/15/16/18/20/25/30/40/45/50/60UF for Washing Machine
$15.44
$15.44 $0.00
Capacitance
Description

SPECIFICATIONS

Application: AC / Motor

Brand Name: NONE

Choice: yes

Color: WHITE

High-concerned chemical: none

Model Number: CBB60

Operating Temperature: -25 - +85

Origin: Mainland China

Package Type: Through-hole

Pin: Plastic pure copper lead wire

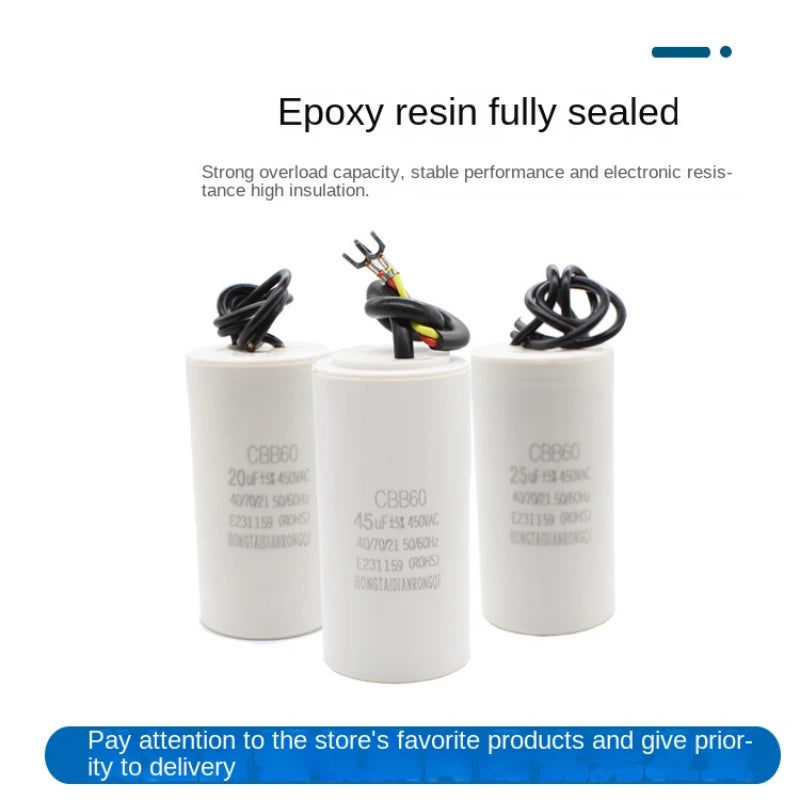

Product shell: flame-retardant PBT plastic shell

Product specifications: 3UF~60UF full range

Structure: Fixed Capacitor

Type: Polyester Film Capacitor

is_customized: Yes

semi_Choice: yes

3UF  450V overall dimensions  35X63mm
4UF  450V  overall dimensions 35X64mm
5UF  450V overall dimensions  35X64mm
6UF  450V overall dimensions  35X64mm
8UF  450V overall dimensions  35X64mm
10UF 450V overall dimensions  35X64mm
12UF 450V overall dimensions  38X75mm
14UF 450V overall dimensions  38X75mm
15UF 450V overall dimensions  38X75mm
16UF 450V overall dimensions  38X73mm
18UF 450V overall dimensions  38X75mm
20UF 450V overall dimensions  38X75mm
22UF 450V overall dimensions  38X72mm
25UF 450V overall dimensions  38X76mm
30UF 450V overall dimensions  38X76mm
35UF 450V overall dimensions  45X92mm
40UF 450V overall dimensions  45X92mm
45UF 450V overall dimensions  45X90mm
50UF 450V overall dimensions  45X90mm
60UF 450V overall dimensions  45X90mm

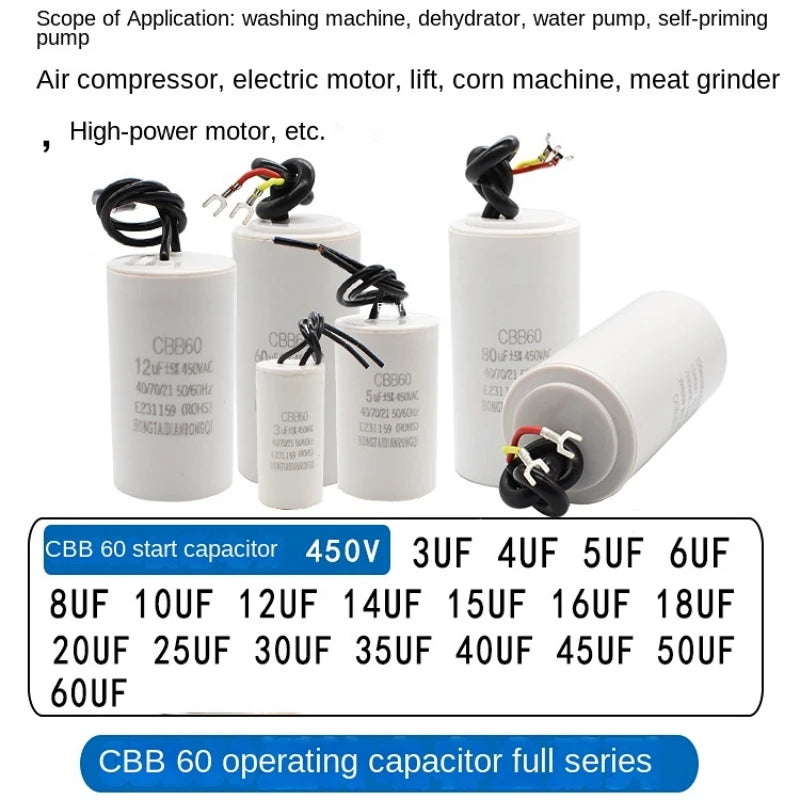

Used asWorking and starting, to run electric motors of washing machines, refrigeration compressors, air conditioners, pumps, etc. The capacitors of this series are also used as phase-moving to start three-phase engines from a 220 volt network.


Cbb-60 sulfur capacitors are analogs of k78-17 series domestic capacitors.


Characteristics of cbb-60 capacitor:


Nominal capacity:3to 60UF


Permissible capacity deviation:± 5%


Rated AC voltage:450VAC


Working frequency:50/60Hz


Minimum permissible temperature:-25 & deg; C


Maximum permissible temperature:+ 85 ° C


Life:B. -10000 Hours at 400vac); c-3000 hours at 450vac; D-1000 hours at 500vac.


Protection class:P0-без.





Also available are start-up-working capacitors cbb-60 with a bolt mount and wires for mounting!!!
