SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Condition: New

Contact Load: Low Power

Dropship: Support

Key Word: Detector Controller Relay

Model Number: MQ-2 Smoke Sensor Module

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Type: MQ-2 Smoke Sensor

Use: General Purpose

Voltage: DC 5-30V

is_customized: Yes

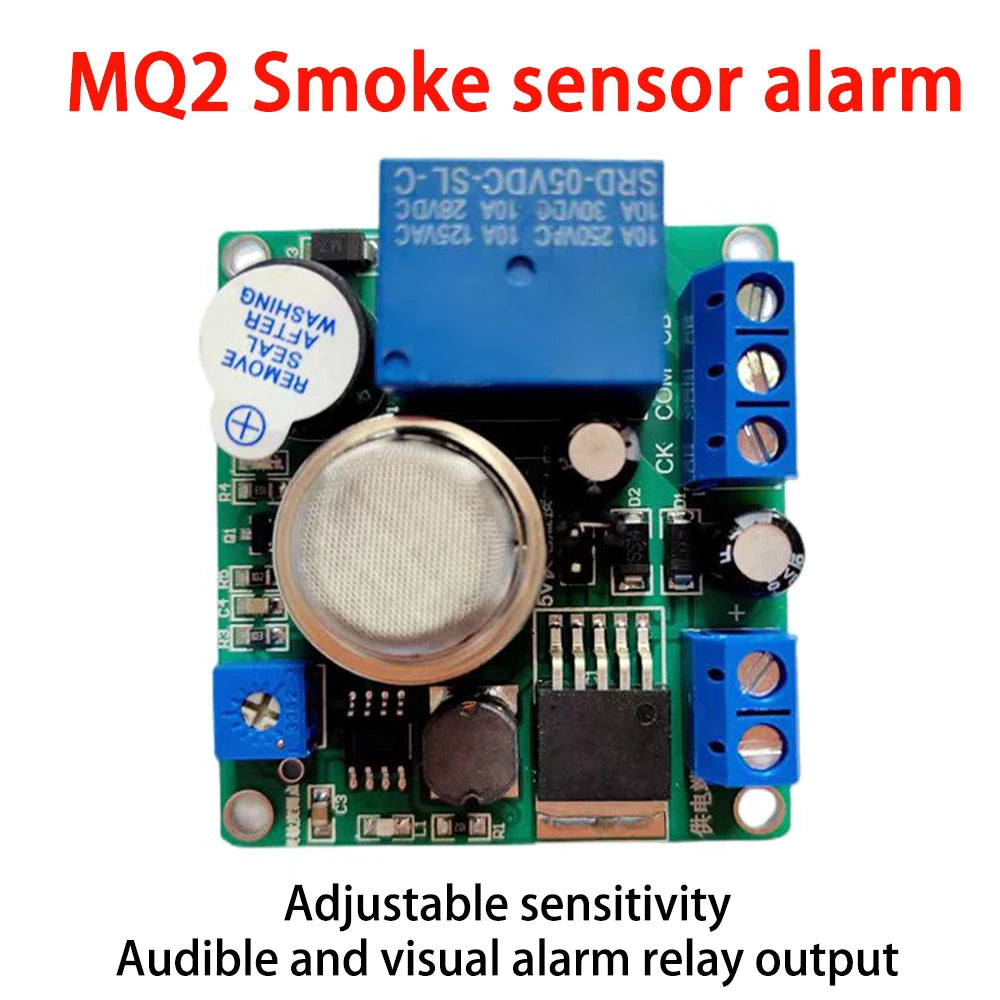

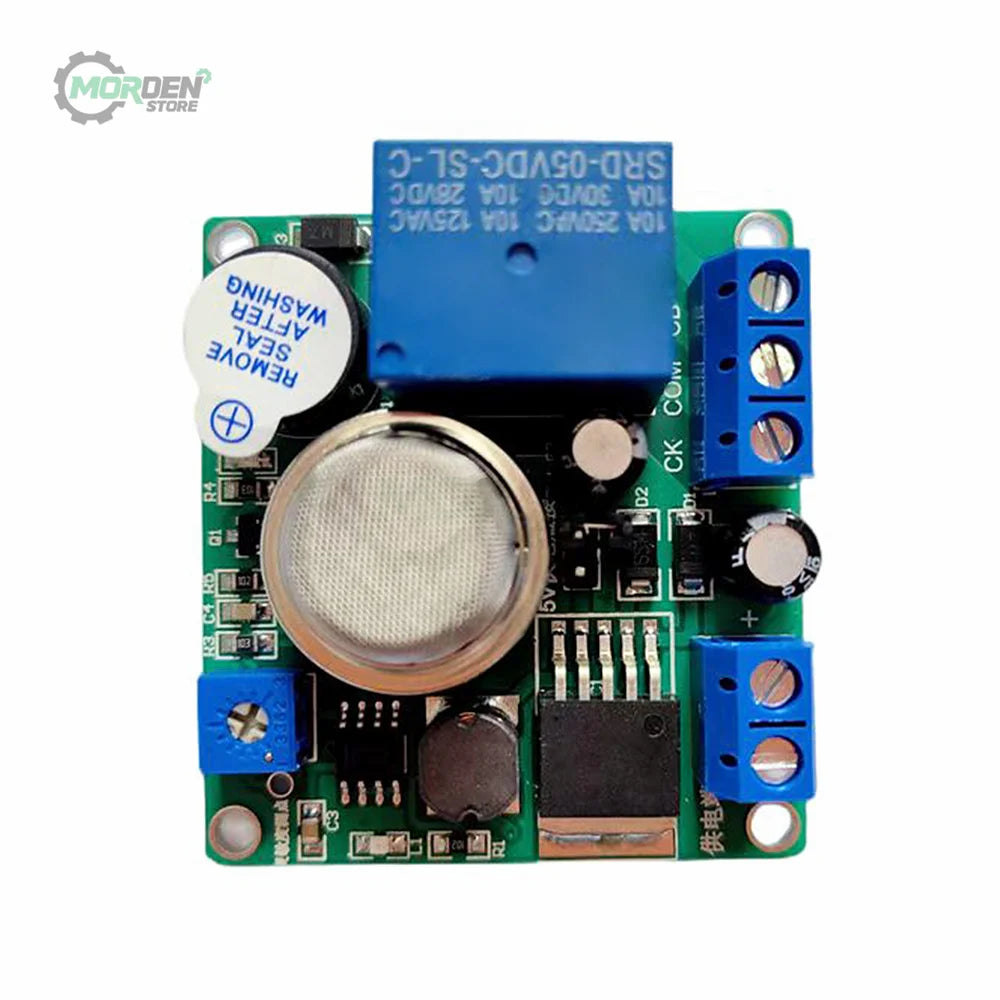

MQ-2 Smoke Sensor Module Smoking Detector Controller Relay Alarm Switch Power Supply Accessories

Features

Small product

With power indicator light

Service life: more than 100,000 times

With anti-reverse protection, reverse connection of power supply will not burn the board

Can control equipment within AC 220V10A or DC 30V10A

Functional description

This module can detect smoke concentration, and a smoke detection threshold can be set during use. When the smoke sensor detects that the ambient smoke concentration is greater than the set smoke threshold, the relay closes and at the same time the alarm indicator lights up and the buzzer sounds an alarm prompt; when the smoke sensor detects that the ambient smoke concentration drops below the set smoke threshold, the relay turns off. At the same time, the alarm indicator light is off and the buzzer stops alarming.

Reference description:

Working voltage: DC5-30V.

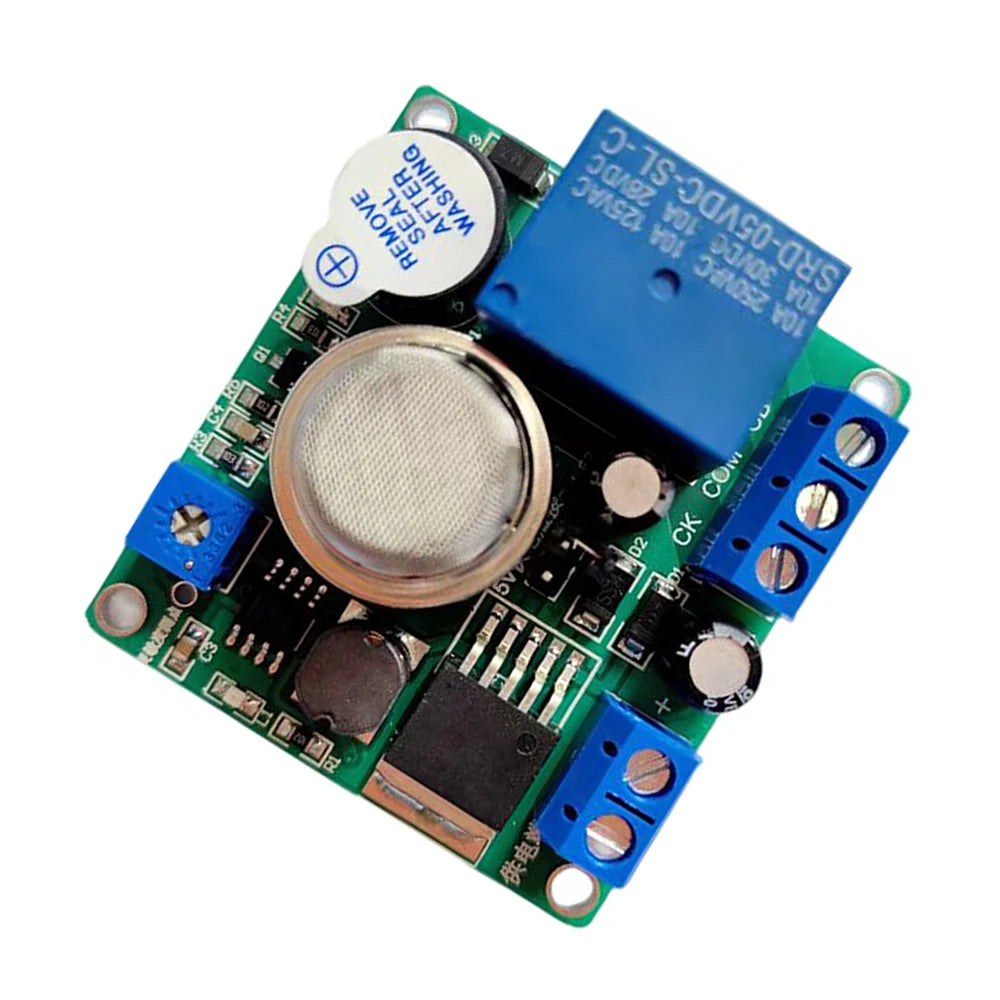

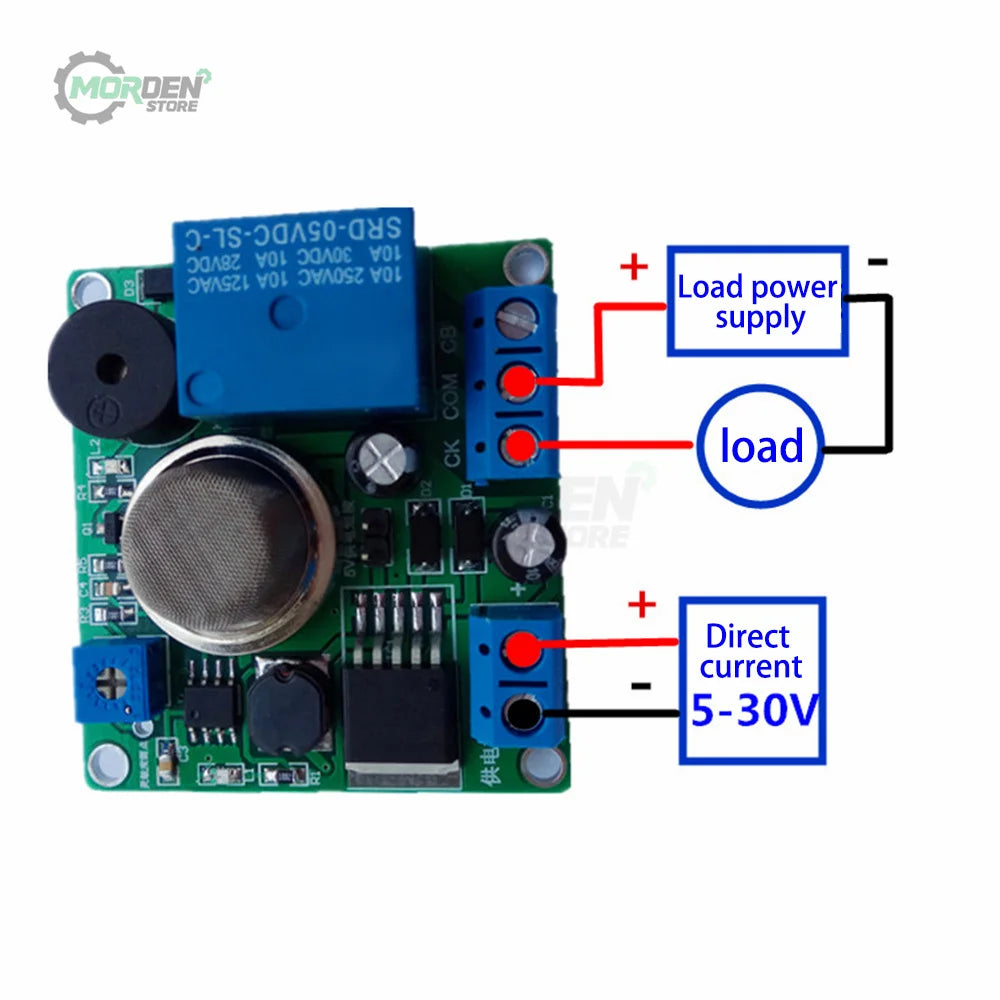

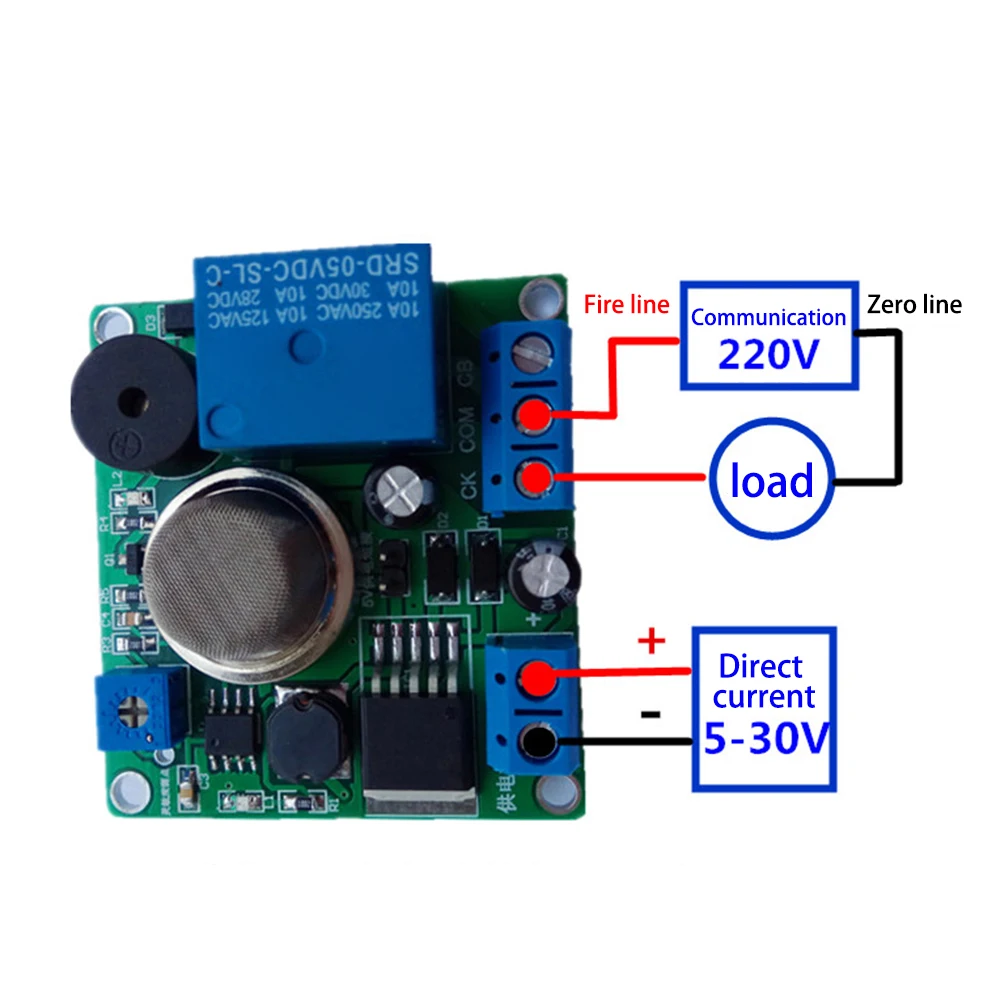

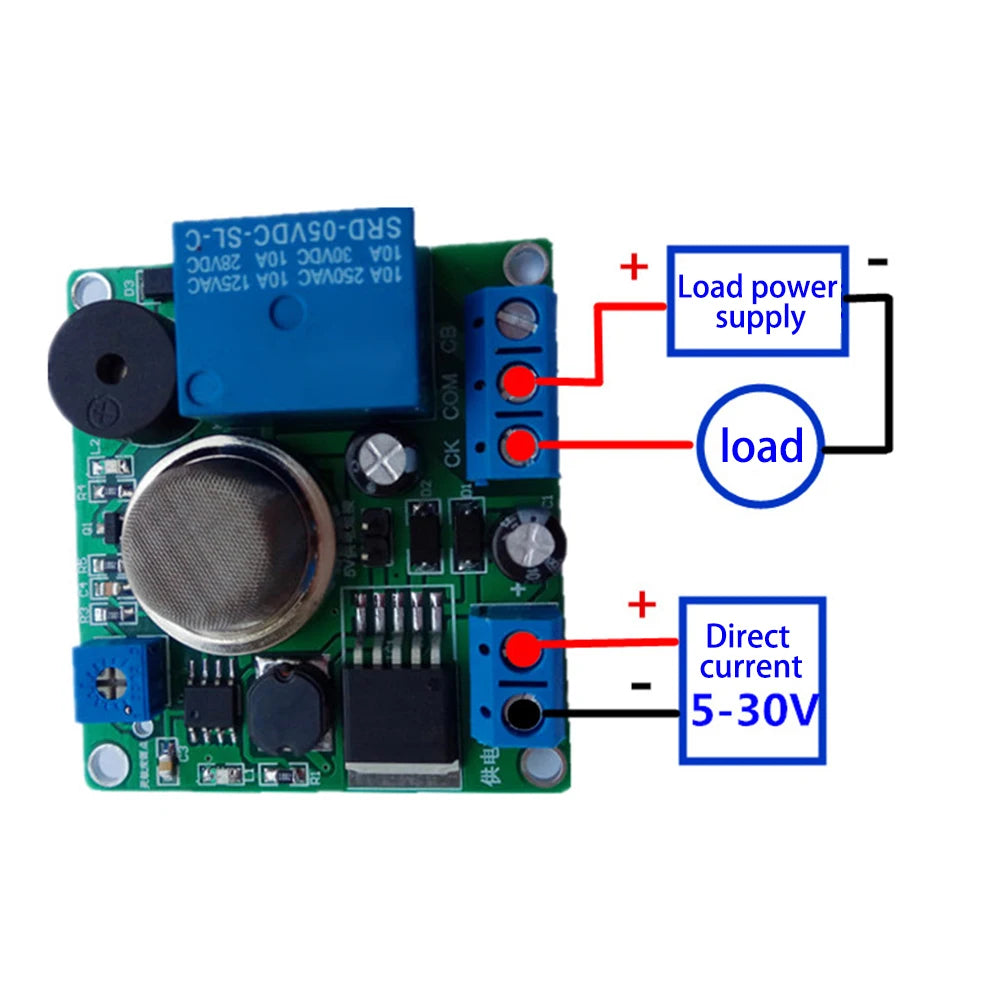

Output capacity: It can control equipment within AC 220V10A or DC 30V10A.

Quiescent current: 20mA,

Dynamic current: 50mA.

With anti-reverse protection, the reverse connection of the power supply will not burn the board.

Service life: more than 100,000 times, working temperature: -40----85C

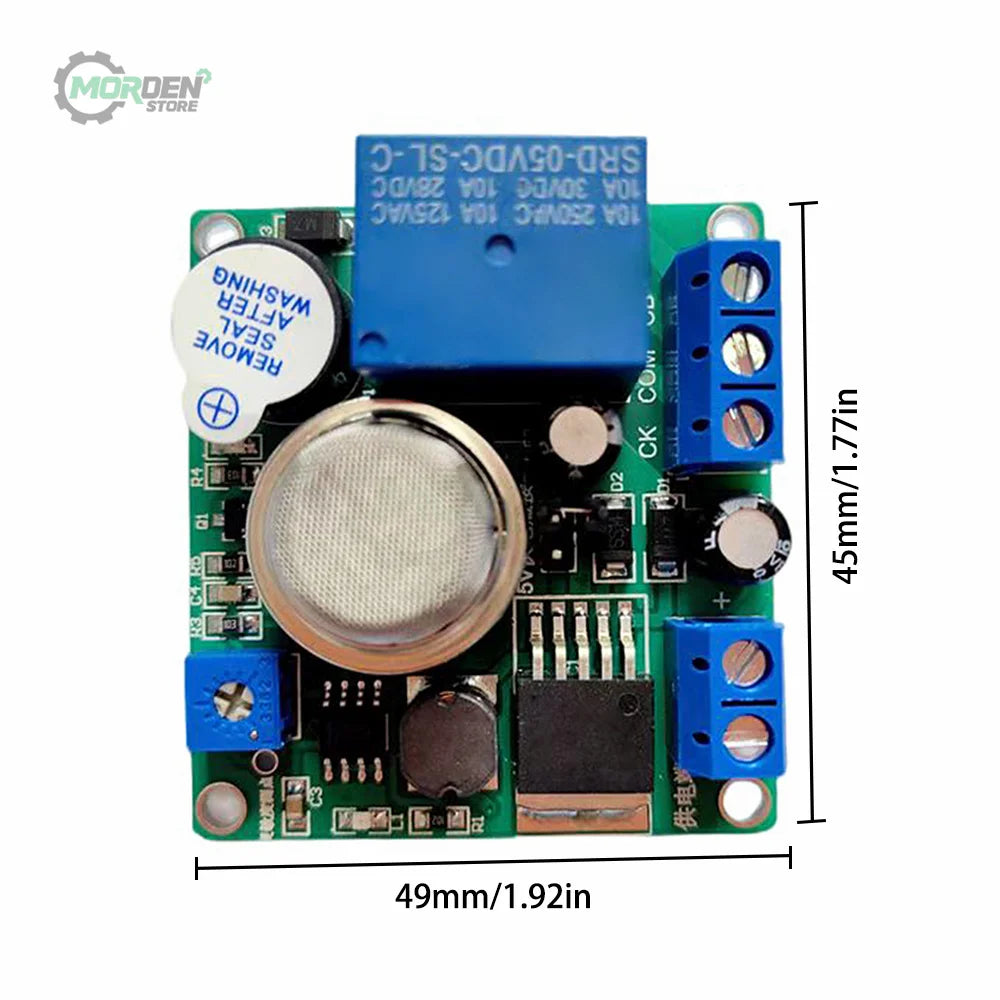

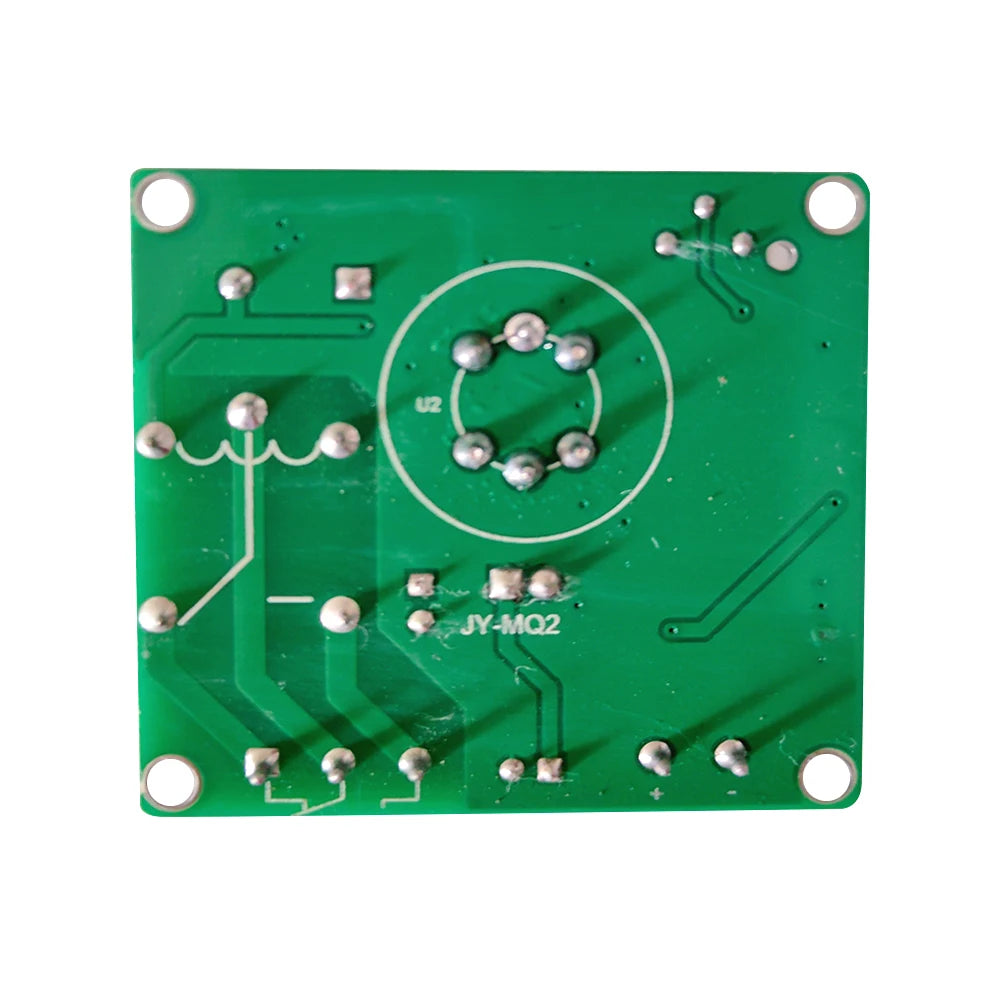

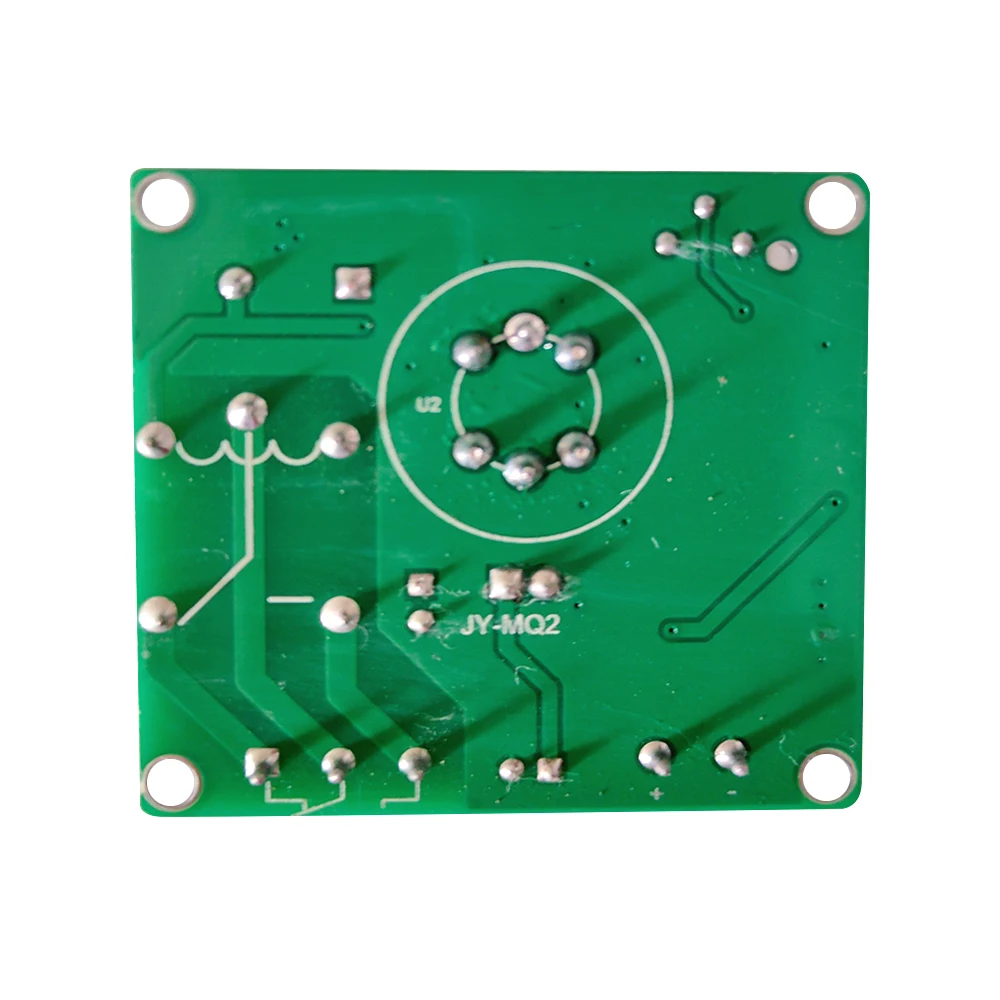

Board size: 49*45*20mm,

Positioning holes: the spacing is 44mm long and 40mm wide, the aperture distance from the outer frame is 2.5mm, and the aperture is 3mm.

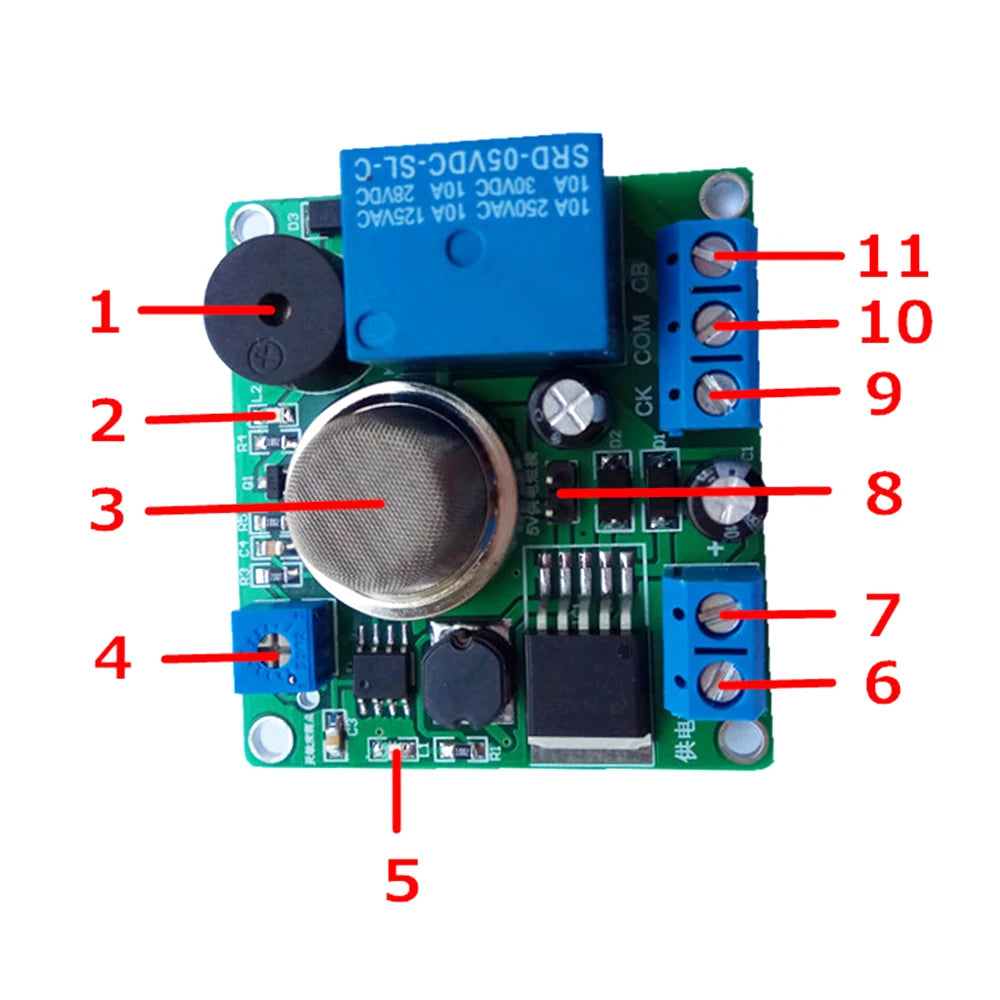

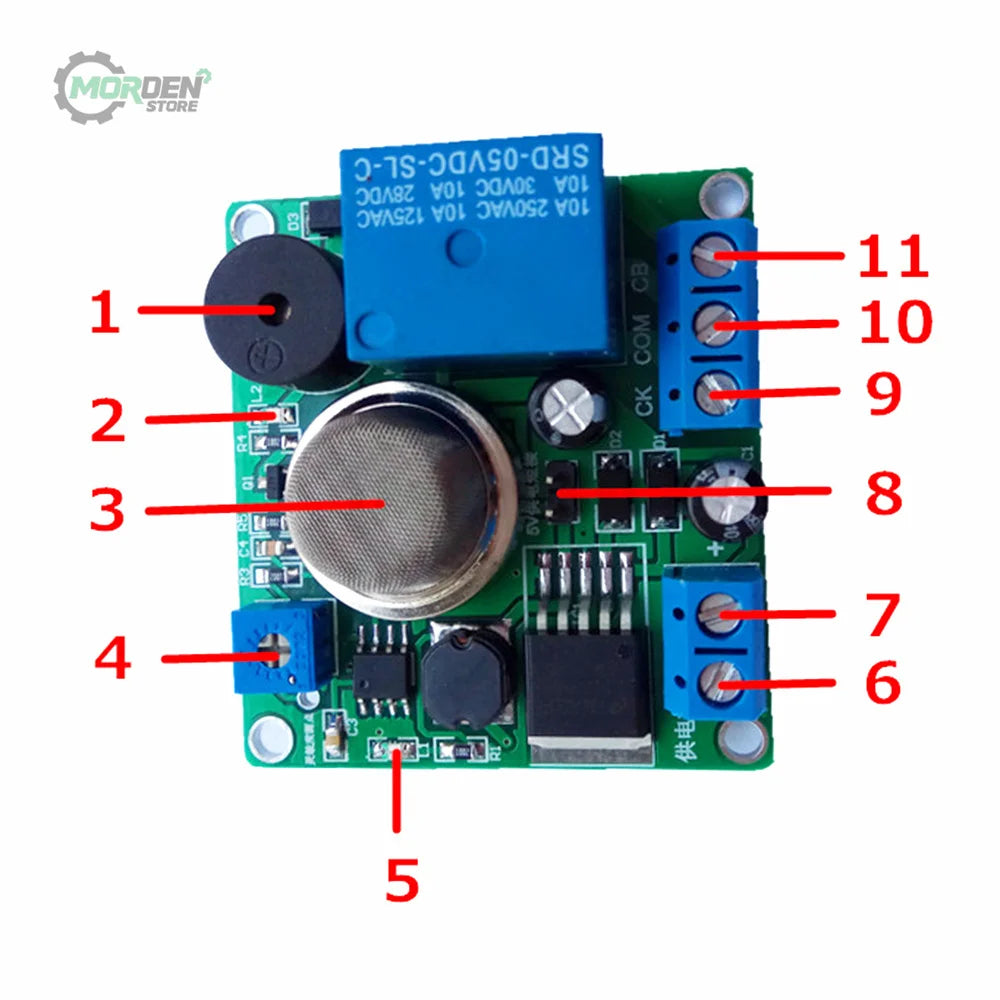

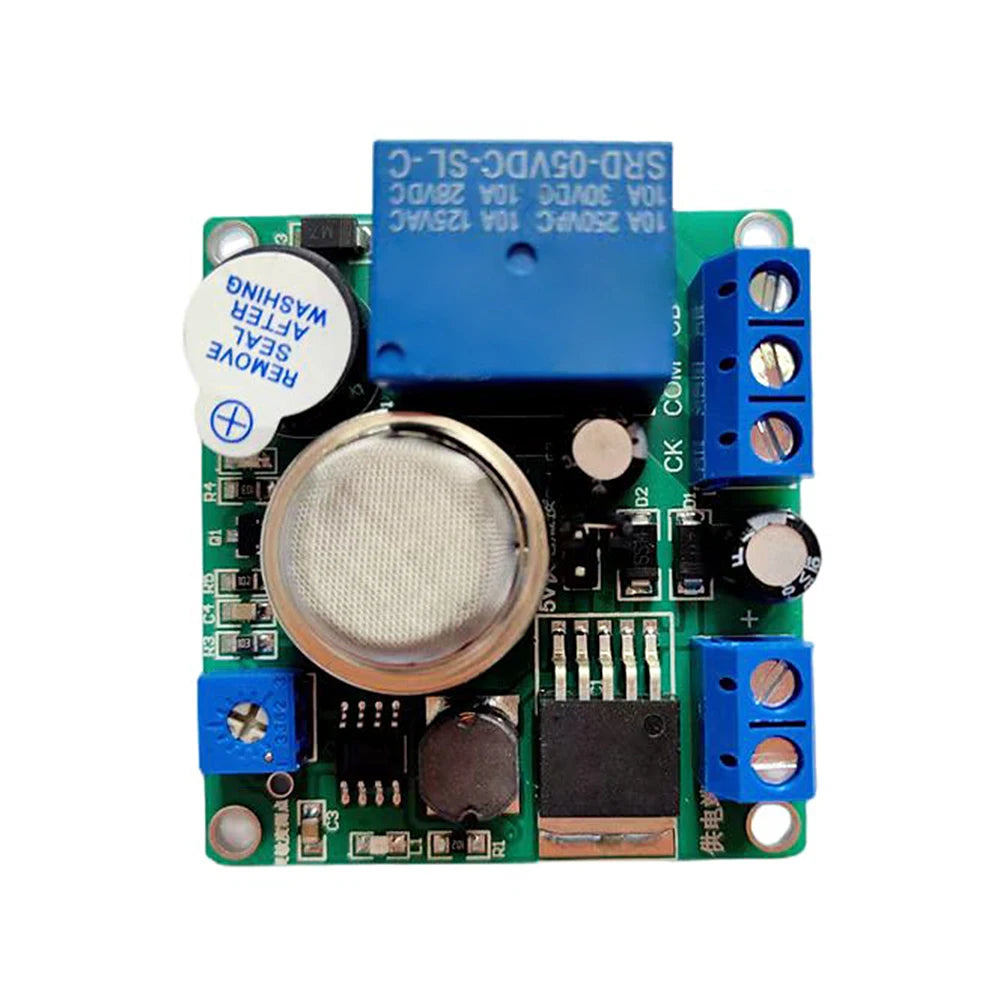

[1] Alarm buzzer

[2] Status indicator light, the indicator light is on, the buzzer alarms and the relay is closed at the same time (9 and 10 are closed, 10 and 11 are disconnected). The indicator light is off, the buzzer stops alarming and the relay is disconnected (9 and 10 are disconnected, 10 and 11 are closed).

[3] Smoke detection sensor, try to make the smoke sensor close to the smoke, so that the detection is more accurate

[4] Smoke concentration detection setting knob, rotate clockwise to provide the smoke concentration threshold; turn counterclockwise to reduce the smoke concentration threshold.

[5] Power indicator light, always on after power supply

[6] Negative pole of power supply

[7] Positive pole of power supply

[8] The working power supply is rotated, the two pins of DC 5-7V are plugged in with short-circuit caps, and the two pins of DC 7-30V are disconnected

[9] Relay normally open pin

[10] Relay public pin

[11] Relay normally closed pin

Package includes:

1 x sensor
