SPECIFICATIONS

Brand Name: NeebRC

Certification: CE

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: NB-H015

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Size: 56 x 23.22 x 28.65mm

Technical parameters: Value 6

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

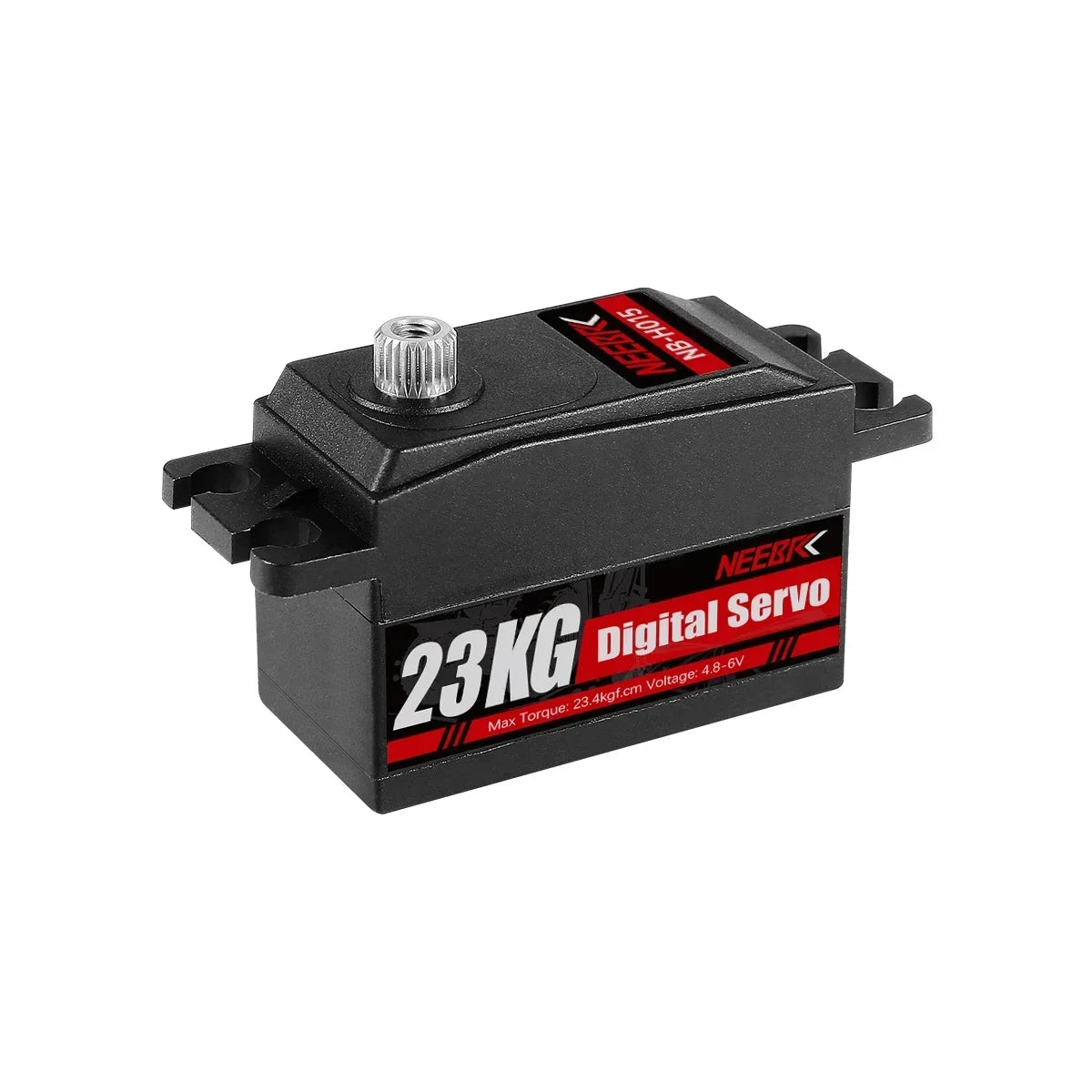

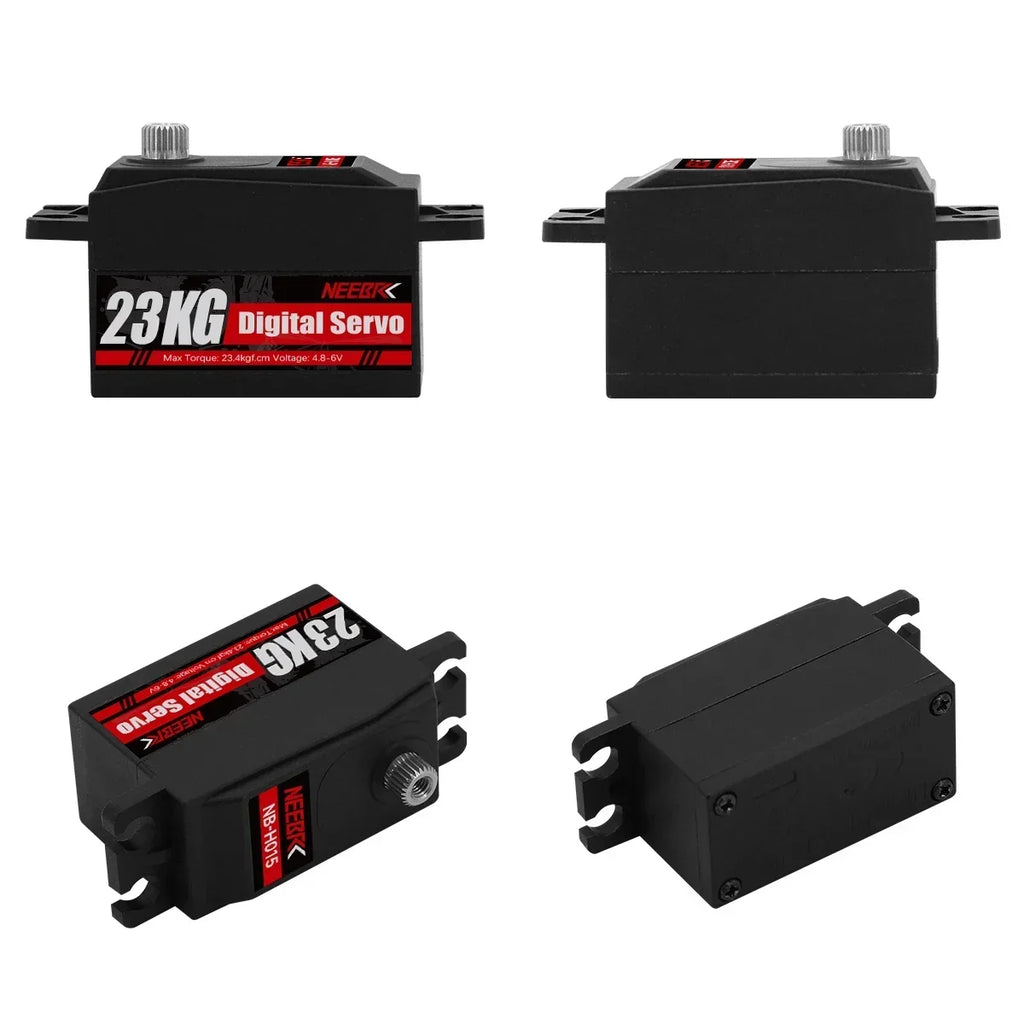

NEEBRC 23KG Metal Gear 15kg Short Body Low Profile RC Servo Motor for 1/8 1/10 RC Cars Axial Scx10 Crawler Plane Accessories

Specifications:

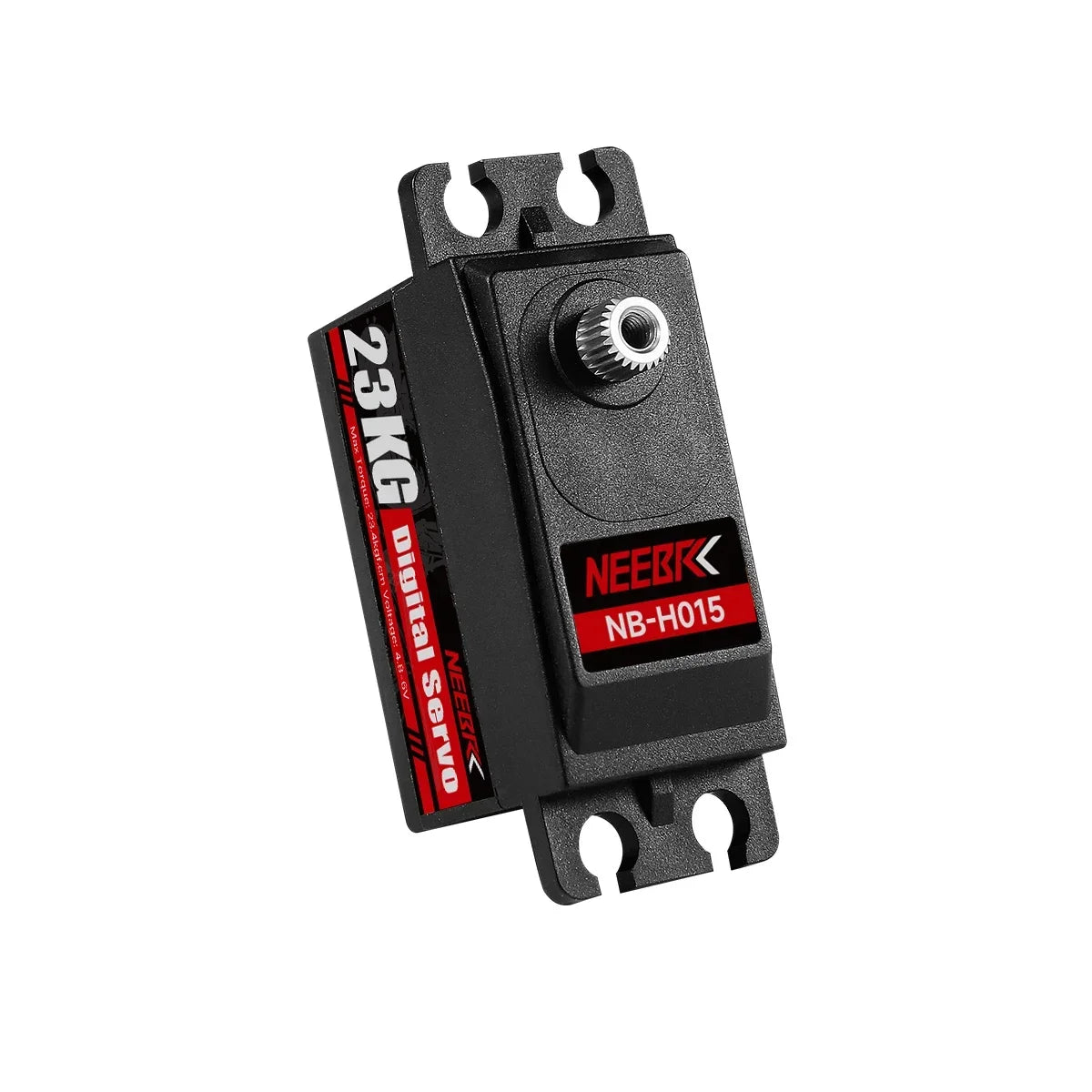

Item name: NEEBRC NB-H015
Quantity: 1pcs
Operating Voltage : 6.0~7.4V DC
Max. Torque : 23.4kgf·cm
No Load Speed : 6.0V≤0.18sec/60°; 7.4V≤0.15sec/60°
Stall Current:6.0V ≦3600mA;7.4V≦4200mA
Consumption Current* (No Load):6.0V ≦90mA;7.4V≦100mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 2us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

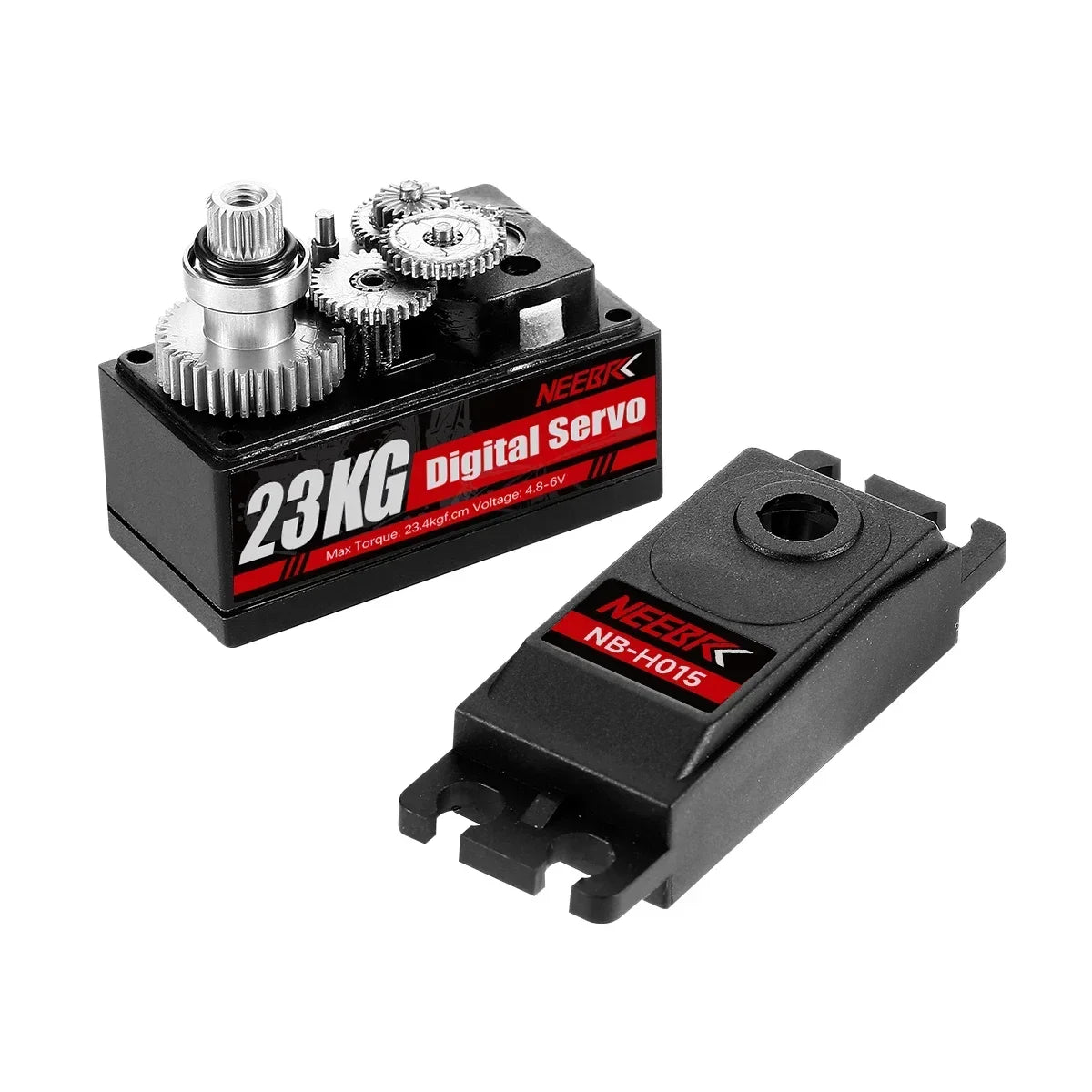

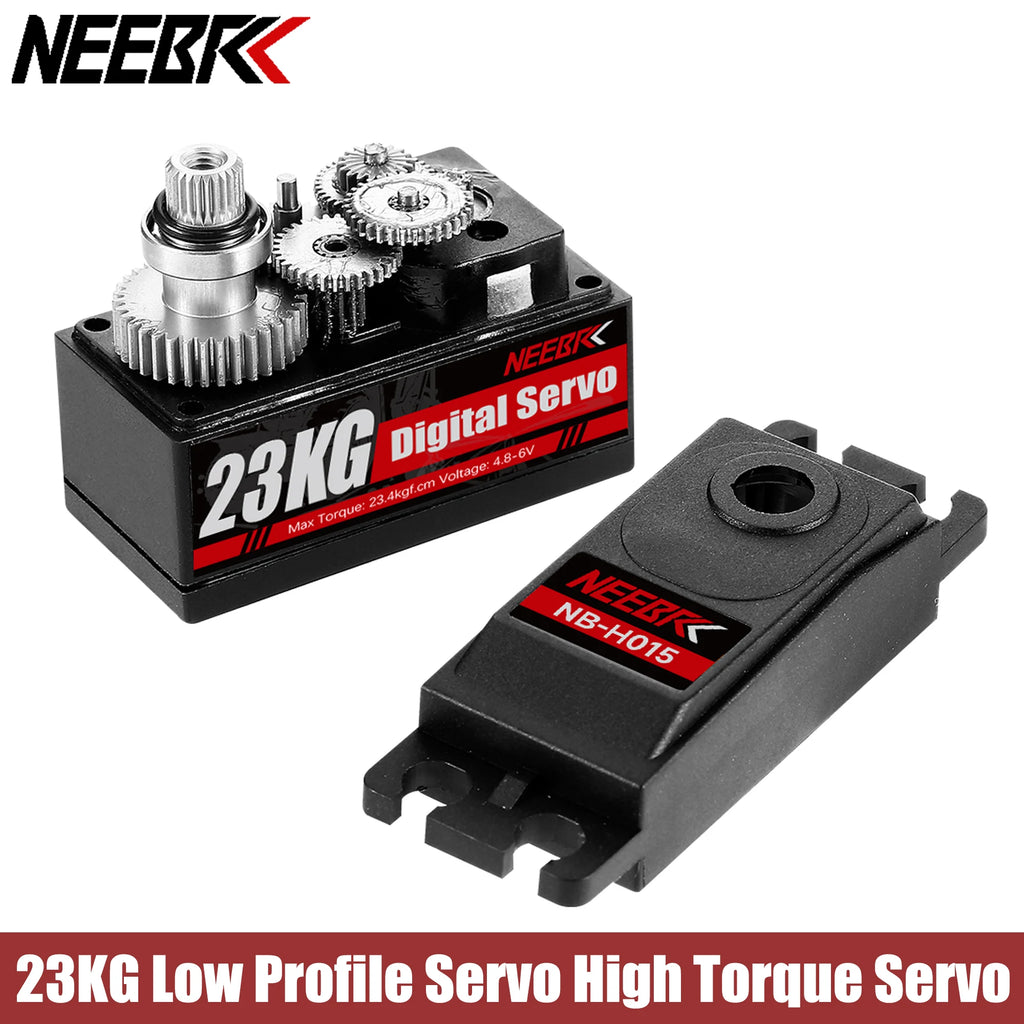

Gear Set Material : Metal gear
Weight: 42.5g

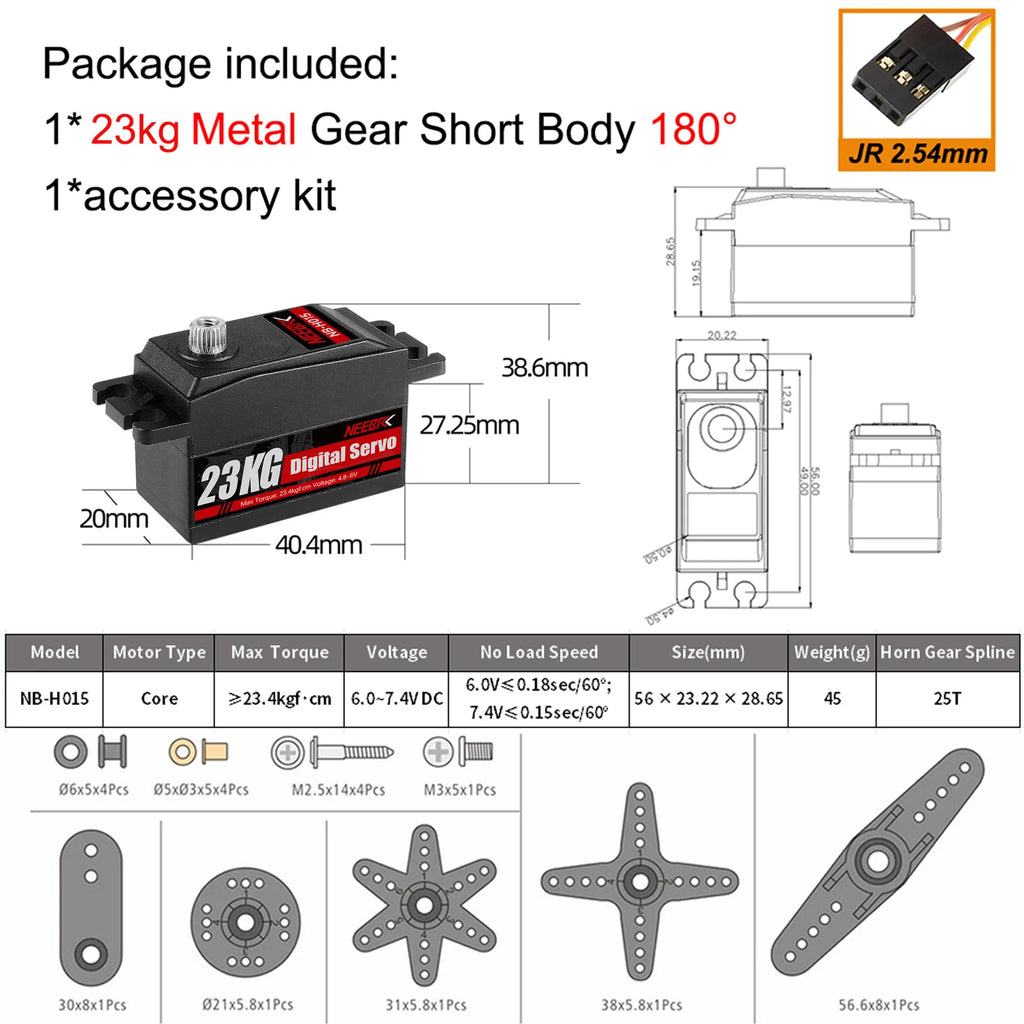

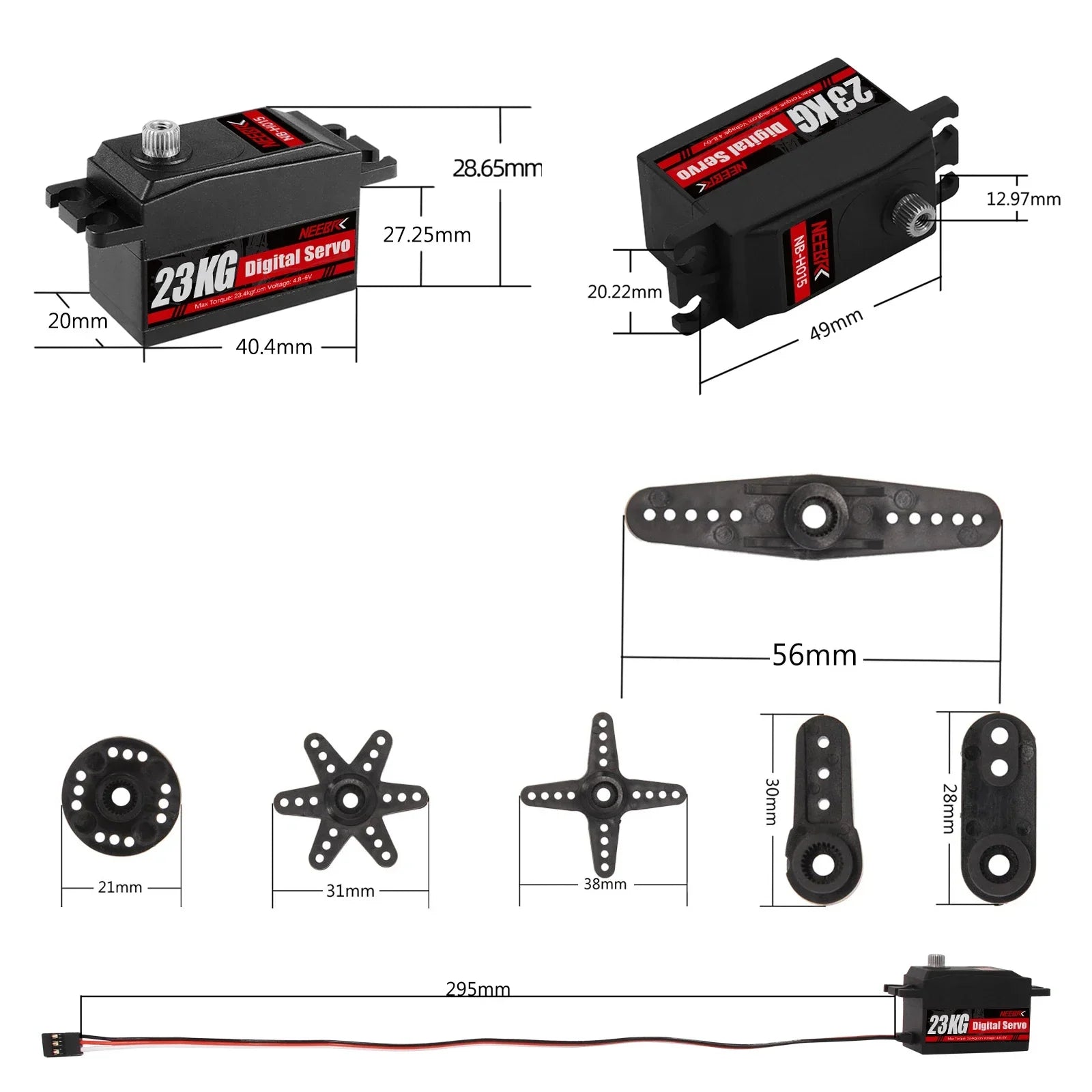

Size: 56 × 23.22 × 28.65mm
Length of Connector cable: JR 270MM±5mm (exposed without plug)

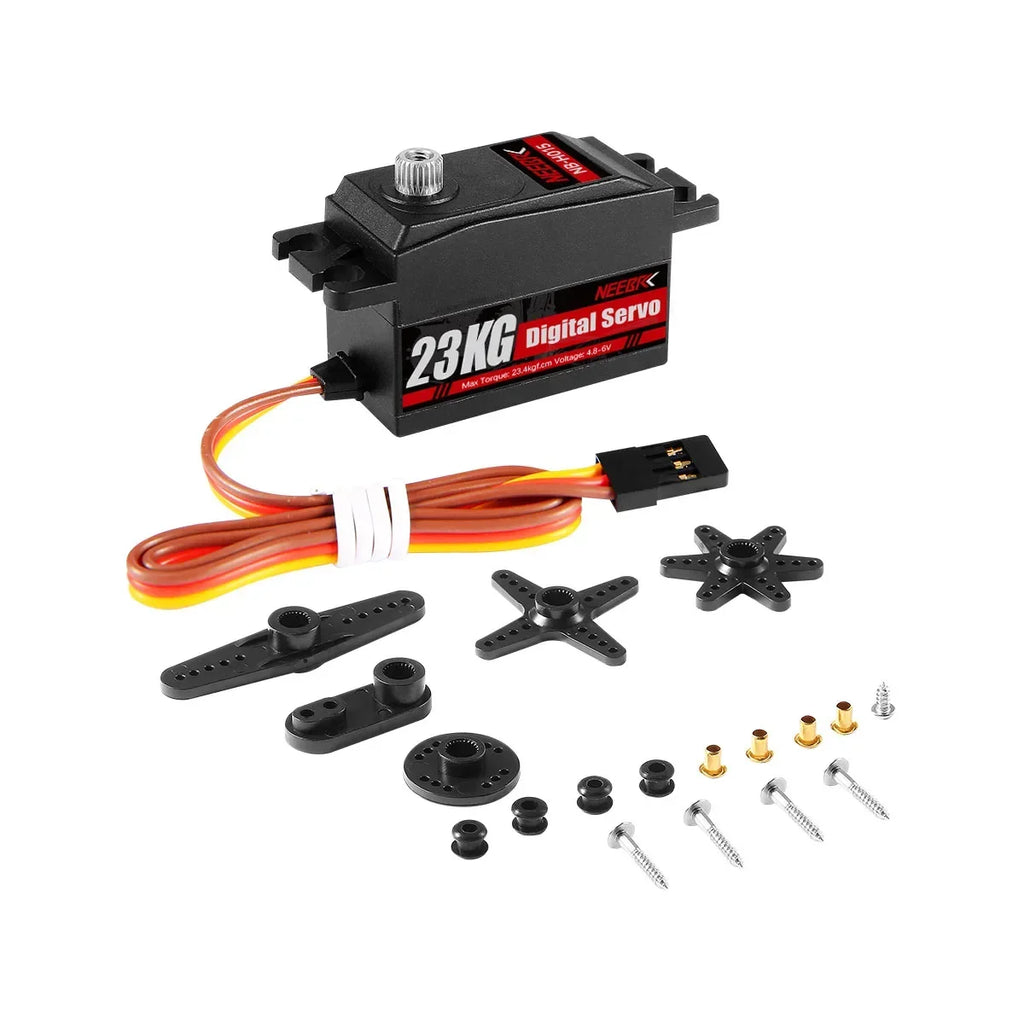

Package included:
1 * 23KG Digital Servo
1 * Servo Arm Accessories

Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
