Description

SPECIFICATIONS

Brand Name: TEHIGHAUTO

Certification: CE

Current: 3A

Driver: TB6600

High-concerned chemical: none

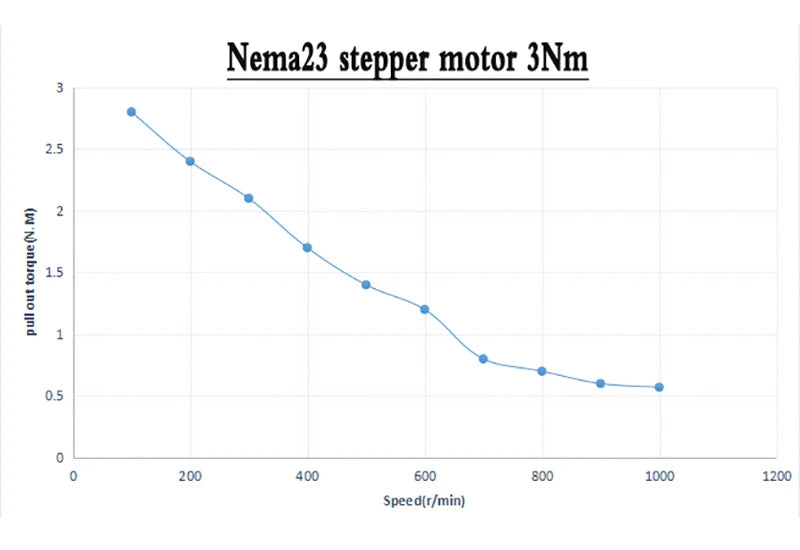

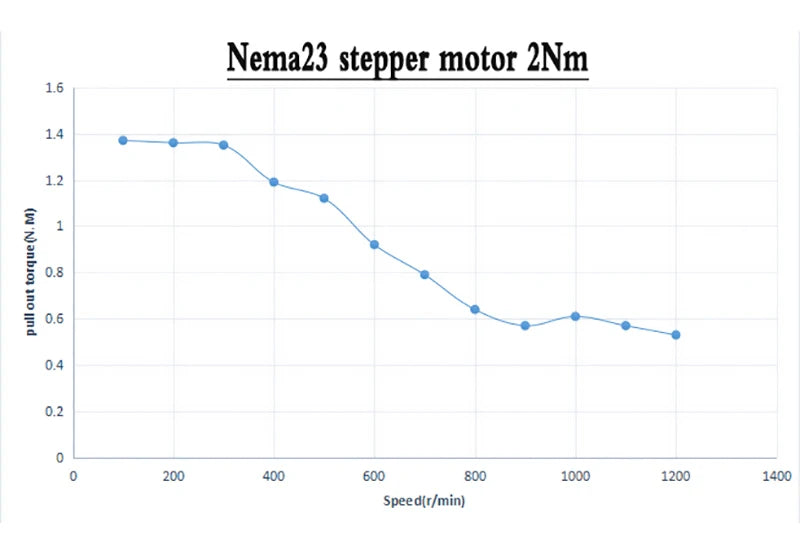

Holding torque: 1.2/2/3N.m

Material: others

Model Number: 57 Stepper Motor+TB6600 Drive

Origin: Mainland China

Power Supply: S-350-24

Shaft Diameter: 8mm

Step angle: 1.8

2 Kit:

2 x Nema23 stepper motor

2 x TB6600 motor driver

2 Kit+Power Supply:

2 x Nema23 stepper motor

2 x TB6600 motor driver

1 x 350W-24v power supply

3 Kit:

3 x Nema23 stepper motor

3 x TB6600 motor driver

3 Kit+Power Supply:

3 x Nema23 stepper motor

3 x TB6600 motor driver

1 x 350W-24v power supply

4 Kit:

4 x Nema23 stepper motor

4 x TB6600 motor driver

4 Kit+Power Supply:

4 x Nema23 stepper motor

4 x TB6600 motor driver

2 x 350W-24v power supply

5 Kit:

5 x Nema23 stepper motor

5 x TB6600 motor driver

5 Kit+Power Supply:

5 x Nema23 stepper motor

5 x TB6600 motor driver

2 x 3500w-24v power supply

Driver Specifications:

1.Model: TB6600

2.Adapted motor: 42mm/57mm flange stepper motor

3.Input voltage: DC 9-42V

4.Input/ Output current: 0.5-3.5A

5.Maximum power: 150W

6.Subdivision: 1,2,4,8,16,32

7.Operating environment temperature: -10～45℃

8.Storage temperature: -40℃～70℃

Power Supply Technical Parameters:

Model: S-350-24

Rated Load: 350W (Max Load)

Input Voltage: 85-132 VAC / 170-264 VAC 47-63 Hz

Output Voltage:DC5V/ 24V (Constant Voltage)

Output Current:6.5A/115V 4A/230V

Conversion Efficiency: More than 84%

Working temperature: -30~+50

IP code:IP20

Cooling type: Fan Cooling (Fan Work With a little noise)

Certificate: CE, ROHS
