Nema 23 Stepper Motor Kit 57mm 3 4 Axis CNC Driver TB6600 DM542 DM556 & USB Mach3 Controller & 350W 36V Power PSU+5V Handwheel
3kit 2.2Nm 57HS82 / China Mainland / DM542 Driver
$1,066.20
Sale price
$1,066.20
Regular price
$0.00
Skip to product information
Nema 23 Stepper Motor Kit 57mm 3 4 Axis CNC Driver TB6600 DM542 DM556 & USB Mach3 Controller & 350W 36V Power PSU+5V Handwheel
$1,066.20
Sale price
$1,066.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: HLTNC
Certification: CCC,ce,ROHS,RoHS,CE,CCC
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Holding Torque: 1.2/2/2.2/2.5/3Nm
Interface board connection: USB
MPG Handwheel: 5V
Mach3: Windows system
Model Number: NEMA23 57HS
Motor axis: single-axis (Dual axis needs to be contacted)
Motor shaft diameter: 8mm
Nema23 motor flange: 57x57mm
Number of leads: 4
Origin: Mainland China
Phase: 2
Phase current: 3A
Step Angle(degrees): 1.8°
Switch power supply: 350W 36V

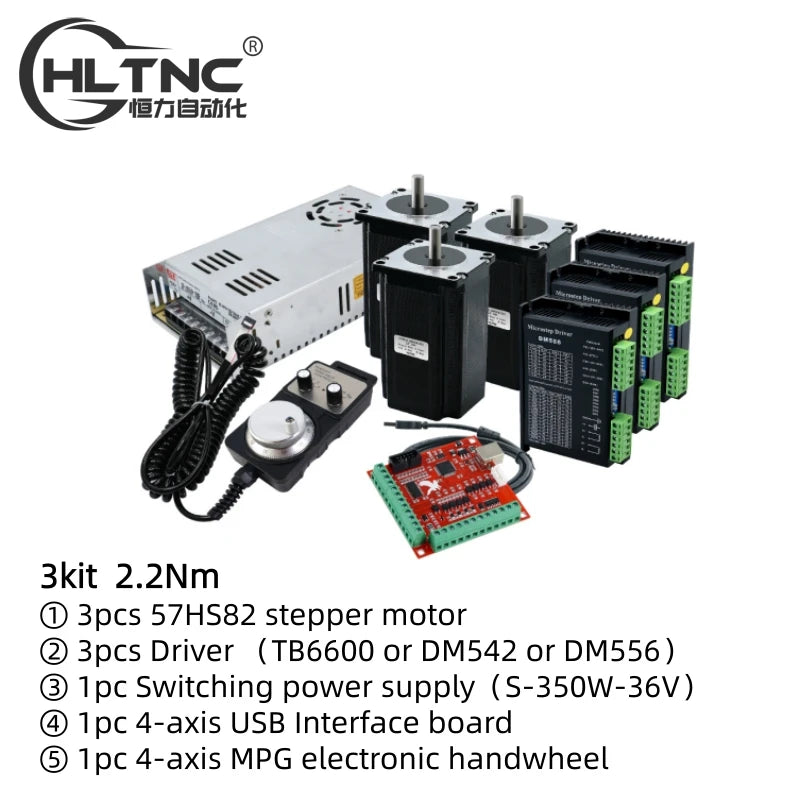

Produet set
Product Set 01
① 3* 57 Stepper Motor (HS56/HS76/HS82/HS100/HS112 )

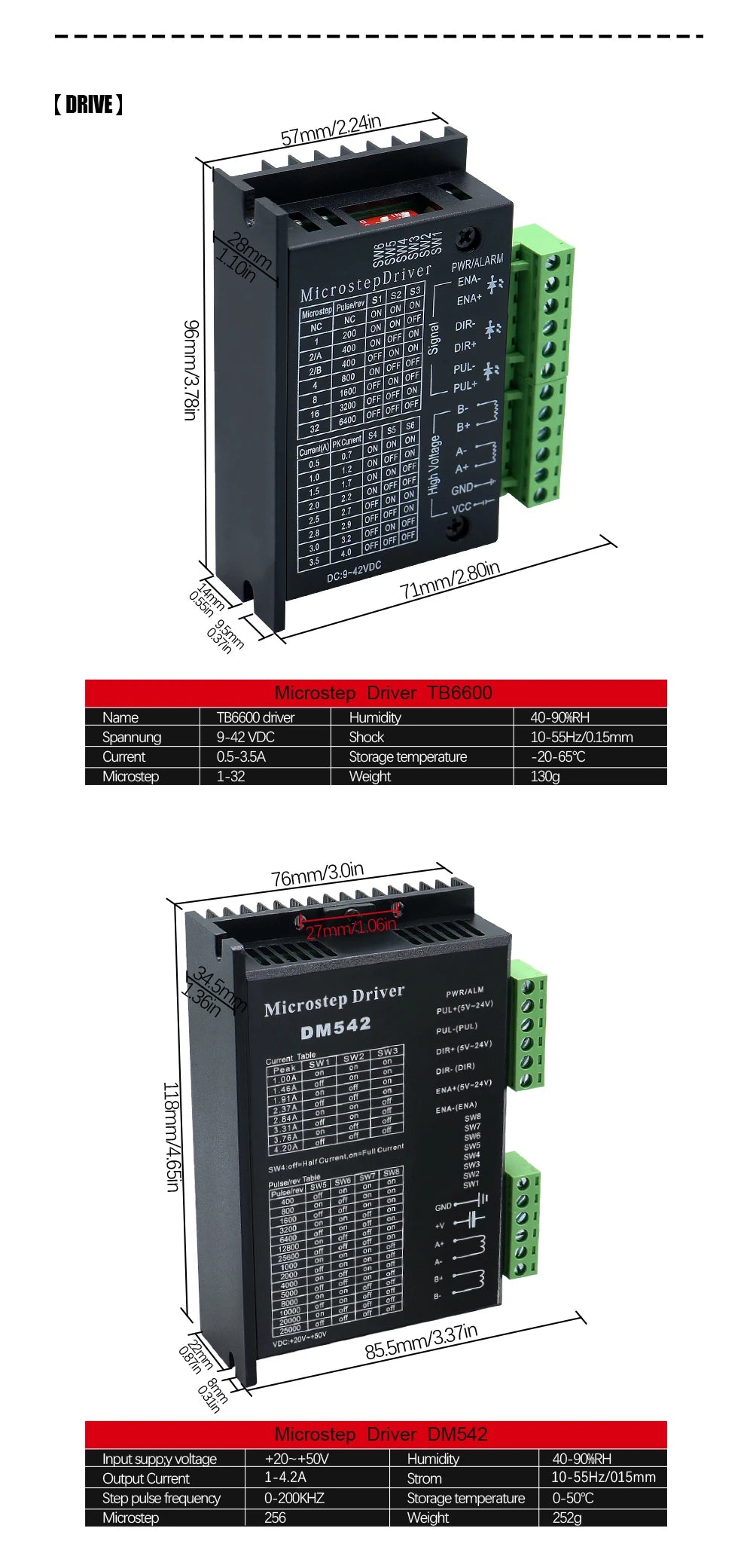

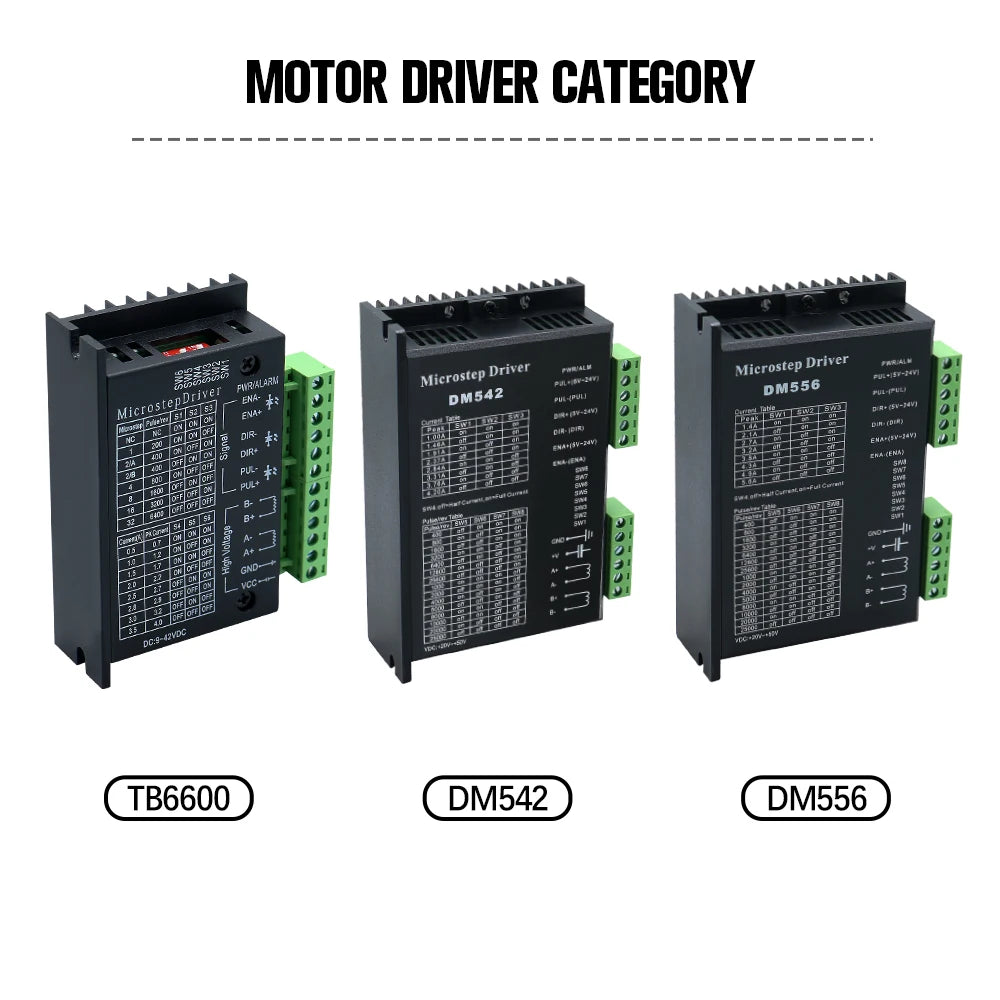

② 3* Driver (TB6600/DM542/DM556 )

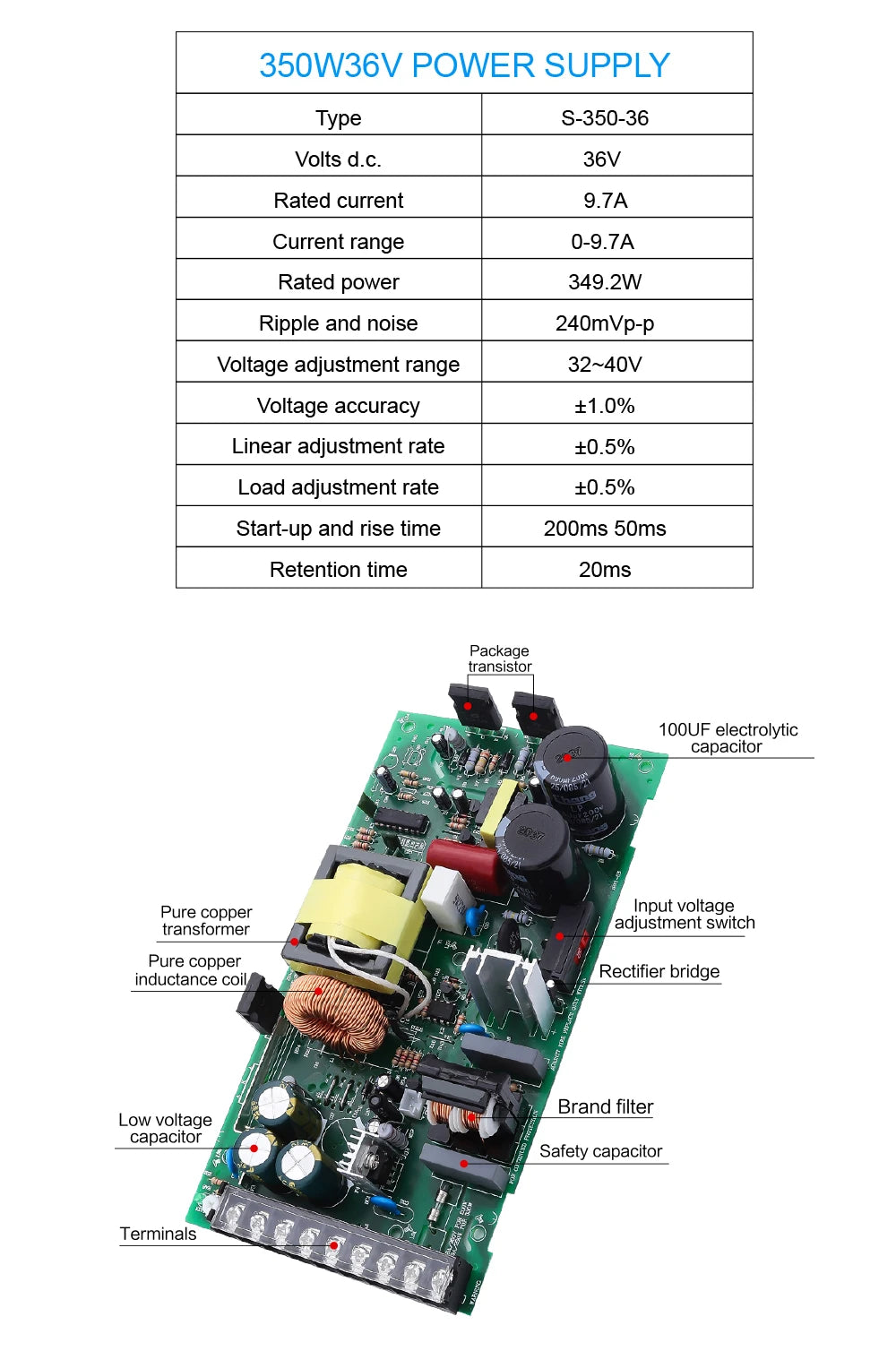

③ 1* Switching Power Supply (S-350W-36V )
④ 1* Interface Board (4 Axis)
⑤ 1* Electronic handwheel box (4 Axis)

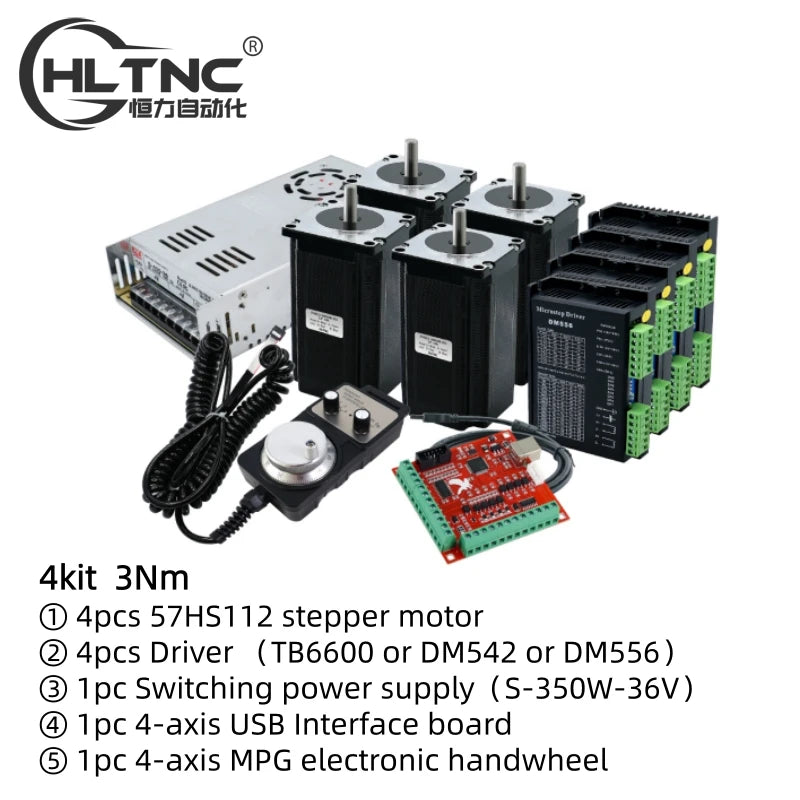

Product Set 02
① 4* 57 Stepper Motor(HS56/HS76/HS82/HS100/HS112)
② 4* Driver(TB6600/DM542/DM556 )
③ 1* Switching Power Supply ( S-350W-36V )
④ 1* Interface Board (4 Axis)
⑤ 1* Electronic handwheel box (4 Axis)
NEMA23 |
|||||||||||
Model |
Step |
Rated |
Rated |
Phase |
Phase |
Holding |
Detent |
Rotor |
Motor |
Lead |
|
1.2Nm |
57HS56 |
1.8° |
2.85 |
3 |
0.95 |
2.8 |
12 |
400 |
300 |
56 |
4 |
2Nm |
57HS76 |
1.8° |
2.7 |
3 |
0.9 |
3.5 |
20 |
680 |
480 |
76 |
4 |
2.2Nm |
57HS82 |
1.8° |
3 |
3 |
1.4 |
5 |
22 |
700 |
510 |
82 |
4 |
2.5Nm |
57HS100 |
1.8° |
3 |
3 |
1 |
4.5 |
25 |
1000 |
680 |
100 |
4 |
3Nm |
57HS112 |
1.8° |
3.9 |
3 |
1.3 |
6.5 |
30 |
1200 |
800 |
112 |
4 |

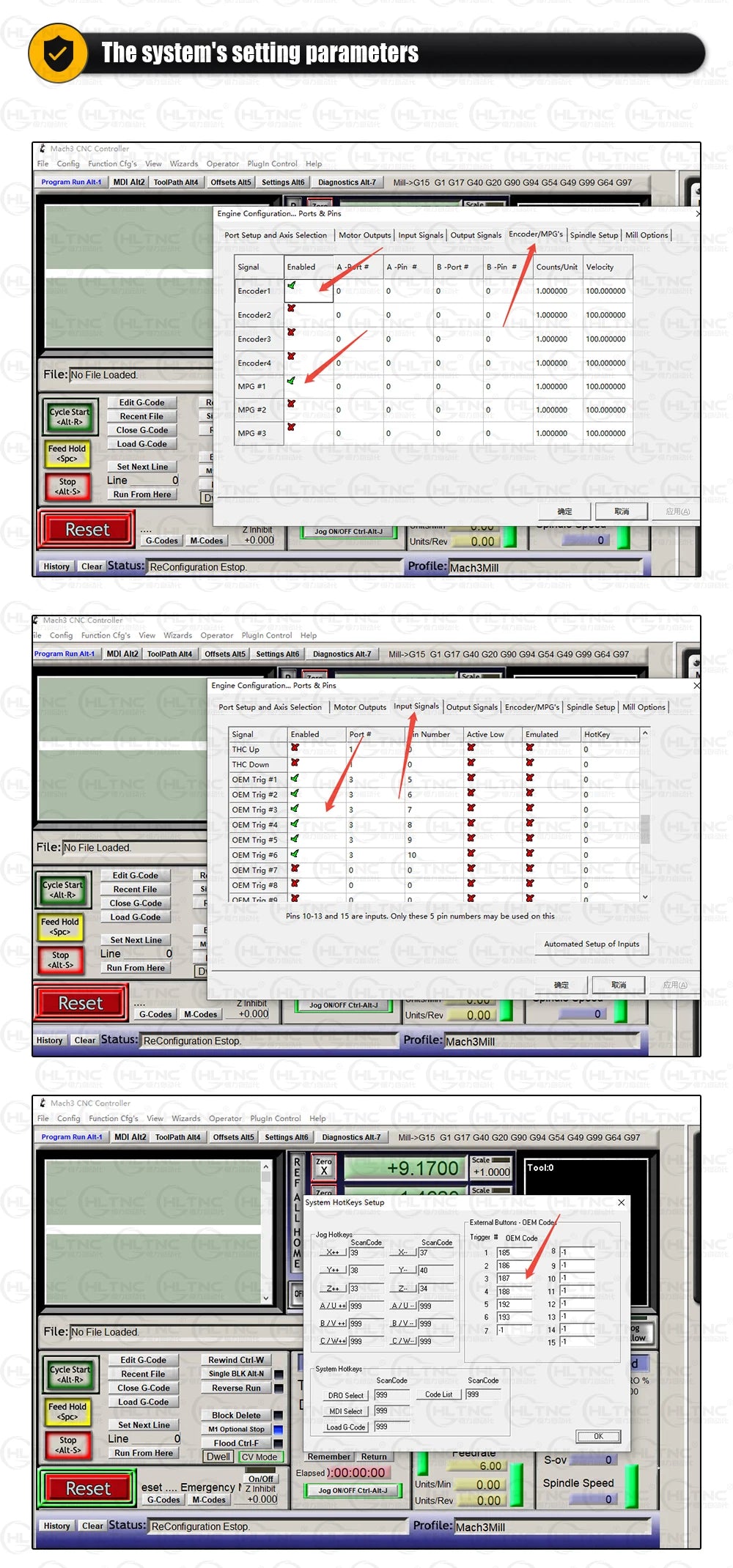

You can try to download the files through these links (google drive)
(mach3 software) https://drive.google.com/file/d/1yoa7EdBHP0LmFZDceVldNOOF81X0rGR6/view?usp=drive_link
(plugin ) https://drive.google.com/file/d/1LKaYwL6L5c0NTqYJEwmiFuc5mnzHAttP/view?usp=drive_link
If you are unsure how to operate the software, you can refer to the following video.
