Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Current: 1.2A-6A

High-concerned chemical: none

Material: others

Origin: Mainland China

Phase: 2 Phases

Shaft diameter1: 5mm

Shaft diameter2: 8mm

Shaft diameter3: 14mm

Torque2: 0.4Nm/0.48Nm/0.6Nm

Torque3: 1.2Nm/2Nm/3Nm

Torque4: 1.5Nm/2Nm/3.2Nm

Torque5: 4.5Nm/8.5Nm/12Nm

frame size1: 42mm

frame size2: 57mm

frame size3: 86mm

If you choose Open-loop/All-in-one, you will get: Motor * 1
If you choose Open Kit/Closed Kit, you will get: Motor * 1+Driver * 1

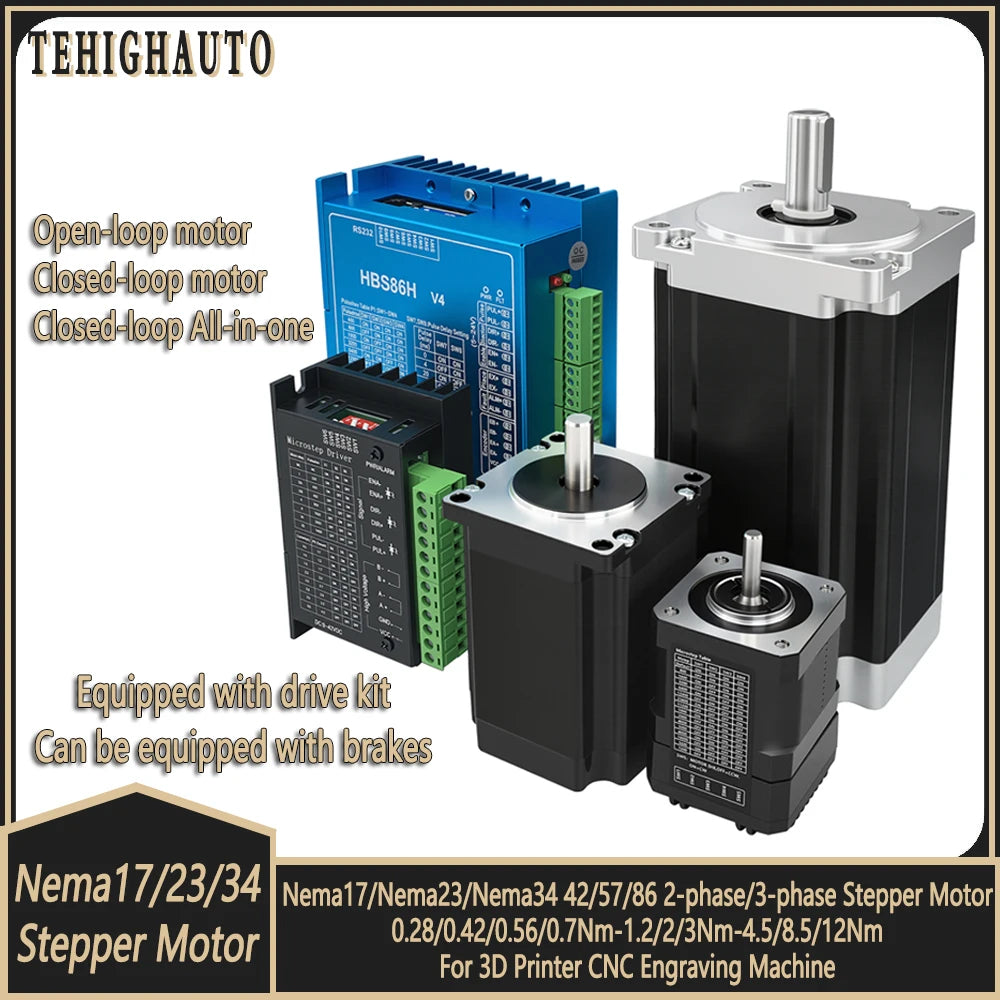

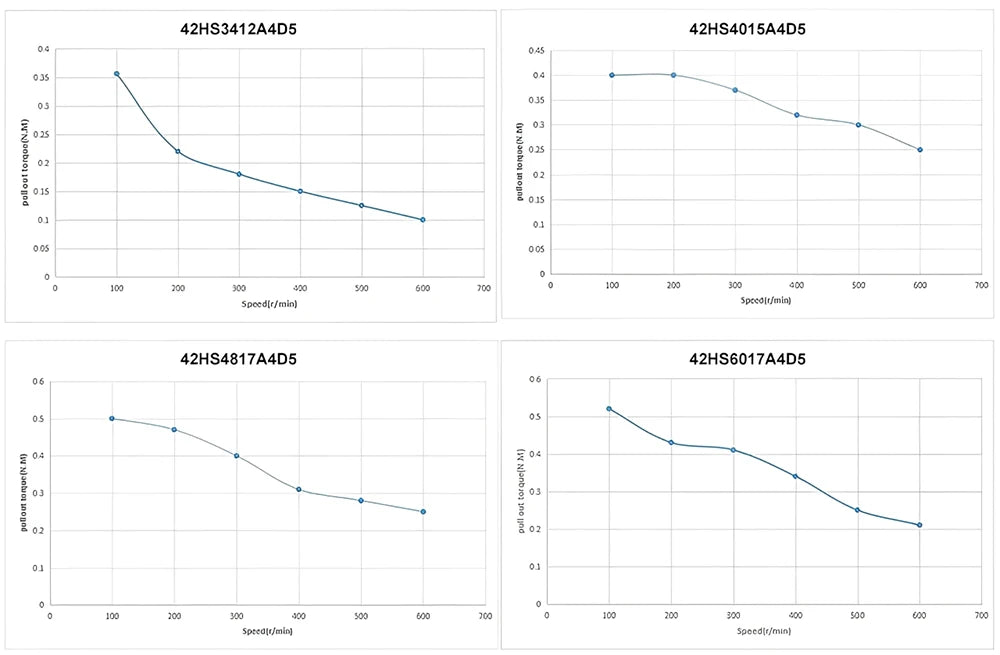

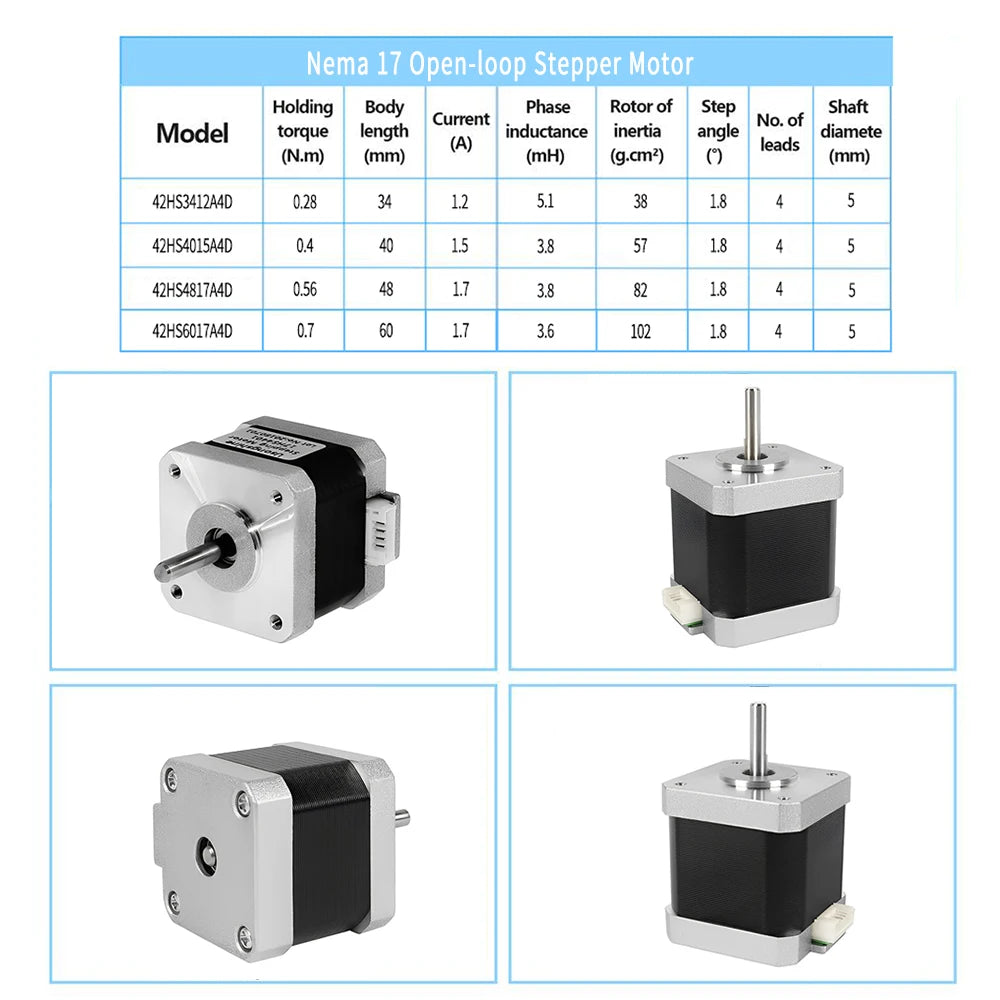

Nema17 42 Stepper Open-loop Motor Parameters:
Size: 42mm Nema17
Body length: 34mm（0.28nm）;40mm (0.42nm);48mm（0.56nm）
Shaft diameter:5mm
Attribute word: Stepper Motor Step;
key parameter Number of phases: 2 phases, 4 lines, 1.8 °: 2phase (2PH), 4Lead
Application field: CNC; Router
Wiring: 1 meter
Applications: Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment, laser machine, automation devices.

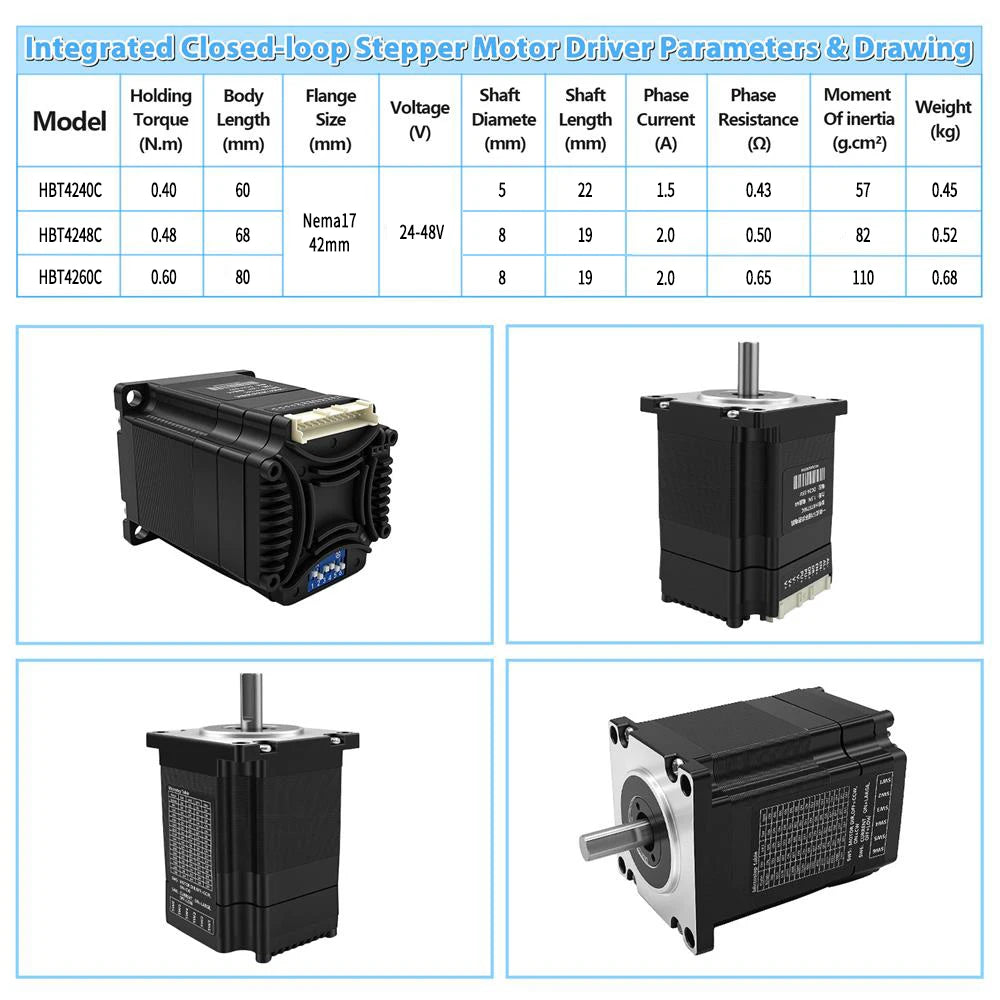

Nema17 42 Closed-loop Integrated Machine Parameters:

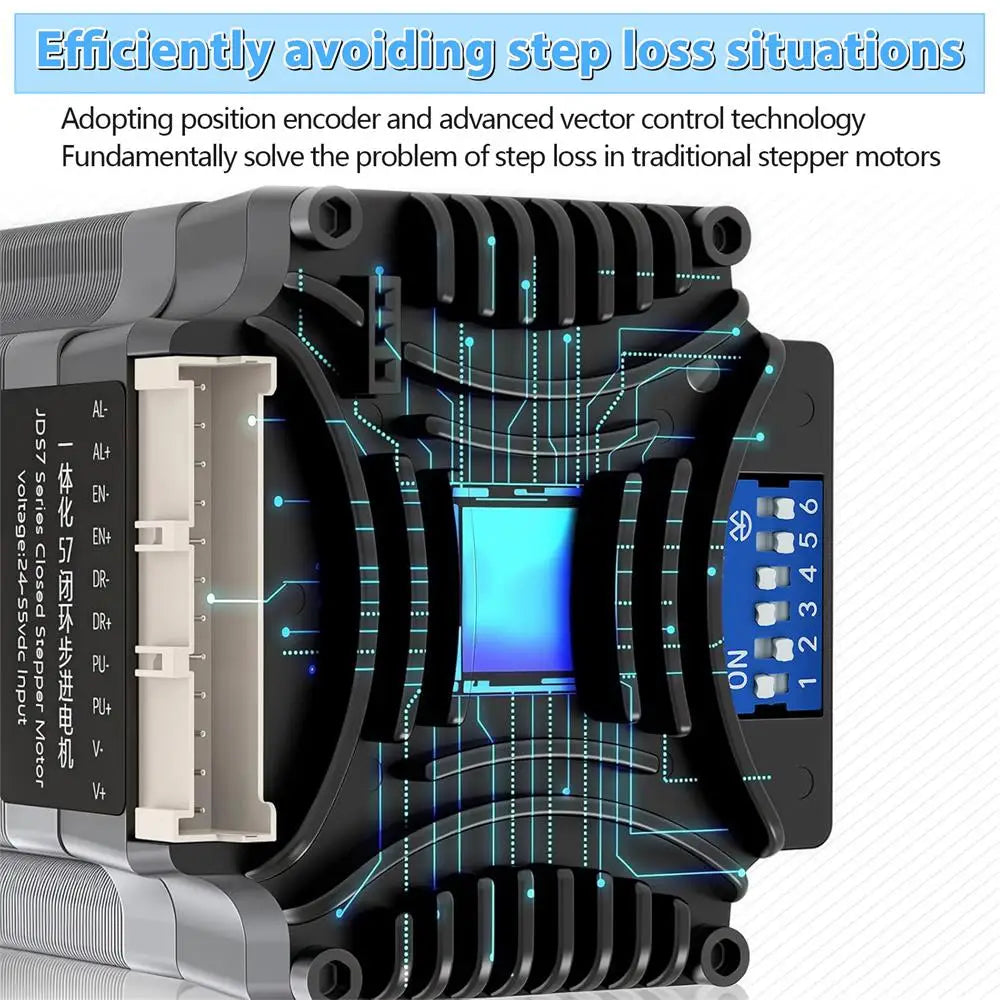

Features: Utilizes both FOC control technology and SPWM vector closed-loop control technology to ensure high-speed torque and precision
Encoder: 1000-line magnetic encoder

Body Length(mm):40mm
Holding Torque(N.m):0.4
Flange Size (mm):NEMA17 42mm
Shaft Dia(mm):5
Phase Current(A):1.5
Phase Resistance (Ω):0.43
Moment Of inertia(g.cm²):57
Weight(kg):0.45

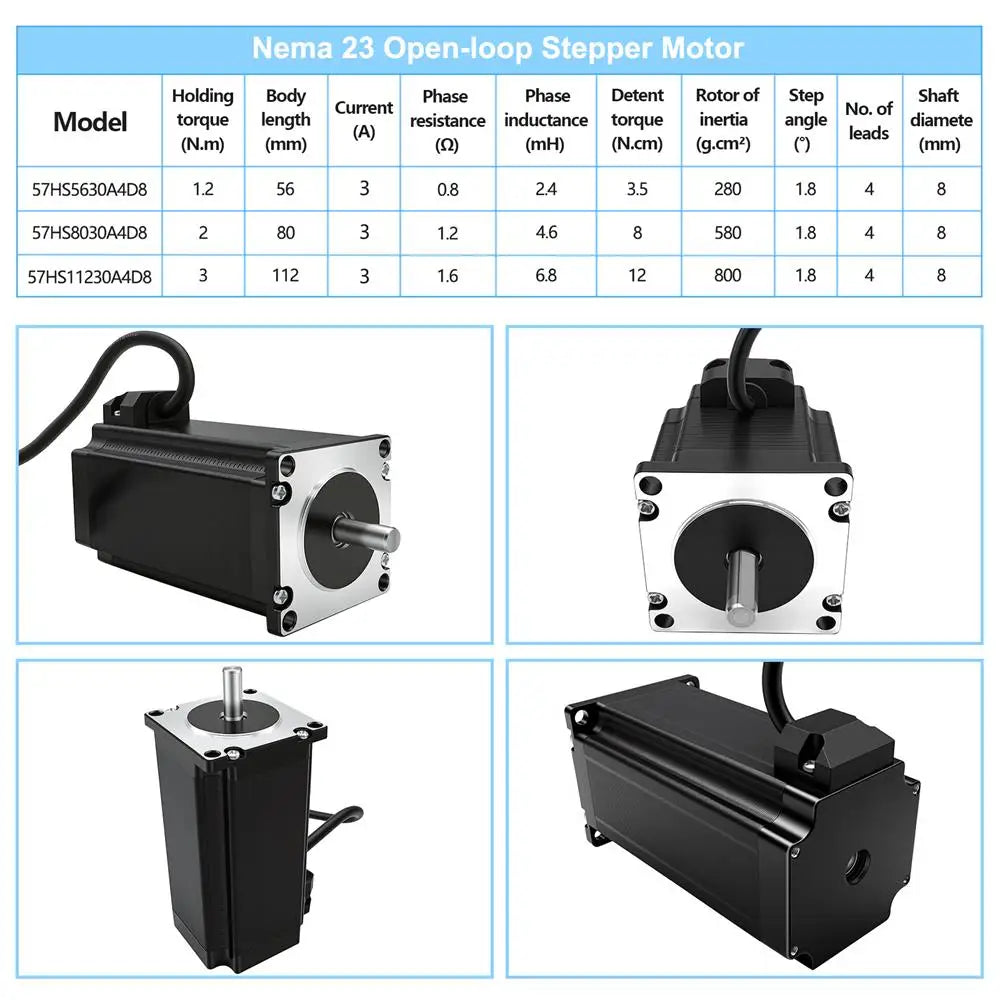

Nema23 57 Step Open-loop Motor Parameters:
Holding torque(N.m):1.2Nm.2Nm.3Nm
Body length(mm):56mm.80mm.112mm
Current(A):3
Phase resistance(Q):0.8
Phase inductance(mH):2.4
Detent torque(N.cm):3.5
Moment of inertia(g.cm2):280
phases: 2 phases, 4 lines, 1.8 °: 2phase (2PH), 4Lead
output diameter(mm):8

Nema23 57 Step Closed-loop Motor Parameters:
1.Flange: Nema23 57mm
2.Step angle: 1.8 degree
3.Phase: 2PH
4.Hold torque: 1.2Nm/2Nm/3Nm
5.Motor Length: 56/80/112MM
6.Rated Speed: 1000RPM
7.Encoder: 1000line
8.Resistance: 0.4/0.7/0.8(ohm)
9.Inductance: 1.2/2/3.5mH
10.Class of insulation: B

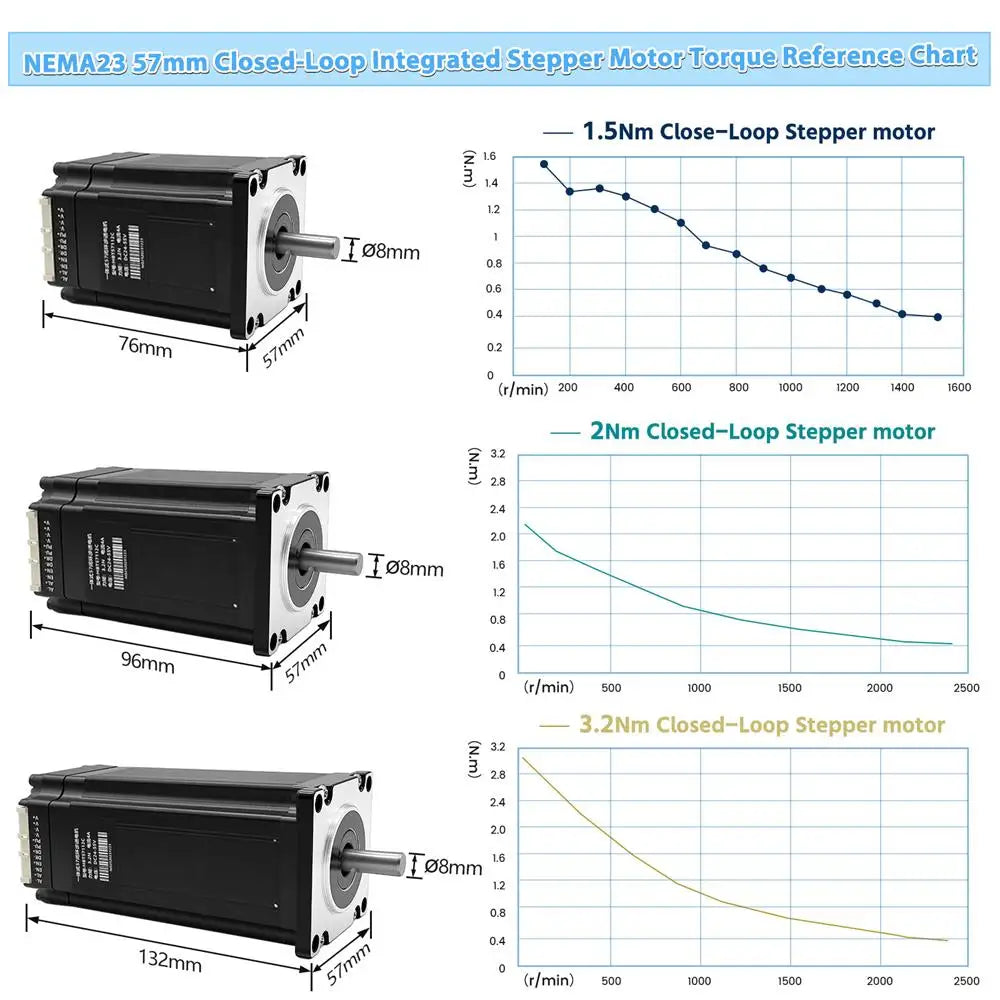

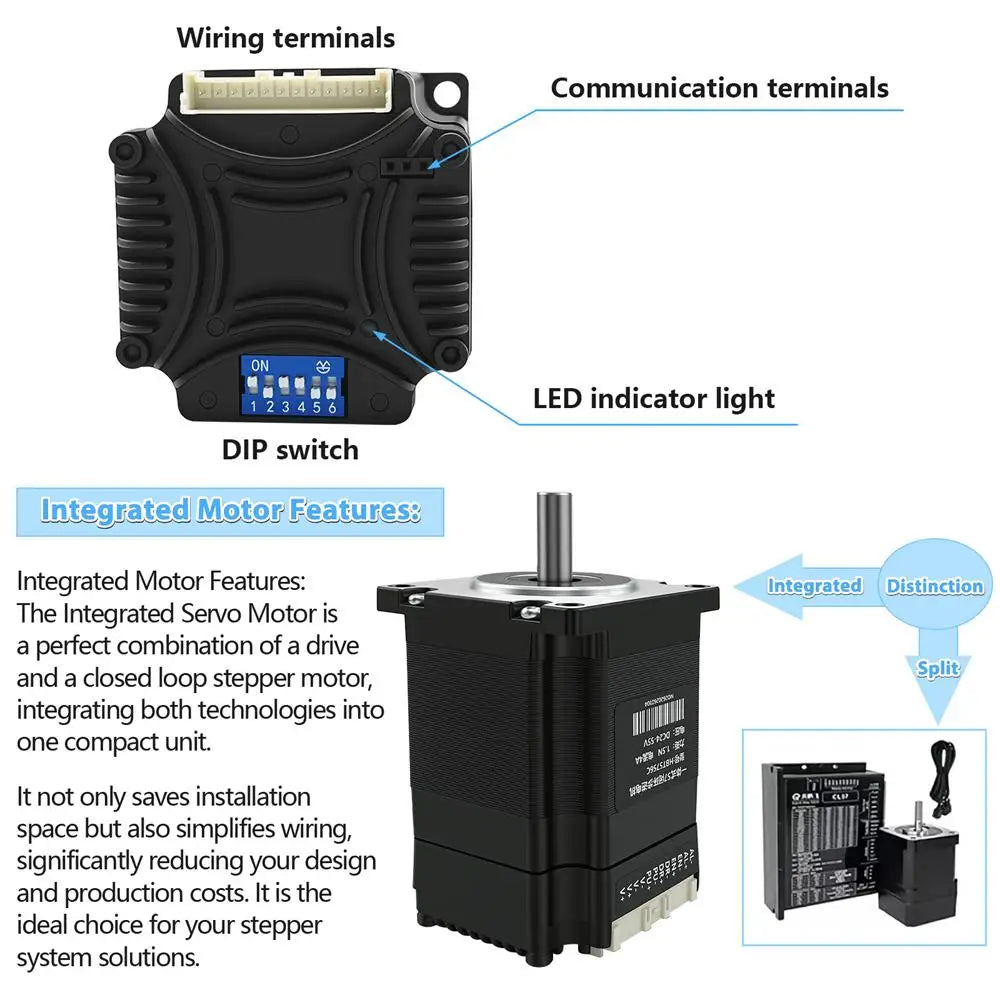

Nema23 57 Closed-loop Integrated Machine Parameters:
Rated torque: 1.5Nm;2Nm;3.2Nm
Motor shaft diameter: 8mm
Input voltage: 20VDC~48VDC
Output current: 3.0~4.2A
Stepper motor signal frequency: 200kHz
Control signal input current: 7~16mA
Overvoltage Protection: 55VDC
Input signal voltage: 5VDC
Insulation resistance: 100MΩ
Encoder type: 1000 line magnetic encoder

Nema34 86 Stepper Open-loop Motor Parameters:

Nema34 86 Stepper Closed-loop Motor Parameters:

TB6600 Driver Parameters (For Nema17/23 Stepper Open-loop Motor):
Model: TB6600
Adapted motor: 42mm/57mm flange stepper motor
Input voltage: DC 9-42V
Input/ Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32

HB808C Driver Parameters (For Nema23 Stepper Closed-loop Motor):
Model: HB808C
Type: DSP Closed loop stepper drive
Maximum peak current: 13A
Impulse response frequency: 200KHz
Micro-stepping driver: 200~25600ppr
Input Voltage: 24-80VDC
Protective function: Over voltage, over current, tracking error, over proof
Signal input: Support PUL/DIR and CW/CCW modes (difference)
Compatible: 4.5~28V signal (Don't need a resistor)

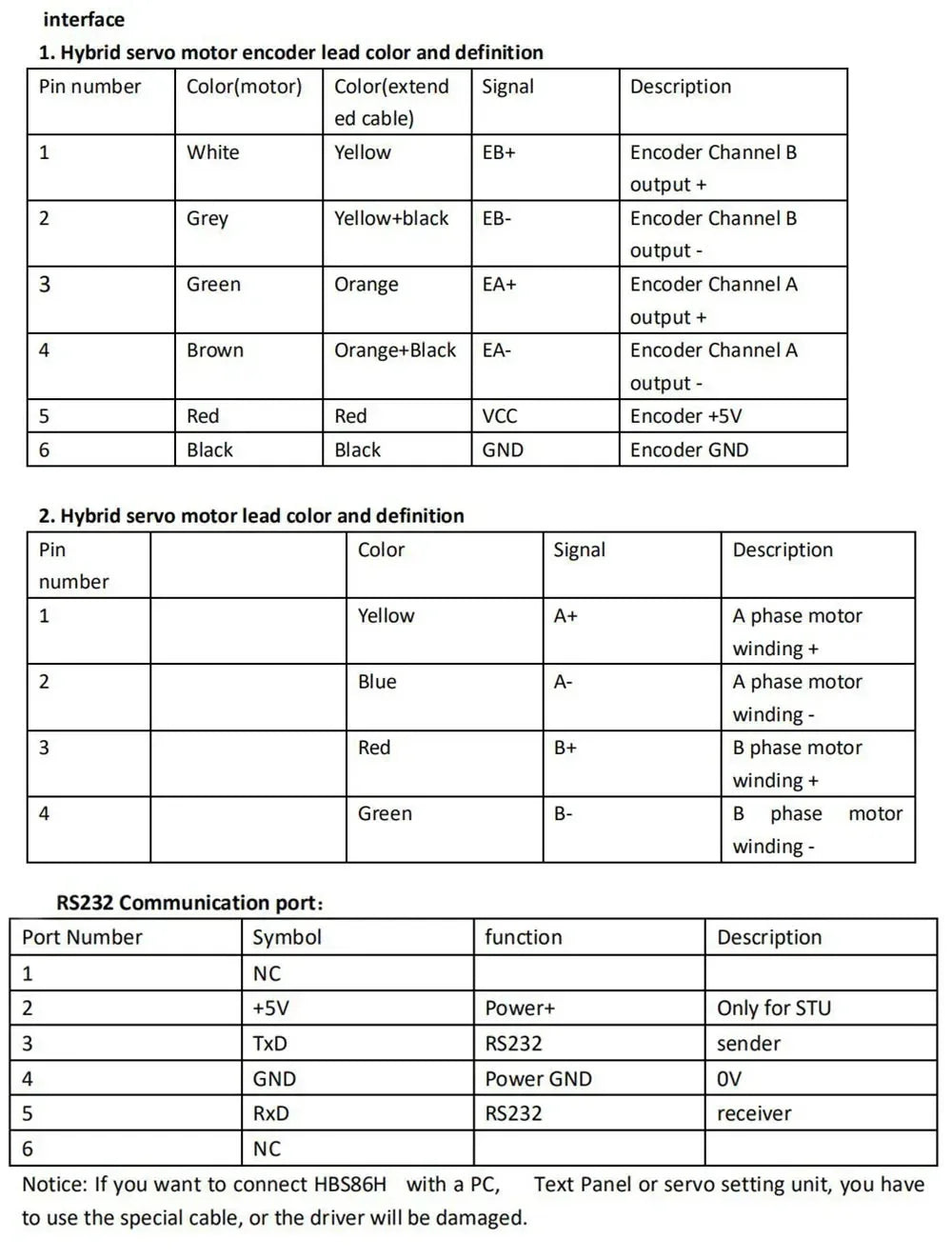

HBS86H Driver Parameters (For Nema34 Stepper Closed-loop Motor):
Model: HBS86H
Type: DSP Closed loop stepper driver
Maximum peak current: 8A
Impulse response frequency: 200KHz
Micro-stepping driver: 200~51200ppr
Input Voltage: 20~80V AC/30-110V DC
Protective function: Over voltage, over current, tracking error, over proof
Signal input: Support PUL/DIR and CW/CCW modes (difference)
Compatible: 5~24V signal (Don't need a resistor)
Type of cooling: Air-cooling
Logic Signal Current: 7-16Ma
