Nema34/42/52 Stepper Motor Kit 4.5-50Nm | 3-Phase Motor 14/19mm Shaft | EC3522/EC3822 Driver for CNC/Robotics (80-240V)
$438.60
Sale price
$438.60
Regular price
$0.00
Description
SPECIFICATIONS
Ambient Temp: -20℃~+85℃
Brand Name: NONE
Certification: ce,CE
Certifications: CE/UL/RoHS
Current / Phase: 4.5A/6A/6.8A
Does it include a Battery?: No
Does it include wireless functionality?: No
Driver1: EC3522/HB3522/DM3522
Driver2: EC3822/HB3722/DM3722
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Insulation Class: F
Model Number: 86BYGH9945A3J14+EC3522
Motor Current: 4.5A/6A/6.8A
Nema34 Holding torque: 4.5/8.5/12N.m
Nema42 Holding torque: 12/16/20N.m
Nema52 Holding torque: 24/35/50N.m
Origin: Mainland China
Phase: Three
Step Angle: 1.8°
Step Angle(degrees): 1.2
Type: HYBRID
You will get the follow products:
EC3522/EC3822 Driver
or
3-Phase Nema34/42/52 Stepper Motor
or

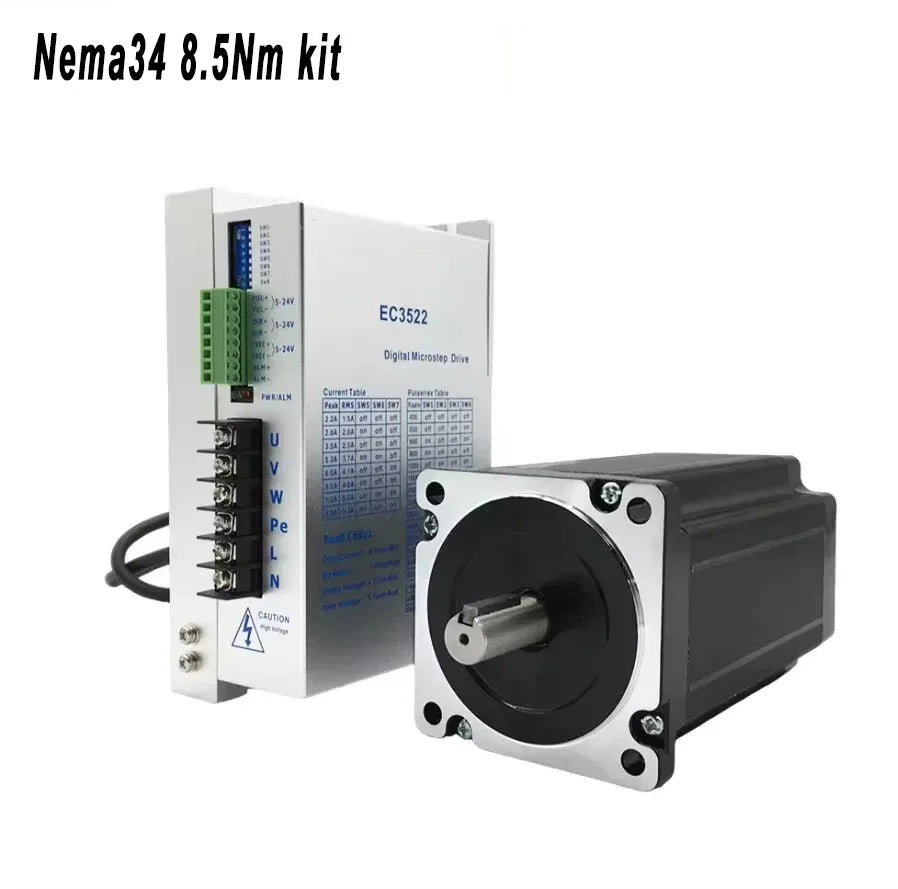

3-Phase Nema34 Motor and EC3522 Driver Kit ; 3-Phase Nema42/52 Motor and EC3822 Driver Kit
Stepper Motor Technical Parameters | ||||||||||||||
Specifications |
Model |
Motor type |
Holding torque |
Body length |
Current |
Phase resistance |
Phase inductance |
Rotor of inertia |
Step angle |
No. of leads |
Shaft |
Weight |
Driver |
|
Nema34 86mm |
86BYGH9945A3J14 |
Open-loop stepper motor |
4.5 |
80 |
4.5 |
2.1 |
3.9 |
1550 |
1.2 |
3 |
14 (Key) |
3 |
EC3522 |
|
86BYGH12645A3J14 |
8.5 |
118 |
4.5 |
2.1 |
6.2 |
2200 |
1.2 |
3 |
4 |
|||||

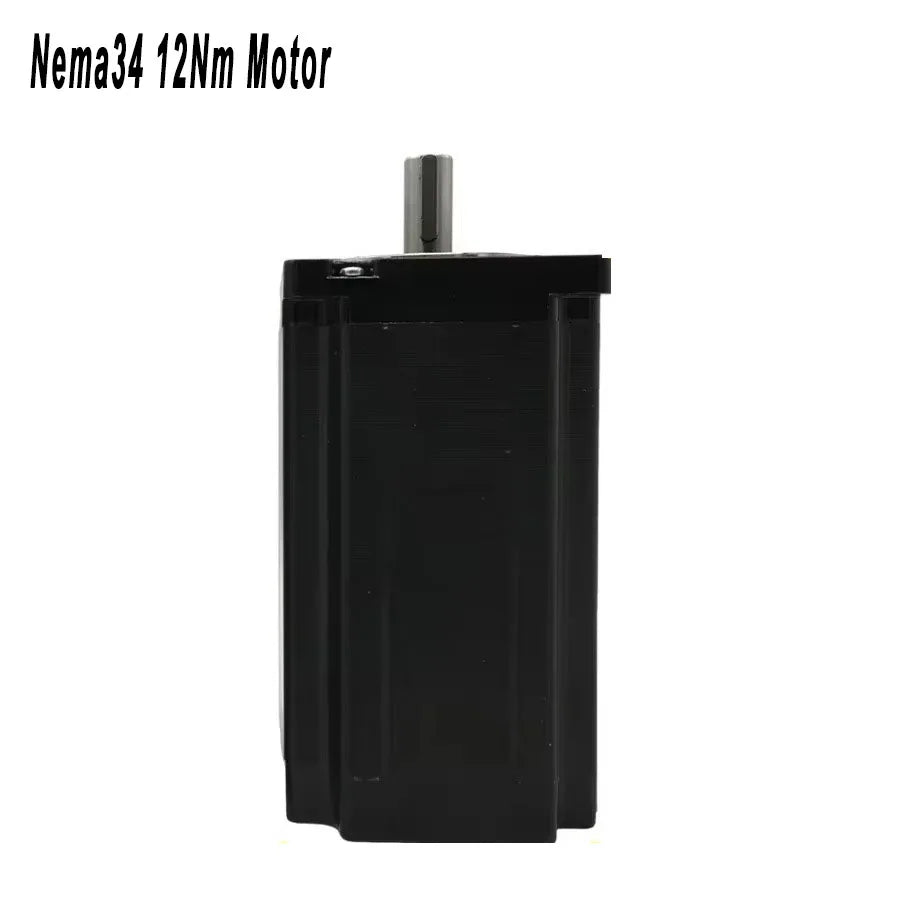

86BYGH15045A3J14 |
12 |
150 |
4.5 |
0.7 |
3.5 |
2500 |
1.2 |
3 |
4.5 |
|||||
Nema42 110mm |
110BYG16060A3J19 |
12 |
160 |
6 |
0.8 |
11.5 |
11900 |
1.2 |
3 |
19 (Key) |
7.1 |
EC3822 |
||
110BYG18560A3J19 |
16 |
185 |
6 |
1.3 |
18 |
14800 |
1.2 |
3 |
8.8 |
|||||
110BYG22060A3J19 |
20 |
220 |
6 |
1.5 |
20 |
19600 |
1.2 |
3 |
11 |
|||||

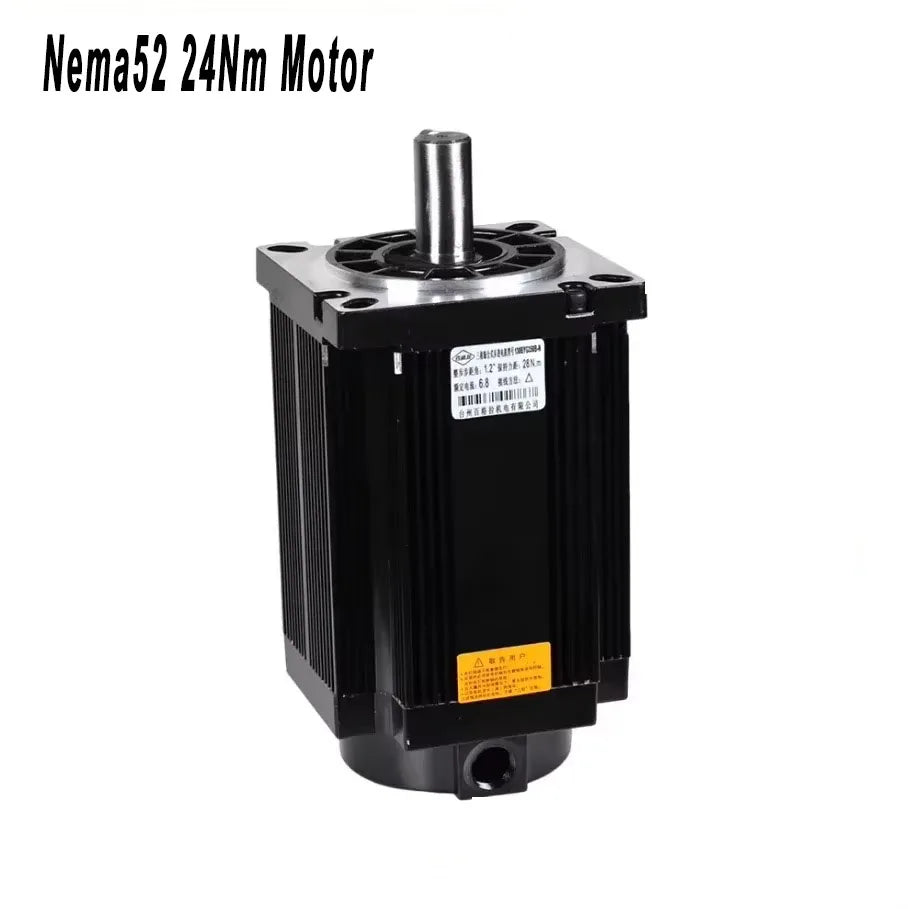

Nema52 130mm |
130BYG18068A3J24 |
24 |
180 |
6.8 |
0.96 |
16 |
26870 |
1.2 |
3 |
19 (Key) |
14 |
|||
130BYG24568A3J24 |
35 |
245 |
6.8 |
1.4 |
24 |
41400 |
1.2 |
3 |
19 |
|||||
130BYG27068A3J24 |
50 |
270 |
6.8 |
1.5 |
18 |
47300 |
1.2 |
3 |
20.5 |
|||||
EC3522 Driver Technical Parameters:
Current:2.2A-5A 16 levels
Voltage: AC180-240V
Signal voltage:5V-24V

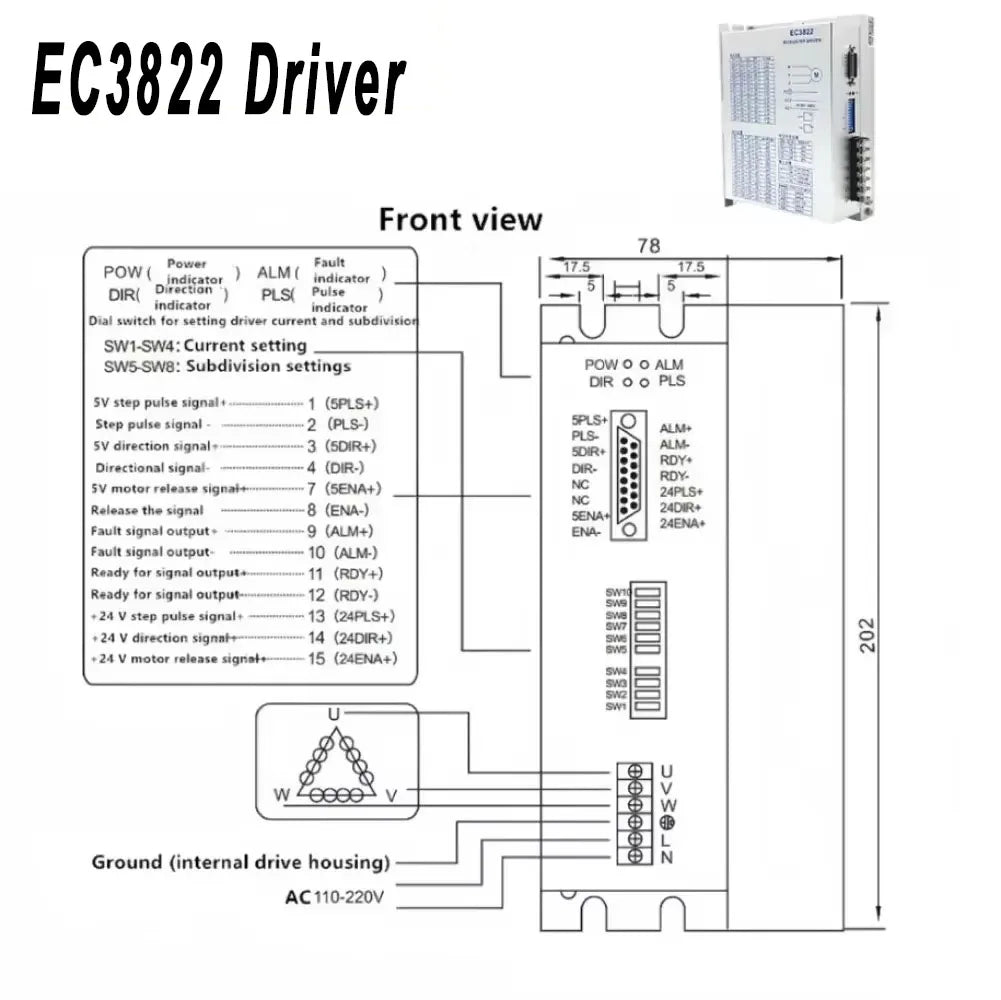

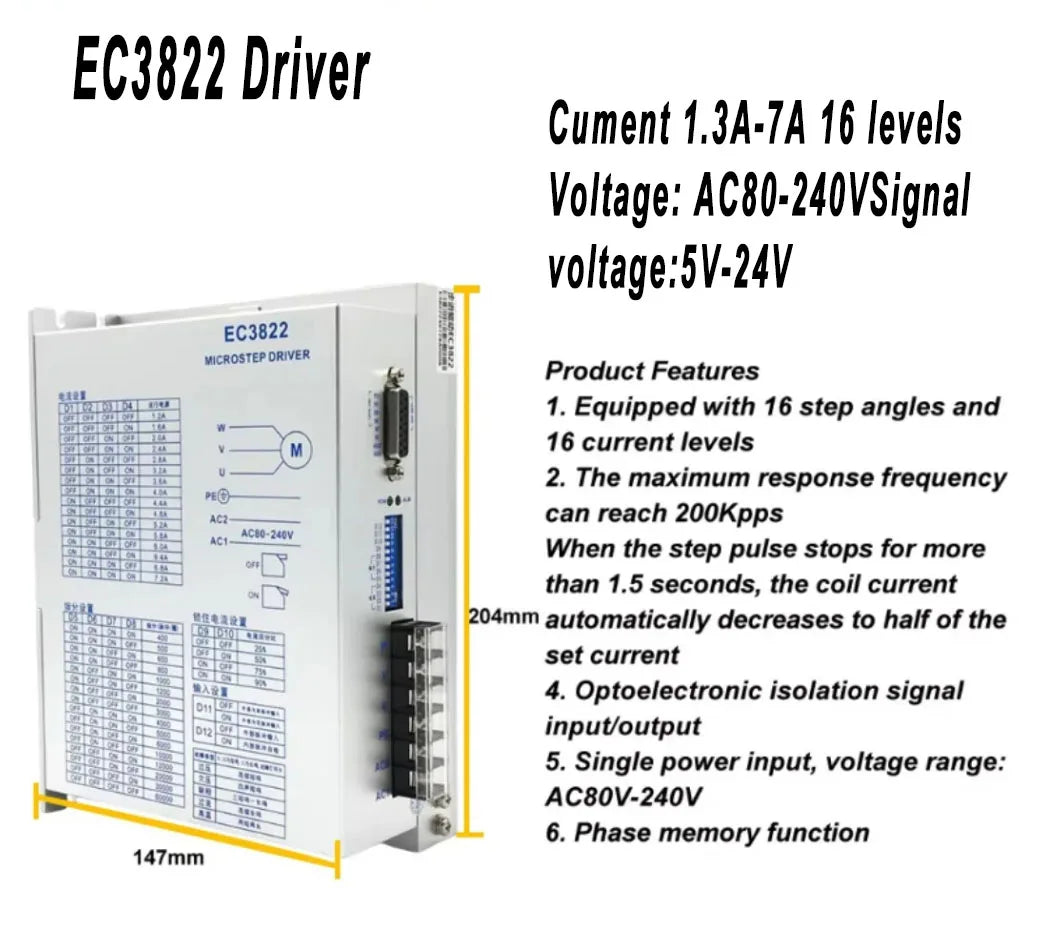

EC3822 Driver Technical Parameters:
Current:1.3A-7A 16 levels
Voltage: AC80-240V
Signal voltage:5V-24V
al Parameters
