SPECIFICATIONS

1Kit: 1Motor+1Driver +1Power Supply

3Kit: 3Motor+3Driver +3Power Supply+1 MACH3 Interface Board

4Kit: 4Motor+4Driver +4Power Supply+1MACH3 Interface Board

Brand Name: NONE

Cable length: 3m

Certification: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

Driver: HBS86H HBS860H HB860H

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 86HB250

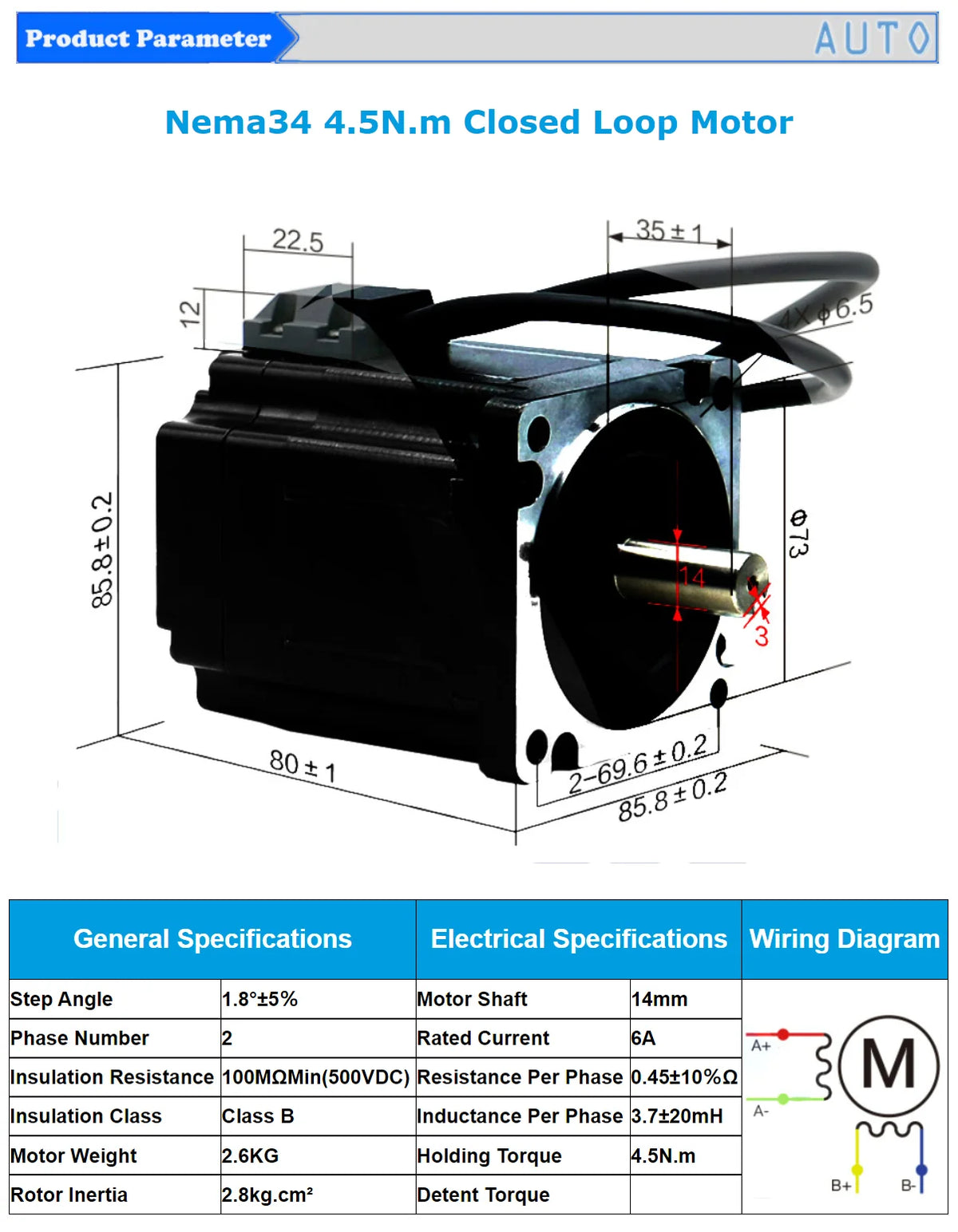

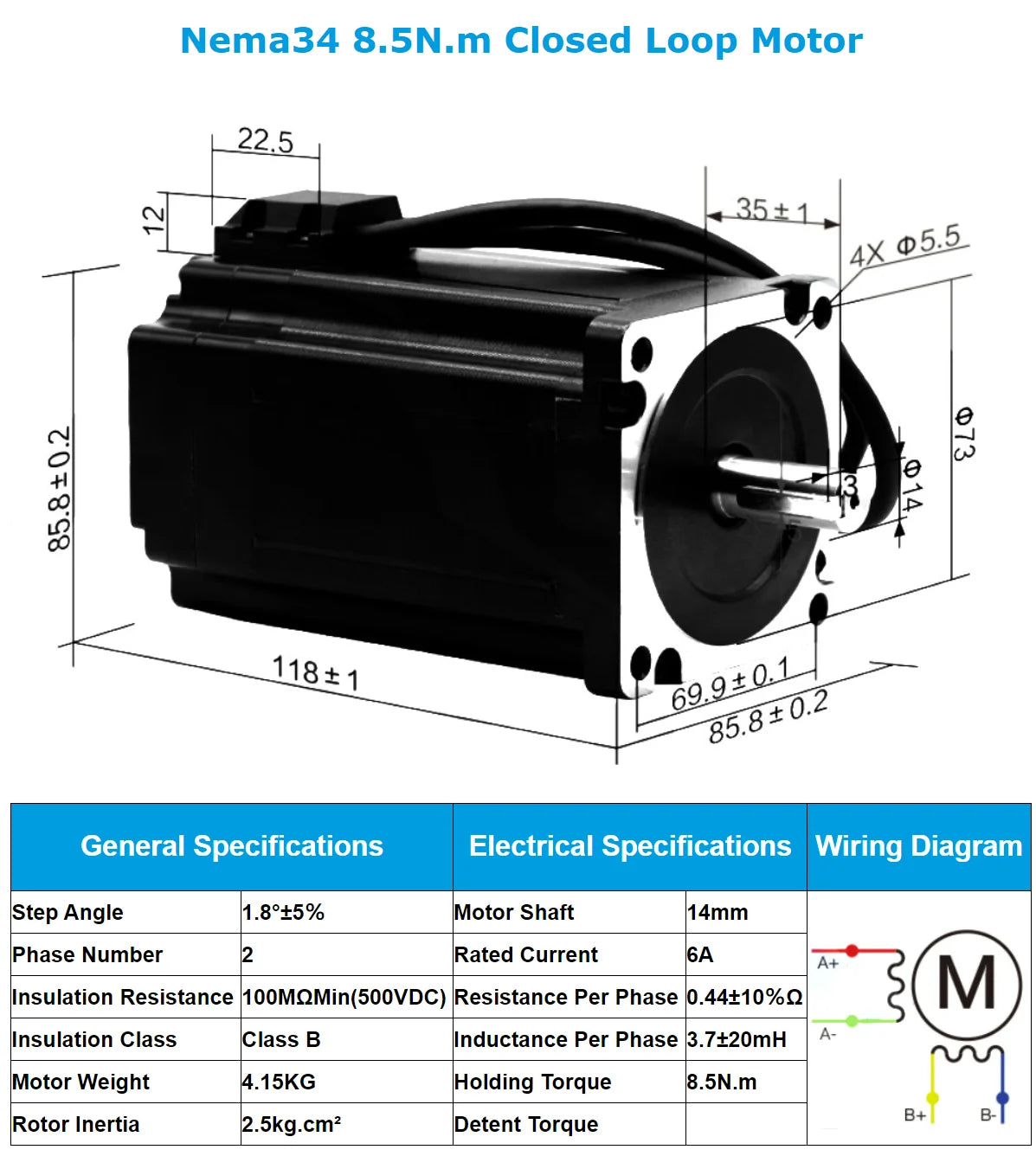

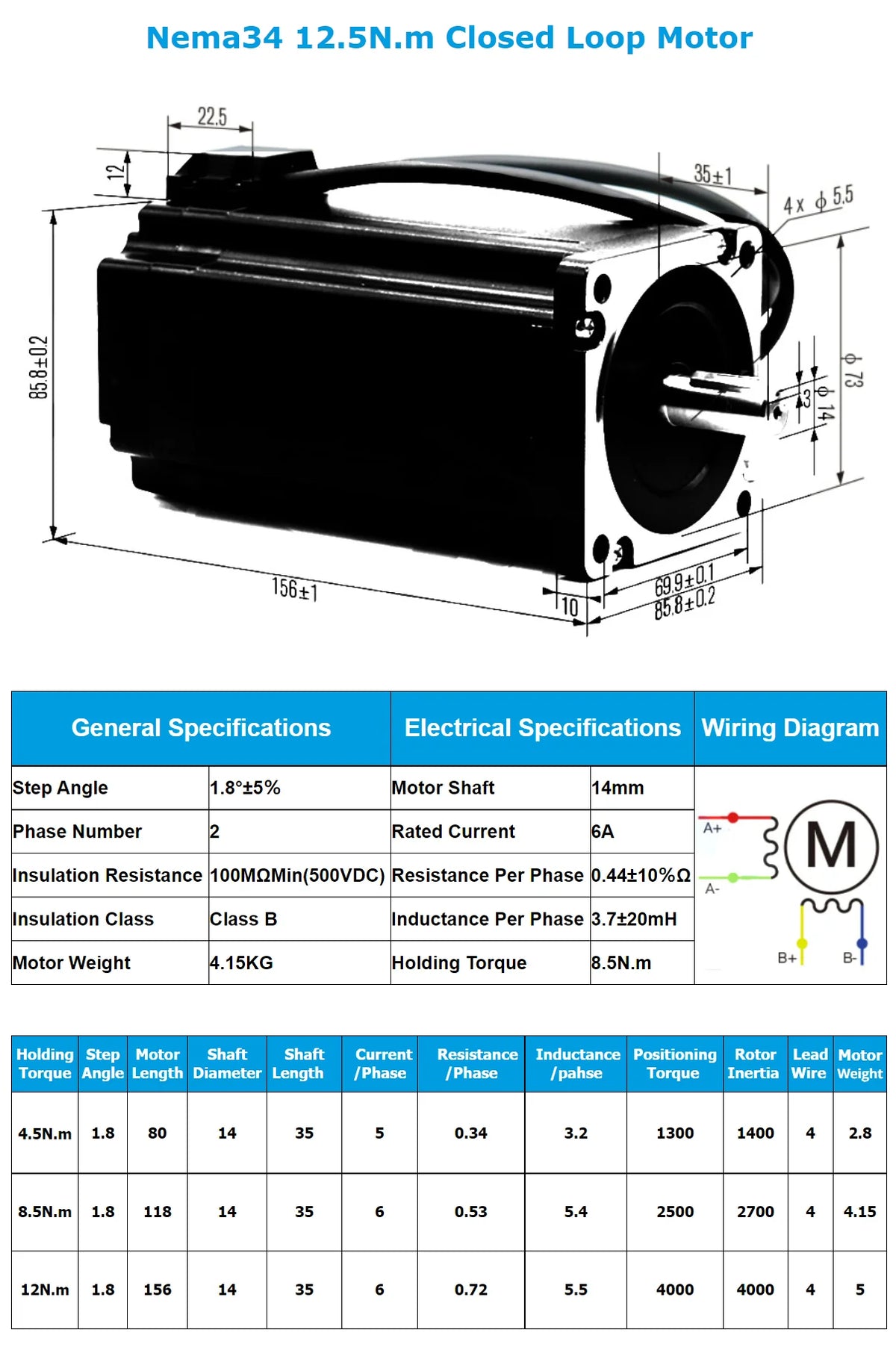

Motor Length: 80mm 118mm 156mm

Motor Shaft Diameter: 14mm with 5mm key

Origin: Mainland China

Phase: 2

Power Supply: 400W 60V

Rated Current: 6A

Reted Voltage: 3V

Step Angle: 1.8+5%

Step Angle(degrees): 1.8

Stepper Motor Controller: MACH3 Interface Board

Torque: 4.5N.m; 8.5N.m; 12.5N.m

Type: Nema34 Closed Loop Motor Set

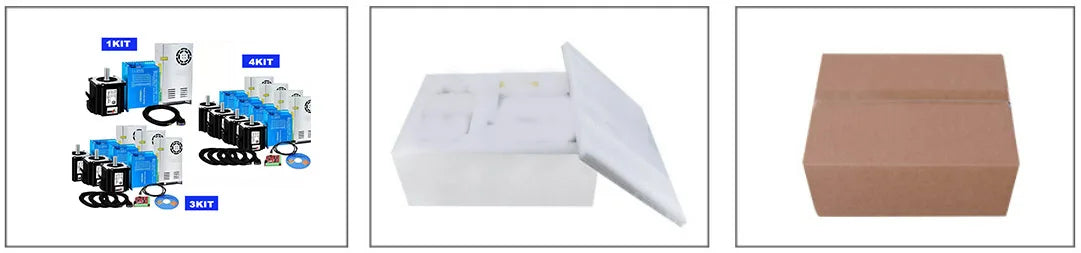

Nema34 Closed Loop Motor Kit

1 Kit

1PCS HBS860H or HBS86H Driver 1PCS Nema34  4.5 /8.5/12.5N.m Closed Loop Motor (Please select the torque you need.) 1PCS 3M Encoder Cable 1PCS 400W 60VDC Power Supply

3 Kit

3PCS HBS860H OR HBS86H Driver 3PCS Nema34 4.5 /8.5/12.5N.m Closed Loop Motor (Please select the torque you need.) 3PCS 3M Encoder Cable 3PCS 400W 60VDC Power Supply 1PCS MACH3 Interface Board

4 Kit

4PCS HBS860H OR HBS86H Driver 4PCS Nema34 4.5 /8.5/12.5N.m Closed Loop Motor (Please select the torque you need.) 4PCS 3M Encoder Cable 4PCS 400W 60VDC Power Supply 1PCS MACH3 Interface Board

	1. Low heating / high efficiency
	2. Smooth and accurate
	3. High speed response

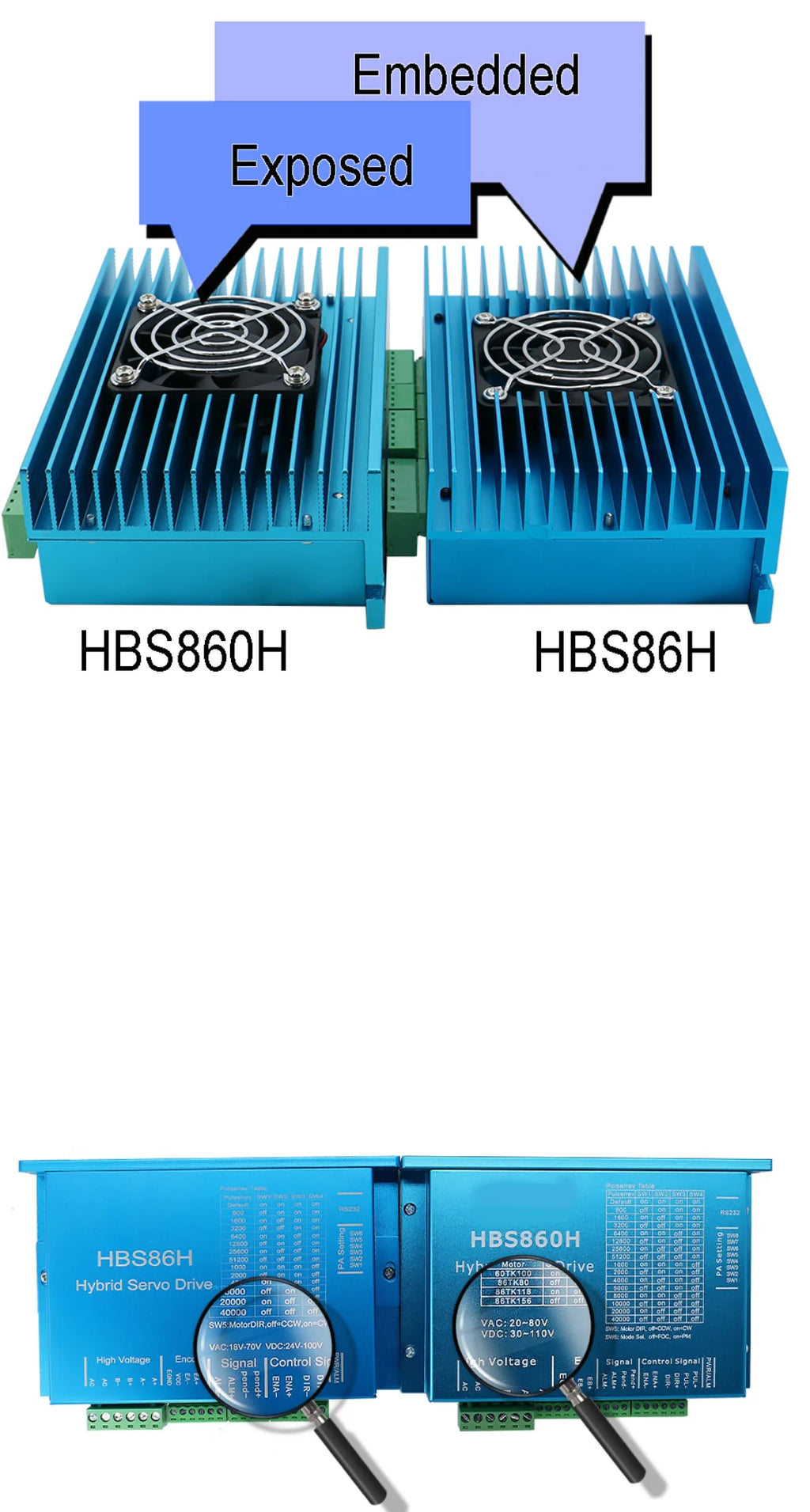

HB860H Driver

(Unit of measurement: MM)

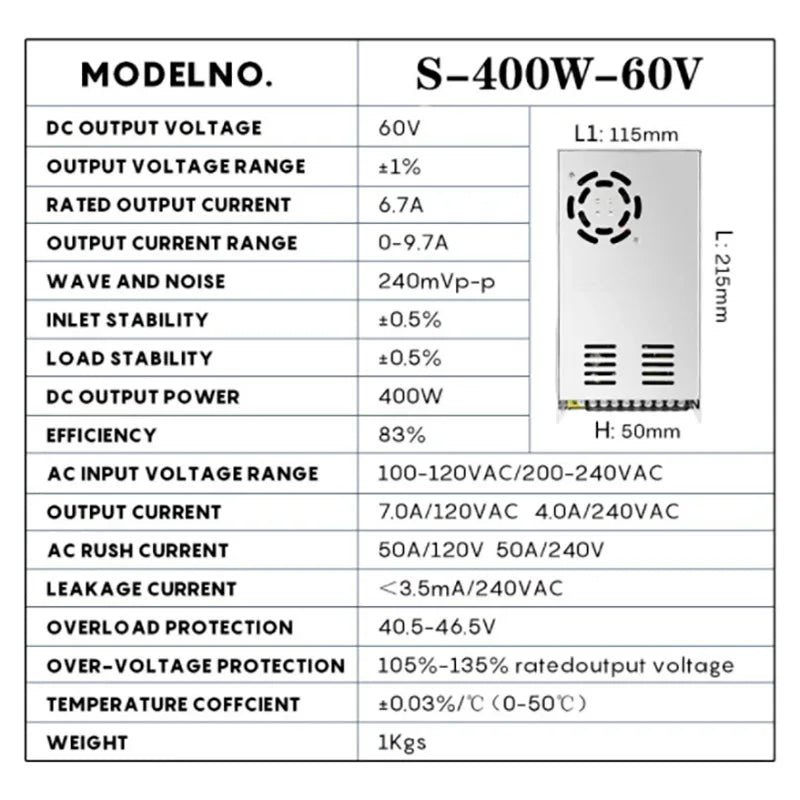

SINGLE GROUP S-400W/60V

SWITCHING POWER SUPPLY

Parameter
MODEL NO.	S-400-60
DC output voltage	60V
Output voltage range	±1%
Rated output current	6.7A
Output current range	0-9.7A
Wave and noise	240mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
DC output power	400W
Efficiency	83%
AC input voltage range	100-120VAC / 200-240VAC
Output current	7.0A/120VAC 4.0A/240VAC
AC rush current	50A /120V  50A /240V
Leakage current	< 3.5mA / 240VAC
Overload protection	40.5-46.5V
Over-voltage protection	105%-135% ratedoutput voltage
Temperature cofficient	±0.03%/℃（0~50℃）
Weight	1KG

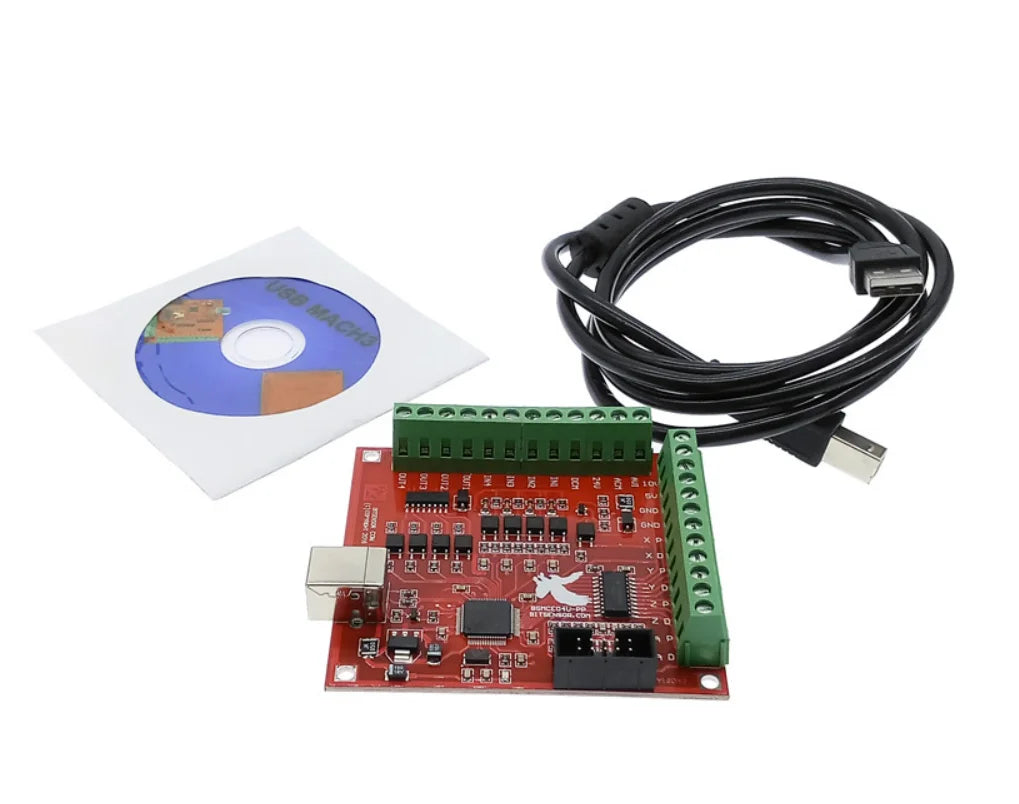

MACH3

MOTION CONTROL CARD

If the wiring is as shown in the figure above, the motor still cannot work. Please try to change the wiring as follows:

1. EB + Green  2. EB-Yellow  3. EA + Blue   4. EA- Black   5. VCC red   6. EGND white

or maybe change the power cable as bellow:

yellow A+, blue A-, red B+, green B-

If it still does not work, please feel free to contact with us.
