Description

SPECIFICATIONS

Brand Name: CHANZON

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Type: Ceramic Capacitor

is_customized: Yes

semi_Choice: yes

1206 SMD Capacitor - Buying Guide

This listing offers single value and assorted pack options for 1206 SMD capacitors, including 12‑value / 16‑value / 36‑value kits.

The assorted packs are shown as image options.
Single values are listed as text options.
Please check the title carefully to avoid wrong selection.

Quantity & Packaging

Single capacitance value: 100 pcs per bag
assorted values pack:
12 values, 240 pcs per bag
16 values, 320 pcs per bag
36 values, 720 pcs per bag

Capacitance & Tolerance

±5% tolerance: 0.5pF ~ 100pF
(0.5pF, 1pF, 1.2pF, 1.5pF, 1.8pF, 2pF, 2.2pF, 2.5pF, 2.7pF, 3pF, 3.3pF, 3.6pF, 3.9pF, 4pF, 4.7pF, 5pF, 5.6pF, 6pF, 6.8pF, 7pF, 8pF, 8.2pF, 9pF, 10pF, 12pF, 15pF, 18pF, 20pF, 22pF, 24pF, 25pF, 27pF, 30pF, 33pF, 36pF, 39pF, 47pF, 51pF, 56pF, 68pF, 75pF, 82pF, 100pF)

±10% tolerance: 120pF ~ 100nF
(120pF, 150pF, 180pF, 200pF, 220pF, 270pF, 300pF, 330pF, 390pF, 470pF, 560pF, 680pF, 820pF, 1nF, 1.2nF, 1.5nF, 2.2nF, 2.7nF, 3.3nF, 4.7nF, 5.6nF, 8.2nF, 10nF, 15nF, 22nF, 33nF, 47nF, 68nF, 82nF, 100nF, 220nF, 330nF, 470nF, 680nF)

±10% tolerance: 1μF ~ 22μF
(1μF, 2.2μF, 4.7μF, 10μF, 22μF)

±20% tolerance: 47μF ~ 100μF
(47μF, 100μF)

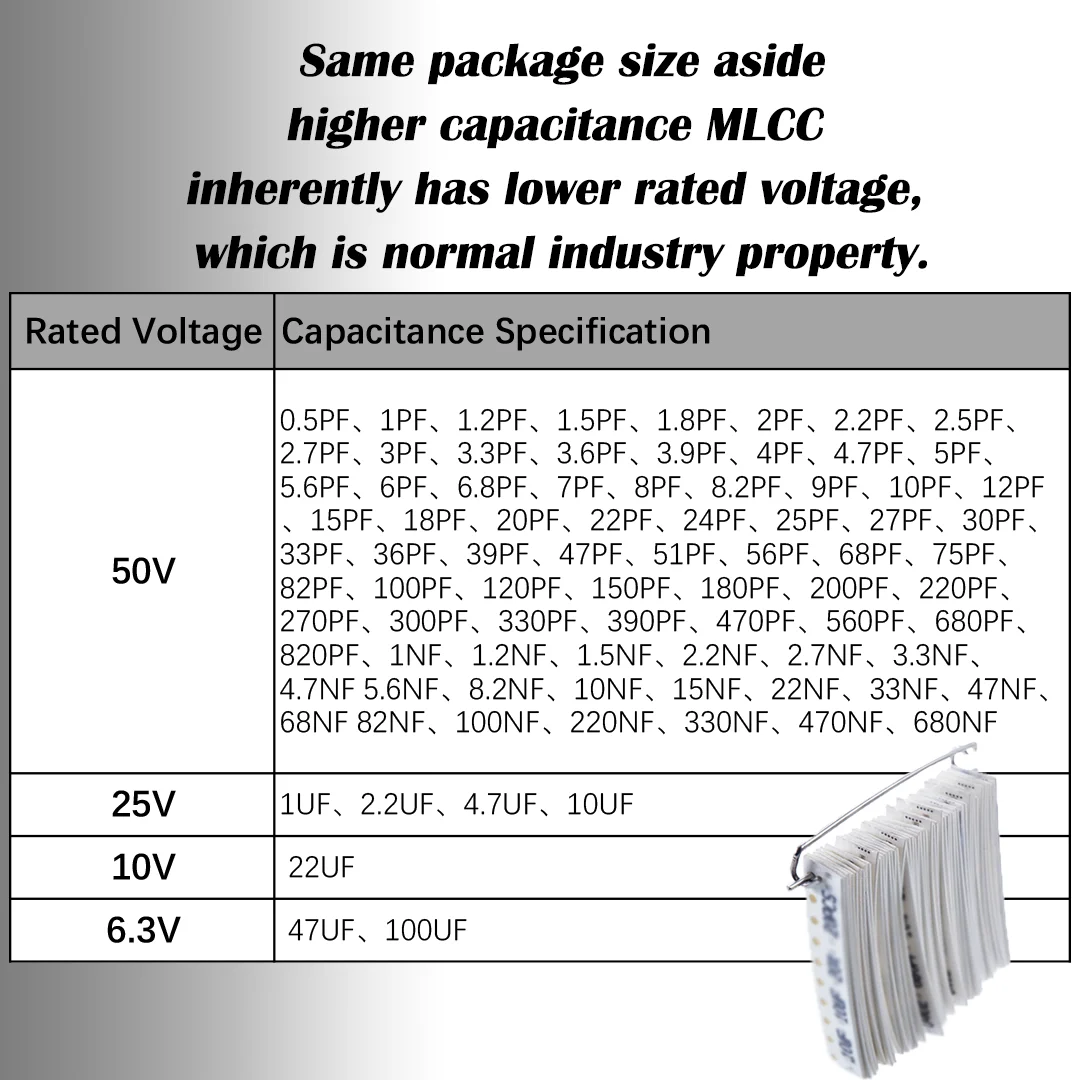

Voltage

Unit Conversion

1 μF=1000 nF=1,000,000 pF

Different units may represent the same capacitance.Contact us to confirm values or ask about our high-capacitance listing.

Measurement Note
For high-capacitance MLCCs, some older measuring instruments cannot output sufficient AC voltage and may not give accurate readings. Please take this into consideration during testing.
