SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: DC5V

Type: Module

is_customized: Yes

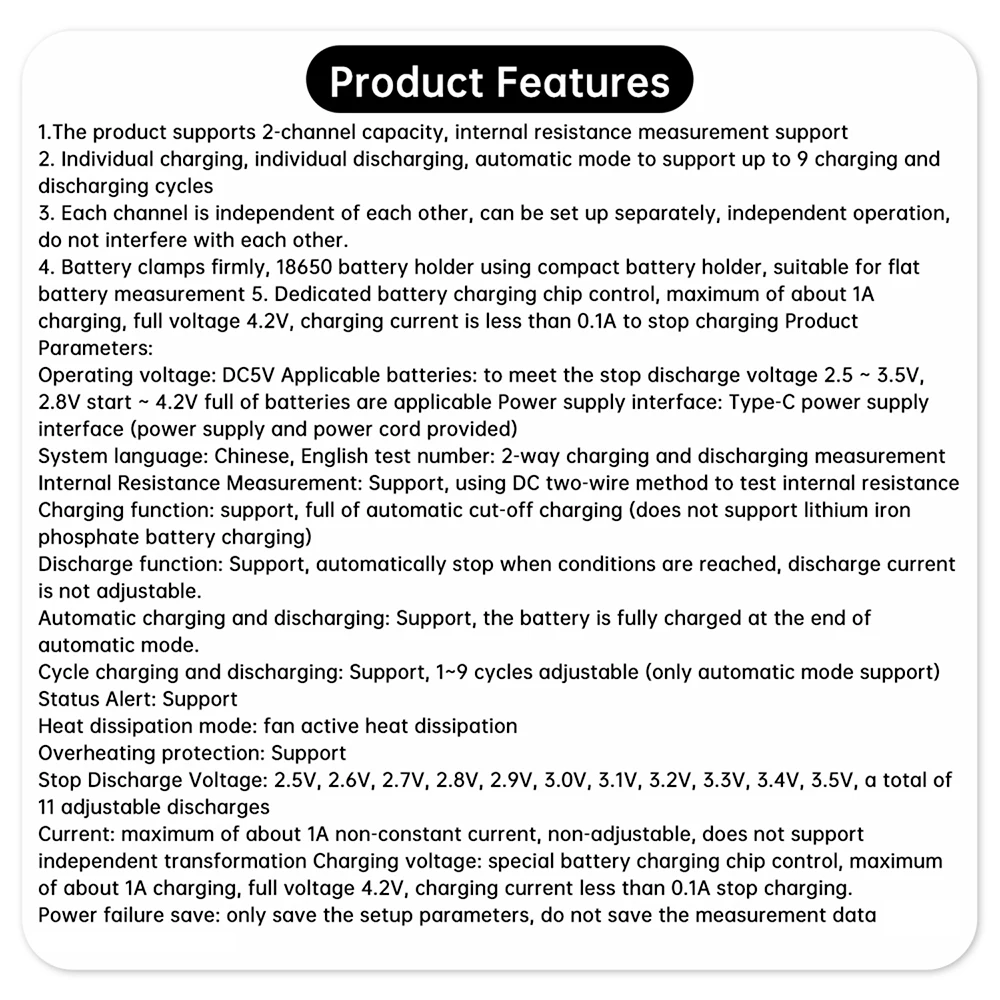

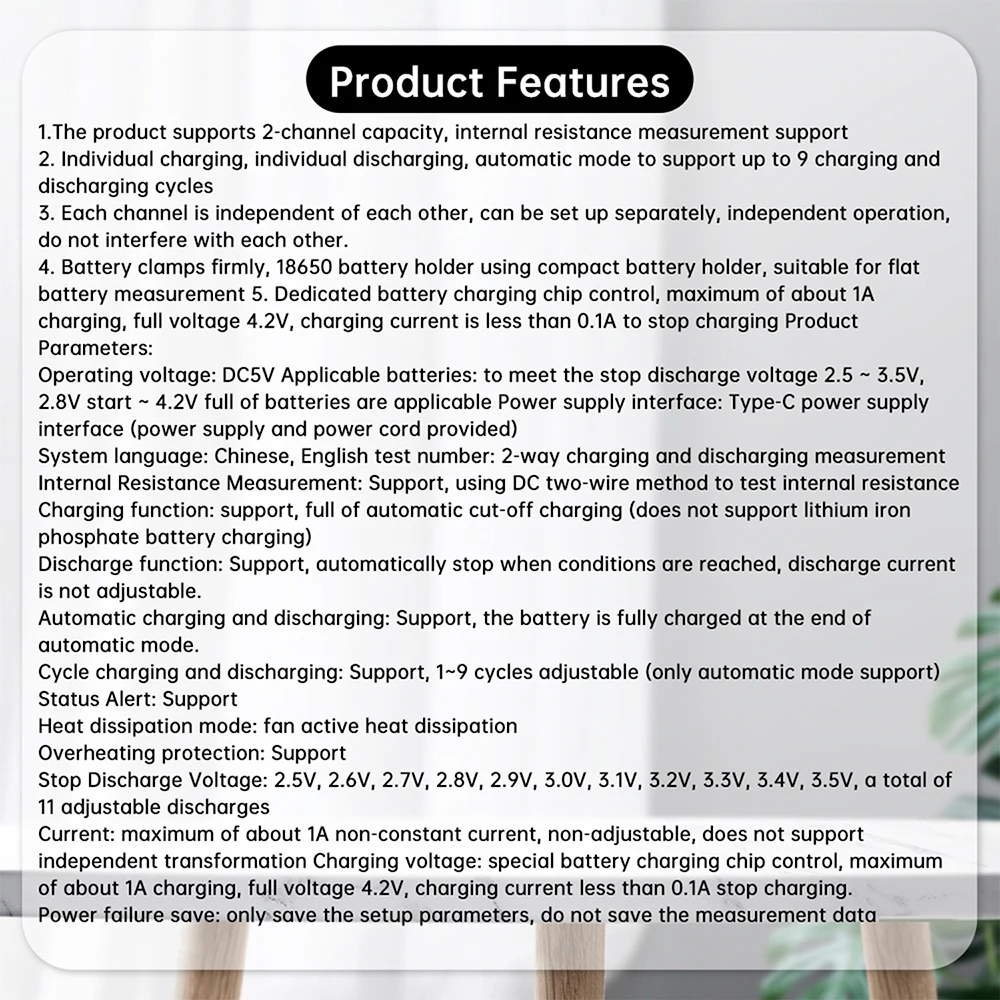

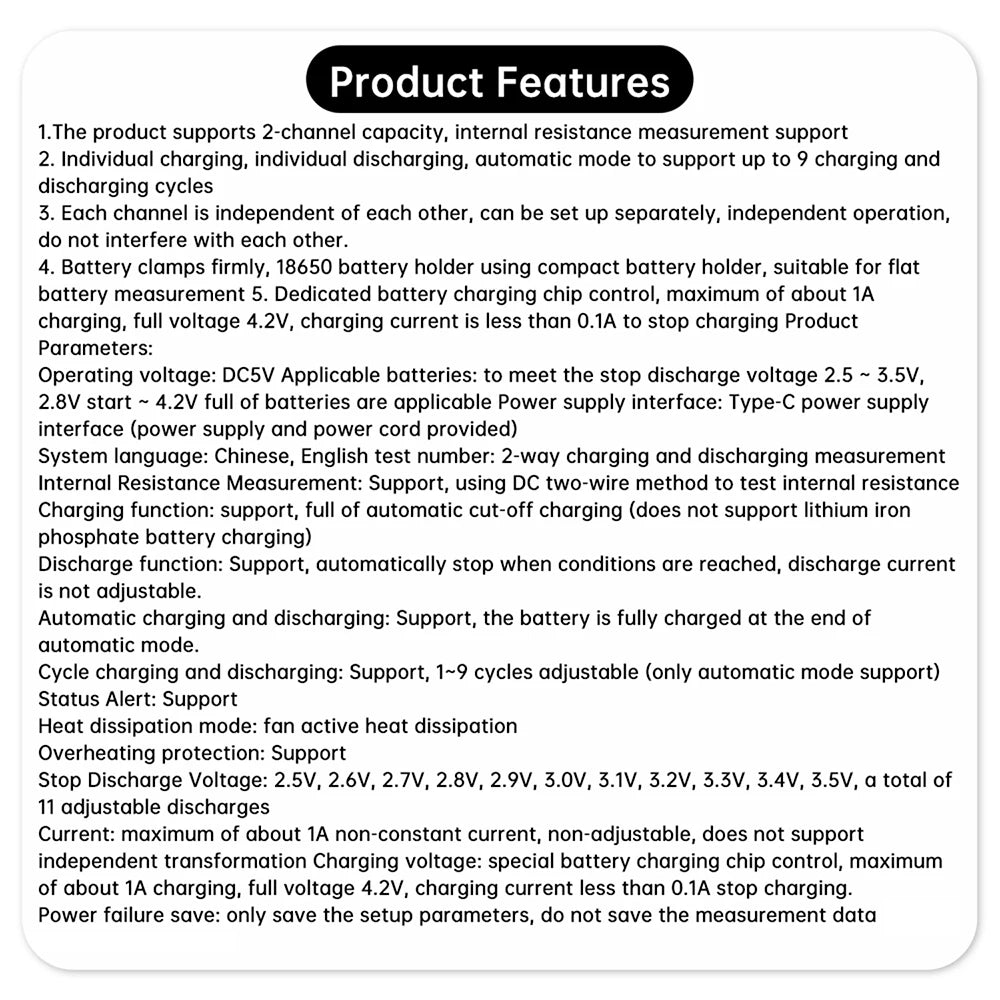

Features:

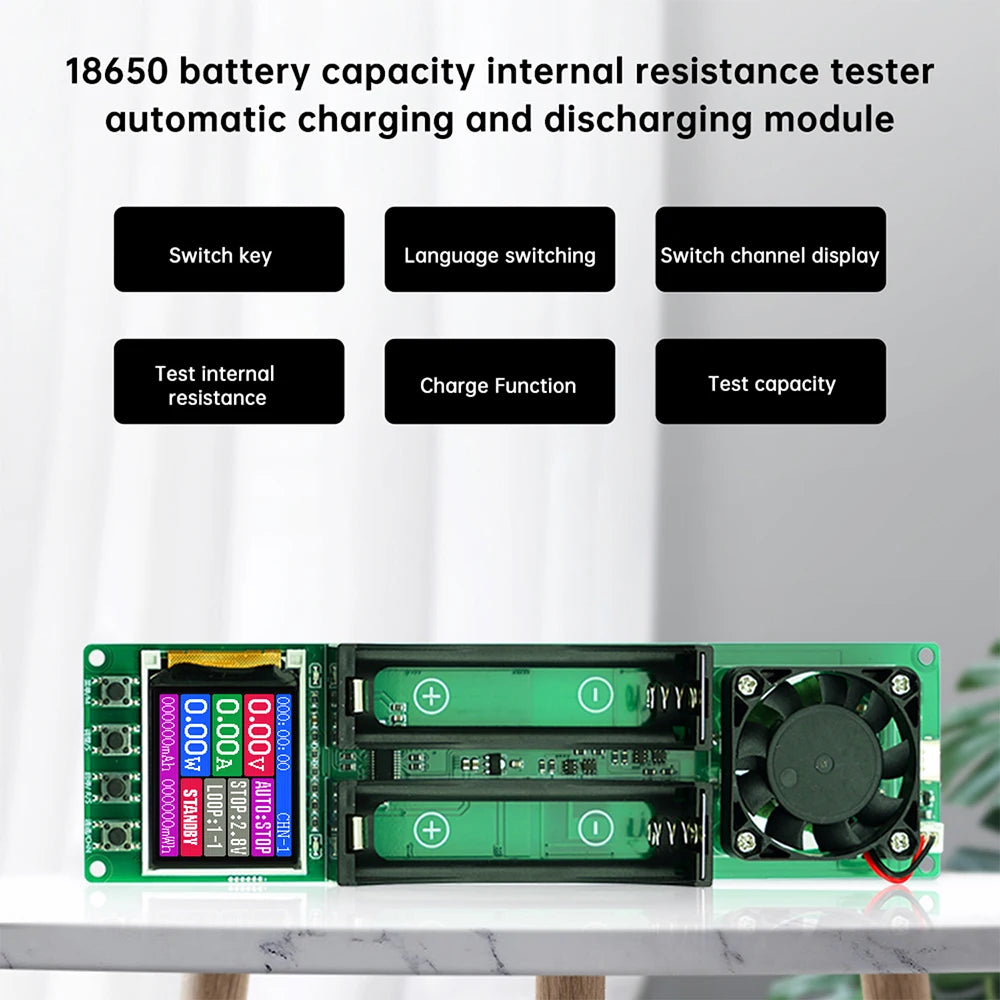

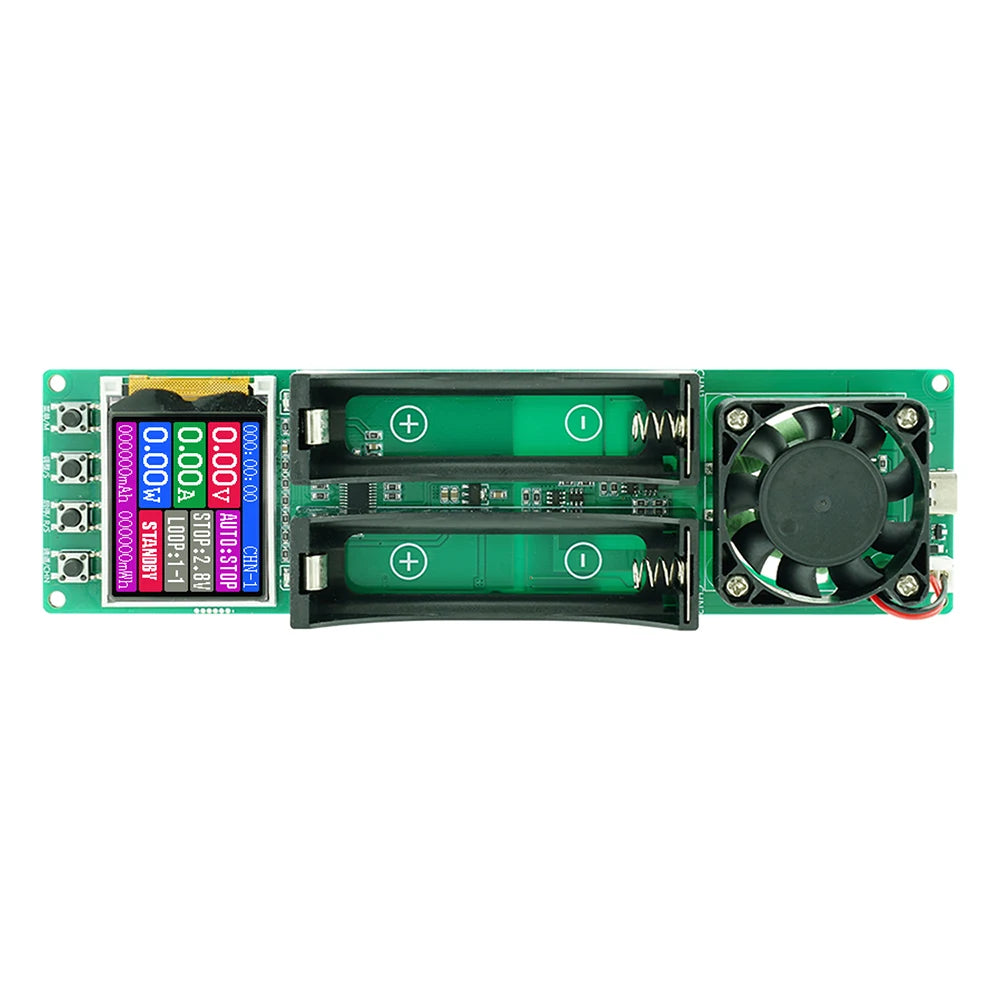

The product supports 2-channel capacity and internal resistance measurement.

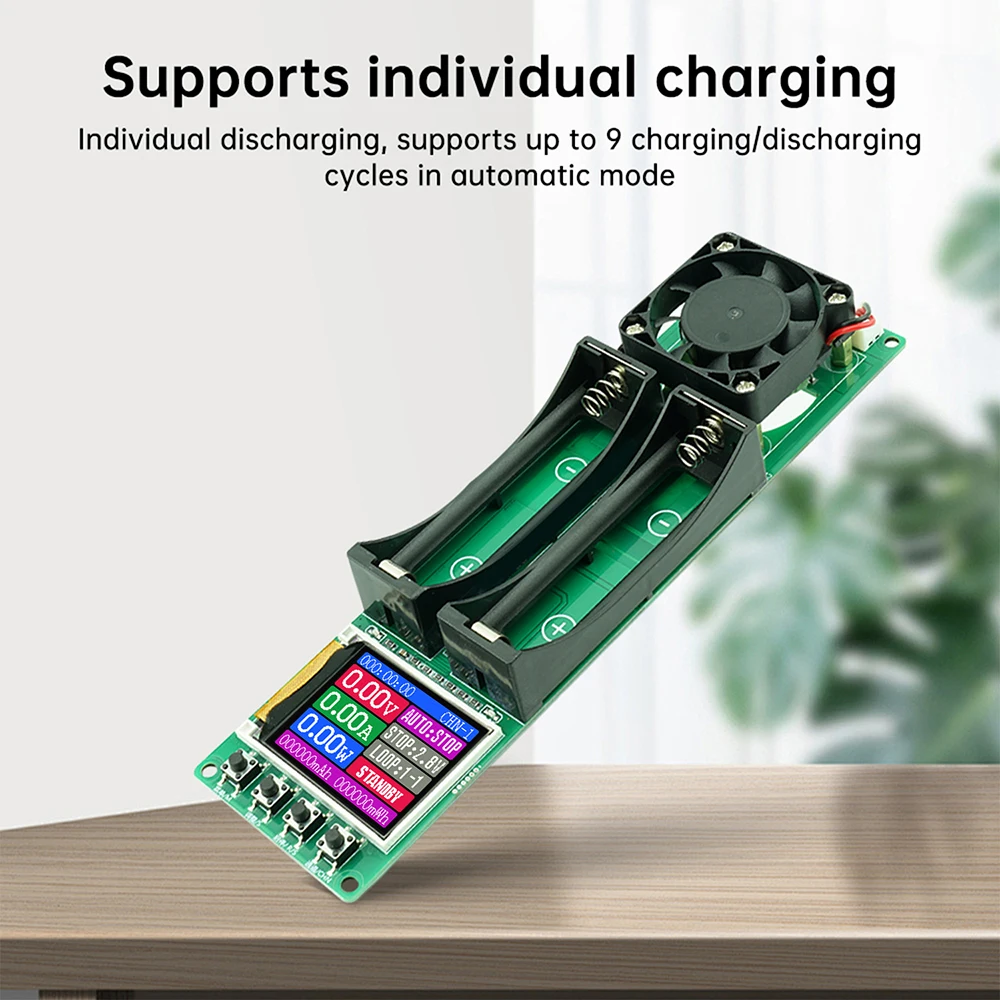

Supports separate charging and discharging, and supports up to 9 charging and discharging cycles in automatic mode.

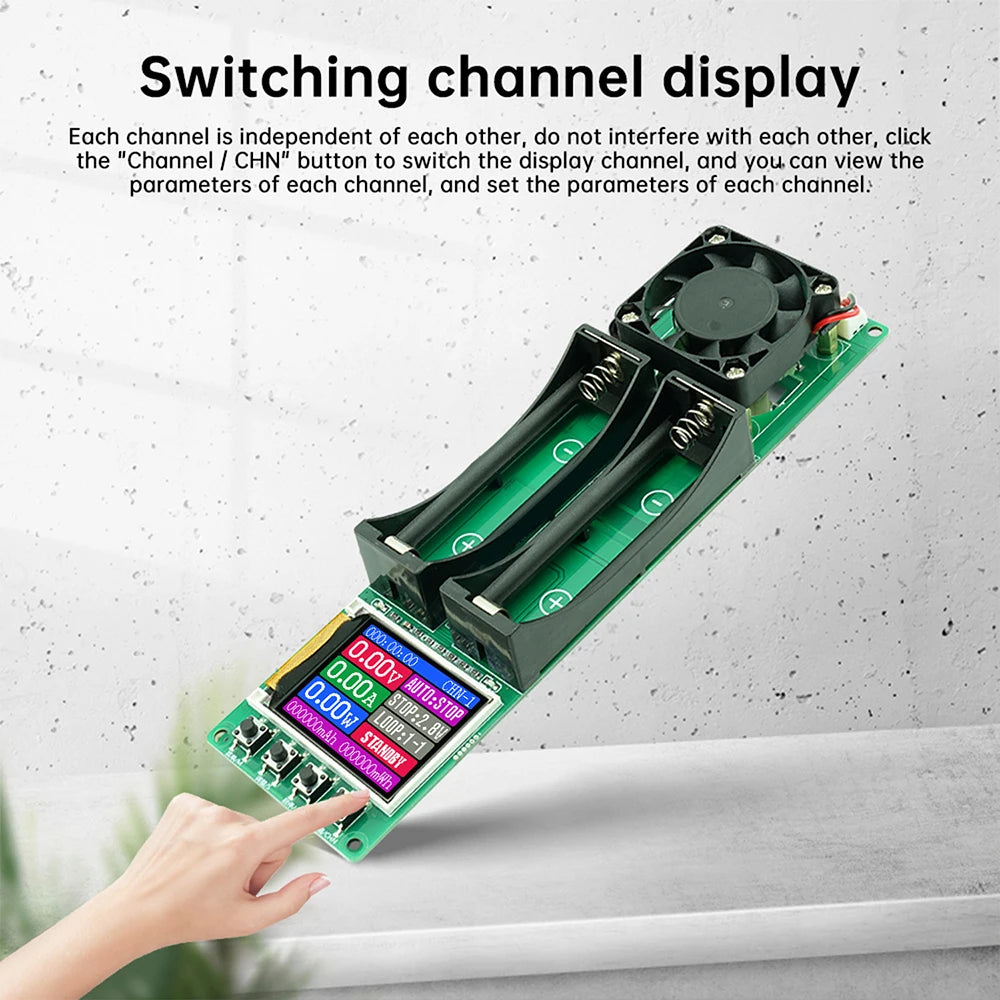

Each channel is independent of the other, can be set up separately, independent operation, no interference with each other.
Strong battery clip, 18650 battery holder using compact battery holder, suitable for flat battery measurement.
Specialized battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging.

Parameter:
Working voltage: DC 5V
Applicable batteries: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full of batteries are applicable

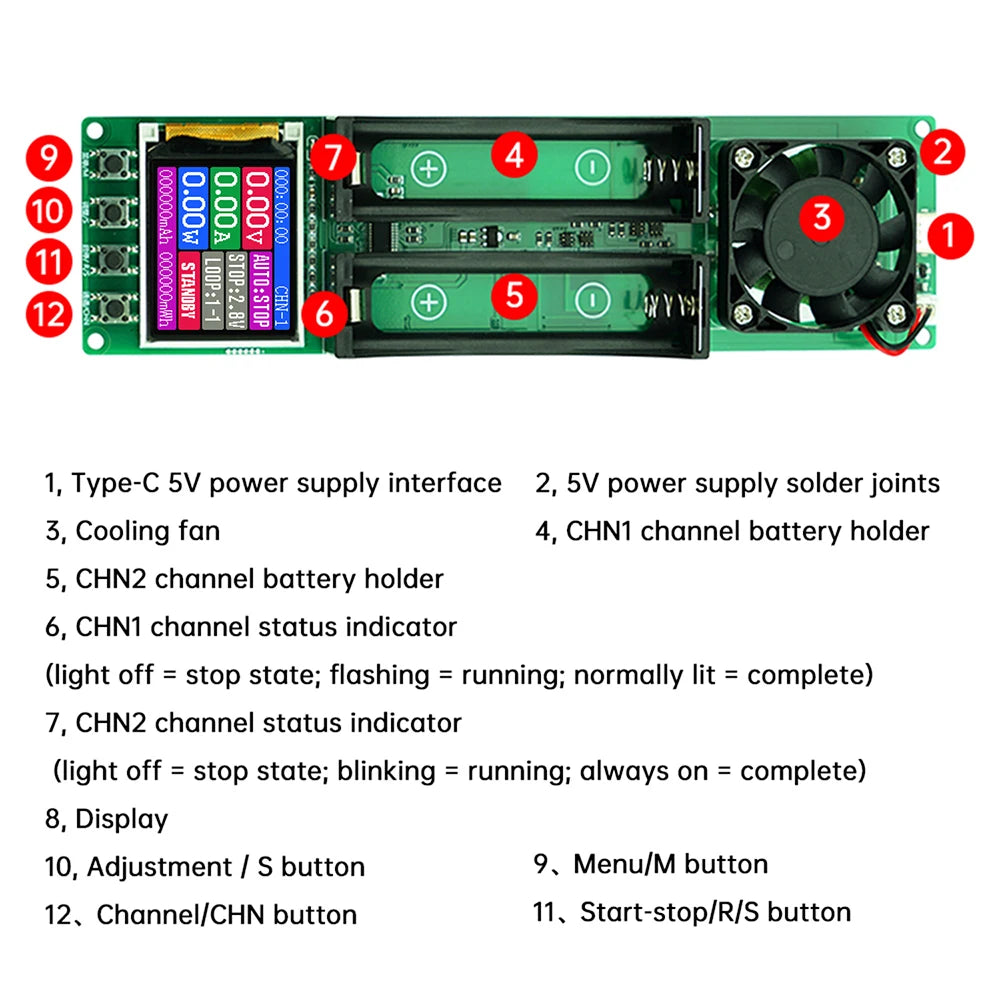

Power supply interface: Type-C power supply interface (power supply and power cord provided)
System language: Chinese, English
Test quantity: 2-way charging and discharging measurement
Internal Resistance Measurement: Support, using DC two-wire method to test internal resistance.
Charging function: support, full of automatic cut-off charging (does not support lithium iron phosphate battery charging)
Discharge function: Support, automatically stop when conditions are reached, discharge current is not adjustable.
Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode.
Cyclic charging and discharging: Support, 1~9 cycles adjustable (only automatic mode support)
Status Alert: Support
Heat dissipation mode: fan active heat dissipation
Overheating protection: Support
Stop Discharge Voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, adjustable in 11 steps.
Discharge current: maximum of about 1A non-constant current, non-adjustable, does not support independent transformation
Charging voltage: special battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging.
Power failure save: only save the setup parameters, do not save the measurement data

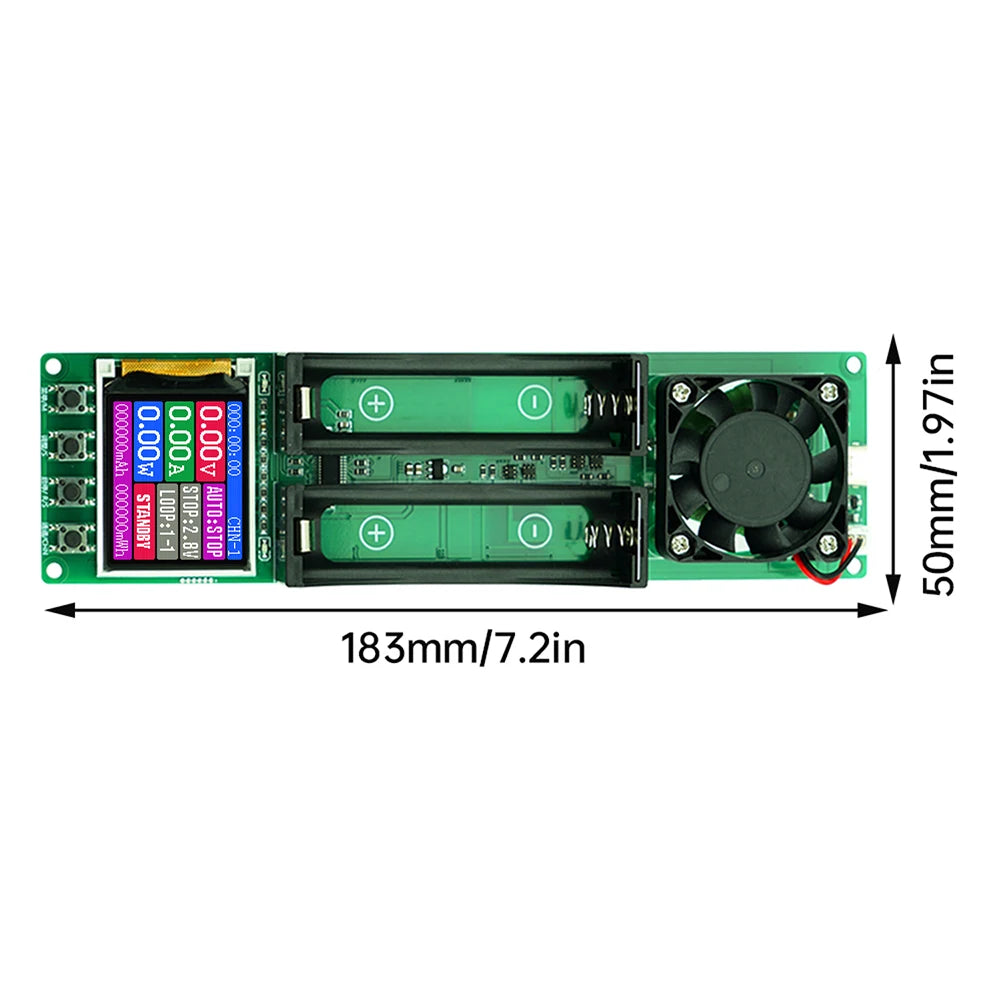

Product size: 183×50×30mm

Package include:
1*18650 Battery Capacity Internal Resistance Tester
