SPECIFICATIONS

Battery Included: no

Brand Name: LISM

DIY Supplies: Electrical

Display Size: None

High-concerned chemical: none

Model Number: LA2016

Origin: Mainland China

Descriptions

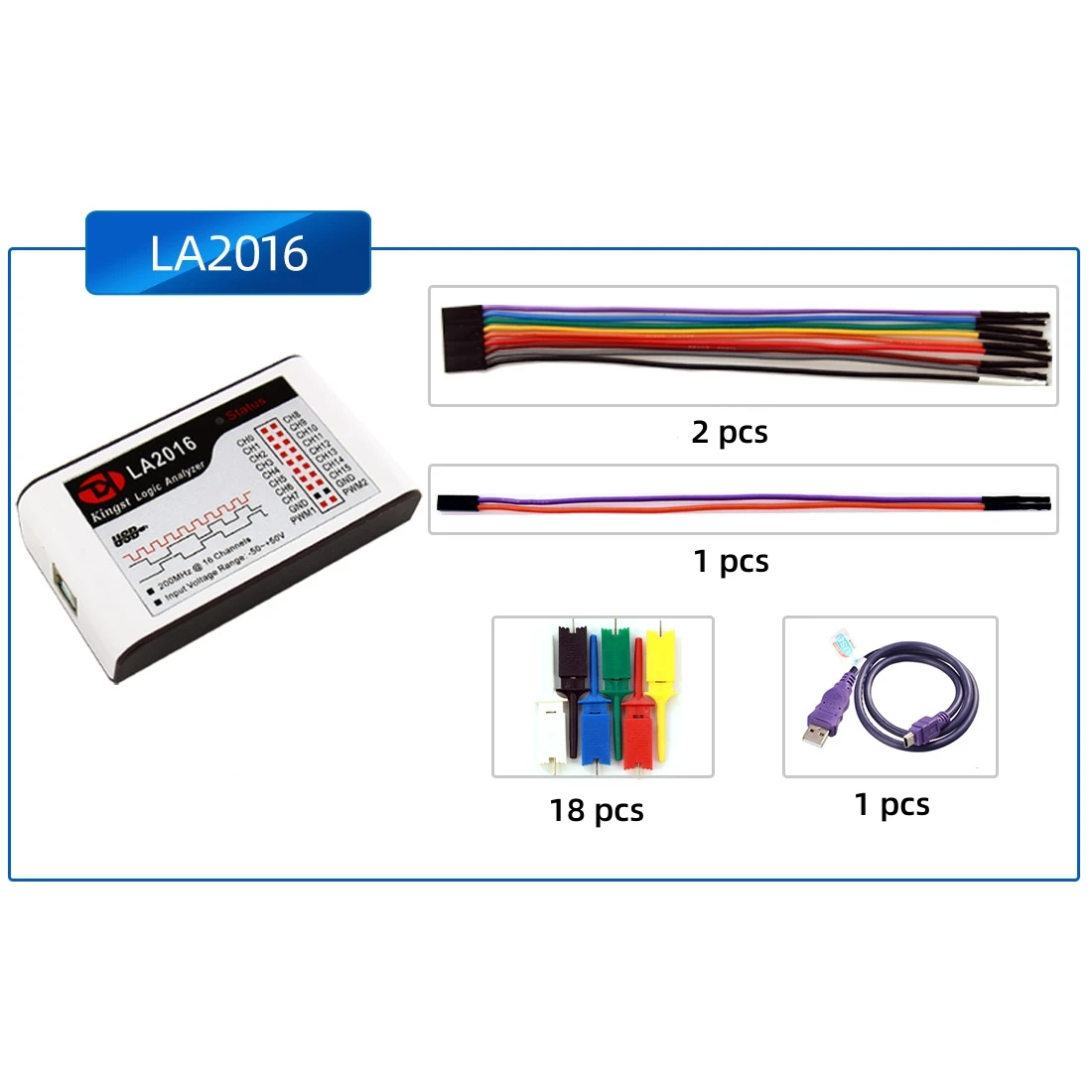

LA2016 is a high-performance logic analyzer with 16 channels and 200M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

LA2016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features

Portable and lightweight

200M sampling rate @ full channels

Large sampling depth and support compression

The built-in PWM generator

Compatible USB2.0/3.0 interface

Powerful software and easy to use

Support online upgrade automatically

Specifications

Input channels number: 16

Max sampling rate: 200M

Measurement bandwidth: 40M

Min pulse width can be captured: 12.5ns

Hardware memory size: 1Gbits

Hardware sampling depth: 50M/channel

Max compressed depth: 10G/channel

Input voltage range: -50V ~ +50V

Input impedance: 220KΩ, 12pF

Adjustable threshold voltage: -4V ~ +4V, step: 0.01V

PWM channels number: 2

PWM frequency range: 0.1 ~ 20MHz

PWM frequency adjust step: 10ns

PWM pulse width adjust step: 5ns

PWM output voltage: +3.3V

PWM output impedance: 50Ω

Standby current: 150mA

Max operating current: 300mA

Dimensions: 95mm * 55mm * 23mm

Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)

Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

Software

Download link:
https://drive.google.com/file/d/14_lGQNTbvOB2NKmTvyC9EkT3_qV5lMb6/view?usp=sharing

or

https://www.adrive.com/public/sPfsjP/LA%20software.rar
