OS-X25S225 Xilinx Spartan 7 FPGA Beginner Development Board Core Board for Embedded System Learning

OS-X25S225 Xilinx Spartan 7 FPGA Beginner Development Board Core Board for Embedded System Learning

$608.94

$608.94 $0.00

Color Core Board Kit 1 Core Board only Carrier board only Core Board Kit 2

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Product Information

1. Pre-purchase Notice

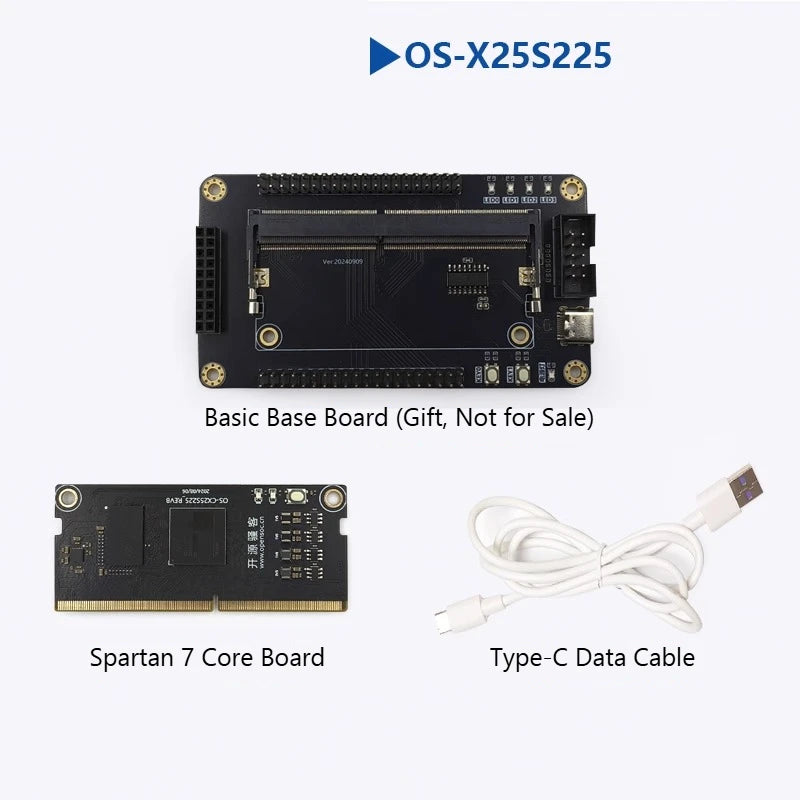

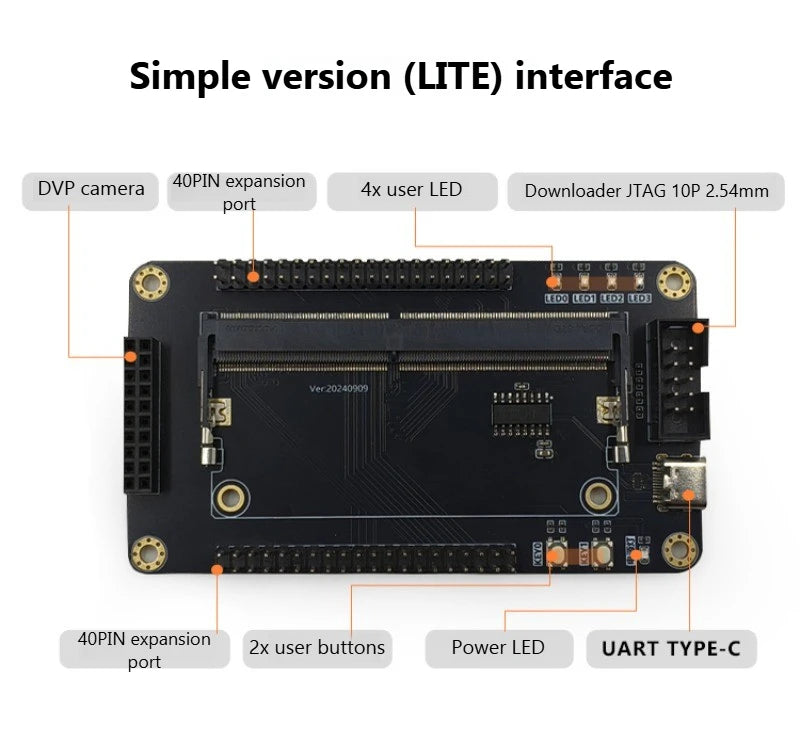

The OS-X25S225 development board adopts the Spartan7 series chip from AMD/Xilinx, with the model XC7S25CSGA225-2. The Xilinx Spartan-7 chip is a cost-effective Field-Programmable Gate Array (FPGA) chip, known for its high performance, low power consumption, and small size. The OS-X25S225 development board is designed with a structure of core board + base board. The base board has two versions: lite and full. Due to the differences in their interface resources, there are also differences in subsequent algorithm implementation. You can choose to purchase according to your own needs.

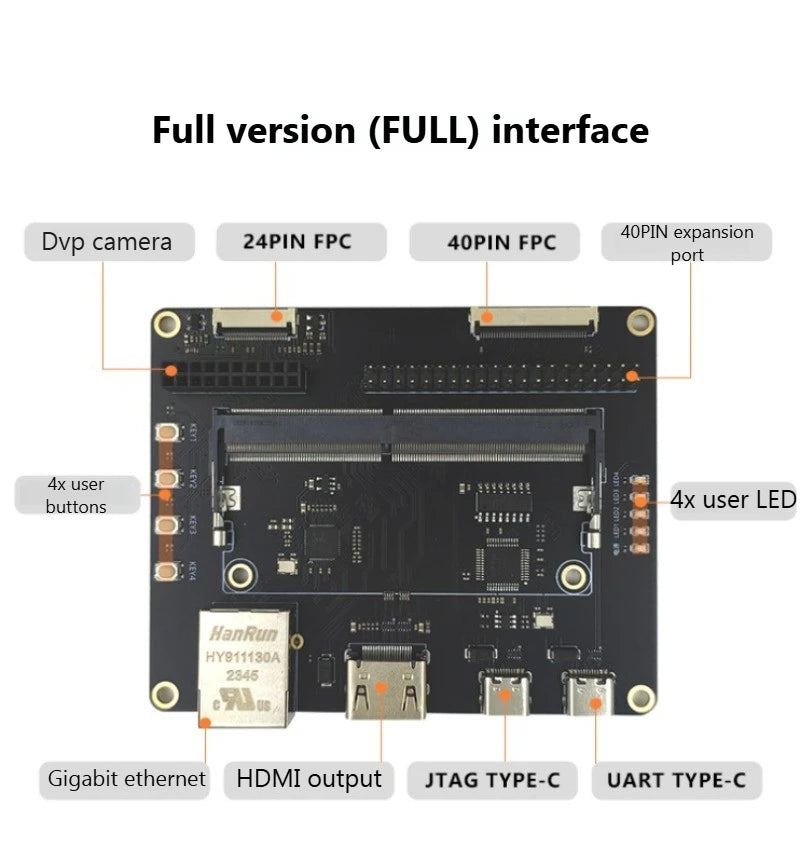

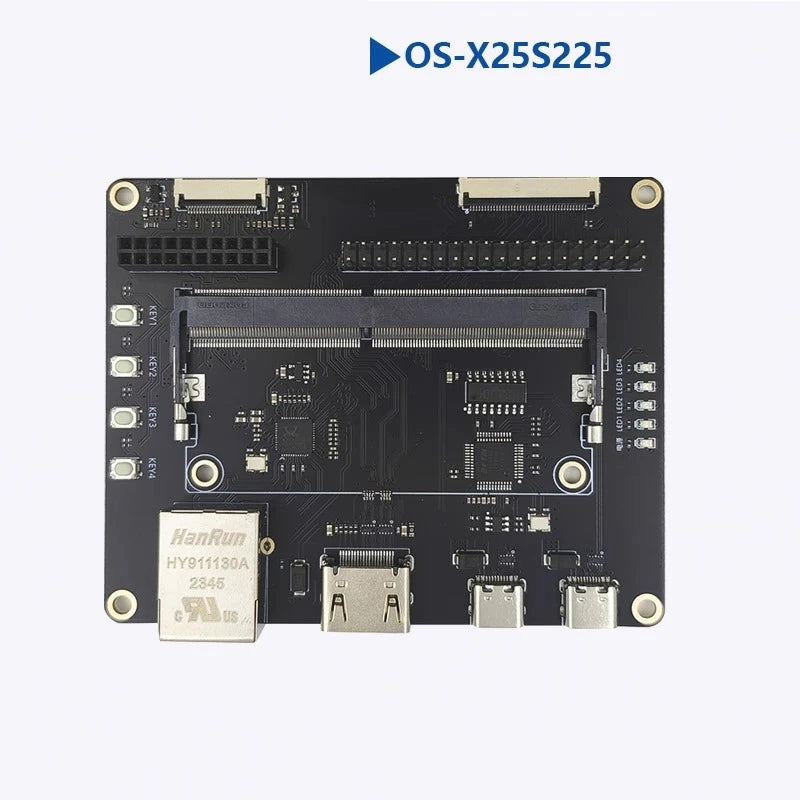

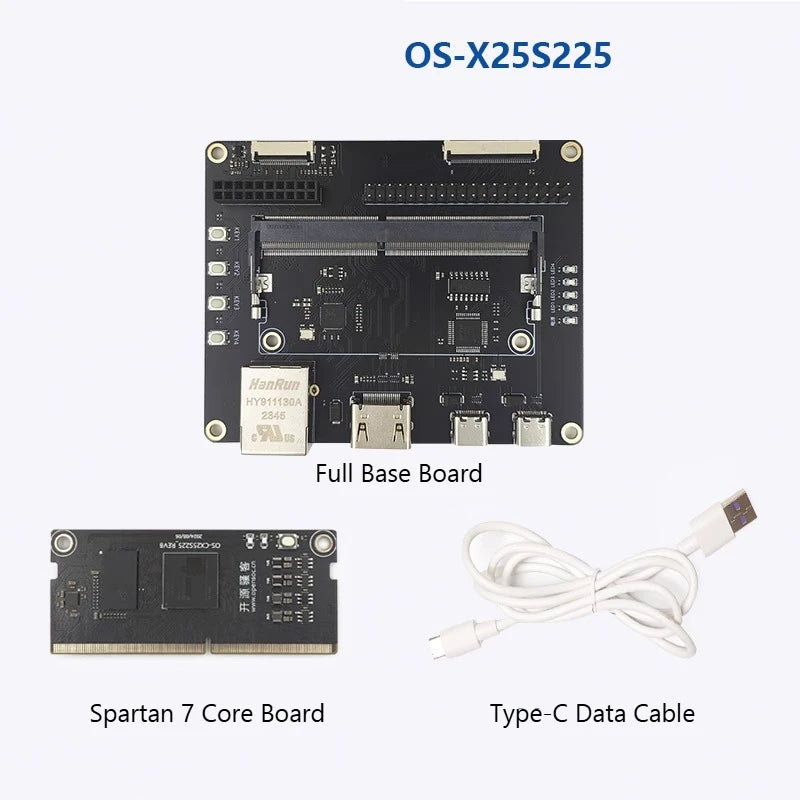

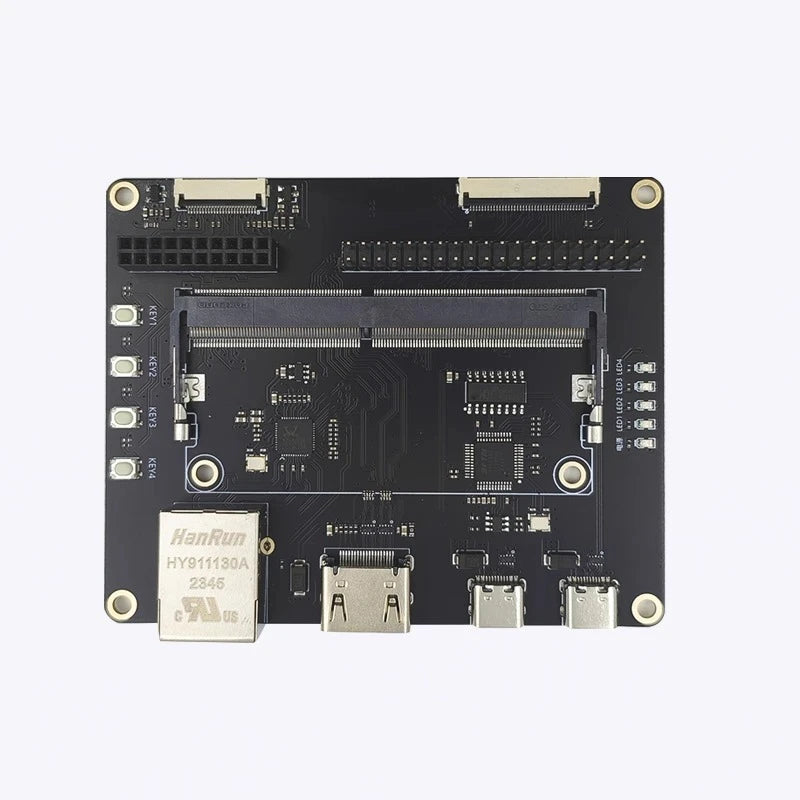

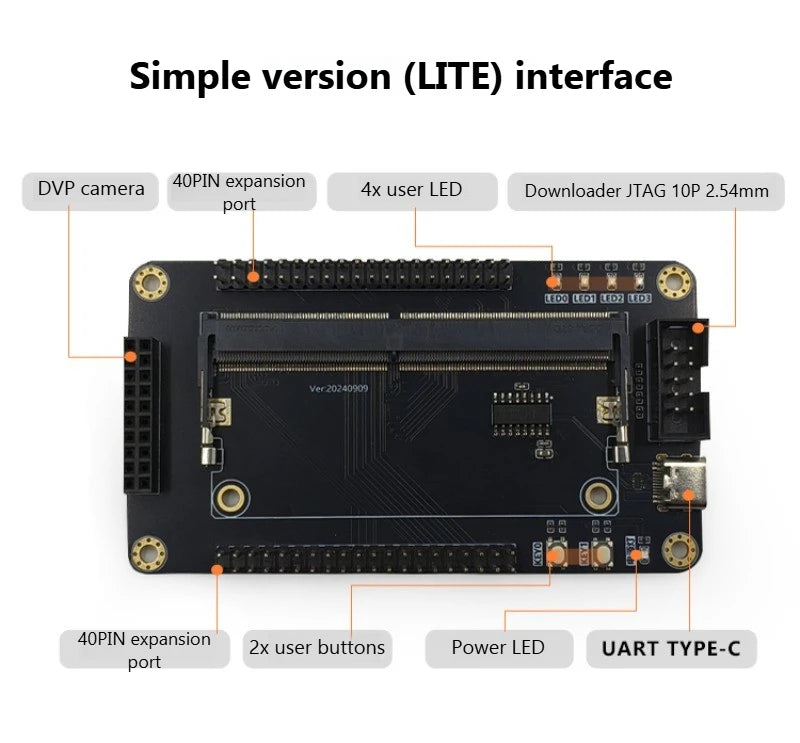

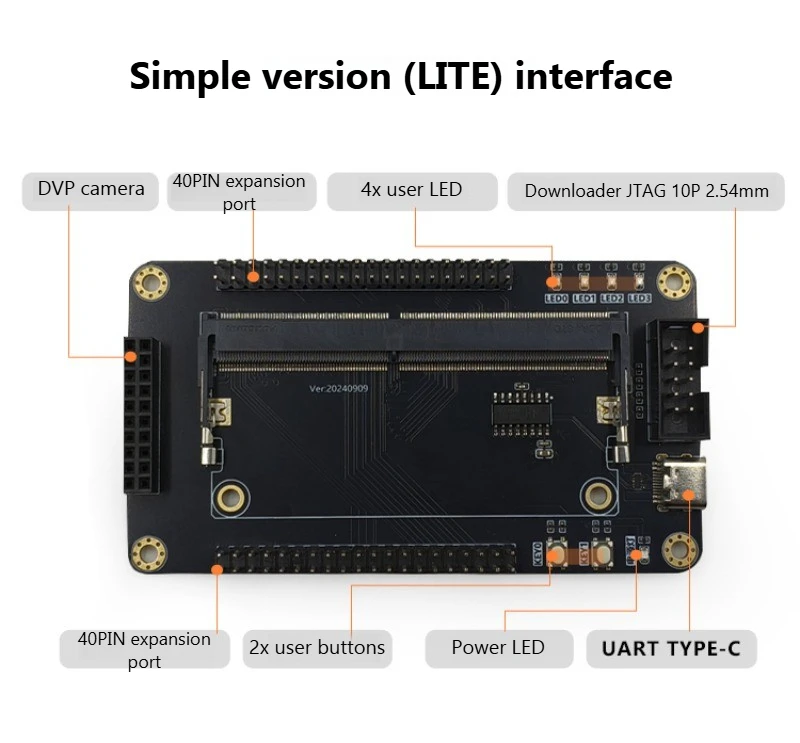

2. Rich Interface Resources (Full Base Board)

The full base board expands 1 DVP camera interface, 1 FPC camera interface, 1 40PIN expansion port, 1 FPC 40PIN expansion port, 1 UART, 1 Gigabit Ethernet port, 1 HDMI output interface, 1 on-board JTAG interface, 4 LED lights, and 4 user buttons for the core board, facilitating users to conduct quick verification. It also carries a downloader. This development board focuses on being refined and beautiful, small but complete, with extremely high cost-effectiveness!

Integrated Downloader: The full base board includes an on-board JTAG circuit, which can be directly connected to the PC via a TYPE-C interface, and programs can be directly downloaded and debugged in the PC development software.

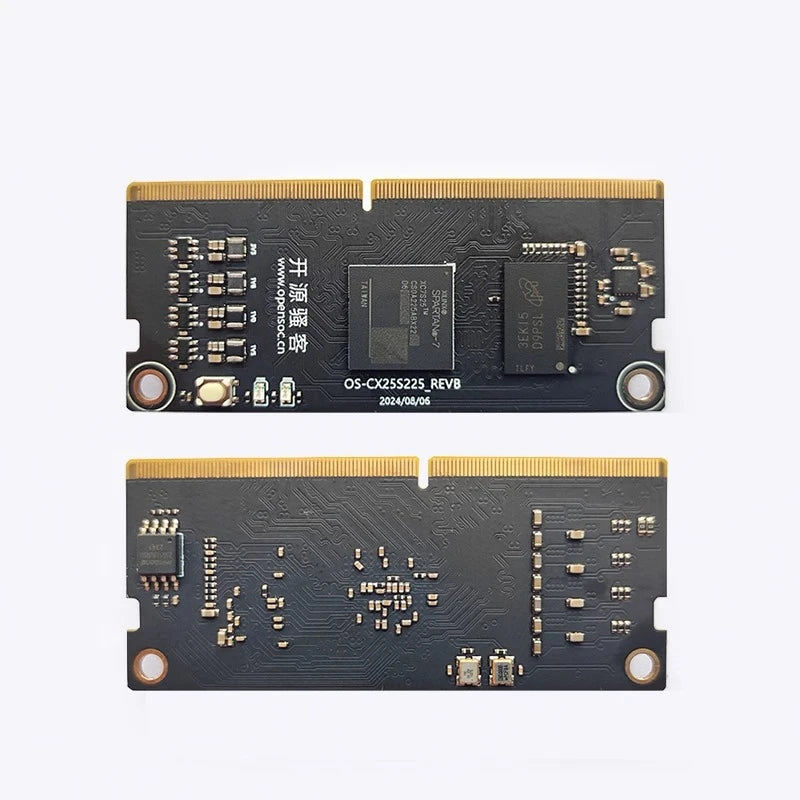

3. Core Chip and Storage Resources

DDR3 Chip: The data width is 16bit, the capacity is 2Gbit, and the data clock frequency is as high as 400MHz, which can meet the needs of high-bandwidth data processing.
QSPI FLASH Chip: With non-volatile characteristics, it can be used as the startup image for the FPGA system, storing FPGA bit files, application code of soft cores, and other user data files.
Core Board Chip (XC7S25): It belongs to the Spartan7 series XC7S25CSGA225-2, with package CSGA225, speed grade -2, 150 IO ports, 3 PLLs, 1.6Mbit BlockRam, 14600 look-up tables, and 23K logic cells.

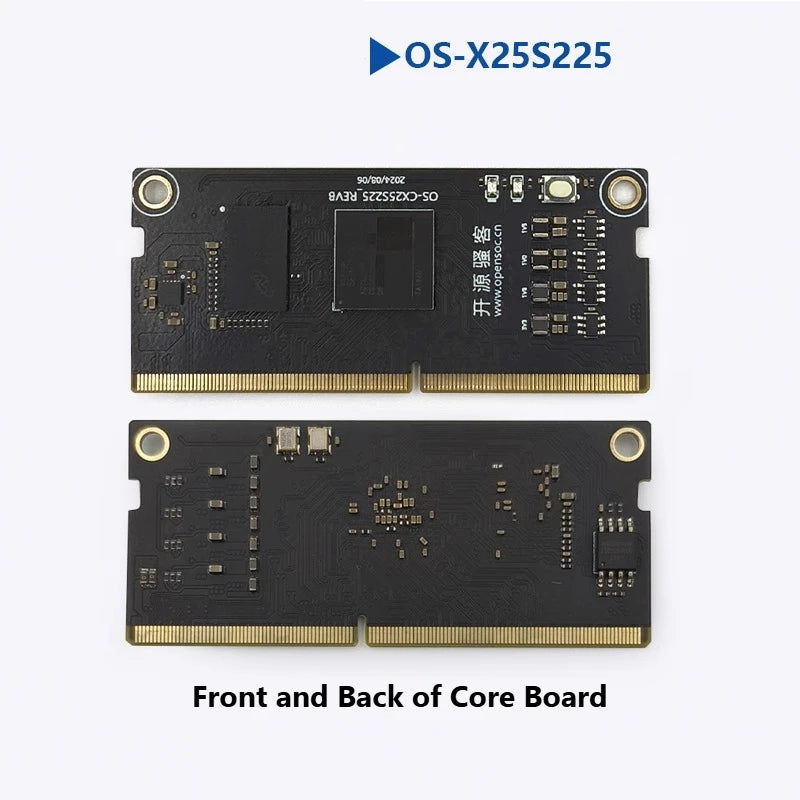

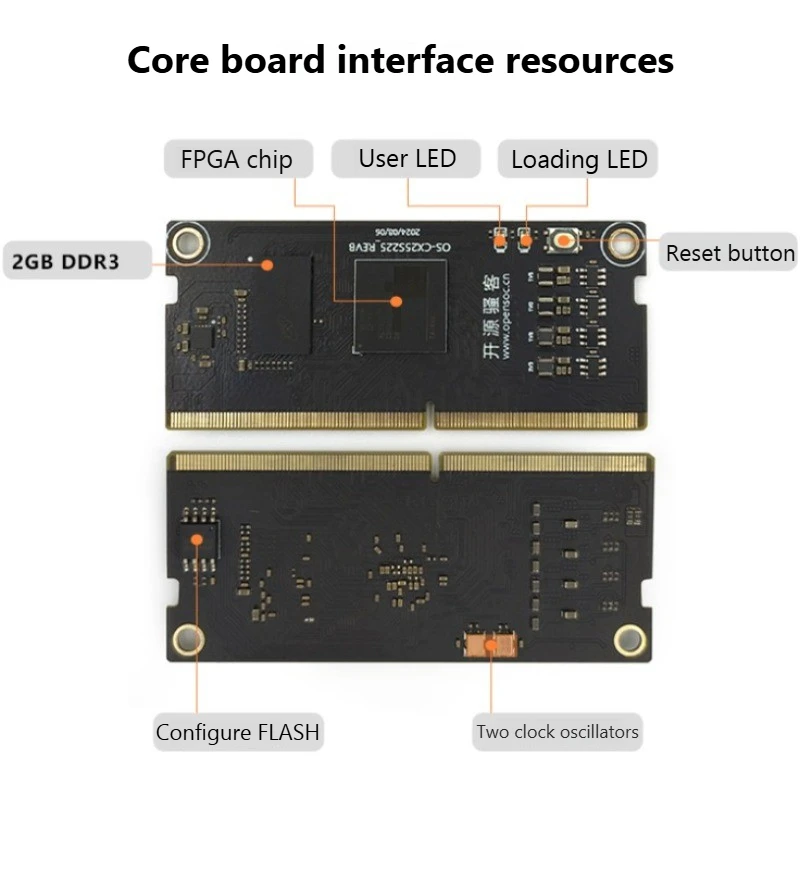

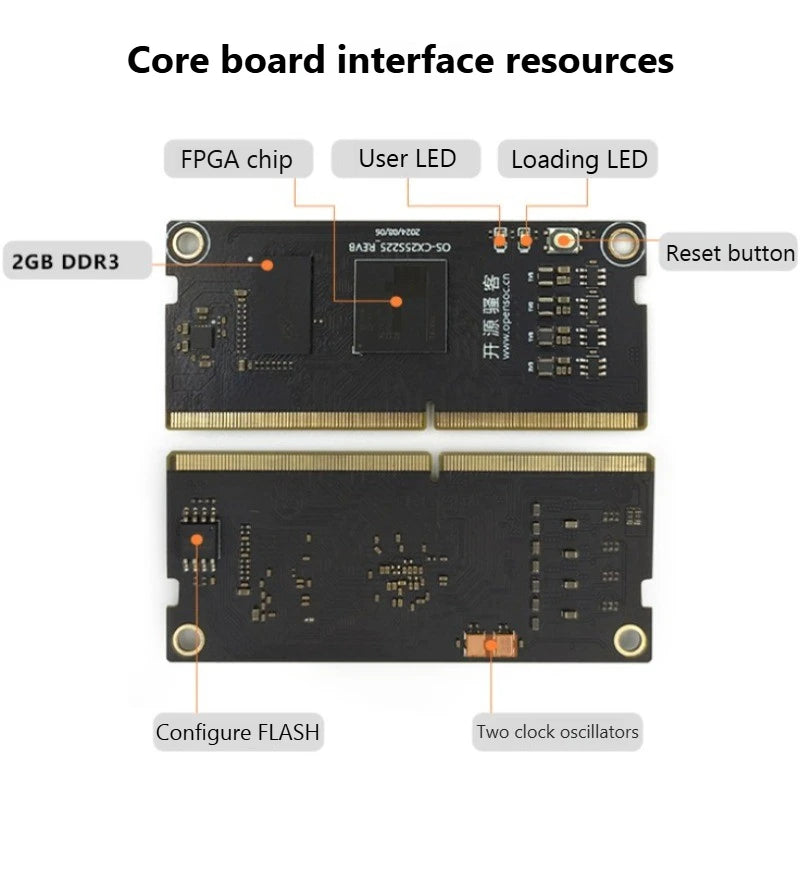

4. Core Board Resource Parameters

Storage Resources: DDR3 (16bit width, 2Gbit capacity, 400MHz frequency); QSPI FLASH chip (128Mbit capacity)
Crystal Oscillator: 24MHz clock crystal oscillator & 50MHz clock crystal oscillator
LED Lights: 1 loading completion indicator light & 1 user LED light
Button: 1 reset button
Voltage: 5V

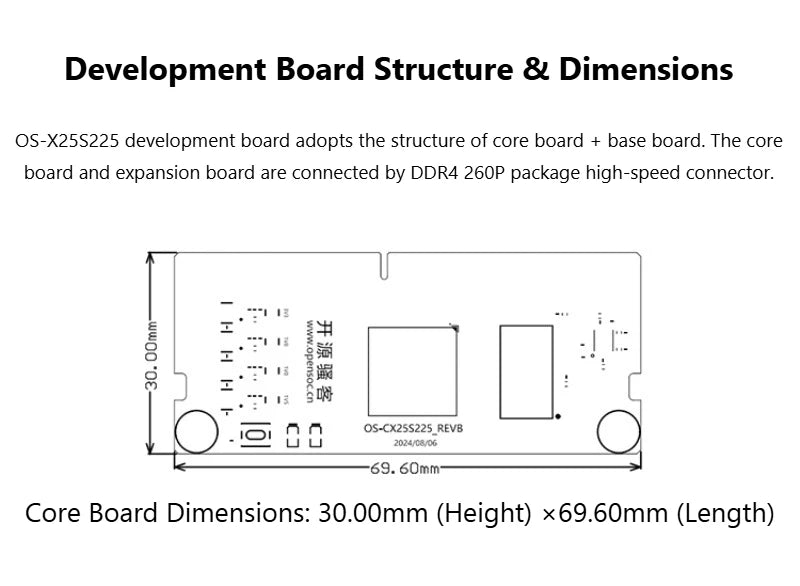

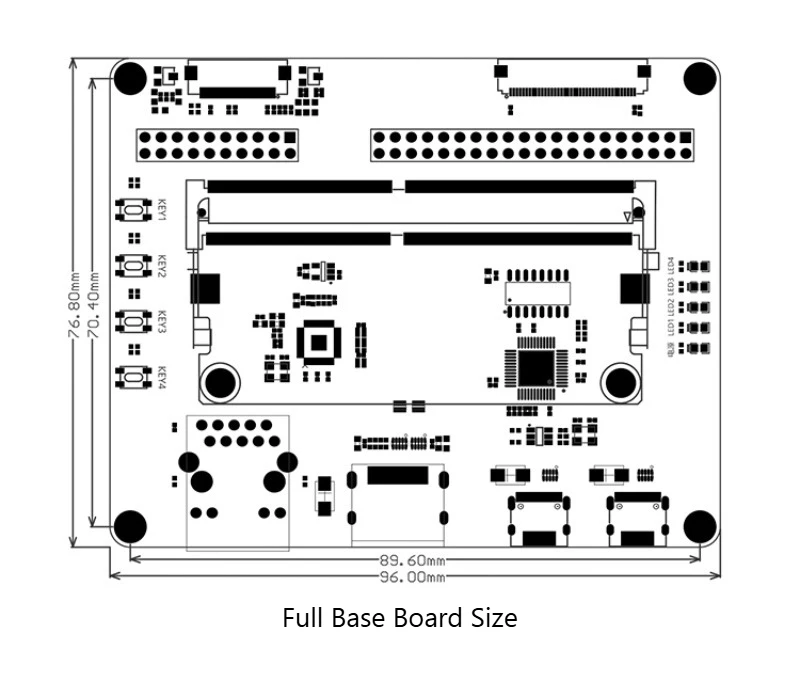

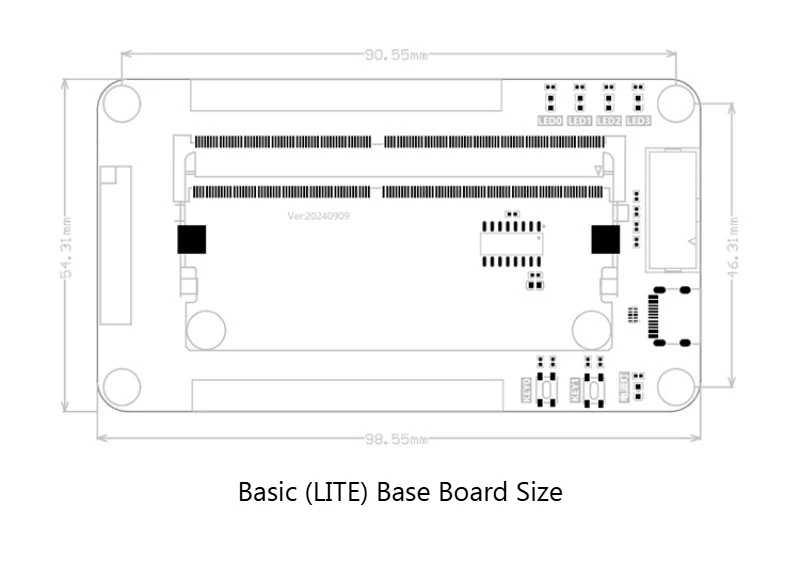

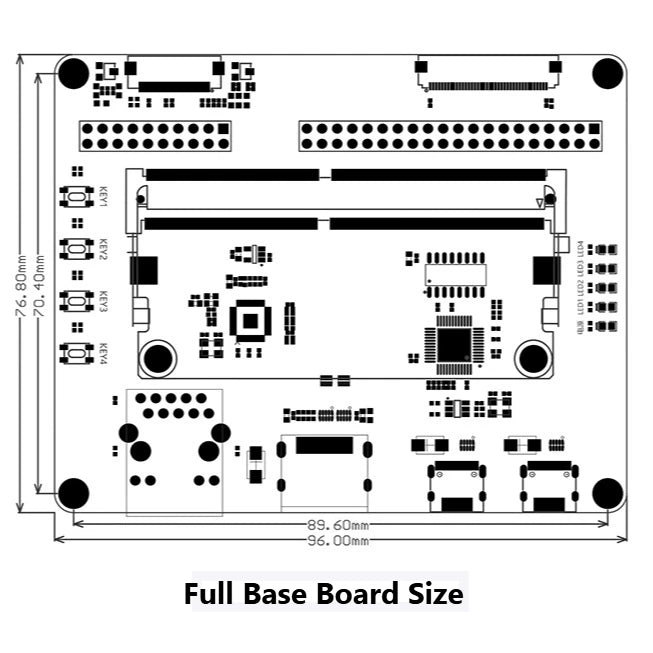

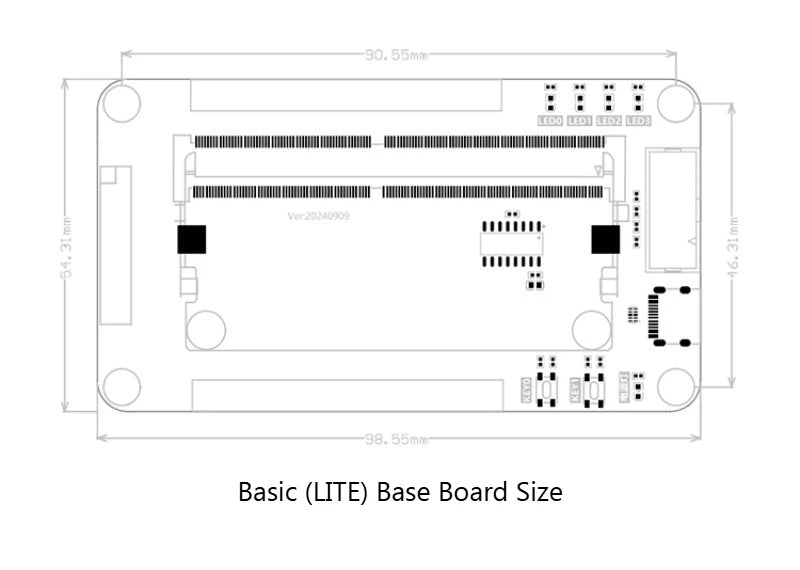

5. Development Board Structure & Dimensions

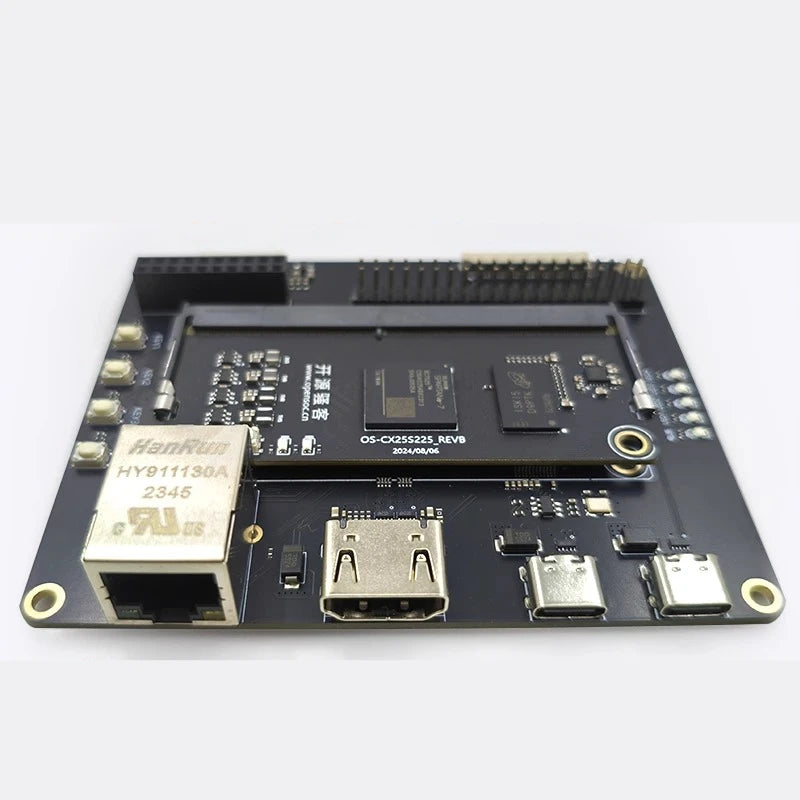

The OS-X25S225 development board is designed with a structure of core board + base board. The core board and expansion board are connected by a DDR4 260P package high-speed connector. Core board dimensions: 30.00mm (height) × 69.60mm (length).
