SPECIFICATIONS

Brief introduction

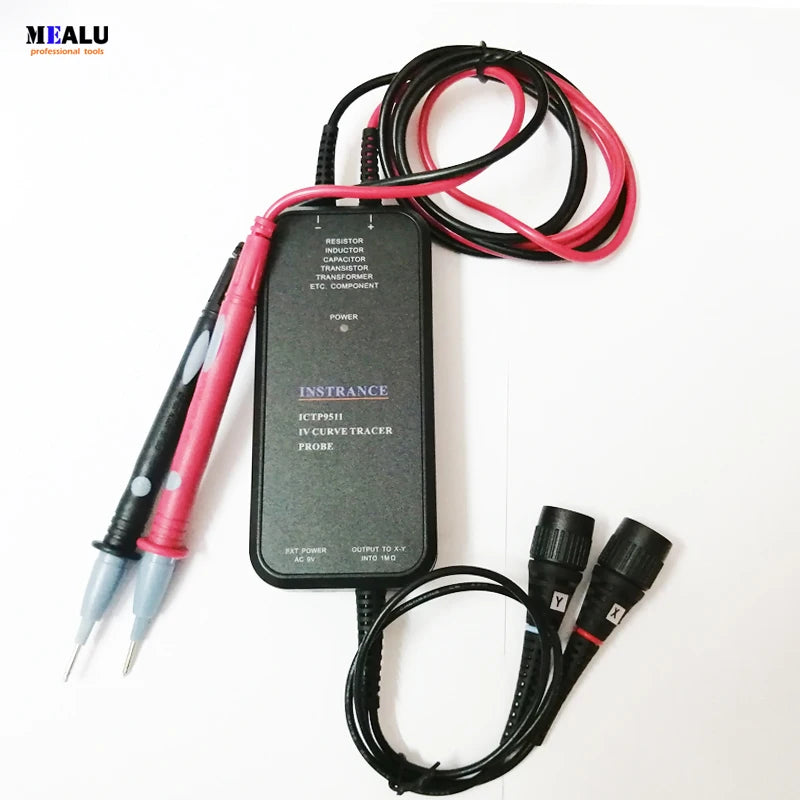

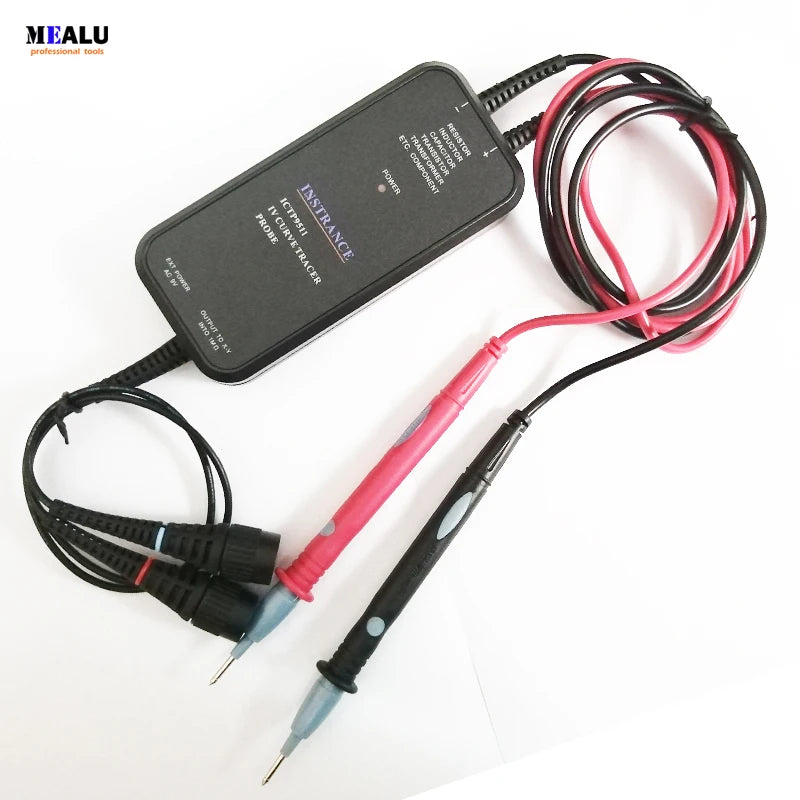

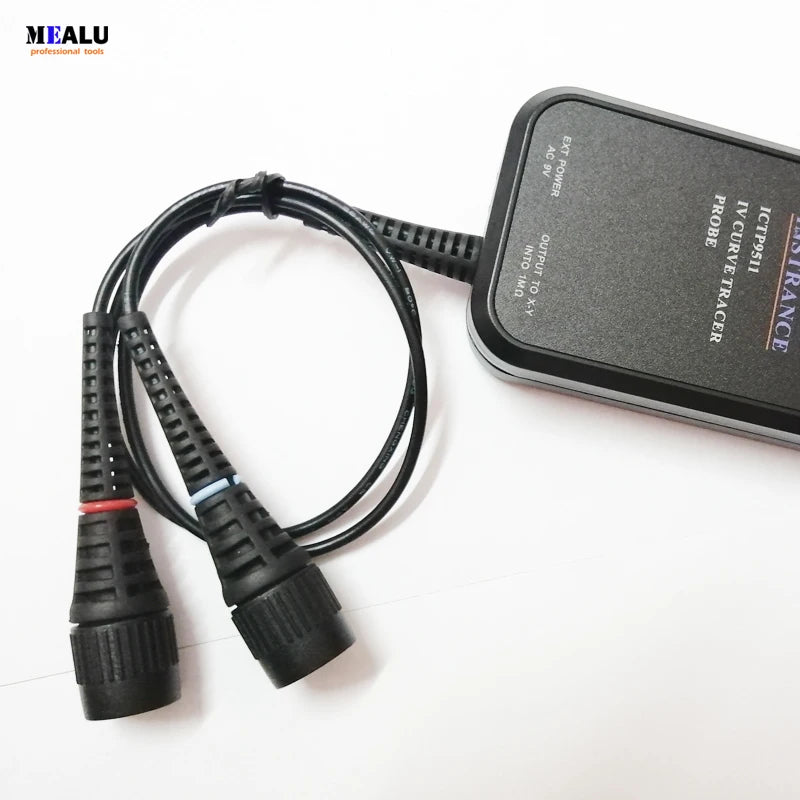

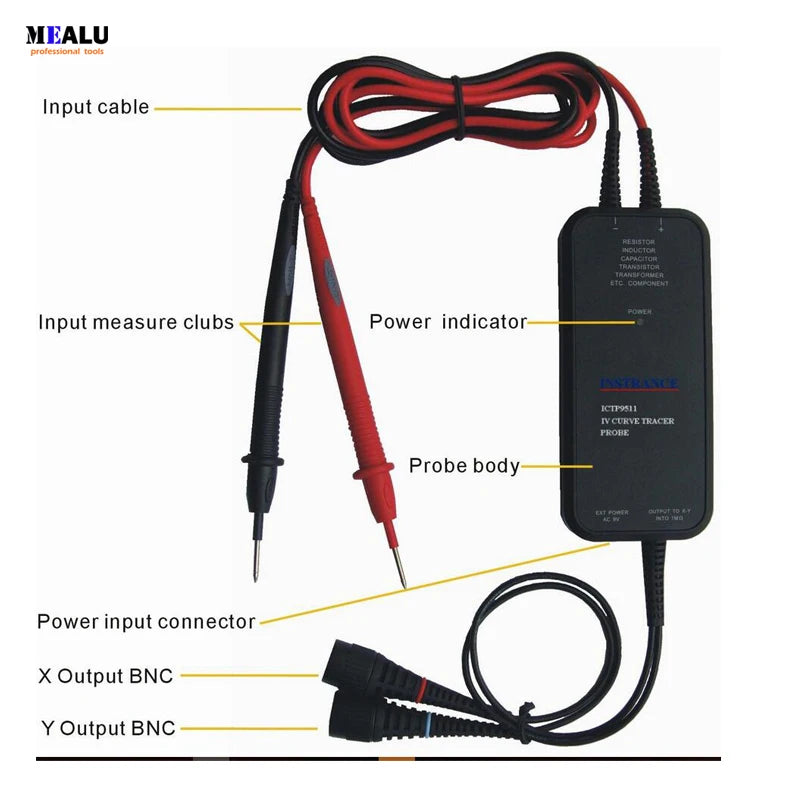

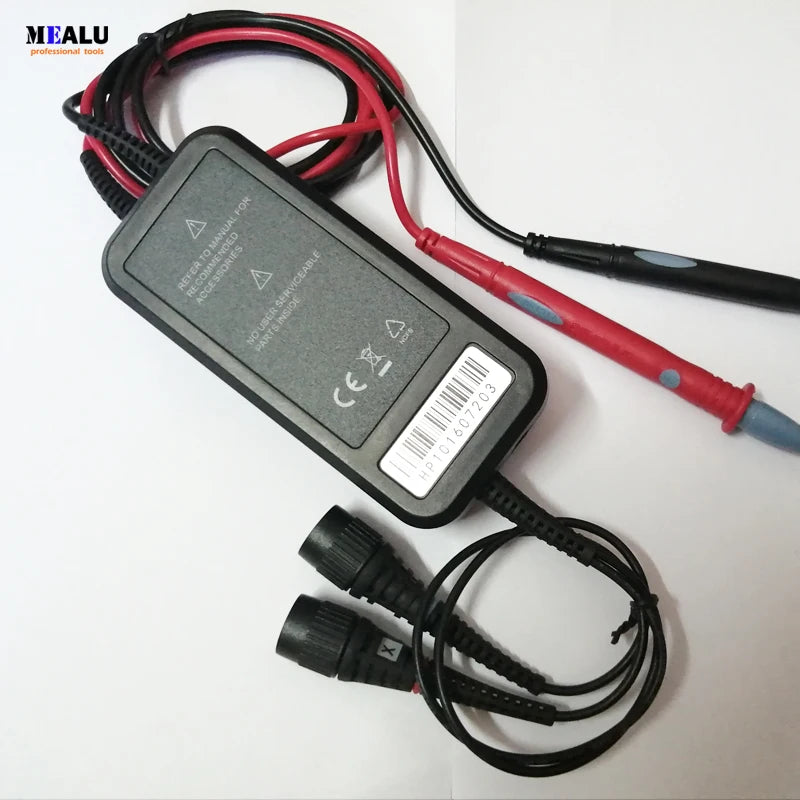

ICTP9511 IV curve tracer probe is usually used with an oscilloscope. Display the I-V curve trace of measured object on the screen of oscilloscope to measure or analysis the resistance, inductor, capacitor, transistor, transformer etc. component. It also can be used to analysis the various parameter of circuit.


If you want to verify or repair a PCBA or a wrong instrument, comparison to a golden board could be very smart approach in daily practice. When you can use it expertly, the efficiency will be  much higher than multi-meter and routine probe.


Perhaps the most excellent is that the ICTP9511 could be used while the object PCBA or instrument could not be allowed to energize or power on. In fact, we often confront these conditions. For example, if a wrong instrument be powered on, the faults maybe augment and increase the loss.


It may be used at the following location usually:

• Check general component & components combination

• Check transformer or motor coils

• Check and repair PCBA

• Check and repair electronic instrument

• Measure and Analysis the circuit parameter

• Basic electronic experiment

Main Specifications

Example I-V curve trace for some components：

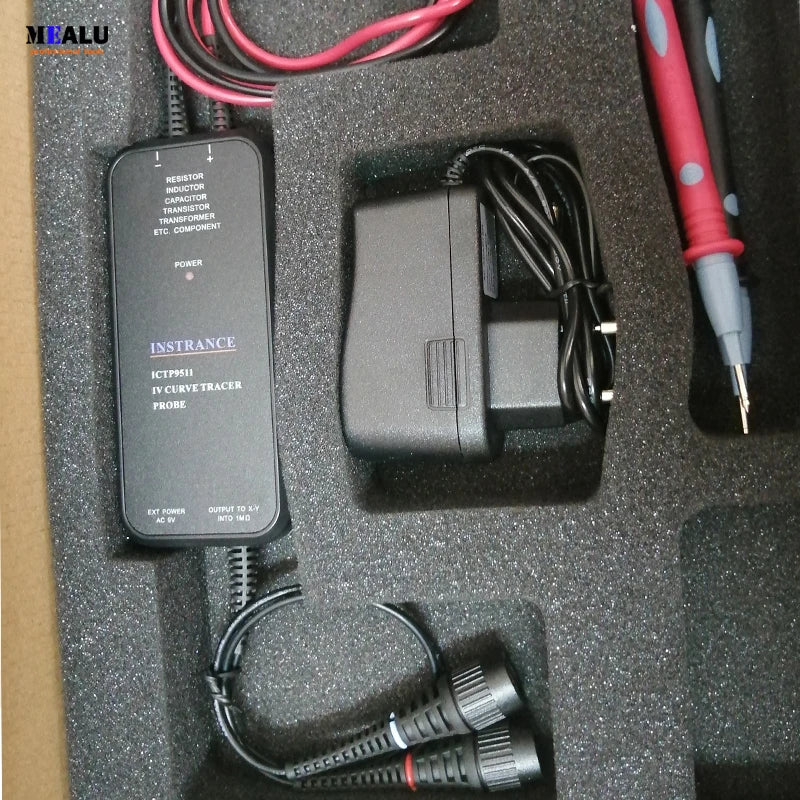

Packing list:

• 1pcs ICTP9511 probe

• 1pcs Instruction manual

• 1pcs AC adapter

Preparation for use

Please check the line voltage prior to connect the AC adapter to the electric outlet. The line voltage should be coincident the following list. If the incorrect line voltage is used, it will damage the product and the AC adapter.

Warning：Use only the AC adapter specified for this product to

avoid injury and prevent damage to this product.
