SPECIFICATIONS

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Model Number: OUT-400-C

Origin: Mainland China

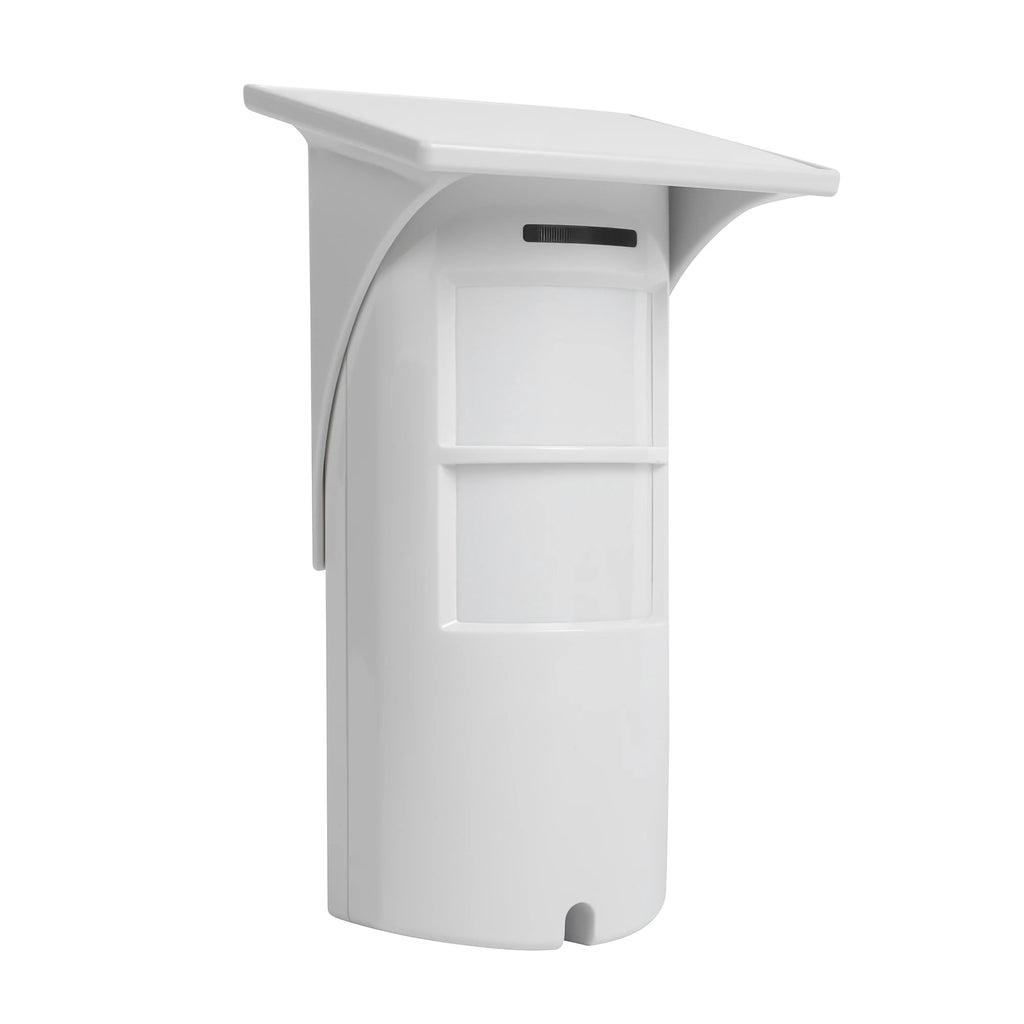

Product name: Outdoor Wired Microwave PIR Motion Sensor

Smart home platform: Other

anit-pet weight: 25KG

detection range: 12 meter 100 degrees

Outdoor Wired Dual Tech Microwave PIR Motion Sensor DC12V Pet Immune NO NC Alarm Output Home Security

Product Introduction:

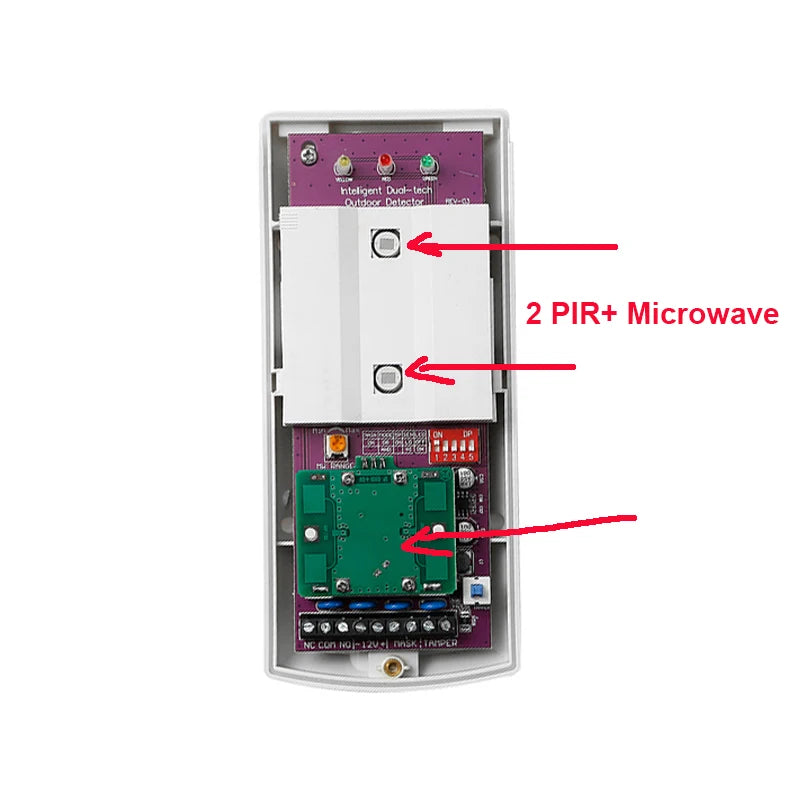

This detector is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Signals of 3 sensors are with super stability and depend-ability by its advanced multi-grades digital signal processing technology.And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal“AND"and“OR " modes,The detector is also with“EI" mode to avoid the damage of dopes spraying on the lens.Its unique water-proof design is totally fit for outdoor installation.At the same time, detector is also with other functions such as anti-masking automatic setting and alarm type memory etc.

Parameter:

-Two PIR and MW detection tech

-Automatic setting of anti-masking

-Microwave synchronization

-Detection mode: - EI-OR - AND

-Selectable detection sensitivity

-Alarm type memory

-Anti white light

-Anti-pet ≥25kg

-Alternative Led OFF

-Micro-strip MW with pulse transmission

-18 beams Fresnel lens with down

-view window on its 4 planes

-Vertical adjustment

-Air-proof optical parts-Wall inlay

-Total view:90° ， Monitoring scale: 15m

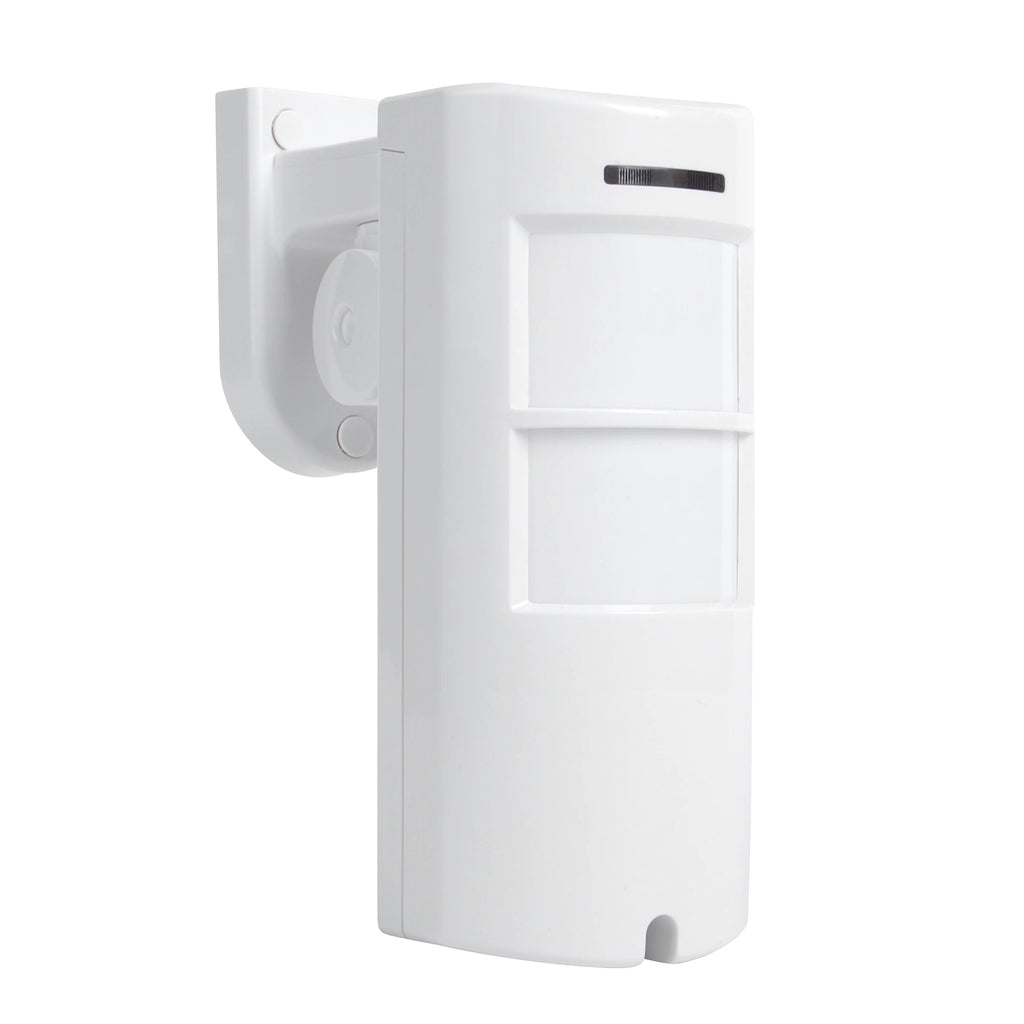

-Corner and wall installation. Universal connector

- Universal connector for option,

-90 ° horizontal adjustment 30° vertical adjustment

Specification:

Power supply: 12-24VDC

Current: 30mA

Install high: 1.5m.-2.4m

Mw frequency: 10.525GHz

Alarm time: 3s

Anti RFI/EMI: 0.1-500MHz/3V/m

Anti-white light: >10000LUX

Alarm output: 100mA/24V

Mask output: 100mA/24V

Temperature: -25℃/+55℃

Humidity(RH): 95%

Sensitivity: H/L Select

Detect speed: 0.2m/s to 3.5m/s

Dimensions (H*W*D): 160mm*65mm*50.5mm

Coverage: 12m×12m 100°

Reminder:

This wired sensor can't work alone, it can work with all alarm panel which support wired zones.

package Content:

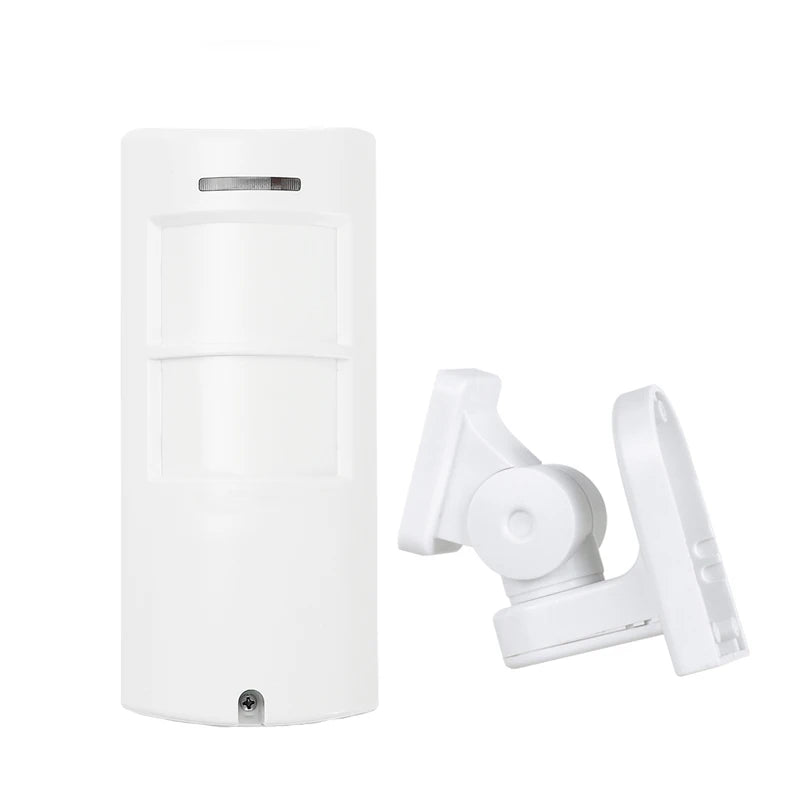

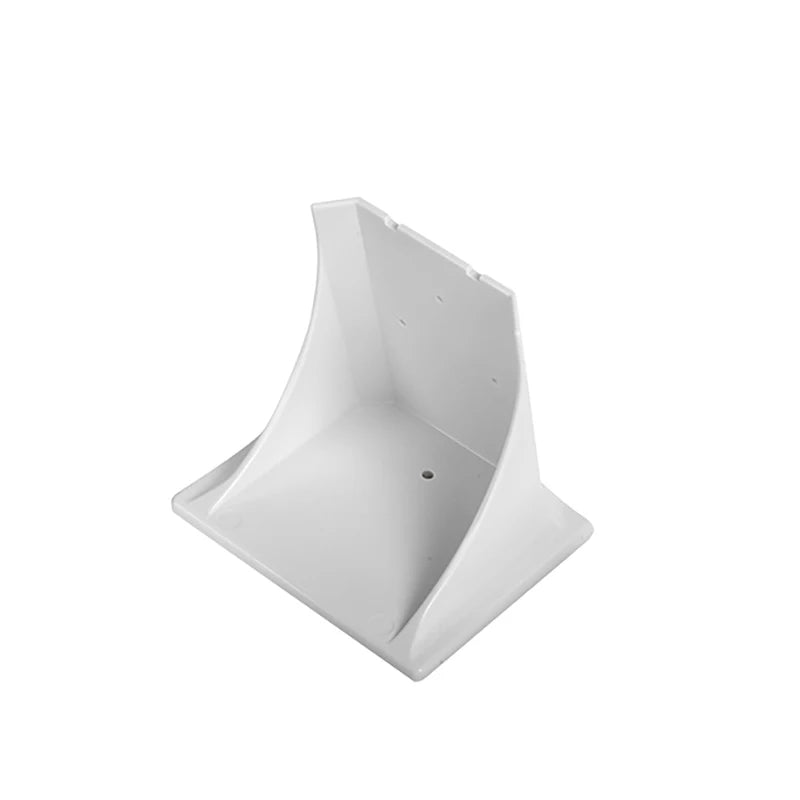

 1pc outdoor wired infrared + microwave motion sensor ( including bracket,screws and English manual).
