SPECIFICATIONS

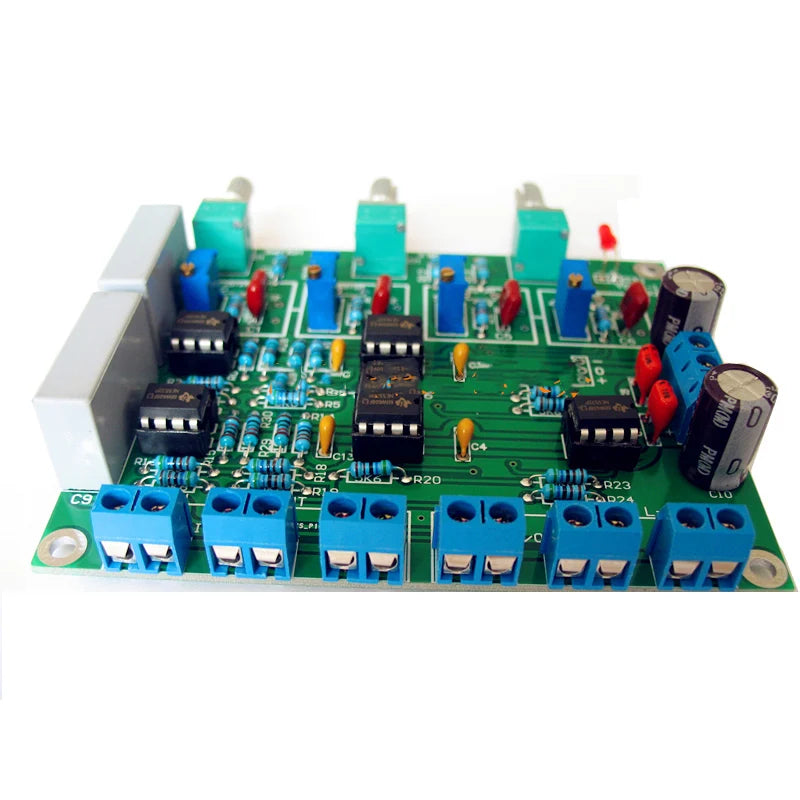

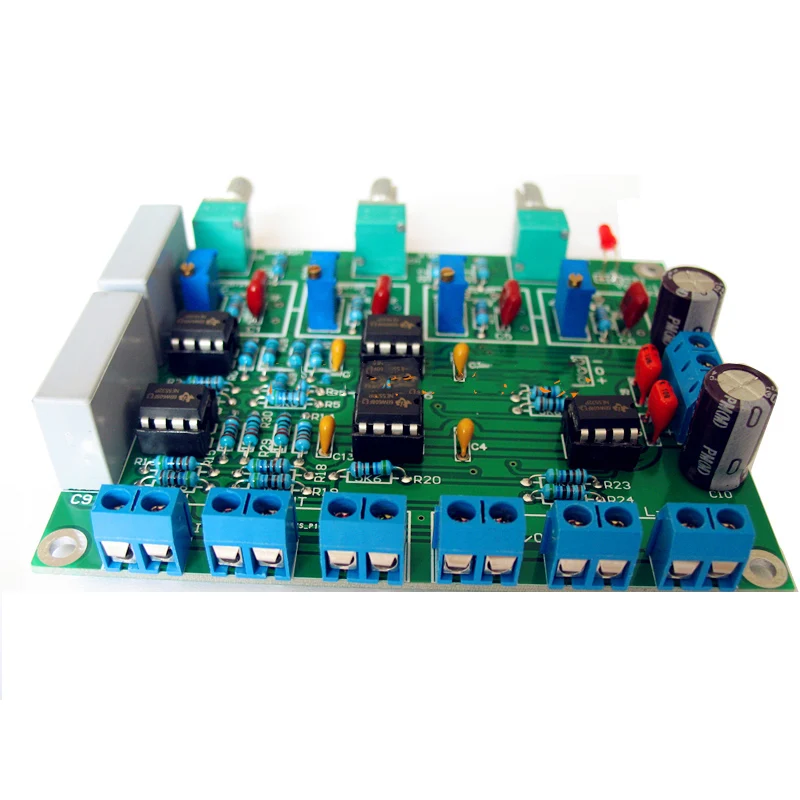

Preamp Electronic 2 Way Crossover Board Audio Speaker Frequency Divider Board 72hz-7230hz Linkwitz-Riley Home Theater

This is the biggest highlight of the work is that you can change the crossover point of the two-way crossover board without replacing components. This is a great convenience for friends who have difficulty determining the crossover point of their speakers. You can use it to easily adjust the crossover frequency of the board output,listen carefully,and find the best satisfactory crossover point,no longer tangled with the inappropriate crossover point. (A digital multimeter,plus simple calculations (can provide you with calculation tool software and paper instruction),just adjust the resistance value to the calculated value,accurate to HZ)

Technicial parameters :
1.Filter type: state variable filter
2.Crossover point: freely adjustable
3. Attenuation slope: -12dB / Oct
4,plate structure: stereo four-channel output,the total output (volume),treble,bass output amplitude can be adjusted.
5. Operational amplifier chip: NE5532
6,potentiometer type: 09 type sealed potentiometer + 3296 multi-turn potentiometer
7. Potentiometer spacing: 30mm
8. Board dimensions: 99 * 82mm,mounting hole distance: 92 * 64mm,hole diameter: 3.2mm
9,power supply voltage and current: DC (DC) dual power supply positive and negative 12-15V,DC current is not greater than 48mA (for positive and negative 15V voltage,which is 8mA per op amp)
10. Connector: RCA lotus socket and terminal are optional
