SPECIFICATIONS

NOTE:

8xxMhz:EU868/RU864/IN865

9xxMhz:US915/AU915/KR920/AS923 -1/2/3/4

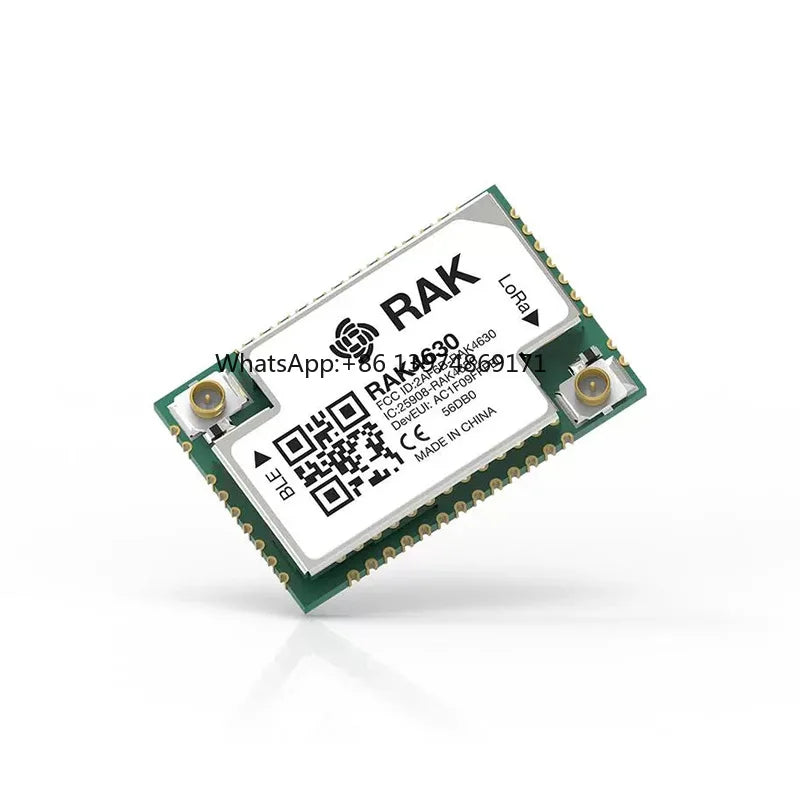

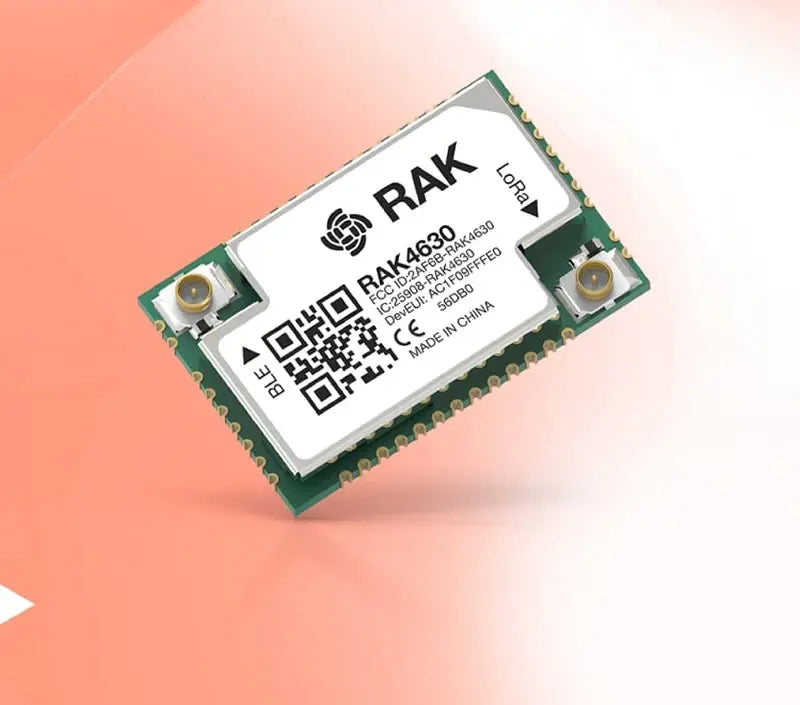

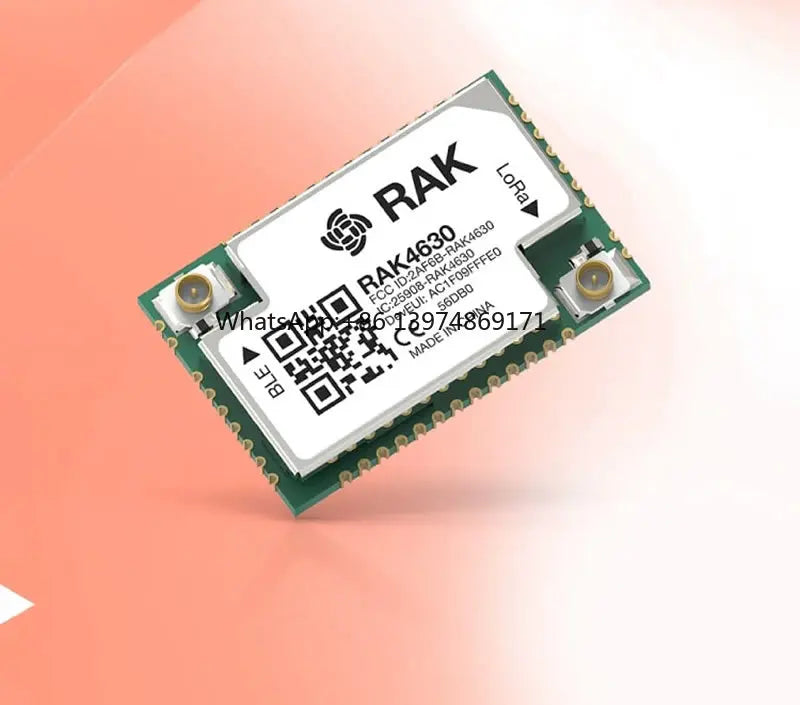

RAK4630 is a low-power, long-distance transceiver module that uses Nordic nRF52840 MCU (supporting Bluetooth 5.0) and Semtech's latest SX1262 LoRa transceiver. This module complies with the LoRaWAN 1.0.3 protocol specification, supports Class A, B, C, and supports LoRa peer-to-peer (P2P) communication mode, making it easy to quickly build custom LoRa networks.

Product Features

Long distance communication

Using Semtech SX1262 transceiver, it provides low-power and high range communication capabilities, suitable for various IoT applications.

Ultra low power consumption

Nordic nRF52840 MCU design achieves ultra-low power consumption operation and extends battery life.

LoRaWAN ® 1.0.3 Protocol

Compatible with Class A, B, and C, ensuring broad network compatibility.

Multiple connection options

Supports I2C, SP1, analog input, digital input and output, making it easy to connect with various sensors and devices.

Flexible development support

Support RUI3 API and AT commands, making it easy for users to customize and develop applications

Specification parameters

• Processor

  • Nordic nRF52840 Ultra Low Power MCU

  • 32-bit ARM ® Cortex-M4FCPU

  • 64MHz CPU clock

  • 1 MB Flash,256 KB RAM

• LoRa characteristics

  • LoRaWAN 1.0.3 protocol (supports ClassA, B&C)

  • Supported frequency bands: IN865, EU868, AU915, US915KR920, RU864, AS923

  • Low power wireless system with bandwidth ranging from 7.8 KHz to 500 KHz

  • LoRa PA boost mode, output power of 22 dBm

• Temperature range: -40 ° C to 85 ° C

• Supply voltage: 2.0~3.6 V

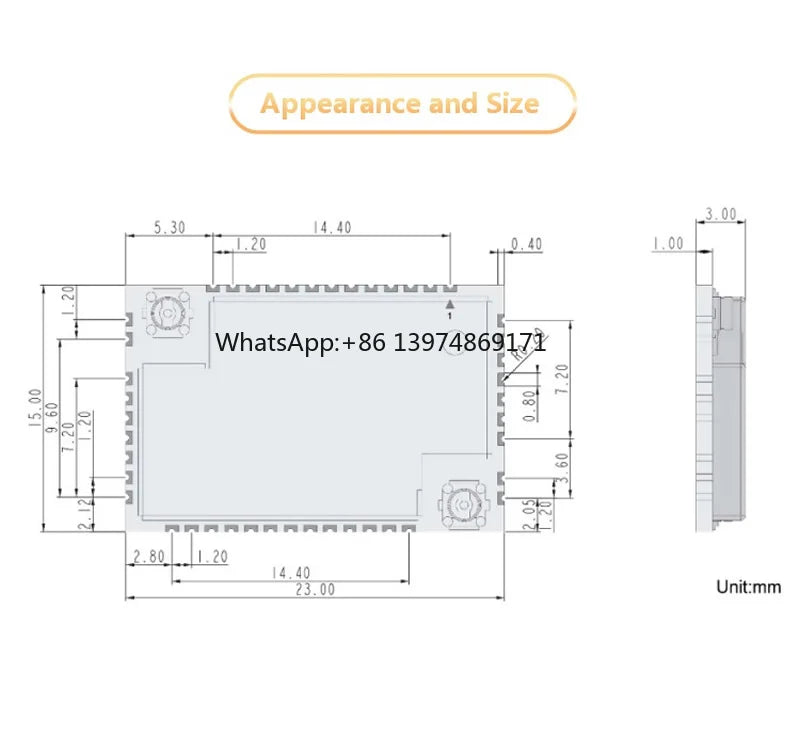

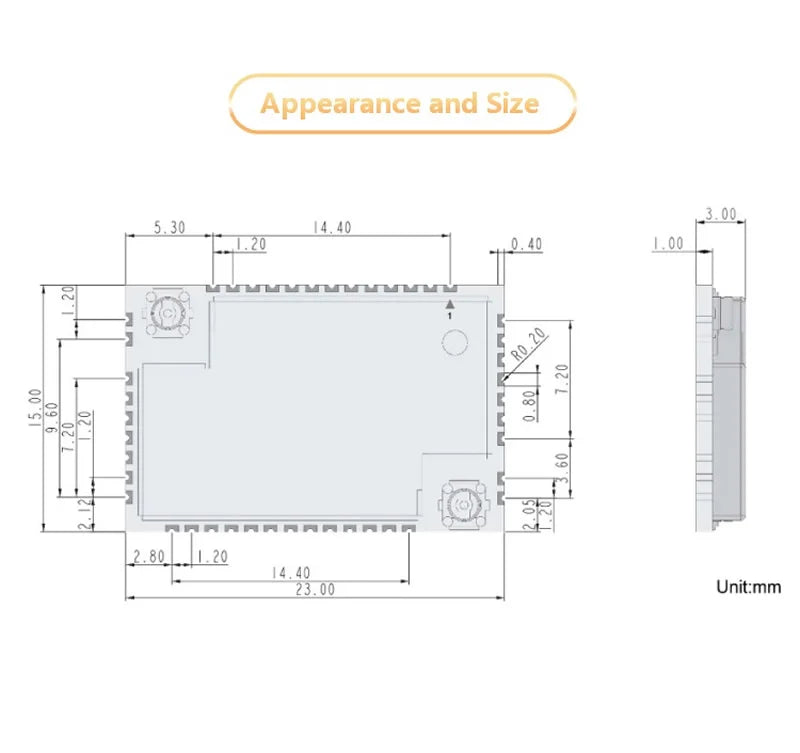

• Size: 15 mm x 23 mm x 3 mm

• Connection interfaces: I2C, SPI, analog input, digital input/output
